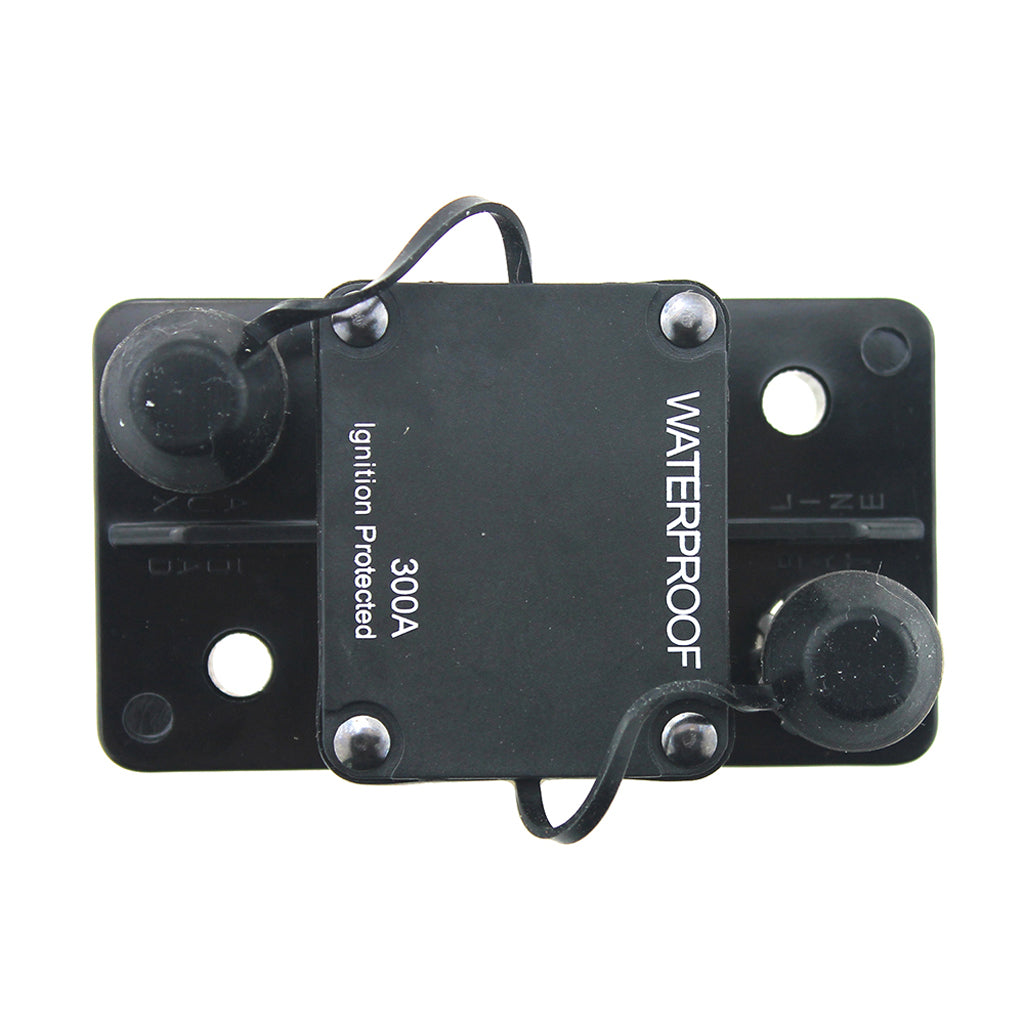

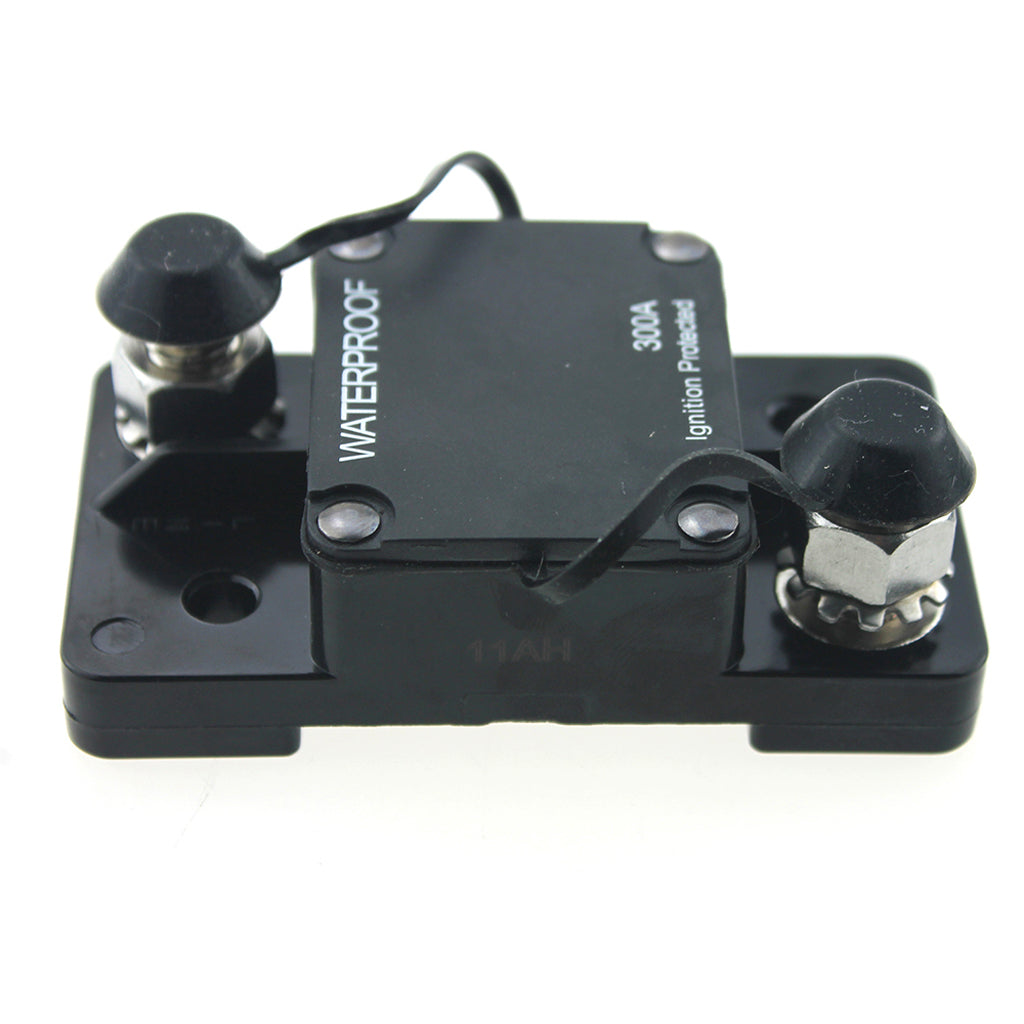

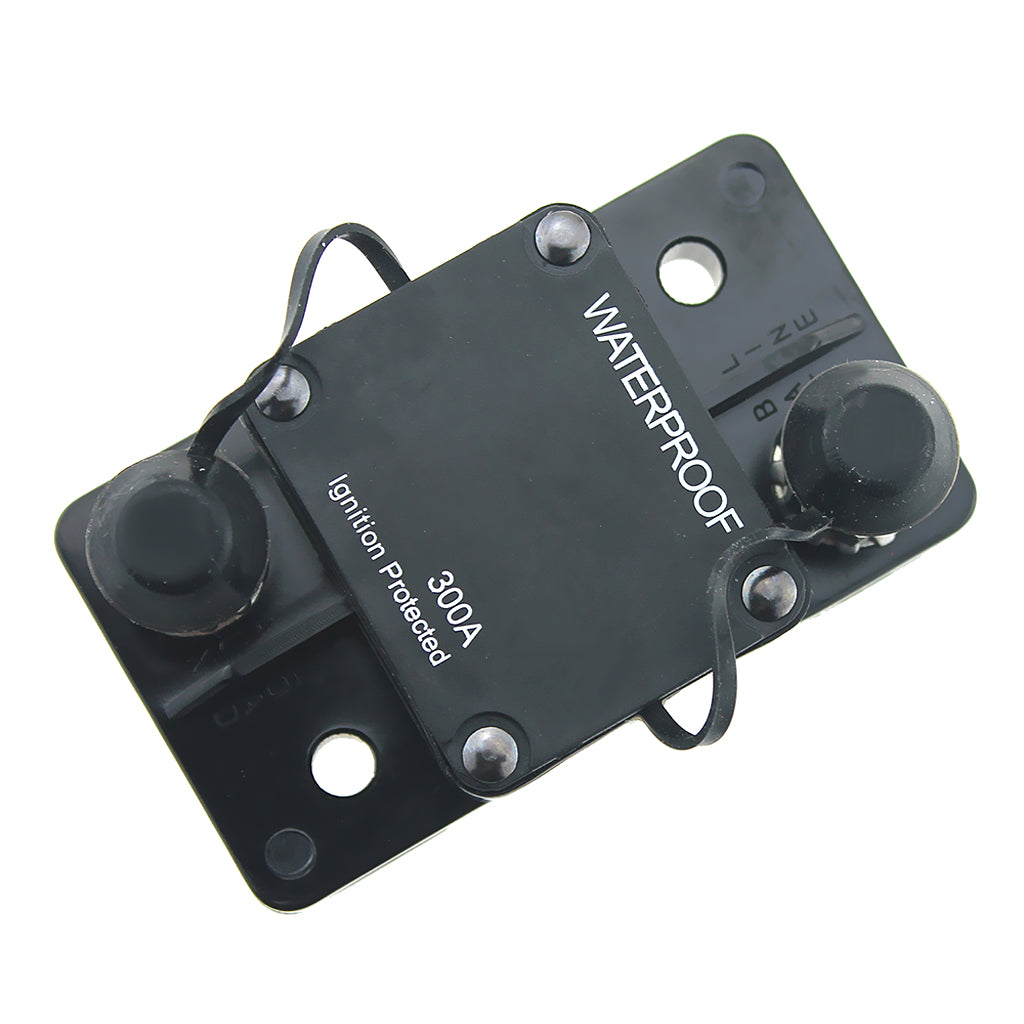

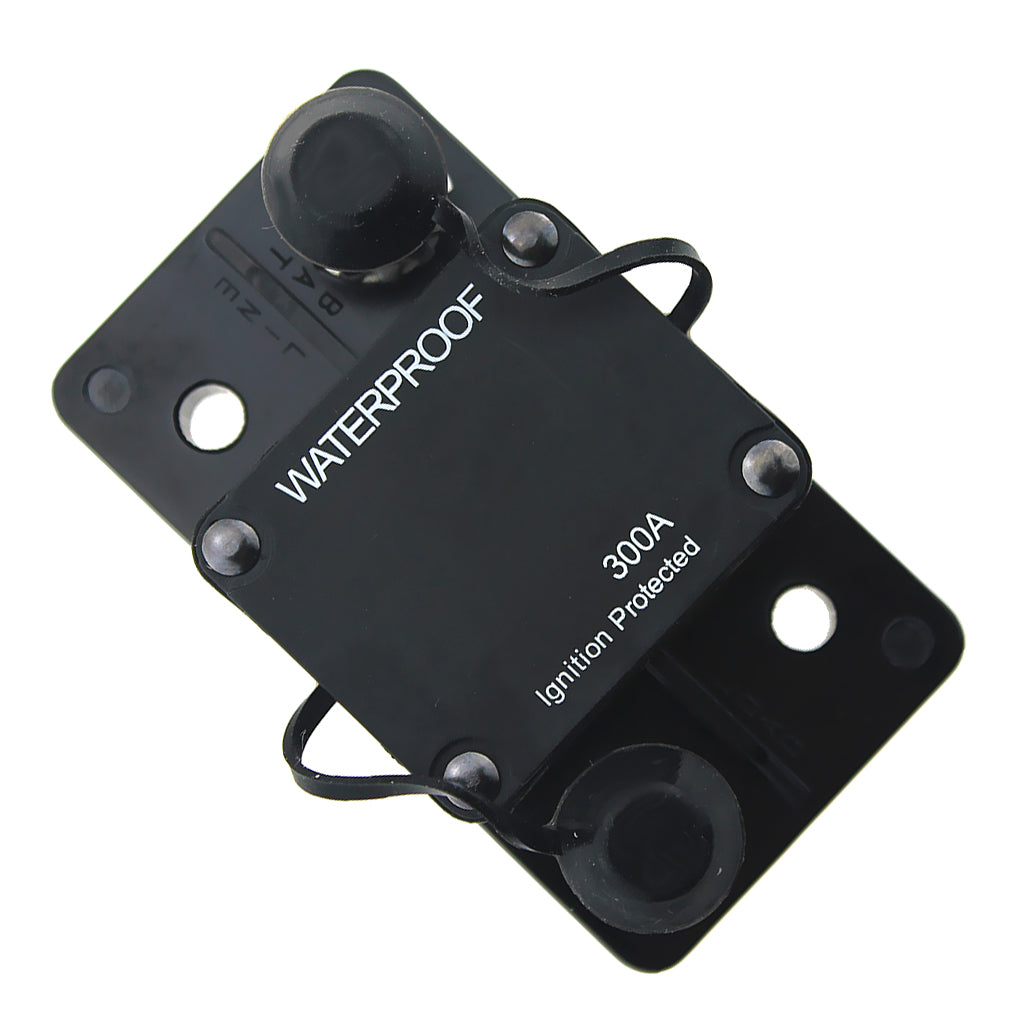

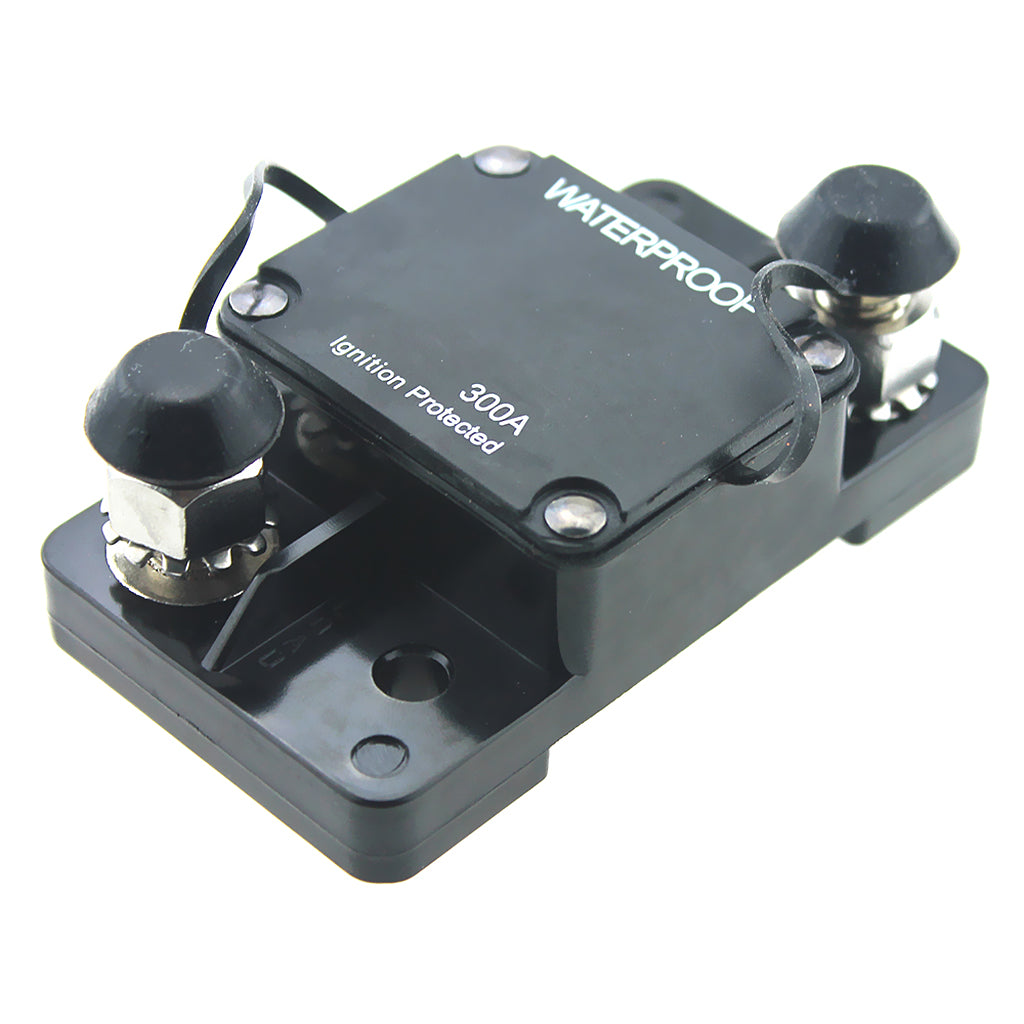

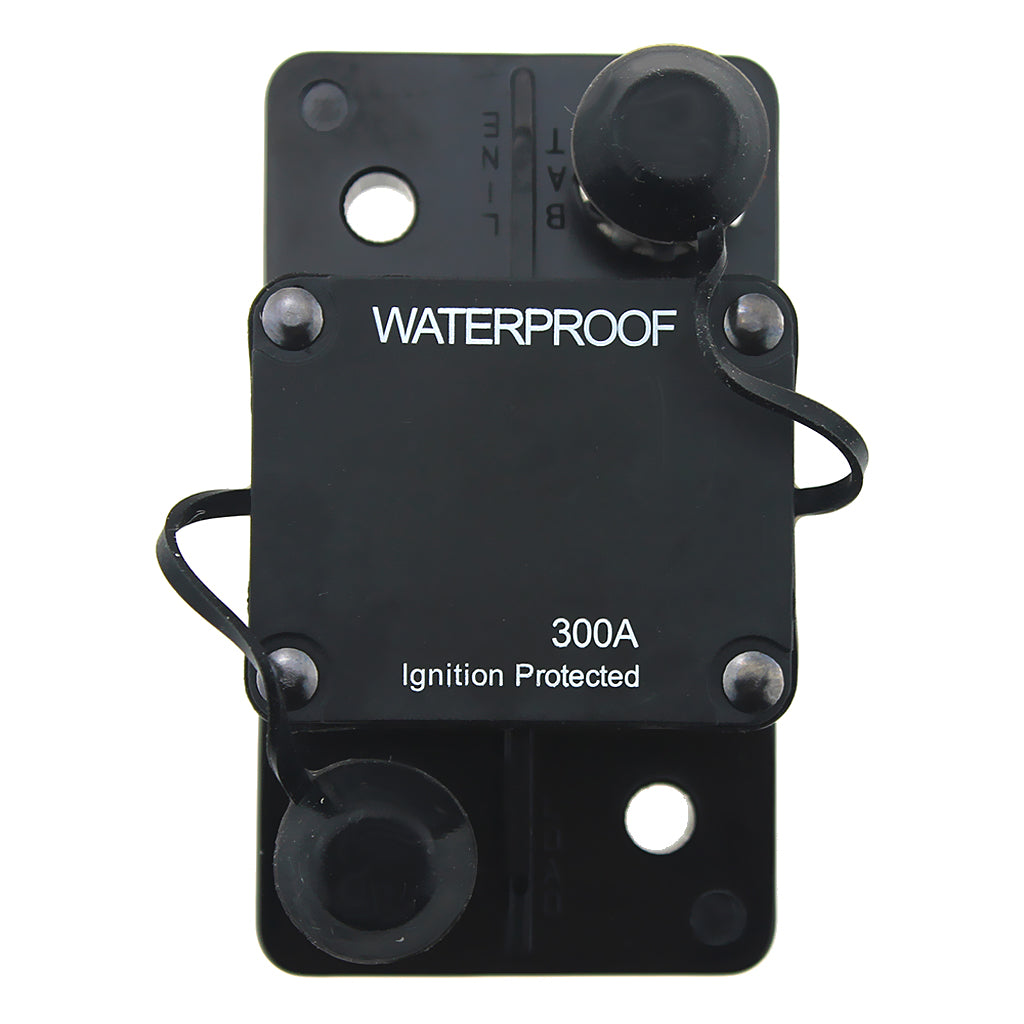

300A 32V Automatic Reset Circuit Breaker for Car Boat Overload Protection

Regular price
Rs. 3,525.42
Regular price
Sale price
Rs. 3,525.42
Earn 1762 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 52007431
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Surface Mount, protective stud insulator included.
Housing is thermalplastic UL rated 94V0
Automatic Reset Circuit Breaker
Can also be used as an on/off button switch for the battery
Ideal for marine boats,caravan, motorhome,etc.

Specification:

Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
Single pole,thermal device
Rating: 25-250A T1@32V DC
Interrupt Capacity: 25-150A 3KA@32VDC,180-300A 2.5KA@14vdc
eNDURANCE FOR e9_123: 500 cycles, 200% 14Vdc
Splash and dust proof at IP67 GRADE.
Operating Temperature: -32C to 82C (-25F to 180F)
Storage Temperature: -34C to 149C (-30F to 300F)

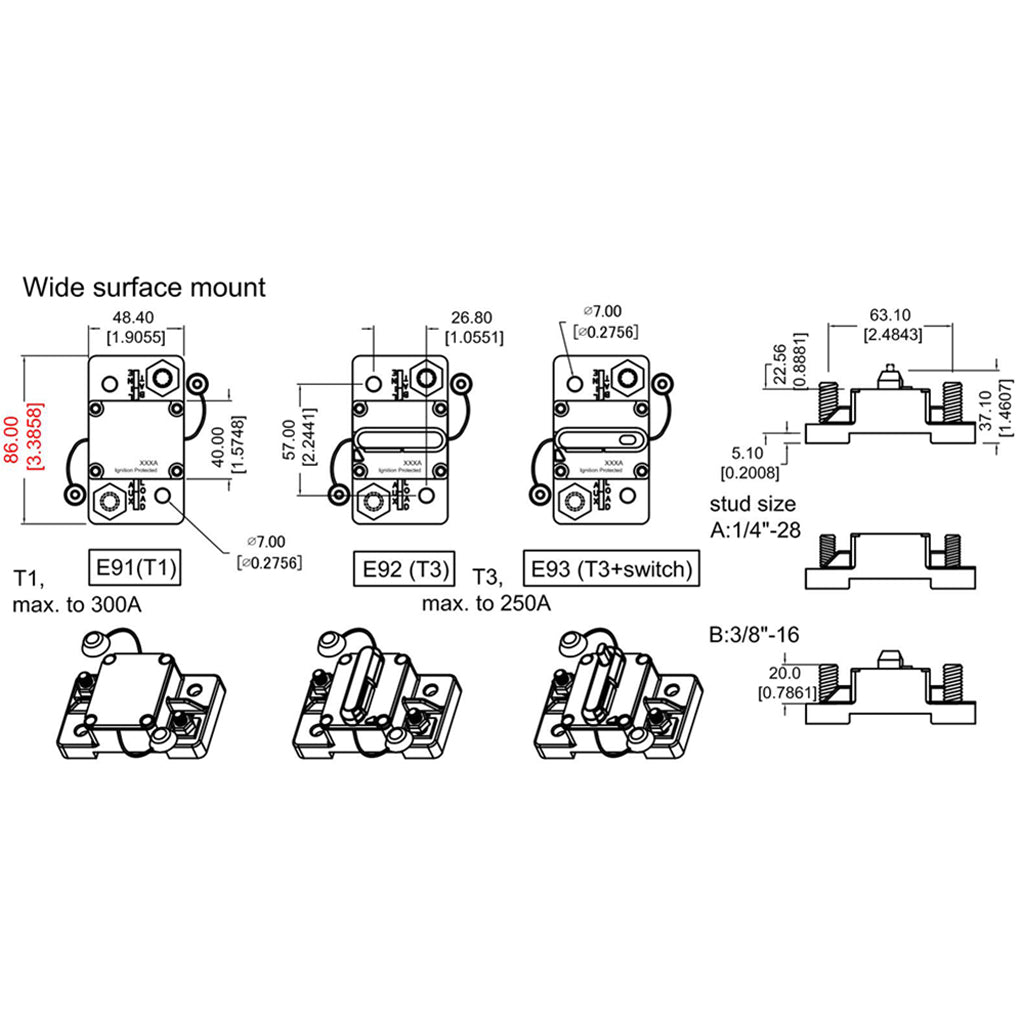

Stud Size:3/8"-16 threads per inch.
Torque rating: 50in-lb(5.6Nm)max.
Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
Automatic reset,rate up to 32V DC

Package Includes:

1 Piece 300 Amp Circuit Breaker with Automatic Reset
