3 Series 11.1V Li-ion 12.6V Li-Polymer 18650 Lithium Battery BMS Protection PCB Board Module

Regular price
Rs. 310.55
Regular price
Sale price
Rs. 310.55
Earn 155 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73005783
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

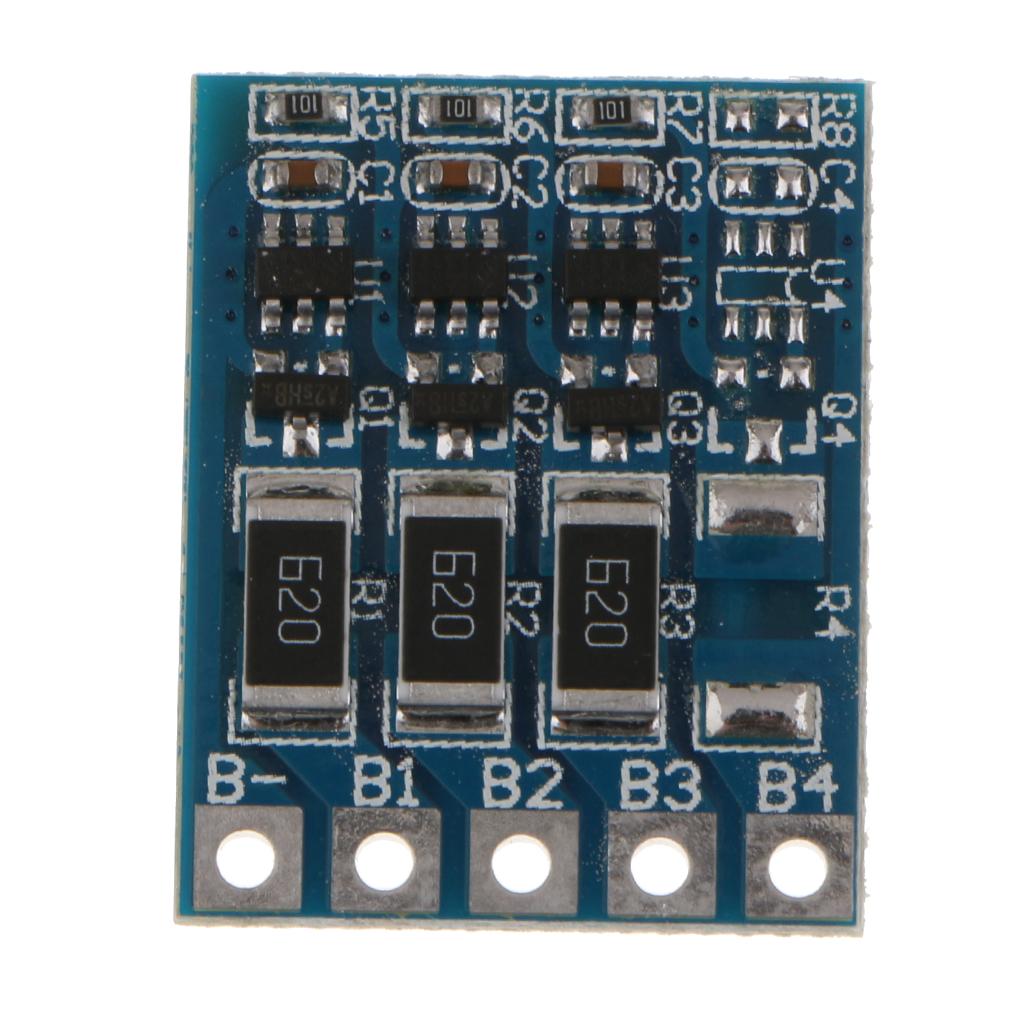

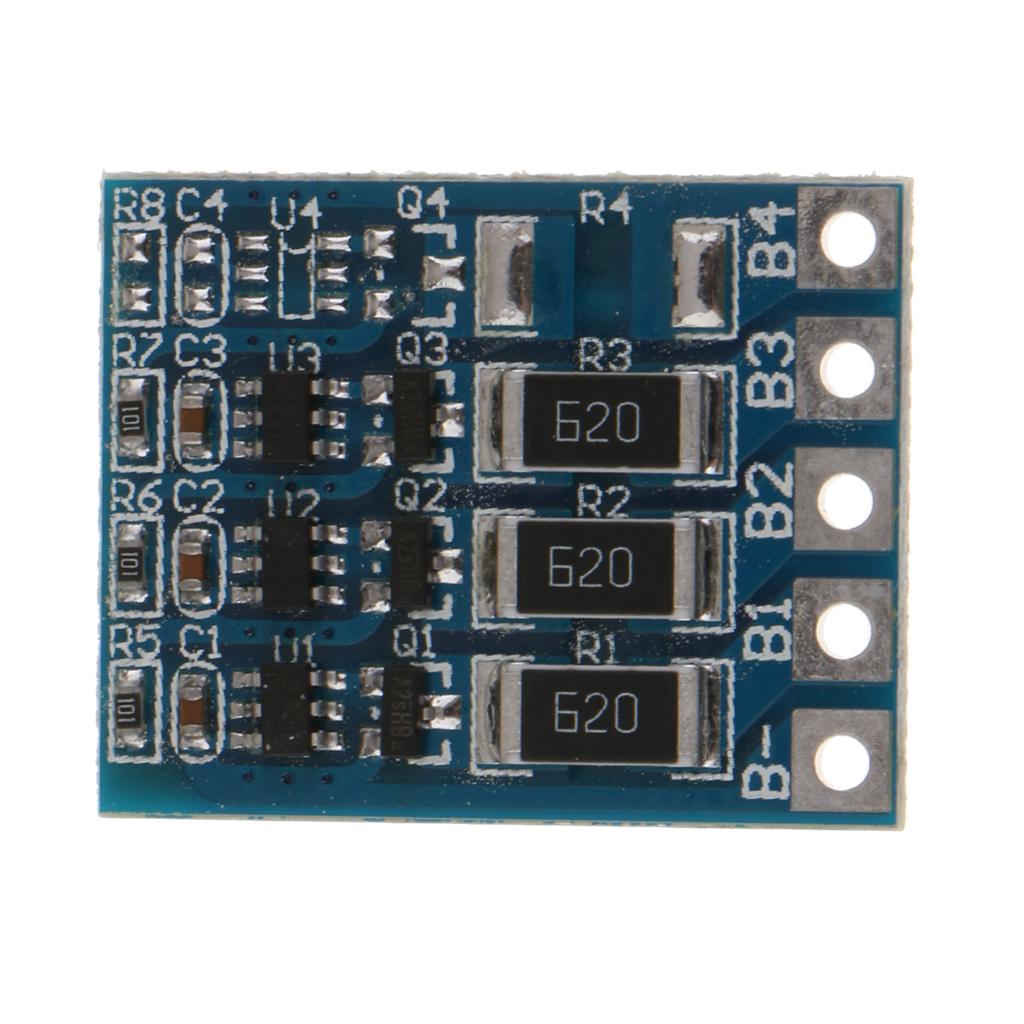

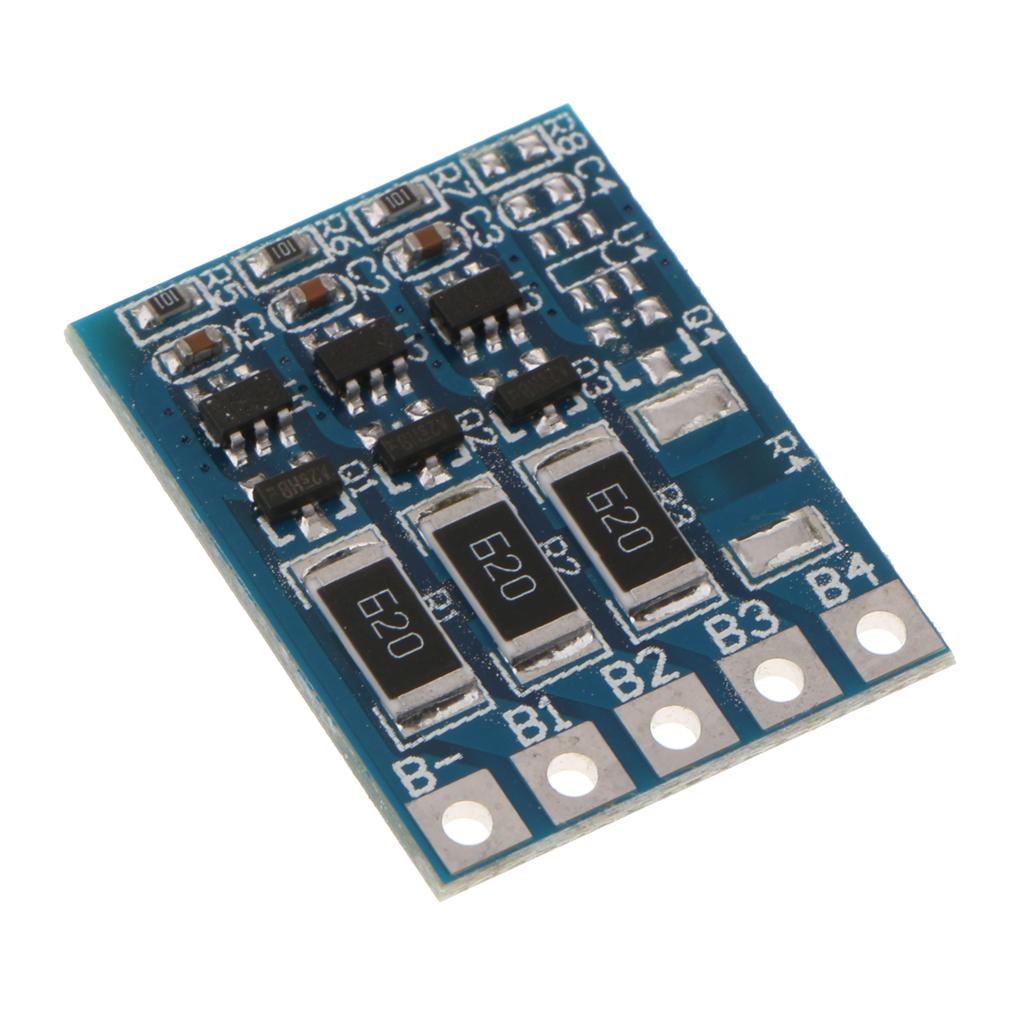

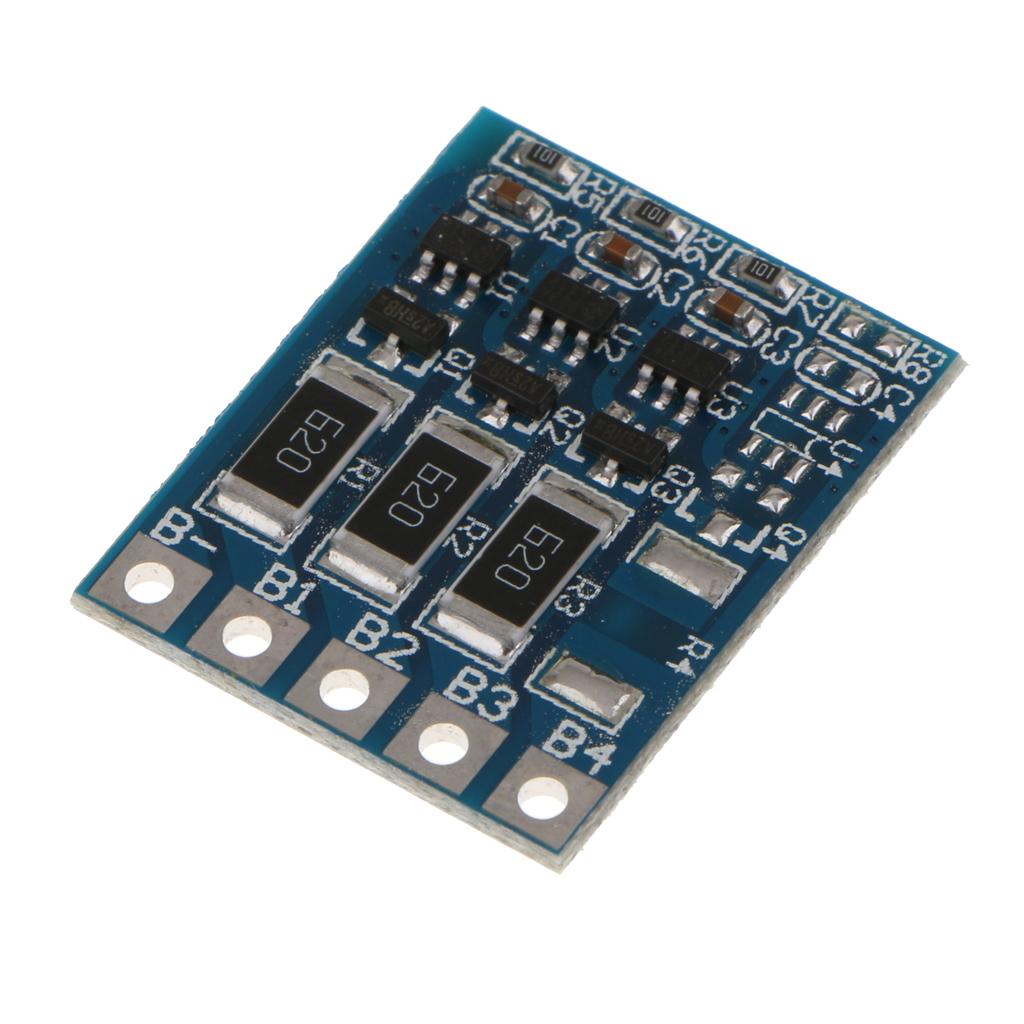

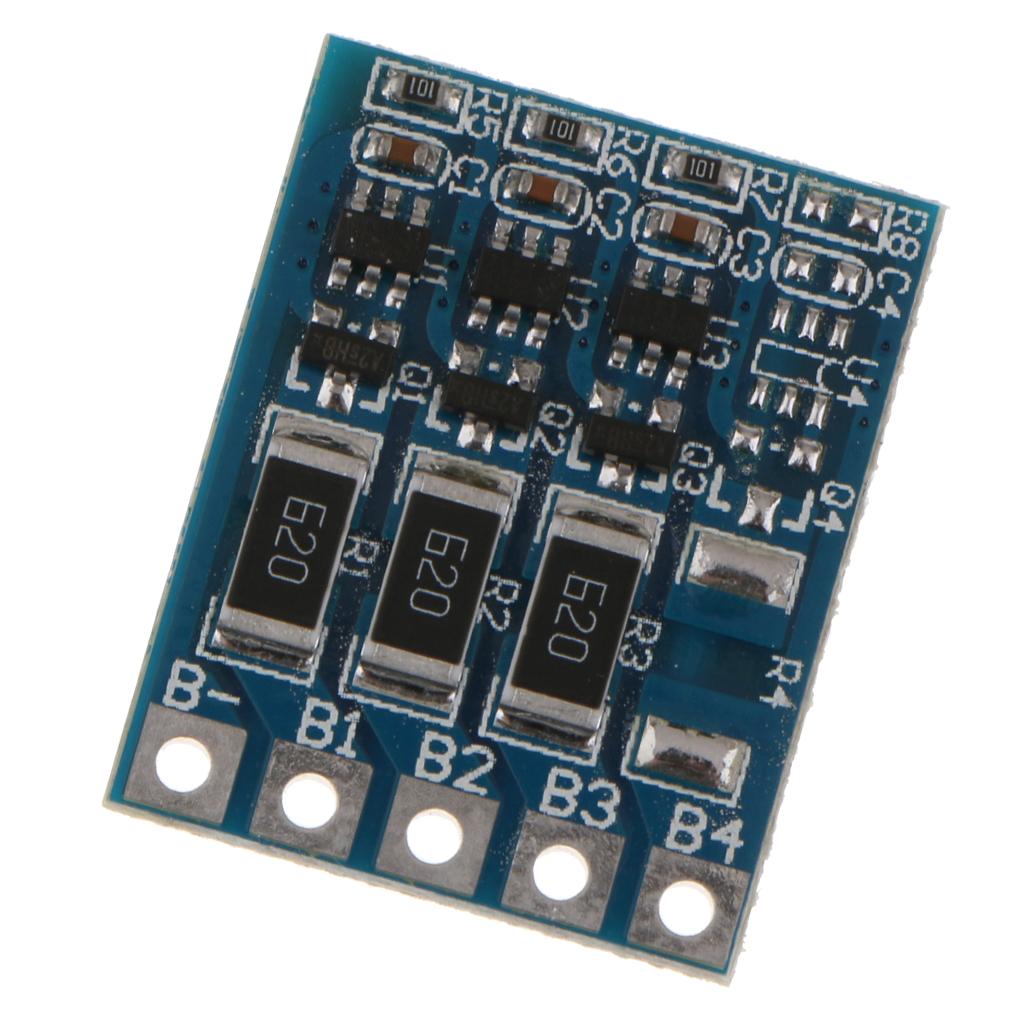

B1: Contact between battery 2 and battery 3
B2: Connect the battery 1 and battery 2
B3: Connect positive electrode of battery pack
B4: No connection
B-: Connect negative electrode of the battery pack

Specification:

Balance Voltage: 4.2V
Balance Current: 66mA
Size: 26*20.5*2.4mm/1.02*0.8*0.1

Equalizing voltage and equalizing current
Equalizing current is 66mA
The equalization board is suitable for increasing the charging equalization function of the lithium battery pack with the unbalanced charging function.
The balance sheet has no charge and discharge protection function, and can not replace the
protective board. In the end of the battery charging, the battery is fully charged and discharged through the resistor.

Package Includes:

1pcs x Balance Board

Note:

Note: The cables and batteriesand protection board are not included
