3 Pin Electronics Cable Connector Plug Socket,Outdoor Connector Set

Regular price
Rs. 1,383.94
Regular price
Sale price
Rs. 1,383.94
Earn 691 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73006247
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

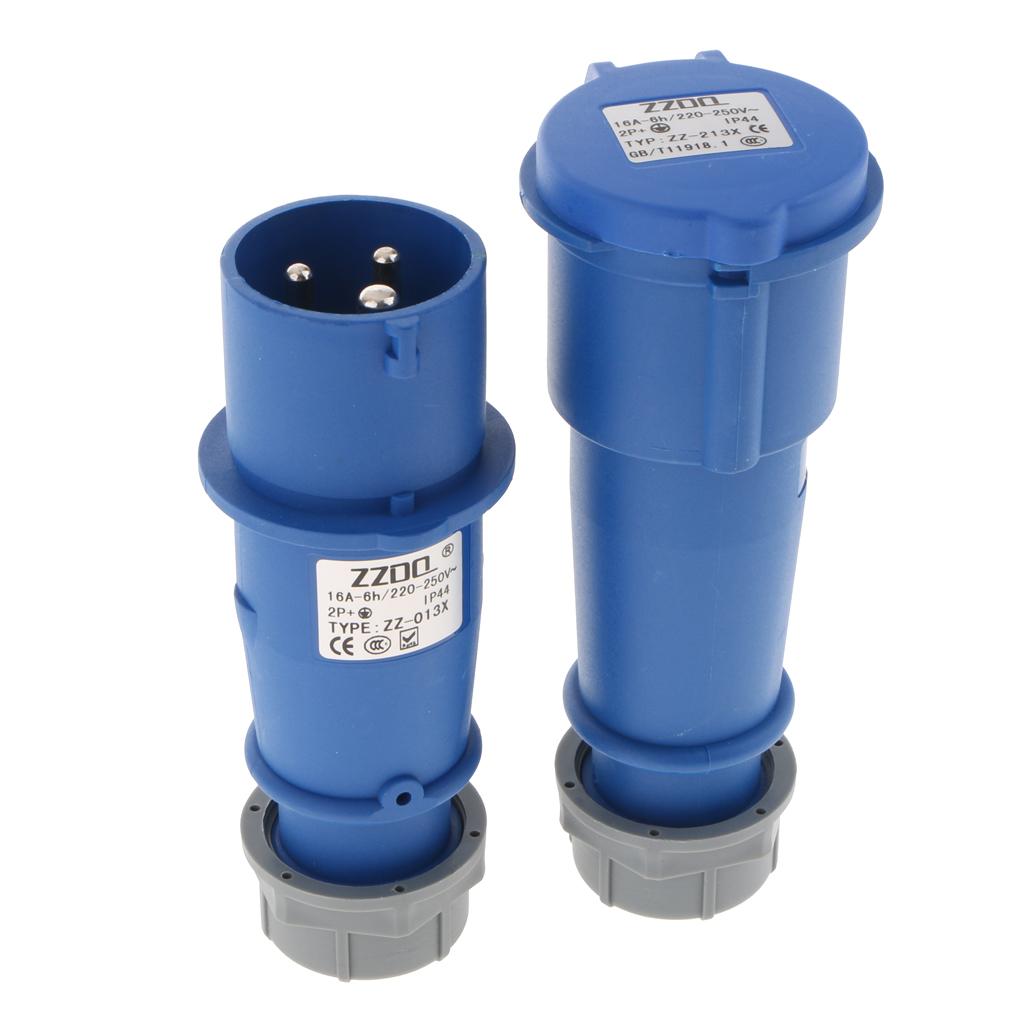

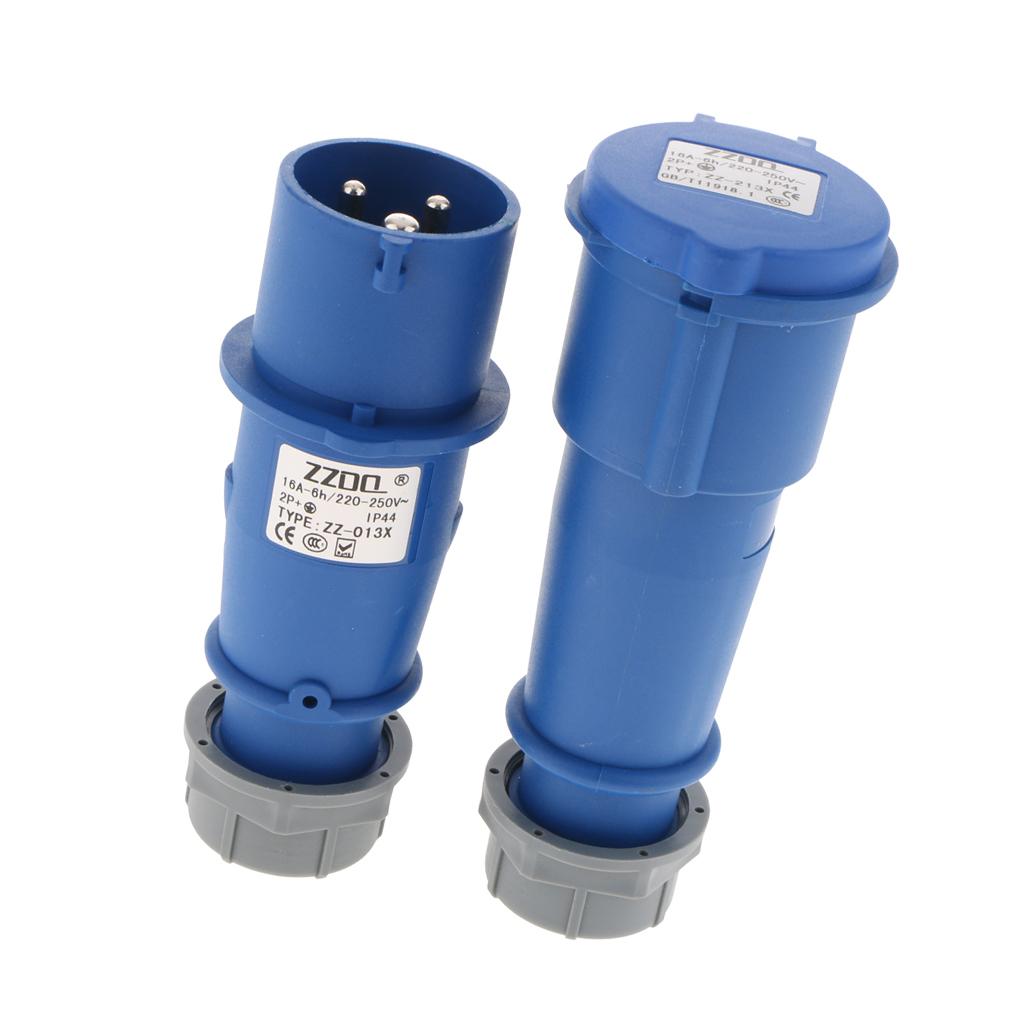

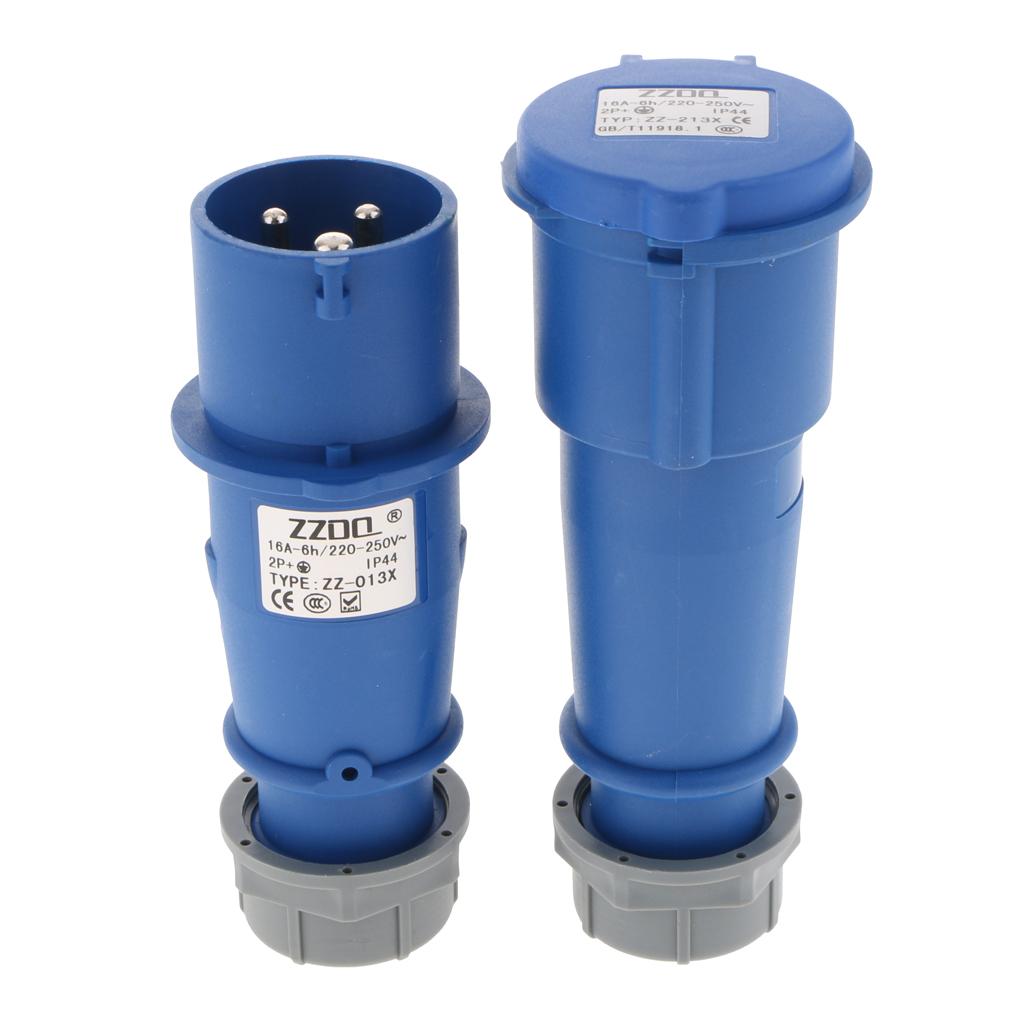

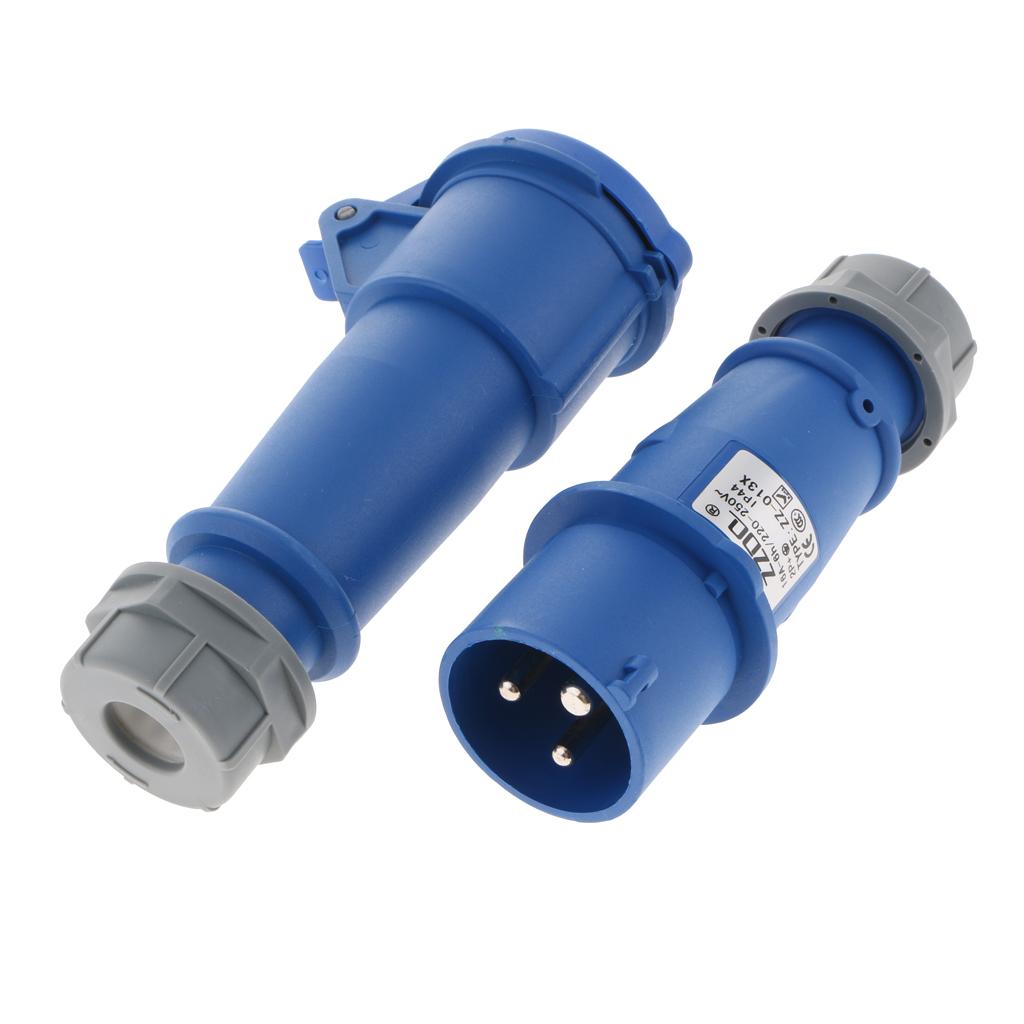

2/3P+E IP44 waterproof plug socket connector for industrial demand.

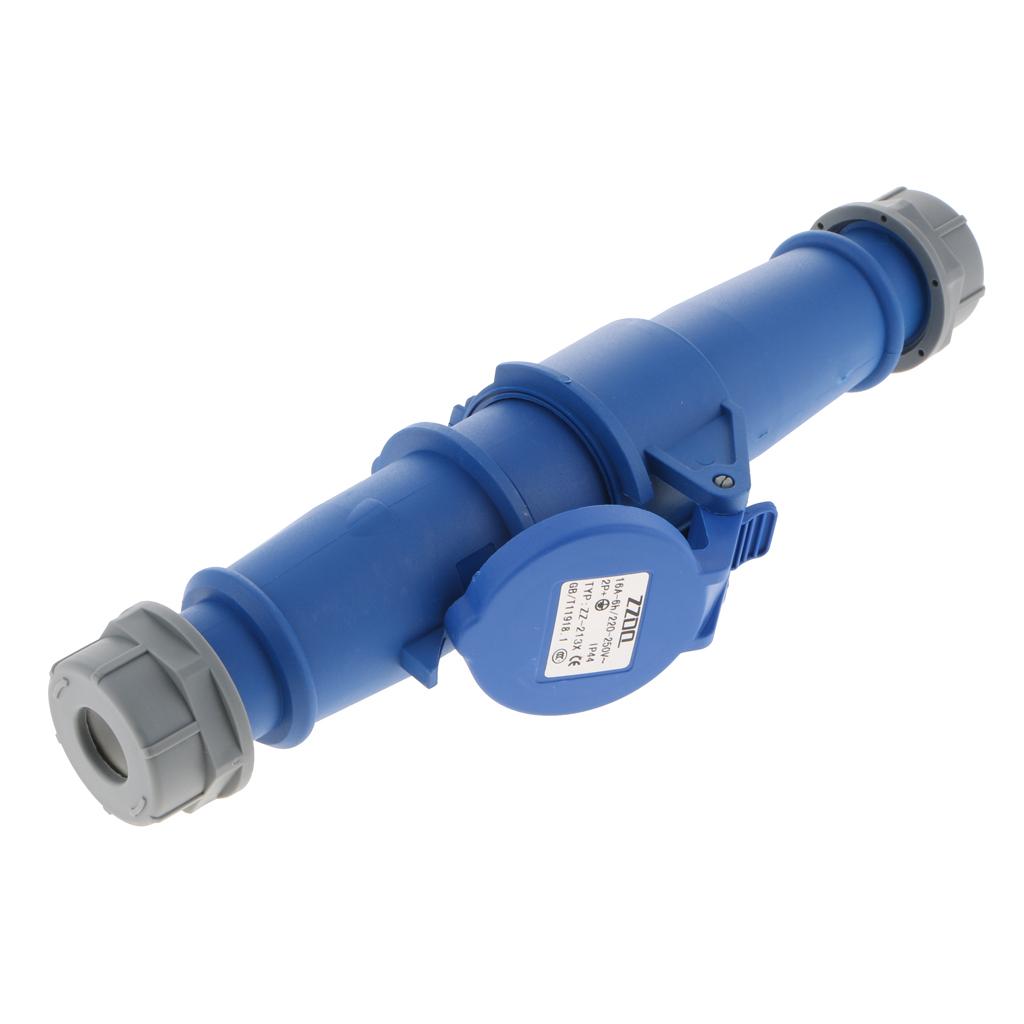

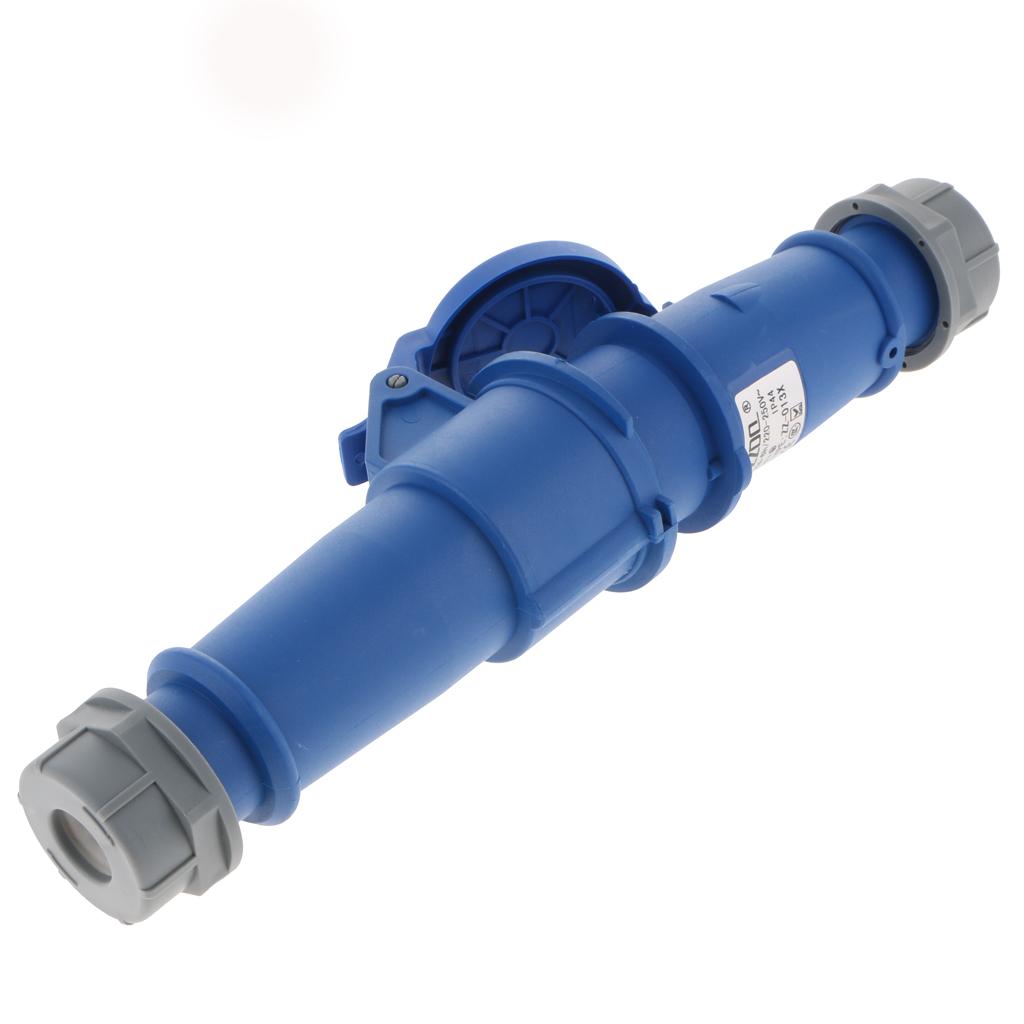

Direct Plug, plug-female/socket-male,16A industrial standard connector.
High quality copper rods,integrated design,higher protection performance.

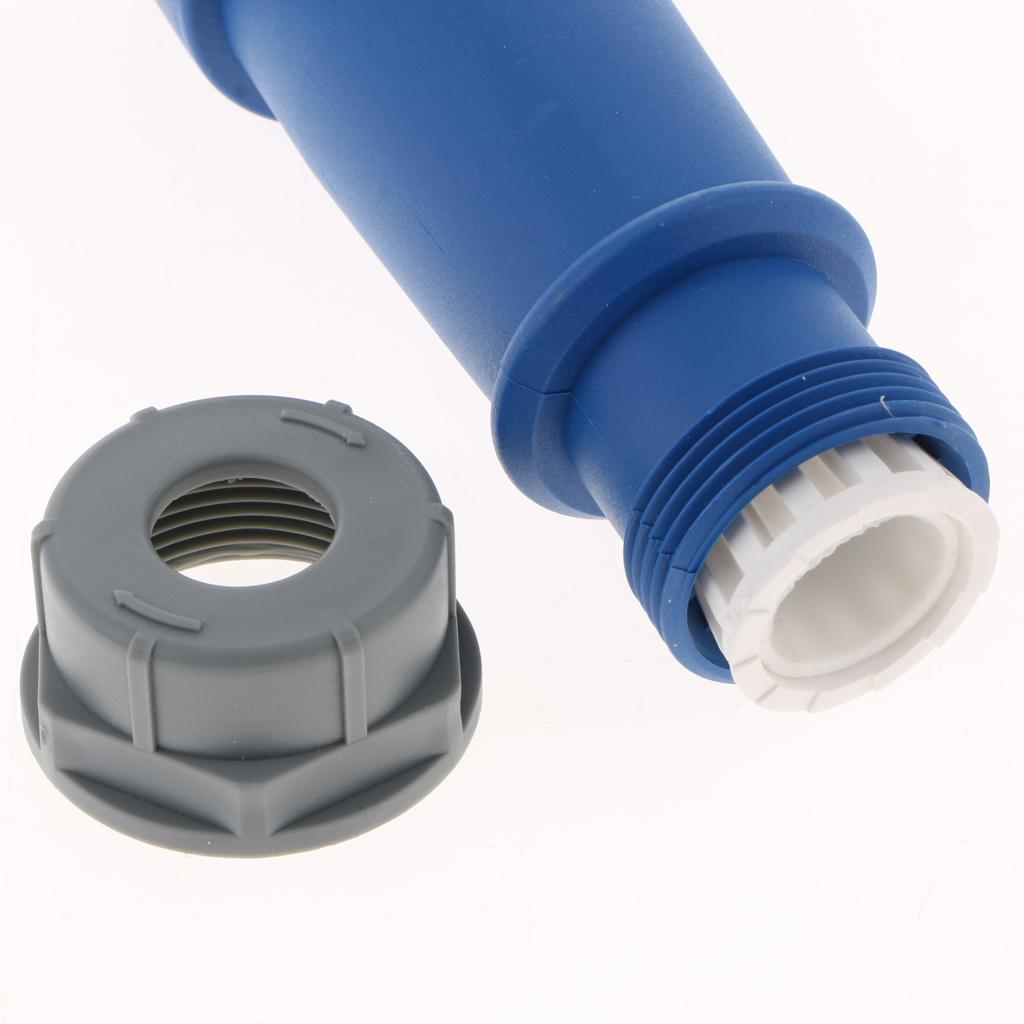

With a molded rubber gasket for better waterproofing.Special anti-dropping design,better connection stability.
Nylon material of the protective housing, with characters of dustproof,waterproof,corrosion protection and high temperature resistance.

Specification:

Material: Nylon

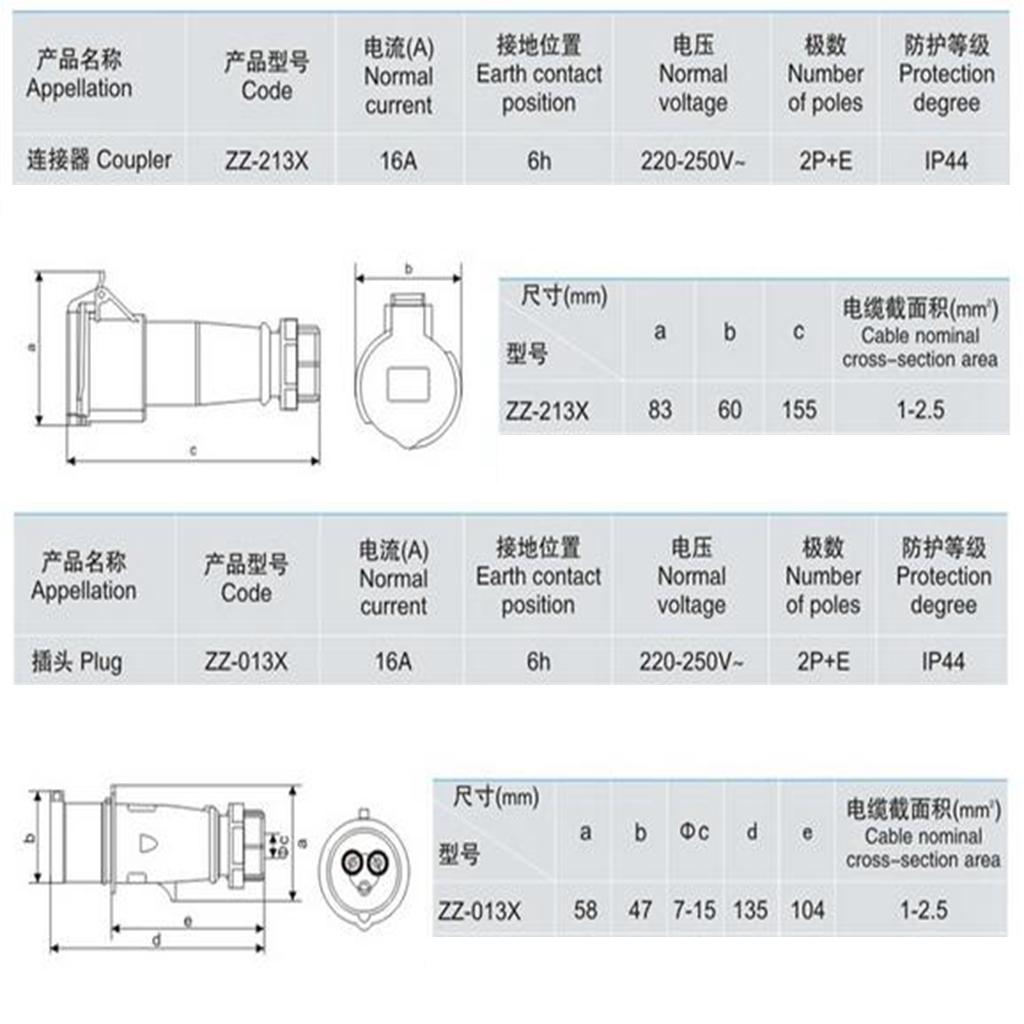

013X+213X Parameters
Coupler Model: ZZ-213X
Plug Model: ZZ-013X
Current: 16A
Voltage: 220-250V
Number of Poles: 2P+E
Protection Degree: IP44
Earth Contact Position: 6h
Coupler Overall Size: Approx.155x83mm/6.1x3.27inch
Coupler Diameter: Approx.60mm/2.36inch
Plug Overall Size: Approx.135x58mm/5.31x2.28inch
Plug Diameter: Approx.47mm/1.85inch
Cable Cross-section Area: 1-2.5mm²
014X+214X Parameters
Coupler Model: ZZ-214X
Plug Model: ZZ-014X
Current: 16A
Voltage: 380-415V
Number of Poles: 3P+E
Protection Degree: IP44
Earth Contact Position: 6h
Coupler Overall Size: Approx.165x95mm/6.5x3.74inch
Coupler Diameter: Approx.68mm/2.68inch
Plug Overall Size: Approx.140x66.7mm/5.51x2.63inch
Plug Diameter: Approx.53.5mm/2.11inch
Cable Cross-section Area: 1-2.5mm²

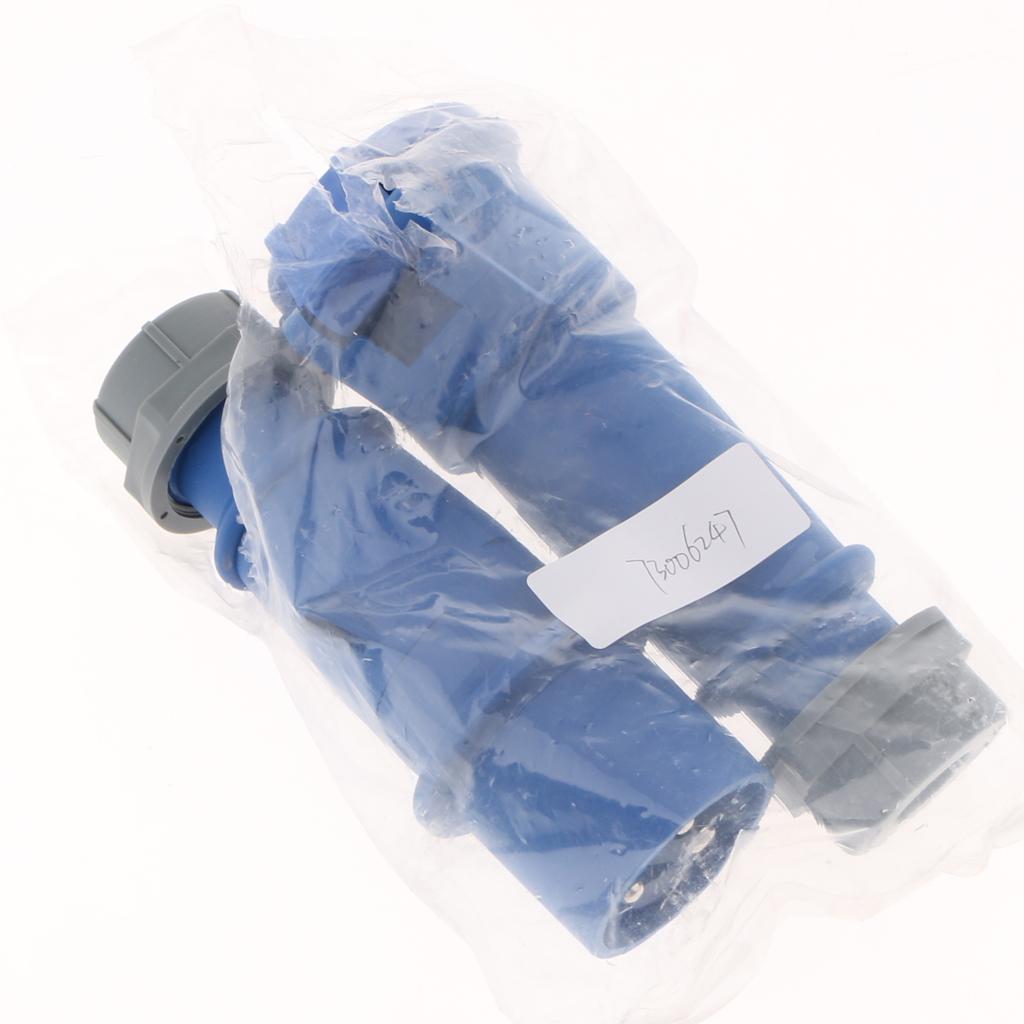

Package Includes:

1 Piece Coupler
1 Piece Plug

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
