3 1/2 200V 50A DC Digital Red LED Panel Amp Volt Meter

Regular price
Rs. 1,258.52
Regular price
Sale price
Rs. 1,258.52
Earn 629 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14001845
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

This meter is the of ammeter and voltmeter. The current or voltage can be exchanged by pressing the button on the front. Ideal for battery & electrical system measuring and monitoring!

Description:

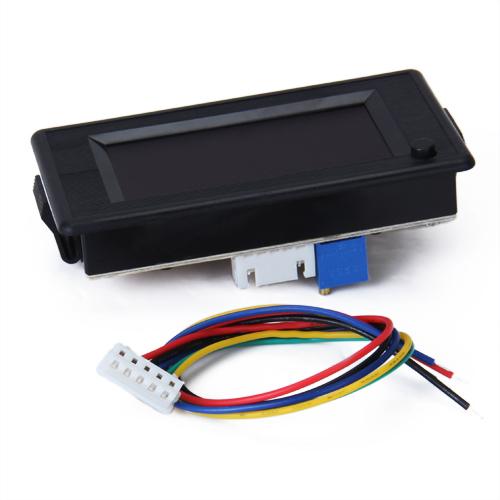

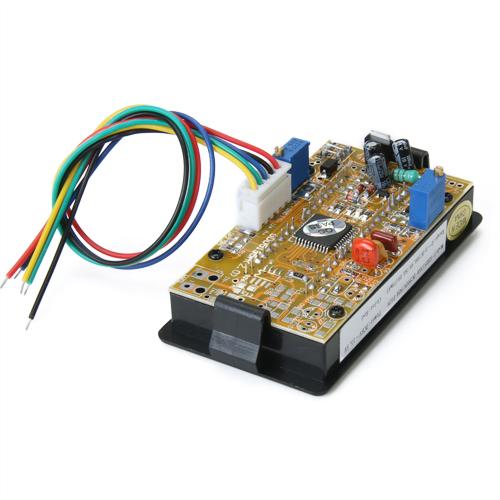

  • A 3 1/2 LED DC amp/volt meter
  • Designed to measure and display electronic products voltage and current
  • Easily readable ultra-bright red LED
  • Low Power consumption
  • Over-range indication
  • Easy to install

Specifications:

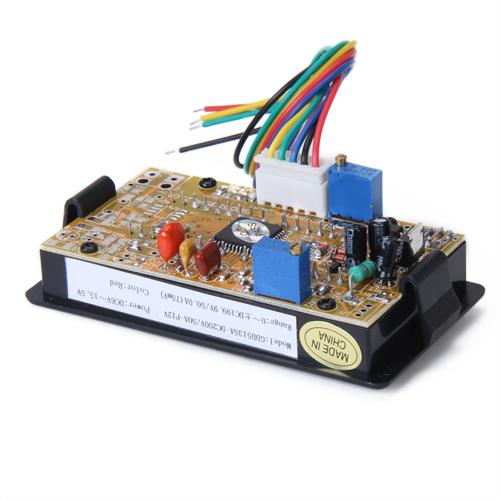

  • Model: GDD135A-DC200V/50A-P12V
  • Power Voltage: DC6-15.5V
  • Running Current: <50mA
  • Range: 0-±DC199.9V / 0-±DC50.0A
  • Outline Dimensions (L x W x H): Approx. 79mm x 43 mm x 21mm
  • Display Screen Size (L x W): Approx. 51 x 24mm

Note: This meter can NOT be used alone, a 75mV 50A shunt is required to use together with. So you will need to buy the shunt if you haven't got one.

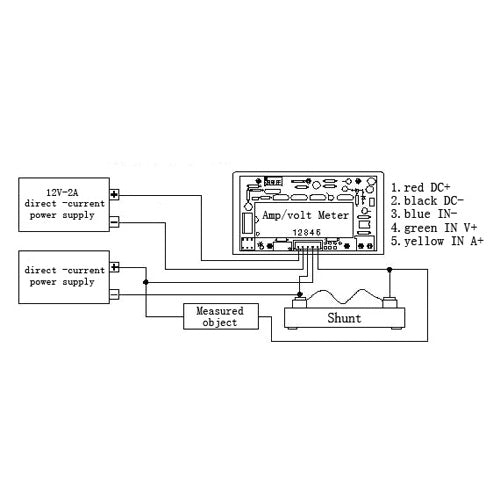

Wiring Diagram:

Package Includes:

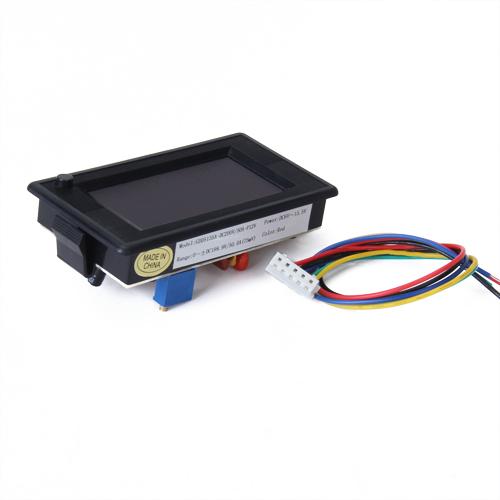

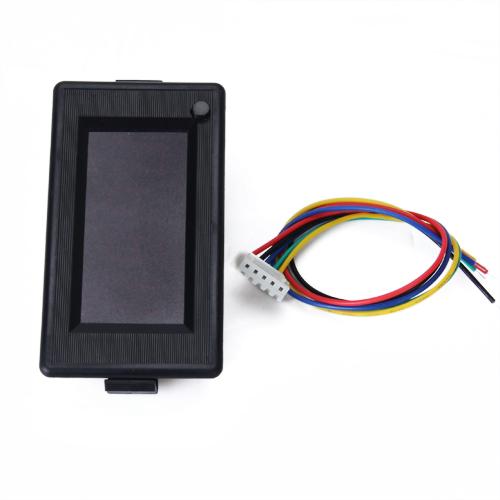

  • 1 x LED DC volt/amp meter

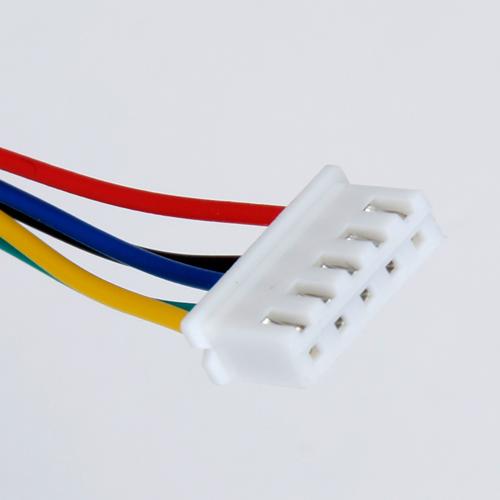

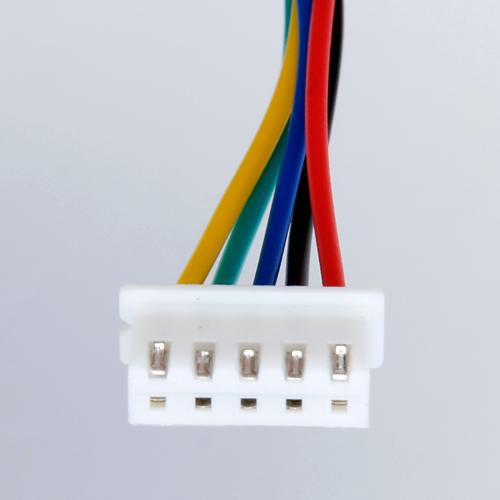

  • 1 x Connecting cable

Keywords: Volt meter, current meter, led panel, digital meter, digital panel
