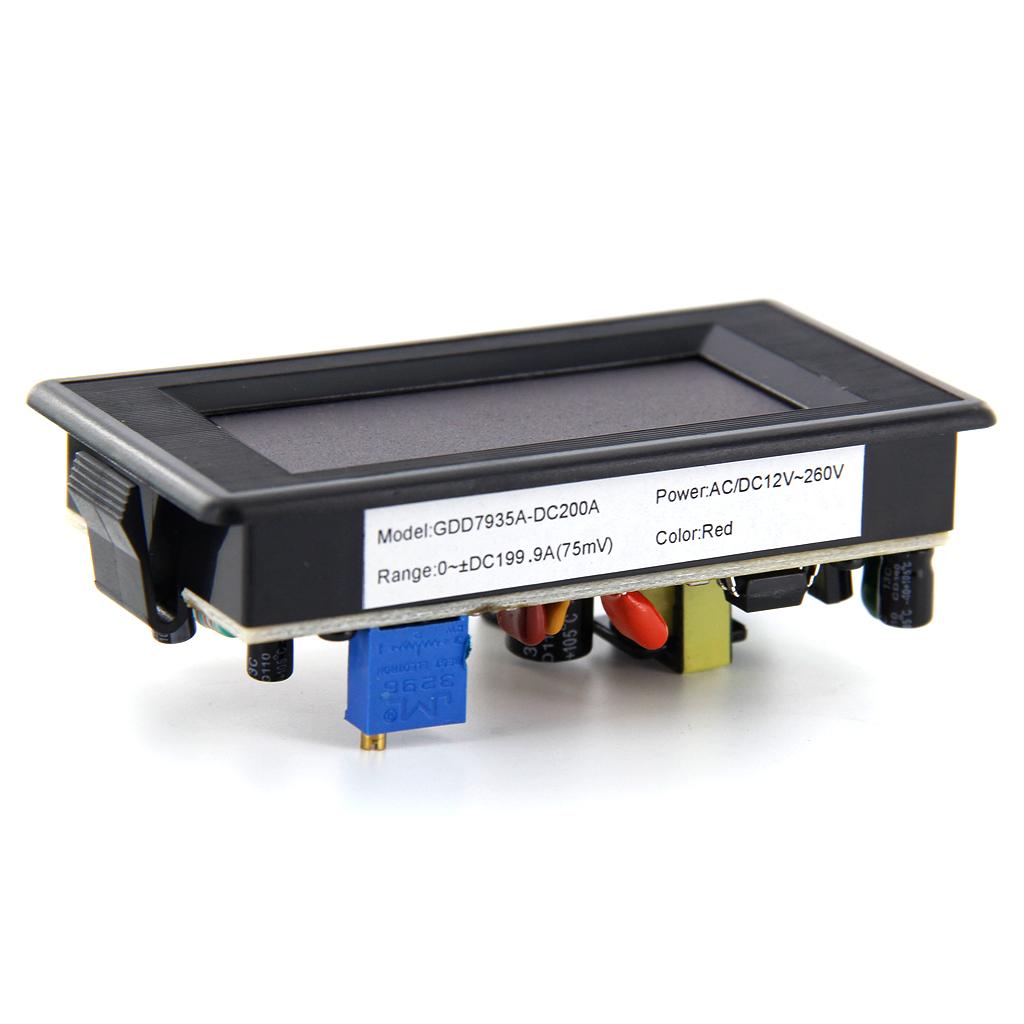

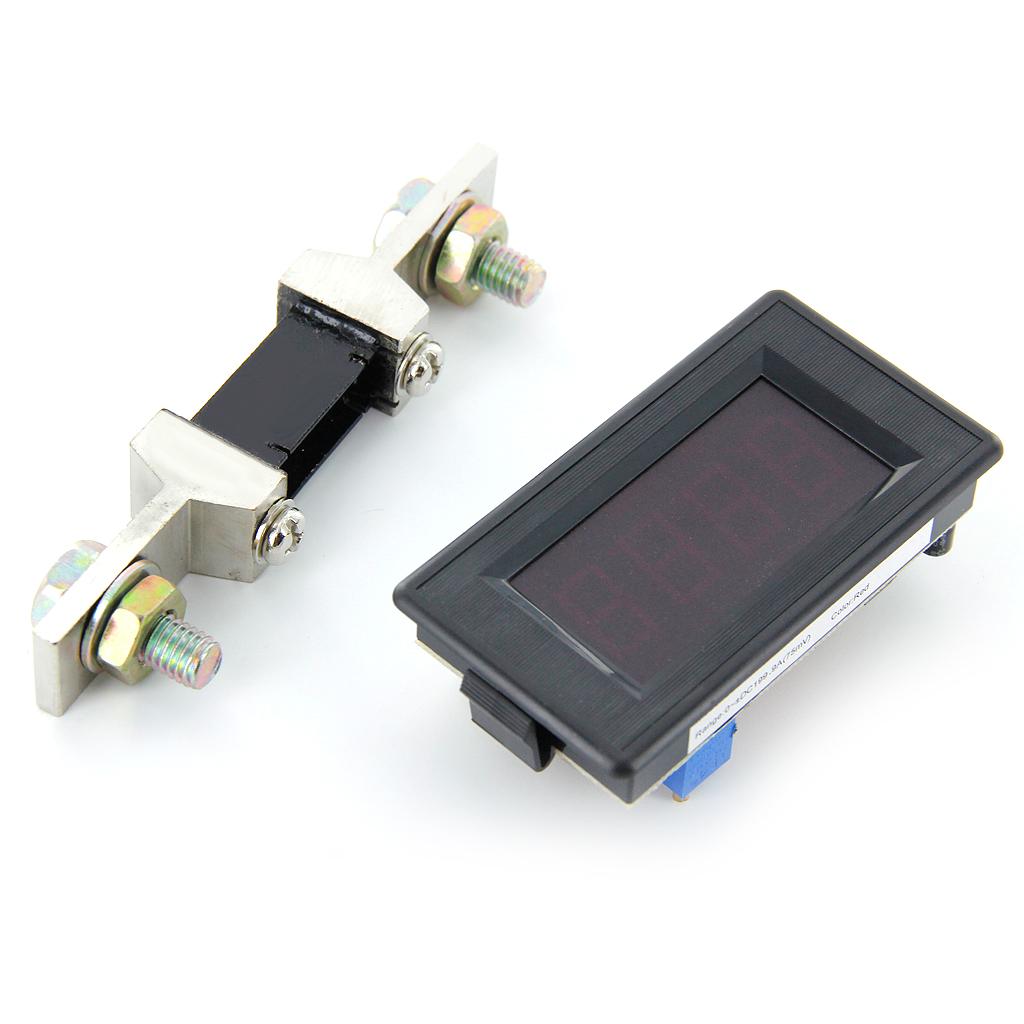

200A Ammeter with Shunt 3 2/1 Digital Display LED Red Panel AMP Ampere Meter

Regular price
Rs. 2,159.07
Regular price
Sale price
Rs. 2,159.07
Earn 1079 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14009494
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Features:

  • AC/DC12V~260VPower Isolated
  • Two or more  digital ampere meter can share with one Power supply
  • High Precision and stable
  • Bright RED LED display
  • Black ABS housing with self-lock tip for panel mounting

Specifications:

  • Power supply: AC/DC12V~260V
  • Operating temperature: 0 to 50°C
  • Temperature coefficient: <50PPM
  • Current: <15mA
  • Zero: Automatic
  • Display: RED 0.56in LED
  • Overrange indication: (1) or (-1) is displayed
  • Sampling time: 2.5/sec
  • Polarity Display: Automatic
  • Panel cutout size:Approx. 76.5mm x 39.2mm/3.01 * 1.54inch

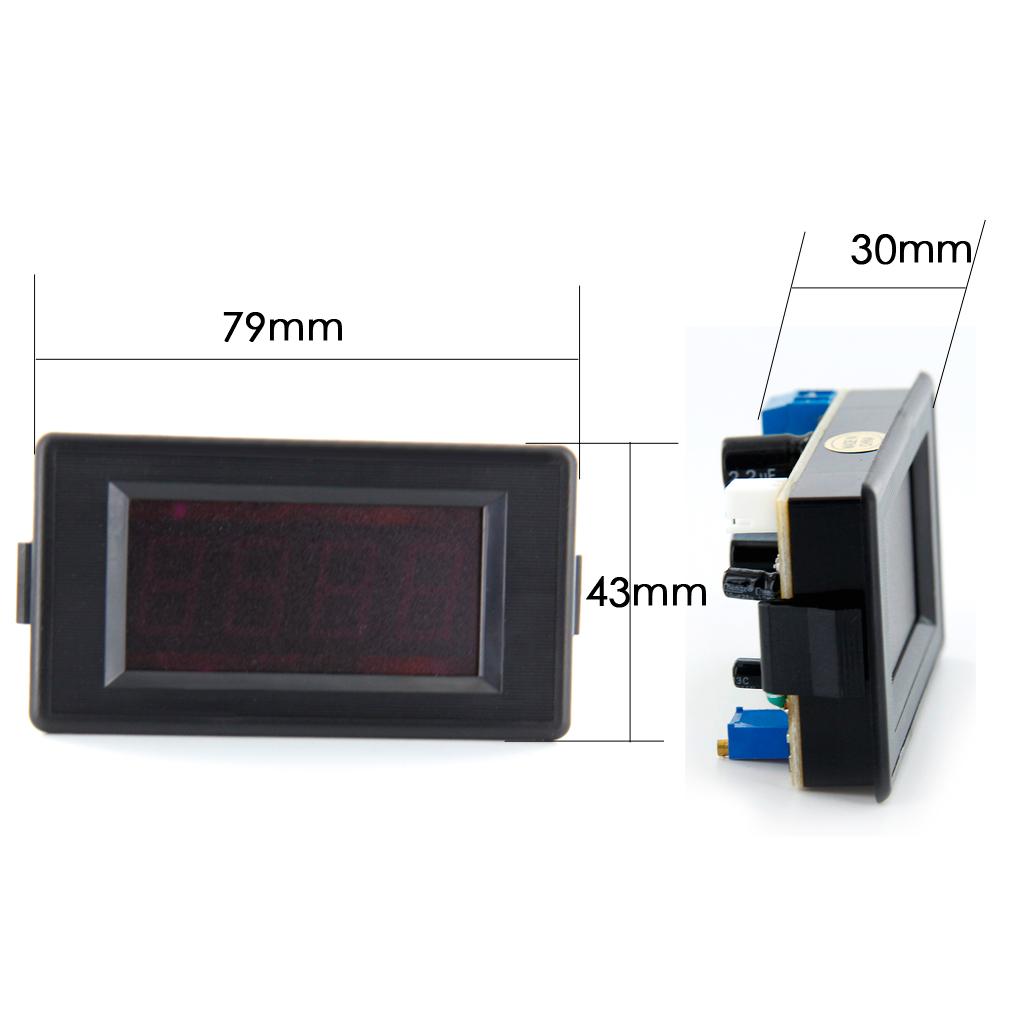

  • Dimension: Approx.79mm x 43mm x 30mm/3.11 * 1.69 * 1.18inch

Rectifying method : Connect the standard DC current signal to line of “IN-、IN+”, and then adjust the VR1 until the display value is the same as the DC current signal.

Cautionsome parts are with high voltage, do not touch when power on

Range Display

Model

Input signal

Range

Display

Resolution

GDD7935A-DC200A

0~±DC200A/75mV

DC200A

0~±199.9

±0.1A

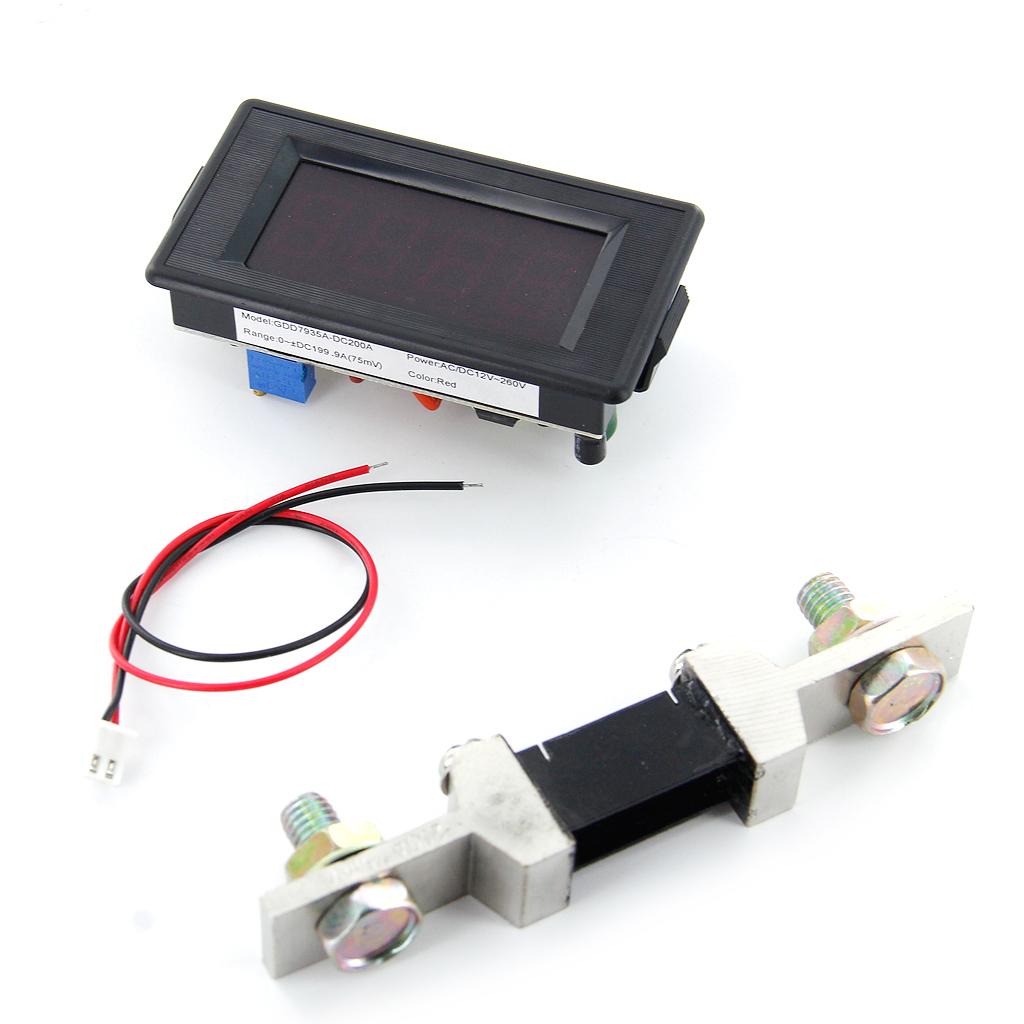

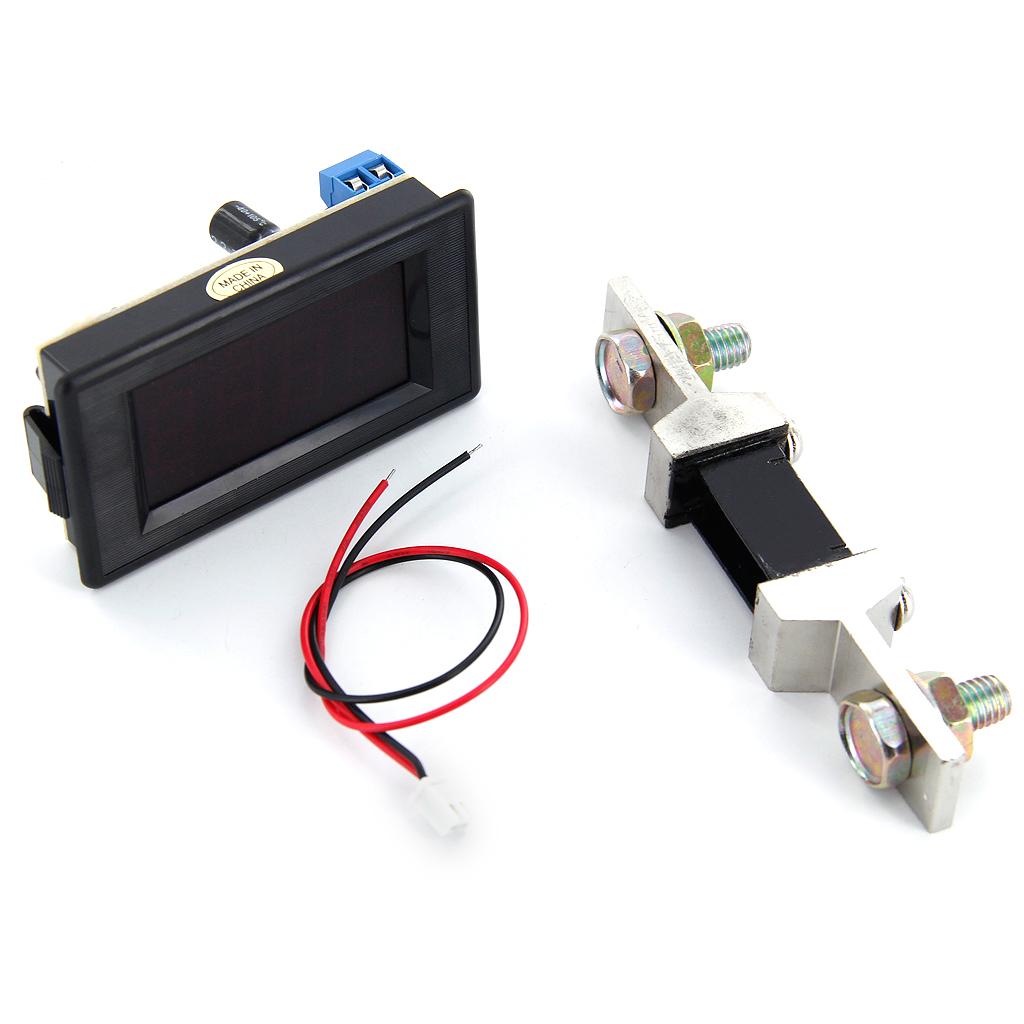

Package Includes:

  • 1x 200A Ammeter

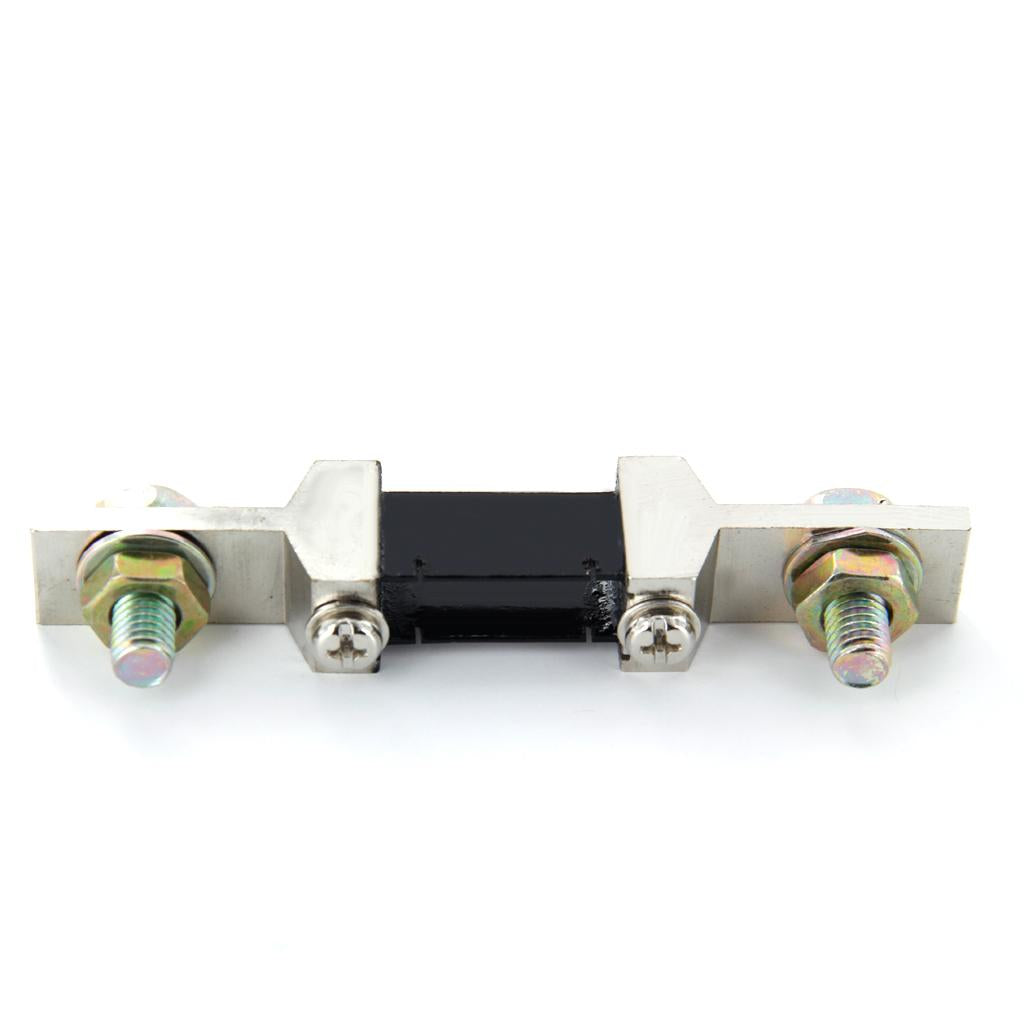

  • 1x  Shunt

Package Includes:

Package Includes:

  • 1x 200A Ammeter
  • 1x  Shunt
