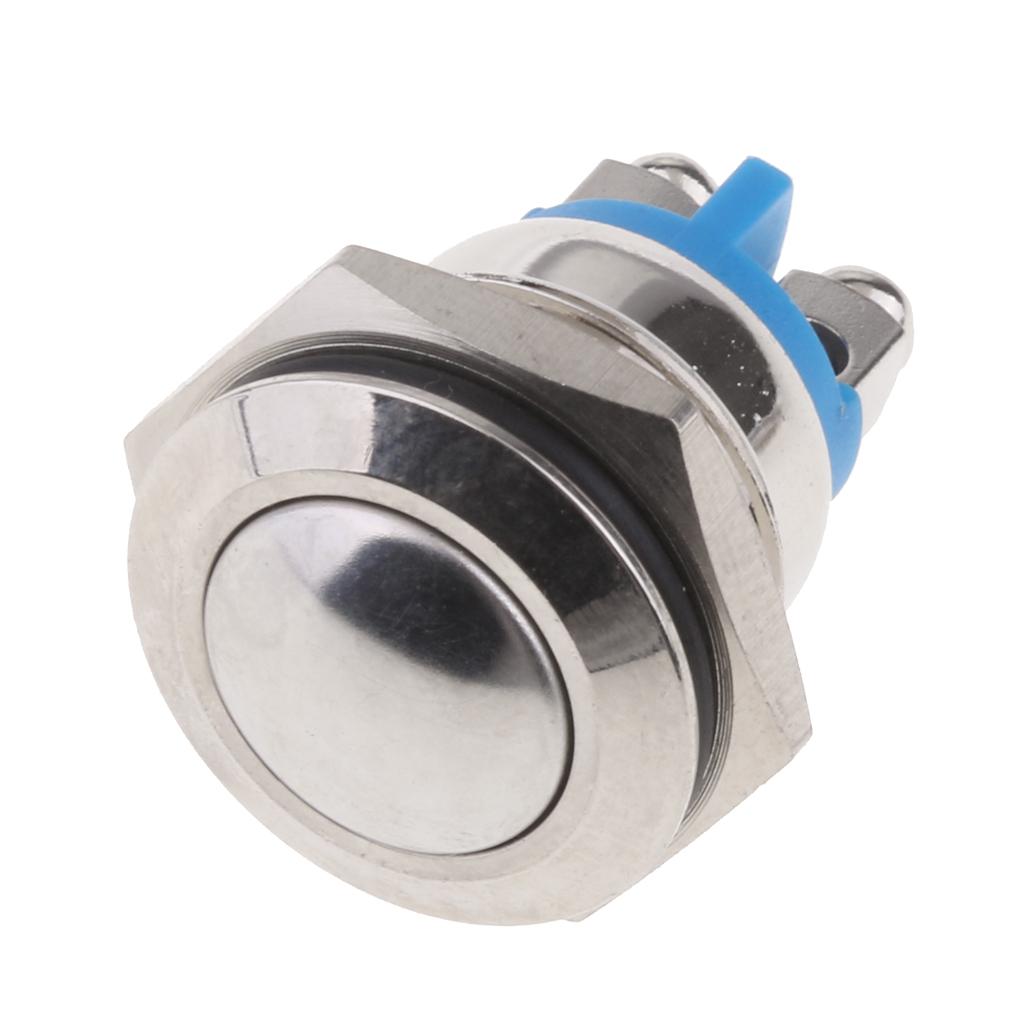

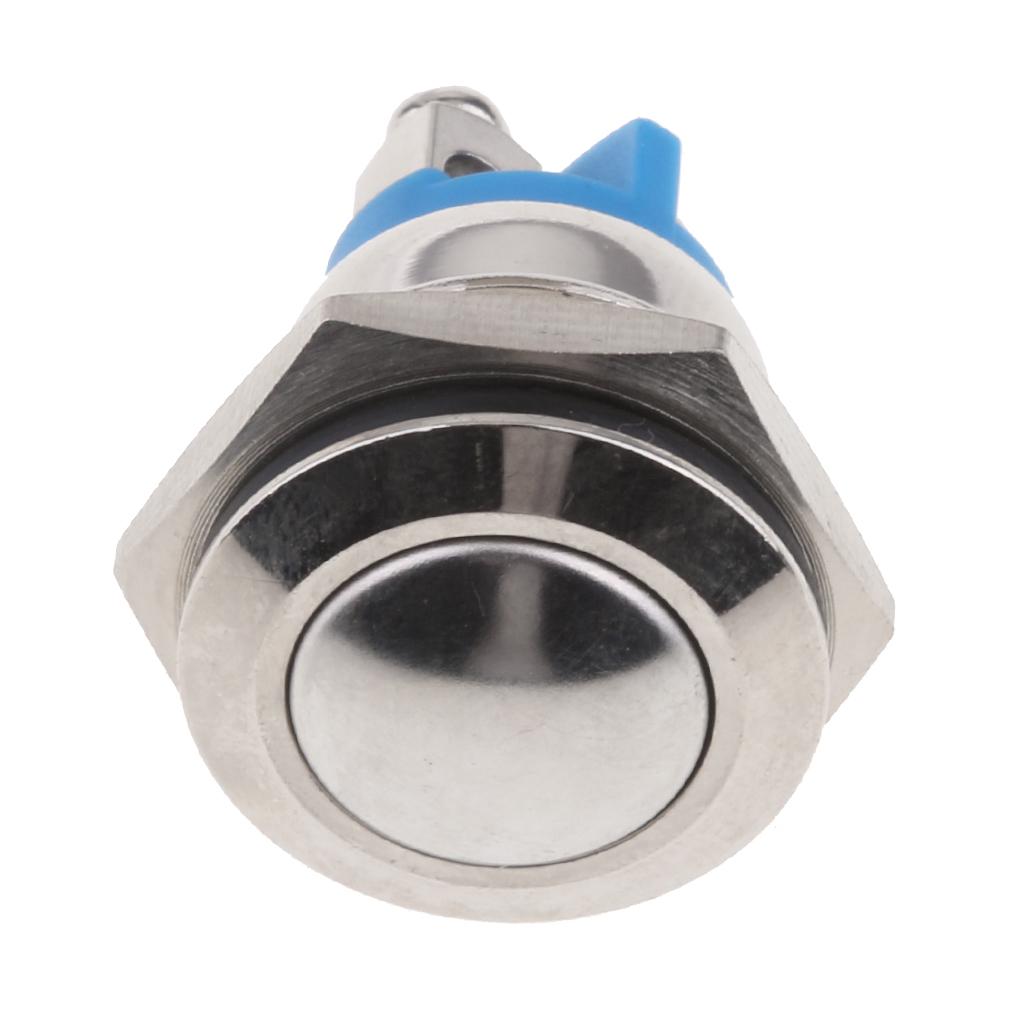

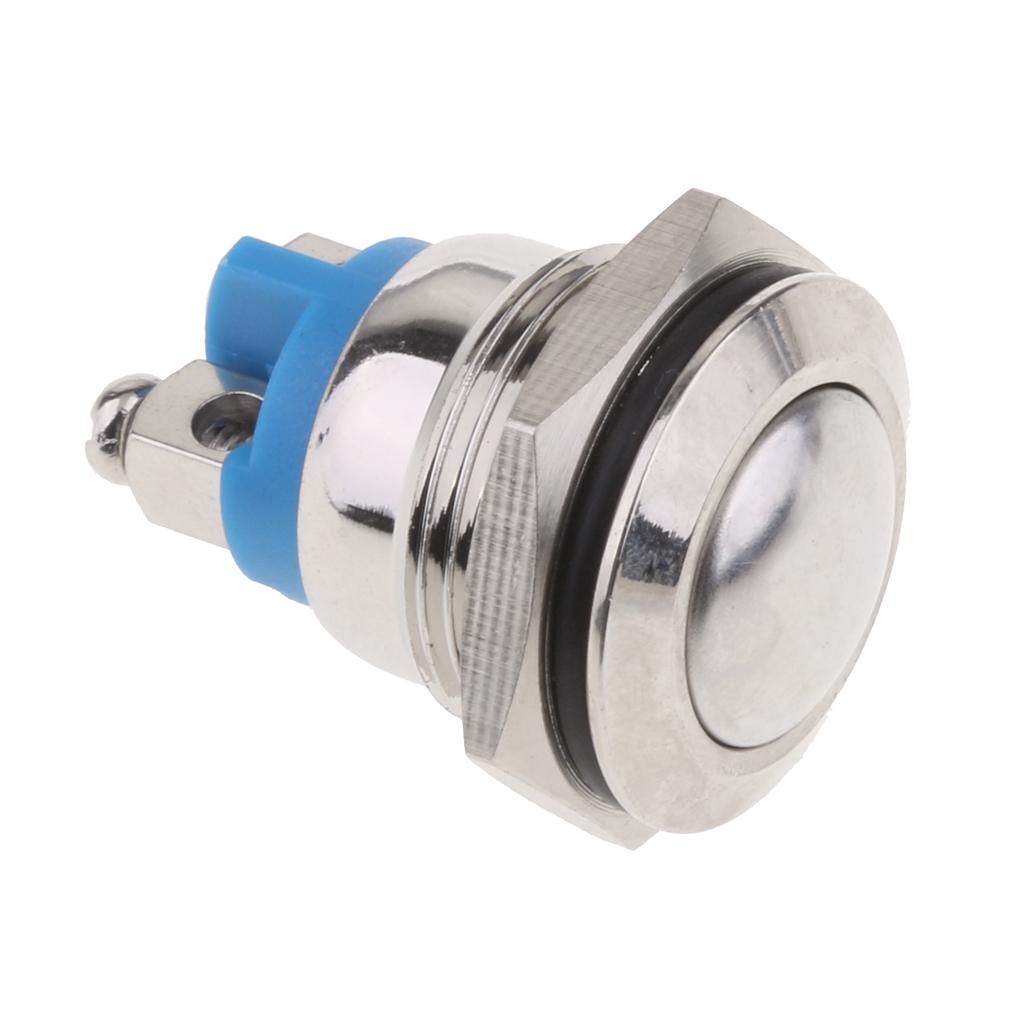

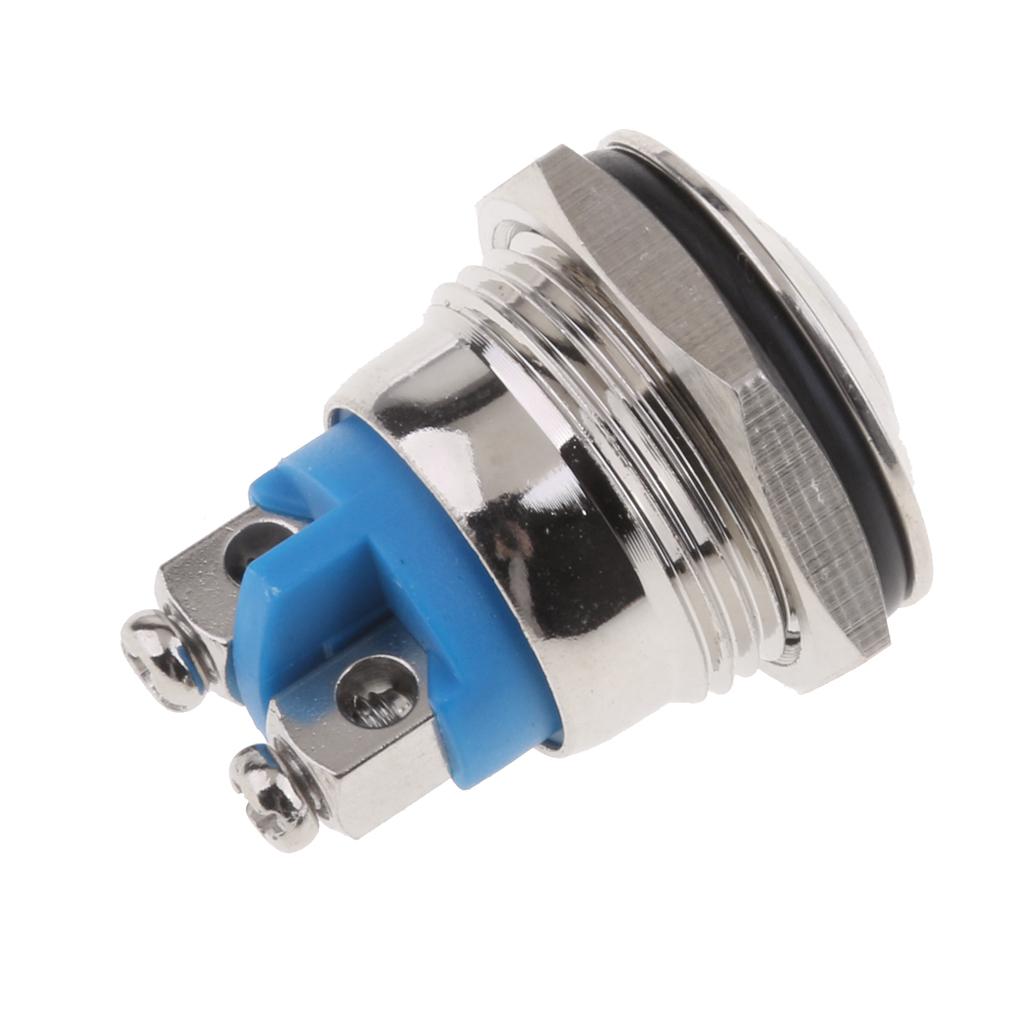

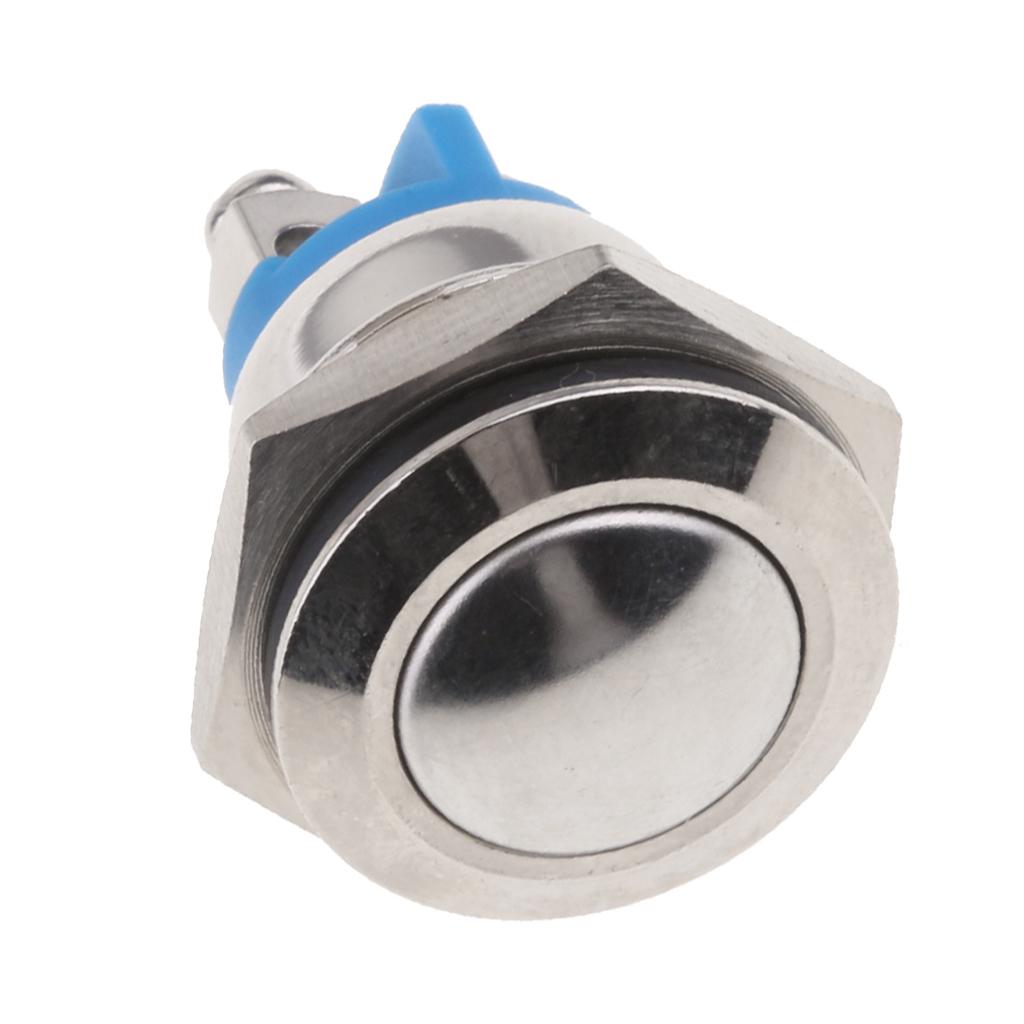

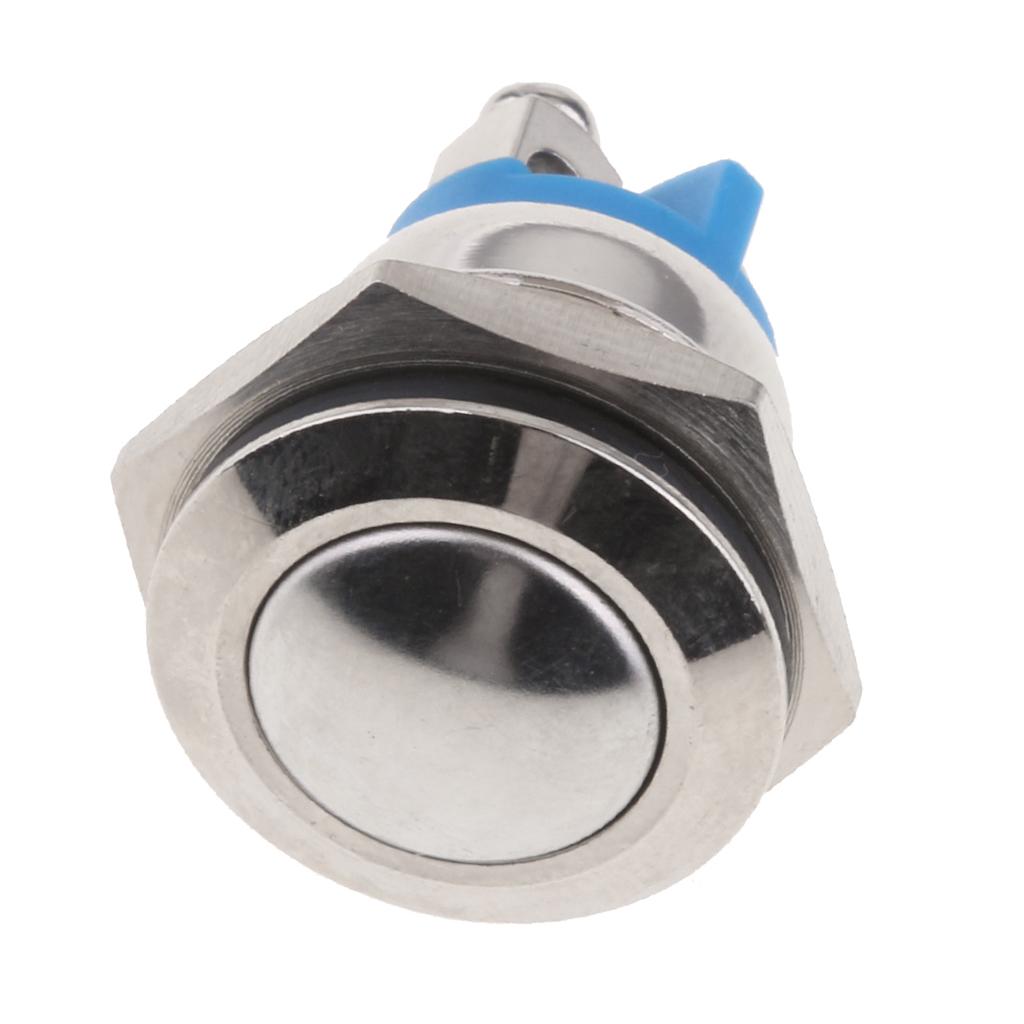

16mm 1No Metal Push Button Waterproof Momentary Switch Srcrew Terminal IP67

Regular price
Rs. 374.52
Regular price
Sale price
Rs. 374.52
Earn 187 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73000571
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Momentary 1NO button. ( push it-on, release it-off.)
Easy to Install: Screw clamp type terminals, don't need to solder.
IP67 Waterproof and IK08 Protection: rustproof, can be used in wet or dusty environment.
This switch can be used for circuit control in electromagnetic starter, contactor, relay and other electric circuits.

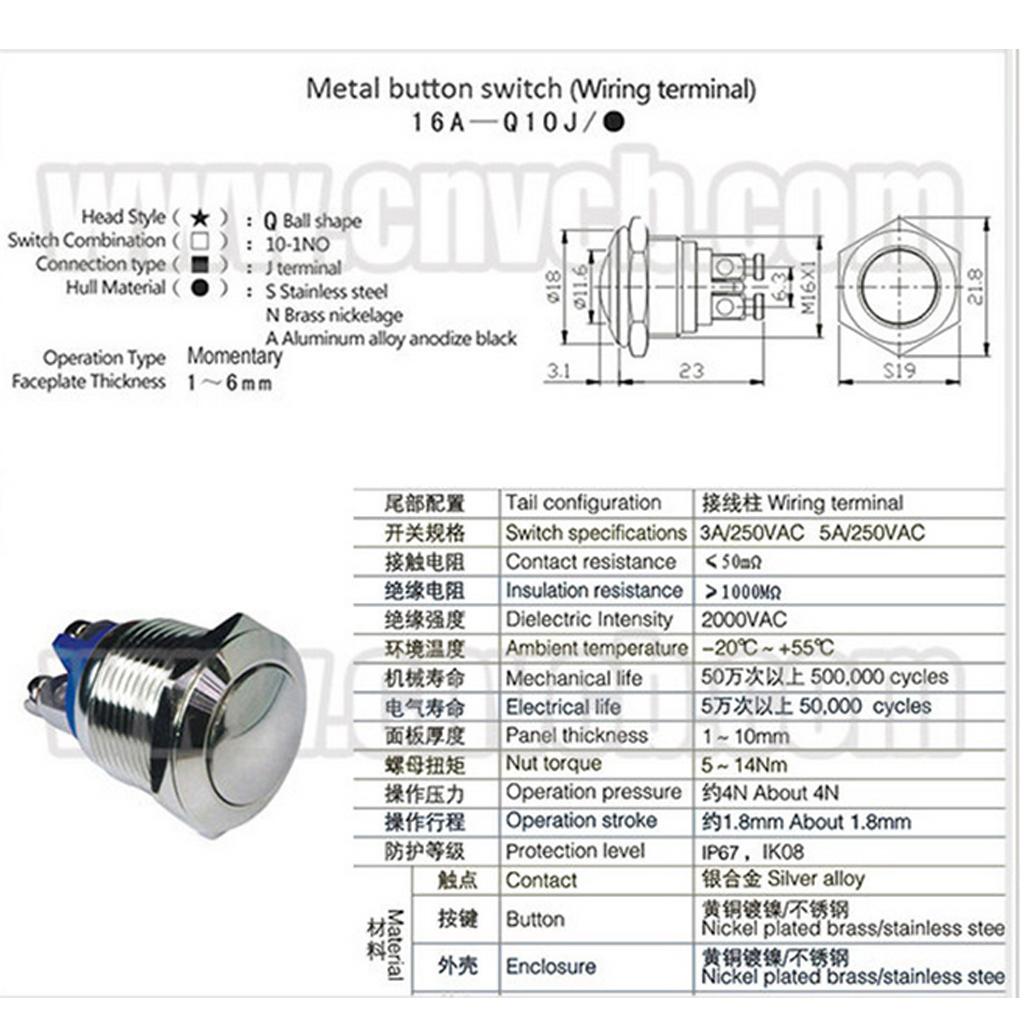

Specification:

Material: nickel plated brass
Install diameter:16mm
Head Diameter: 2cm
Button Diameter: 1cm
Total Length: 2.2cm/0.87inch
Momentary Type: Push and Hold - ON, Release – OFF
Head Shape: Flat and round

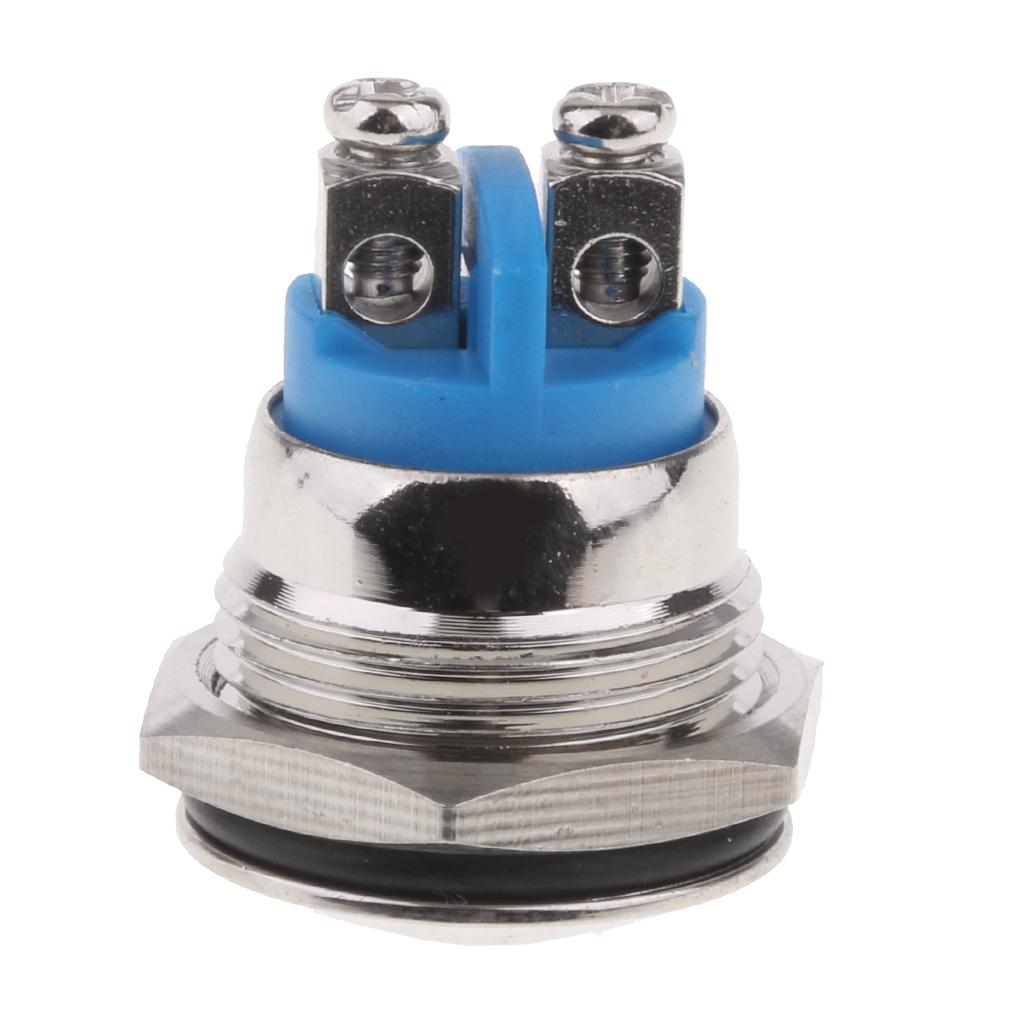

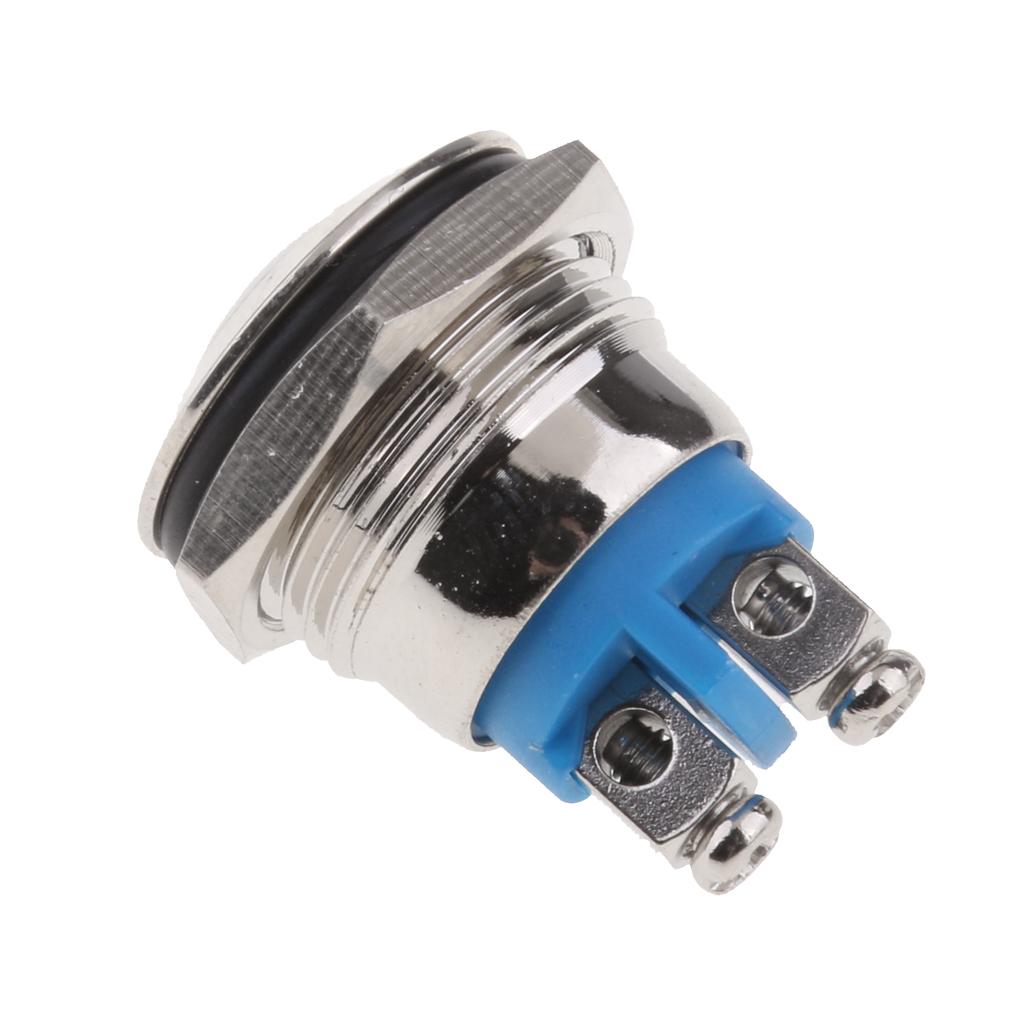

Terminal Type: Screw
Protection Degree: IP67, IK08
Switch Rating: 3A/150VAC
Panel Thickness: 1 - 10mm
Nut Torque: 5~14Nm
Mechanical Life: 500,000 cycles
Electrical Life: 50,000 cycles
Operation Temperature: -20 ℃ - 55 ℃

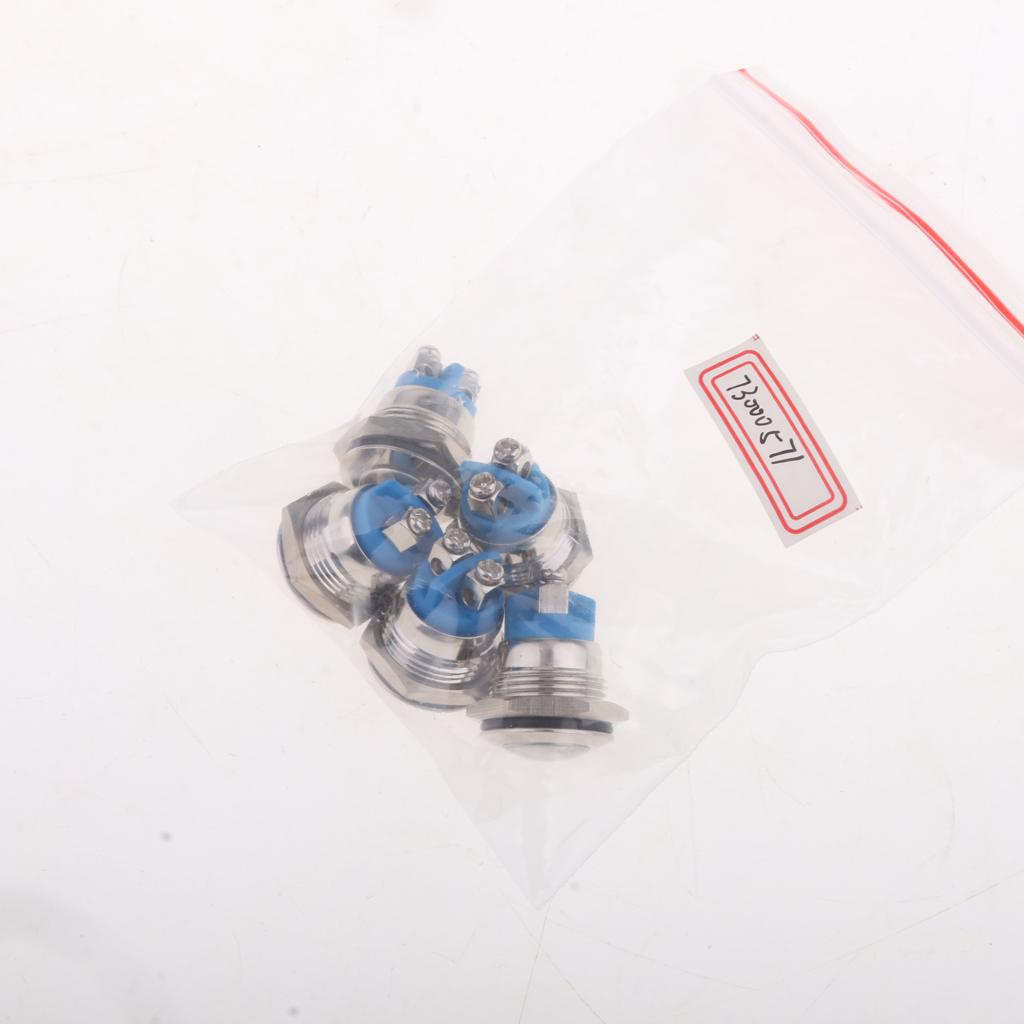

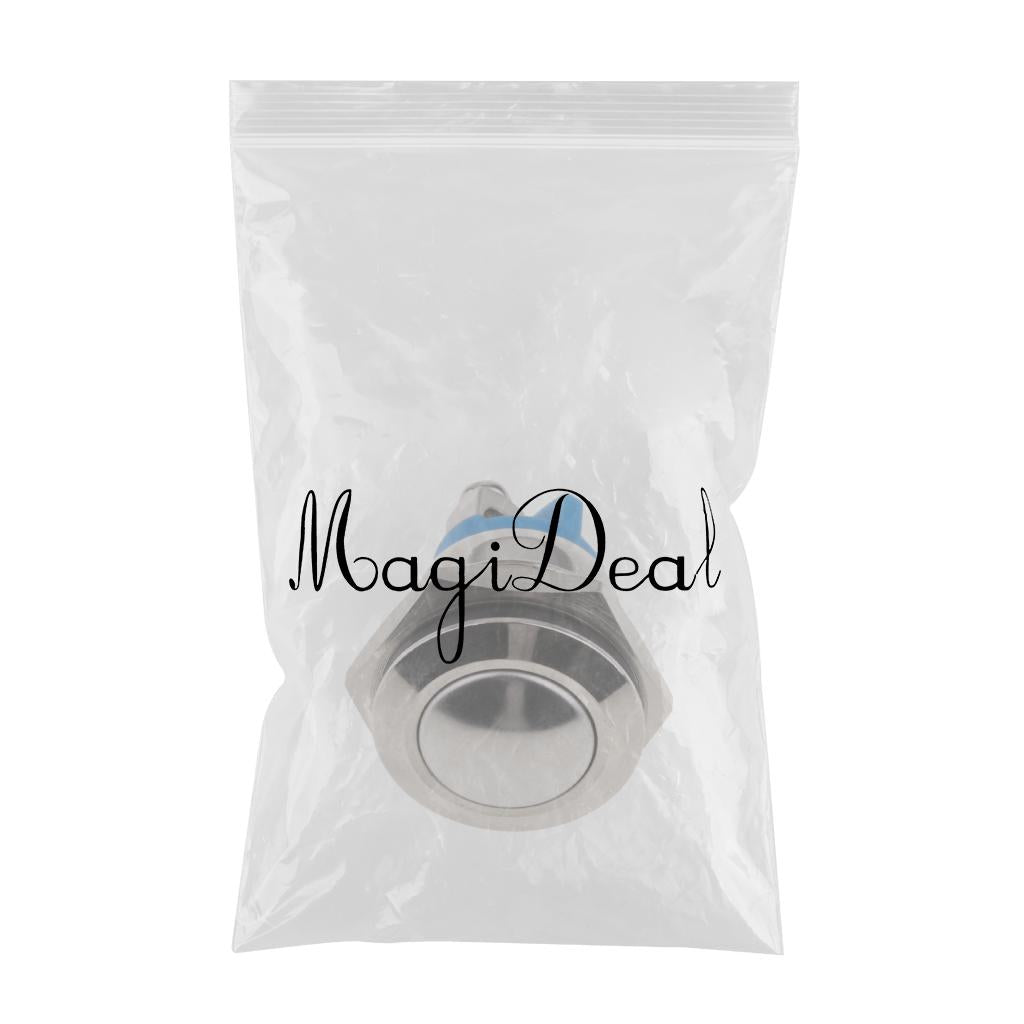

Package Includes:

1 Piece 16mm Momentary Push Button Switch
