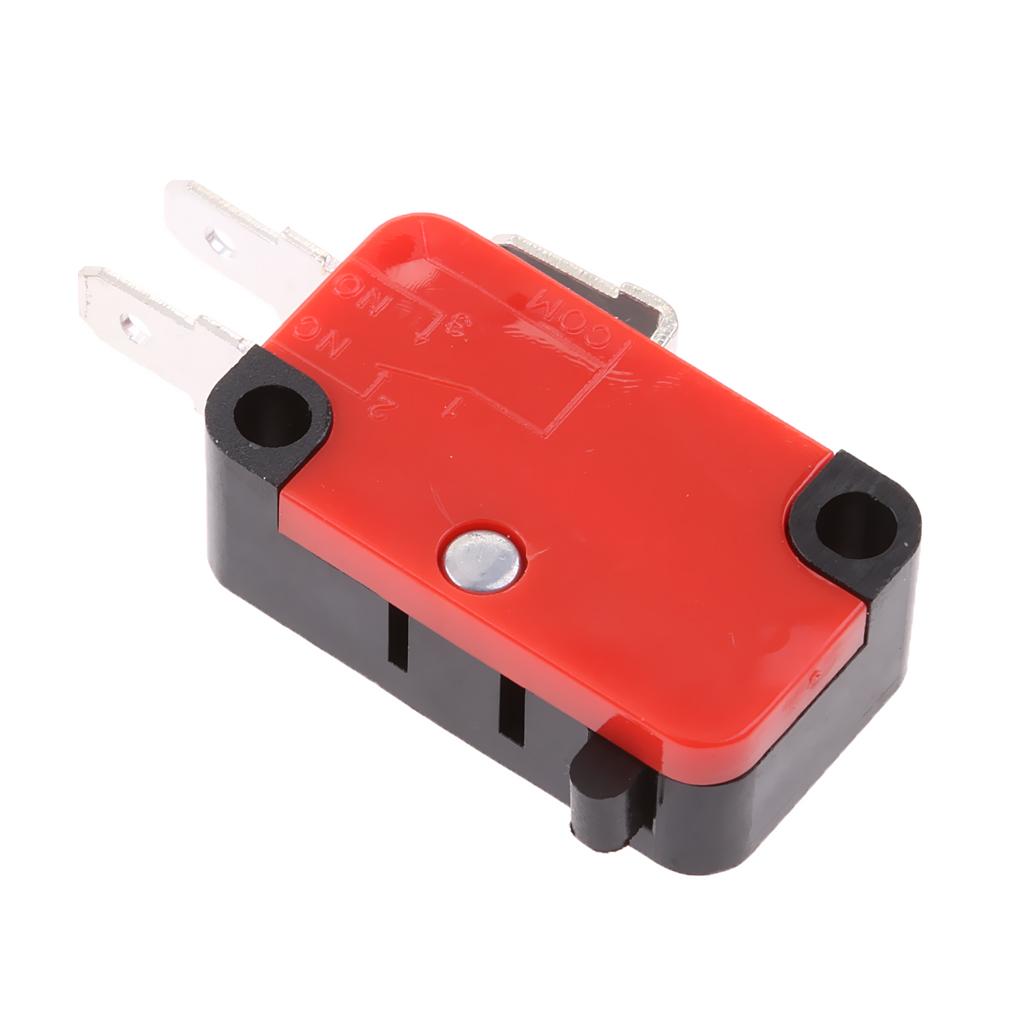

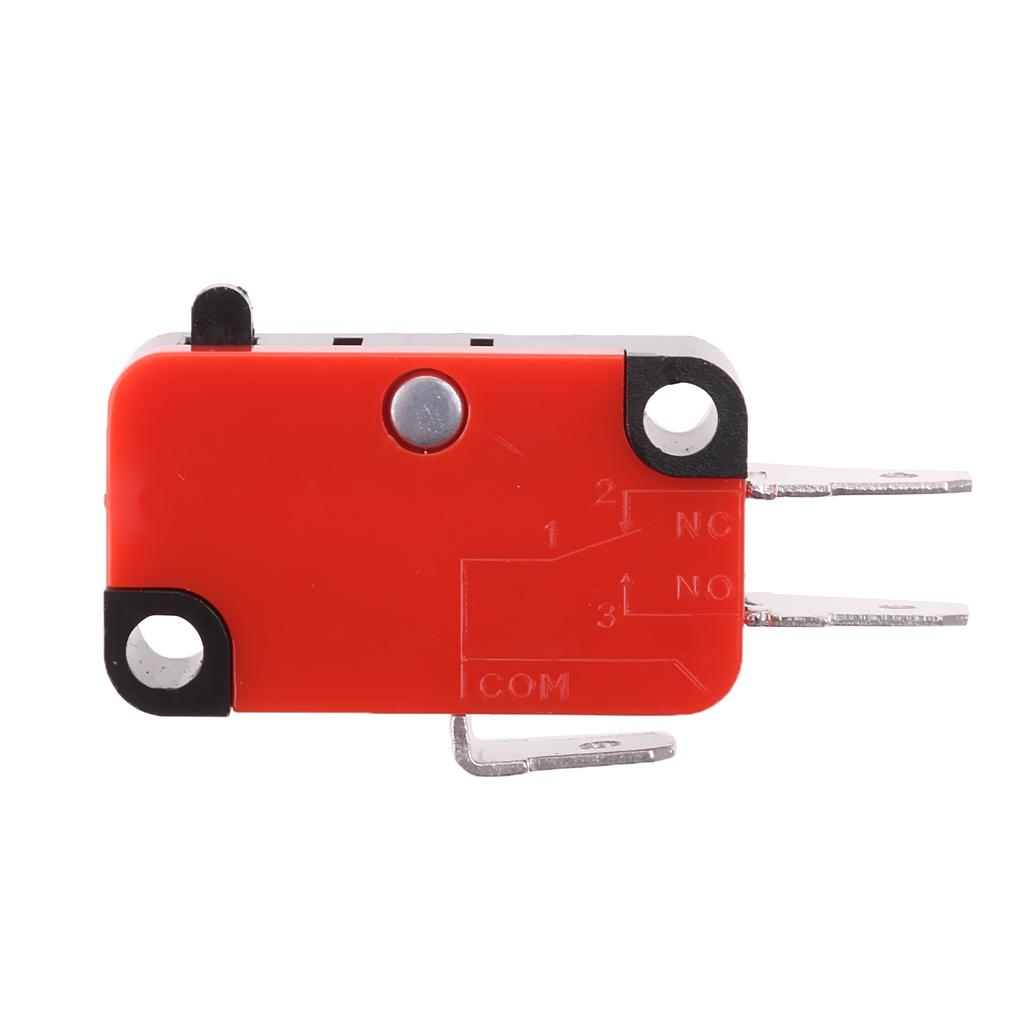

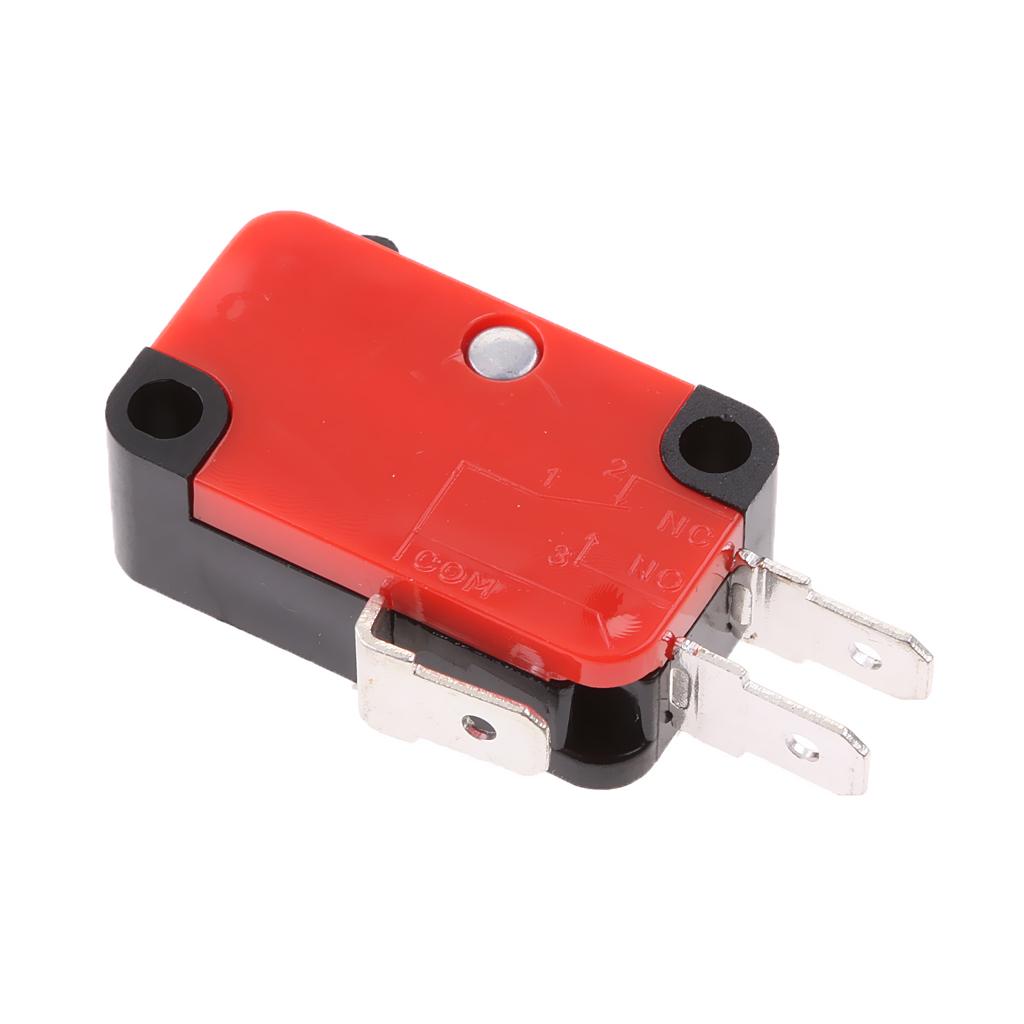

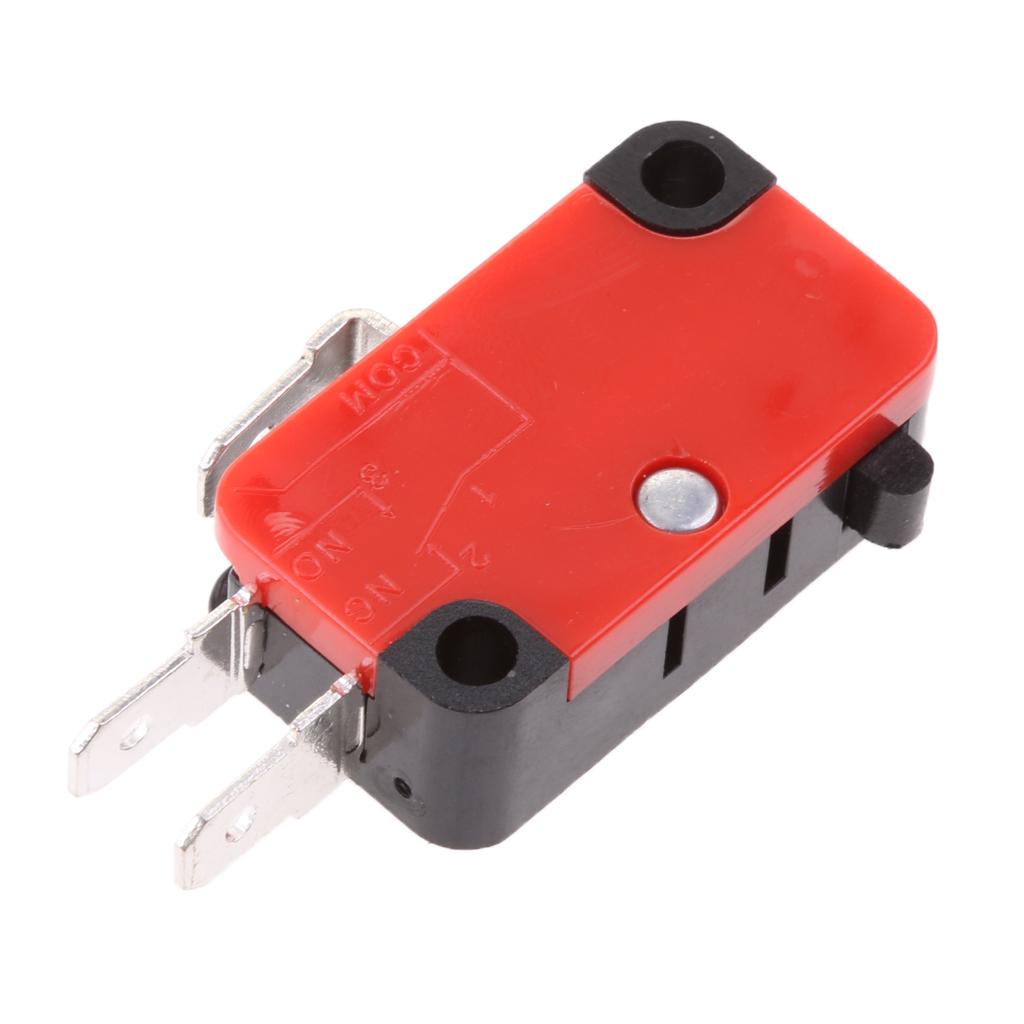

15A 250V V-15-1C25 Micro Limit Switch Roller Momentary SPDT Snap

Regular price
Rs. 264.26
Regular price
Sale price
Rs. 264.26
Earn 132 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 51012444
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

High precision mechanism design offering acute operation and long life.
Features with Hinge Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Terminals design.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.

Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.

Contact Configuration:1NO,1NC(SPDT)


Specification:

Rating : 15A, 1/2HP, 125/250VAC0.6A,125VDC; 0.3A, 250VDC;
Fixing Holes Dia. : ~0.32cm / 0.13";Button Height : ~0.3cm / 0.12";
Actuator Size : ~2.8 x 0.45cm / 1.1" x 0.18"(L*W)
Terminal Width : ~0.47cm / 0.19"
Type:V-156-1C25
Rating:15A(1/2 HP 125V-250VAV) 0.6A 125VDC 0.3A 250VDC

Package Includes:

1 Piece Limit Switch
