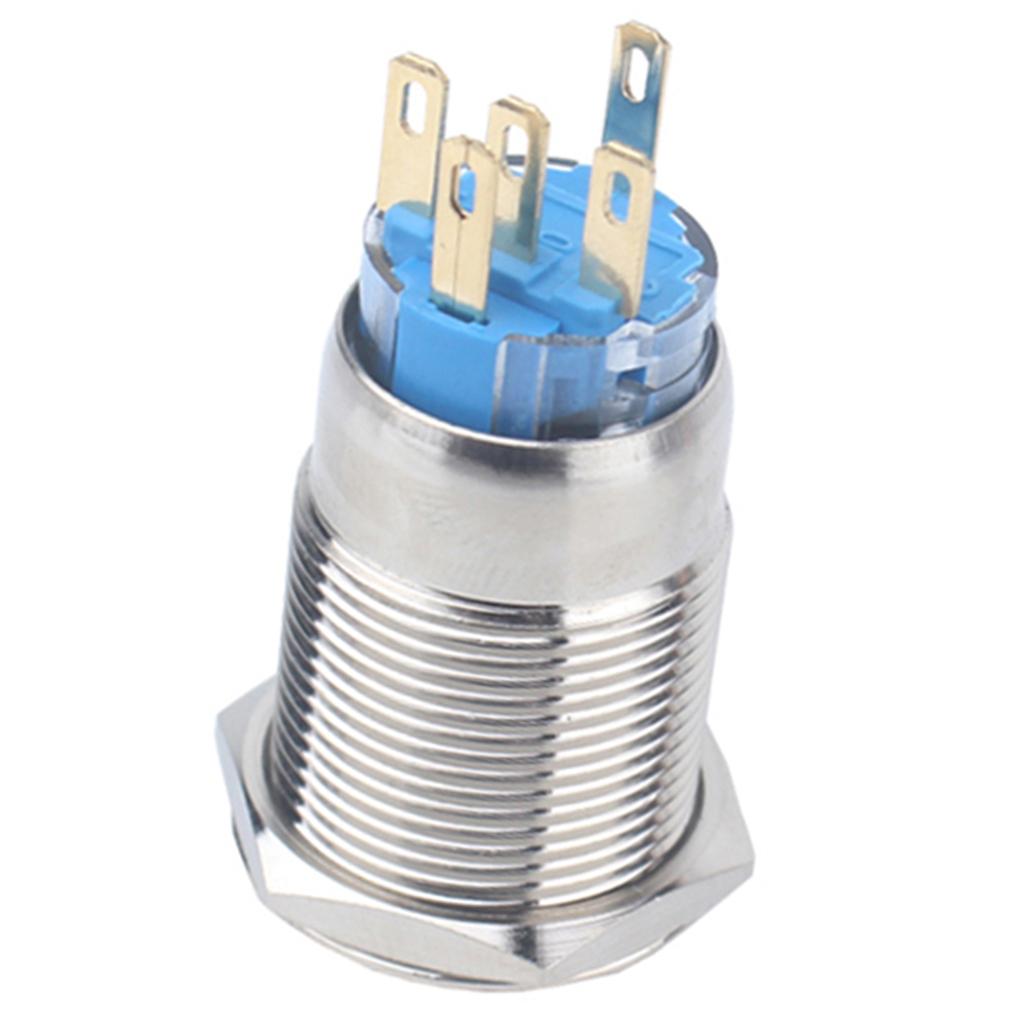

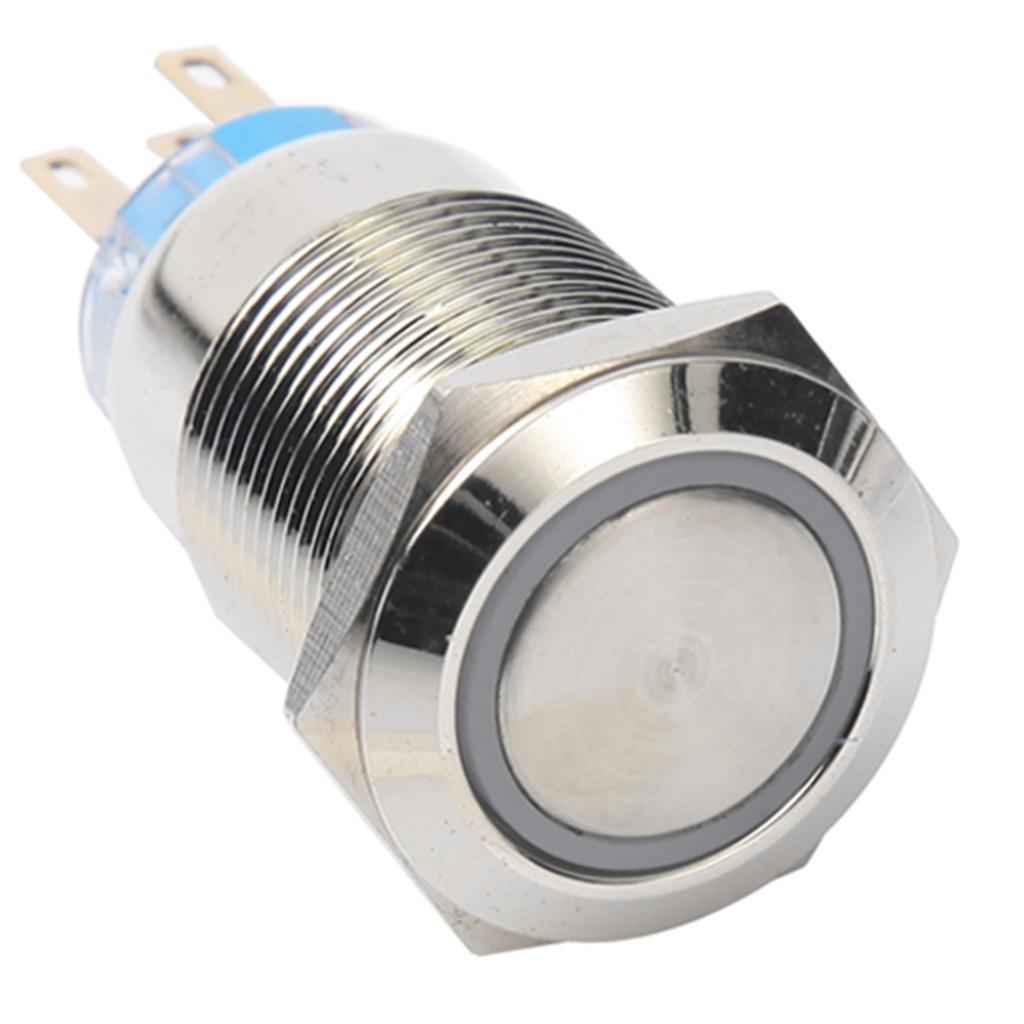

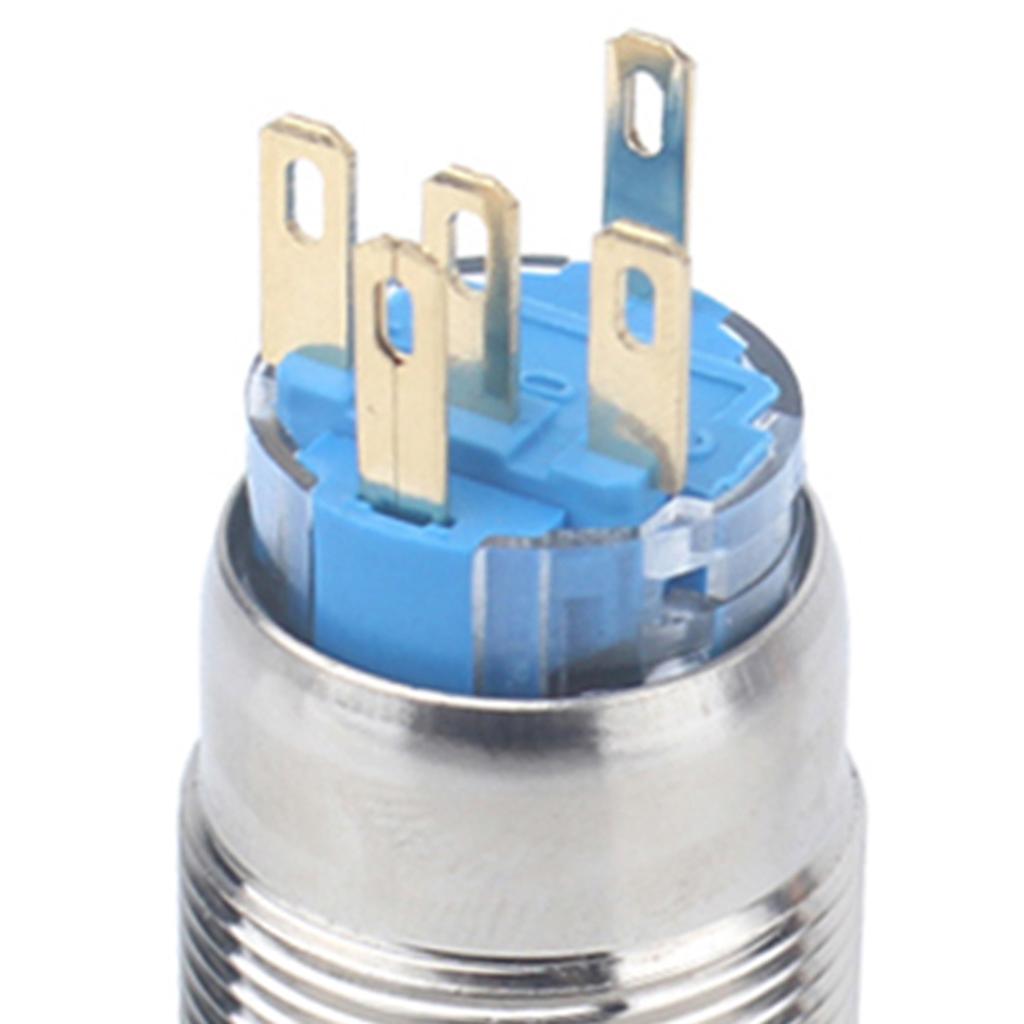

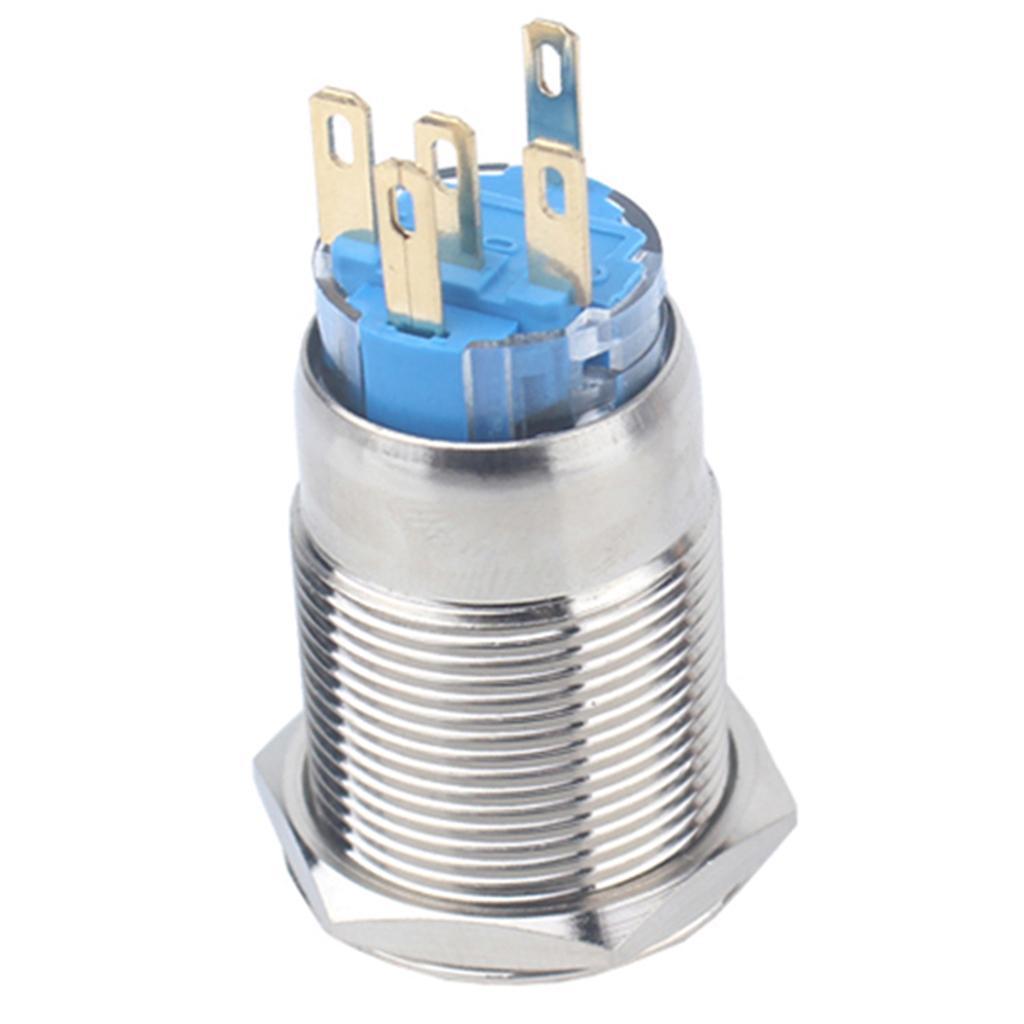

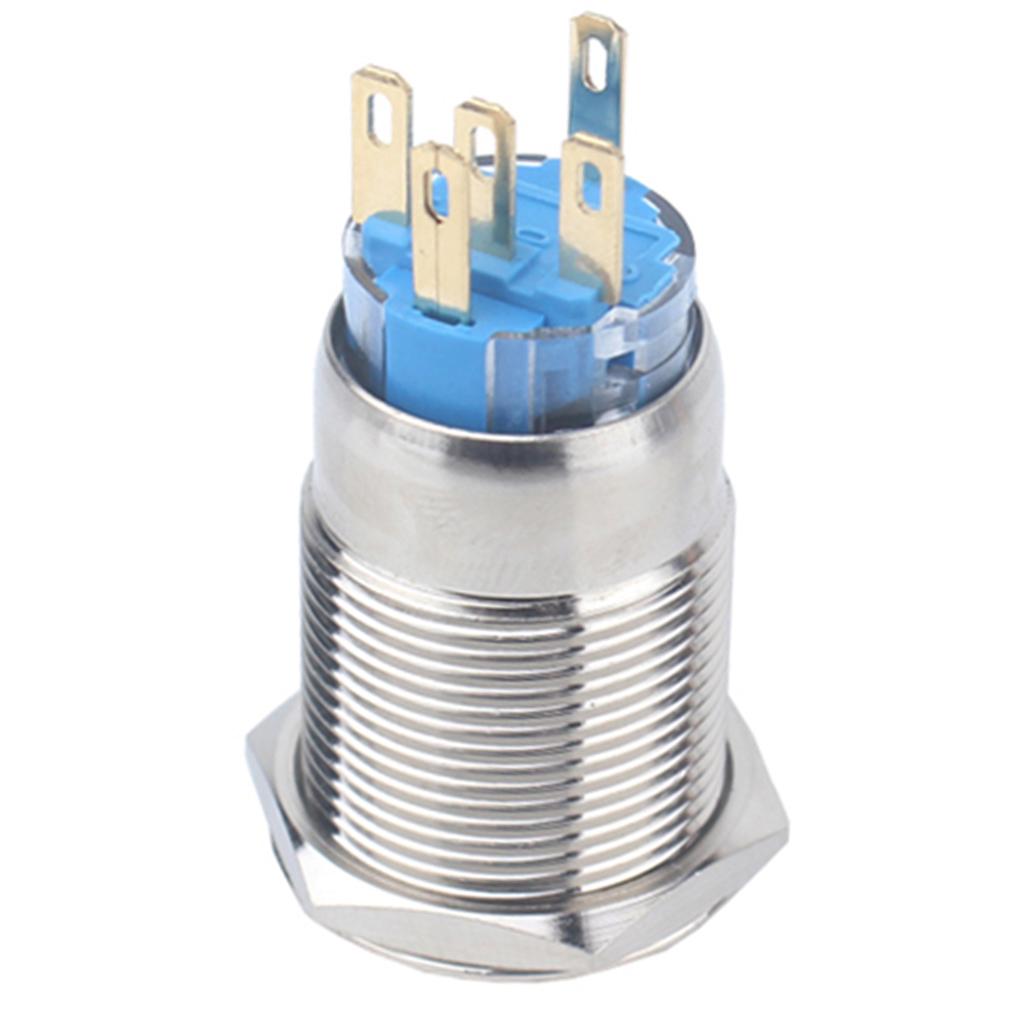

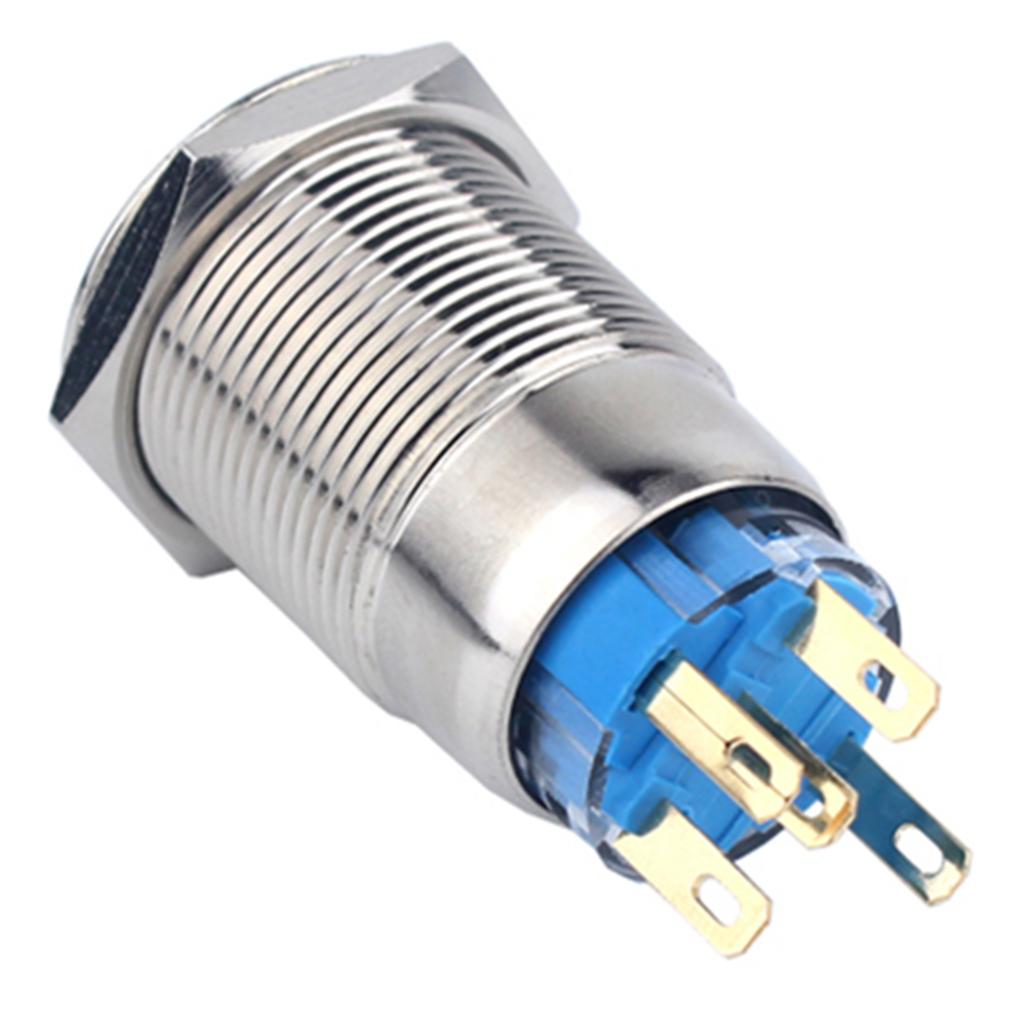

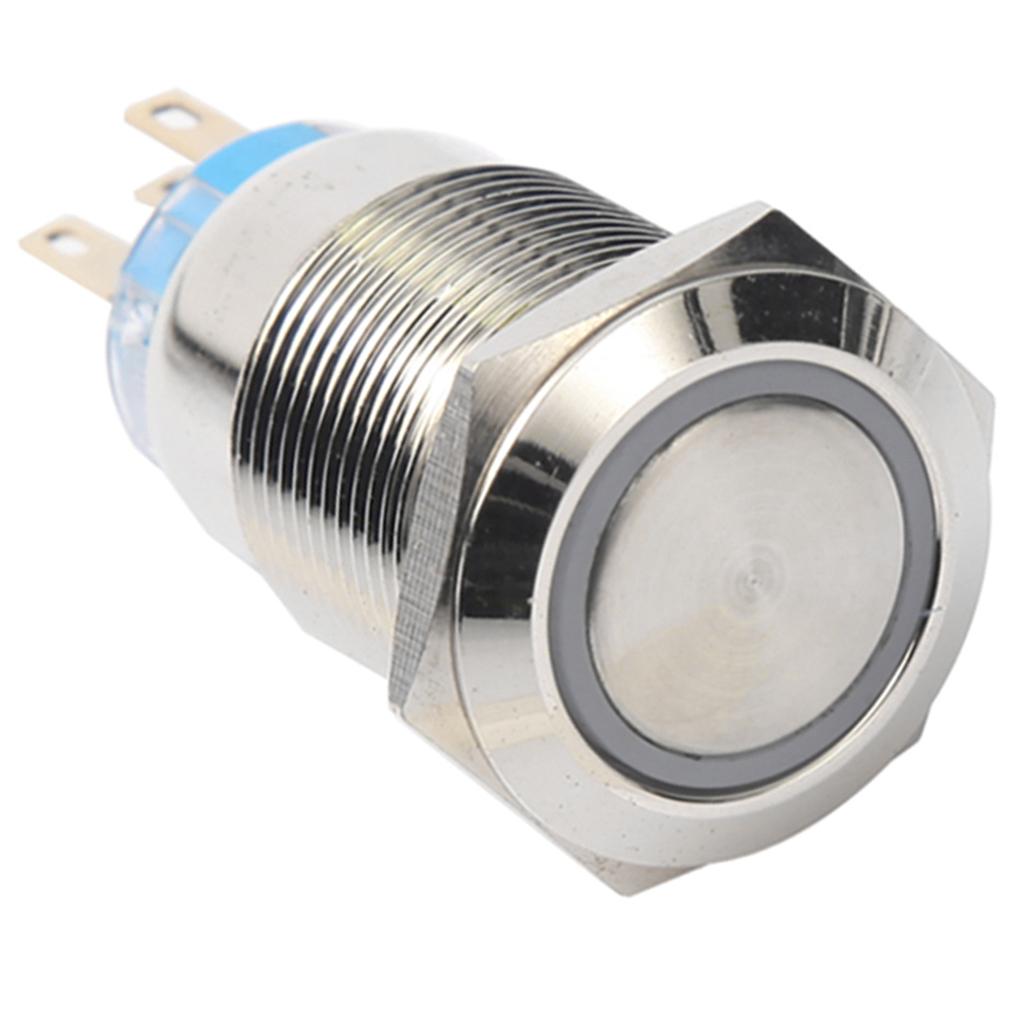

12V Momentary IP65 250V/5A Push Button Switch Blue Ring Light, 19mm Mounting Hole

Regular price
Rs. 474.73
Regular price
Sale price
Rs. 474.73
Earn 237 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73006863
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Momentary Type: Resetable [Push & Hold ON, Release OFF],mechanical life for 500,000 cycles.
Mounting hole size: 19mm; Head Diameter: 22mm; Depth (Including Contacts): 40.5mm.
Switch Rating: 5A/250VAC; LED Rating Voltage: 12V
Head shape: Flat Round Cap; Enclosure material: Stainless Steel, Degree of protection: IP67, IK10
High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment.

Specification:

Switch Rating: 5A/250VAC
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000mΩ
Dielectric intensity: 2000VAC
Operation Temperature: -20℃ ~ +55℃
Mechanical life: 500,000 cycles
Electrical life: 50,000 cycles
Panel thickness: 1 - 10mm
Nut torque: 5 - 14Nm
Operation pressure: About 4N
Operation stroke: About 2.5mm
Operation Type: Momentary
Head Shape: Flat Round Cap
Body Material: Stainless Steel
Button Material: Stainless Steel

Package Includes:

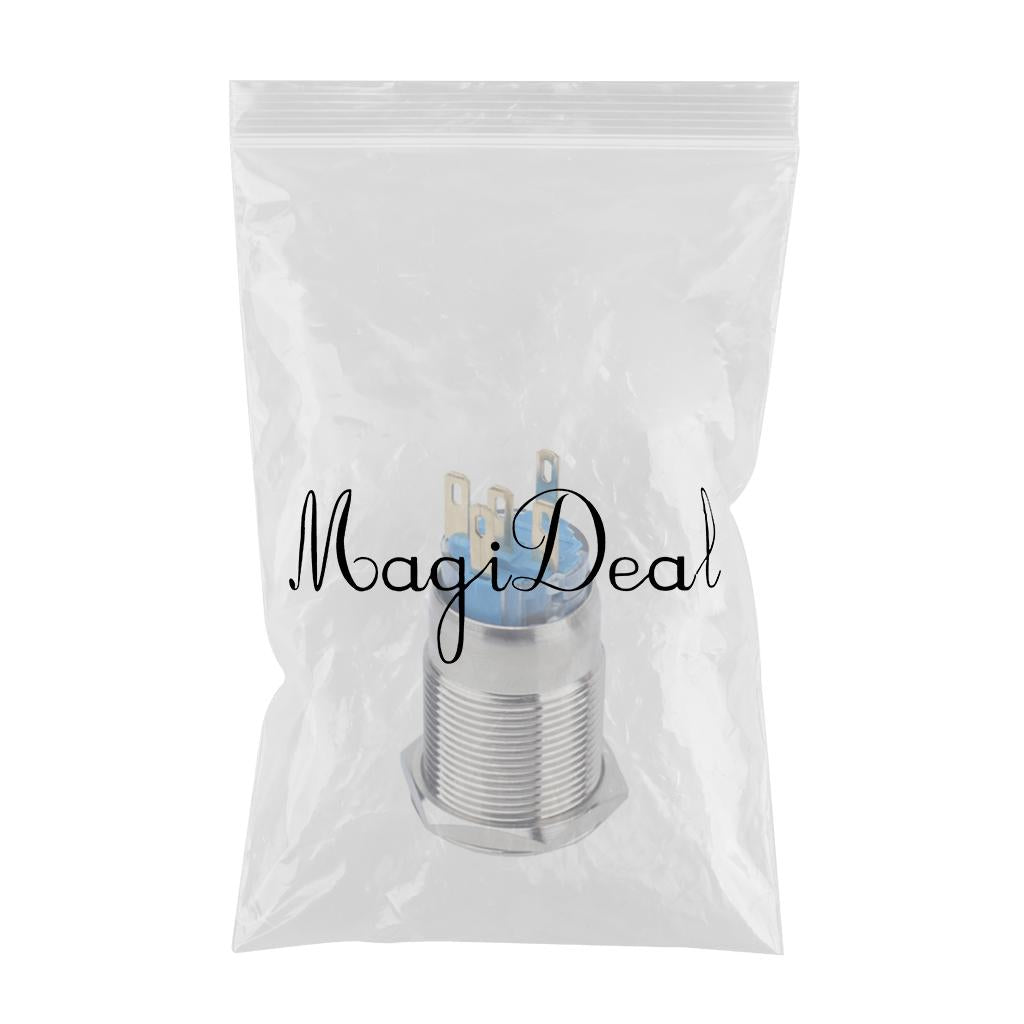

1 Piece Push Button Switch
