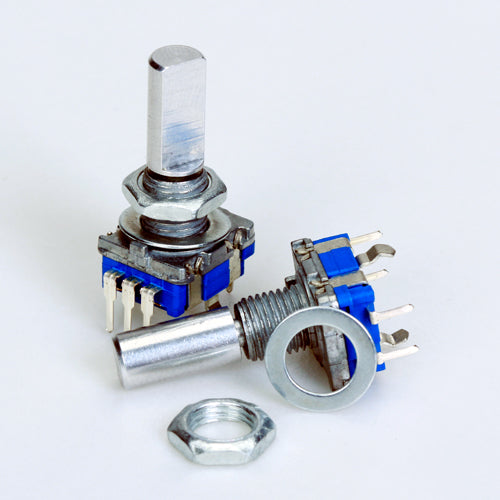

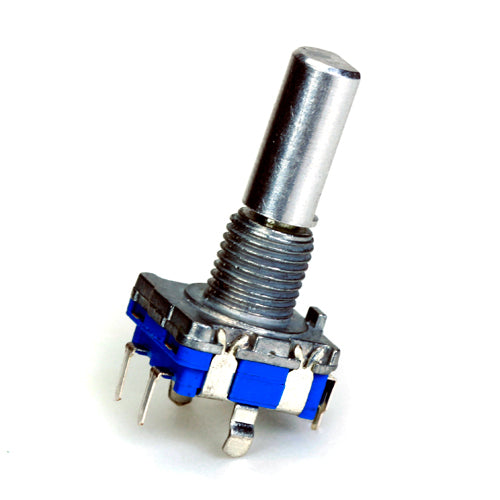

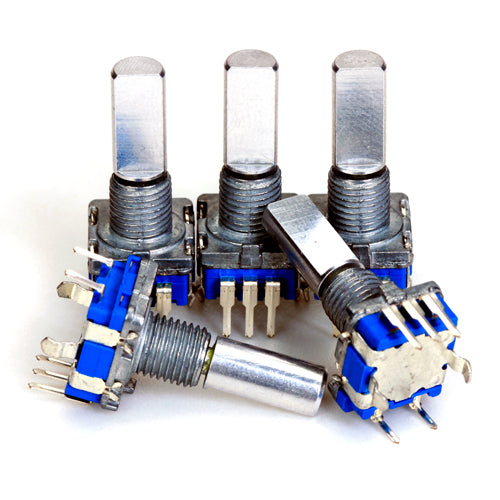

10pcs 12mm Rotary Encoder Switch with Keyswitch

Regular price
Rs. 881.94
Regular price
Sale price
Rs. 881.94
Earn 440 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14002056
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

  • These are continuous rotary encoder switch
  • With built in push button switch (push to operate)
  • Can be used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display
  • Perfect for use with PIC or ATMEL microcontrollers

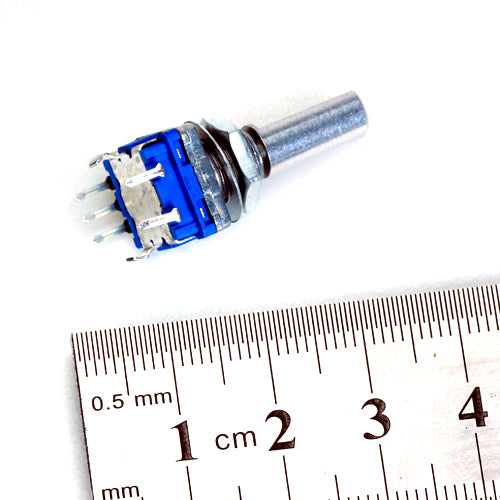

Specifications:

  • Rotary Shaft Length: Approx. 12mm
  • Shaft Full Length: Approx. 20mm
  • Shaft Diameter: Approx. 6mm
  • Size (L x W): Approx. 15 x 11mm
  • Position: 20
  • Pulse: 20
  • Output: 2-bit gray code
  • Closed Circuit Resistance: 3 ohms maximums
  • Max. Rating: 10 mA at 5 VDC
  • Operating Temperature Range: -30 to 70 degrees celsius
  • Storage Temperature Range: -40 to 85 degrees celsius
  • Rotational Life: 30000 cycles minimum
  • Switch Life: 20000 cycles minimum

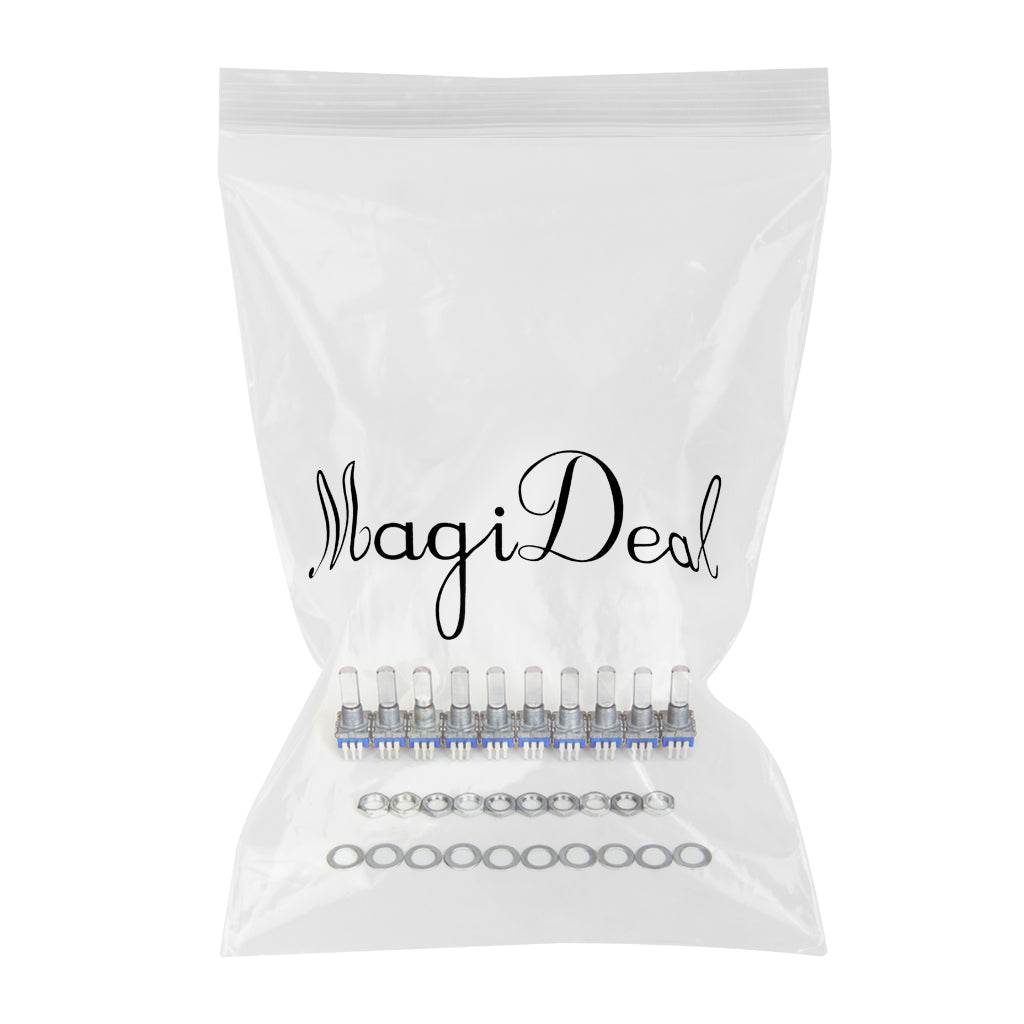

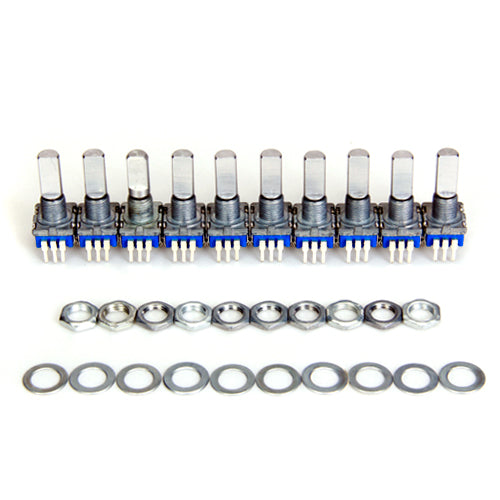

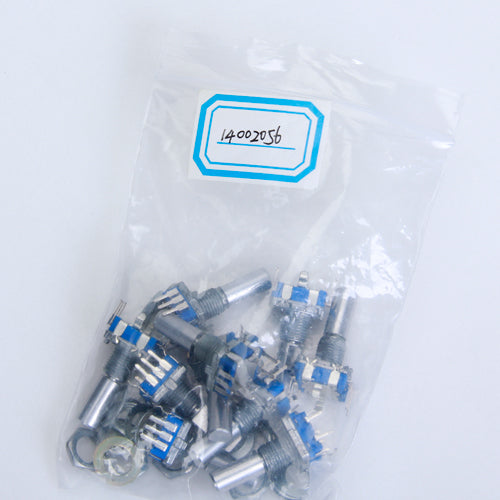

Package Includes:

  • 10 x encoder switch
  • 10 x nut
  • 10 x gasket

Keywords: Encoder, rotary encoders, encoder switch
