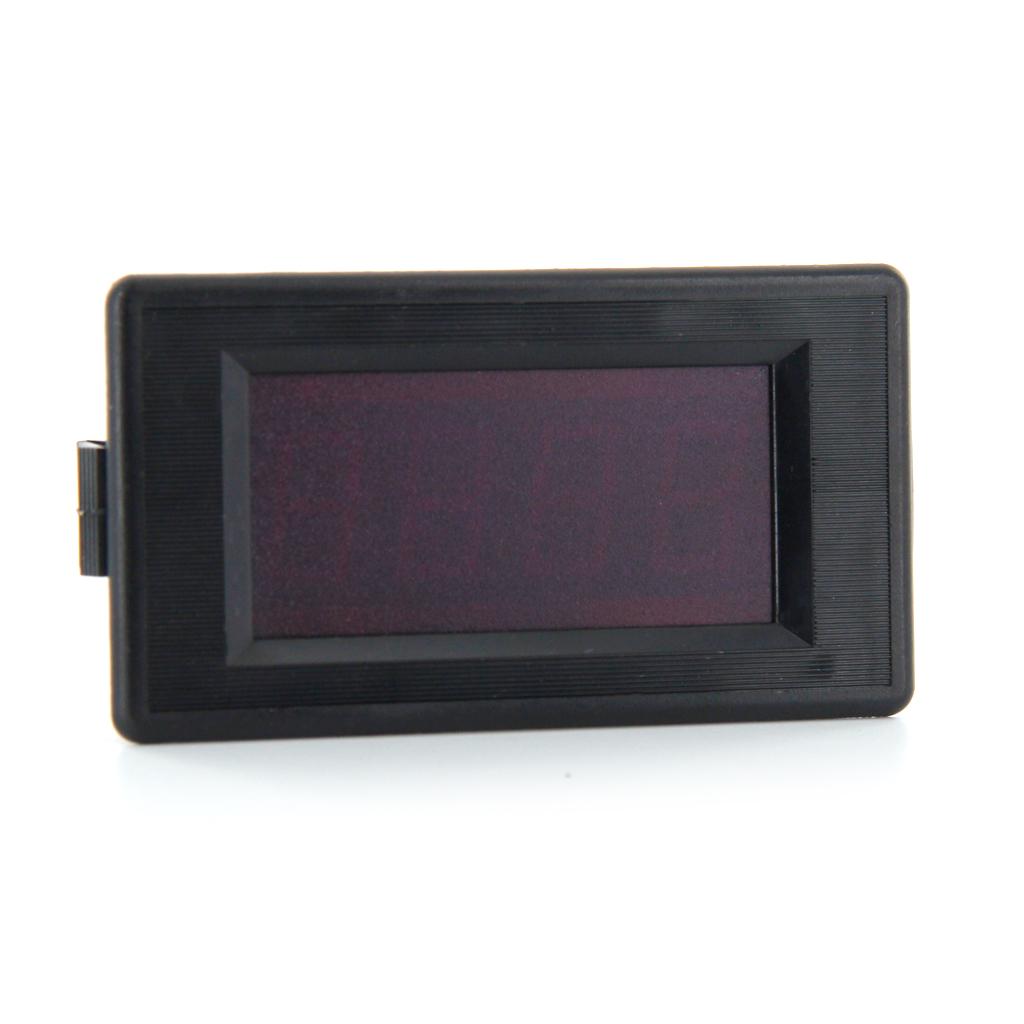

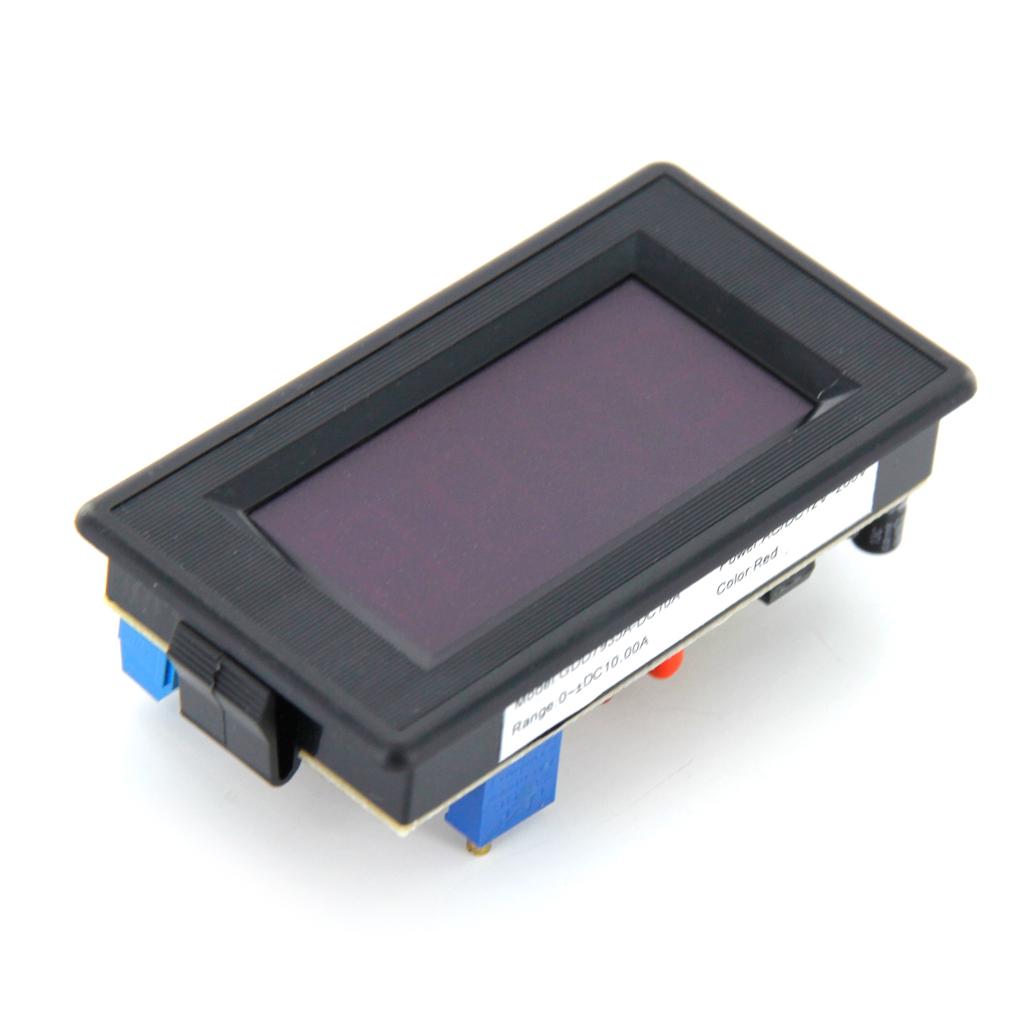

10A Ammeter 3 2/1 Digital Display LED Red Panel AMP Ampere Meter AC/DC12V - 260V

Regular price
Rs. 1,404.88
Regular price
Sale price
Rs. 1,404.88
Earn 702 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14009489
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Features:

  • AC/DC12V~260VPower Isolated
  • Two or more meters can share with one Power supply
  • High Precision and stable
  • Bright RED LED display
  • Black ABS housing with self-lock tip for panel mounting

Specifications:

  • Power supply: AC/DC12V~260V
  • Operating temperature: 0 to 50°C
  • Temperature coefficient: <50PPM
  • Current: <15mA
  • Zero: Automatic
  • Display: RED 0.56in LED
  • Overrange indication: (1) or (-1) is displayed
  • Sampling time: 2.5/sec
  • Polarity Display: Automatic
  • Panel cutout size:Approx. 76.5mm x 39.2mm/3.01 * 1.54inch

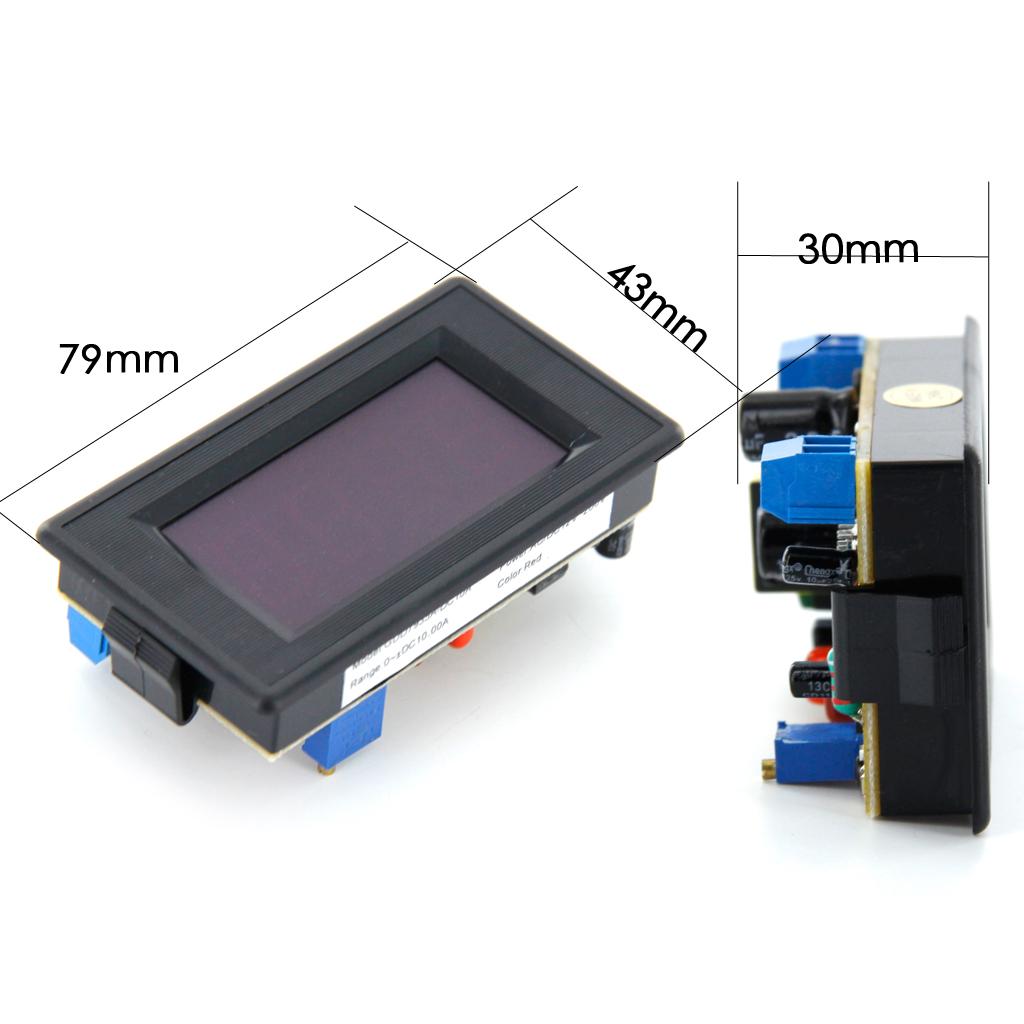

  • Dimension: Approx.79mm x 43mm x 30mm/3.11 * 1.69 * 1.18inch
  • Weight: Approx.60g

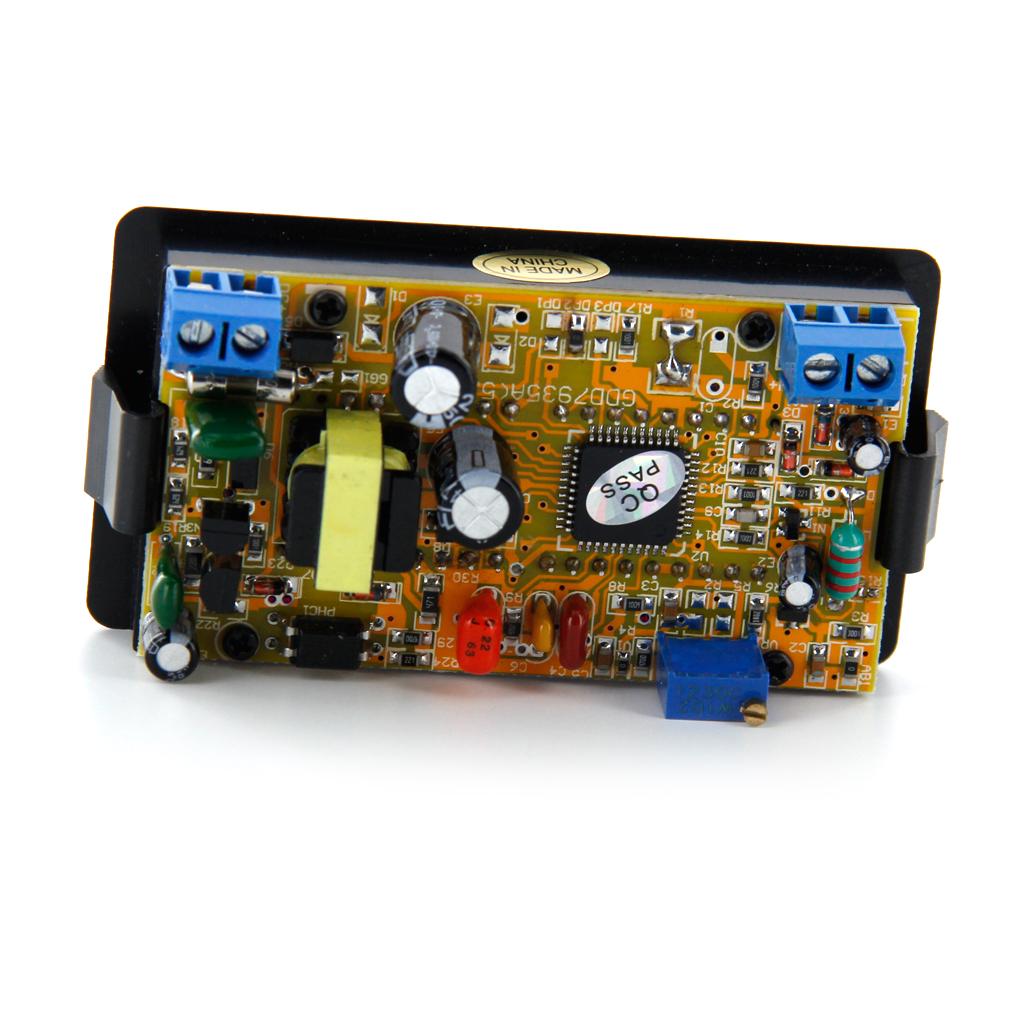

Rectifying method : Connect the standard DC current signal to line of “IN-、IN+”, and then adjust the VR1 until the display value is the same as the DC current signal.

Cautionsome parts are with high voltage, do not touch when power on

Range Display

Model

Input signal

Range

Display

Resolution

GDD7935A-DC10A

0~±DC10A

DC10A

0~±10.00

±0.01A

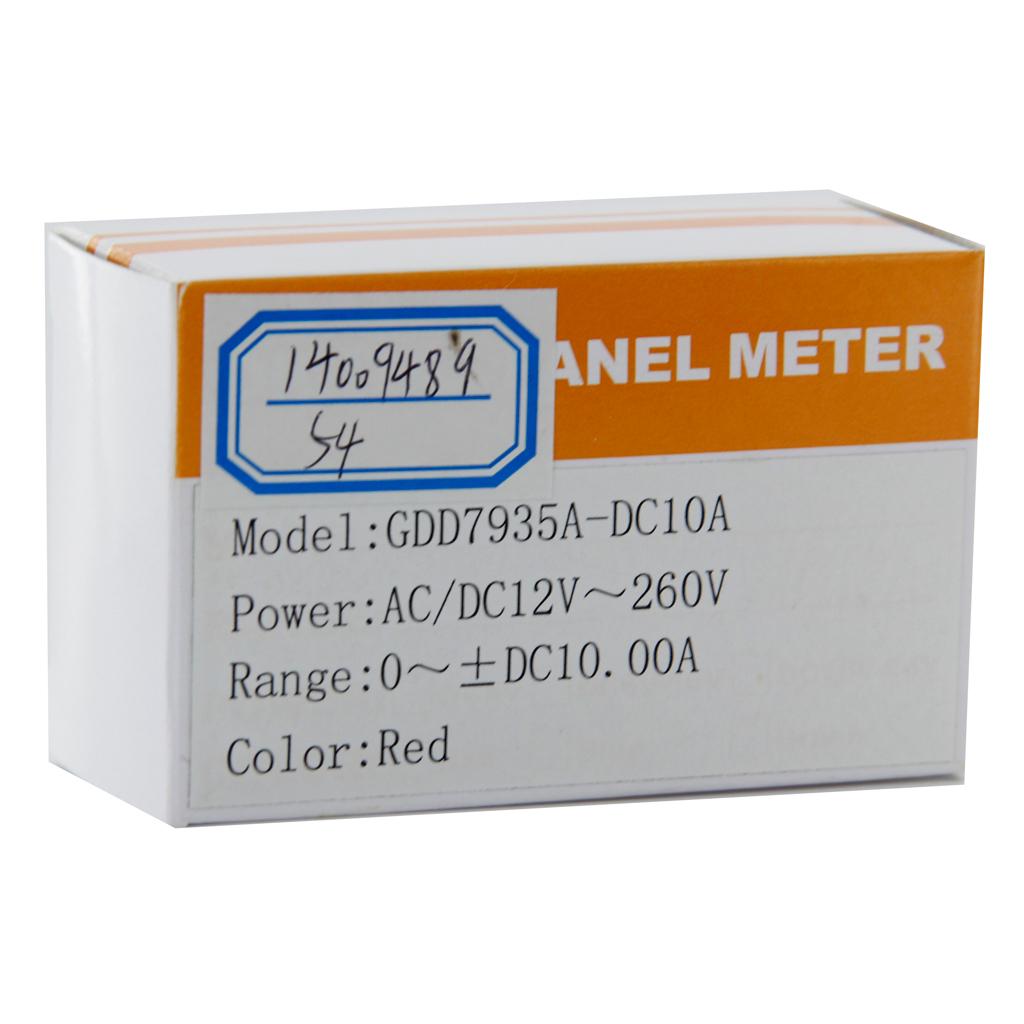

Package Includes:

  • 1x 10A Ammeter
