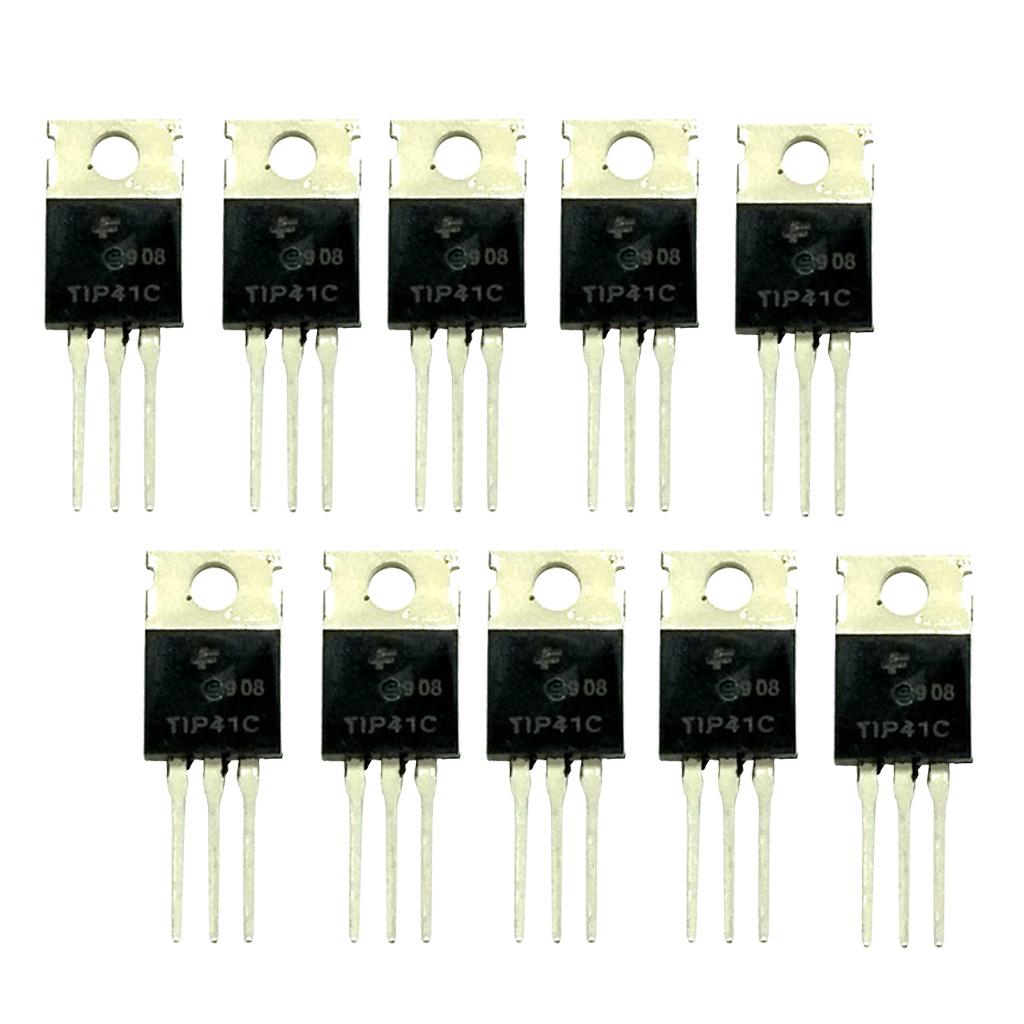

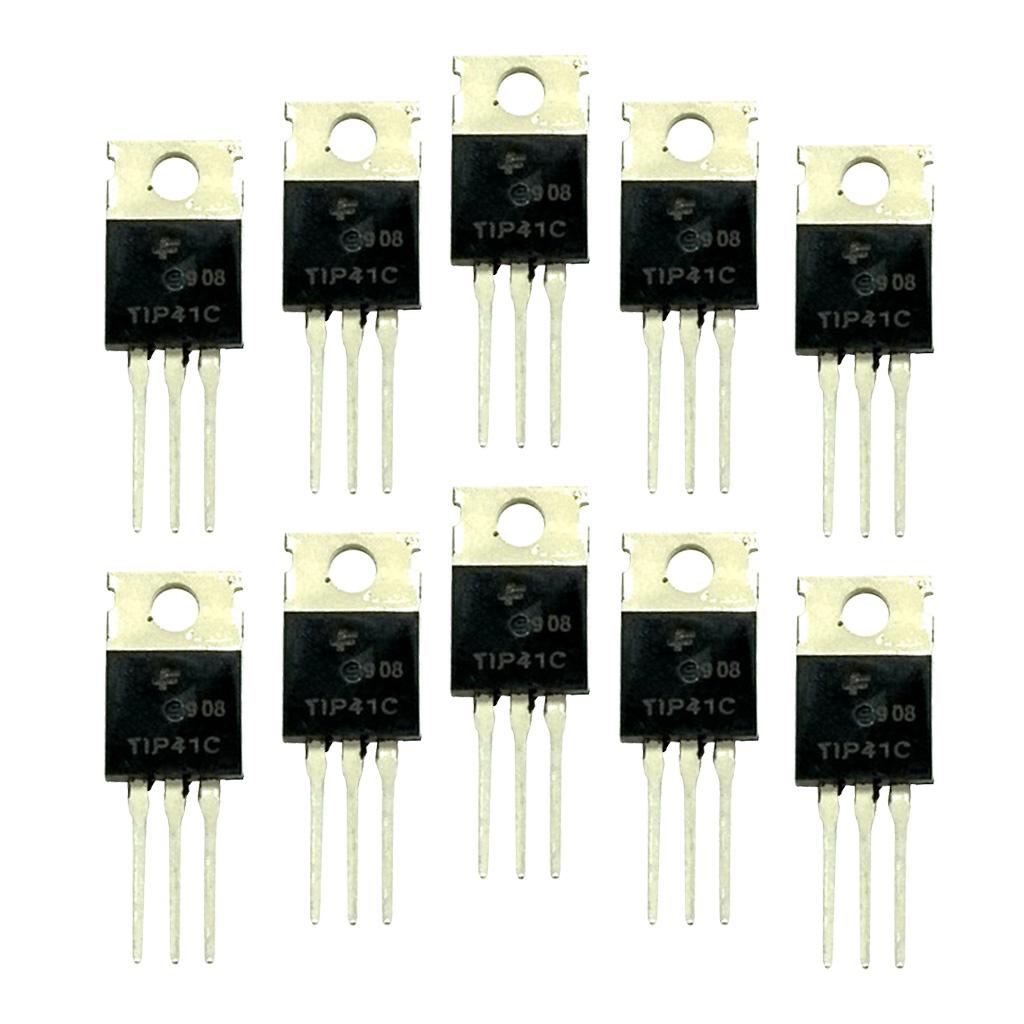

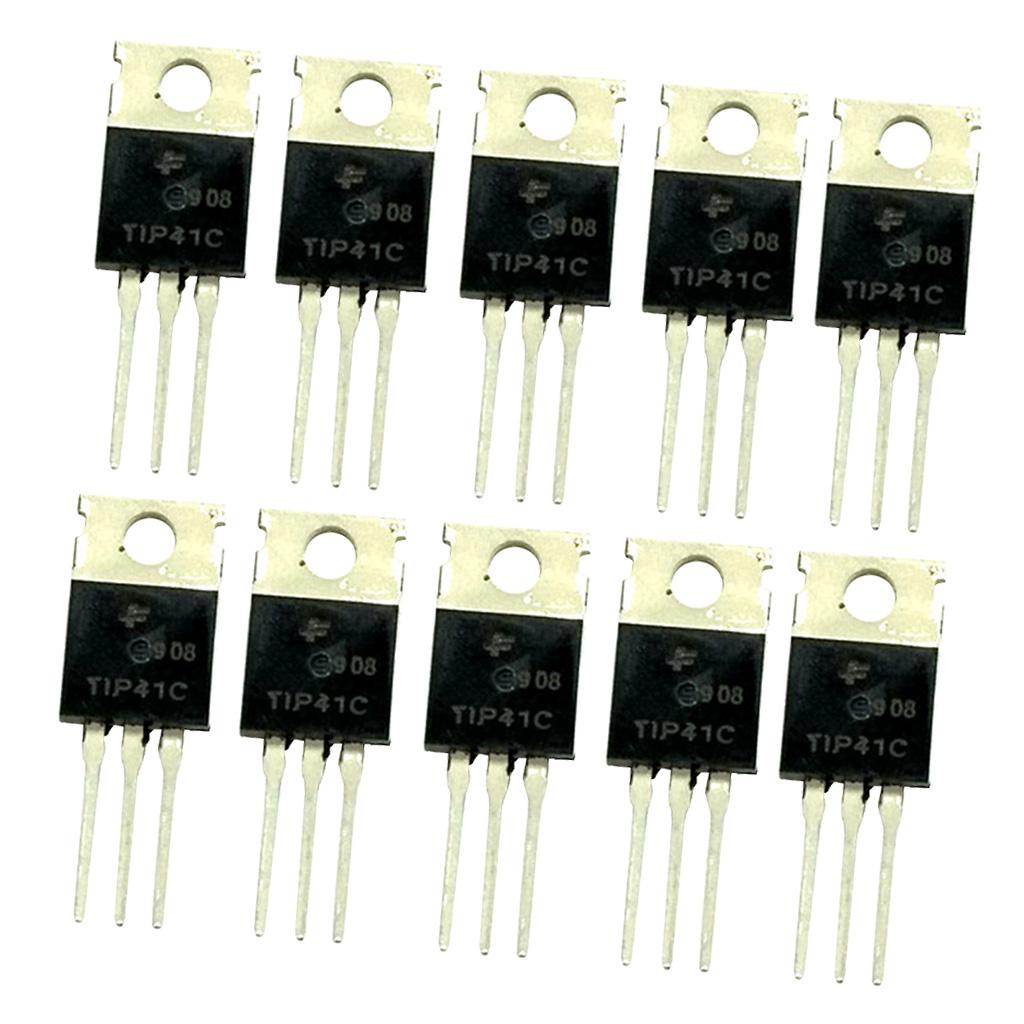

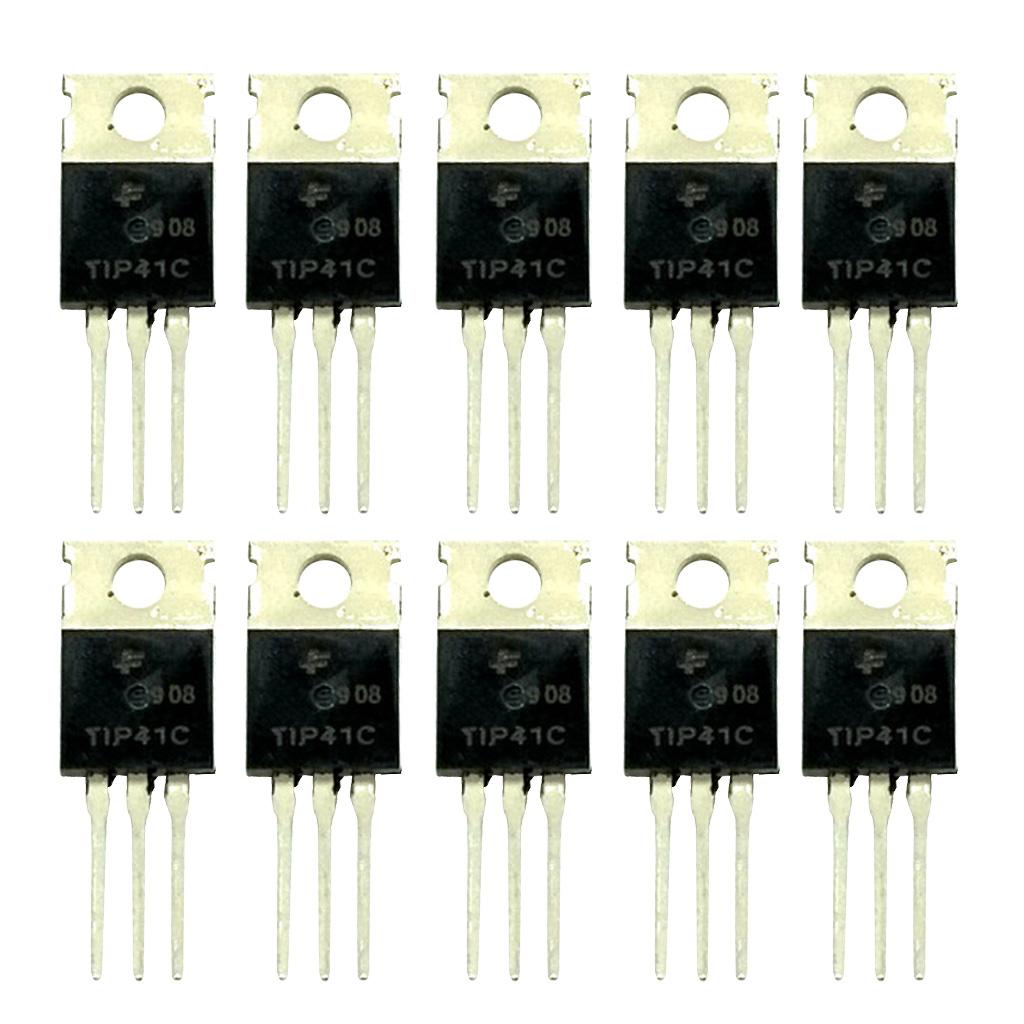

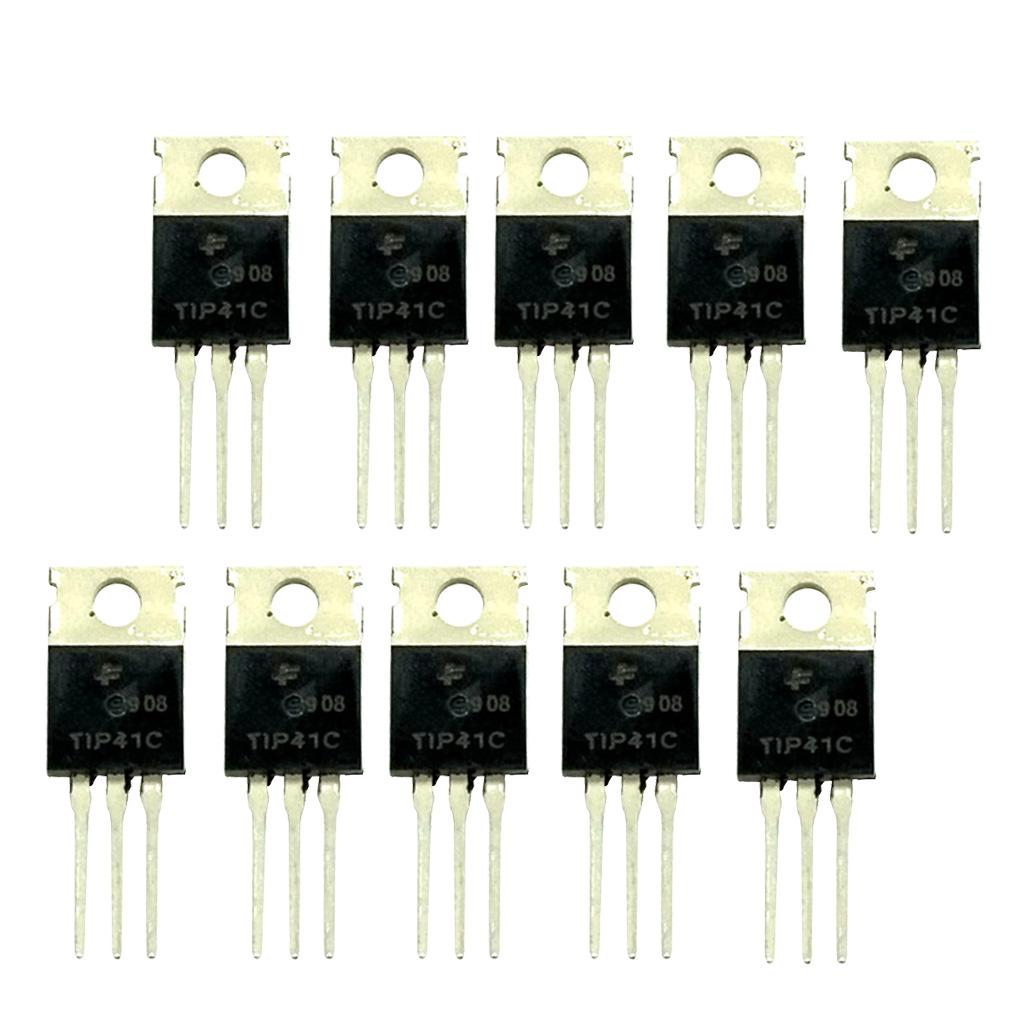

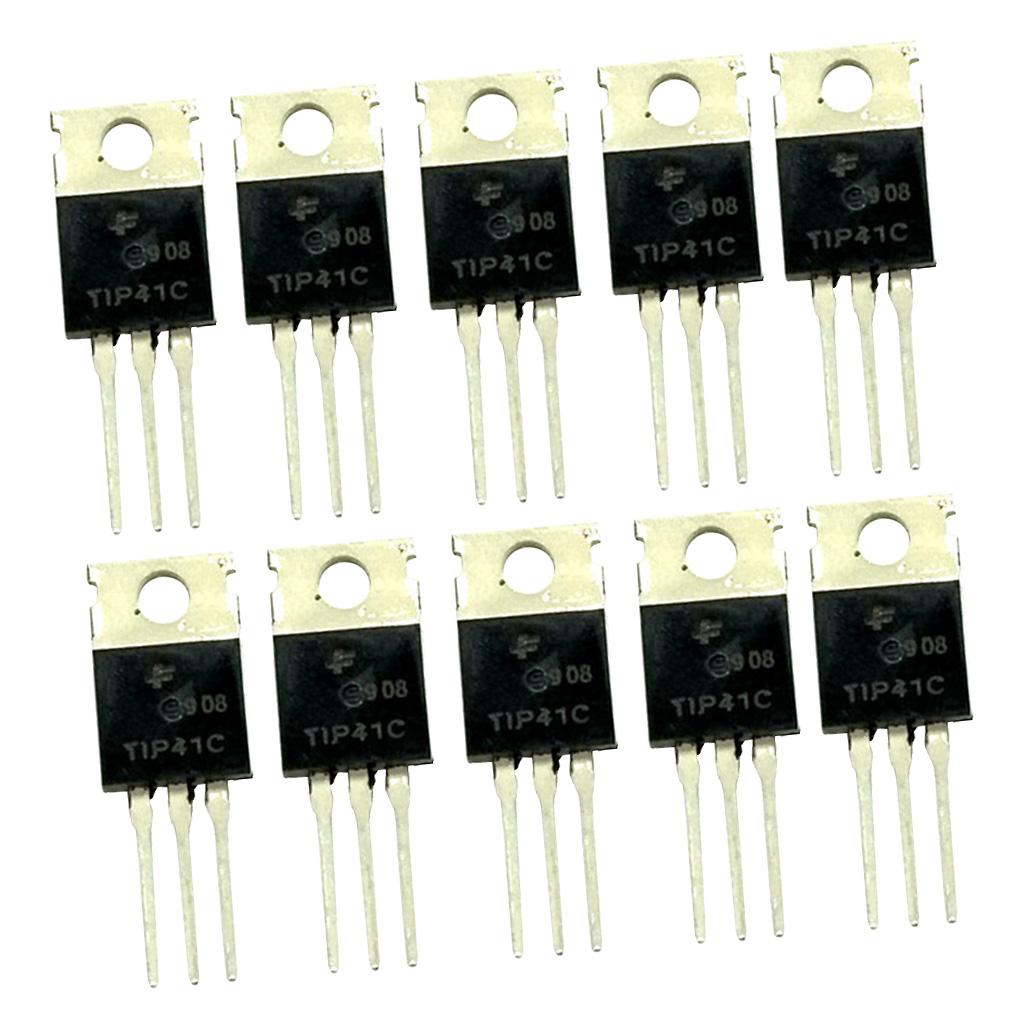

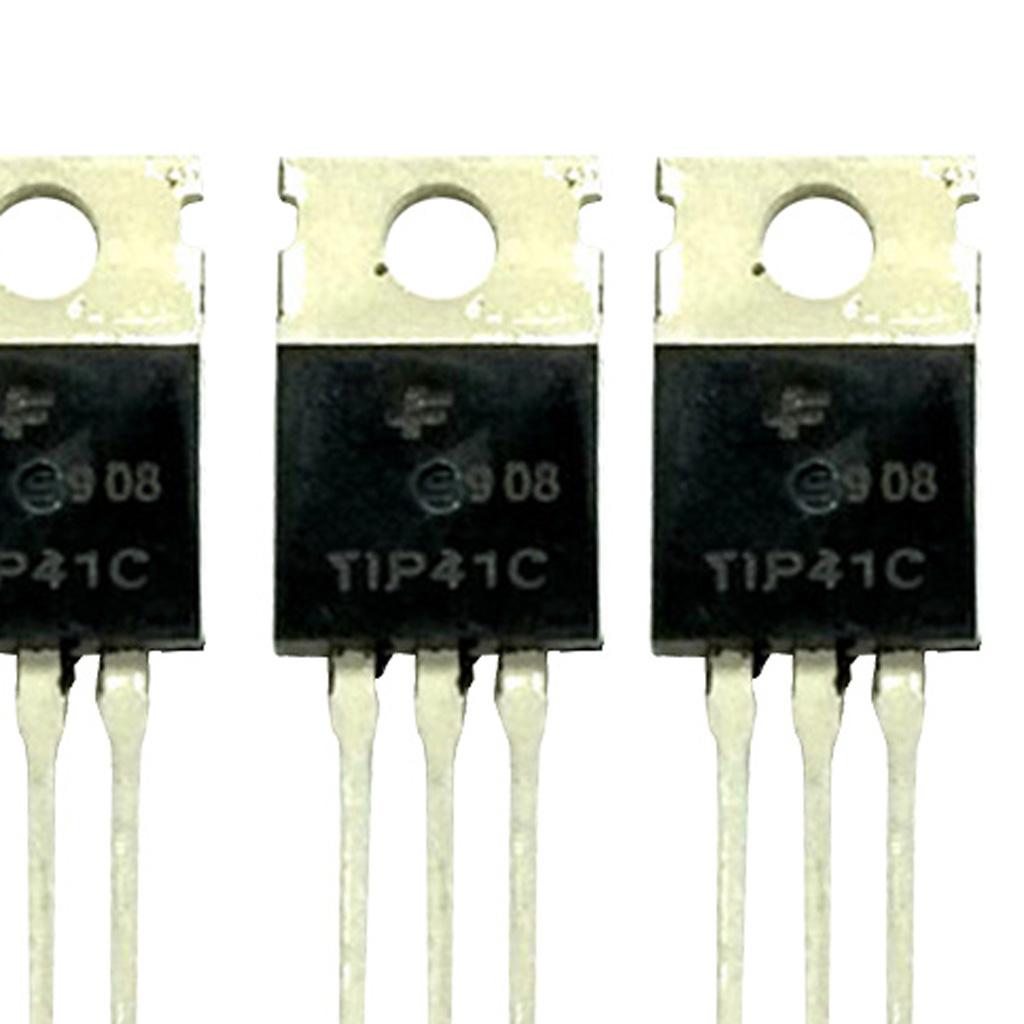

10 Pieces TIP41C Transistor Power Amplifier 100V 6A NPN Triode

Regular price
Rs. 416.66
Regular price
Sale price
Rs. 416.66
Earn 208 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73006717
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Transistor type: NPN
Minimum DC current gain (hFE) at a certain Ic, Vce: 15 @ 3A, 4V
Suitable for electronic switch lines, amplifiers, audio
High power and large drive current
Low frequency or audio amplification (LF), power amplification (L)


Specification:

Name: TIP41C
Maximum dissipation rate: 65W
Maximum average current: 6A
Maximum peak current: 10A
Maximum dissipation rate: 65W
Maximum Ice leakage current: 700μA (@Vce=60V, Vbe=0)
Maximum Vcbo=100V
Maximum Vceo=100V
Maximum Vbe=5V
Maximum effective junction temperature: 150 degrees Celsius

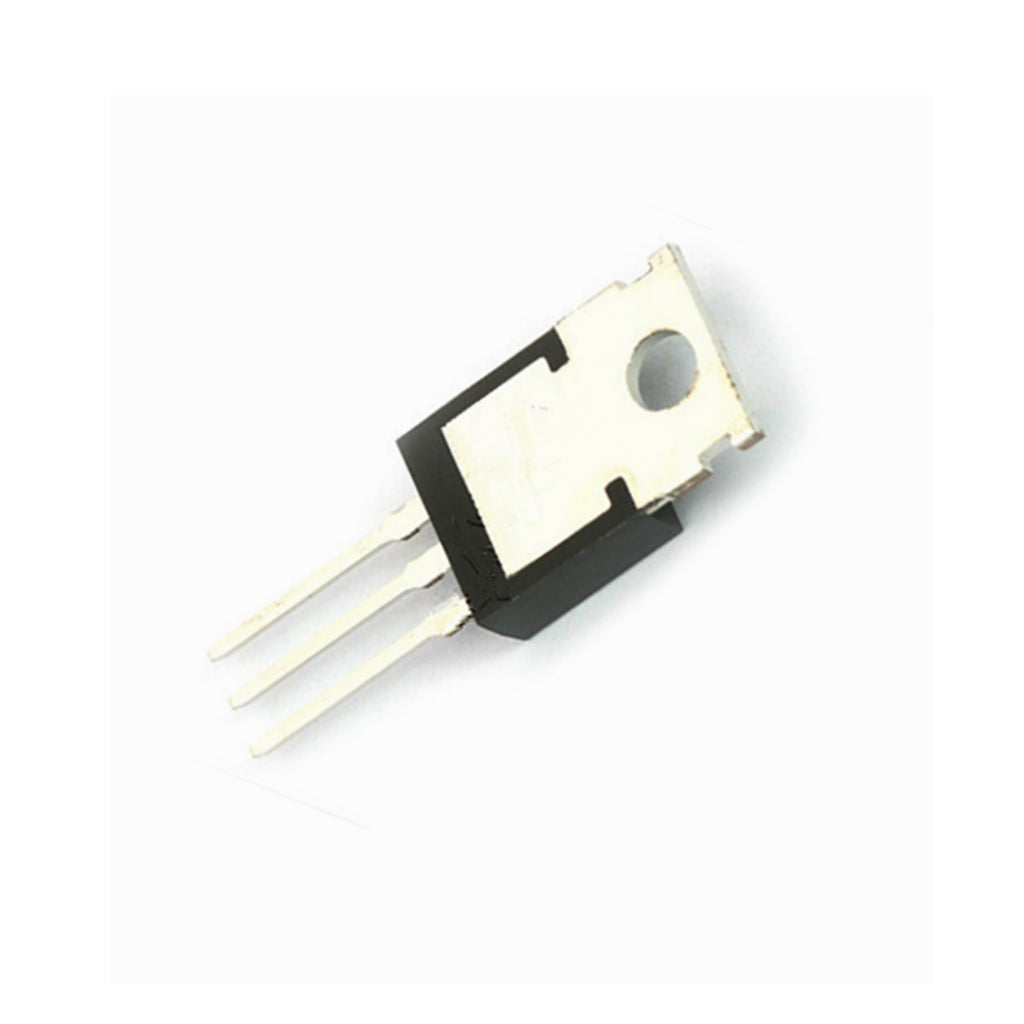

Package form: In-line package TO-220

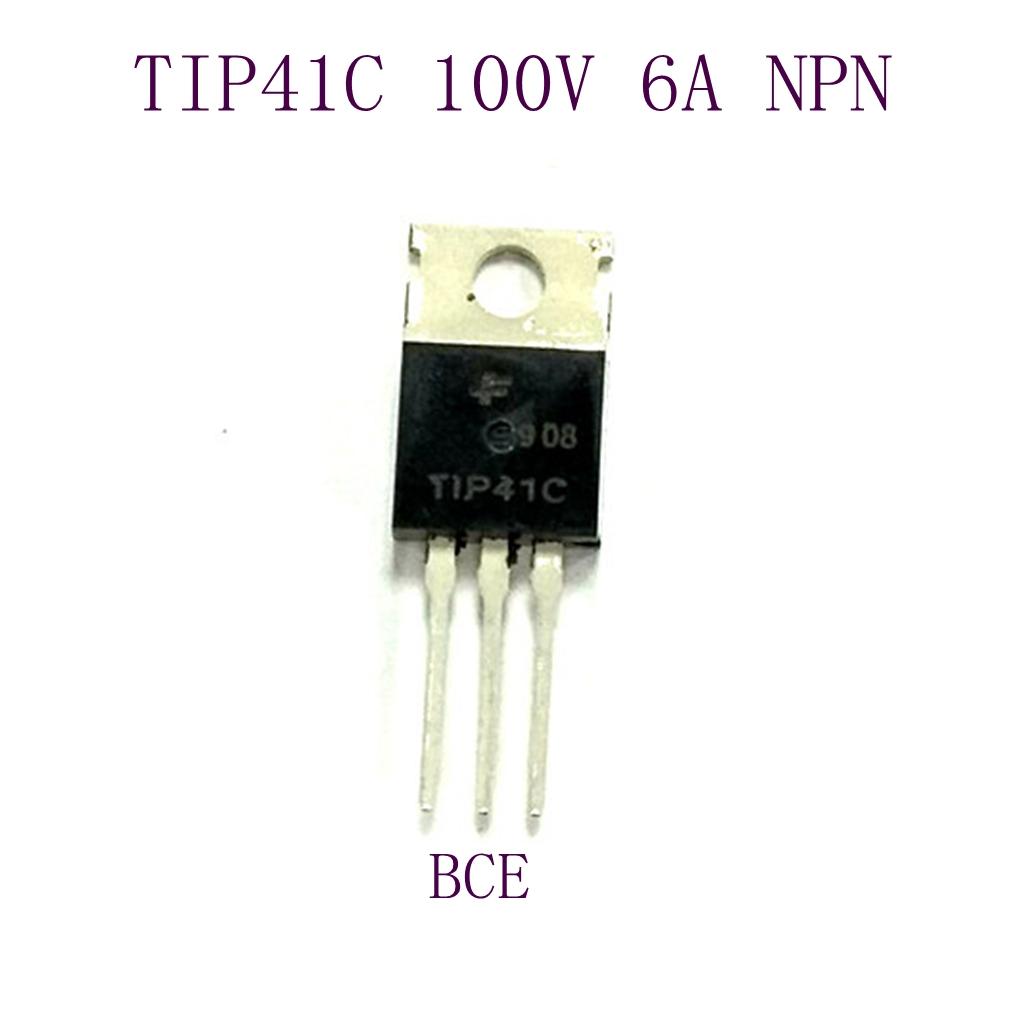

Pin: B, C, E (front view)
Frequency - Conversion: 3MHz
Installation type: through hole
Transistor type: NPN
Material: silicon wafer, copper frame

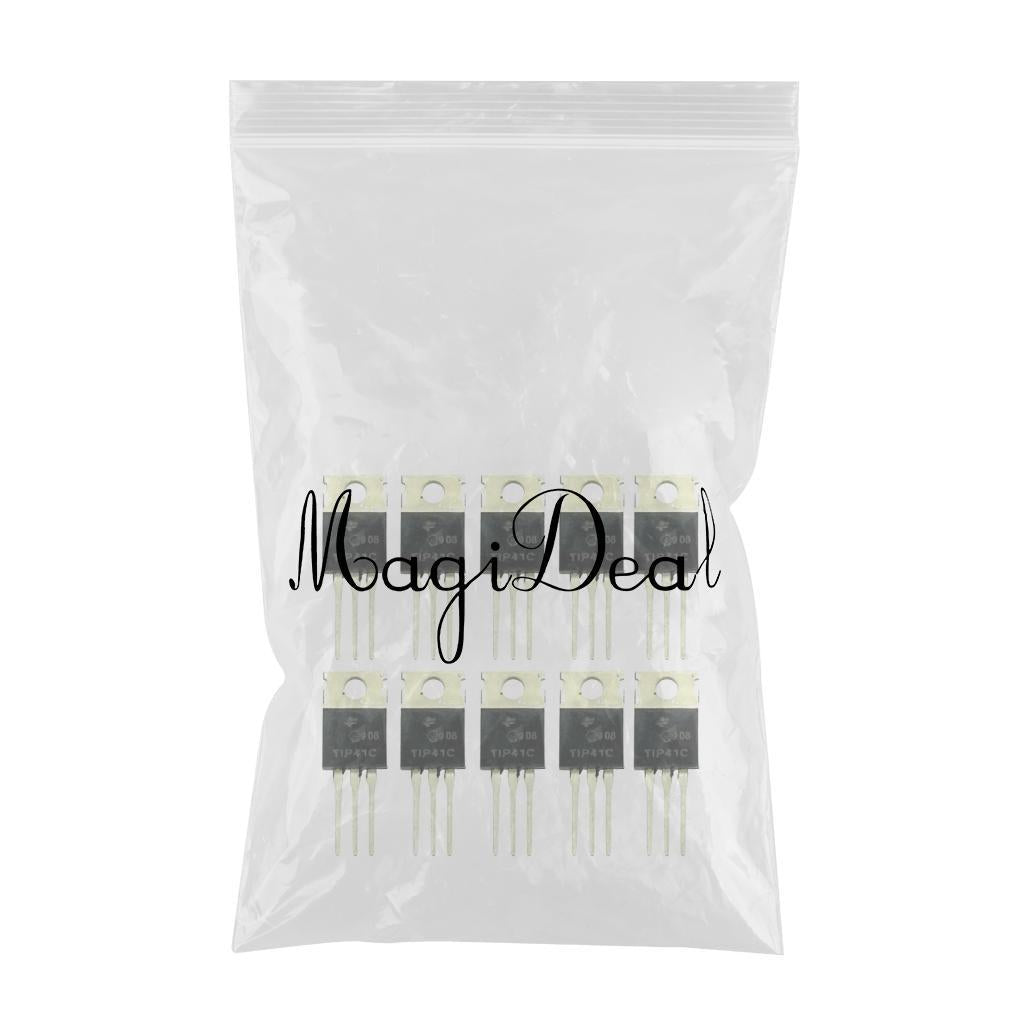

Package Includes:

10 Pieces 100V 6A NPN Transistor
