Description:
There is a certain range of error in the input over 30A, automatically reducing the output voltage.
There is (input 40A fuse) double short circuit protection, use more secure.
Non isolated boost module (BOOST).
Input voltage: 8-60V
Input 12V can output 12-80V adjustable.
Specification:
Material: PCB Circuit Board

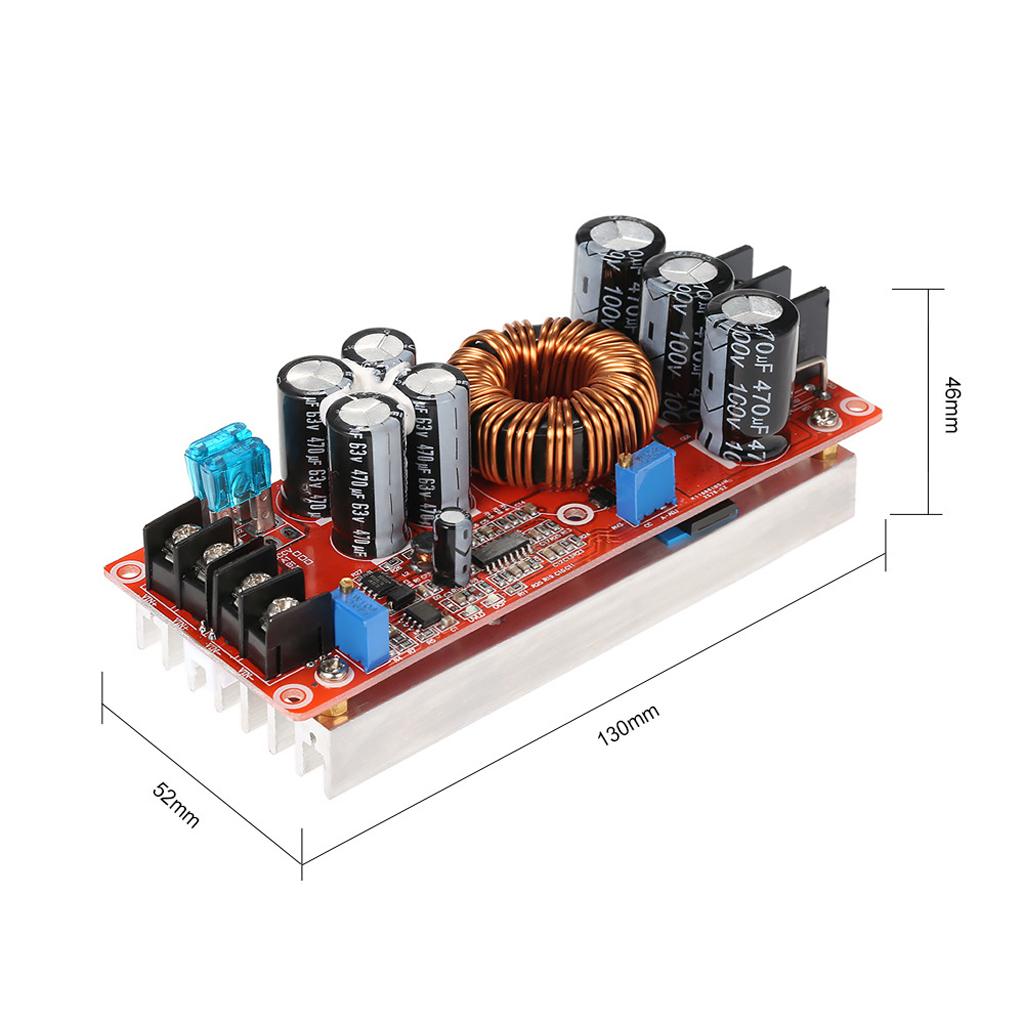

Size: Approx. 130x52x53mm / 5.12x2.05x2.09inch
Input Current: 20A
Quiescent Current: 15mA
Output Current: 20A MAX. over 15A, please enhance heat dissipation (input and output pressure related, the greater the pressure, the smaller the output current)
Constant Current Range: 0.5-20A
Output Power = Input Voltage x 20A, e.g.
Input 12V x 20A =240W; Input 24V x 20A =480W;
Input 36V x 20A =720W; Input 48V x 20A =960W; Input 60V x 20A =1200W
Working Temperature: -40 to 85°C(ambient temperature is too high, please enhance heat dissipation)
Working Frequency: 150KHz
Conversion Efficiency: up to 95% (efficiency and input/output voltage, current, pressure related)
Installation: 4pcs 3mm Screws
Module Weight: 257g / 9.07oz
Package Includes:

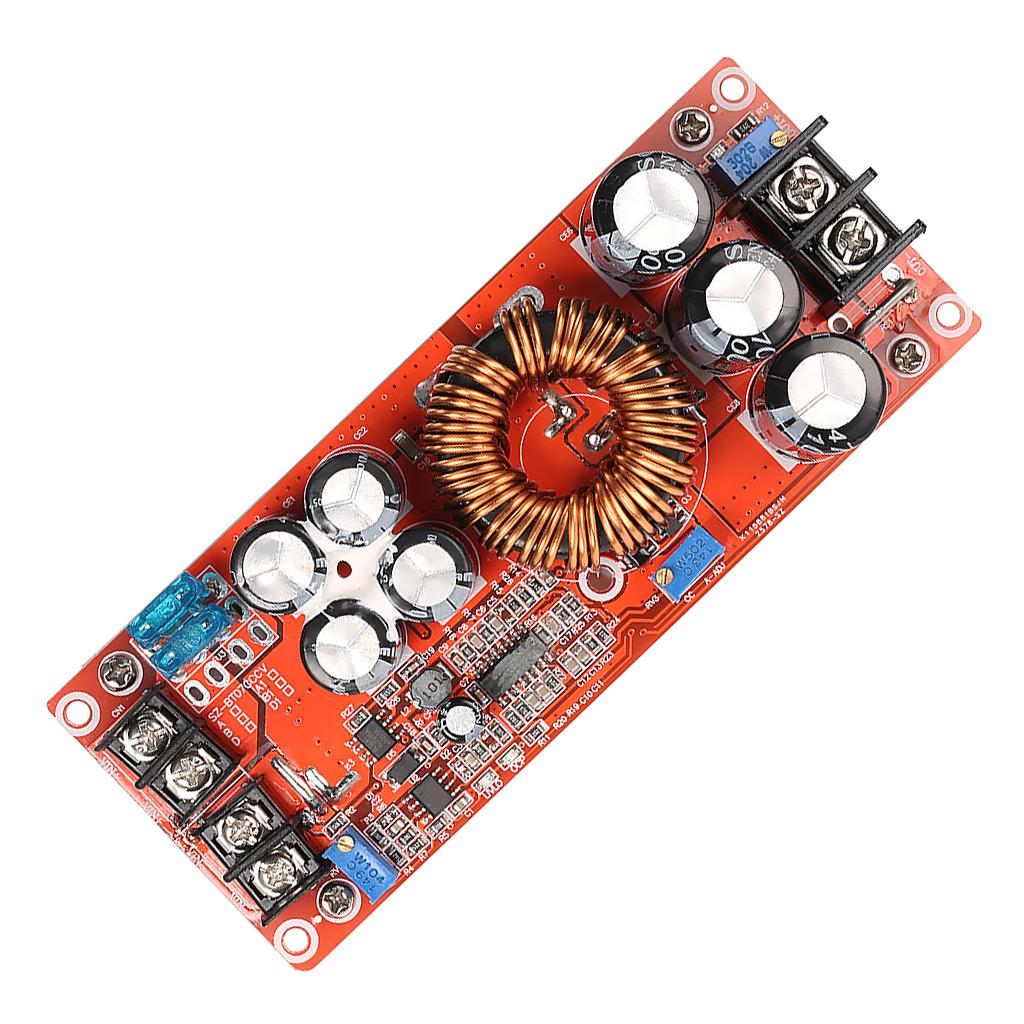

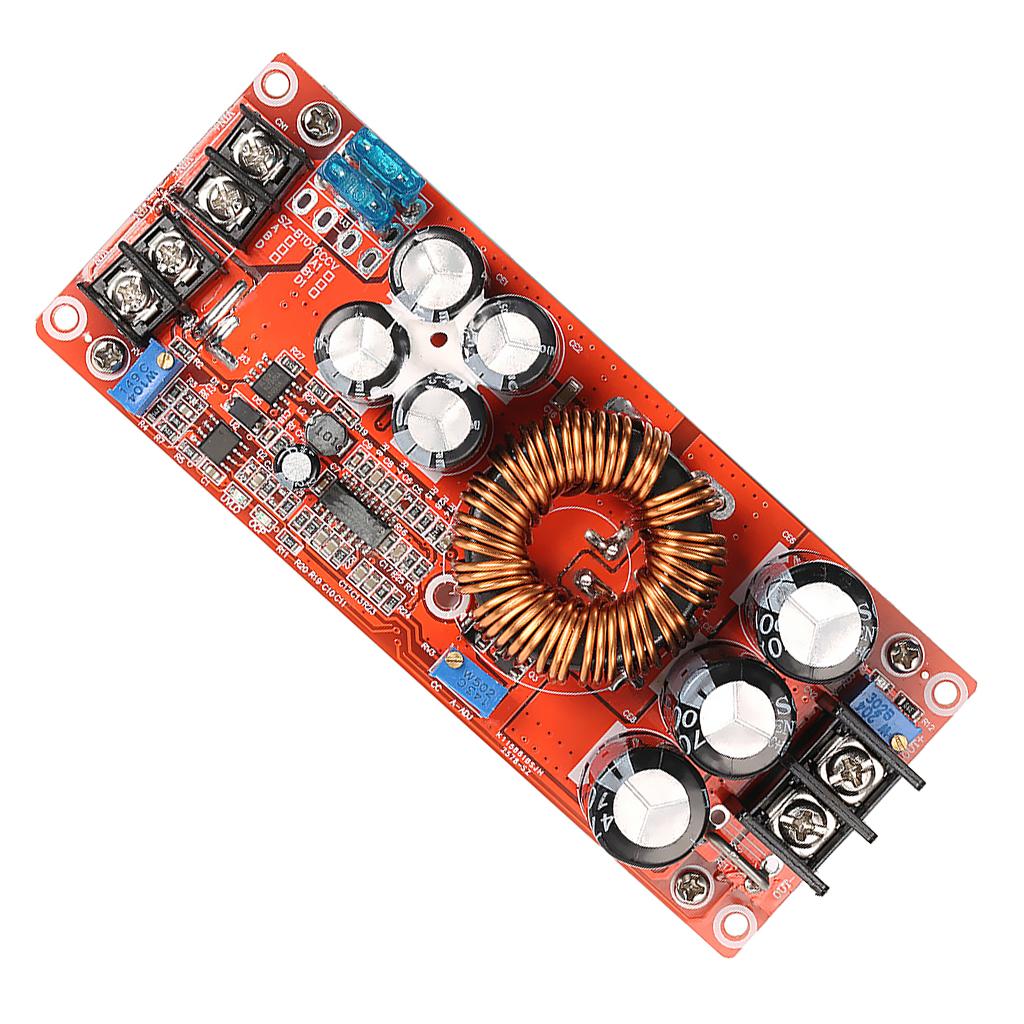

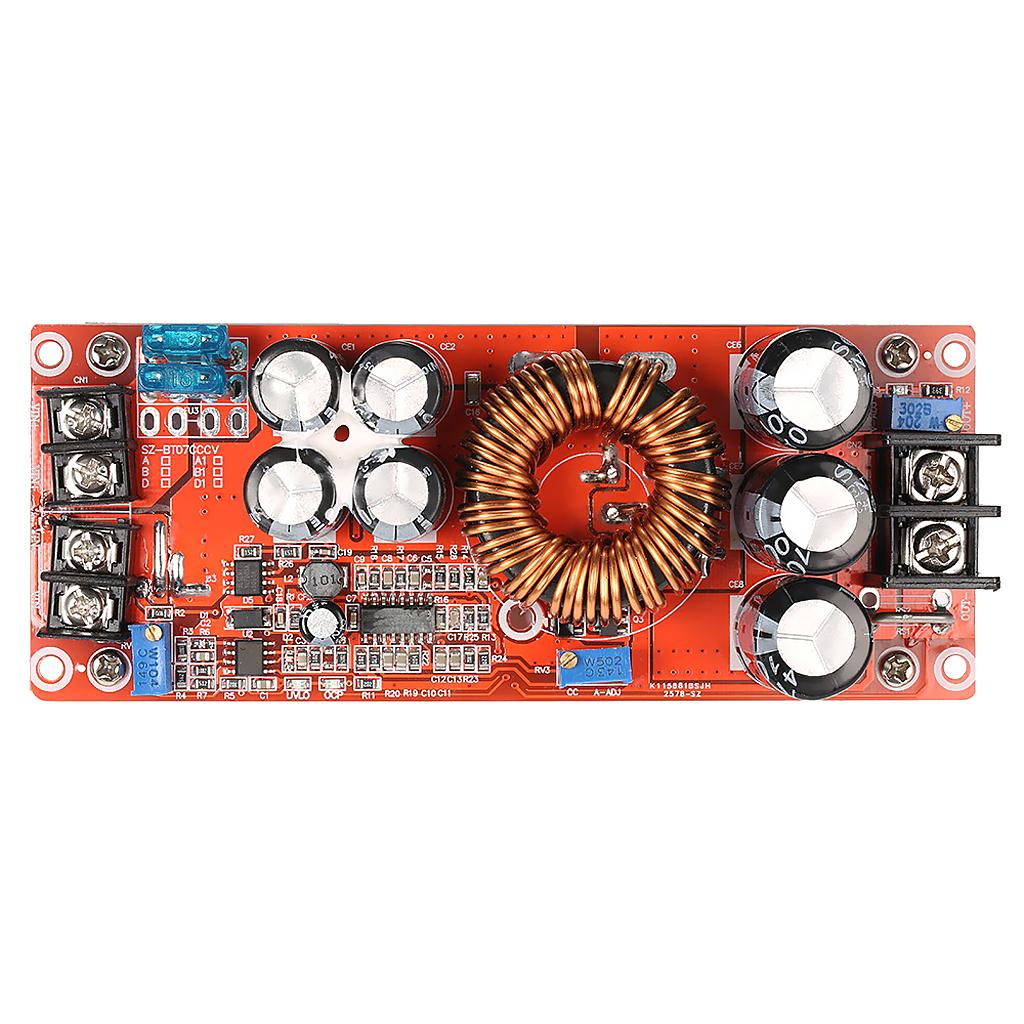

1 Piece 1200W DC Converter Boost Power Supply Module
Note:
1. The circuit structure of the booster module can not be adjusted by way of short circuit.
2. The product of input power supply voltage must be above 8V.
3. When the power supply is used for the input power supply, the input power and
the output voltage of the input power supply are the first to be unloaded. Then pick
up the load.(must ensure that the switching power supply has been working).
4. When the constant current mode is used to set the voltage, the constant voltage
must be higher than the input voltage.Do not use the way of short circuit output current,
the circuit structure of the boost module can not be adjusted in short circuit way.
5. If the input voltage fluctuation range is lower than the set output voltage,
then the output voltage is constant, it is to ensure that input is lower than the output voltage.
