Universal 65 inch LED LCD TV Backlight Driver Board TV Constant Current Boost Step Up Board Module

Regular price
Rs. 740.16
Regular price
Sale price
Rs. 740.16
Earn 370 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68011100
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Description:

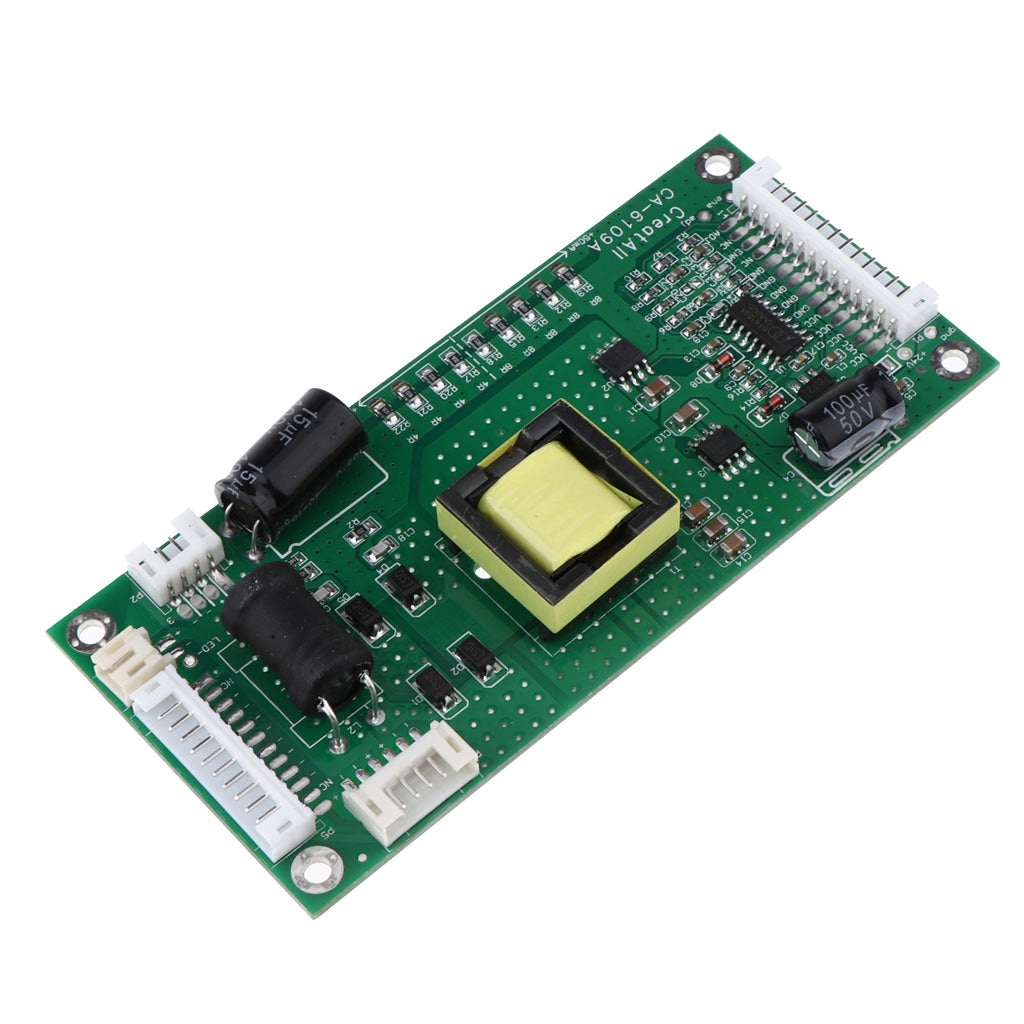

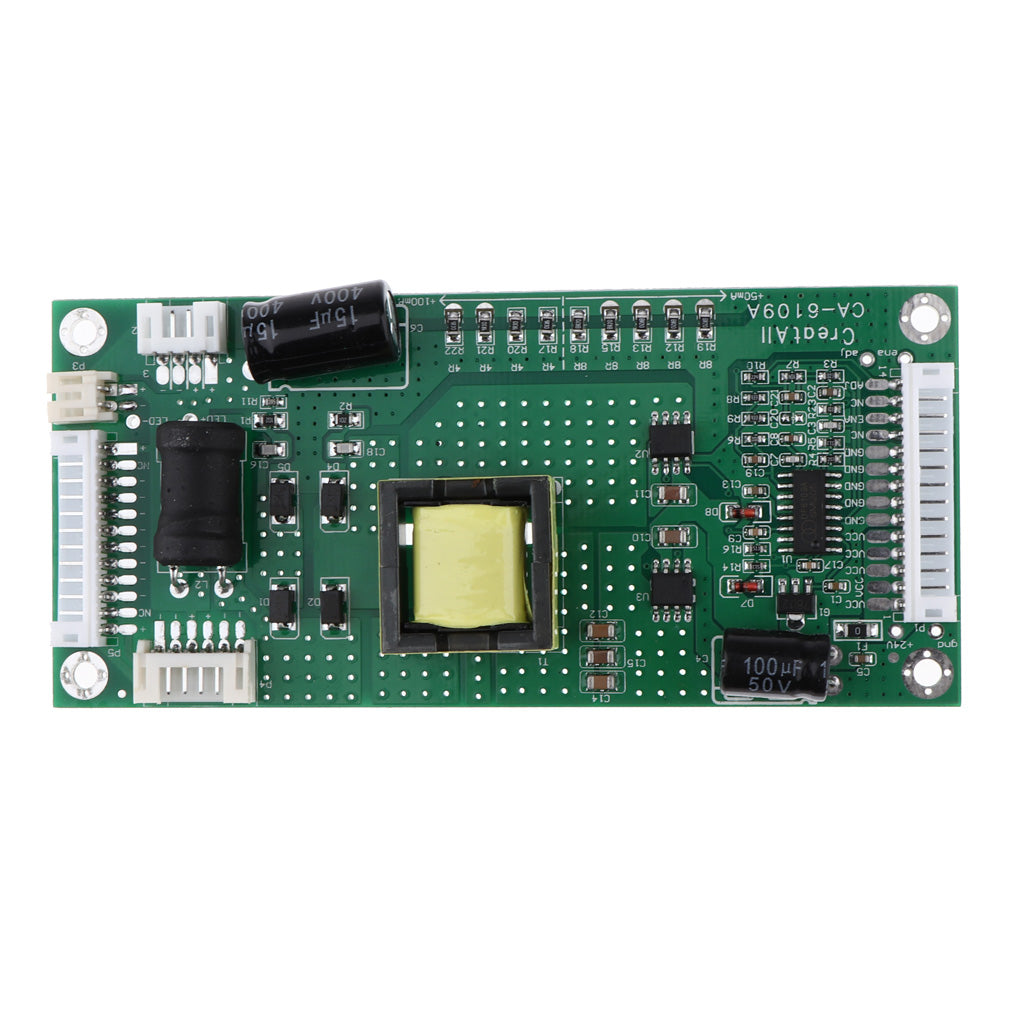

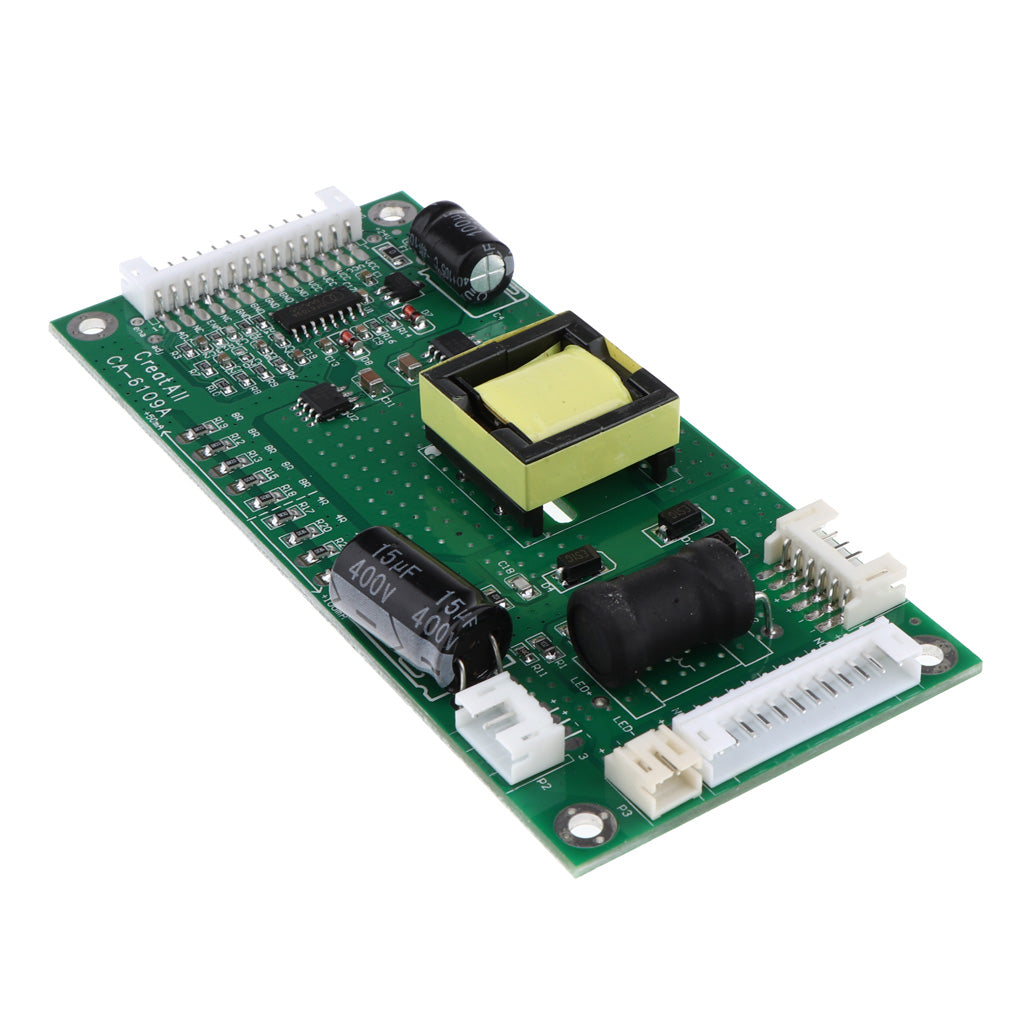

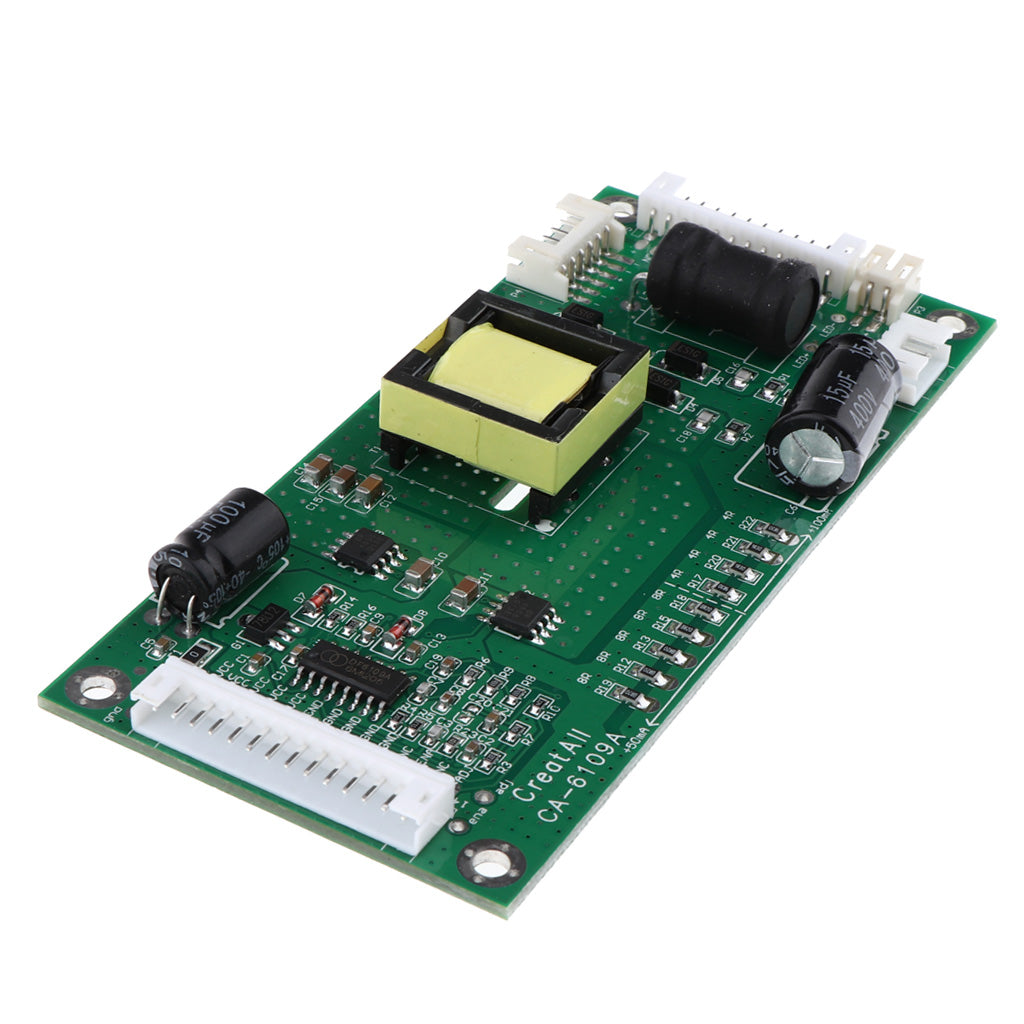

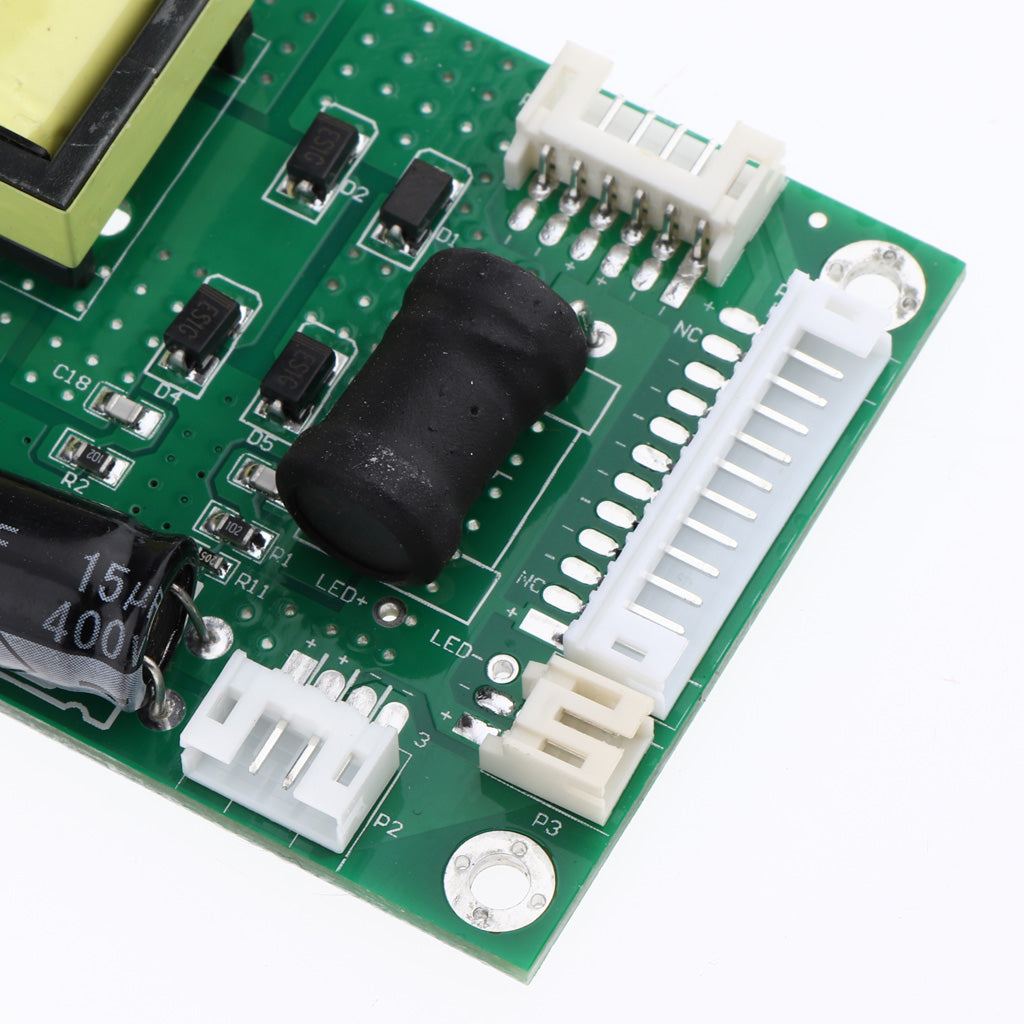

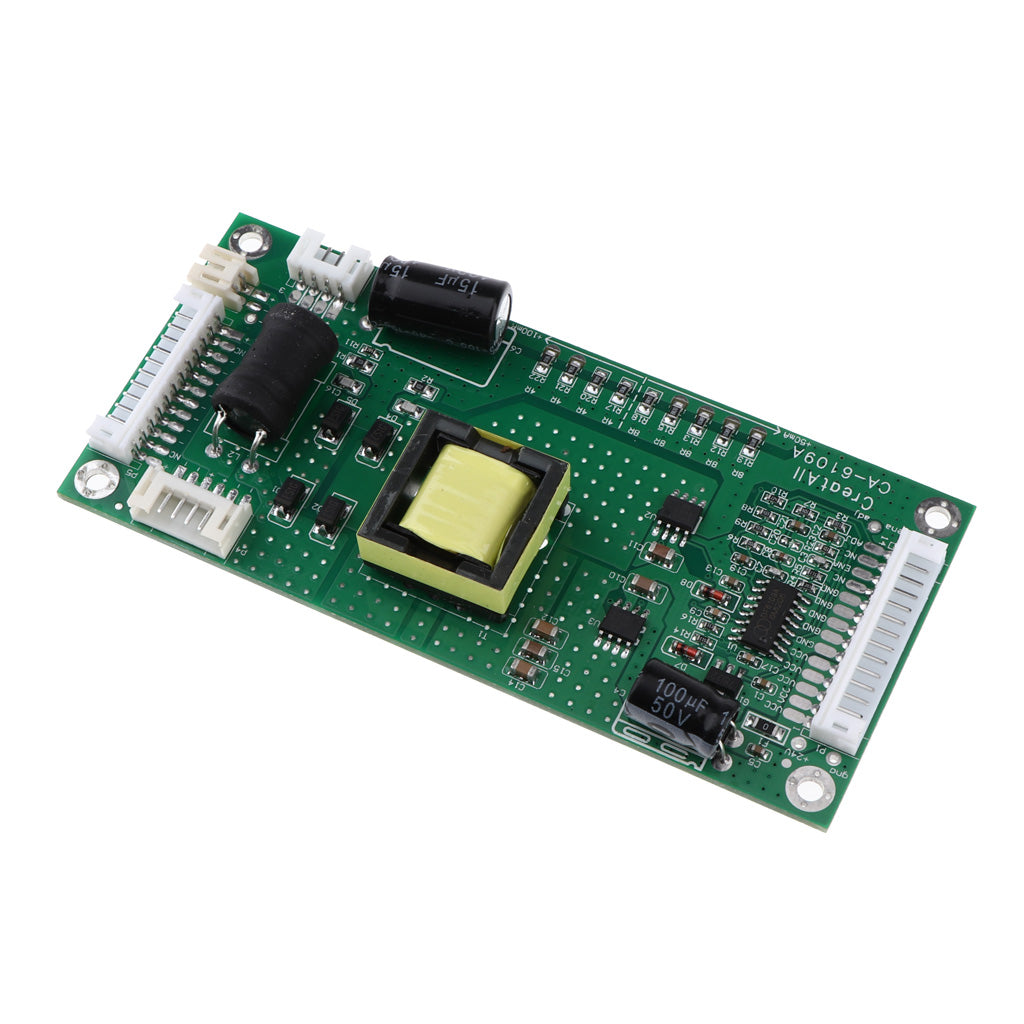

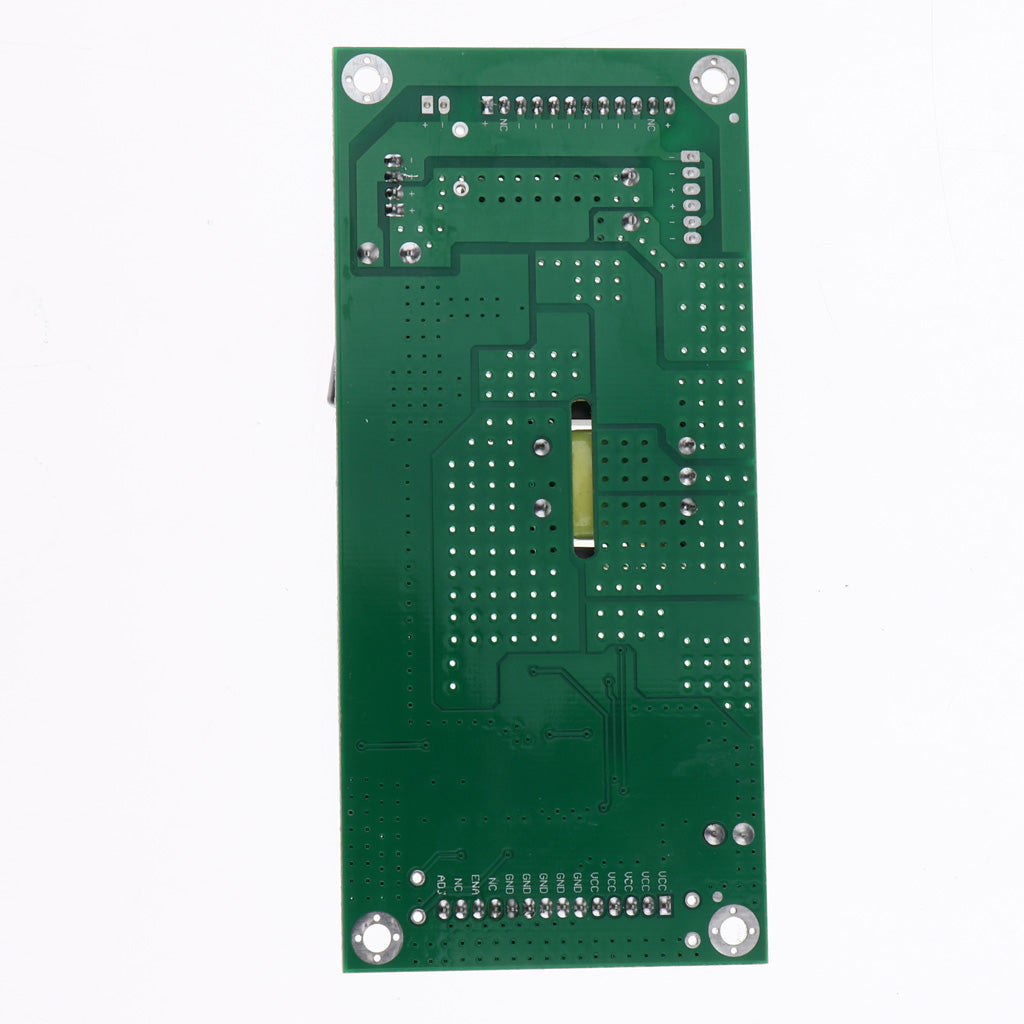

LED LCD TV Constant Current Backlight Inverter Driver Board Boost Step-Up Module.
Suitable for 65 inch and smaller LCD TV, universal for all brands and models.
Input Voltage: 10-28V; Output Voltage: 8-165V; Default Output Current: 248mA (adjustable max. to 650mA; for voltage step-down, support max. 500mA)
The 10-28V power supply corresponds to 8-165V output automatic adaptation. When output voltage is lower than input voltage, it is step-down mode; vice versa. The boost type should not exceed 40W. The best control is within 32W. The output current of the step-down type must not exceed 500 mA (very critical).
Full-bridge drive, full-bridge rectification, greatly reducing overall circuit ripple. High power efficiency, low failure rate.

Specification:

Size: 110x50x10mm / 4.33x1.97x0.39inch

Package Includes:

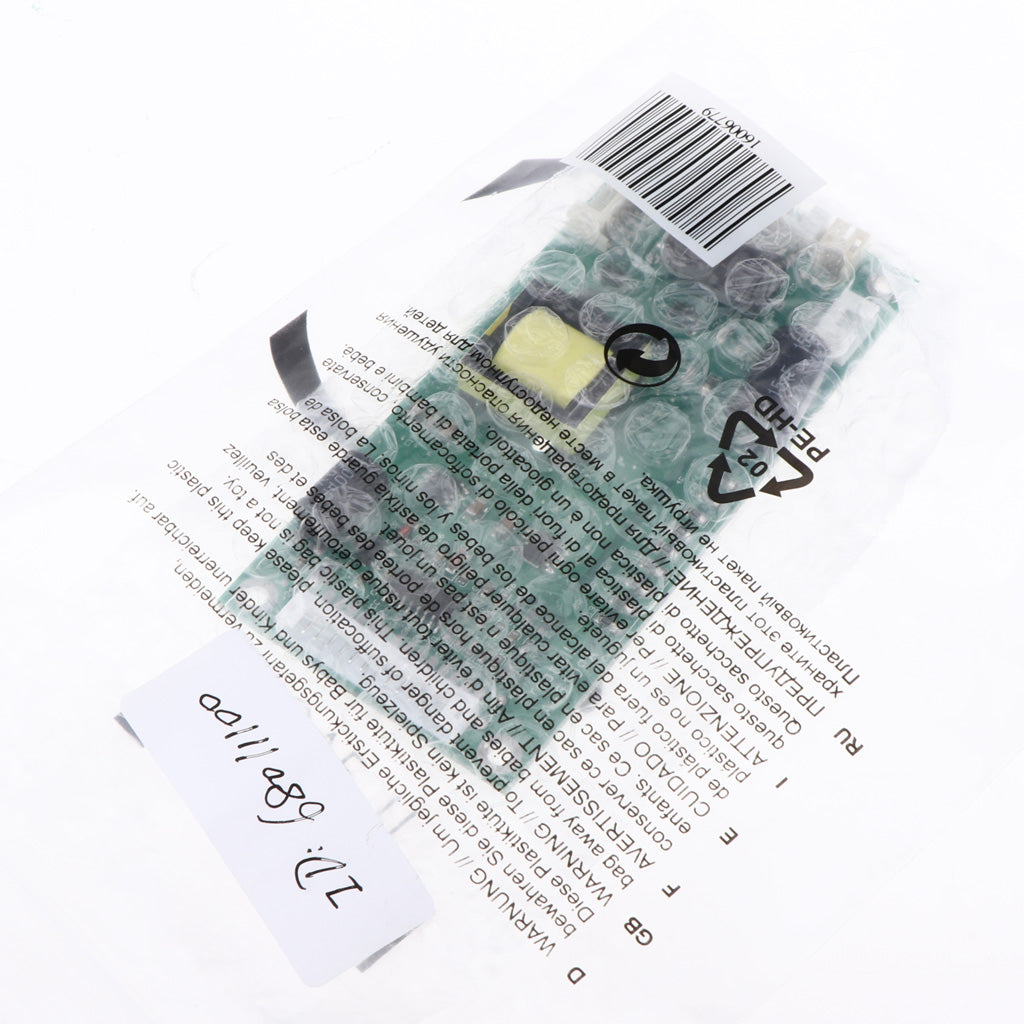

1 Piece LED TV Constant Current Board

Note:

Please allow slightly measuring deviation due to manual measurement.
