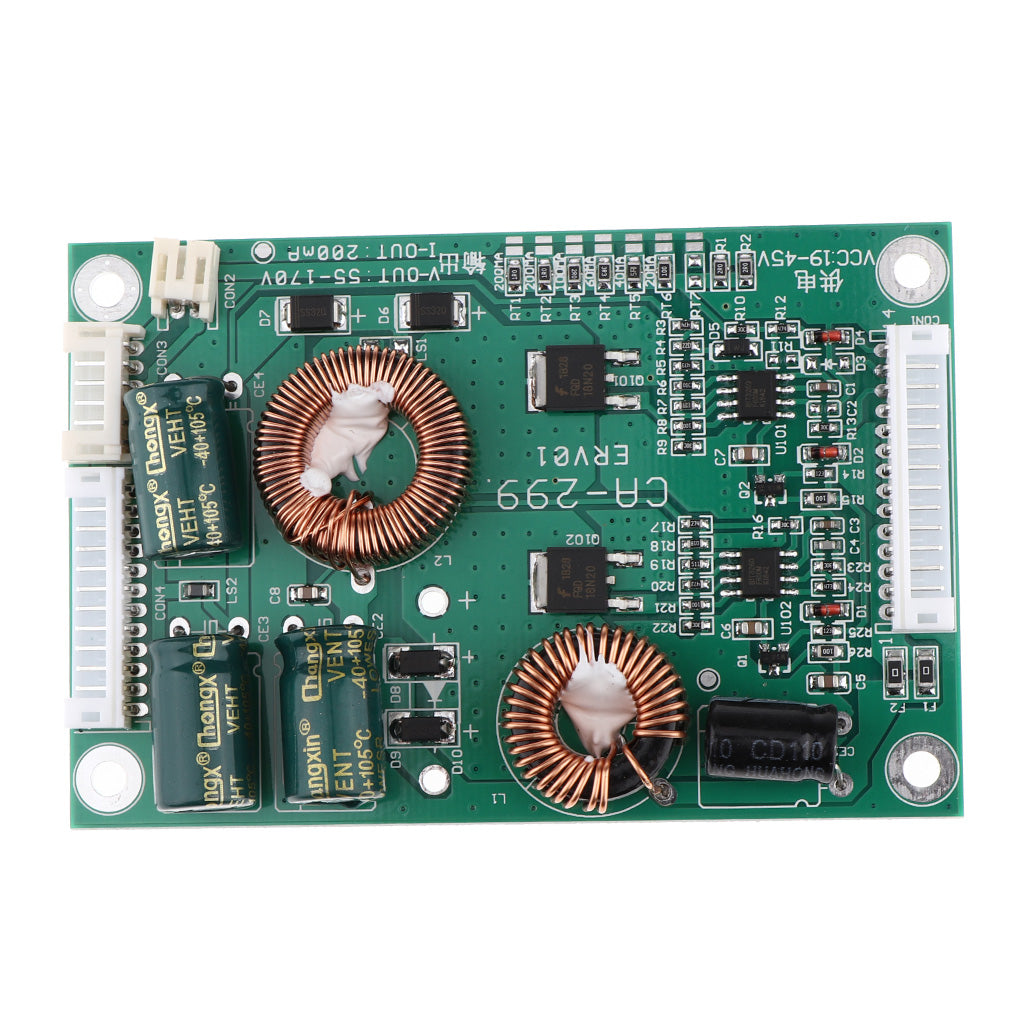

Universal 26-55 inch LED LCD TV Backlight Driver Board TV Constant Current Boost Step Up Board Module

Regular price
Rs. 692.14
Regular price
Sale price
Rs. 692.14
Earn 346 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68011104
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Description:

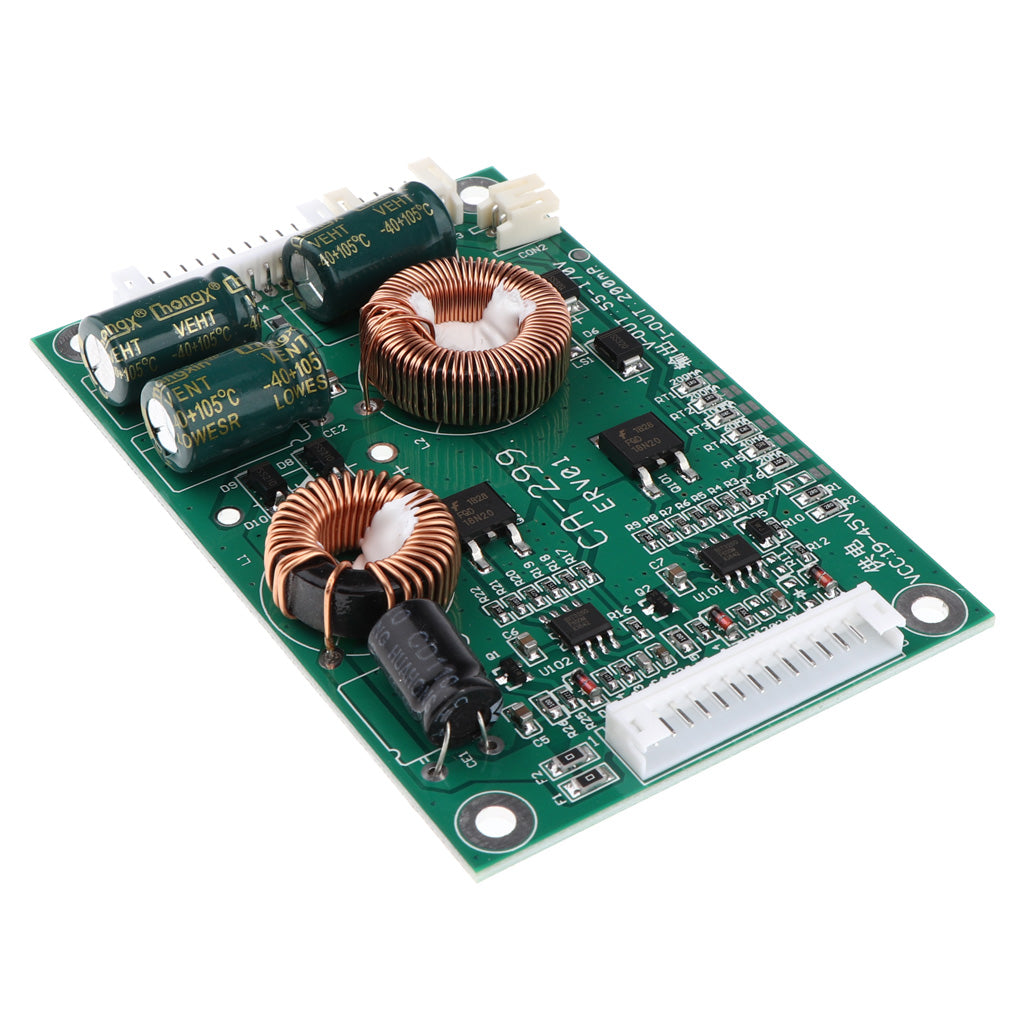

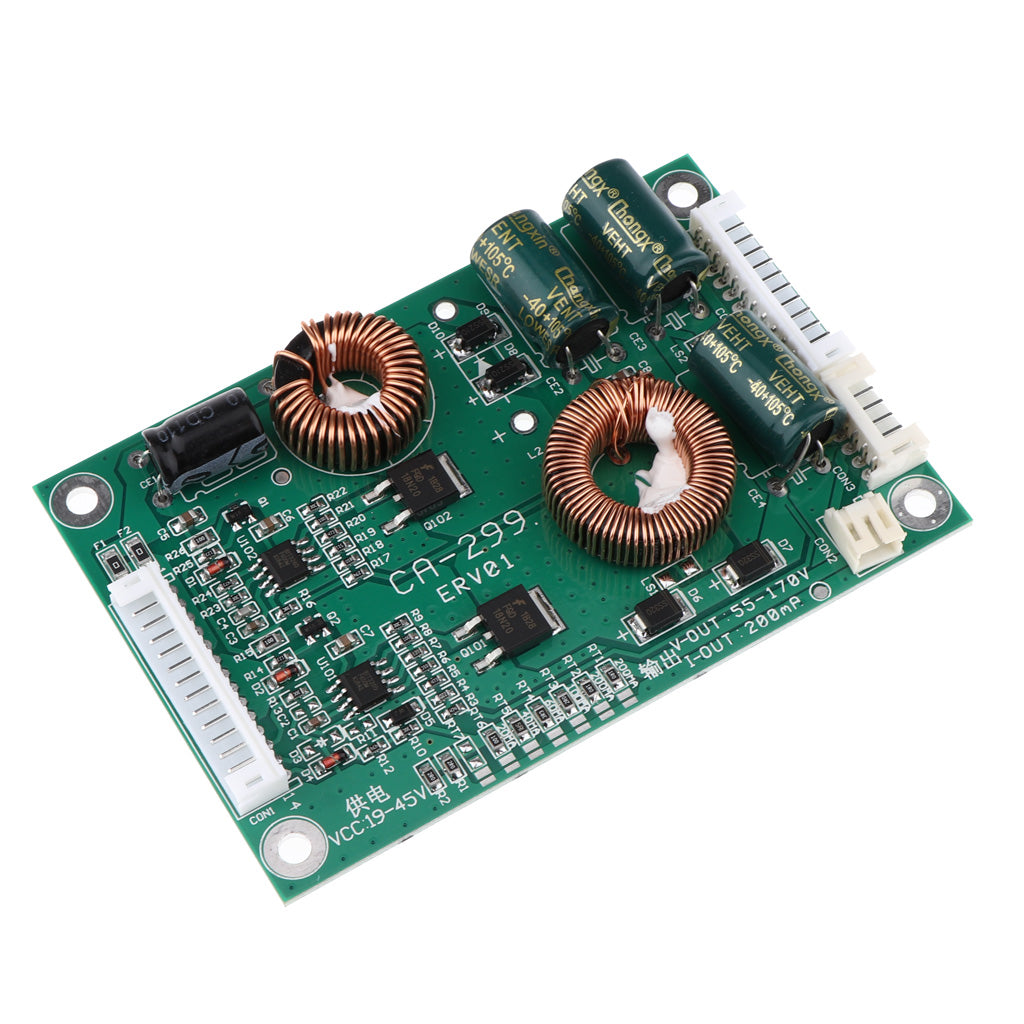

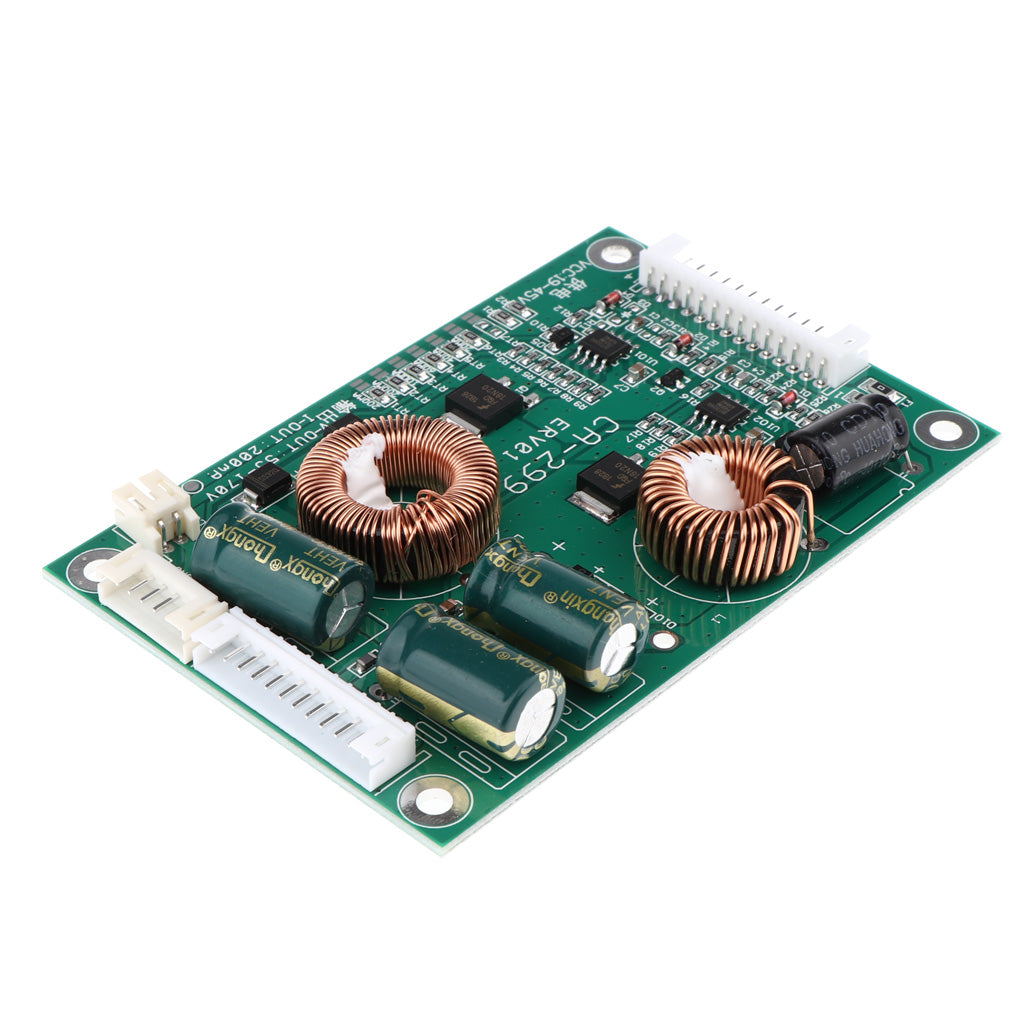

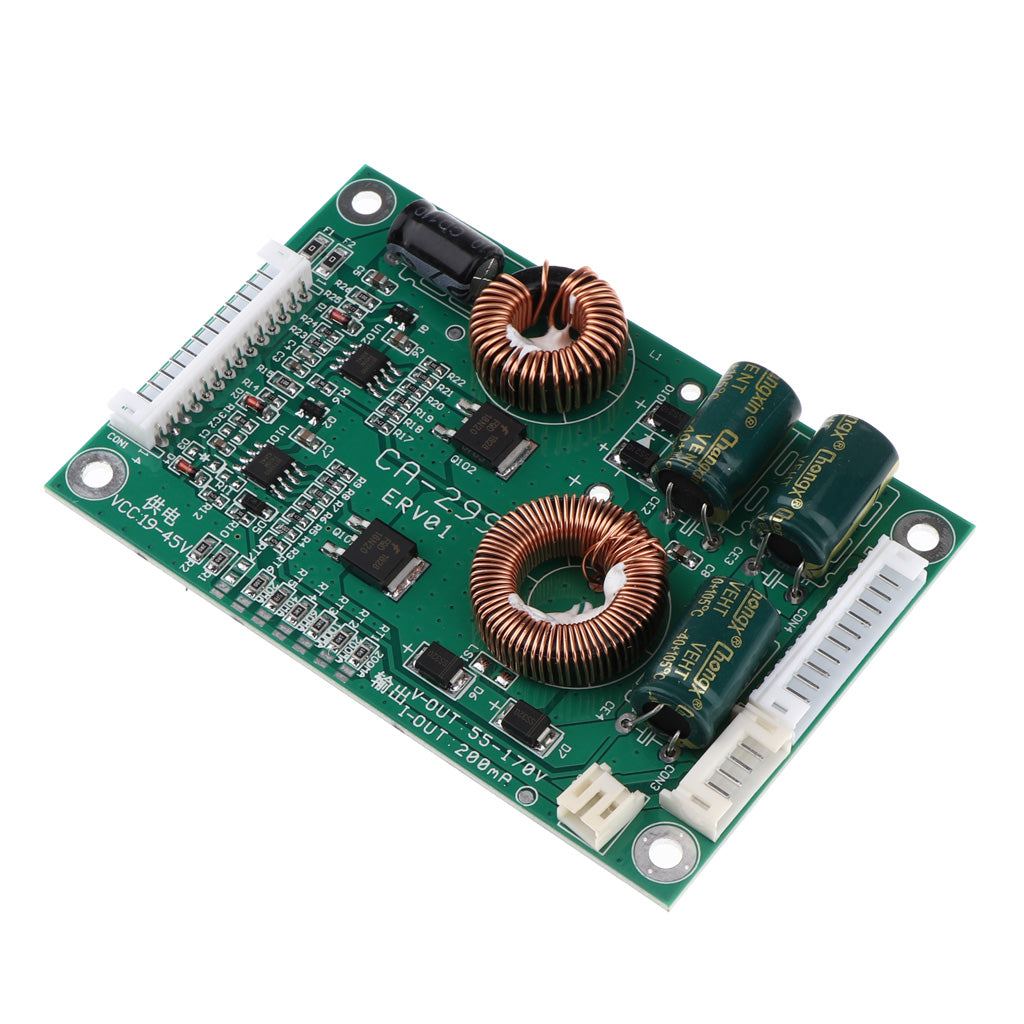

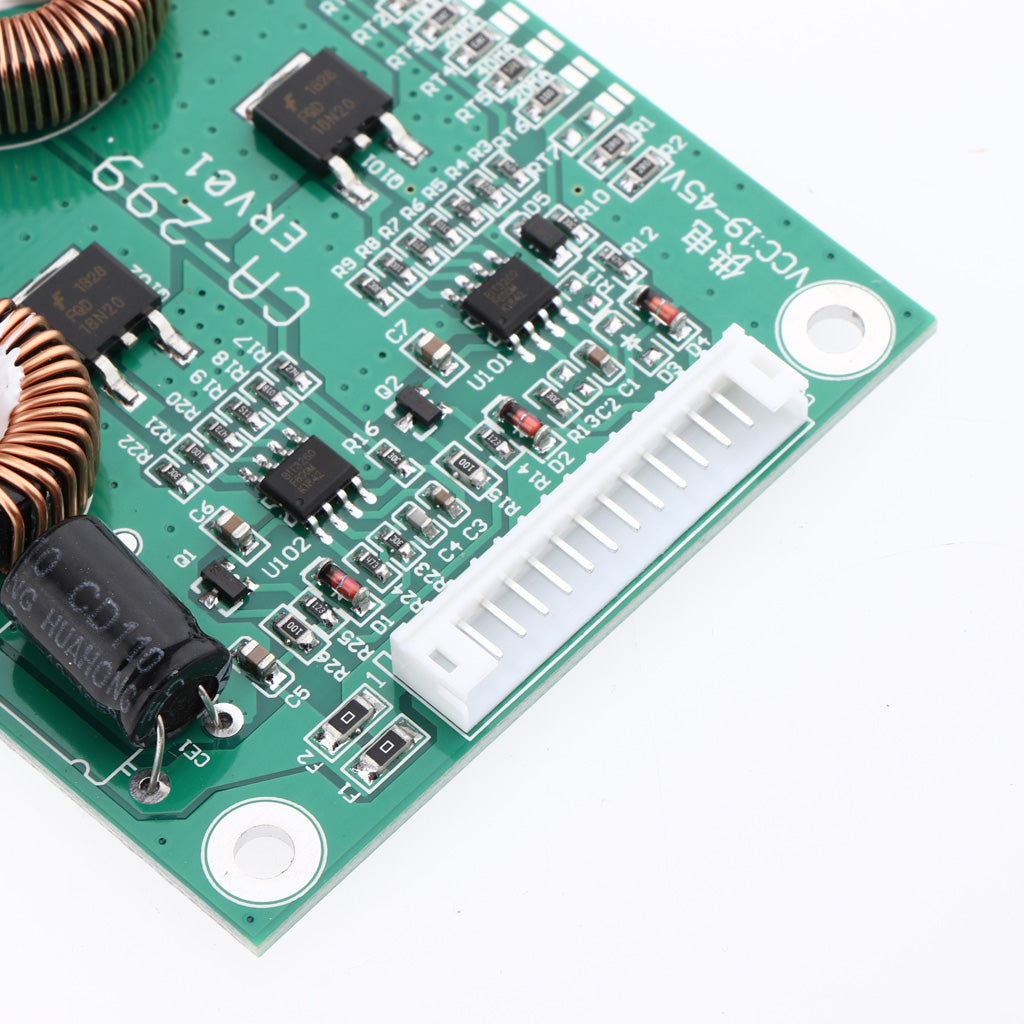

LED LCD TV Constant Current Backlight Inverter Driver Board Boost Step-Up Module.
Suitable for 26-55 inch LCD TV, universal for all brands and models.
Input Voltage: 19-45V; Output Voltage: 55-170V; Default Output Current: 200mA (Adjustable)

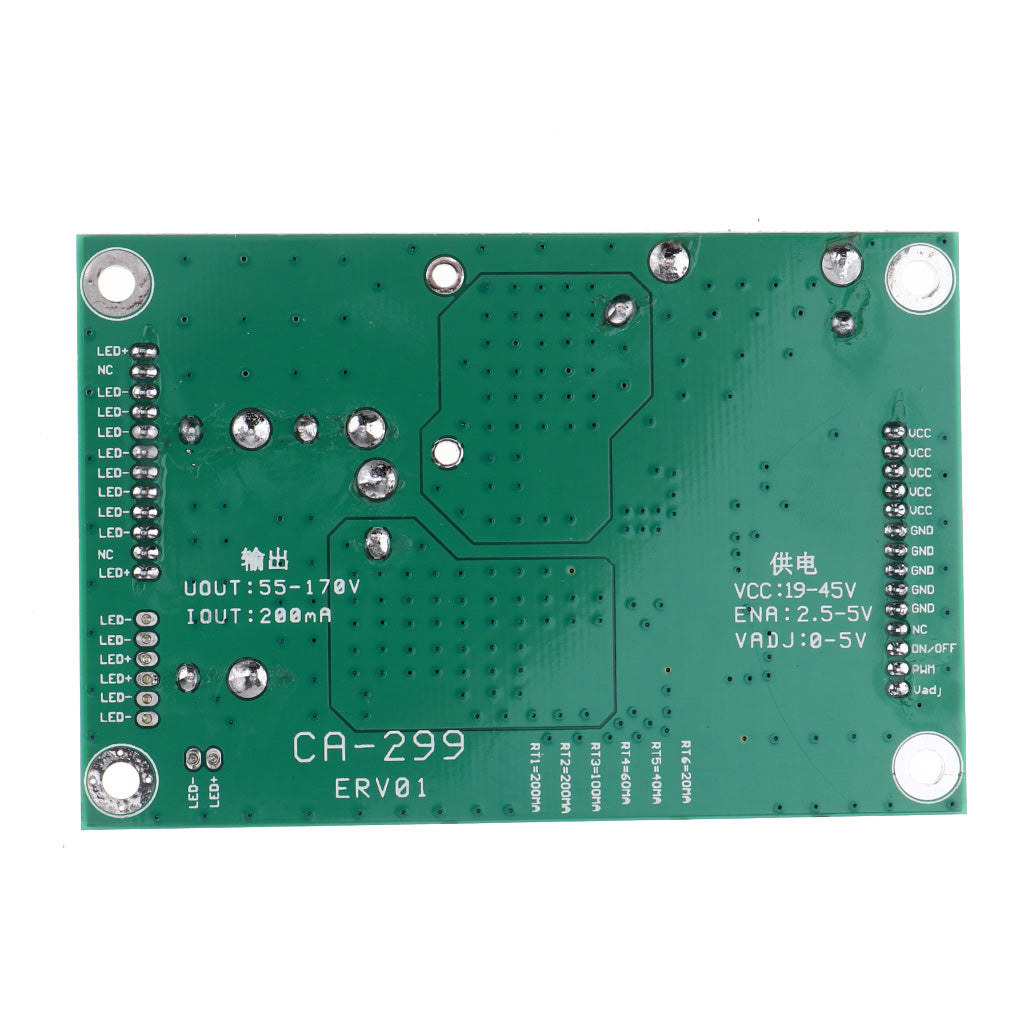

Connect the resistor soldering spot to RT1 RT2 RT3 RT4 RT5 RT6 can increase the current accordingly.
The output voltage is 55V-170V, no need to change it manually, the board will automatically adapt to boost. This board is not available for backlights below 55V.

Specification:

Size: 90x60x10mm / 3.54x2.36x0.39inch

Package Includes:

1 Piece LED TV Constant Current Board

Note:

Please allow slightly measuring deviation due to manual measurement.
