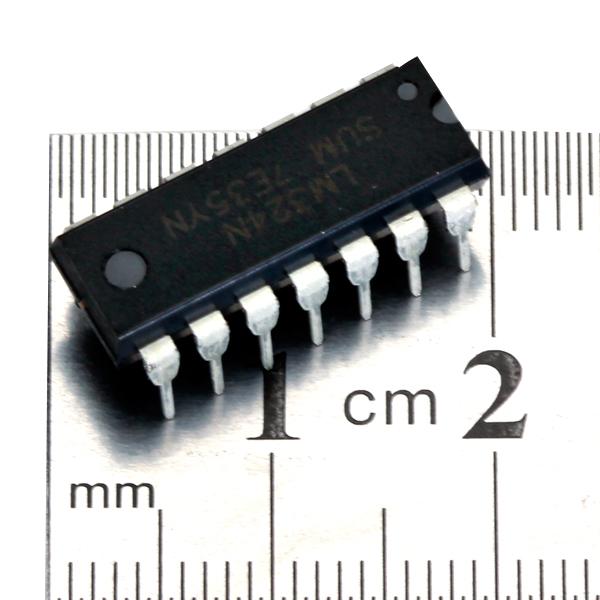

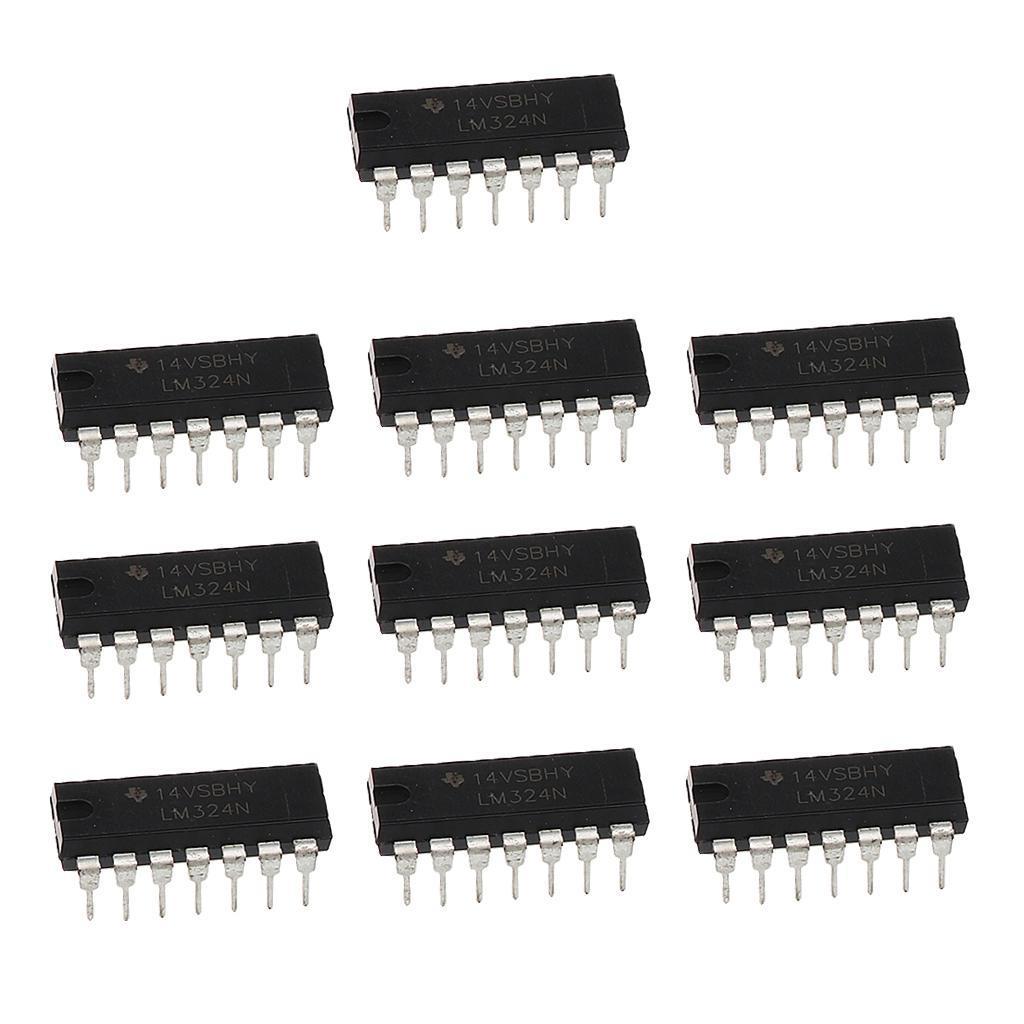

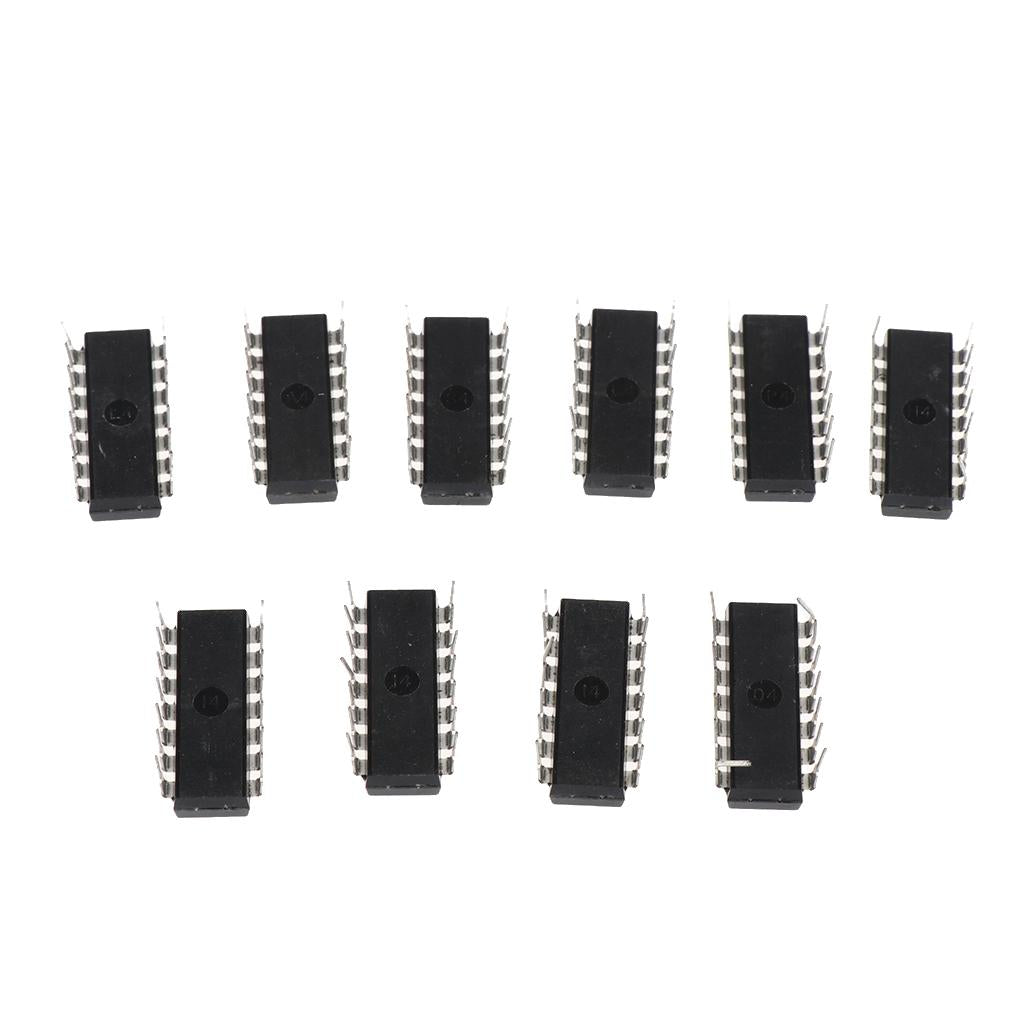

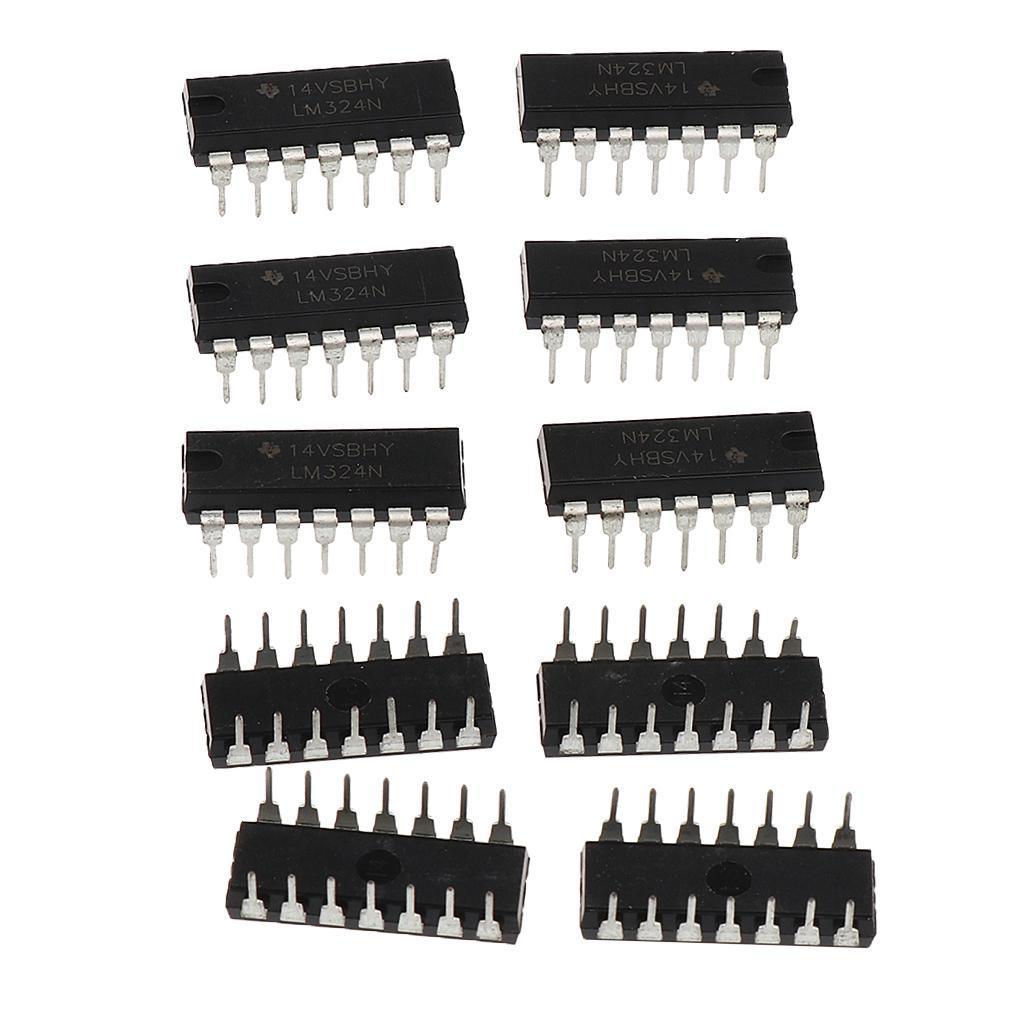

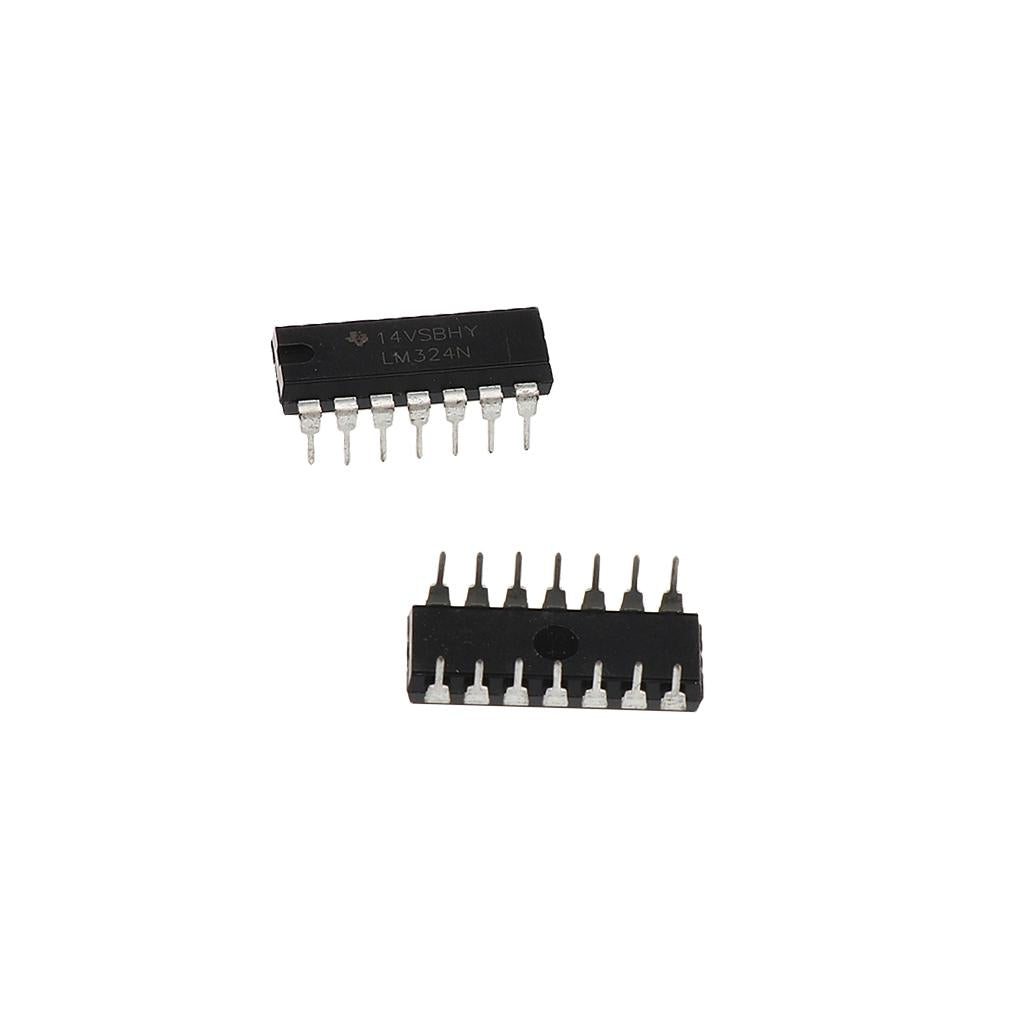

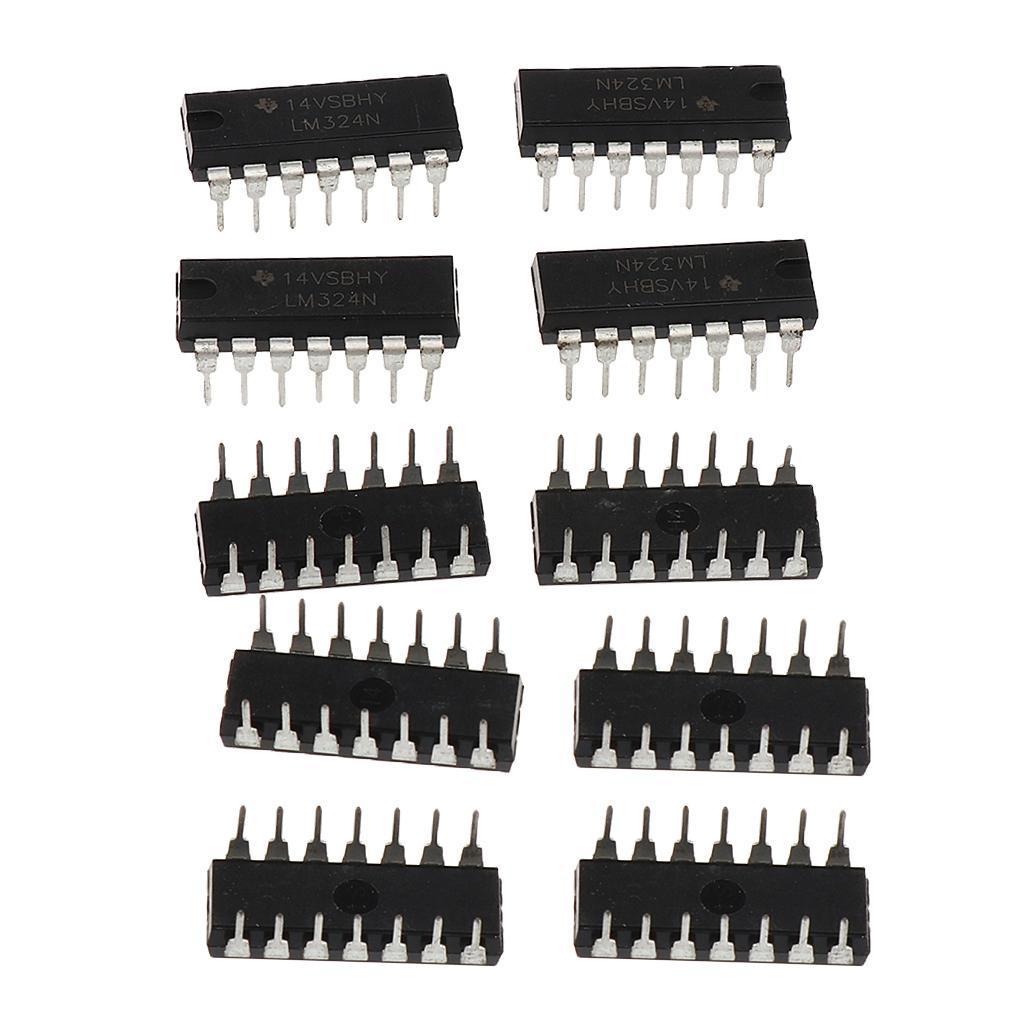

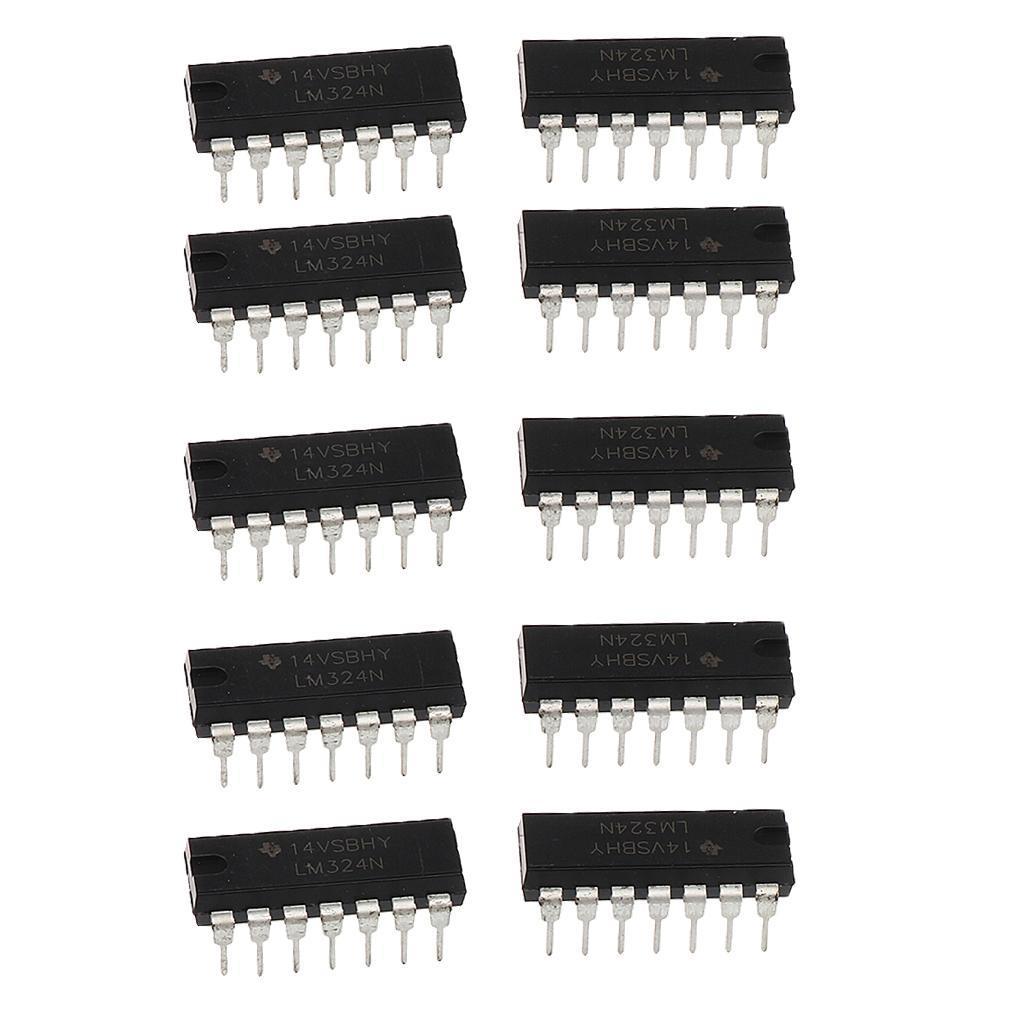

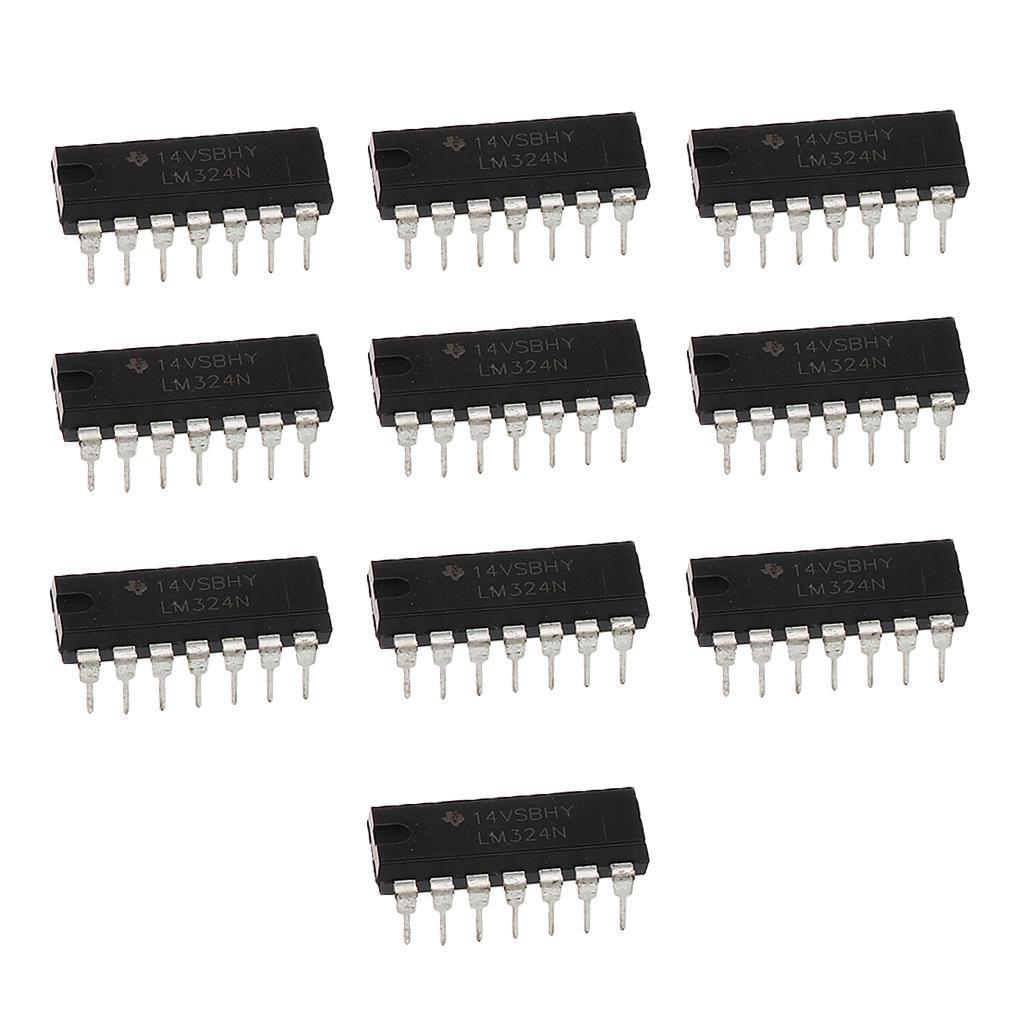

10x LM324N Low Power Quad Operational Amplifier DIP-14

Regular price
Rs. 363.68
Regular price
Sale price
Rs. 363.68
Earn 181 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14001748
  • Brand: SFC
  • Type: Computers/Tablets & Networking
  • Availability: In Stock
Description

Description:

  • These are low?cost, quad operational amplifiers with true differential inputs
  • They have several distinct advantages over standard operational amplifier types in single supply applications
  • The output voltage range also includes the negative power supply voltage
  • Short circuited protected outputs
  • True differential input stage
  • Large Voltage Gain: 100 dB
  • Wide power supply range: 3.0V to 32V (±1.5 to 16V)
  • Input Offset Voltage: 1.5mV (typical value)
  • Input Offset Current: 3.0nA (typical value)
  • Input Bias Current: 40nA (typical value)
  • Input common-mode voltage range includes ground
  • Working Current: 1.0mA (typical value)
  • Working Temperature: 0 deg C to +70 deg C
  • Package: DIP-14

Package Includes:

  • 10 x LM324N Amplifier

Keywords: LM324N, operational amplifier
