4pcs MAX7219 Dot Matrix 8x8 LED Display Module Arduino DIY Raspberry Pi Kit with 5P DuPont Cable

Regular price
Rs. 979.17
Regular price
Sale price
Rs. 979.17
Earn 489 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60006520
  • Brand: SFC
  • Type: Computers/Tablets & Networking
  • Availability: Out stock
Description

Description:

- Single module can drive an 8 x 8 dot matrix common cathode led

- Module operating voltage: 5V

- Module dimensions: approx.32mmx 32mmx 13mm (LxWxH)/ 1.26''x 1.26''x 0.51''

- With 64 fixed screw holes(Diameter:3mm/ 0.12'')

- Module with input and output interface, support multiple modules cascade



Specification:

Note:

1.The left side of the module is the input port and the right side is the output port.

2.When controlling a single module, only need to connect the input port to the CPU

3.When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on.

Take 51 MCU as an example: VCC → 5V GND → GND DIN → P2.2 CS → P2.1 CLK → P2.0


Package Includes:

Package included:

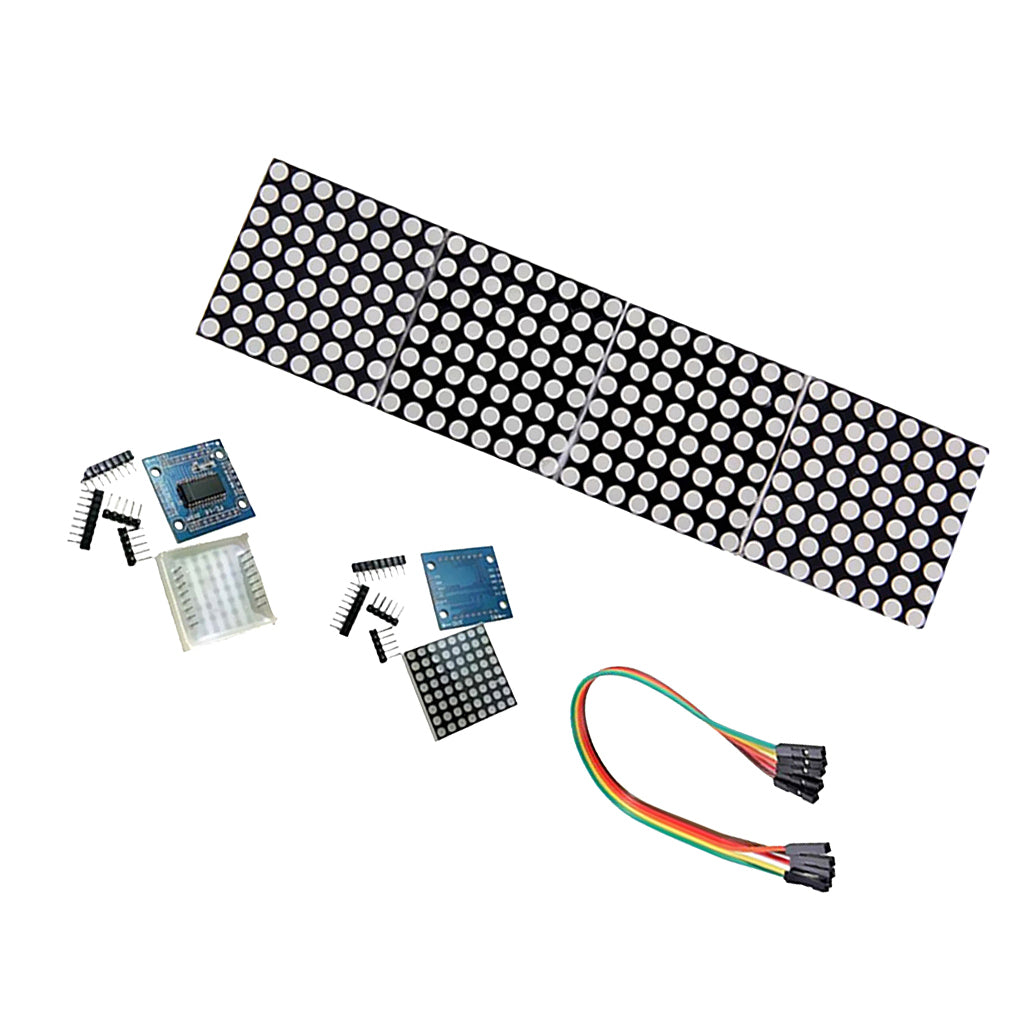

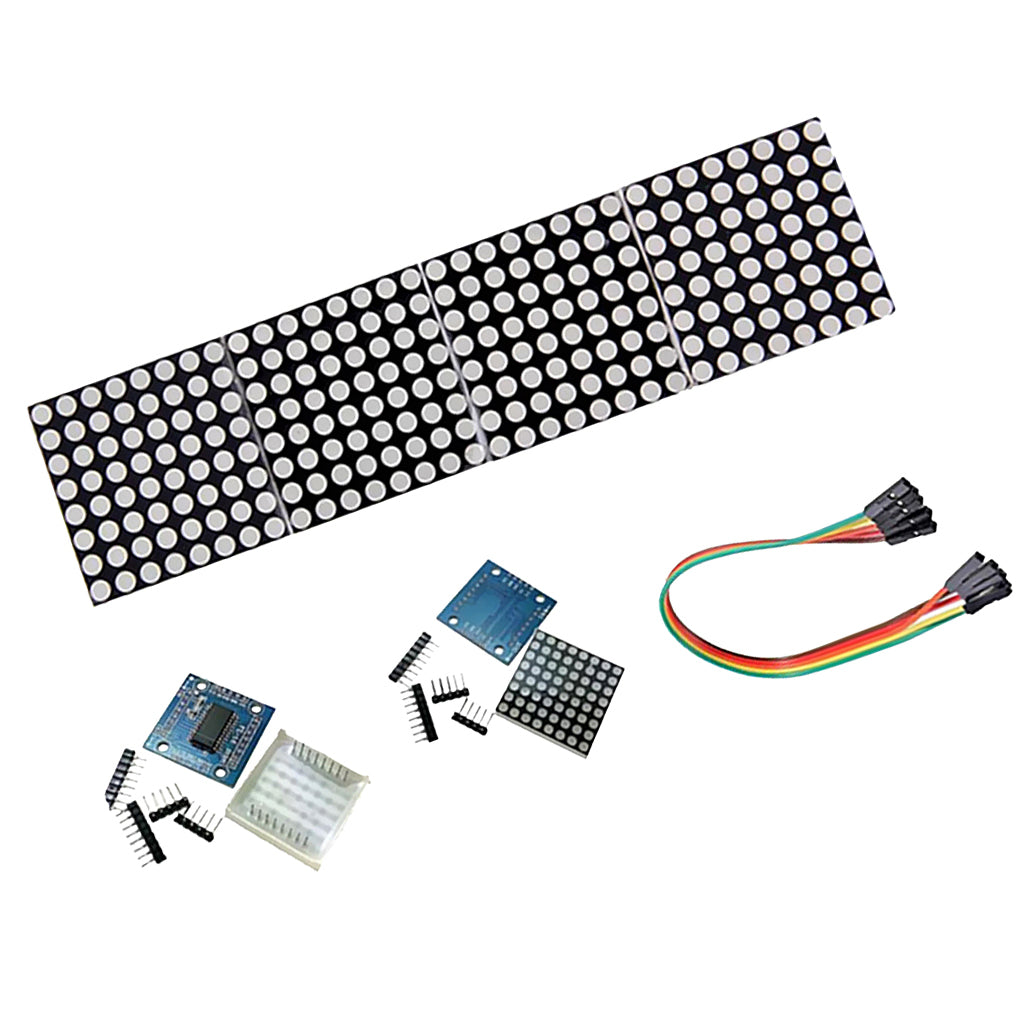

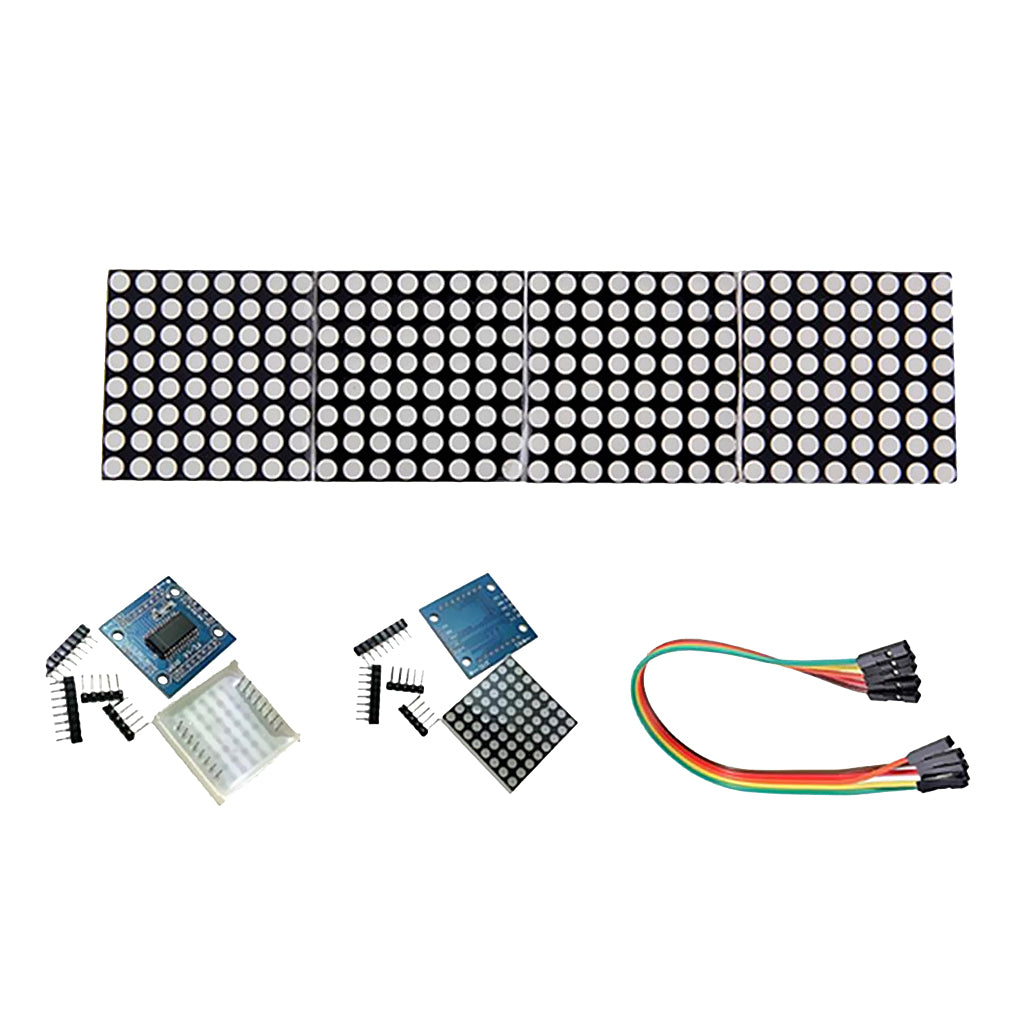

4 x PCBs

4 x Dot Matrix

8 x Machined Female Header Connector

8 x 5P Curved Needles
