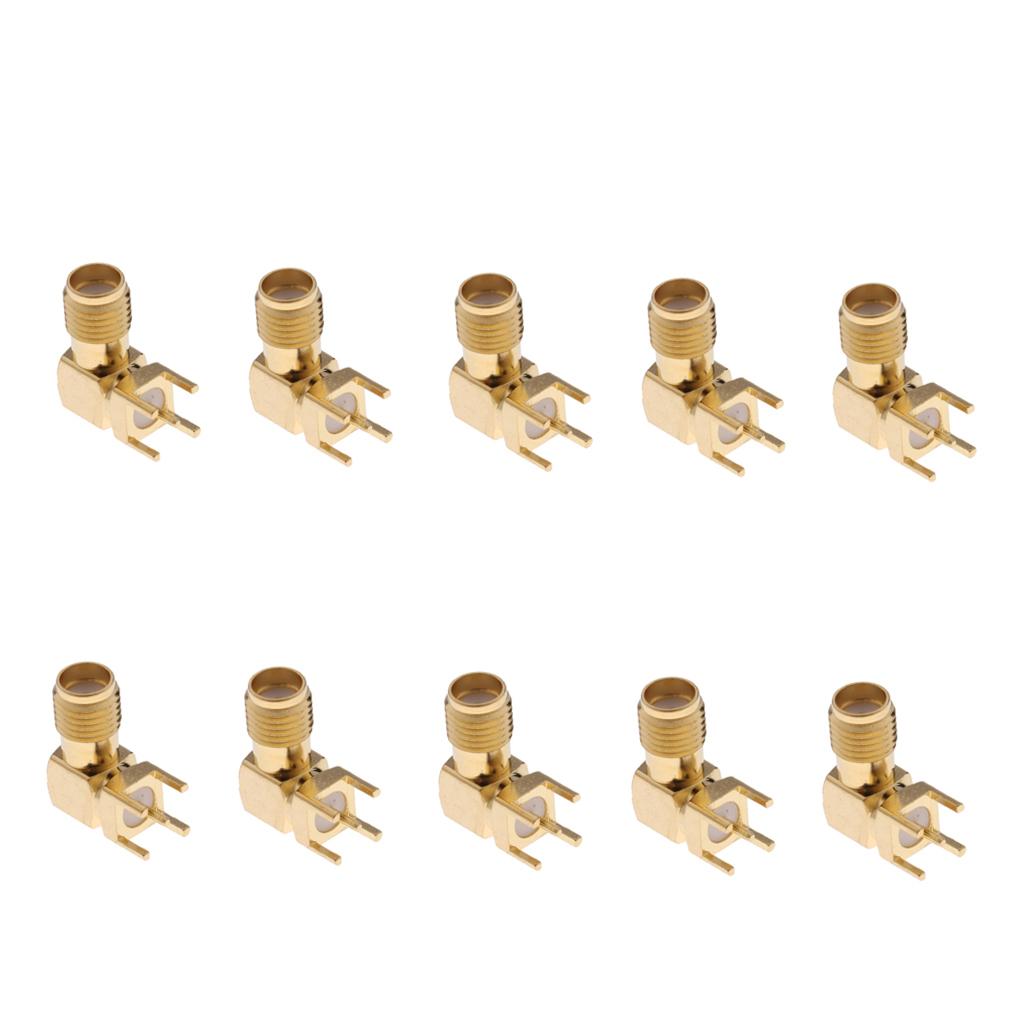

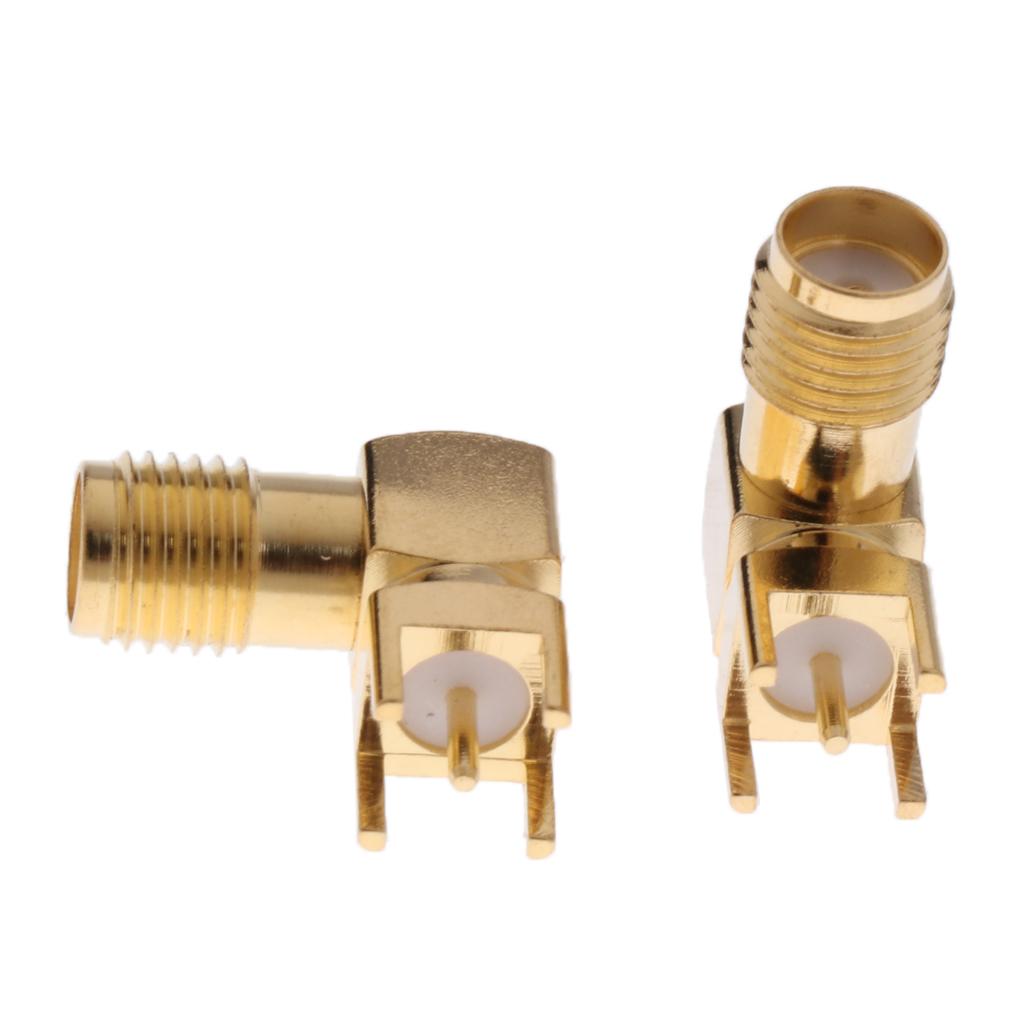

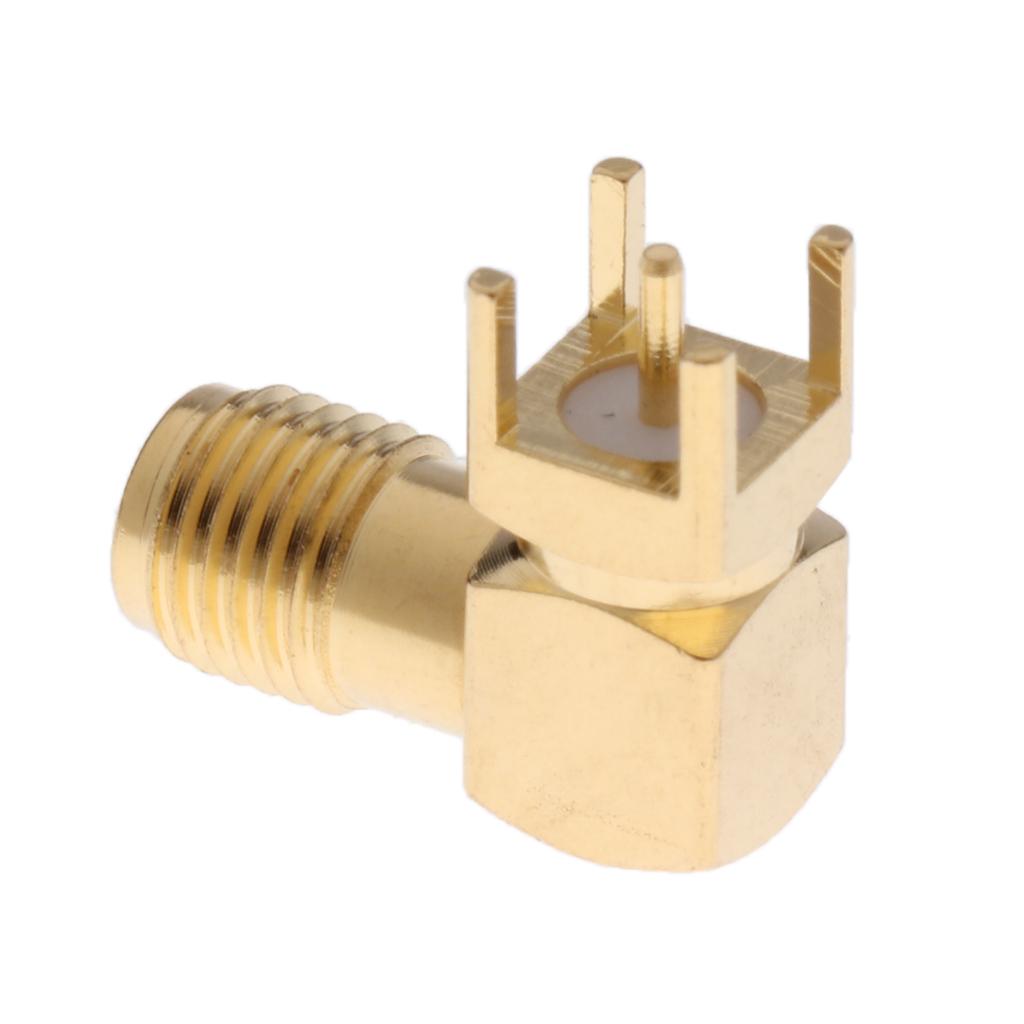

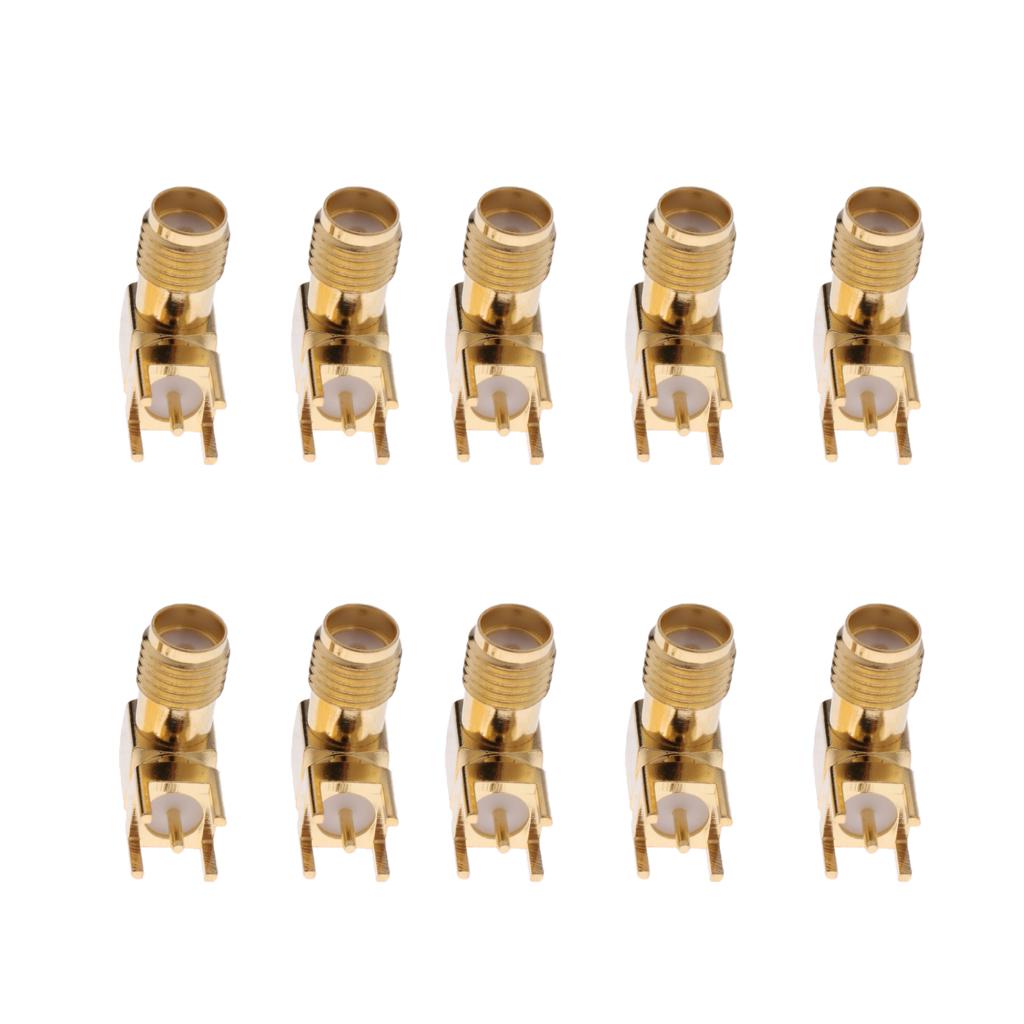

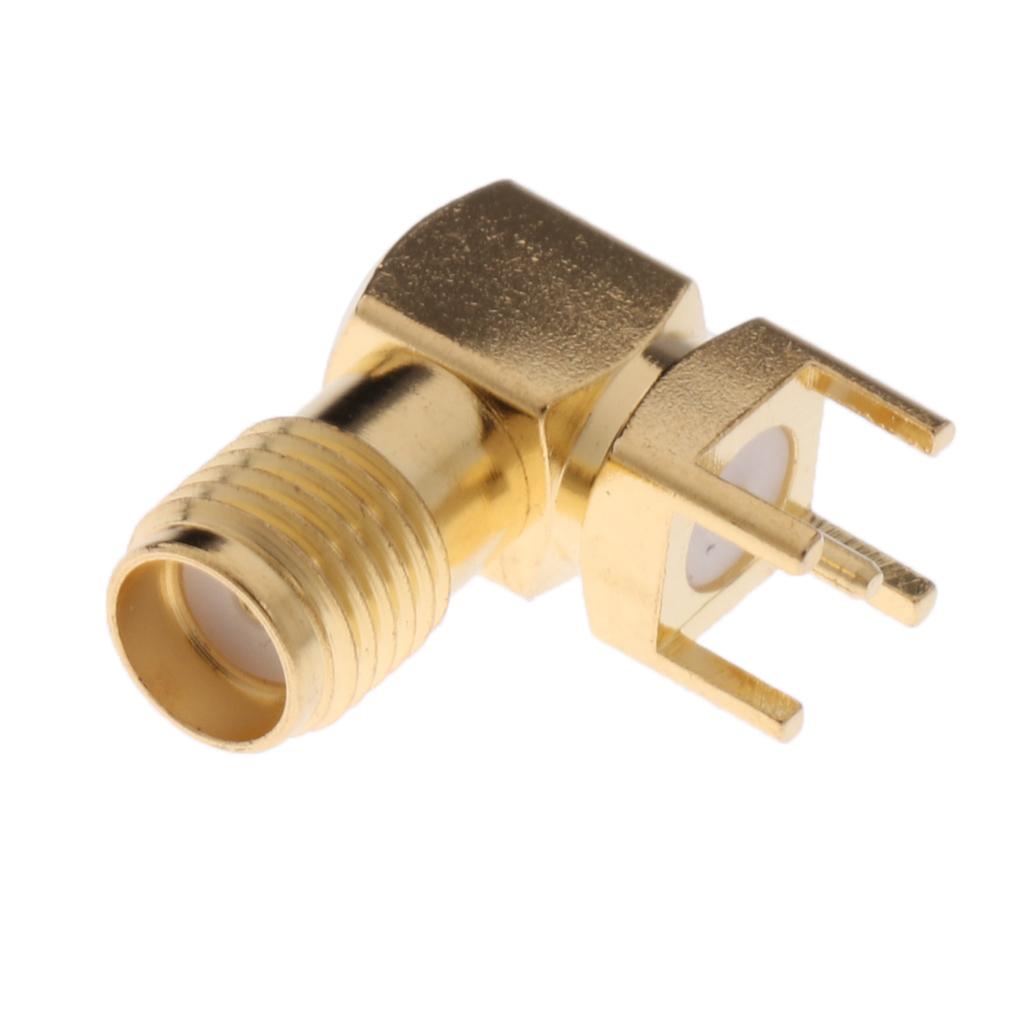

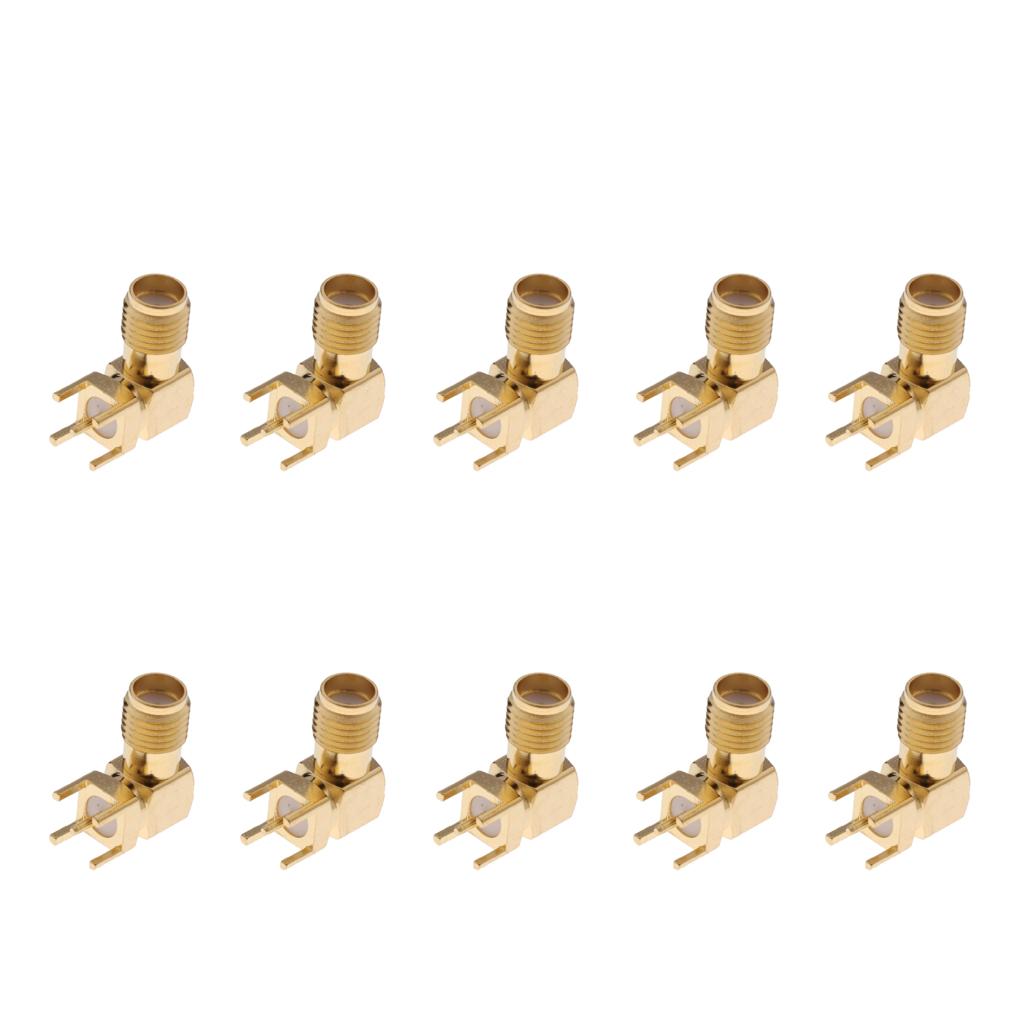

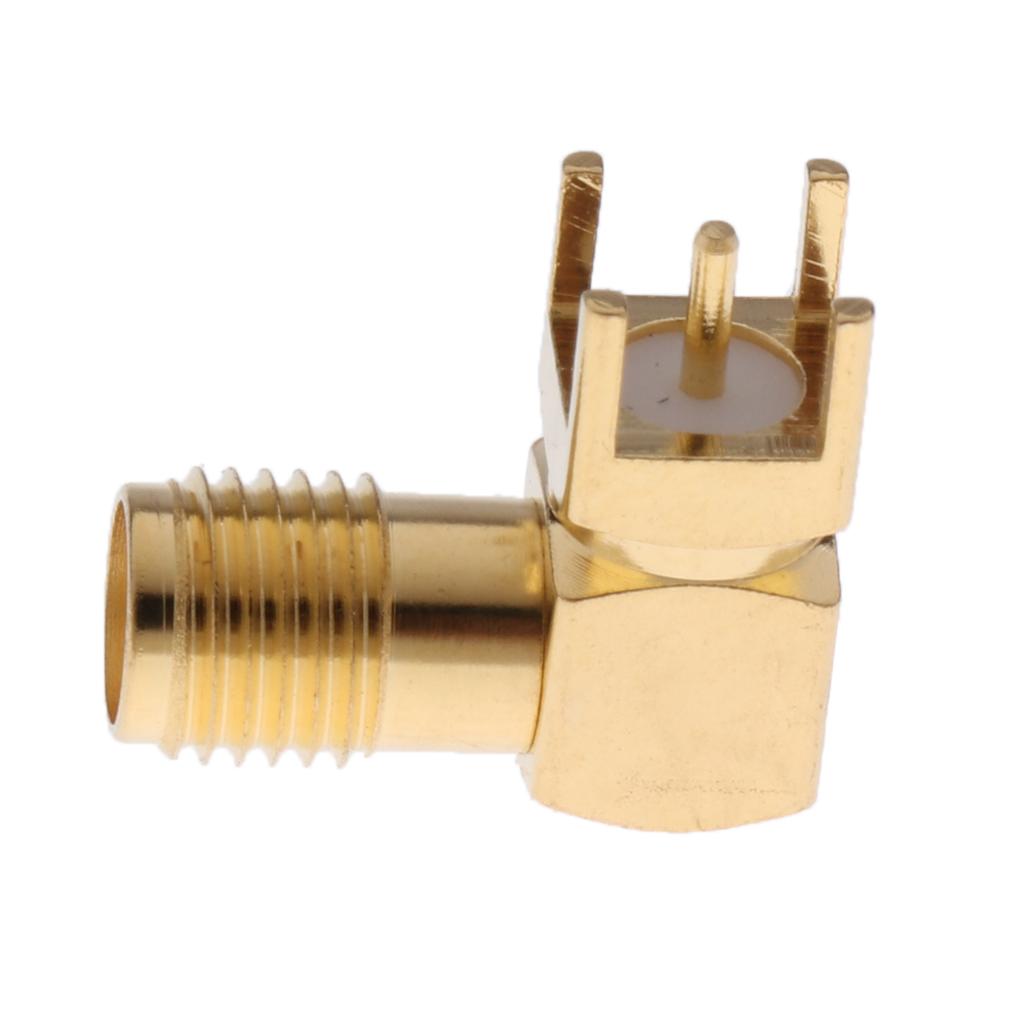

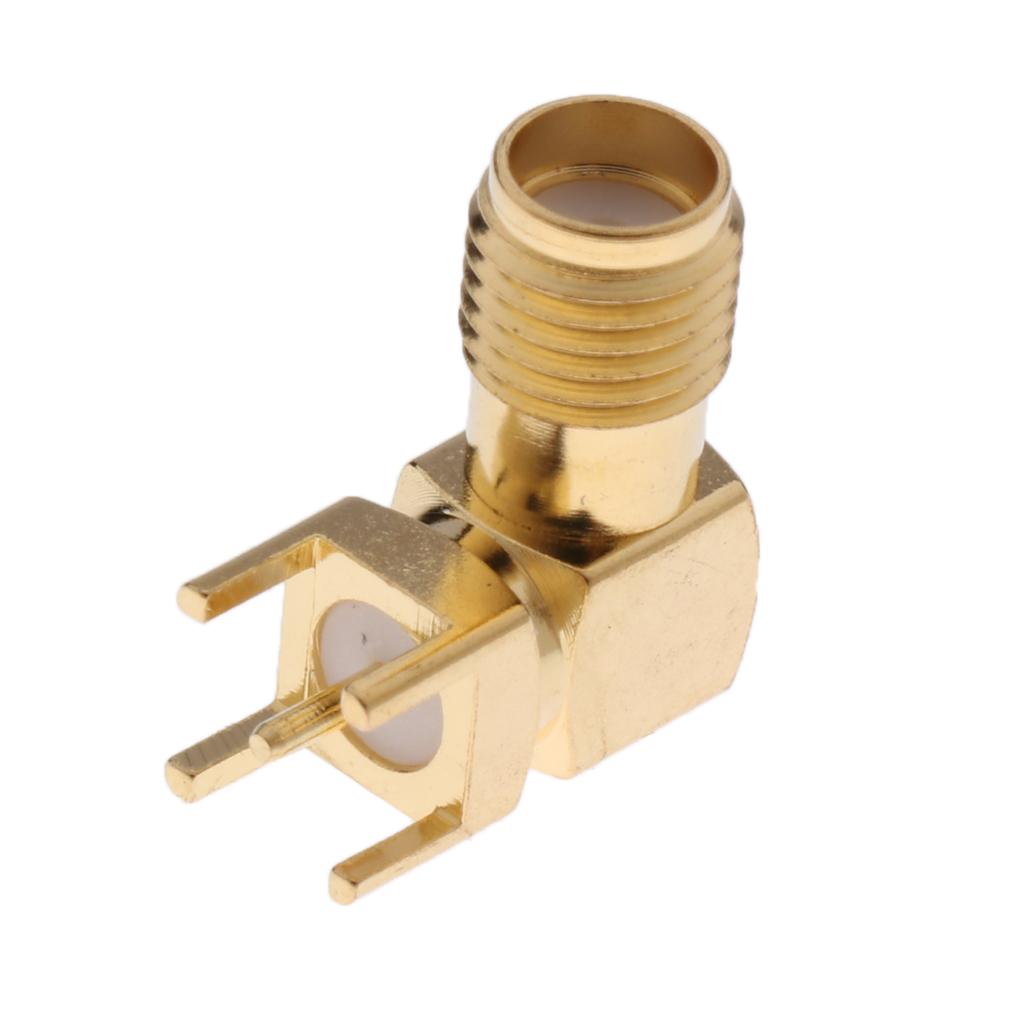

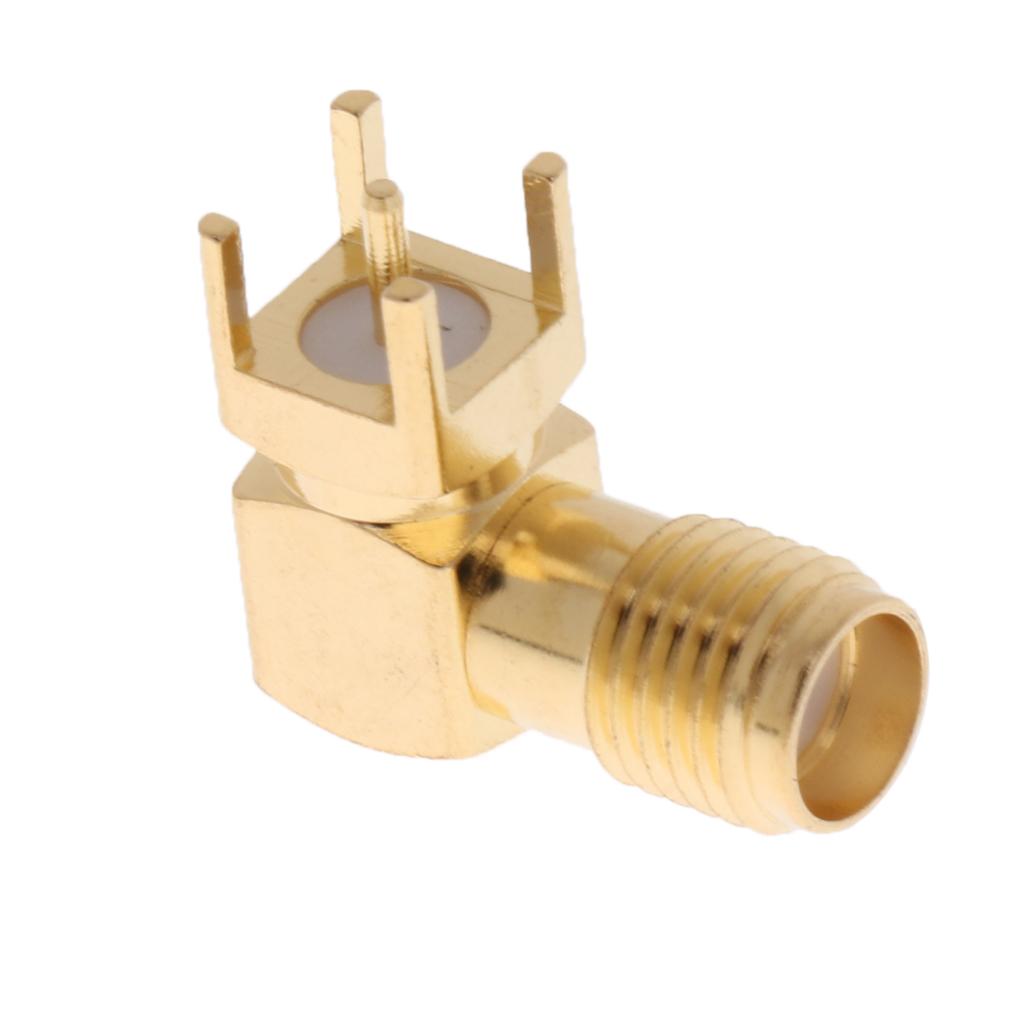

10x RF Female Jack Right Angle 90 Degree Metal Coaxial Adapter Connector

Regular price
Rs. 404.41
Regular price
Sale price
Rs. 404.41
Earn 202 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63014766
  • Brand: SFC
  • Type: Computers/Tablets & Networking
  • Availability: In Stock
Description

Description:

Temperature range -65 to +165°C (PE Cable -40 to +85°C)
Vibration MIL-STD-202, Method 213
Characteristic impedance 50Ω
Frequency range DC ~ 12.4GHz (Semi-rigid cable 0 ~ 18GHz)
Operating voltage 335V max (RMS)
Withstand voltage 1000V rms

Specification:

Contact resistance
Between conductors ≤ 3 mΩ
Between outer conductors ≤ 2 mΩ
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤0.15 dB/6GHz
Voltage Standing Wave Ratio Straight Flexible Cable ≤1.10+0.002f
Semi-rigid cable ≤1.05+0.001f
Flexible cable ≤1.20+0.003f
Semi-rigid cable ≤1.10+0.001f
Durability ≥500 cycles

Package Includes:

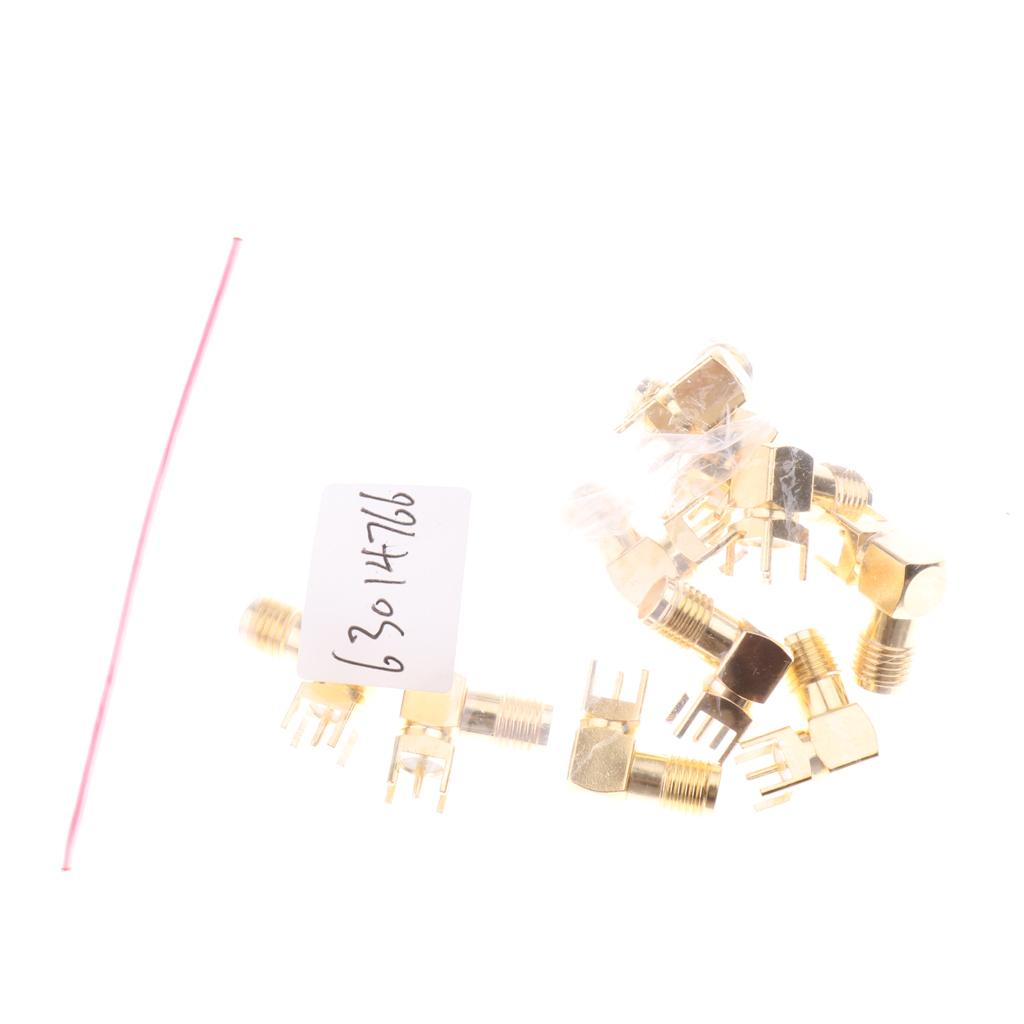

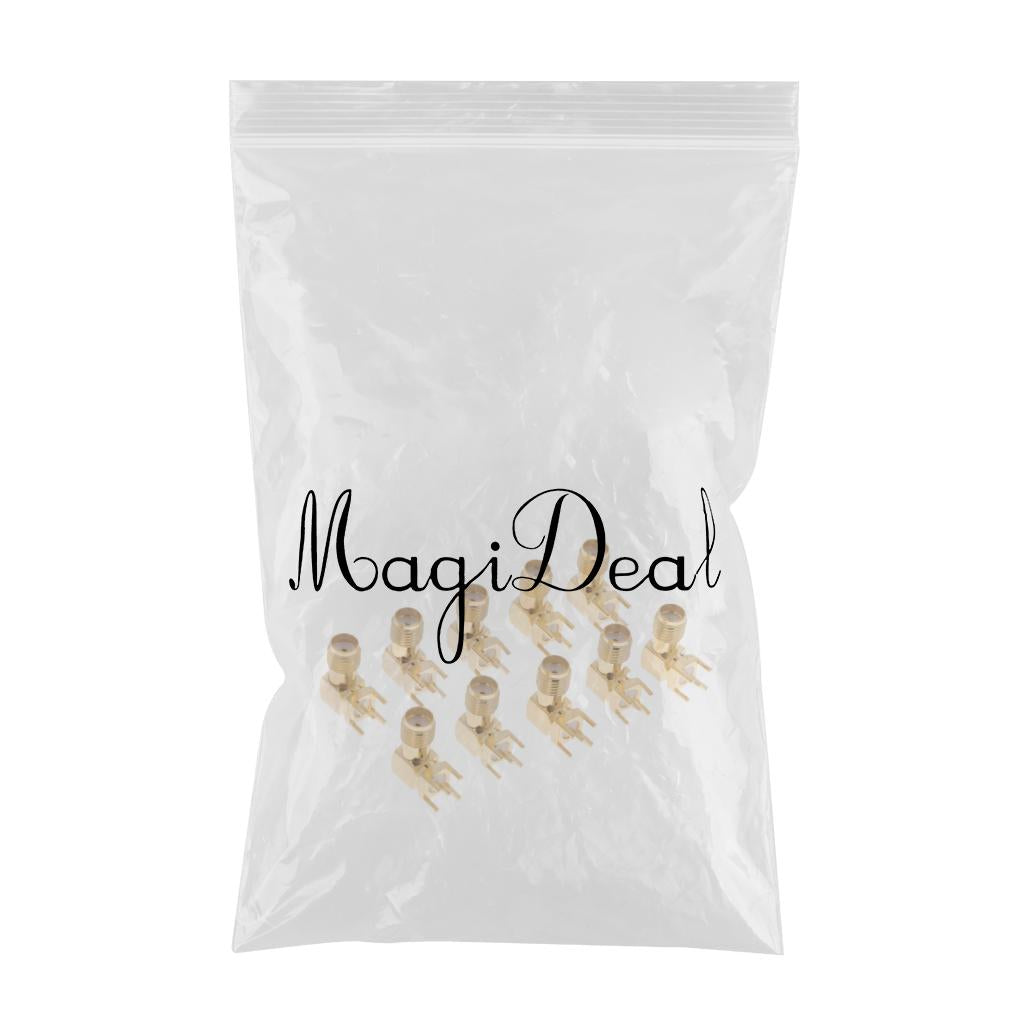

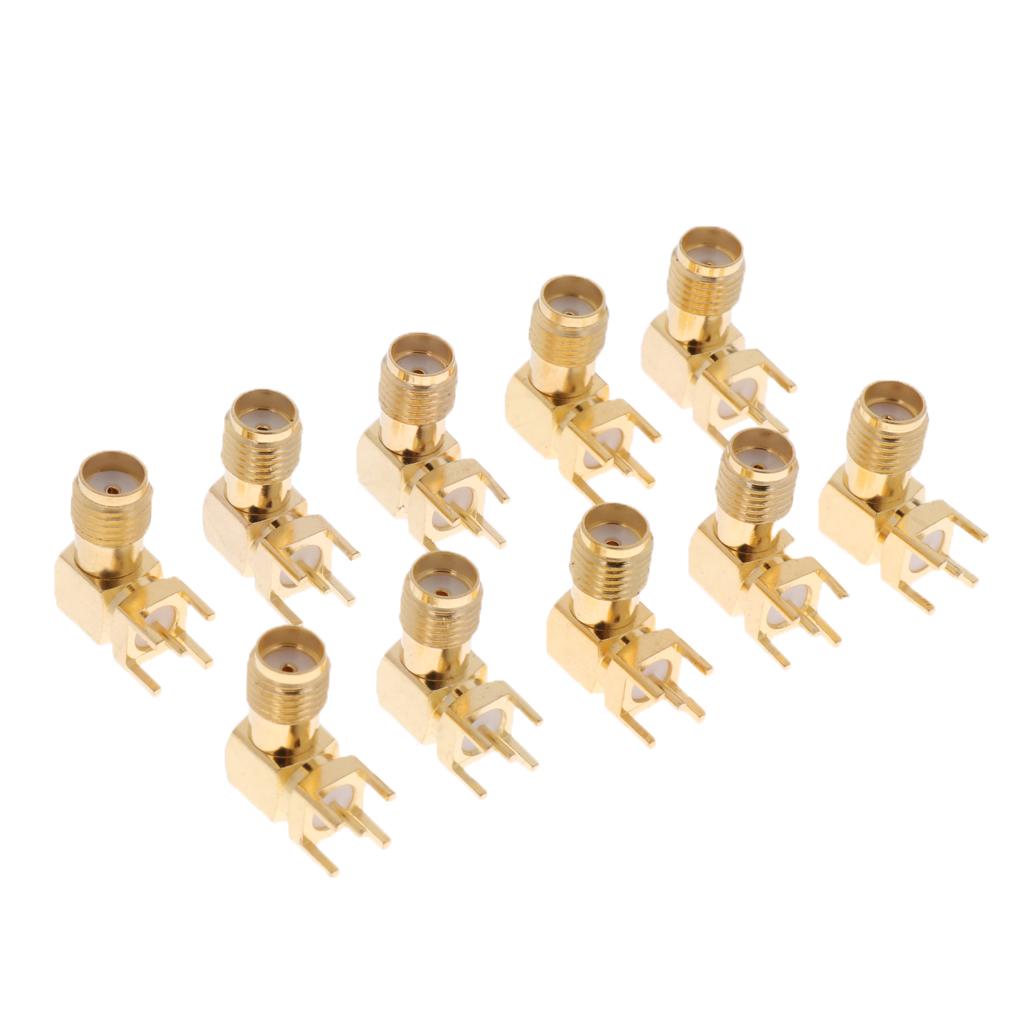

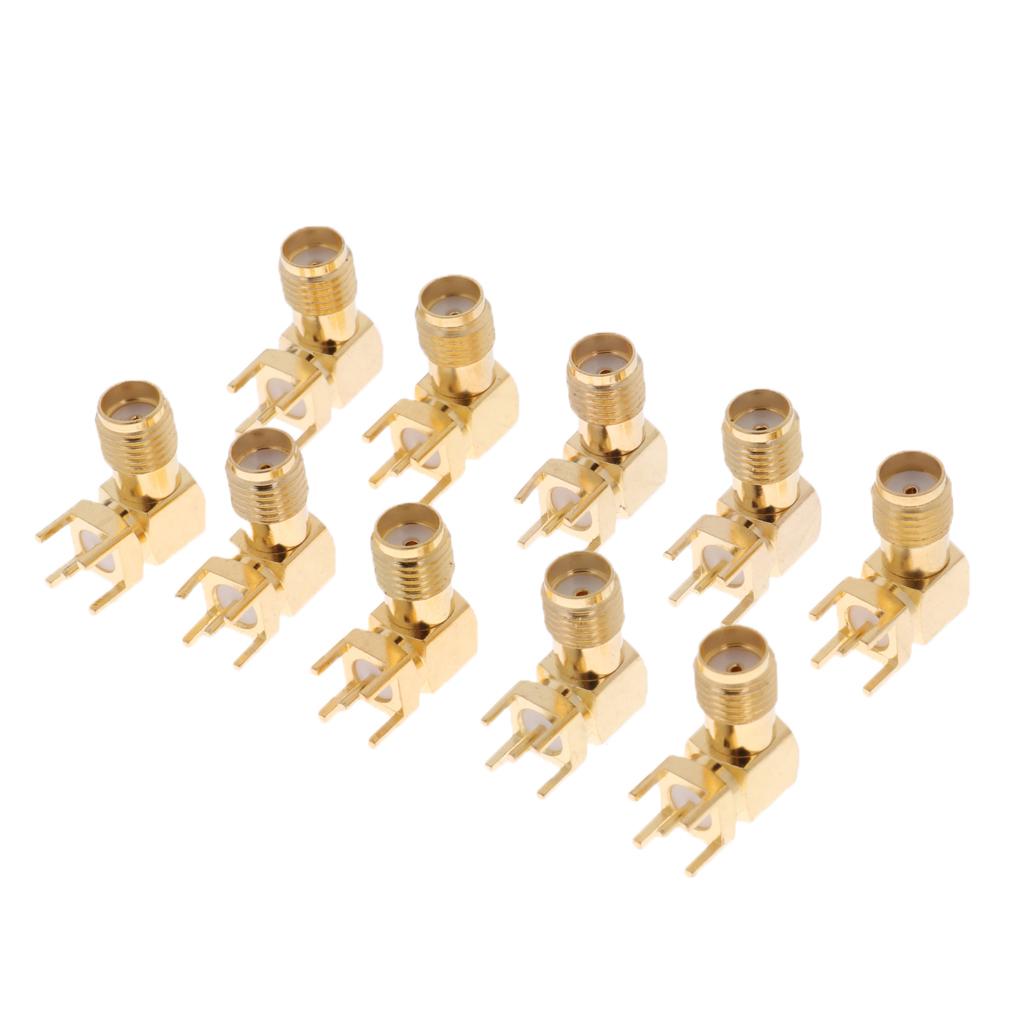

10 Pieces RF Coaxial Connector
