Wired Horizontal Liquid Water Level Sensor PP Side Mounted Float Switch for Aquarium Fish Tank

Regular price
Rs. 522.48
Regular price
Sale price
Rs. 522.48
Earn 261 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73002067
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

A float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating etc.
The plastic float switch of side mount duckbilled is a frequently opened, often closed, switching contact and with the overall brake, it's installed from the outside and doesn't need to be sealed.
Installation: It is installed horizontally drilling at the bottom or at the top.

Specification:

Model: NTER-H02-P-C3
Contract rating (Max): 10W
Switching voltage (Max): 100V DC
Switching current (Max): 0.5A
Breakdown voltage (Max): 220V DC
Carry current (Max): 1A
Max Contract resistance (Max): 100 OHM
Temperature rating: -10 ~ +85 Celsius degree
Switch forms:N.O /N.C(Open and close frequently)
Material: plastic
Size: 44cm/17inch
Tail Diameter: 16mm/0.2inch

Package Includes:

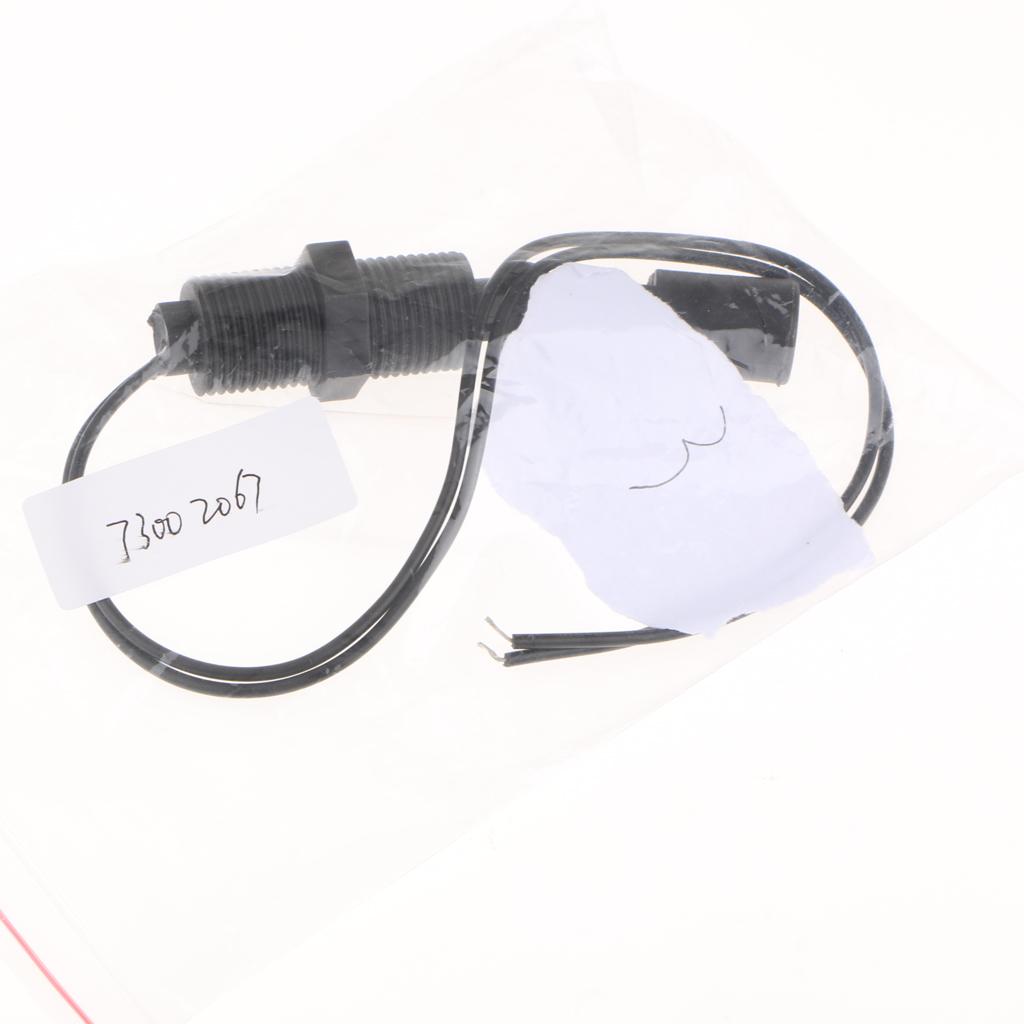

1 Piece Water Level Switch

Note:

Float used in conjunction with the relay can not be directly used with the power supply.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
