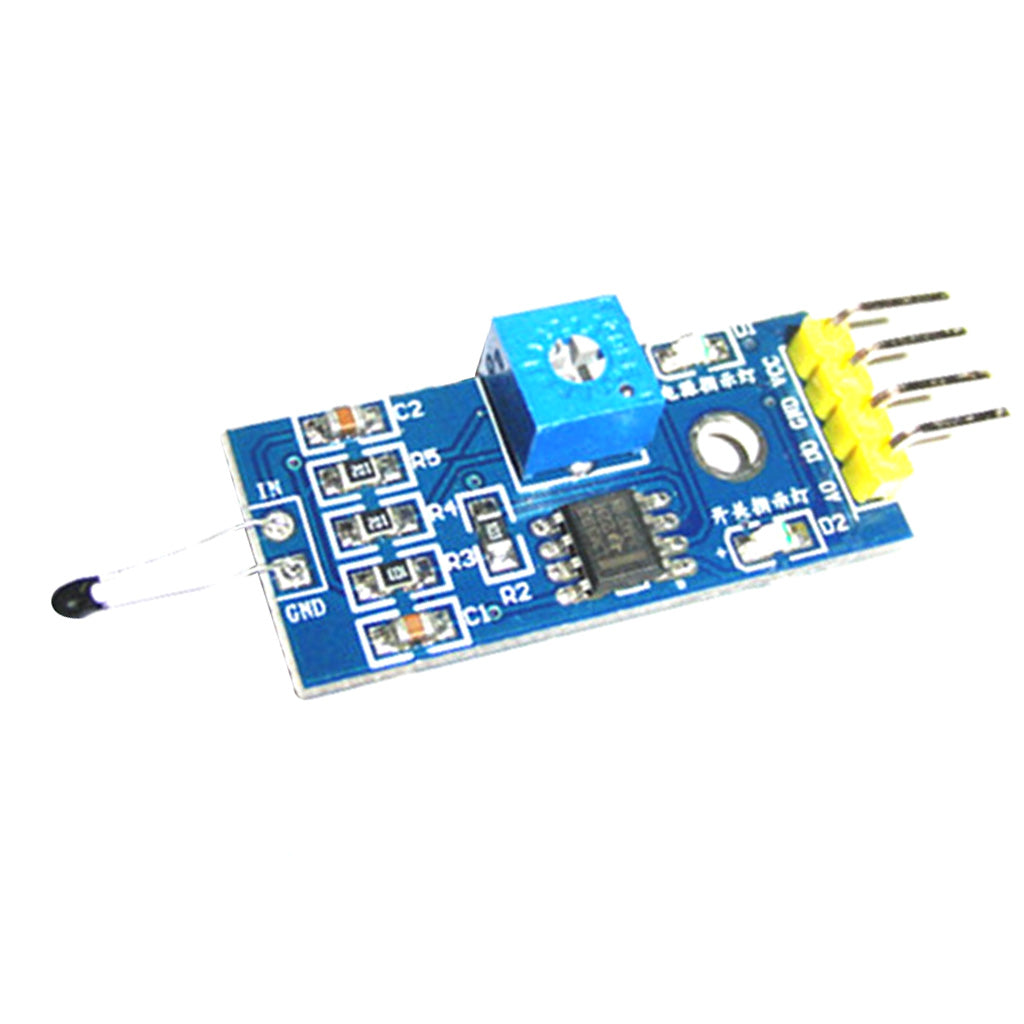

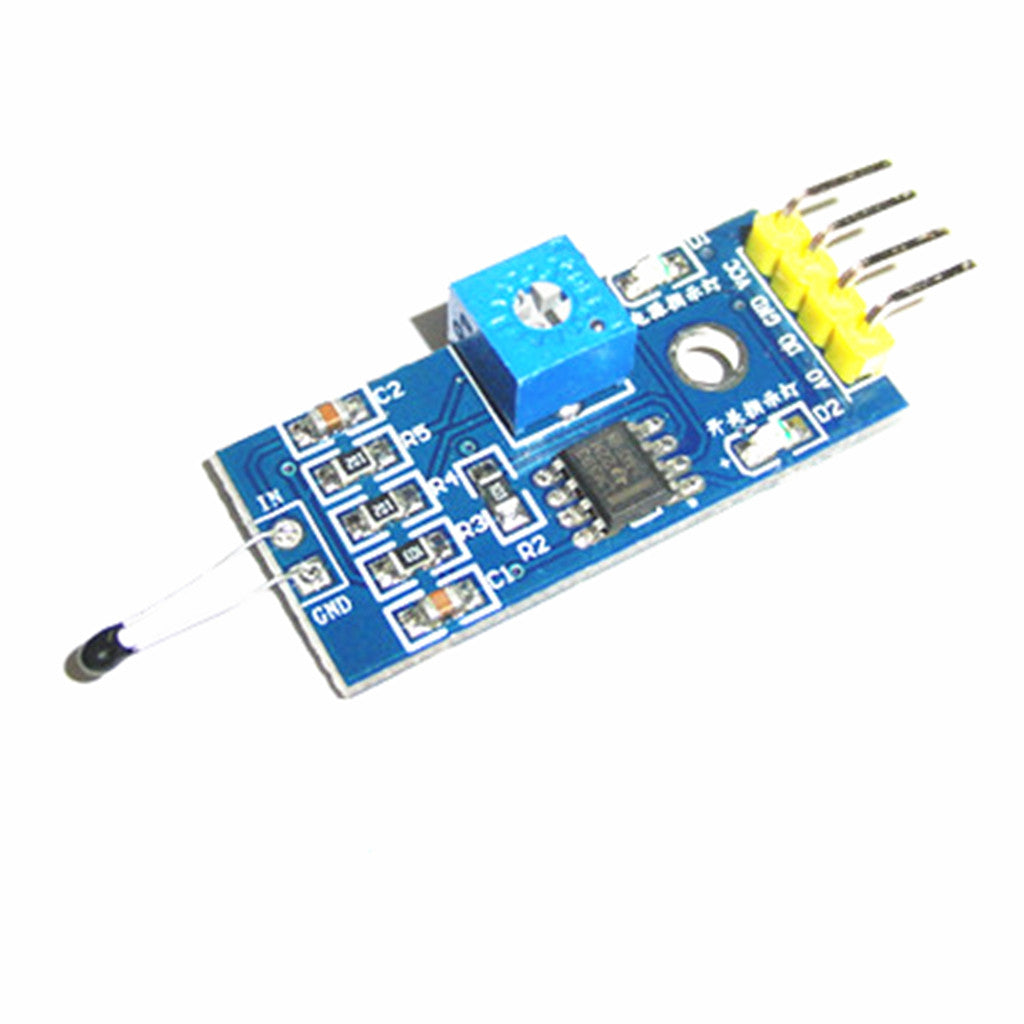

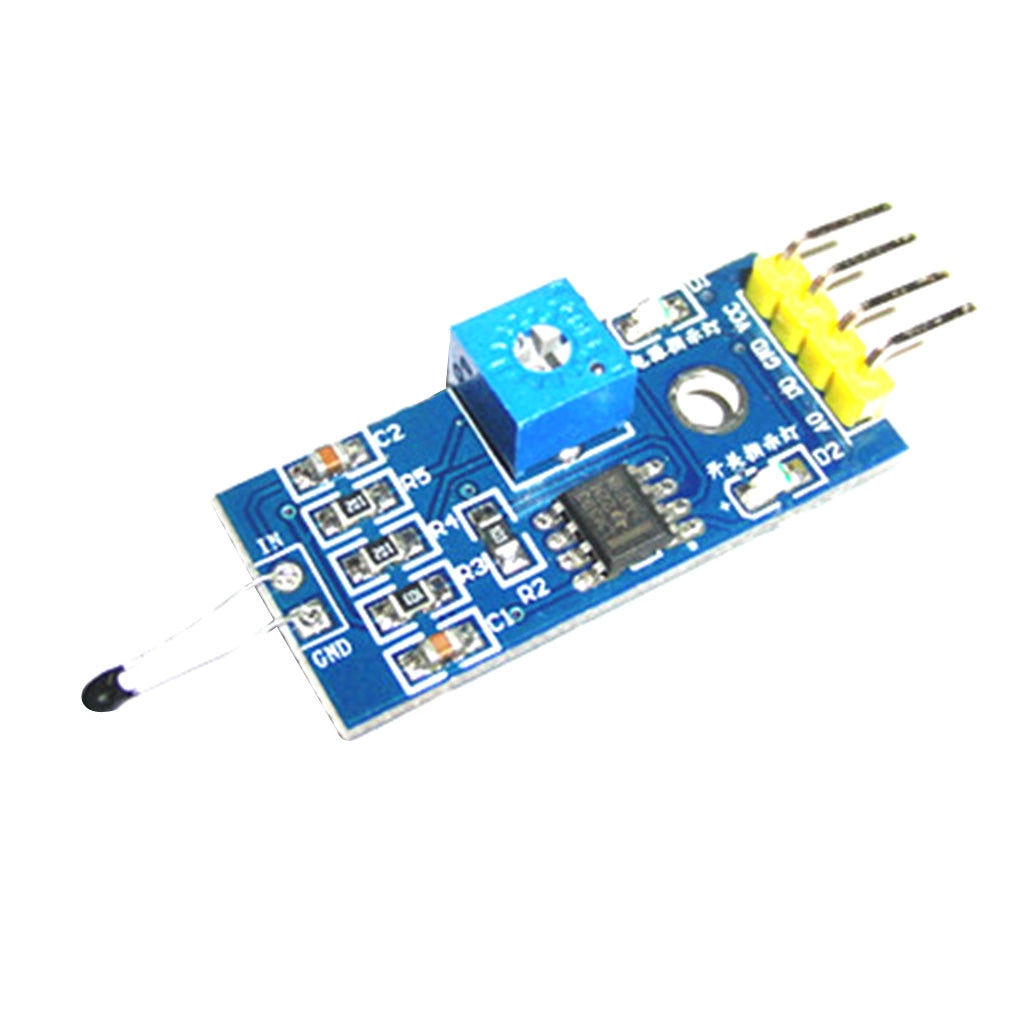

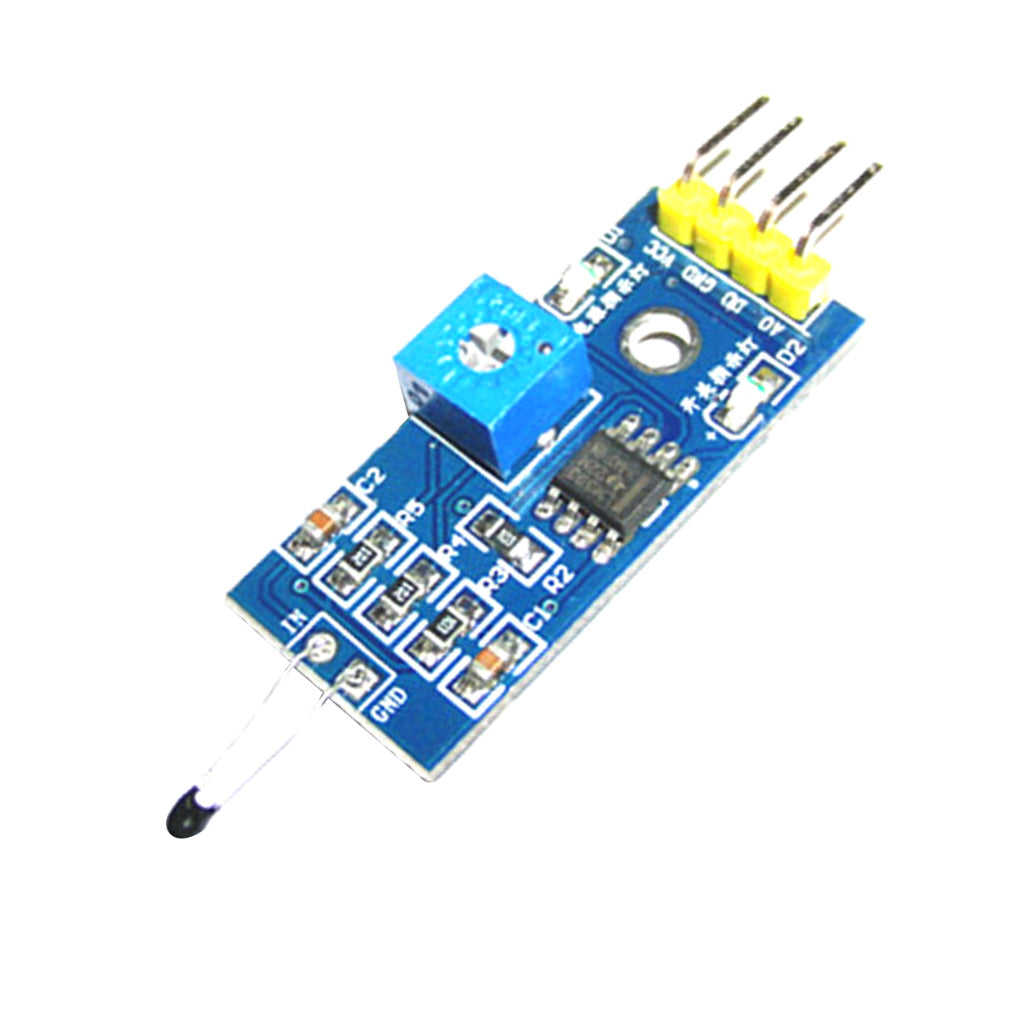

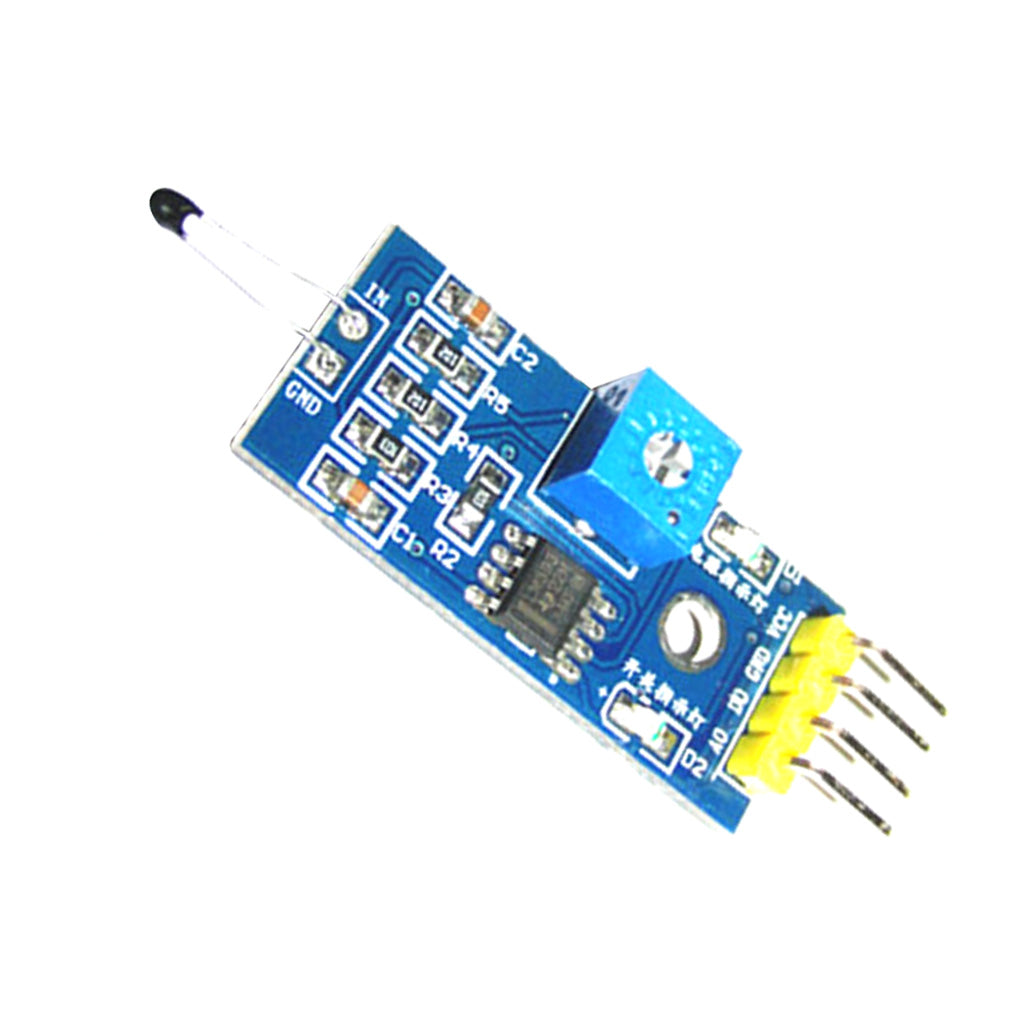

Temperature Sensor Module Thermistor Thermal Heat-sensitive Sensor Module

Regular price
Rs. 319.21
Regular price
Sale price
Rs. 319.21
Earn 159 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73000433
  • Brand: SFC
  • Type: Collectibles
  • Availability: Out stock
Description

Description:

Can detect the temperature of the surrounding environment
The sensitivity is adjustable (blue digital potentiometer adjustment)
Working Voltage: 3.3V-5V
Output Form: a. Analog voltage output; b. Digital switching output (0 and 1)
Fix bolt holes for easy installation
Onboard power indicator and digital switch output indicator
Small PCB Board Size: 3 x 1.6 cm/1.2 x 0.63 inch

Specification:

Interface Description
1. VCC connect to 3.3V-5V
2. GND connect to GND
3. DO digital output interface (0 and 1)
4. AO analog output interface
Instructions
1. Thermistor module is generally used to detect the temperature changes of the surrounding environment
2. When the module can't reach to the temperature set threshold value, the DO port outputs high level. When the outside temperature exceeds the set threshold, the module DO outputs low level
3. Module digital output DO can directly connect to the microcontroller, detect high and low level through the microcontroller, thereby detecting the temperature changes of environment
4. The module analog output AO can connect to the AD module. It can obtain a more accurate value of temperature through AD conversion

Package Includes:

1 Piece Thermal Sensor Module
