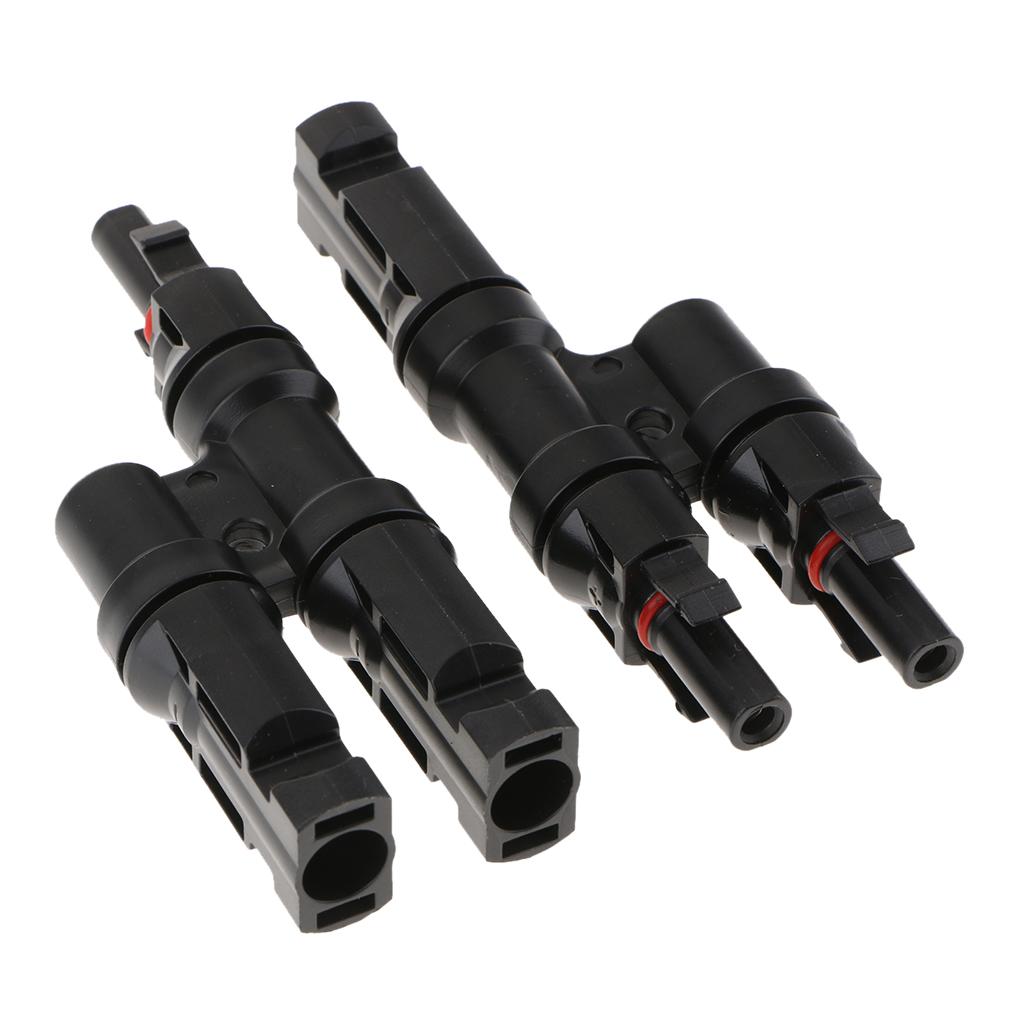

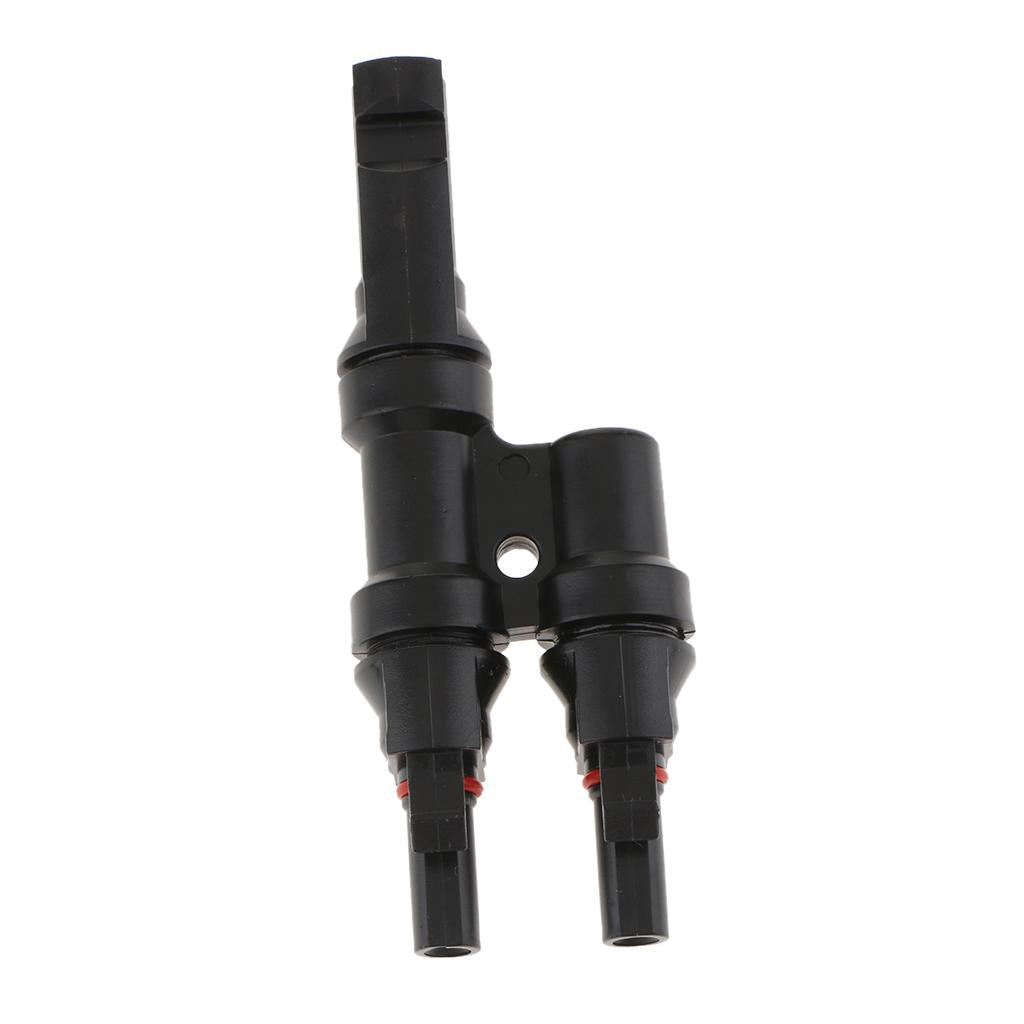

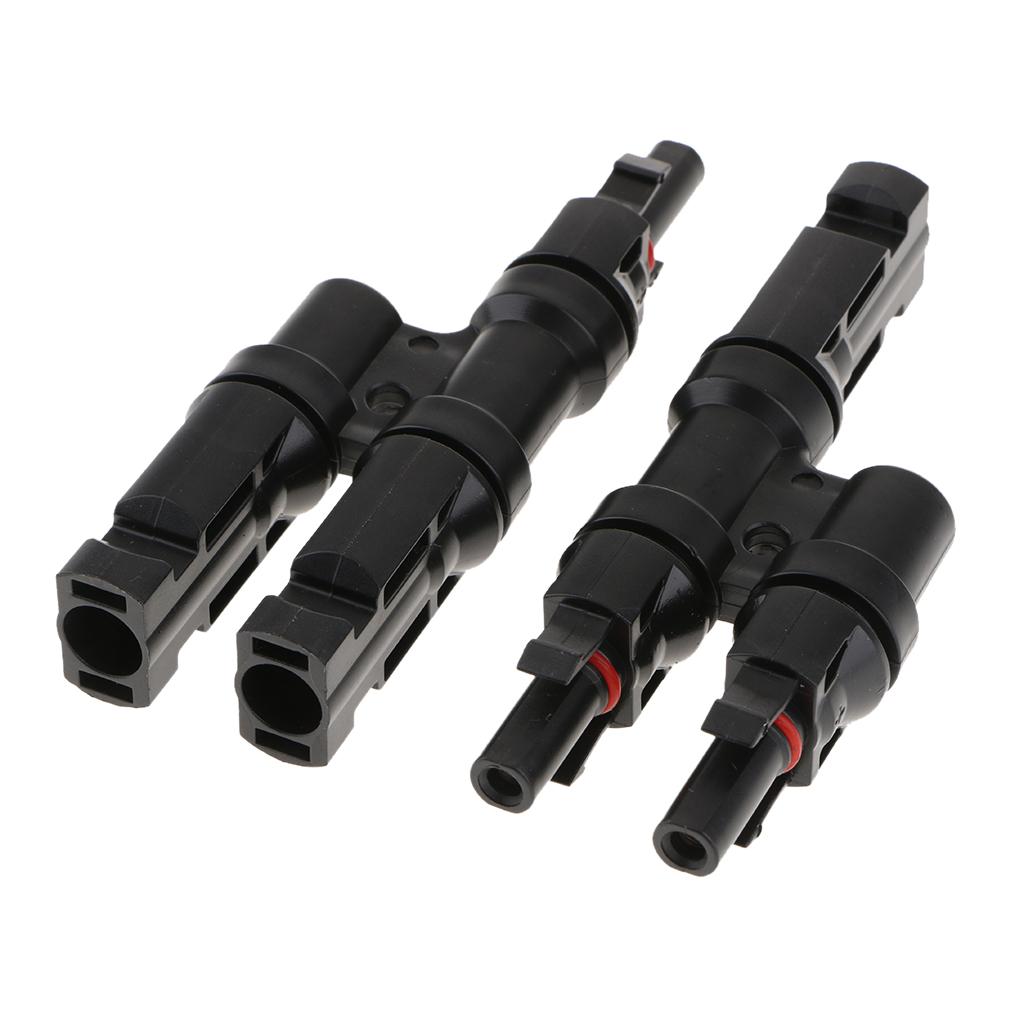

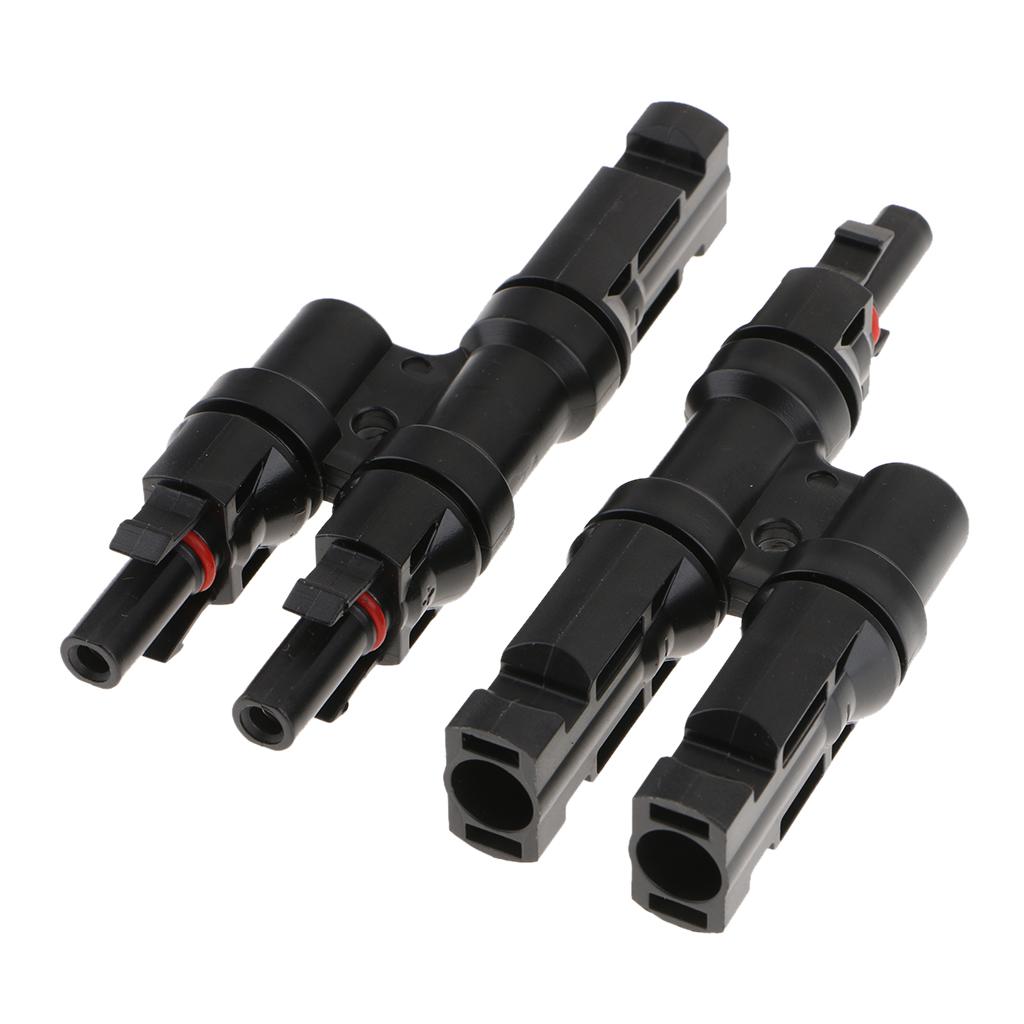

Solar Panel MC4 Y Branch Connectors Cable Coupler for Parallel Connection

Regular price
Rs. 697.89
Regular price
Sale price
Rs. 697.89
Earn 348 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68006465
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

MC4 three-way parallel branch (compatible with MC4 connector) is a special connector when solar photovoltaic panels are connected in parallel to form an array module.

Quick and reliable connection, waterproof and dustproof, easy to use, etc.

The outer casing has strong anti-aging and ultraviolet resistance, and the connection of the cable is connected by pressing and tightening.

The male and female heads are fixed with a stable self-locking mechanism and open and close freely.

Material: PPO, copper, nickel plated


Specification:

Name: MC4 connector

Working current: 30A

Withstand voltage: DC1000V

Contact resistance: <=0.5mΩ

Insulation resistance: > 500MΩ

Applicable single core cable section: 1.5mm2--6mm2

Cable outer diameter range: Φ5mm ~ Φ 7mm

Ambient temperature: -40 °C ~ + 105 °C

Protection level: IP67

Security level: II

Insertion force: ≤50N Pull-out force: ≥50N

Insulation: PPO, black

Contact: copper cn, nickel plated sn

Flame retardant rating: UL94-VO

Terminal connection method: crimping

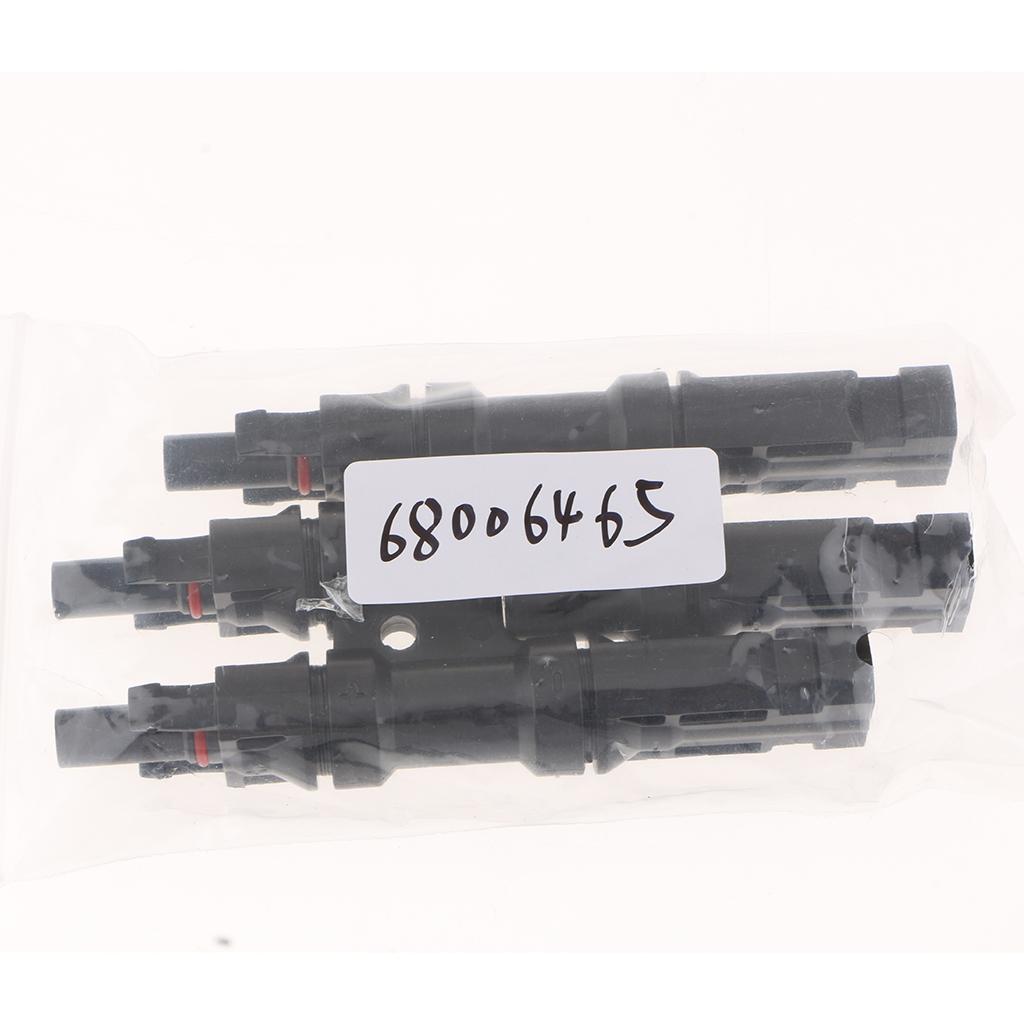

Package Includes:

1Pcs MC4 Branch Parallel Connector Male

1Pcs MC4 Branch Parallel Connector Female
