Replacement 5.6" 4 Wire Resistive Touch Screen Panel Digitizer

Regular price
Rs. 1,059.02
Regular price
Sale price
Rs. 1,059.02
Earn 529 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68004724
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

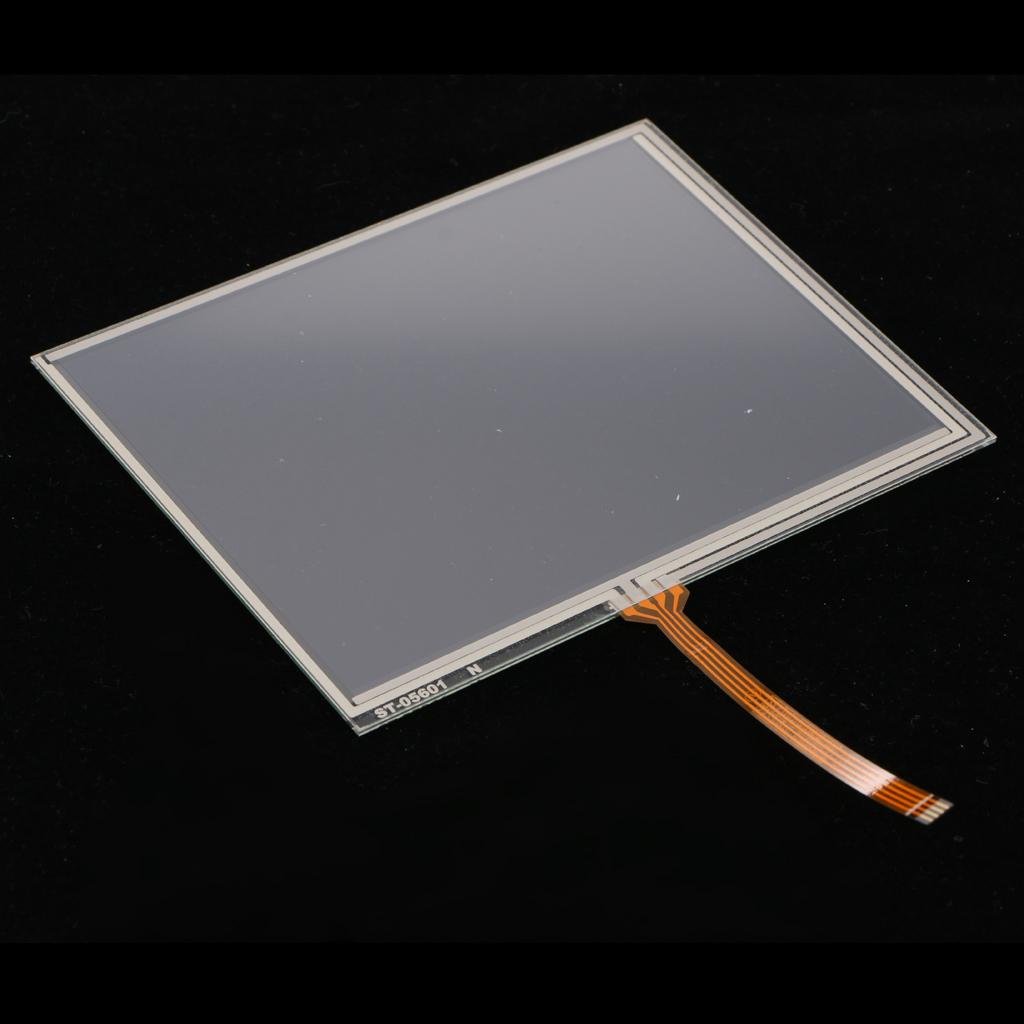

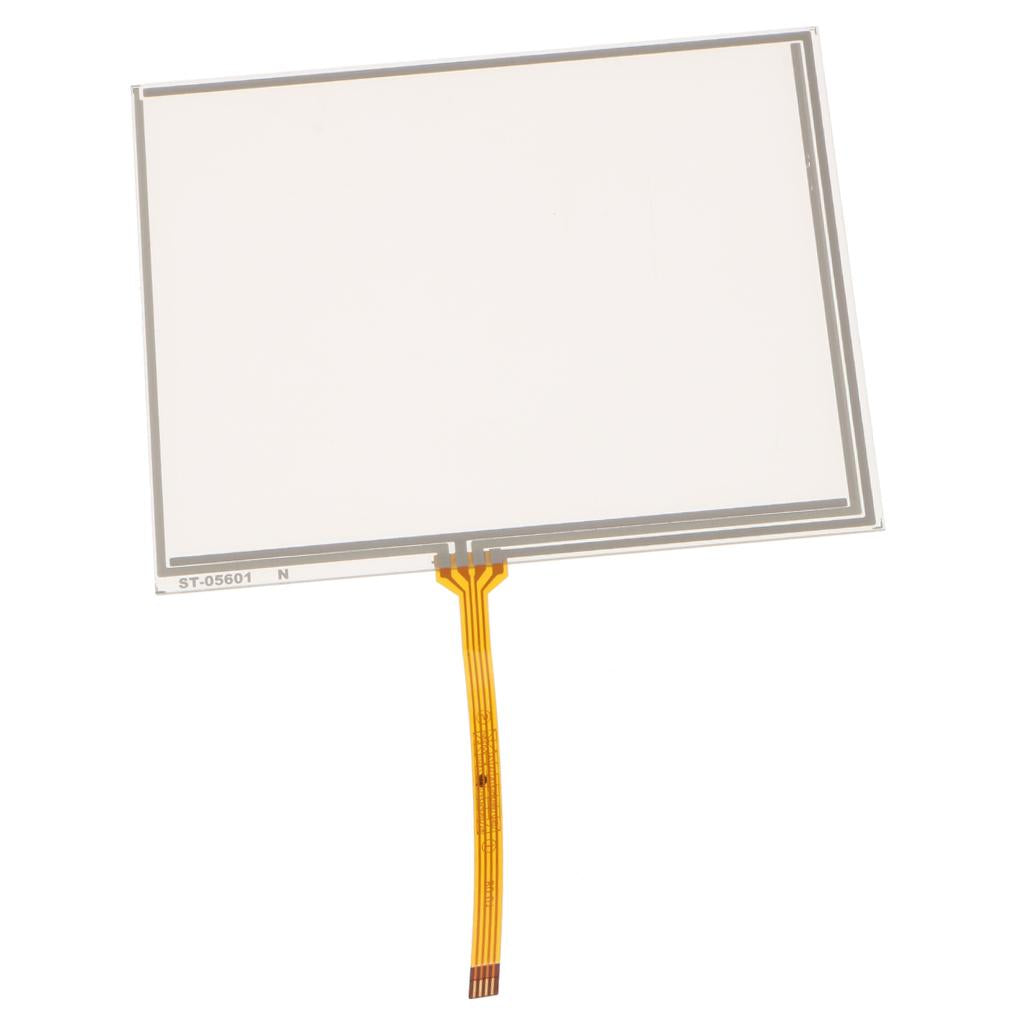

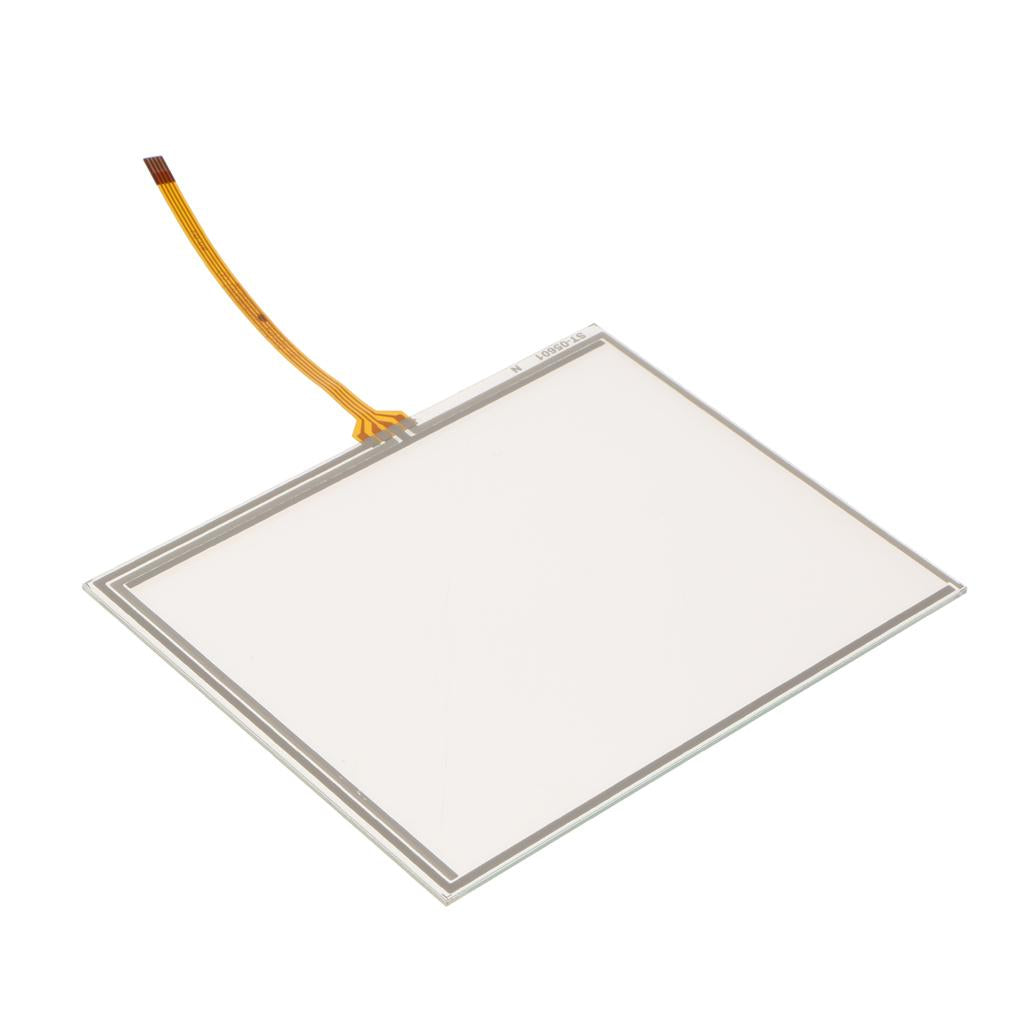

5.6Inch 4 Wire Resistive Touch Screen Panel Digitizer 127x98mm For 5.6" Car DVD GPS
Screen structure: ITO Film is bonded to ITO Glass with DOT point isolation
Destructive resistance: 3-12mm special process fully tempered optical glass as the substrate. Use 1 lb. at 130 cm height to freely fall to the center of the glass without damage to the glass.
Sealing characteristics: The high sealing material tightly closes the filter device, the frame and the riot glass to prevent liquid leakage
Durability: Mohs hardness 3H (according to ATSM D3363 standard)


Specification:

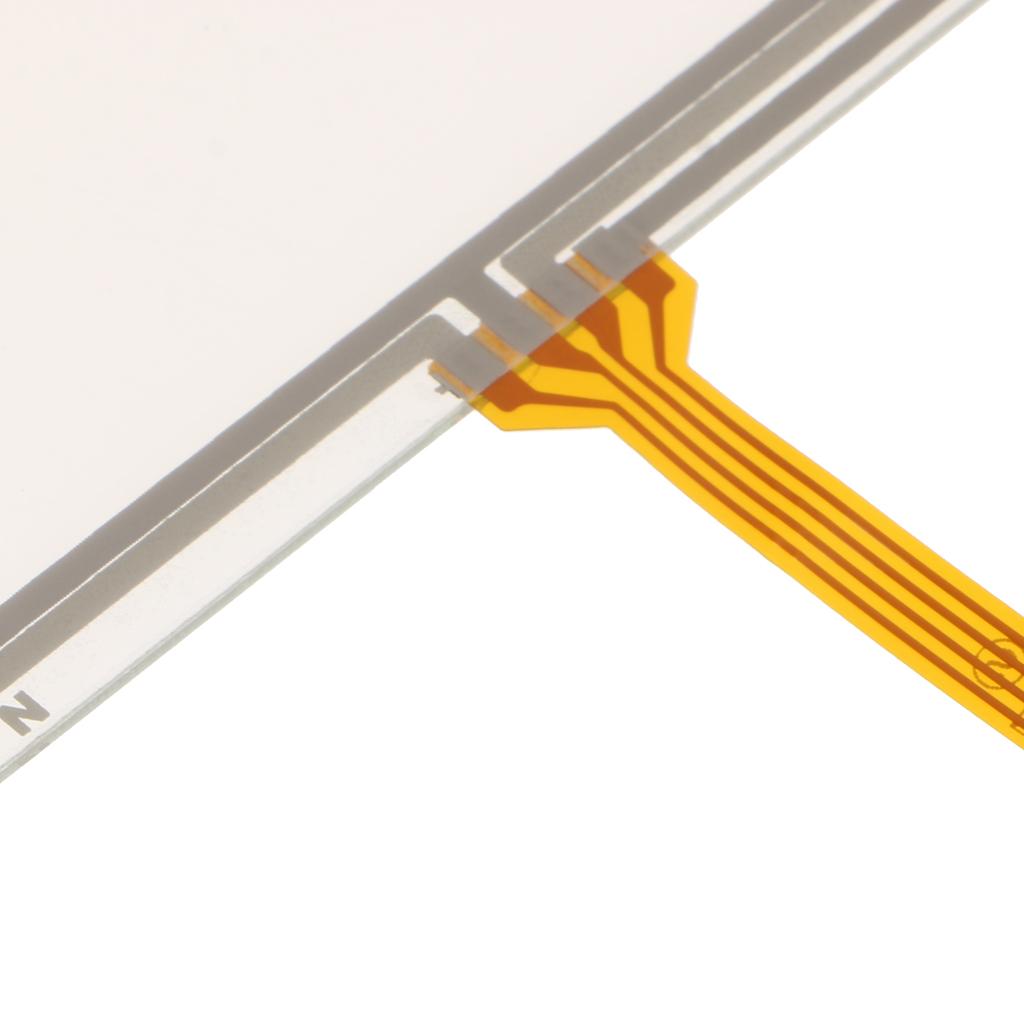

Connector: 2.54mm pitch, standard AMP87499-9
Touch media: fingers, gloved hands, pens, credit cards, etc.
Screen thickness: 1mm
Screen size: 5.6 inches
Resolution: 4096x4096
Response time: less than 6 milliseconds (finger input)
Touch force: 15-40gr using a hardness of 600 diameter 16mm silicone grease
Conversion speed: less than 20ms
Position accuracy: standard deviation less than 2 mm
M touch density: touch resolution 4096x4096 touch point
Screen error: less than 1.5%
Supply voltage: DC+5V
Screen resistance: 100Ω-450Ω (between X1-X2); 350Ω~1000Ω (between Y1-Y2)
Insulation resistance: greater than 20MΩ at DC25V
Electrostatic protection: can withstand 20 discharges of 15 kV voltage randomly distributed on the screen surface (per IEC 801-2; 150pF and 150Ω)
Transmittance: 75-85% (when the wavelength is 550 nm)
Working temperature: -10 ° C -60 ° C
Storage temperature: -20 ° C -70 ° C

Package Includes:

1 Piece 5.6Inch Resistive Touch Screen Panel Digitizer
