Premium DC-DC Step Down Power Supply Adjustable Charging CC-CV Module Regulator with LED LM2596 Easy Use

Regular price
Rs. 327.63
Regular price
Sale price
Rs. 327.63
Earn 163 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68004298
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

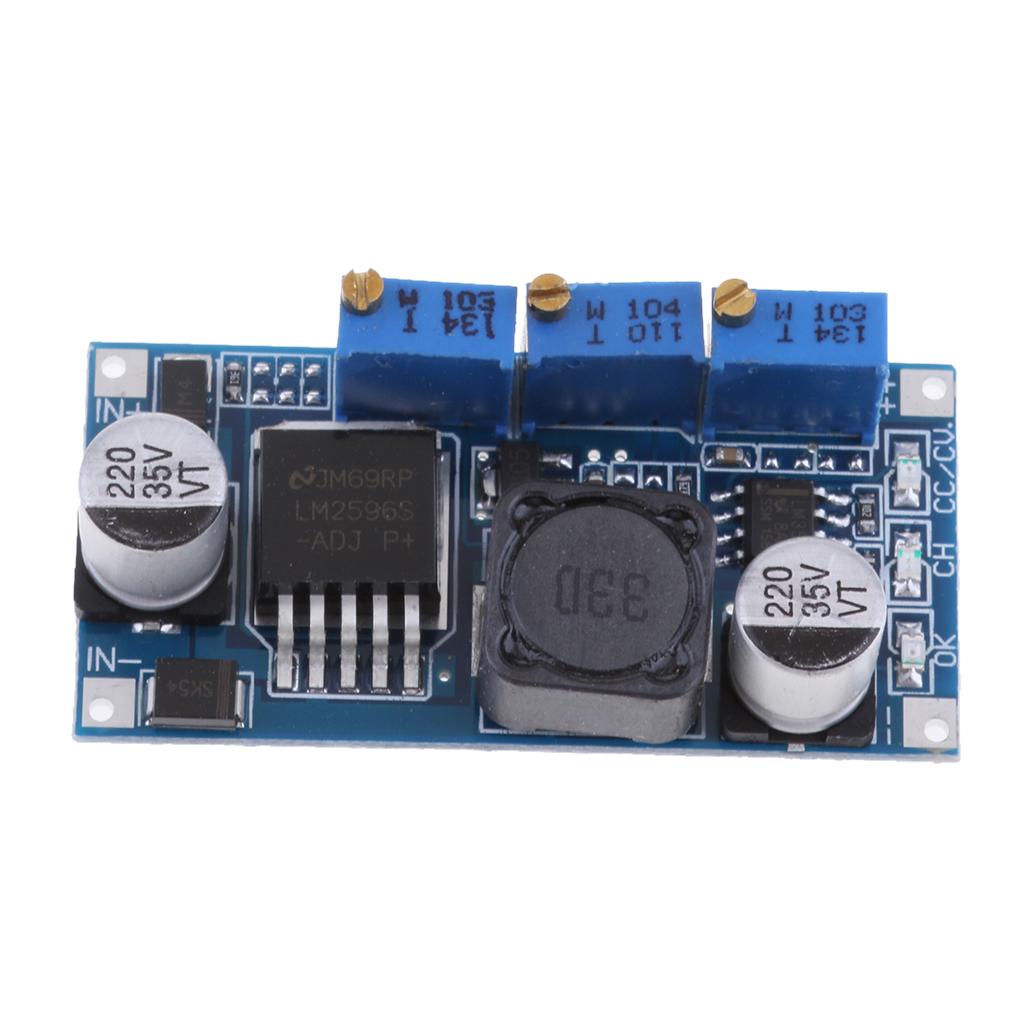

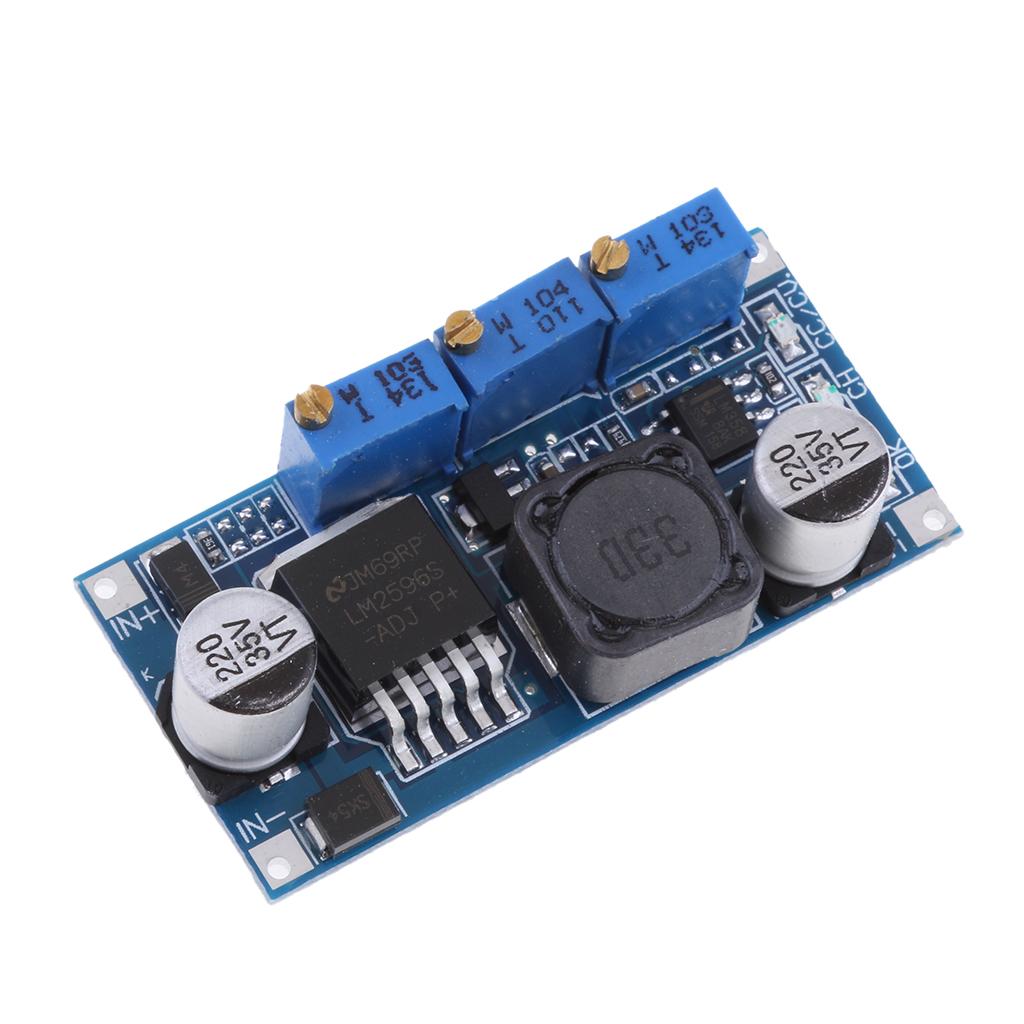

The module uses domestic high-quality LM2596 chip, high efficiency (up to 92%), at the same time small heat, can easily reach more than 3A current,with the TI's op amp control output current, so that the overall output is very stable.
This module uses a low ESR filter capacitor, can make the ripple voltage as low as 50mV!
This module uses a machine patch and reflow soldering. At the same time, each module undergoes a two-hour aging test before shipment to ensure high reliability.
Easy to install,convenient disassembly.Using excellent raw materials, the power consumption is lower.
Applications: DIY mobile power supply, vehicle power supply, communication equipment power supply, all kinds of occasions (such as aeromodelling, etc.) which have strict requirements on volume and weight.

Specification:

Material: PCB Board
Size: 5cm/1.97inch
Module Properties: Non-Isolated Buck Module
Rectification: Non-synchronous rectification
Input voltage: 7V-35V
Output voltage: 1.25V-30V
Output current: adjustable up to 3A
Conversion efficiency: 92% (highest)
Switching frequency: 150KHz

Package Includes:

1 Piece Power Step Down Module

Note:

Please allow slightly difference due to manual measurement.
Color may be slightly different since different monitor.
