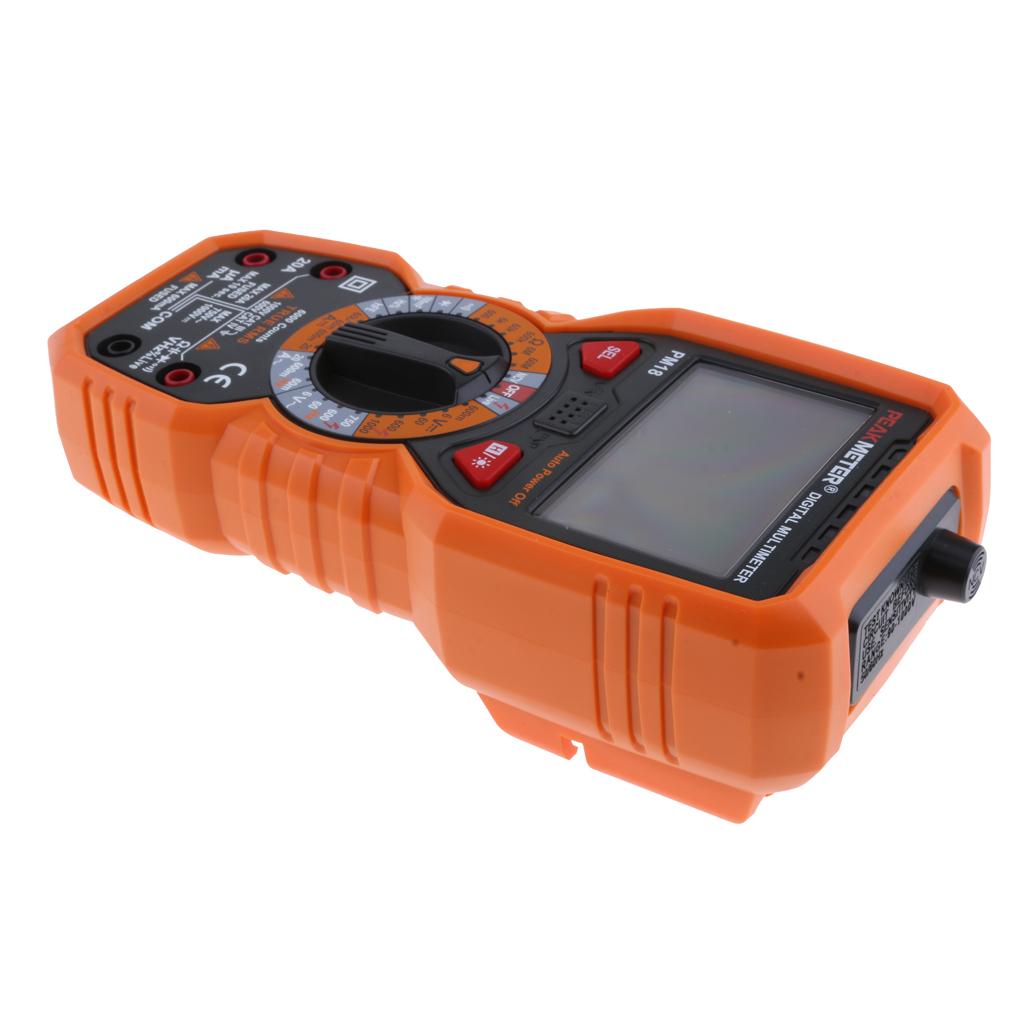

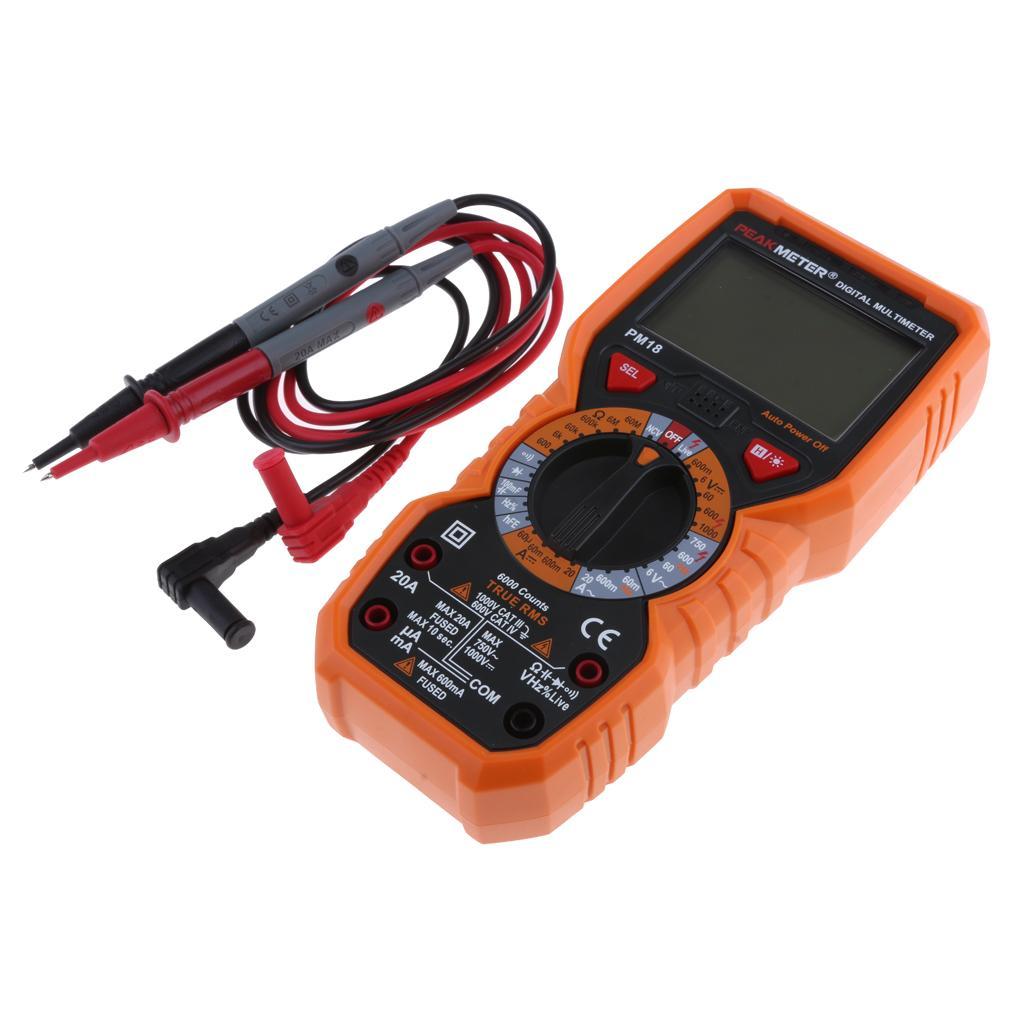

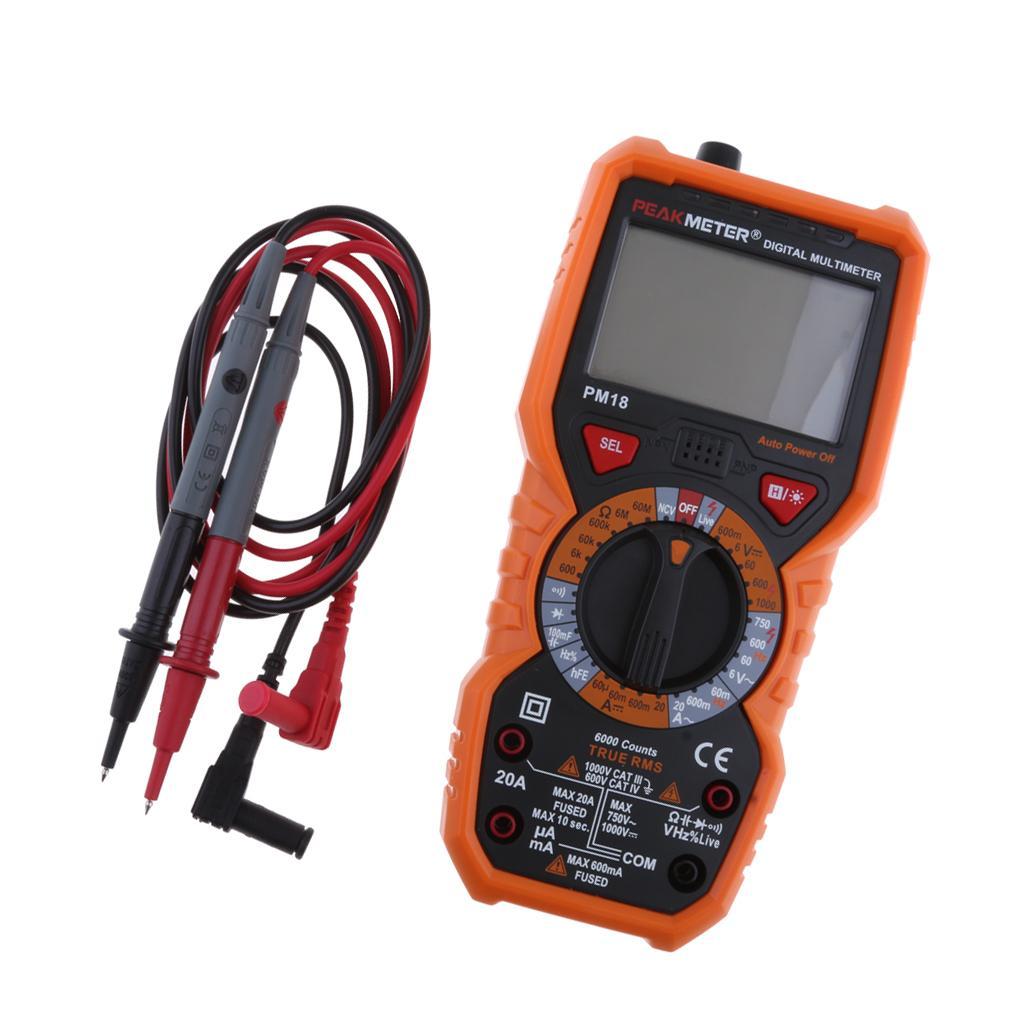

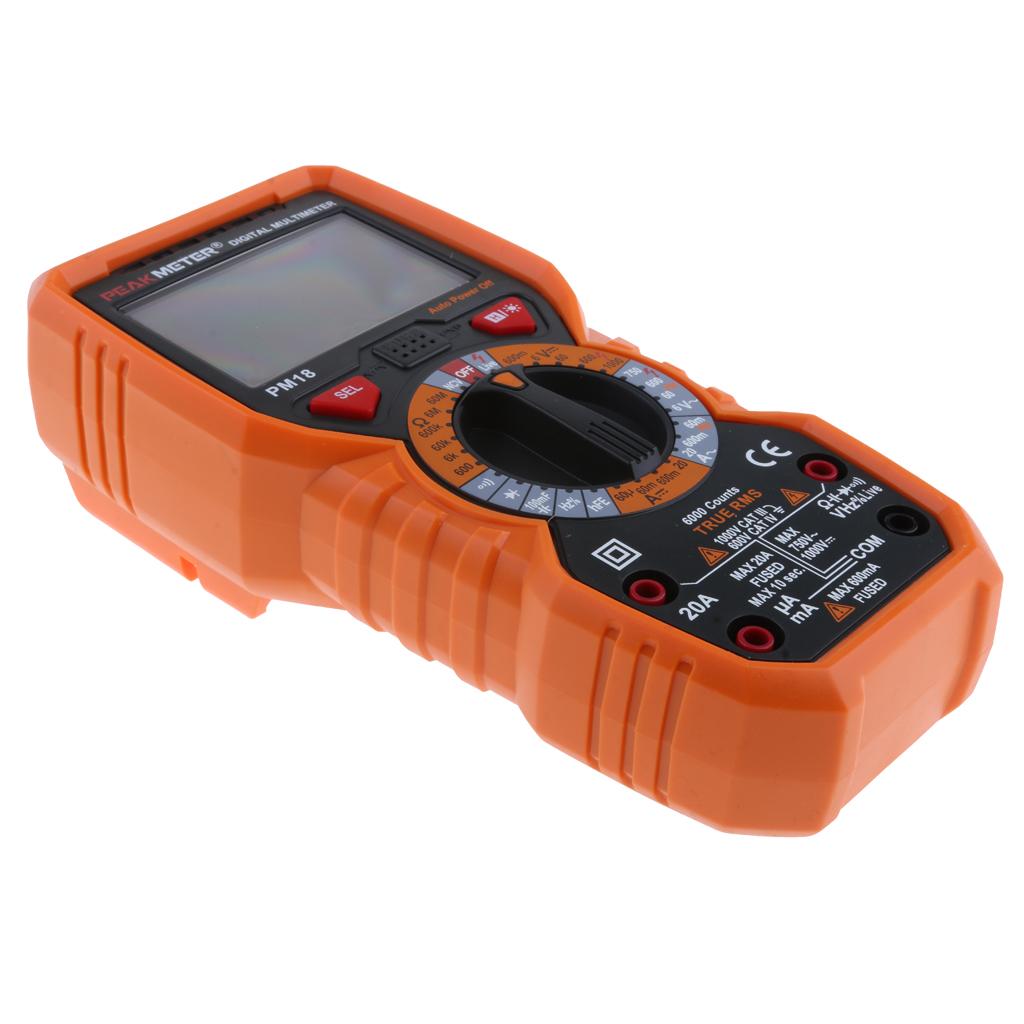

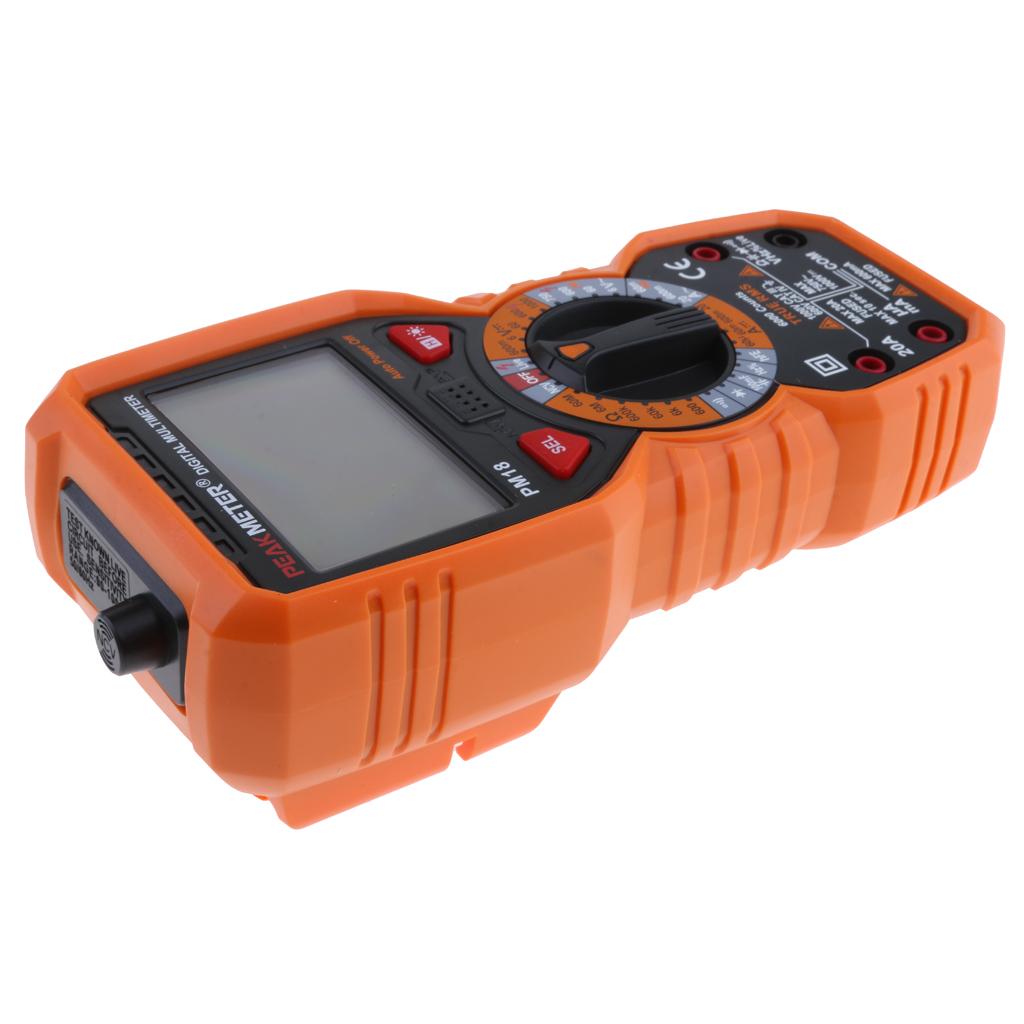

PM18 Digital Multimeter AC DC Voltage Current Amp Meter Resistance Capacitance Frequency Triode Tester Continuity Check

Regular price
Rs. 2,108.00
Regular price
Sale price
Rs. 2,108.00
Earn 1054 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73000957
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

6000 maximum display AC/DC digital multimeter with stable performance.
Measures AC/DC current and voltage, resistance, frequency, capacitance, diode and triode test, etc.
Large LCD display with backlight, continuity check, live line testing.
Auto power off and data hold function, low voltage indication function.
With lighting lamp on the back of the meter, rear cover can worked as support frame, safe and convenient to use.

Specification:

Parameters:
DC Voltage : 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage : 6V/60V/600V/750V ±(0.8%+3)
DC Current : 60μA/60mA/600mA ±(0.8%+3), 20.00A ±(1.2%+3)
AC Current : 6mA/60mA/600mA ±(1%+3), 20A ±(1.5%+3)
Resistance : 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(0.8%+3), 60MΩ ±(1.2%+3)
Capacitance : 6nf/60nf/600nf/6uf/60uf/600uf/6MF ±4.0%+3, 100MF ±5.0%+3
Frequency : 60/600/6k/60k/600k/6m/10Mhz ±1.0%+3
Display: 6000 counts
AC voltage broadband: 1KHZ
Duty Cycle: 5%-95%
Special Function:
Continuity: √
Diode test: √
Live Line testing: √
Low voltage indicator: √
Auto power-off: √
Data hold: √
Backlight: √
Auto power off : √
Triode test: √ 0-1000
General Specifications:
Power Supply: 4 x 1.5V AAA Battery (Not included)
Dimensions: 19 x 9 x 5.5cm
Safety Rating: CE, ROHS, CAT III 1000V CAT IV 600V

Package Includes:

1 Piece Multimeter
2 Pieces Test Leads
1 Piece User Manual
