Full Waterproof Copper Gear Digital Servo 15Kg for 1/10 RC Car Boat Airplane

Regular price
Rs. 1,617.63
Regular price
Sale price
Rs. 1,617.63
Earn 808 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 61013202
  • Brand: SFC
  • Type: Collectibles
  • Availability: Out stock
Description

Description:

100% Brand new and high quality

Waterproof construction keeps out the elements for worry free operation

Controllable angle range from 0 to 180 degrees.All metal gears ensure service life. With a new high-speed motor, greatly improve the speed

Suit for Redcat, HSP, ZD Racing, HPI, Team, Traxxas, Hobao, LRP 1/8 or 1/10 RC car, boat or helicopter

Material: Nylon, Copper

Specification:

Torque(4.8V): 13.0 kg-cm (180 oz/in)

Torque(6.0V): 15.0 kg-cm (208 oz/in)

Torque(7.4V): 17.0 kg-cm (236 oz/in)

Speed: 0.15 sec/60° (4.8V) │0.13 sec/60° (6.0V) │ 0.11 sec/60° (7.4V)

Operating Voltage Range: 4.8 ~ 7.4 DC Volts

Limit angle: 180°± 10°

Operating travel: 90°(1000~2000 μsec)

Dead band width: 4 μsec

Bearing Type: Ball Bearing x 2

Gear Type: Copper

Temperature: -20℃~60℃

Spline: 25T(6mm diameter)

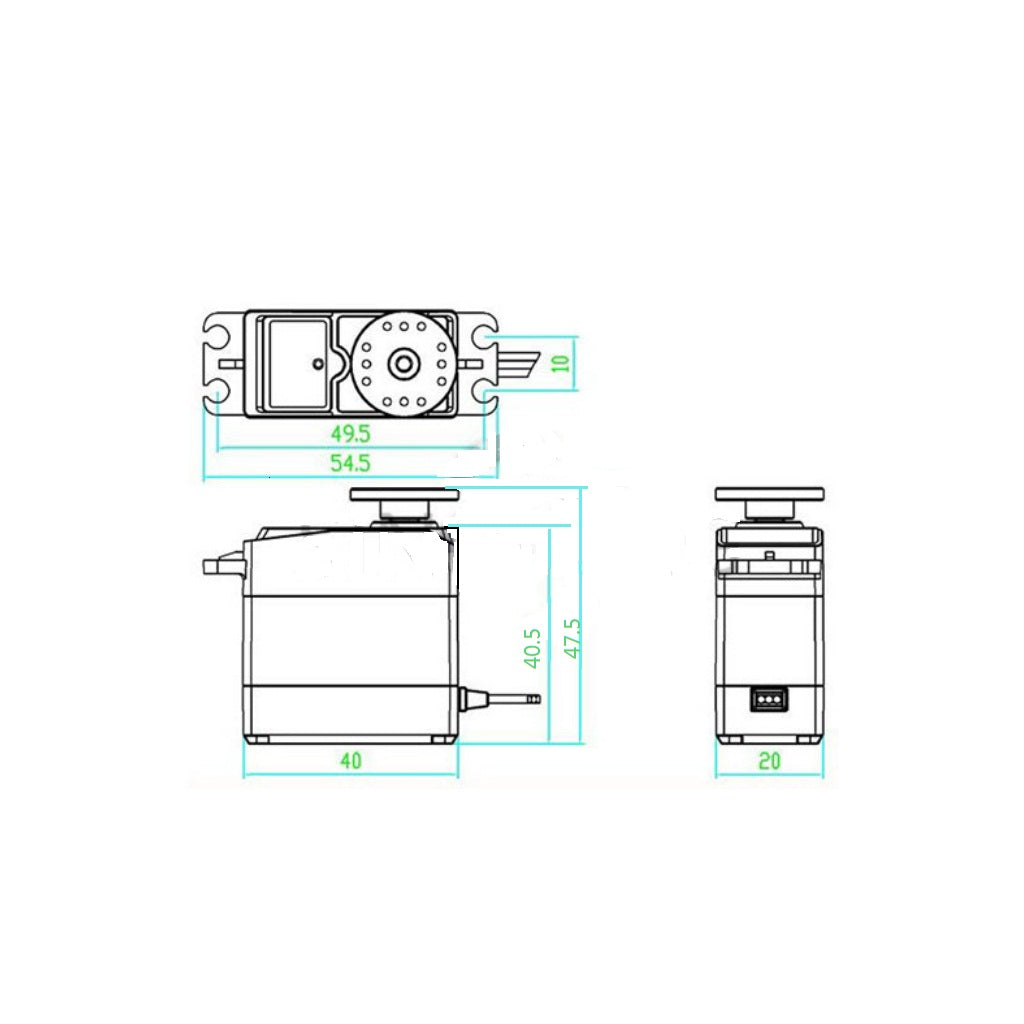

Size Chart:

Size: approx. 55 x 20 x 43mm/2.17 x 0.79 x 1.69inch

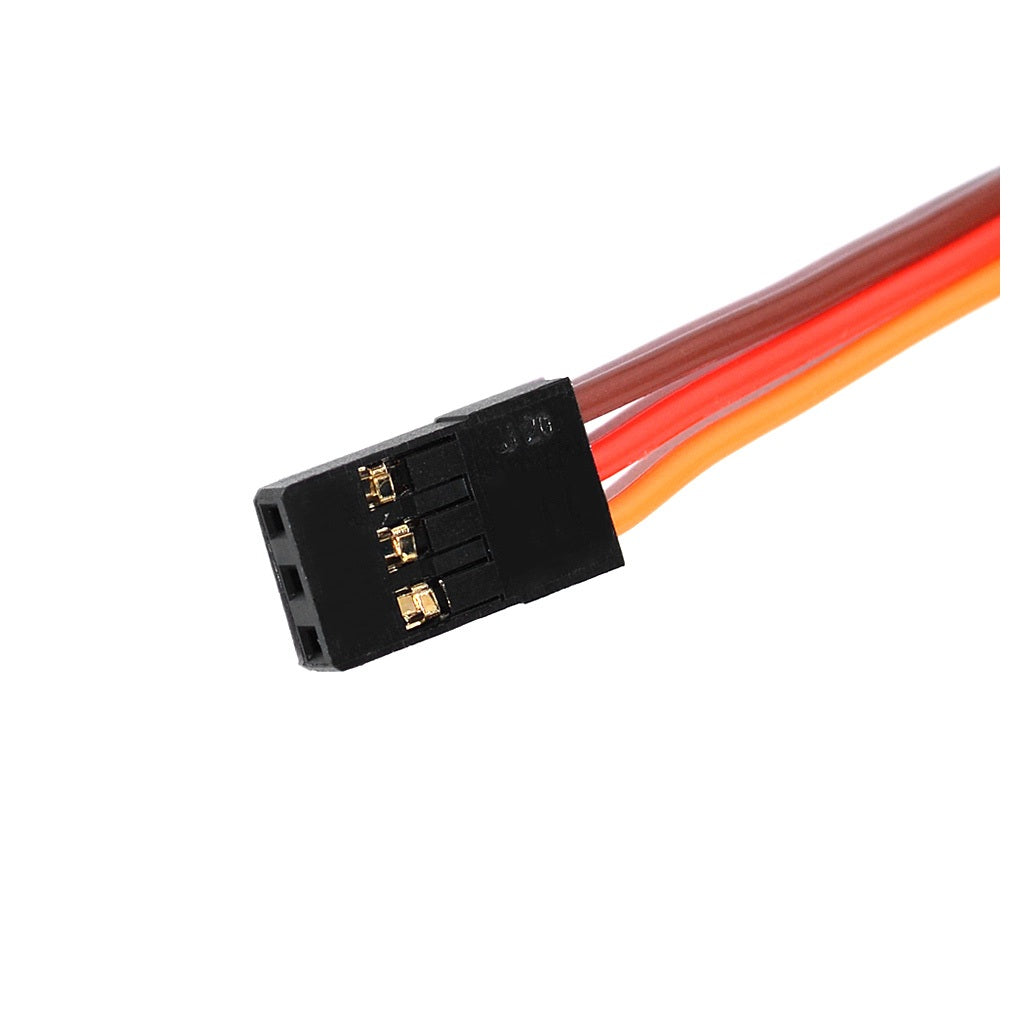

Cable Length: approx. 300mm/11.81inch

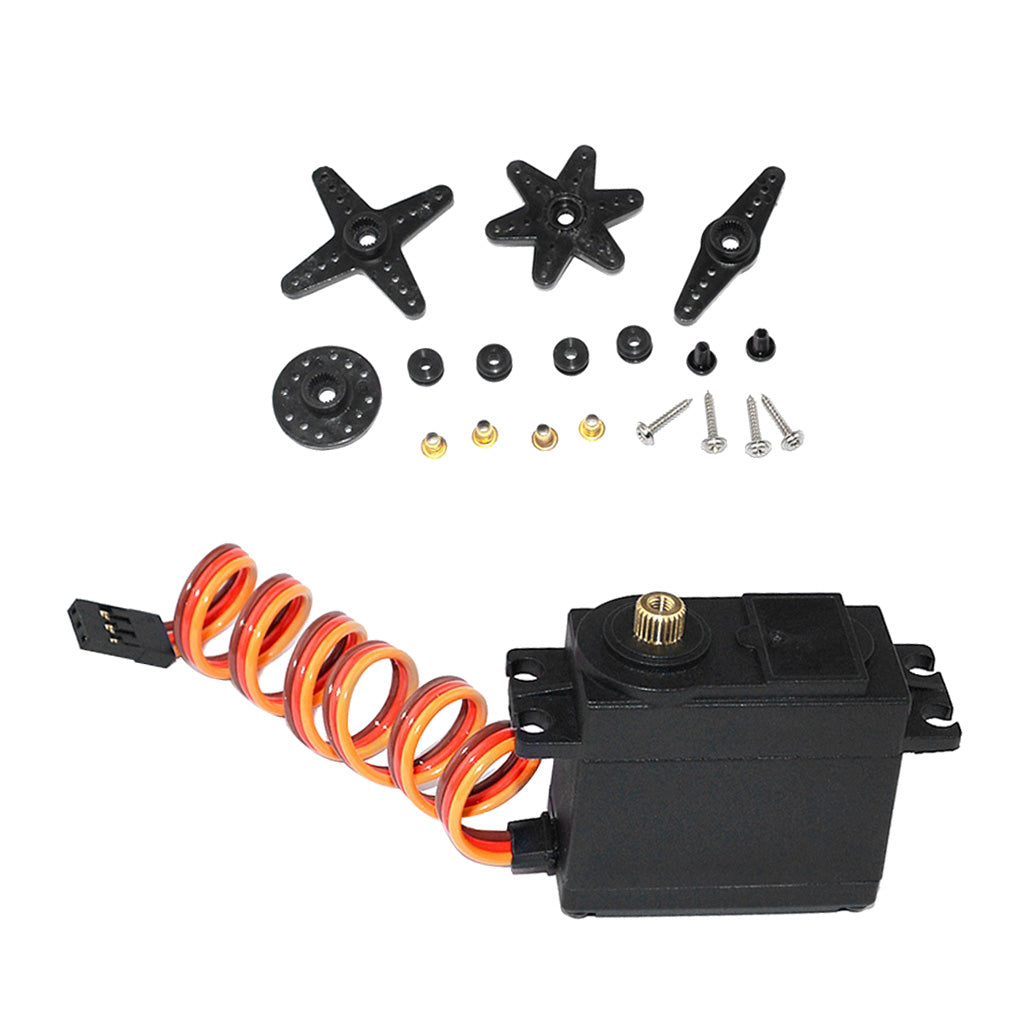

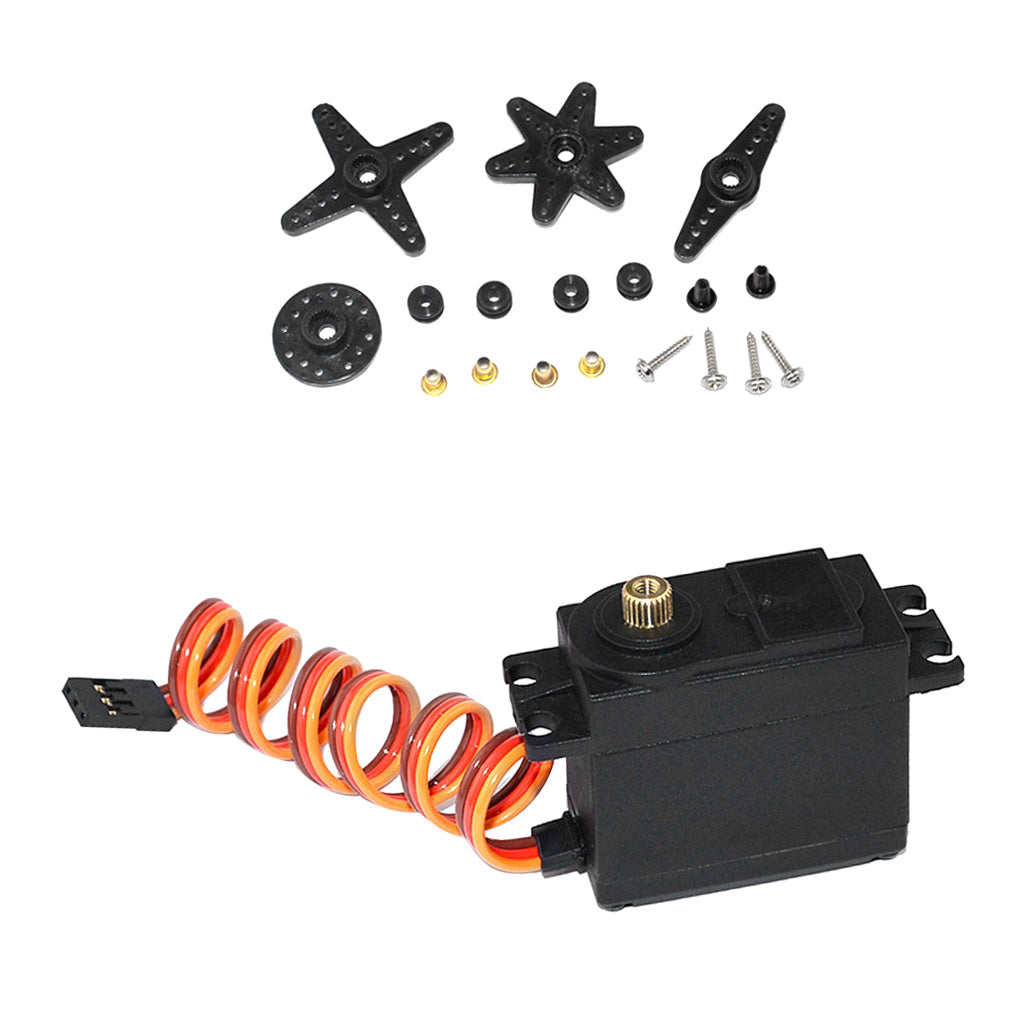

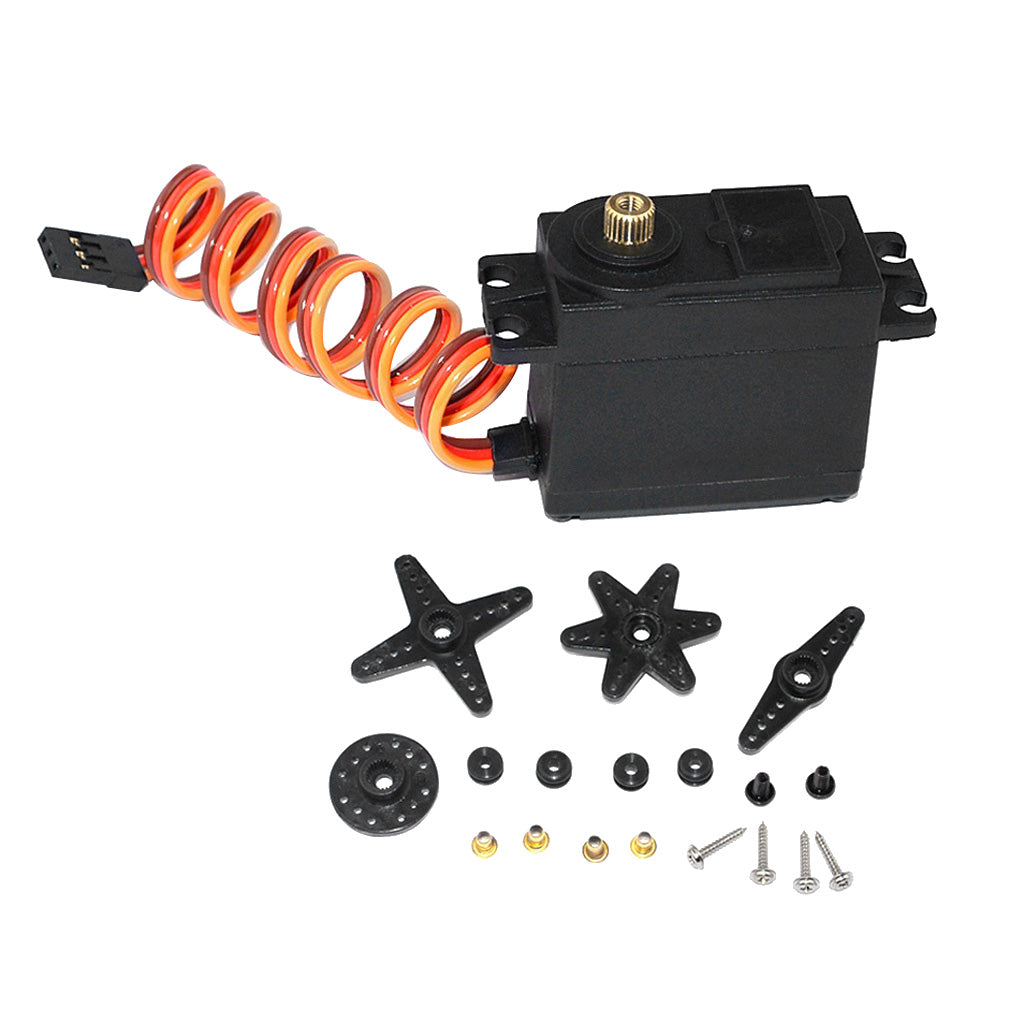

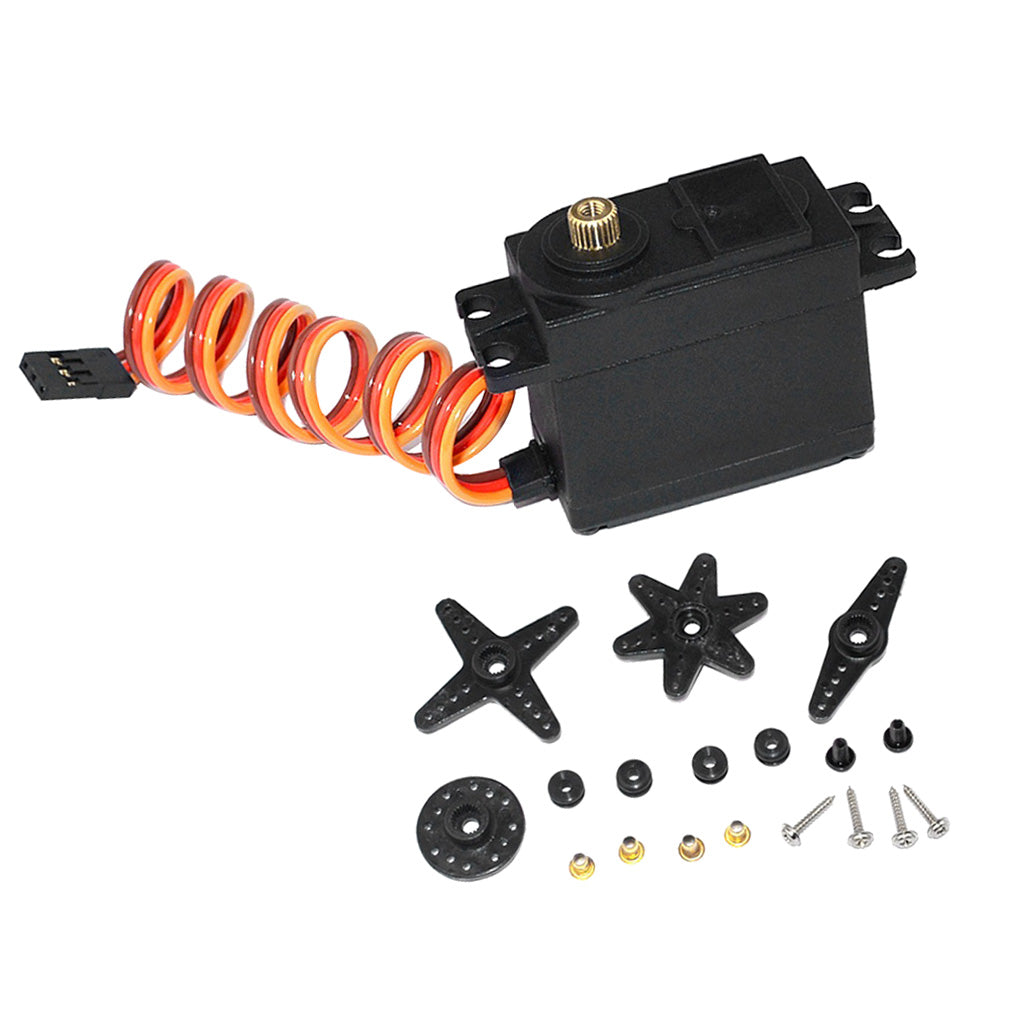

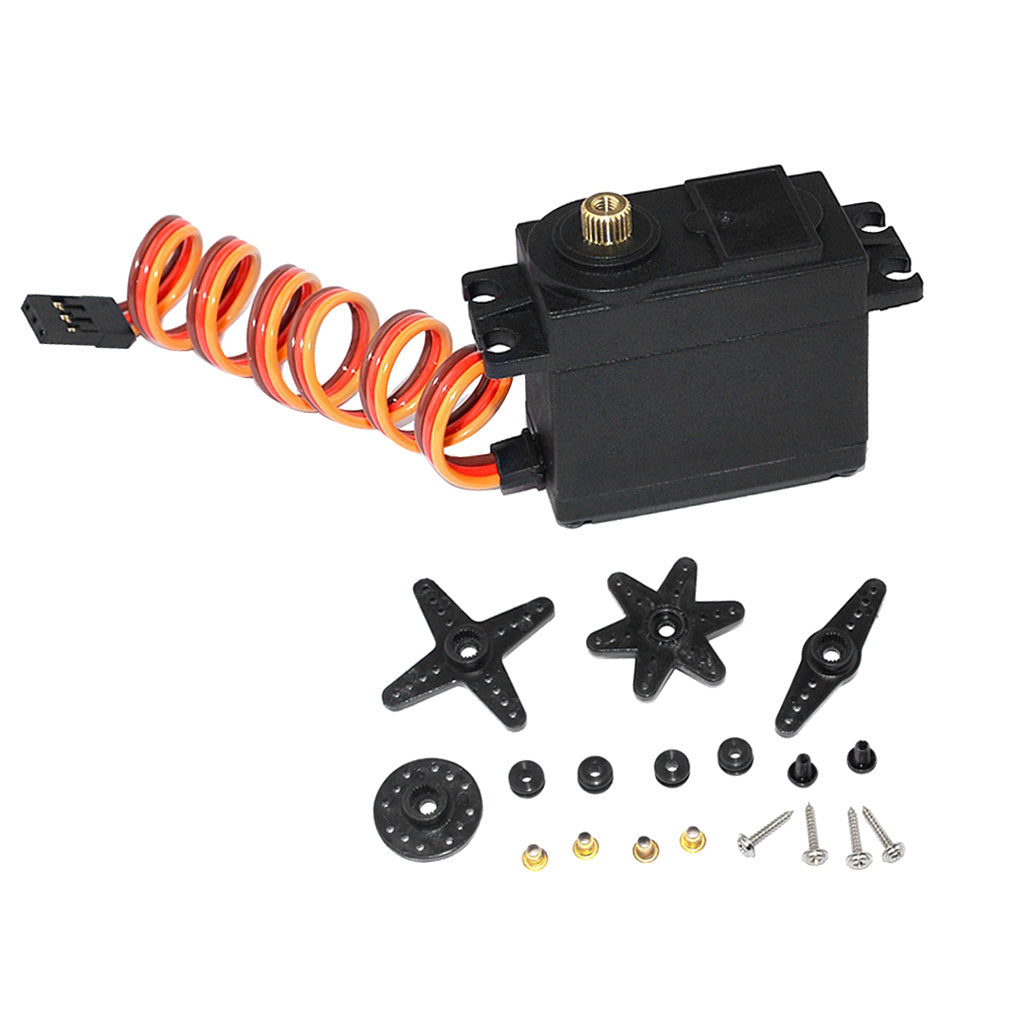

Package Includes:

1 Piece 15Kg Servo

1 Set Servo Arm Screws

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item

Due to manual measurement, there may be 1-2mm error in size
