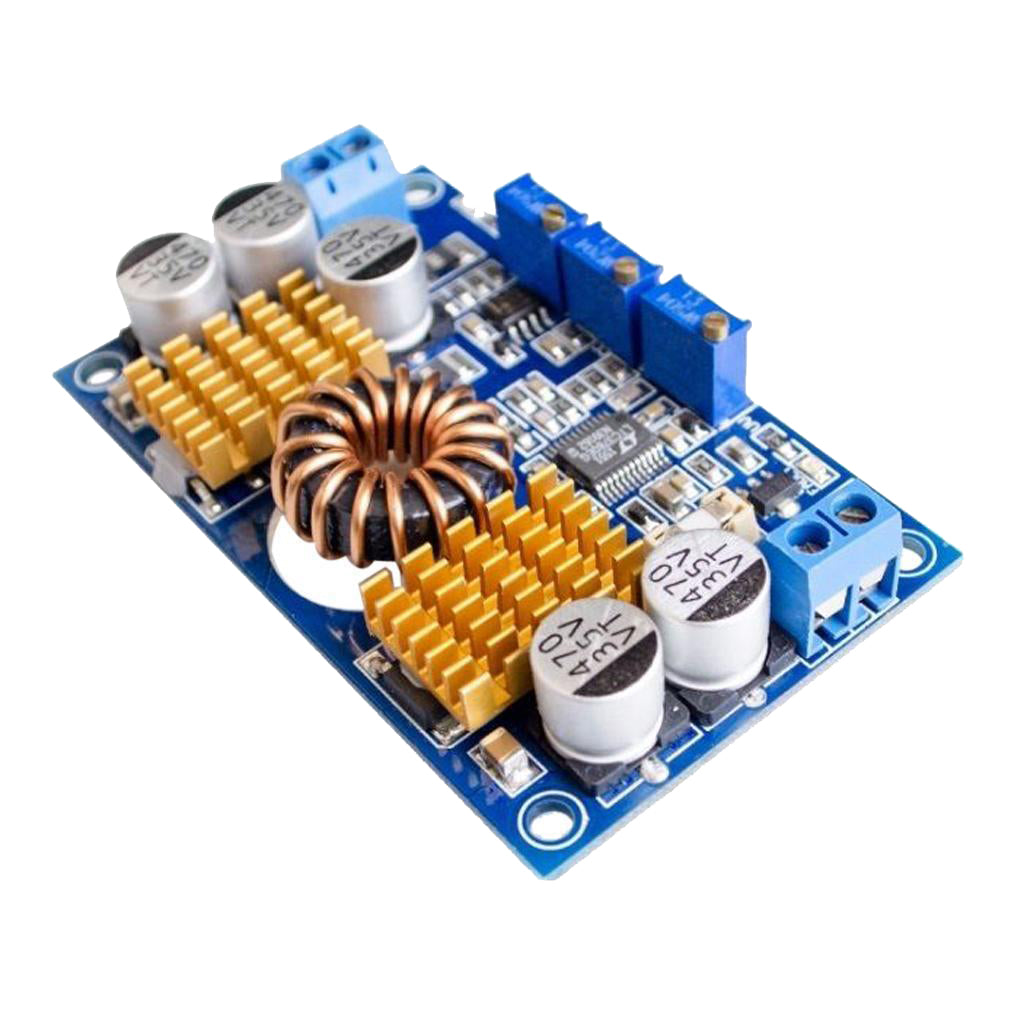

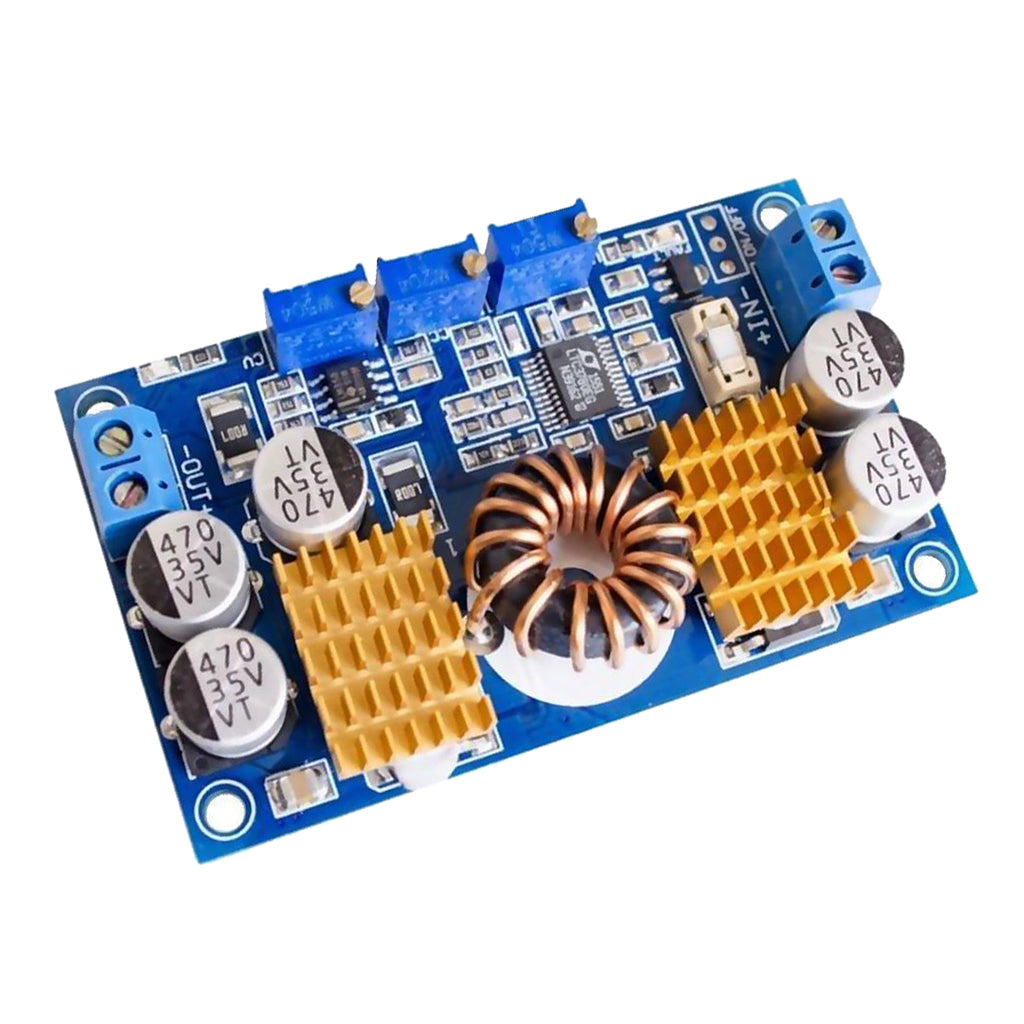

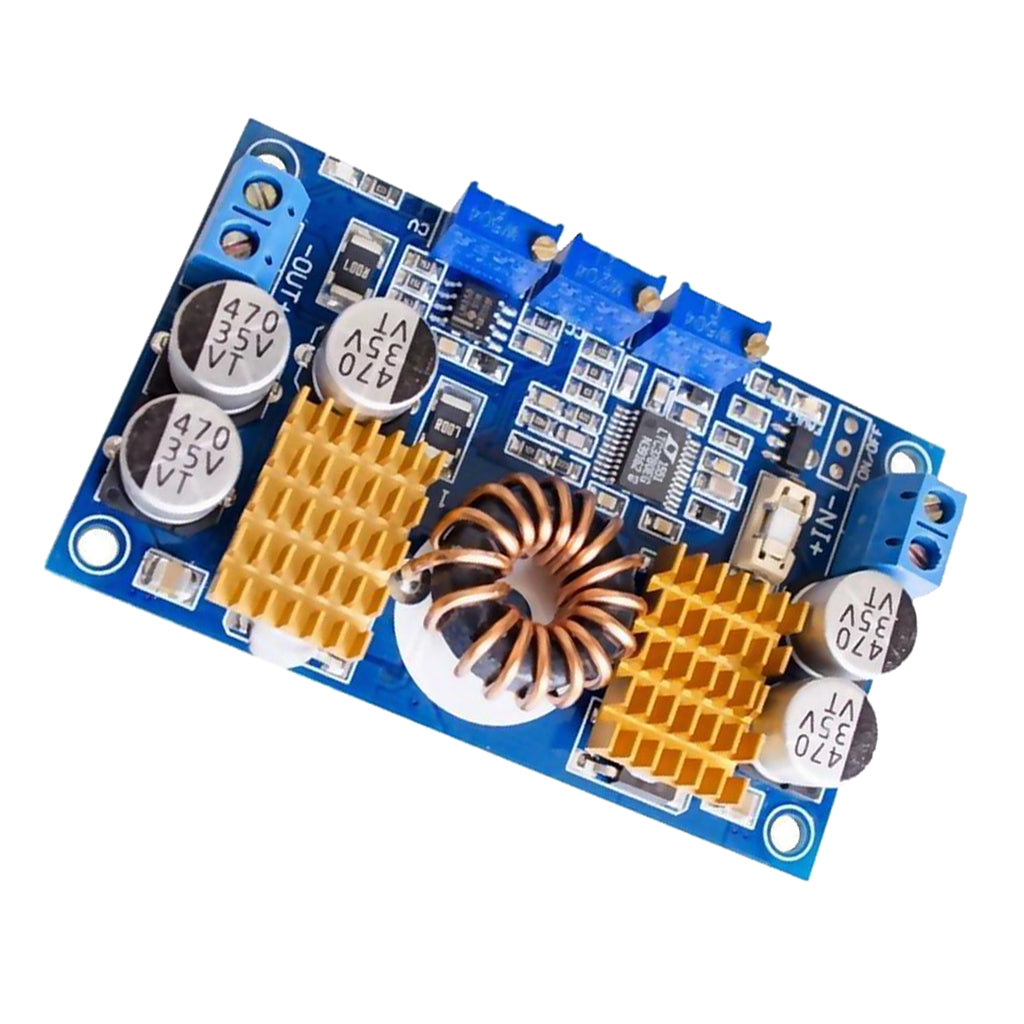

DC5-32V LTC3780 Automatic Power Step Up/Down Constant Voltage Current Module

Regular price
Rs. 1,796.89
Regular price
Sale price
Rs. 1,796.89
Earn 898 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73002800
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

The input uses replaceable fuse to protect power supply and equipment.
The whole electrolysis use patch, low resistance, high frequency capacitor to make the ripple down to the freezing point.
Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging).
The output has error indicating lamp, it will light when the output voltage drift is too serious and short circuit or other fault;
Inductor use iron silicon aluminum, has good heat dissipation ability.

Specification:

Input voltage: DC5-32V
Output voltage: DC1V-30V continuously adjustable
Output current: 10A (MAX) ,long term within 7A
Output power: 80W, peak 130W, please strengthen heat dissipation if more than 80W
Output ripple: 50mV (12V turn to 12V, 5A measured)
Short circuit protection:YES
Input reverse polarity protection: No (If necessary, connect the Schottky diode in series at the input)
Output prevent reverse connection protection: No
Short circuit protection: Yes
Size: 77.6 x 46.5 x 15mm

This module belongs to the automatic step-up and step-down power supply. Whatever is the input voltage value,the output voltage can be maintained constant. For instance, when the output is set to 12V and the input voltage is changed between 5 and 32V, the output voltage is constant at 12V. This module has great protection functions, and can be widely used in notebook power, high power LCD driver, vehicle power supply, solar charge etc.

Package Includes:

1x DC5-32V LTC3780 Automatic Lifting Pressure Power Step Up/Down Constant Voltage Module
