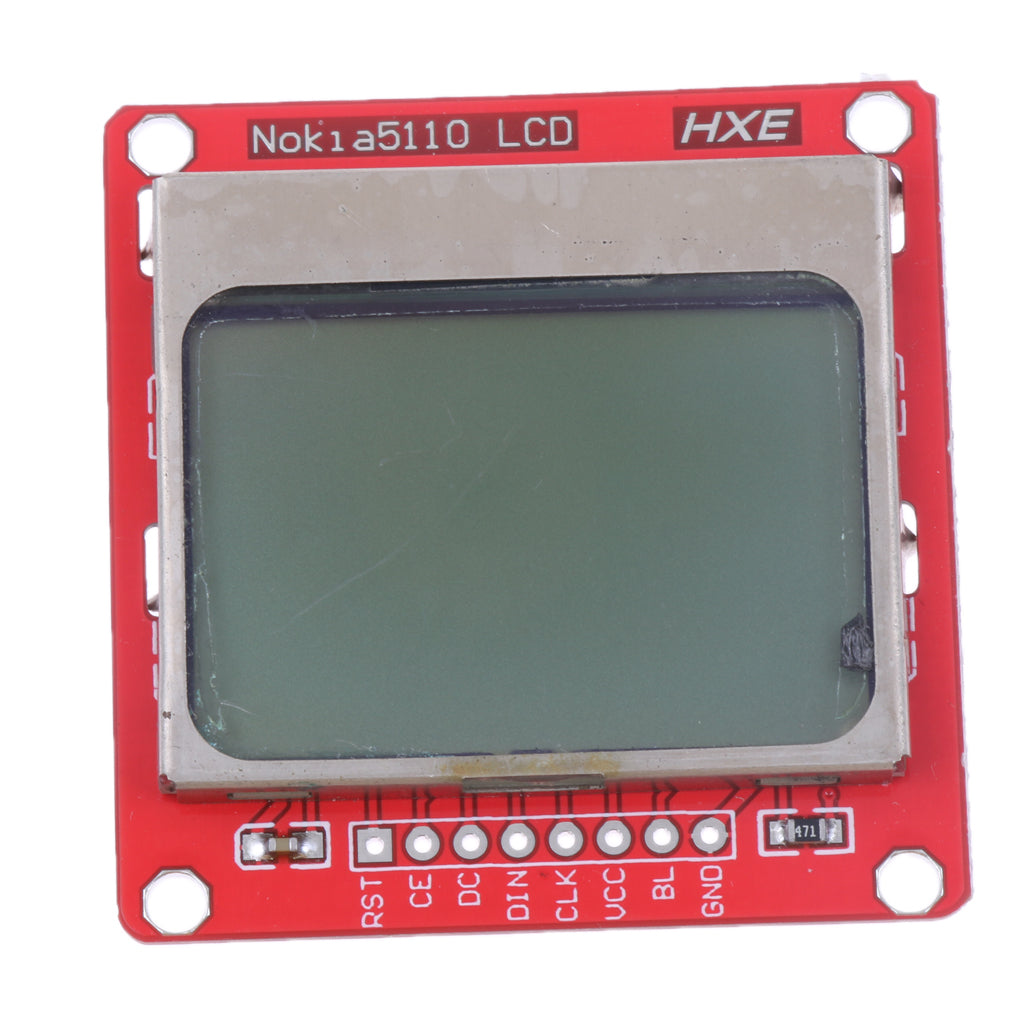

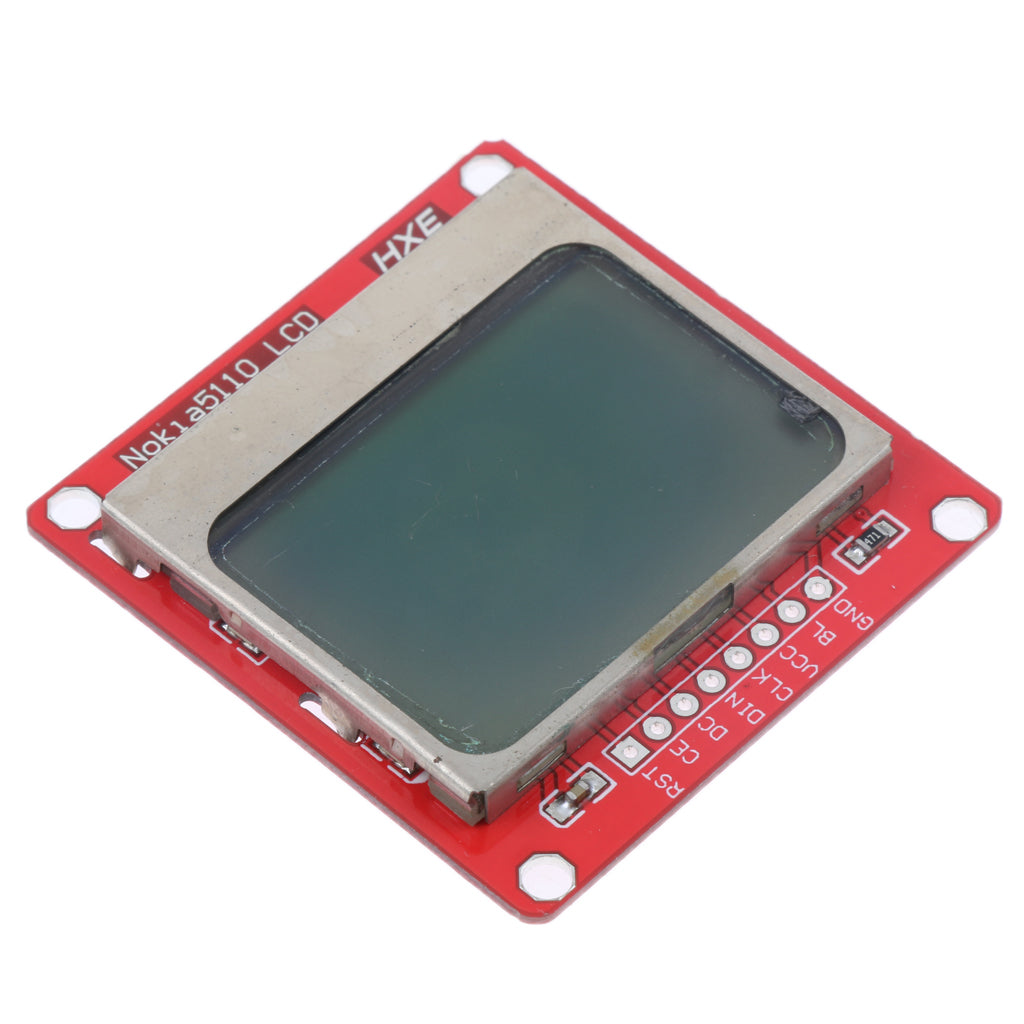

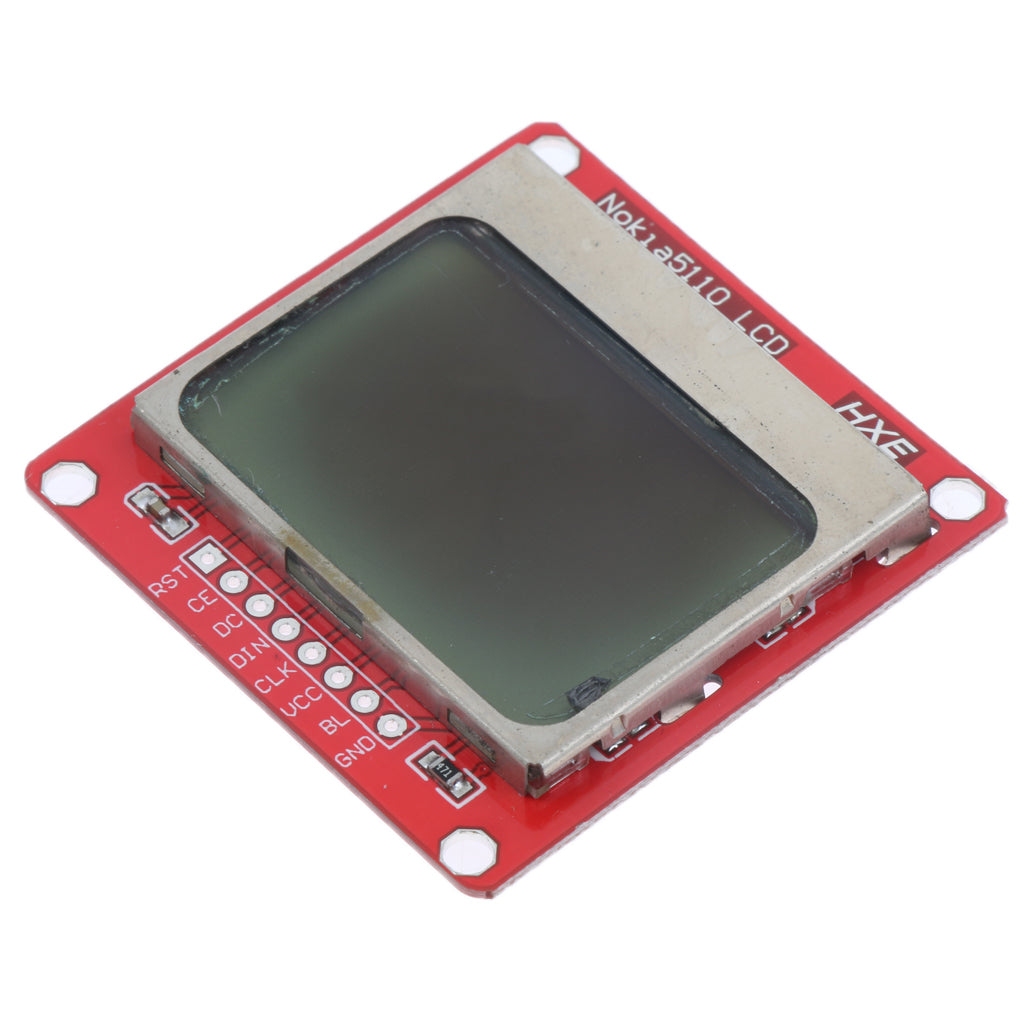

84*48 Nokia 5110 LCD Display Screen Module For Arduino

Regular price
Rs. 450.39
Regular price
Sale price
Rs. 450.39
Earn 225 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73003018
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

84 X 48 dot LCD,can show 4 lines of characters
Use serial interface communicate with the master processor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND.Support different types of MCU,such as the SPI,MCS51 serial mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write display data without waiting time.
Can use the conductive glue to connect the module with the printed board,without connecting cable.The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace.
LCD controller/driver chip has been bound to LCD chip,the volume of LCD is small.
Low power supply,the working current in normal situation is lower than 200μA,and has power-down mode.

Specification:

Power supply voltage: 2.7-3.3V,5V is OK, but part of the screen becomes black when tested
Data interface level: 2.7-5V
Backlight power supply voltage: highest 3.3V
Installation diameter: 2mm
Backlight: Blue

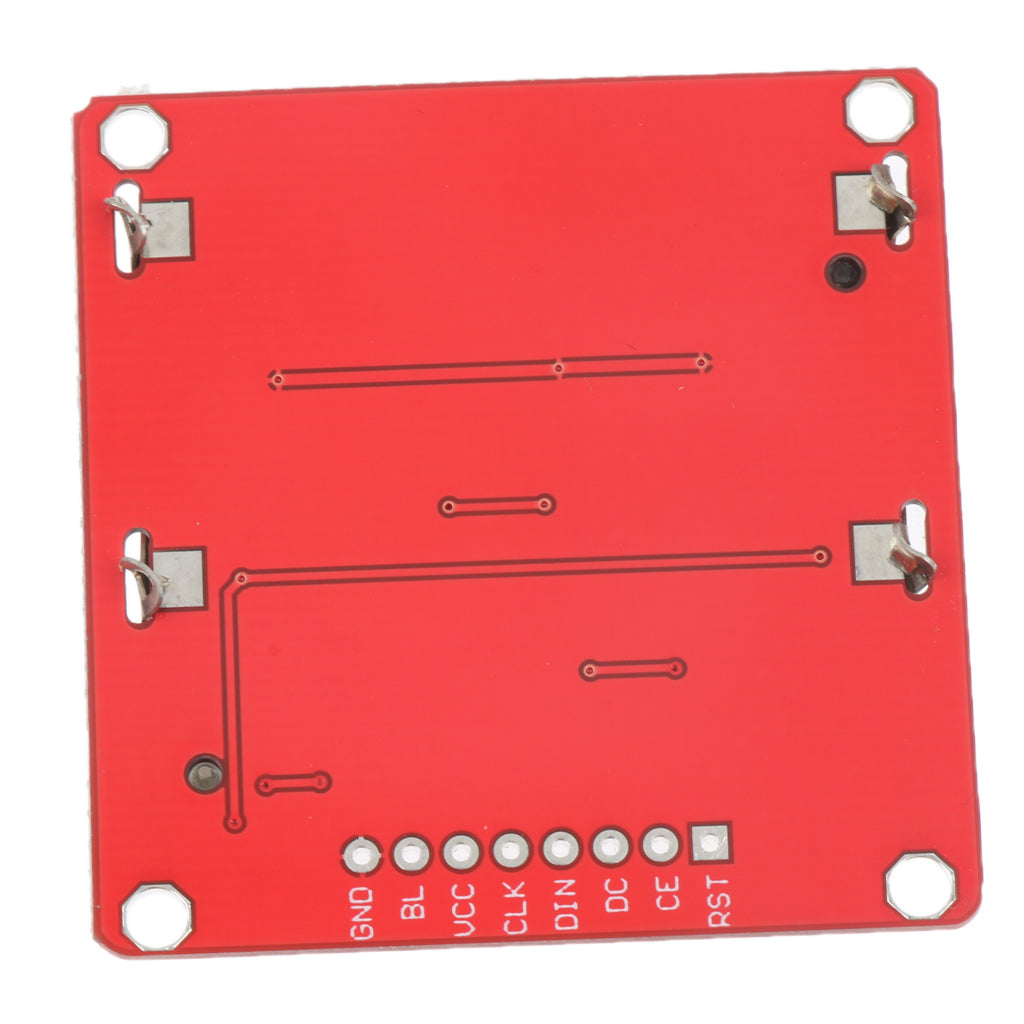

RST--reset
CE--chip selection
DC--data/commands choice
DIN--serial data line
CLK--serial Clock Speed
VCC--power supply 3.3V
BL--backlight control terminal
GND--power negative

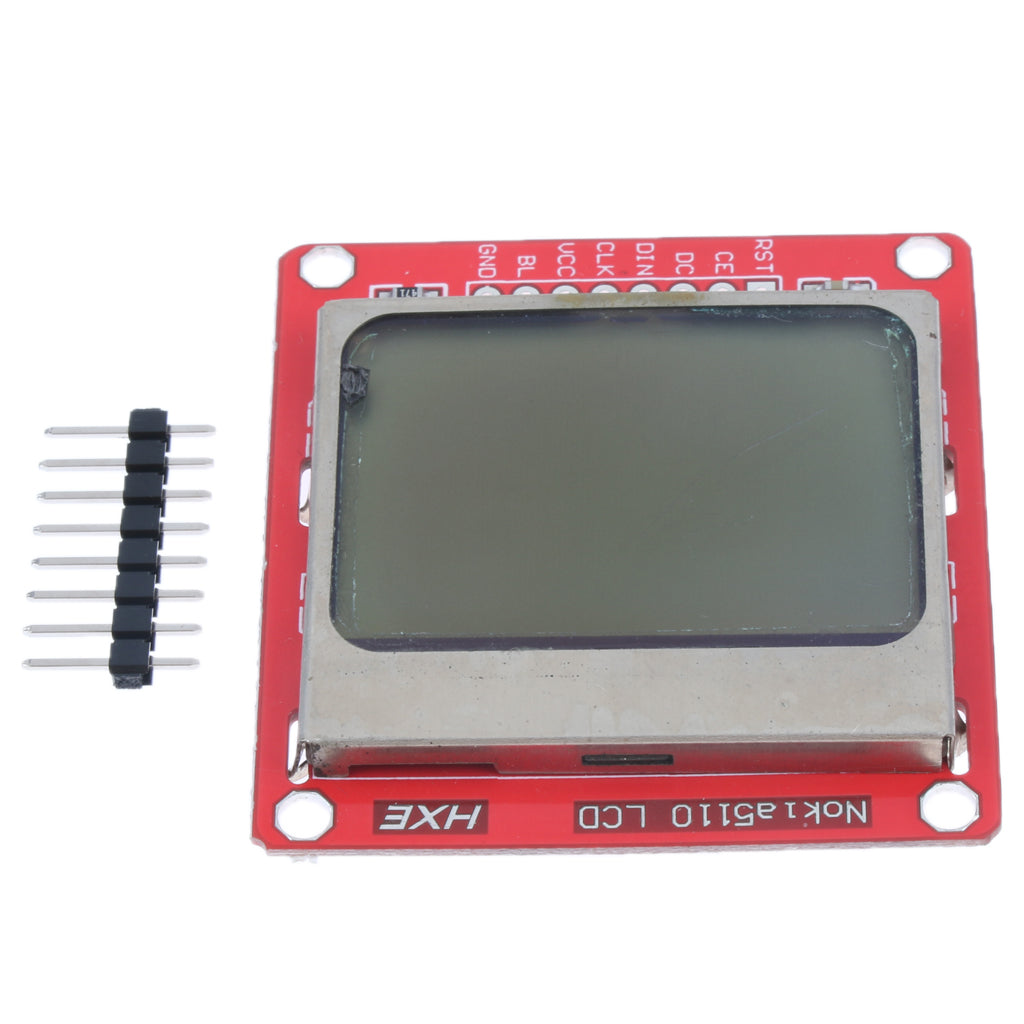

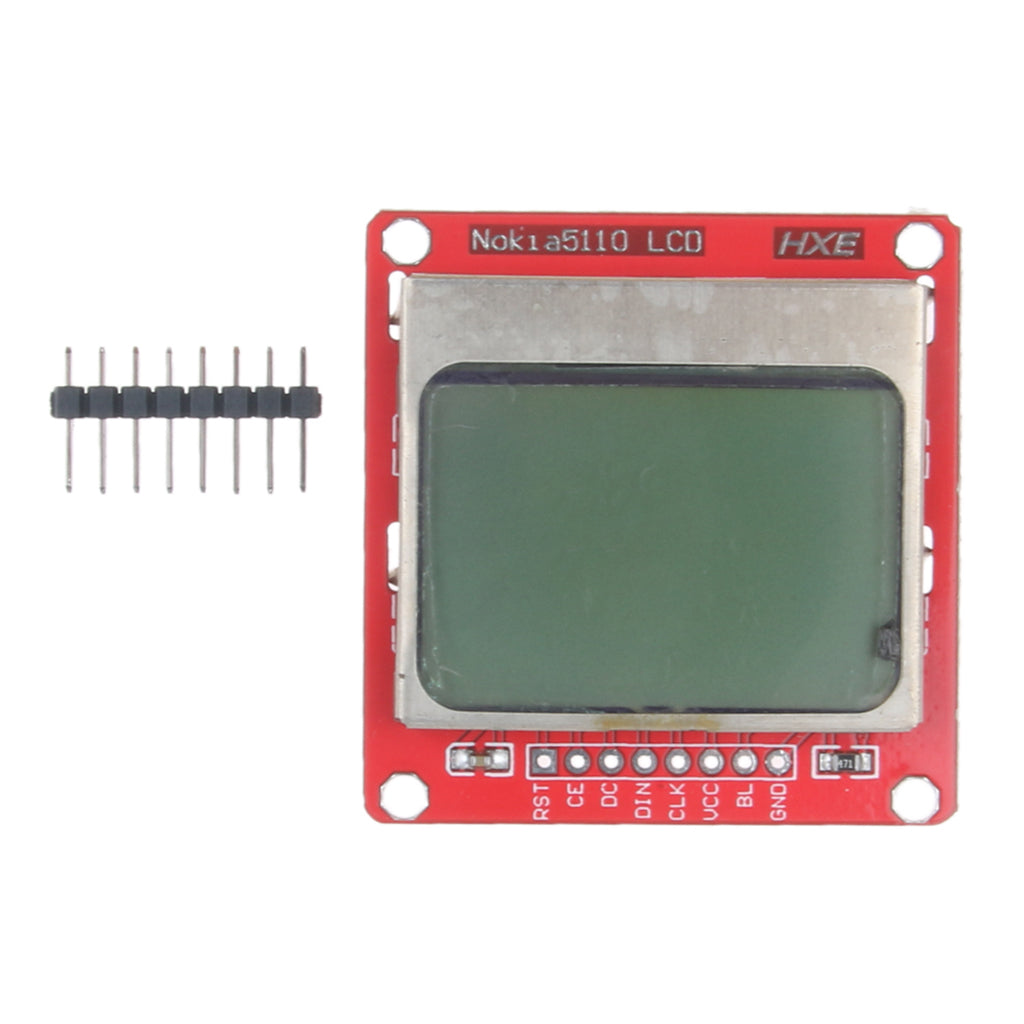

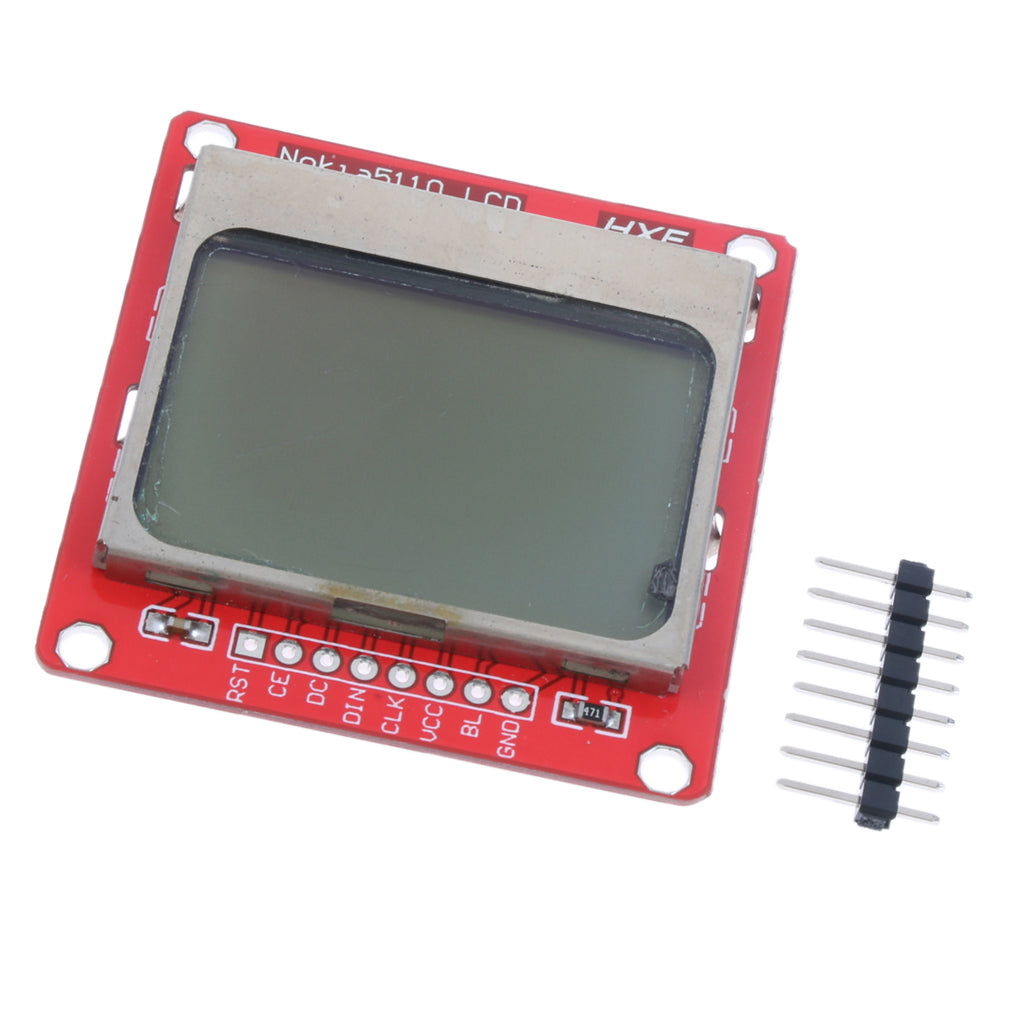

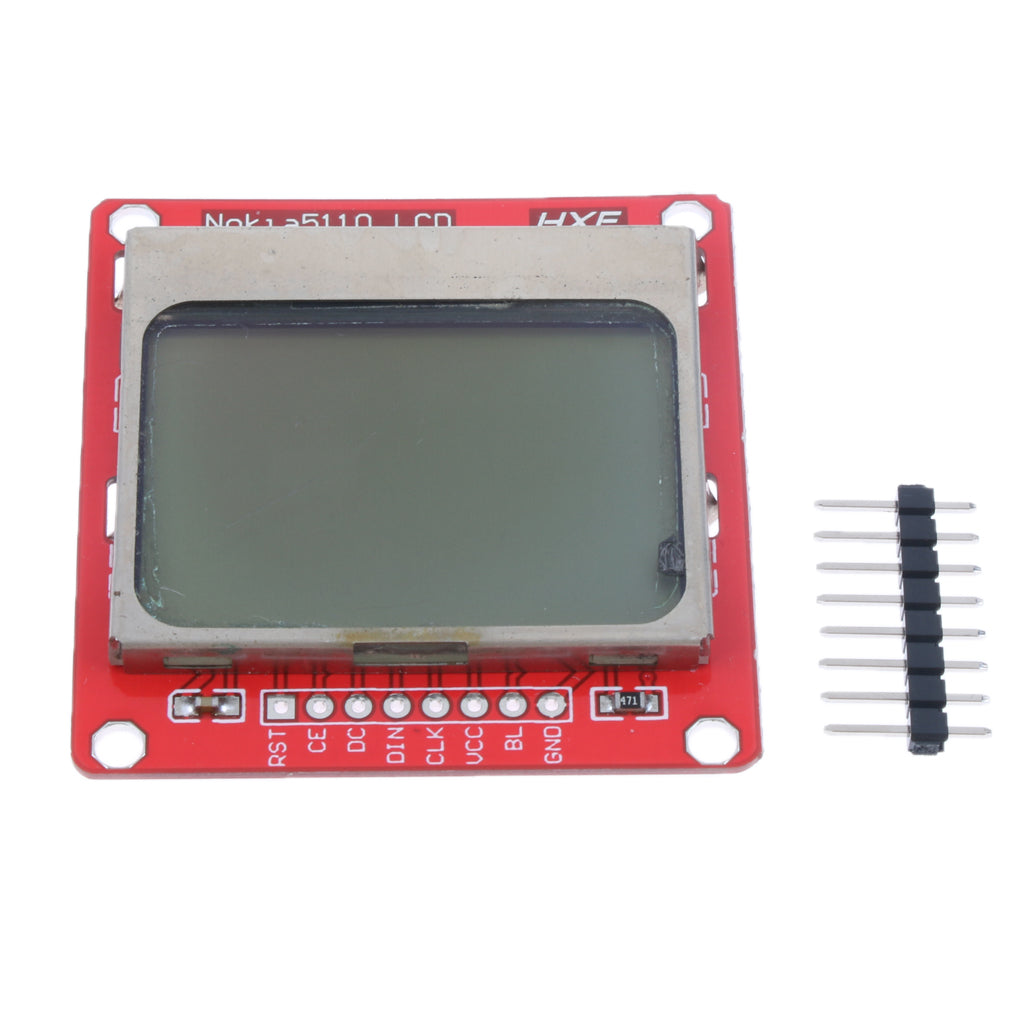

Package Includes:

1 Piece LCD Module

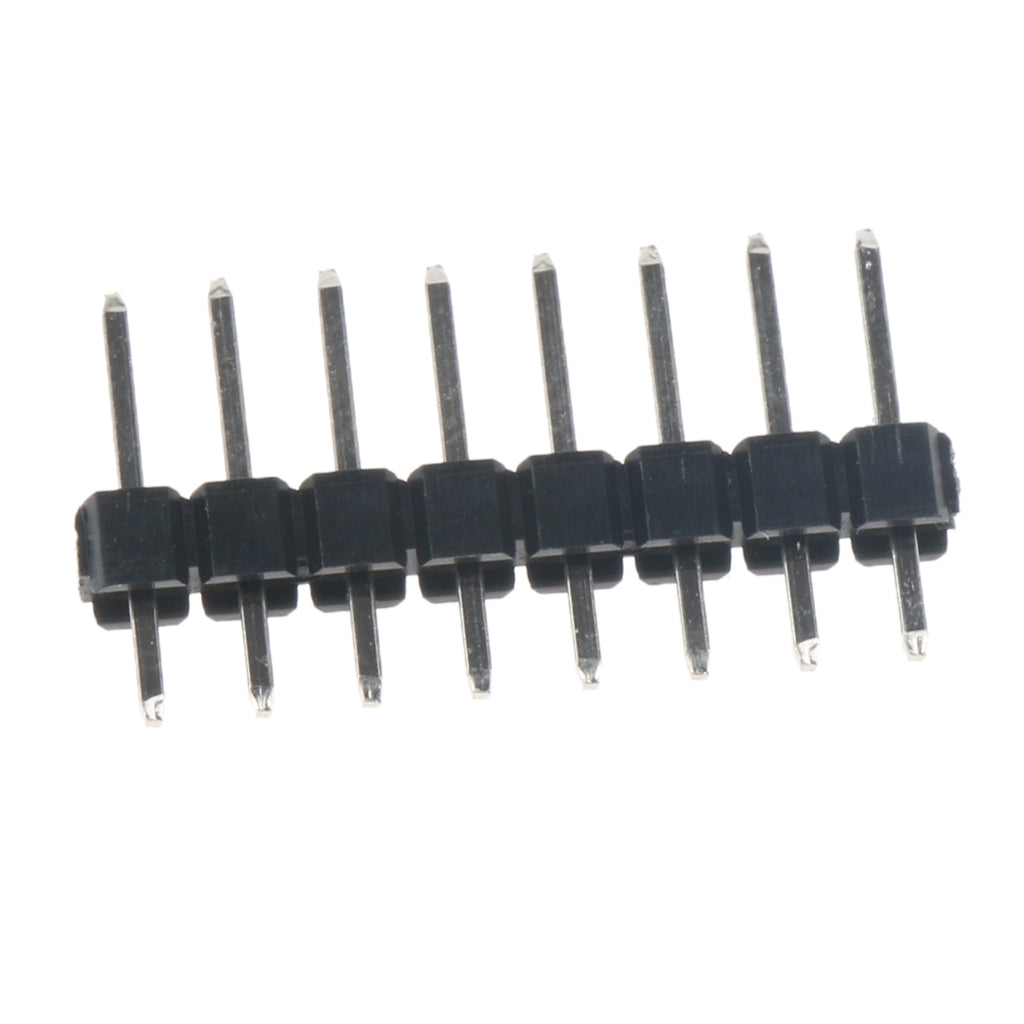

2 Pieces Pin Header
