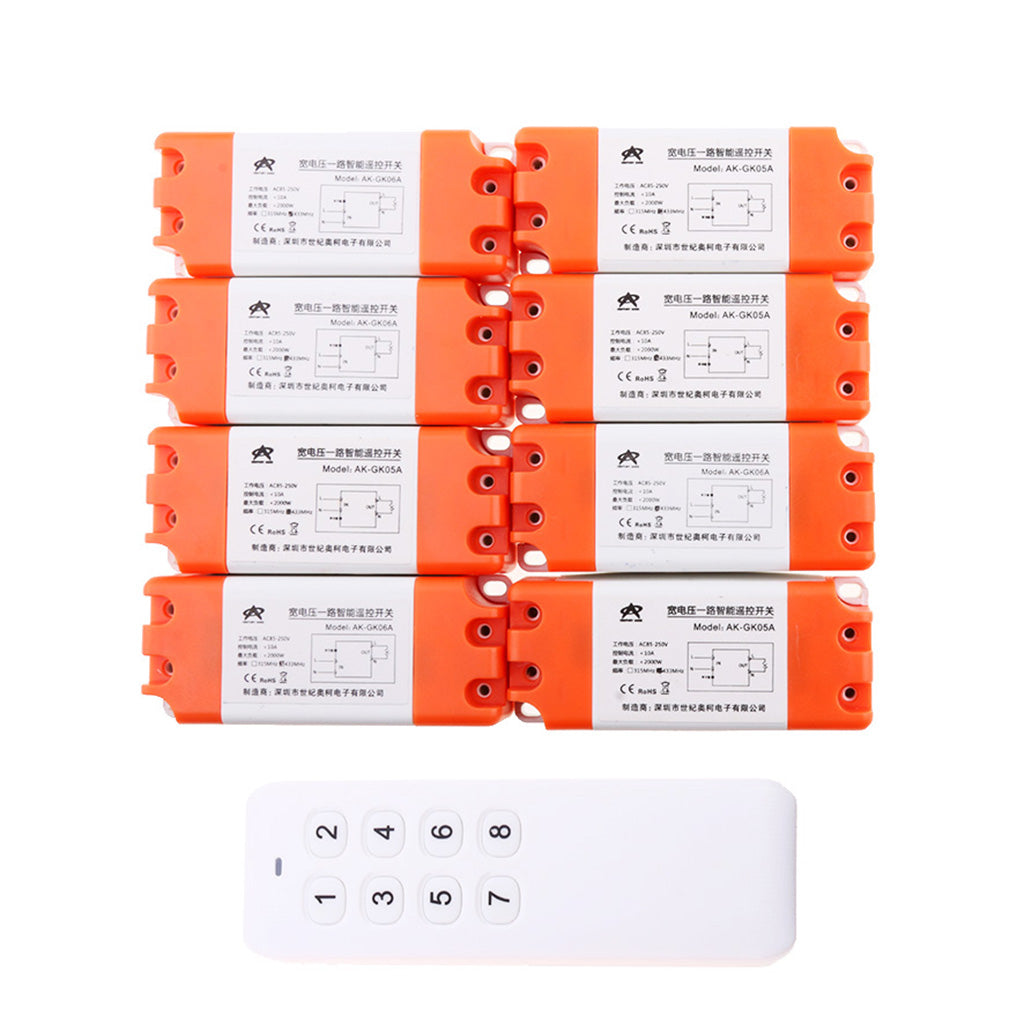

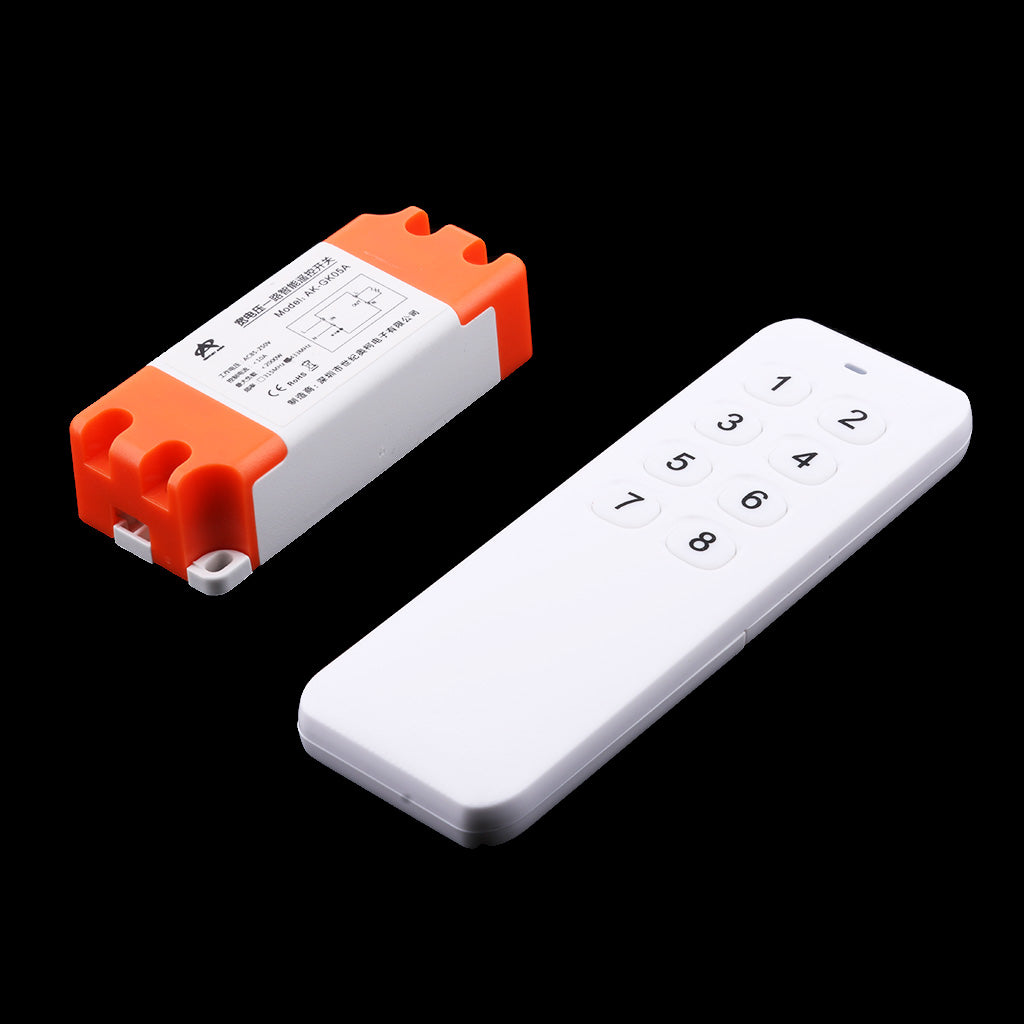

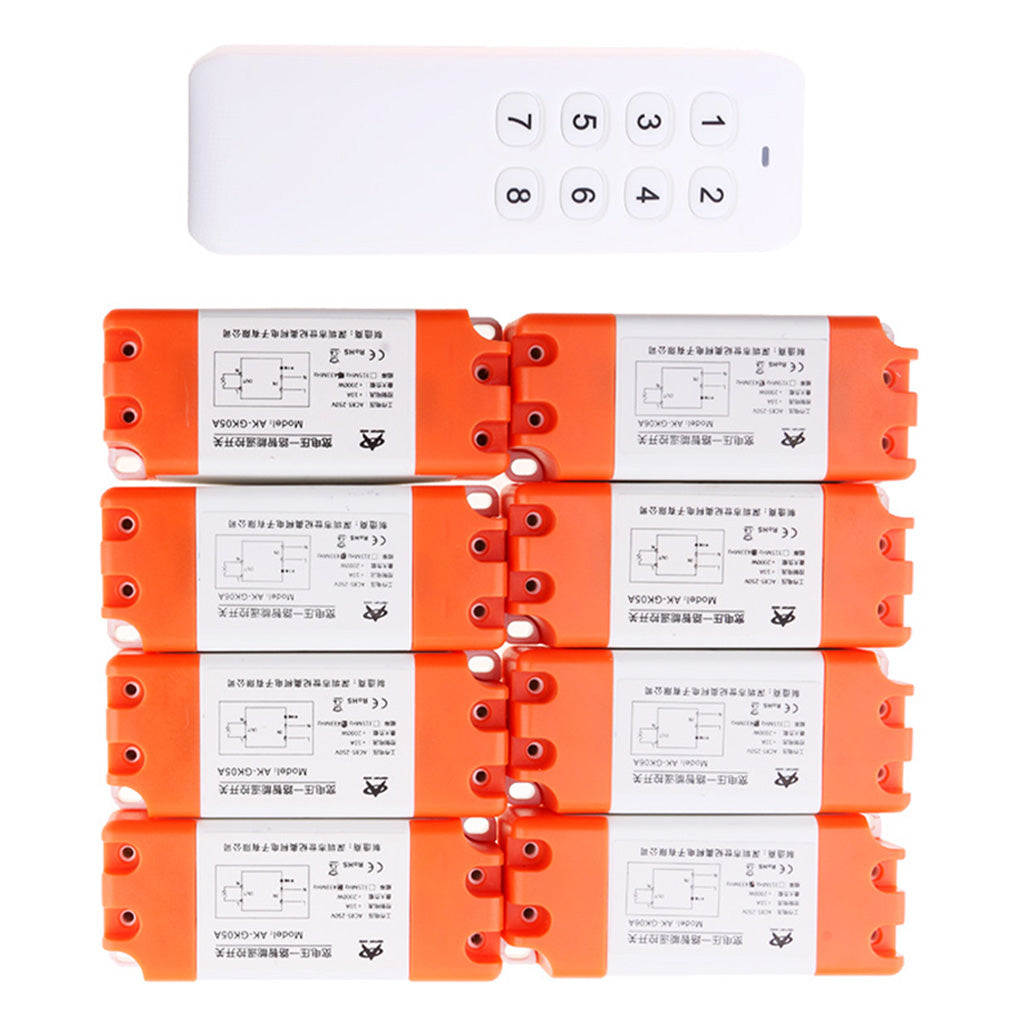

315MHz Wireless RF Switch Long Range 1 CH Channel Wireless Remote Control Switch One Relay Receiver Module woth Shell

Regular price
Rs. 4,127.92
Regular price
Sale price
Rs. 4,127.92
Earn 2063 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73000121
  • Brand: SFC
  • Type: Collectibles
  • Availability: Out stock
Description

Description:

Single channel wide voltage switch with 10A relay can load high-power appliances.
The wireless signal can pass through walls, floors and doors.
Stable and reliable performance, high receive sensitivity.
Suitable for lights, electrically operated doors, windows, curtains,motor control,water pump etc.

Specification:

Material: PC Plastic
Remote Control: approx. 12.5 x 4.2 x 1.2cm/4.9 x 1.7 x 0.5inch
Remote Switch : Approx. 8.8 x3.8 x 2.3cm/3.5 x 1.5 x 0.9inch
Operating Voltage: AC85-250V/DC15-120V
Working frequency: 315MHz
Standby Current: 10mA
Maximum load: 1000W
Working mode: self-locking, jog, interlock

Learning and removing method:
1. Pressing learing button, and the indicator lights out (enter learning state), loose the button and press any button on the remote control, the indicator light flashes four times, which shows learing succesfully.
2. The controller can learn 20 different code remote controls, such as fixed code/learning code. And it will eliminate record in order if over load.
3. Pressing learning button for about 4 seconds, the indicator light resumes normal open, which shows deletion succesfully.

Working mode:
Jog: jump cap vacancy
self-locking: jump cap connects T.M
interlocking: jump cap connects M.L

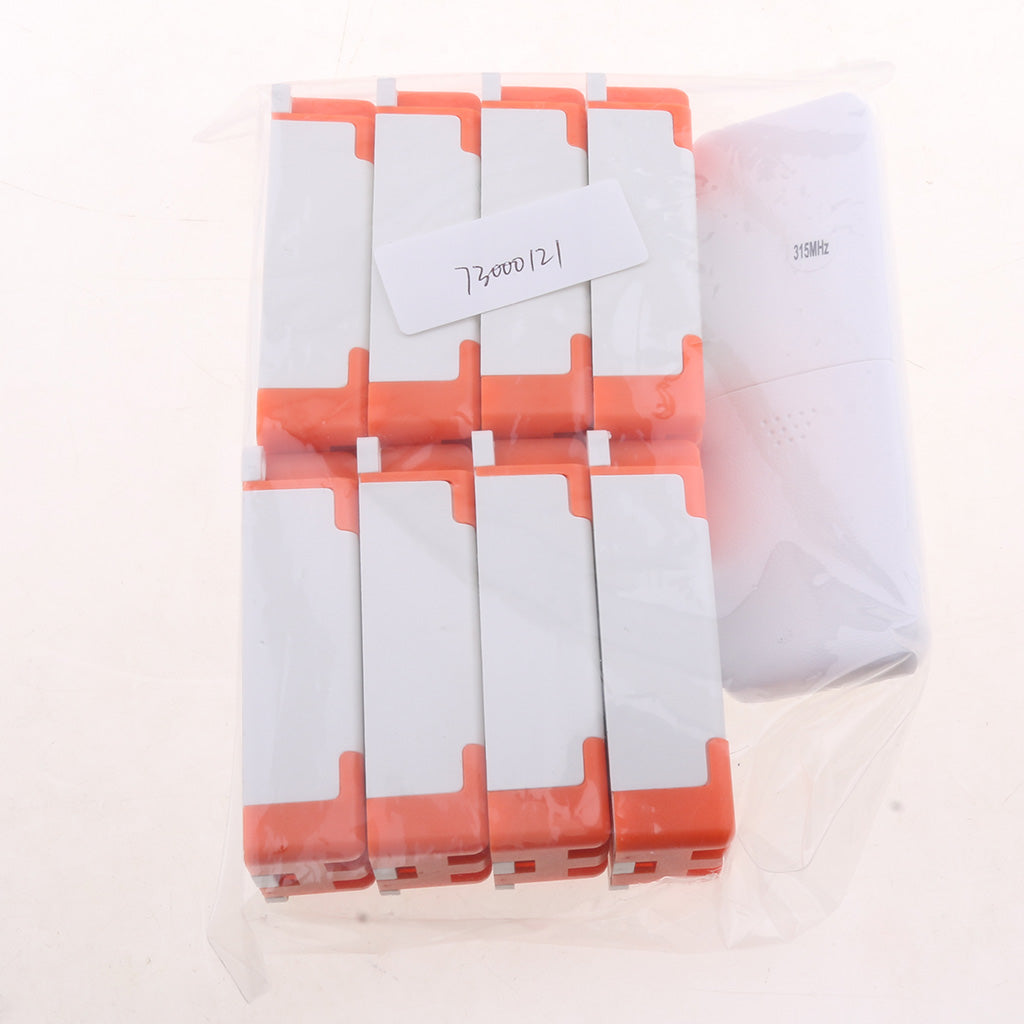

Package Includes:

1 Piece Remote Control
8 Pieces Receiver
