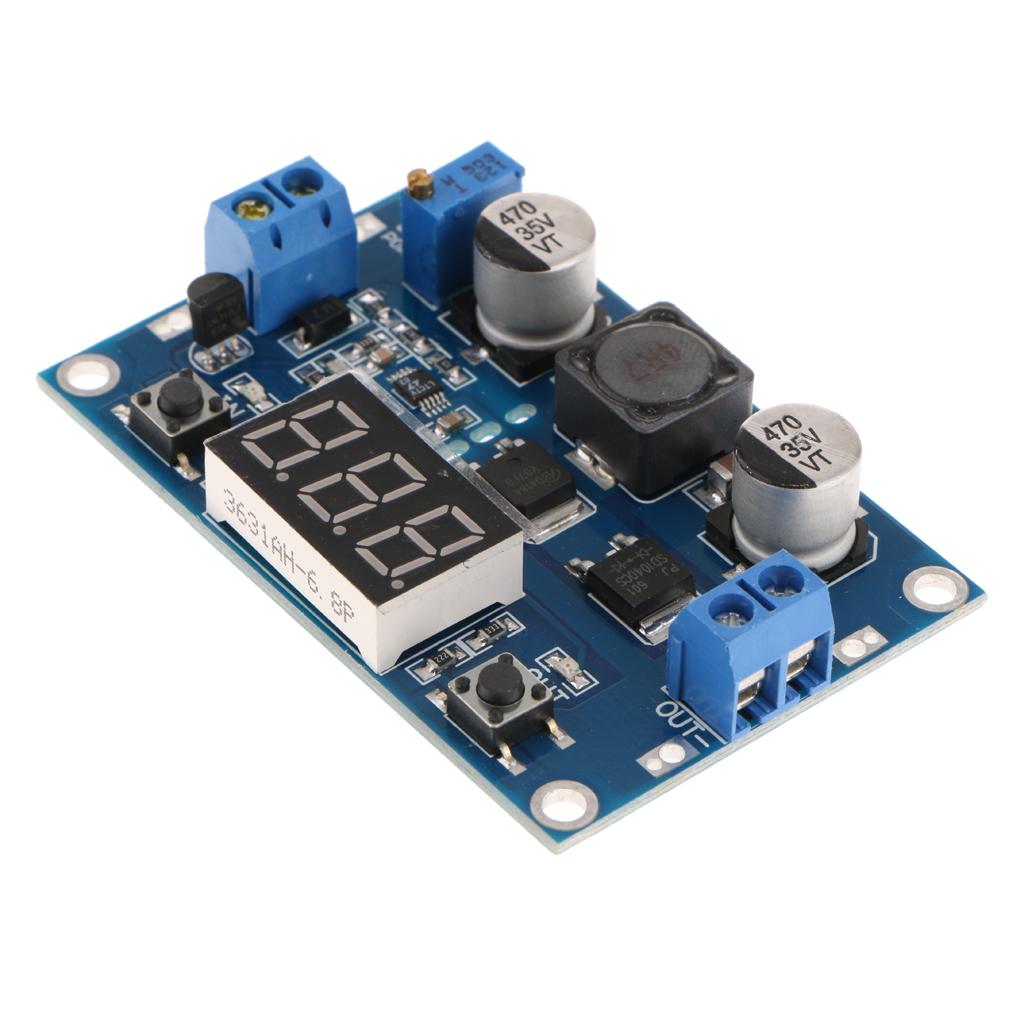

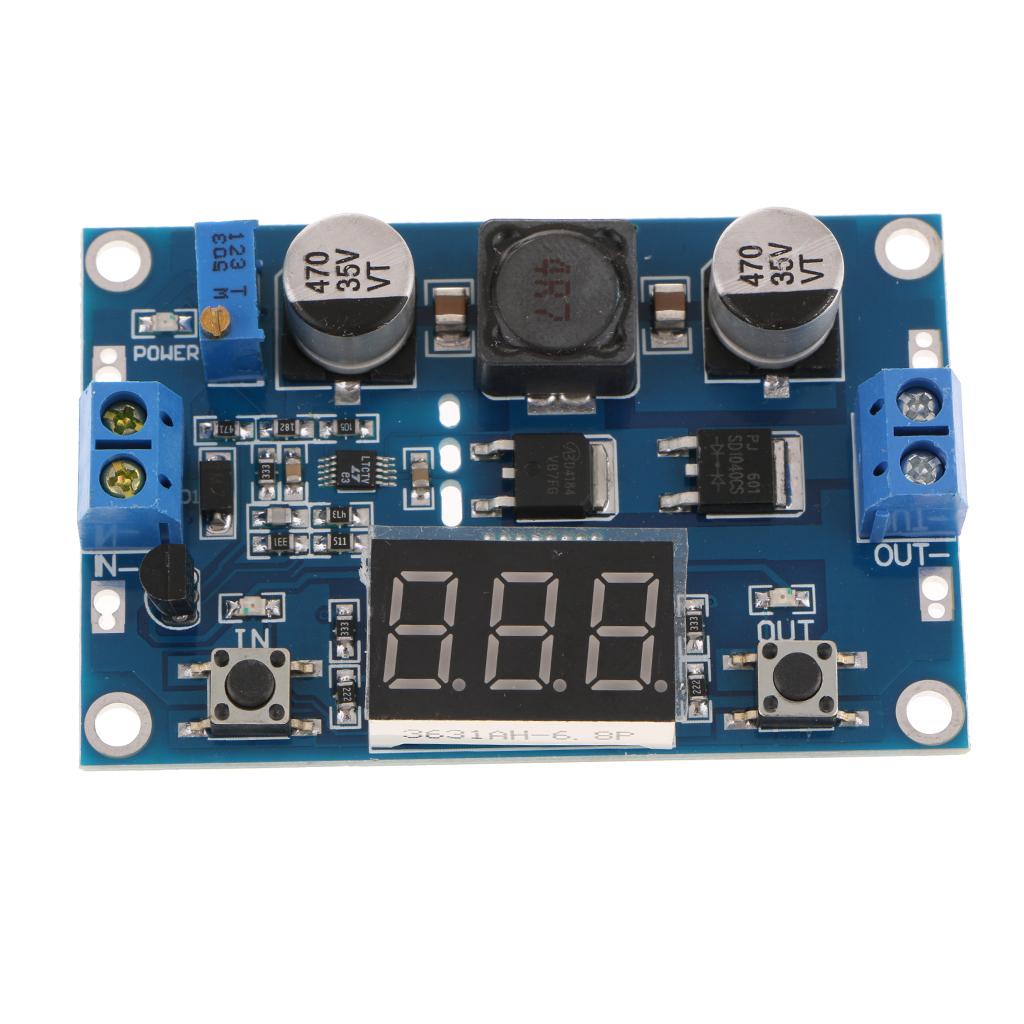

3~35V To 3.5~35V 100W Adjustable DC Step-up Boost Voltage Converter Module

Regular price
Rs. 876.02
Regular price
Sale price
Rs. 876.02
Earn 438 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73002853
  • Brand: SFC
  • Type: Collectibles
  • Availability: Out stock
Description

Description:

Input voltage:DC 3-35V(Note: when the input voltage is less than 4V, voltmeter failure)
Input current:9A(max)
Output voltage range:DC 3.5-35V(please to ensure that output voltage is equal or above on input voltage)
Output current: 6A (max)
Output power: 75W (when the input and output voltages are more than 20V, can up to 128W)
Conversion efficiency: 96.7% (max)
Output ripple: 24mV(TYP)
Voltmeter range: 4 to 40V, error ±0.1V
Short circuit protection: yes (limit current 14A).
Input reverse polarity protection: None (if required, high current diode in series with the input)
L x W x H = 67 x 43 x 12mm
Note: When connected to high-power load, it will have current-limiting and self-locking protection because of large impact current, it is recommended that to turning on the power first and then access the load.

Specification:

Application:
1. DIY a regulated power supply, input 5V can output 5-35V adjustable.
2. Power supply for your electronic equipment. For example, 3.7V lithium boost to 5V for mobile power; 7.4V or 12V battery pack boost to 19V for laptop power supply.
3. As the vehicle power supply for your laptop, PDA or a variety of digital products supply.

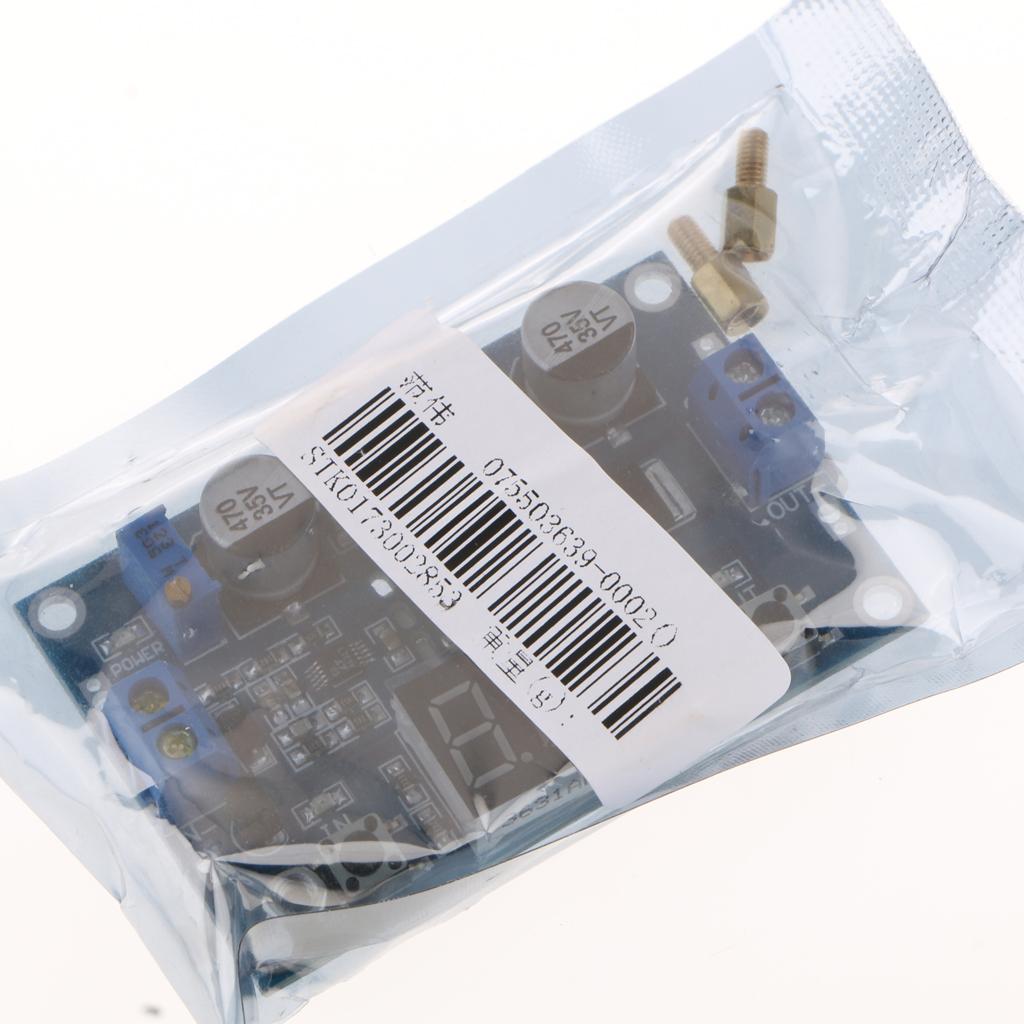

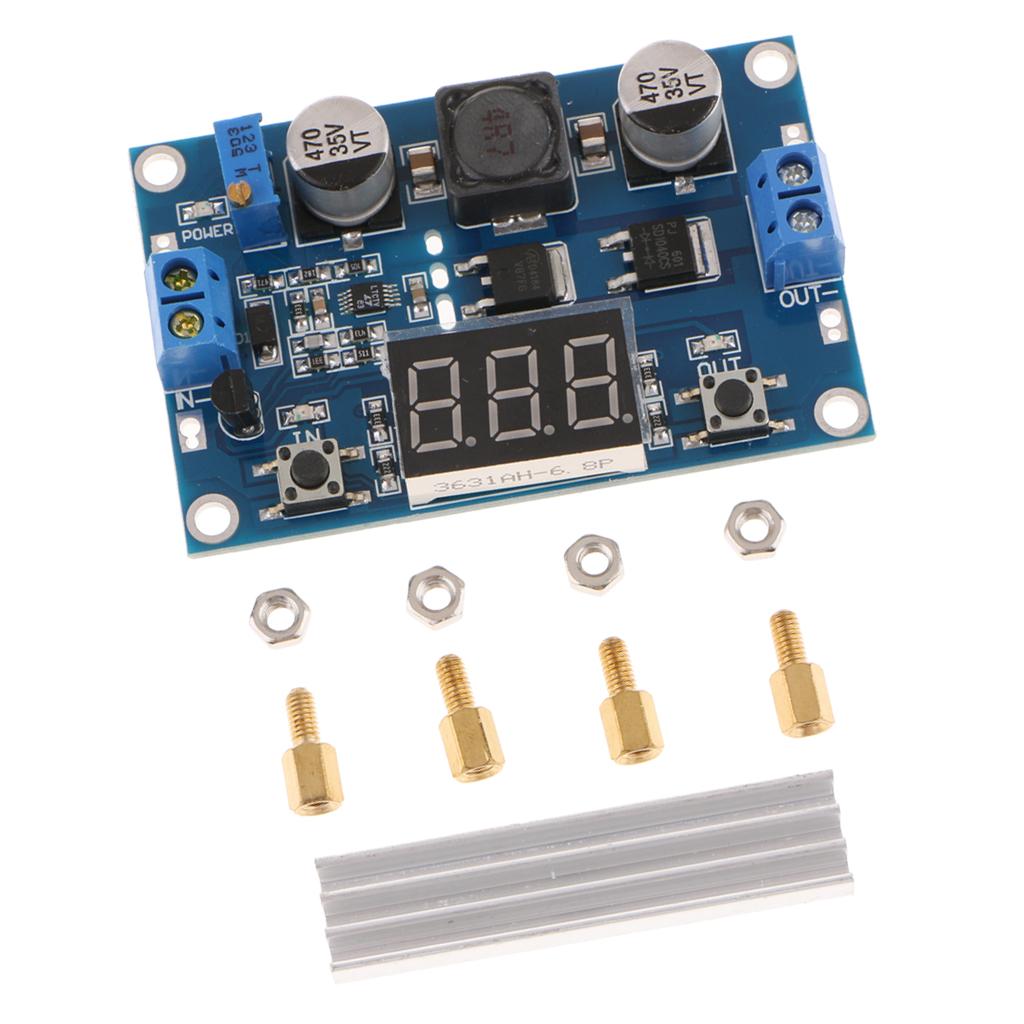

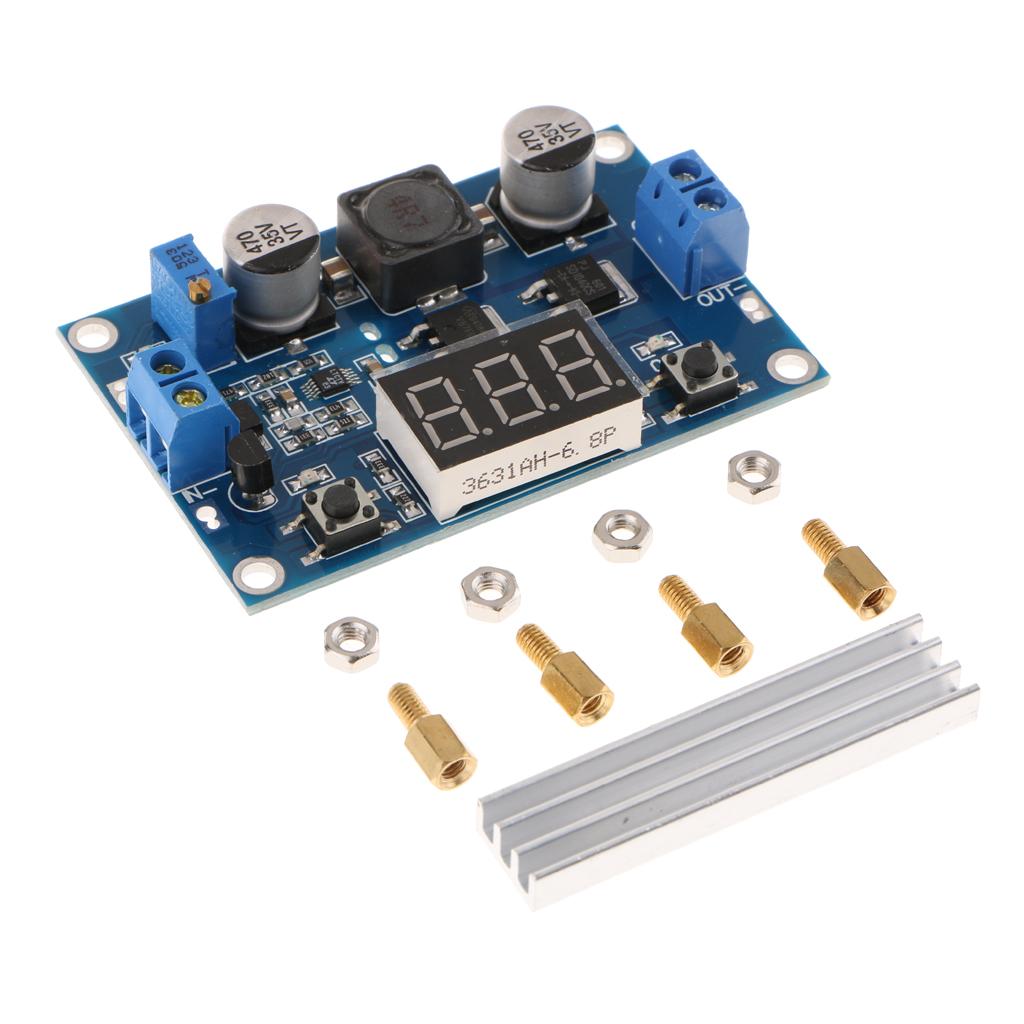

Package Includes:

1 Piece Voltage Step Up Module
4 Pieces Screws
4 Pieces Nuts
1 Piece Heatsink Bar
