2598 4200KV Brushless Motor & Waterproof 70A ESC Combo for 600-800mm RC Boat

Regular price
Rs. 11,602.78
Regular price
Sale price
Rs. 11,602.78
Earn 5801 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 61011205
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

Can be programmed

Economic and convenient to use

Water cooling tube and jacket with inlet and outlet fittings

This ESC built-in 5.5V/3A BEC can provide power for the receiver

Waterproof design (if there is water in the esc, please dry the water at the connectors)

Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection / power reduction protection

4 Pole 12 slot hi-torque motor design

O-ring seals for leak mitigation

CNC machined 6061 T6 billet aluminum heatsink can

High purity copper windings maximizes efficiency

Precision balanced rotor, smoothness for best reliability and maximum RPM

Black anodized finish for durability, corrosion resistance, and great looks

Specification:

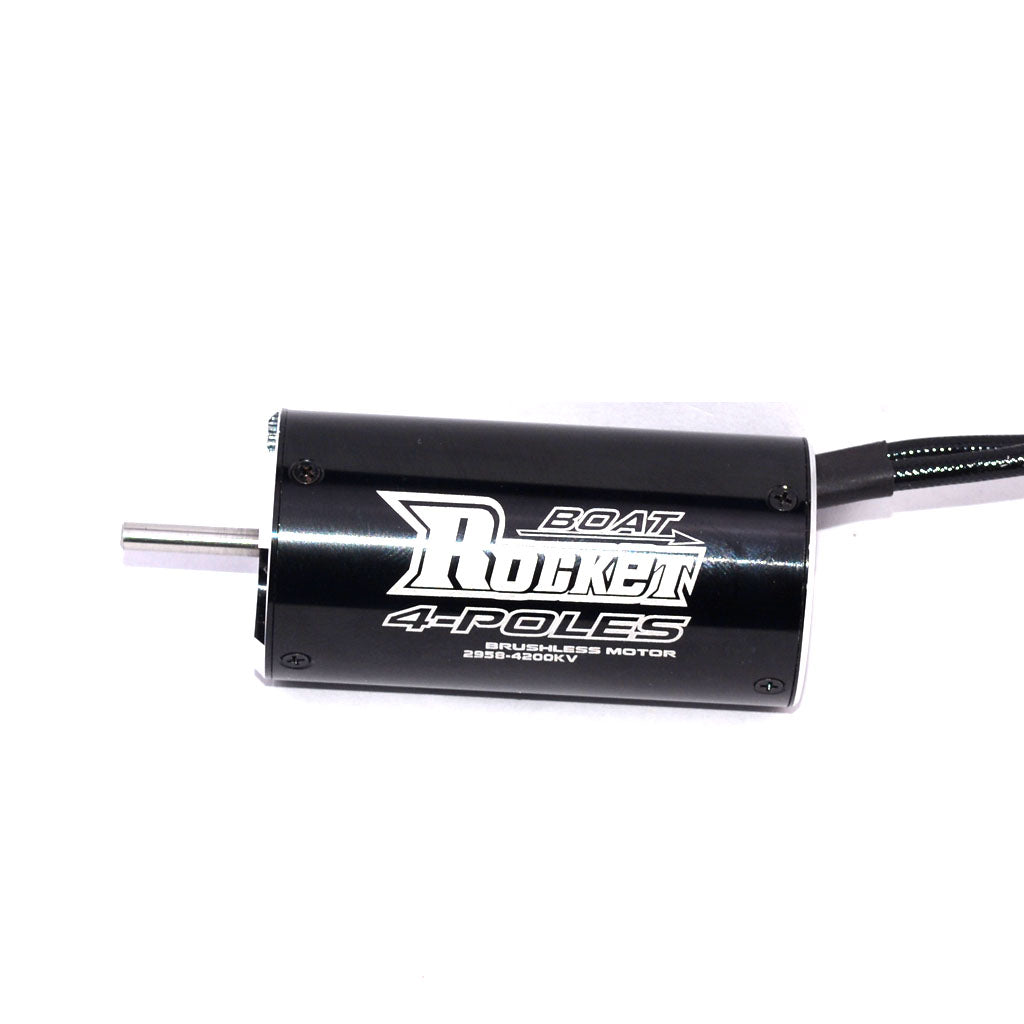

Brushless Motor Specification:

KV(RPM/Volt): 4200KV

RPM: 60000

Watt: 1400W

No load current: 2.1A

Max voltage: 14V

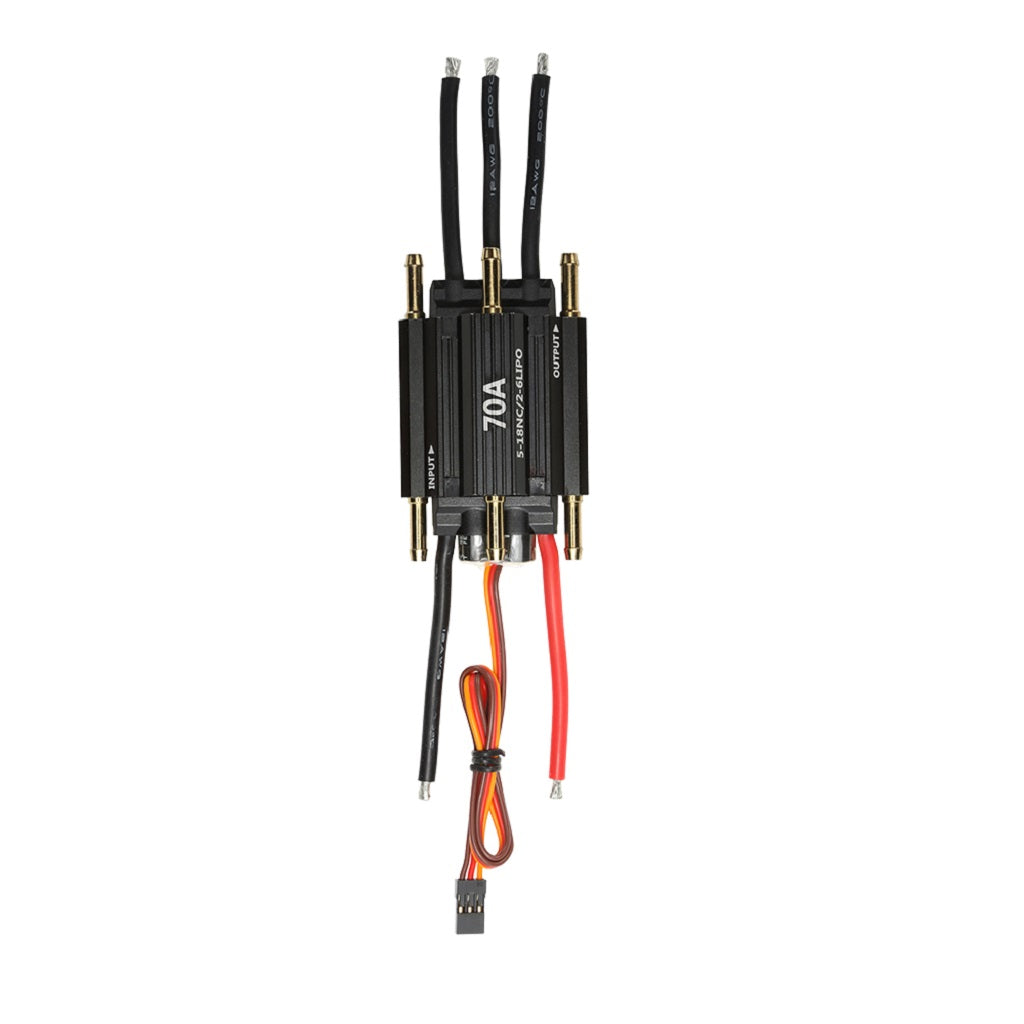

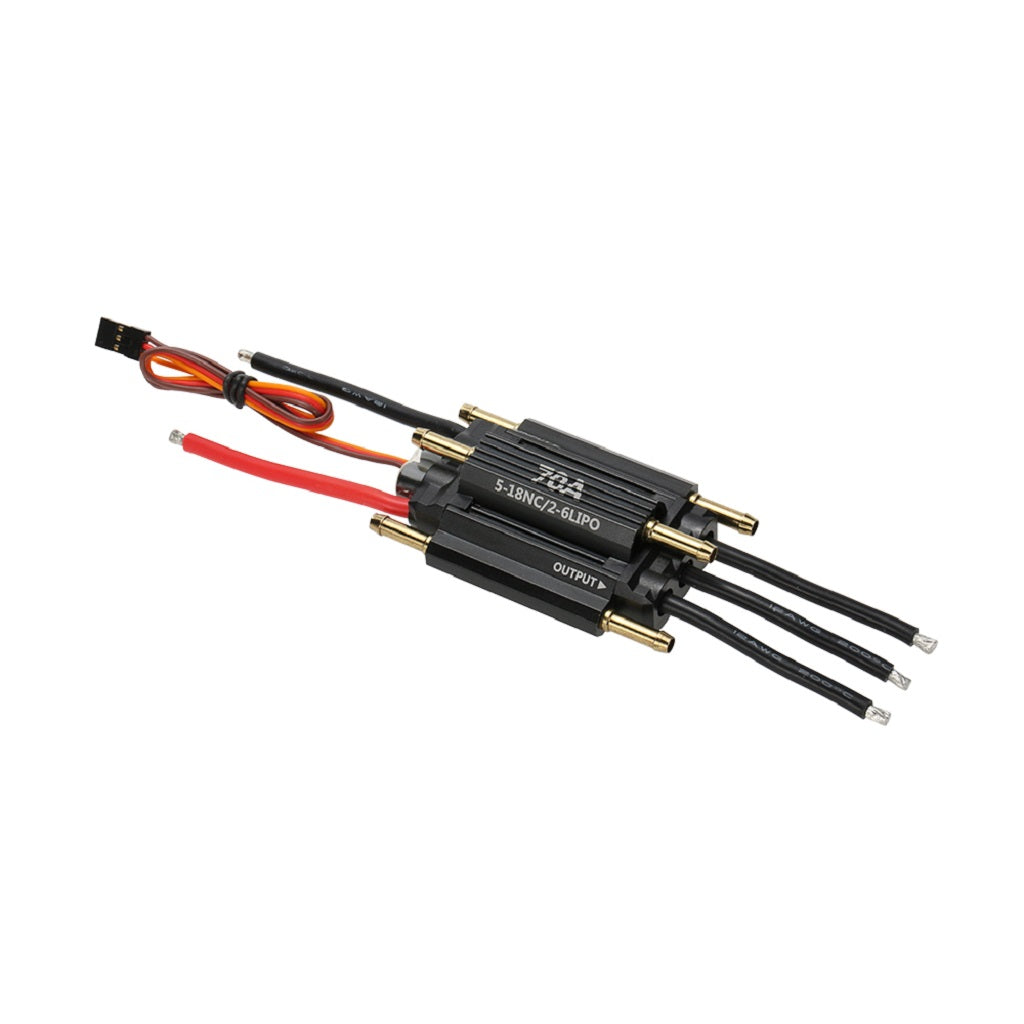

ESC Specification:

Cont. current: 70A

Burst current: 90A (10s)

Voltage: 5-18 NC / 2-6V LiPo

Program: Yes

BEC: 5.5V/3A

29-S Water Cooling Jacket Specification:

Material: aluminum

Designed for: 2948 2958 RC boat brushless motor

Size Chart:

Motor Size:

Diameter: 29mm

Length: 58mm

Shaft diameter: 3.175mm

Suitable for: 600-800mm RC boat

Connector: 4mm golden banana connector

ESC Size: approx. 80 x 50 x 23mm (without cables)

29-S Water Cooling Jacket Size:

Outlet fitting diameter: 4.5mm

Jacket inner / outer diameter: 29mm / 37mm

Jacket length: 41mm

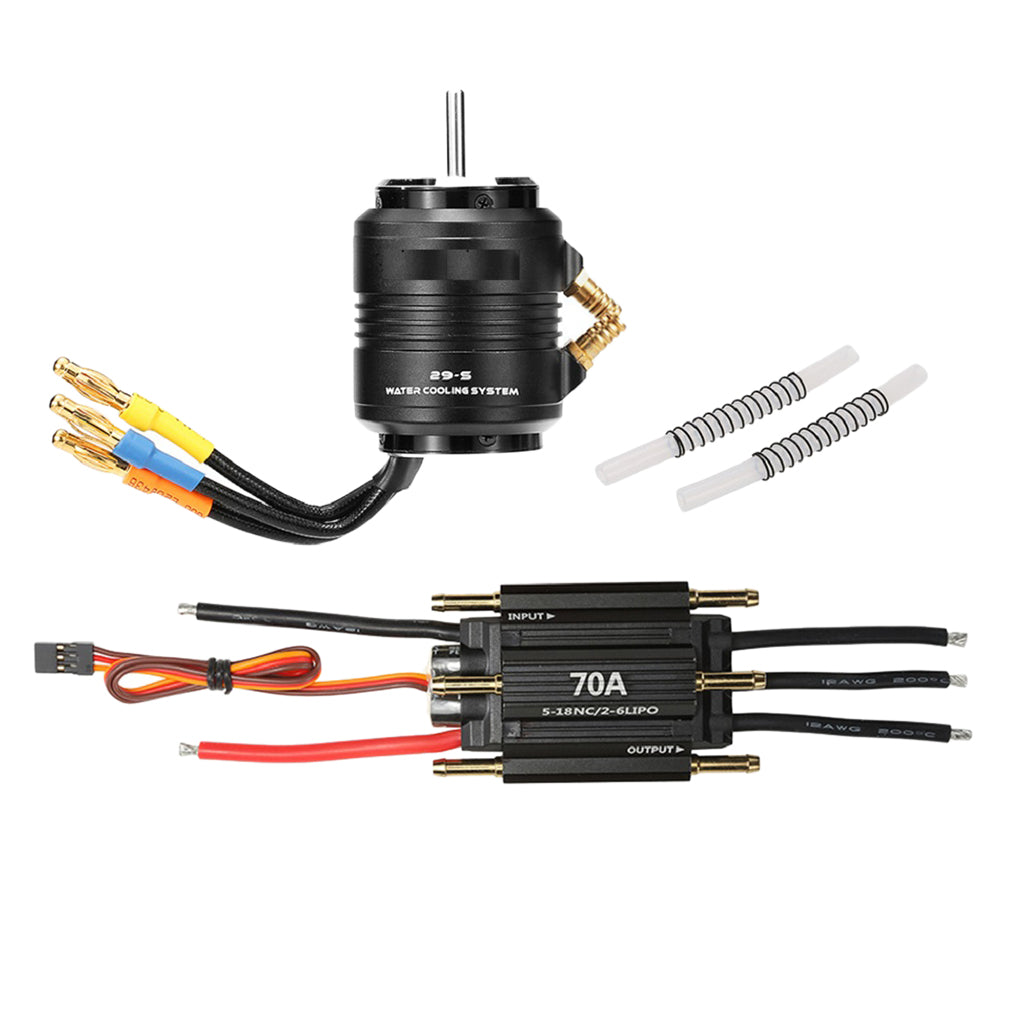

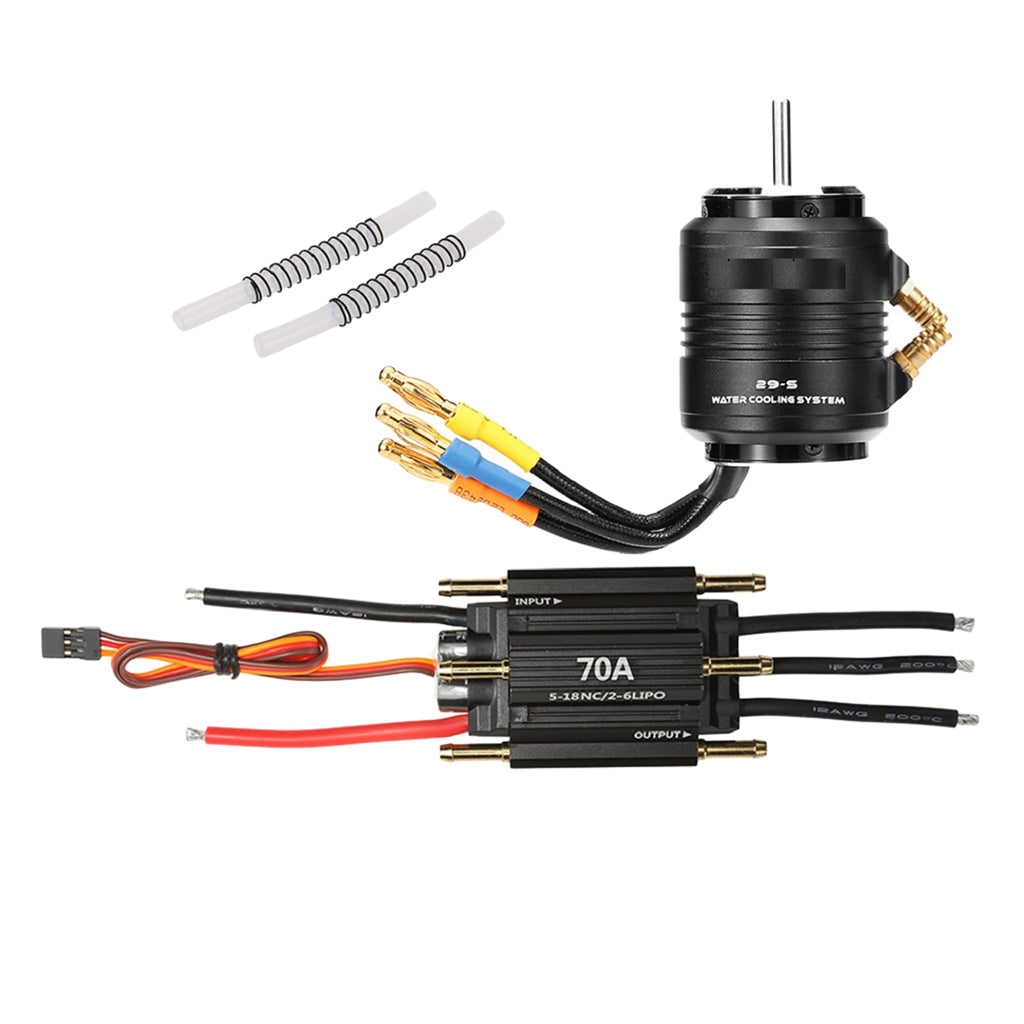

Package Includes:

1 Piece 2958 4200KV Brushless Motor

1 Piece Water Cooling Jacket

1 Piece 70A Brushless ESC with 5.5V/3A BEC

2 Pieces Water Cooling Tube
