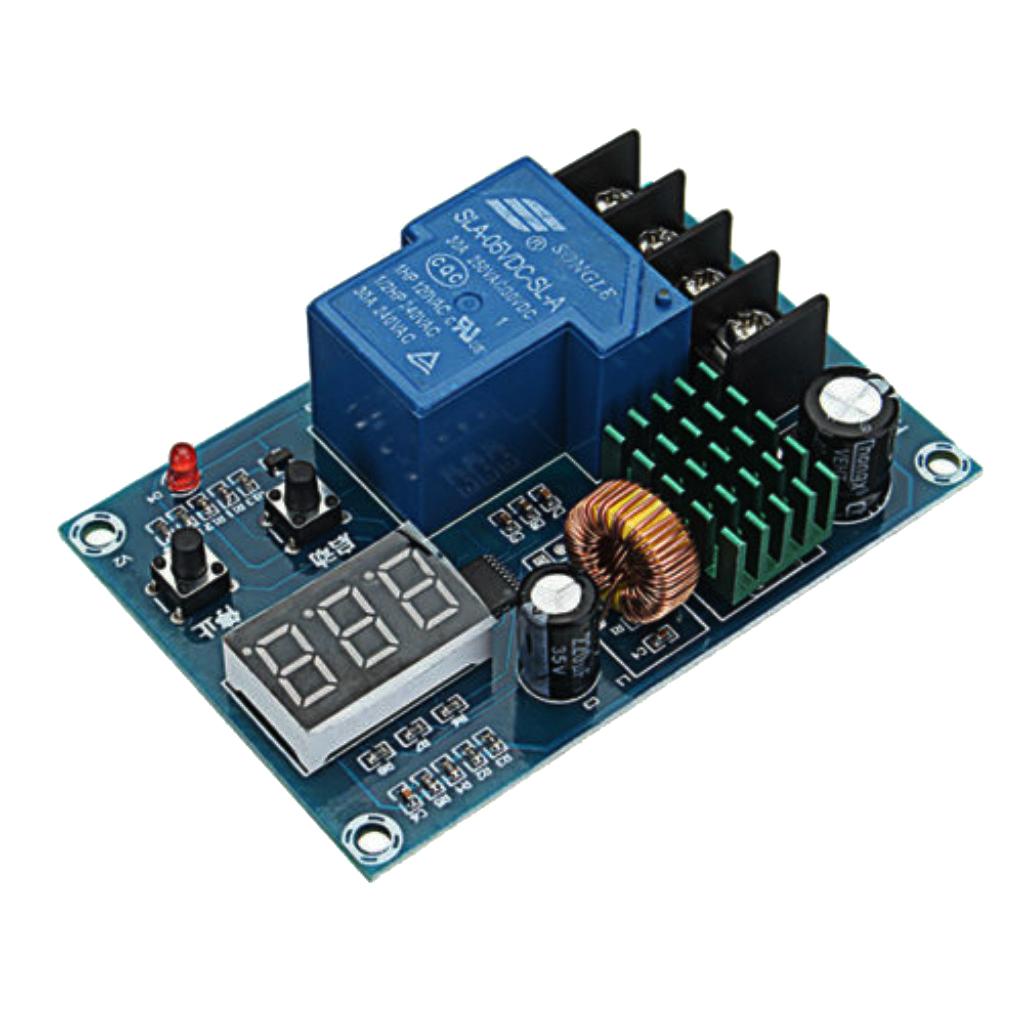

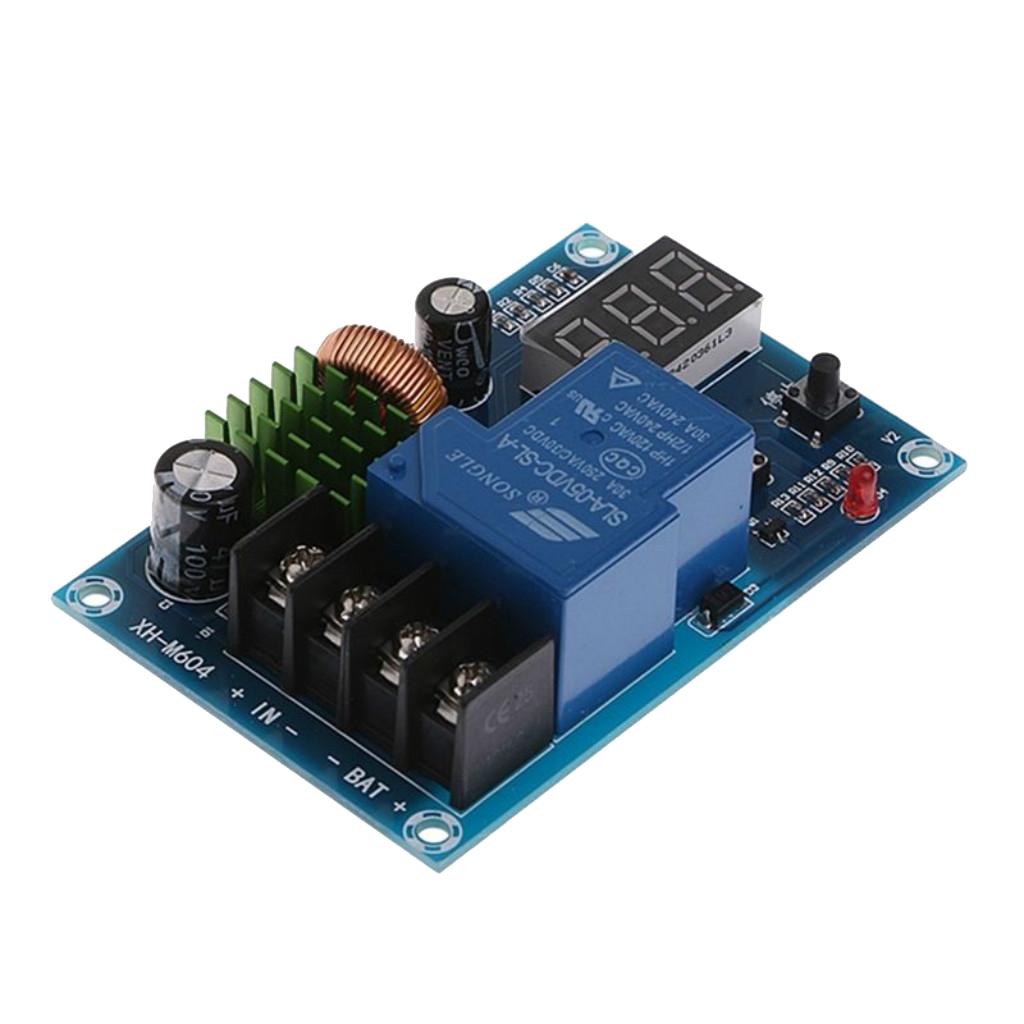

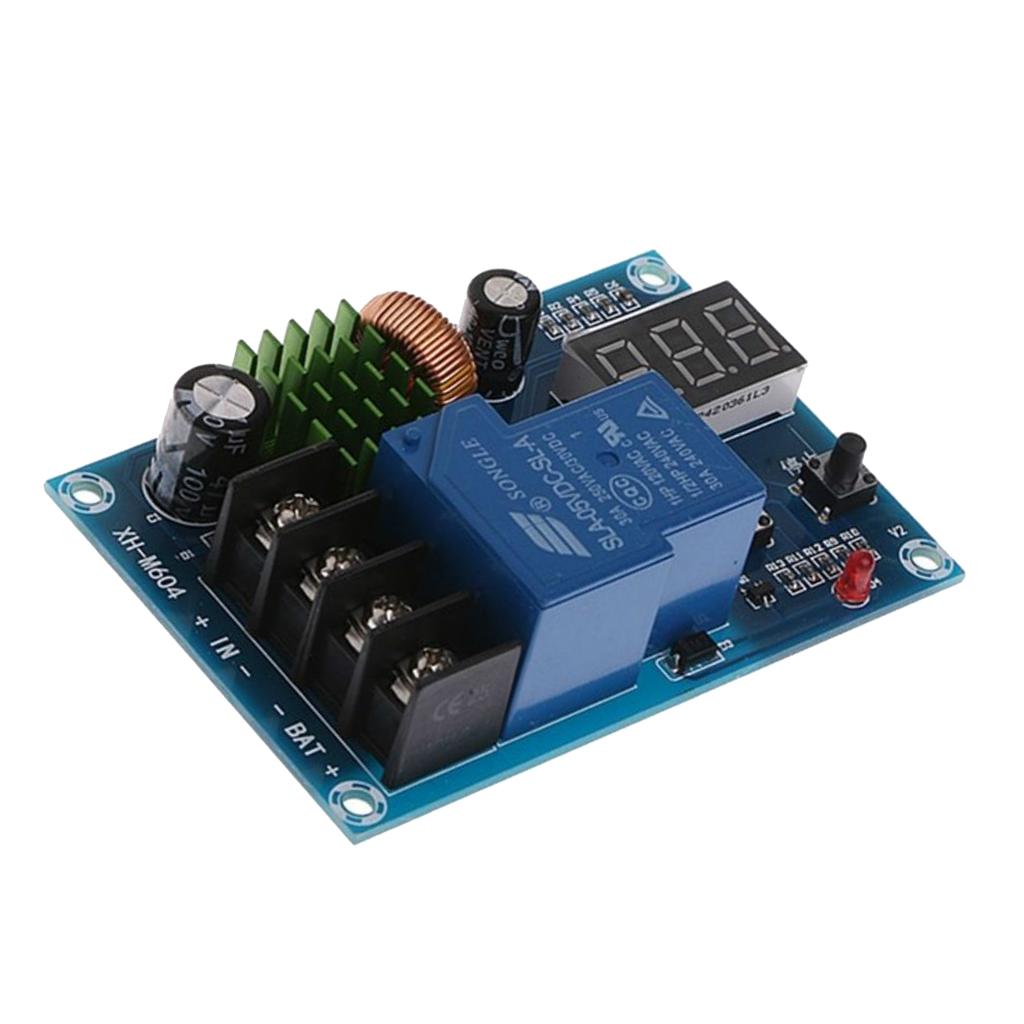

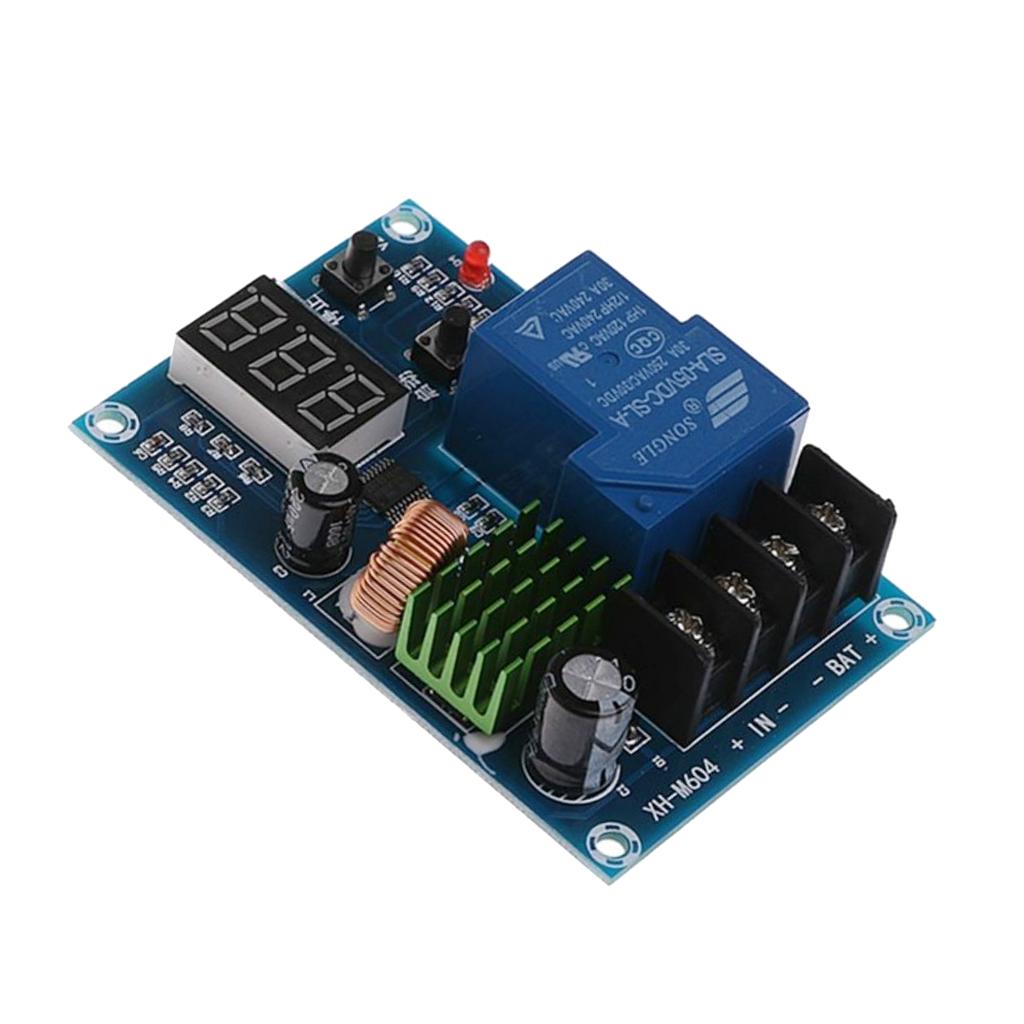

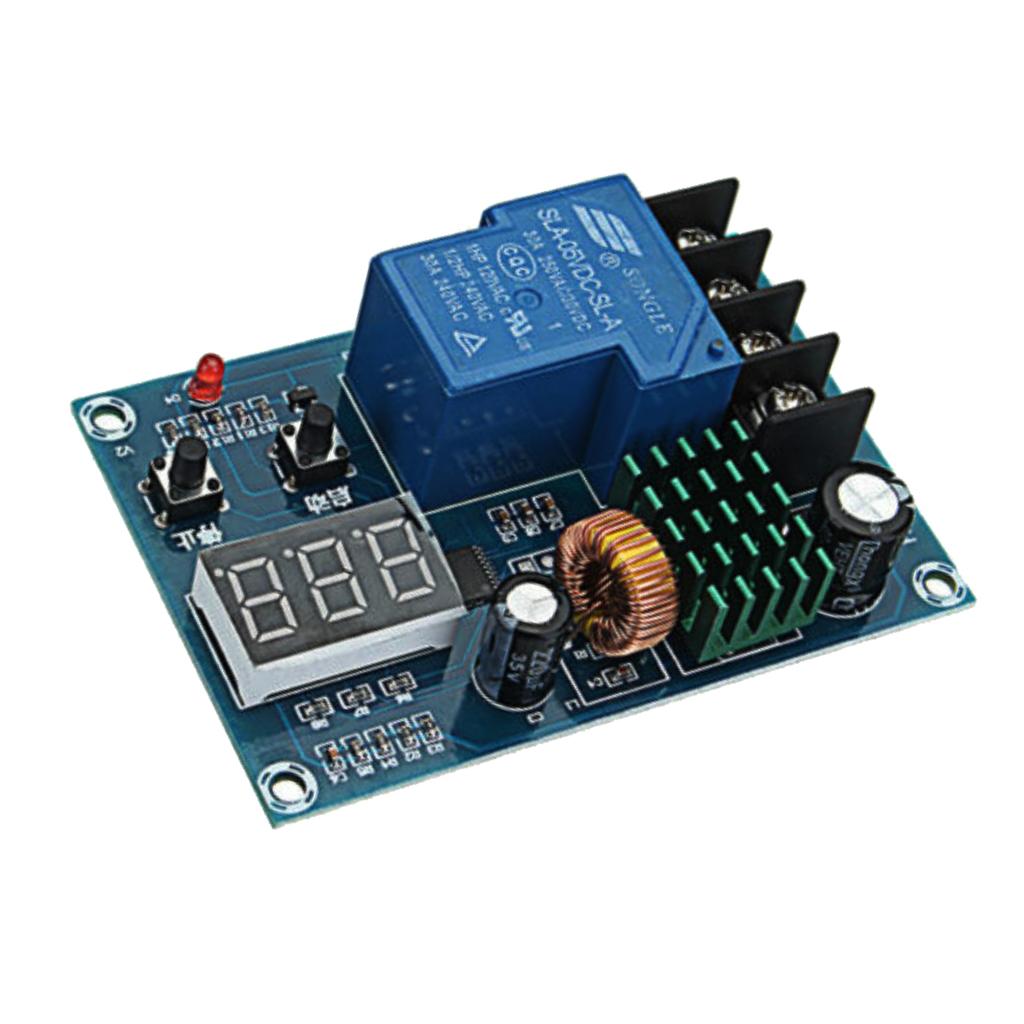

1pcs XH-M604 DC6-60V Charging Control Boards Charger Power Switch Modules Blue

Regular price
Rs. 978.44
Regular price
Sale price
Rs. 978.44
Earn 489 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73004889
  • Brand: SFC
  • Type: Collectibles
  • Availability: Out stock
Description

Description:

Apply For:6-60V MAX 80V battery
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:Energized state while holding down the start / stop button, digital display 888, which is the factory setting.

Specification:

Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery
Material: FR-4 glass fiber clad laminate
Dimension:81x54x19 mm / 3.18x2.12x0.74 inch

Package Includes:

1 Piece Digital display Lead acid Battery Charge Control Module
