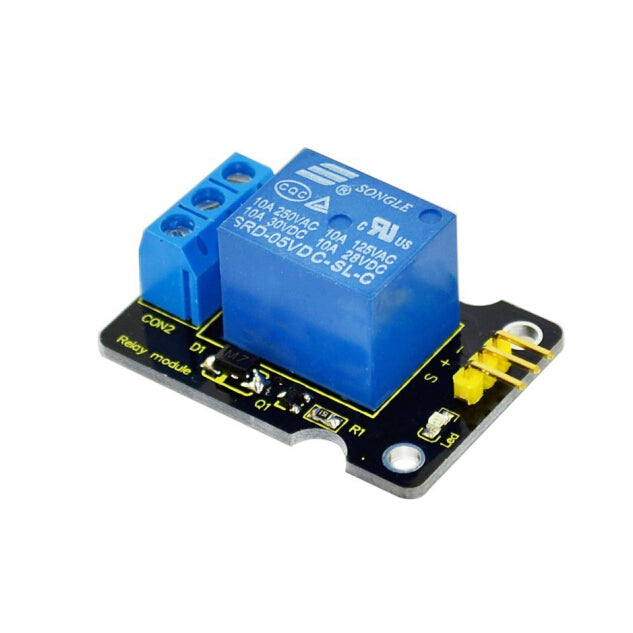

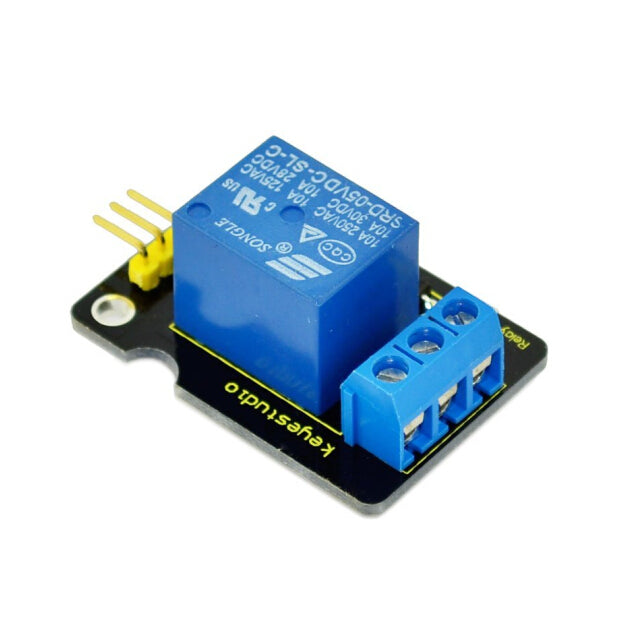

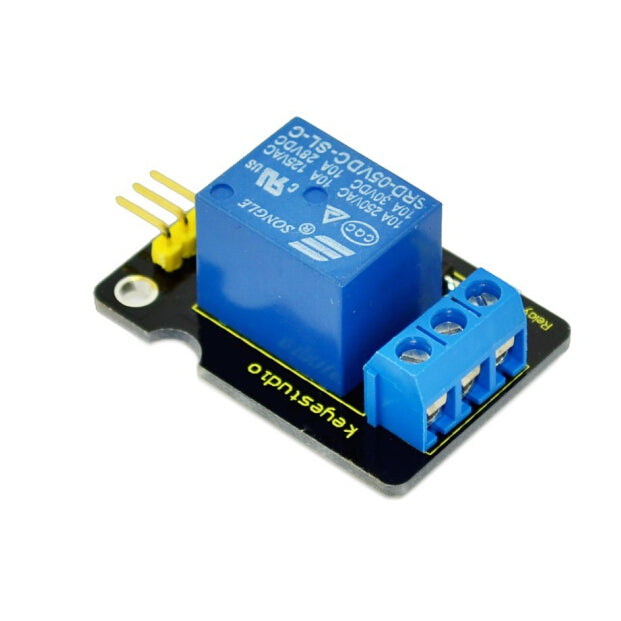

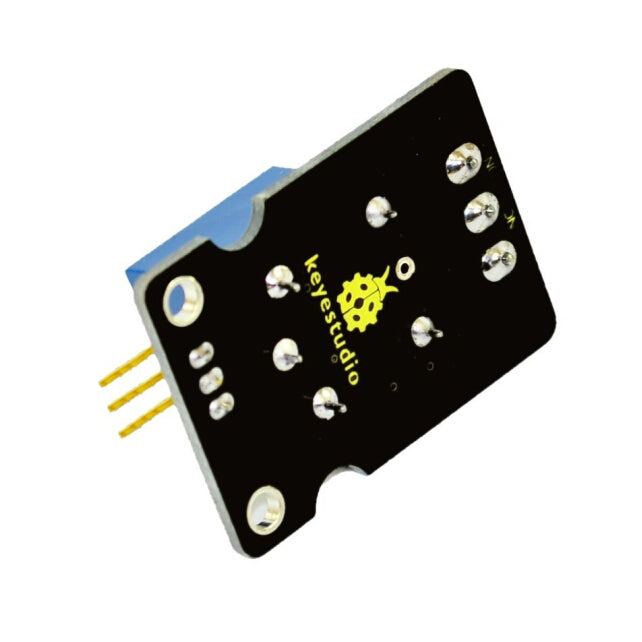

Keyestudio 5V Single 1 Channel Relay Module Board Compatible for Arduino

Regular price
Rs. 317.94
Regular price
Sale price
Rs. 317.94
Earn 158 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 51003040
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

  • This single relay module can be used in interactive projects.
  • This module uses SONGLE 5v high-quality relay.
  • It can also be used to control lighting, electrical and other equipment.
  • The modular design makes it easy to expand with the Arduino board (not included).
  • The Relay output is by a light-emitting diode.
  • It can be controlled through digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.
  • Type: Digital
  • Rated current: 10A (NO) 5A (NC)
  • Maximum switching voltage: 150VAC 24VDC
  • Digital interface
  • Control signal: TTL level
  • Rated load: 8A 150VAC (NO) 10A 24VDC (NO), 5A 250VAC (NO/NC) 5A 24VDC (NO/NC)
  • Maximum switching power: AC1200VA DC240W (NO) AC625VA DC120W (NC)
  • Contact action time: 10ms
  • Size:40*28*19mm
  • Material:FR-4 Epoxy glass fiber board
  • color:As shown in the picture



Package includes:


  • 1 X 5V Relay Module 1-Channel
