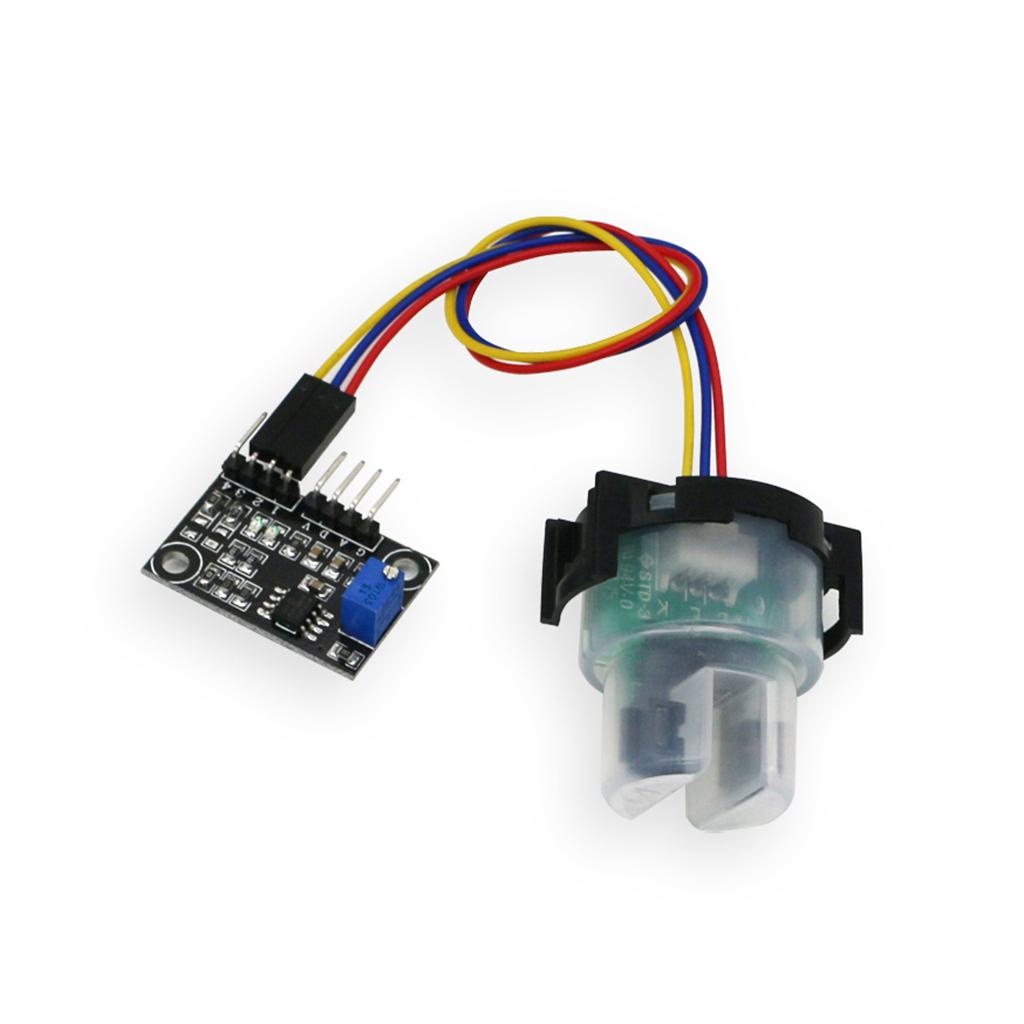

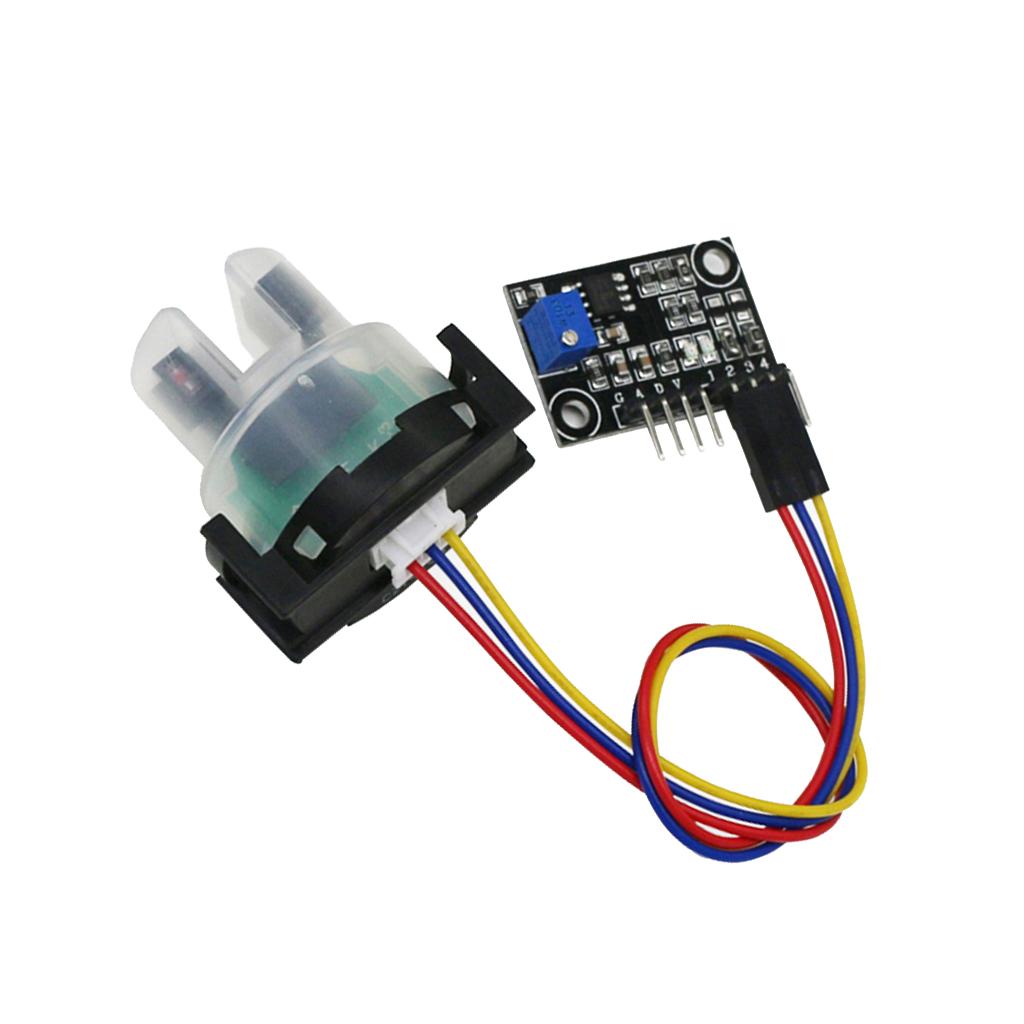

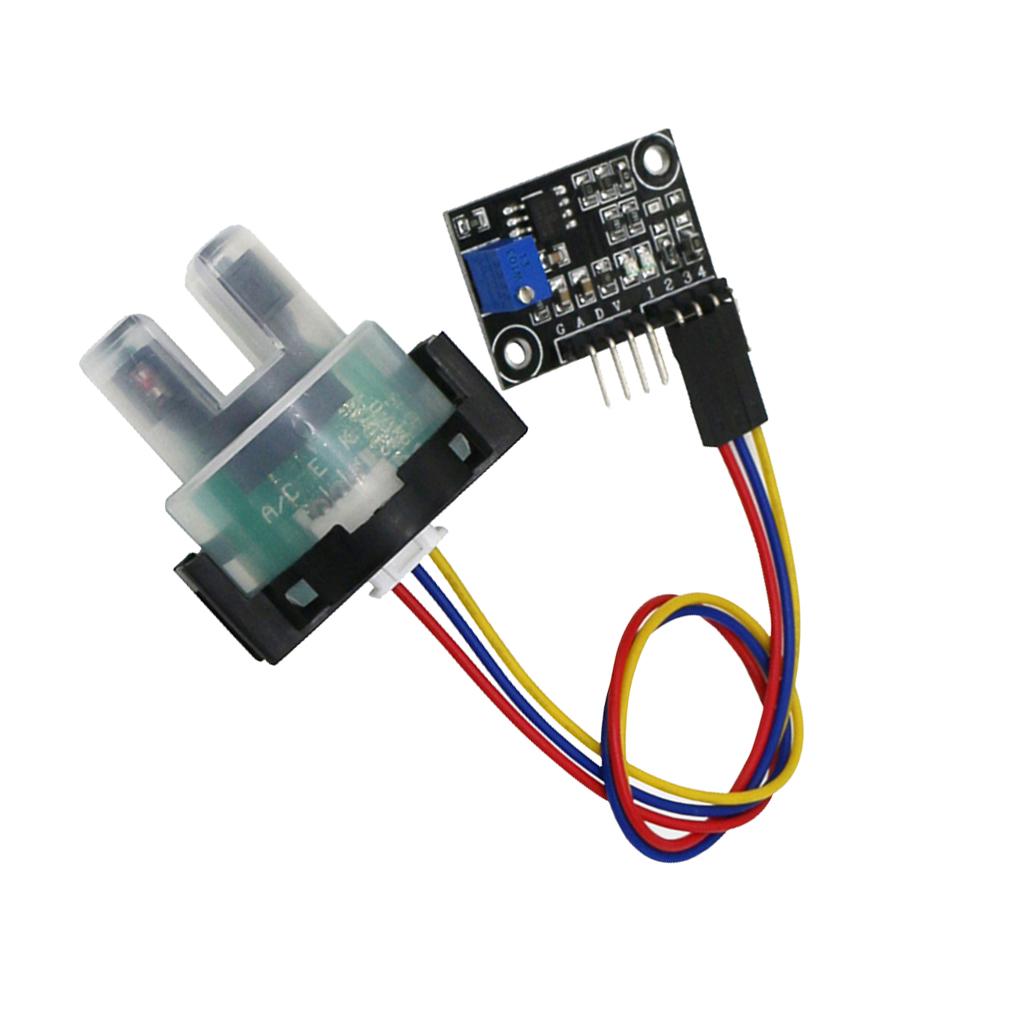

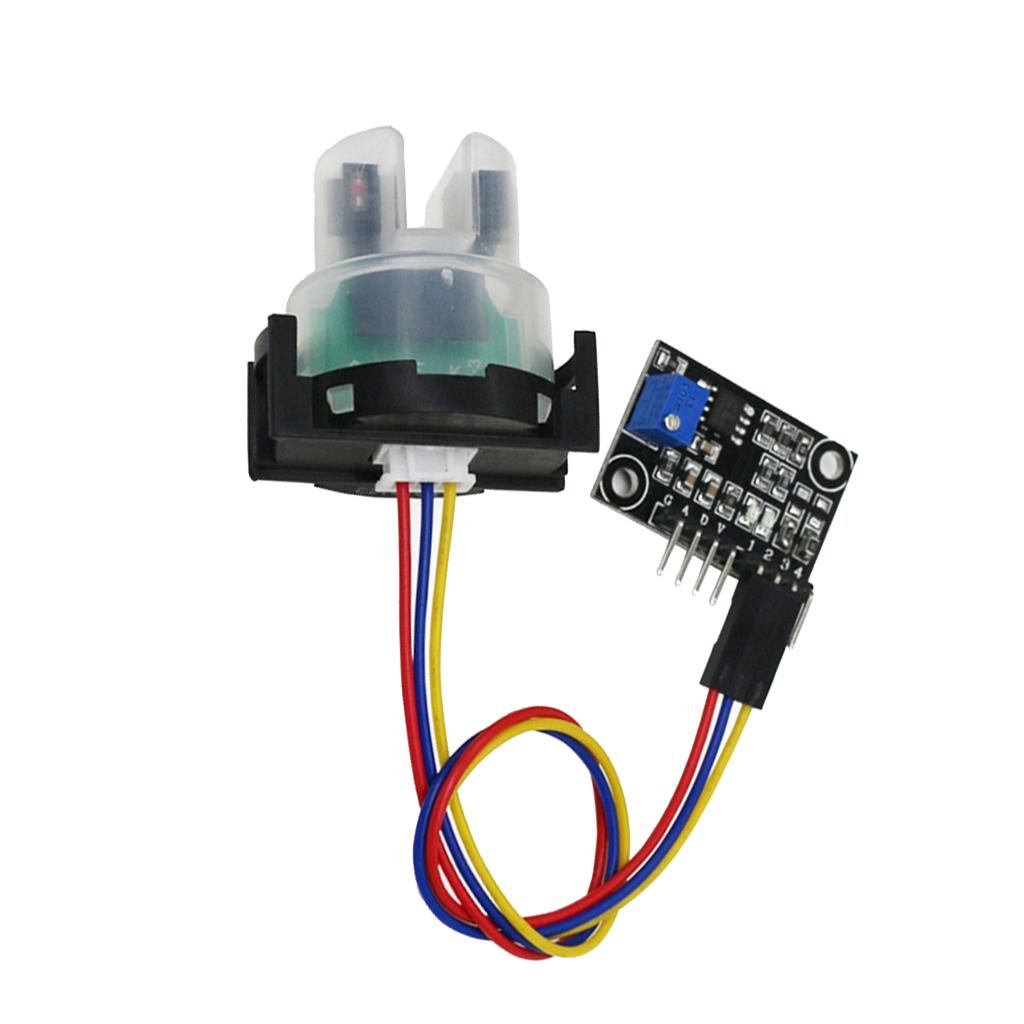

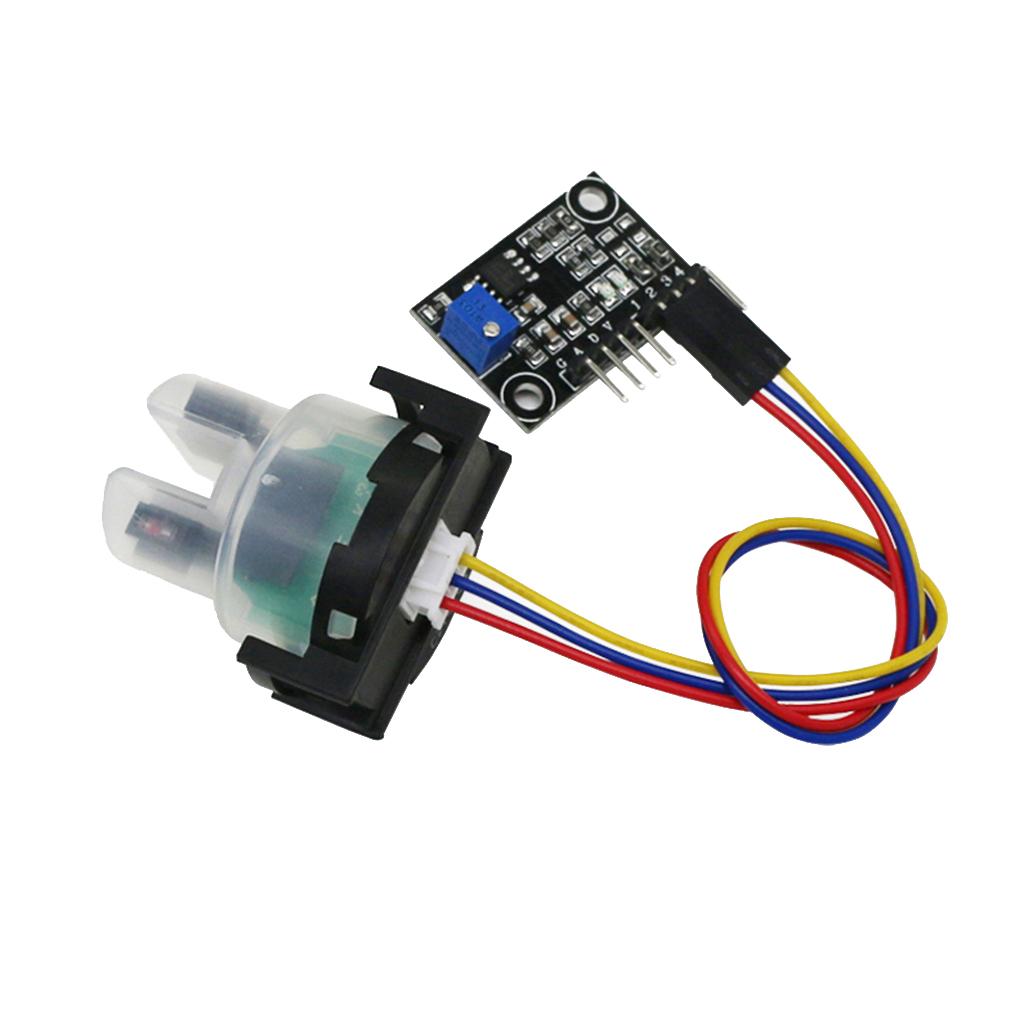

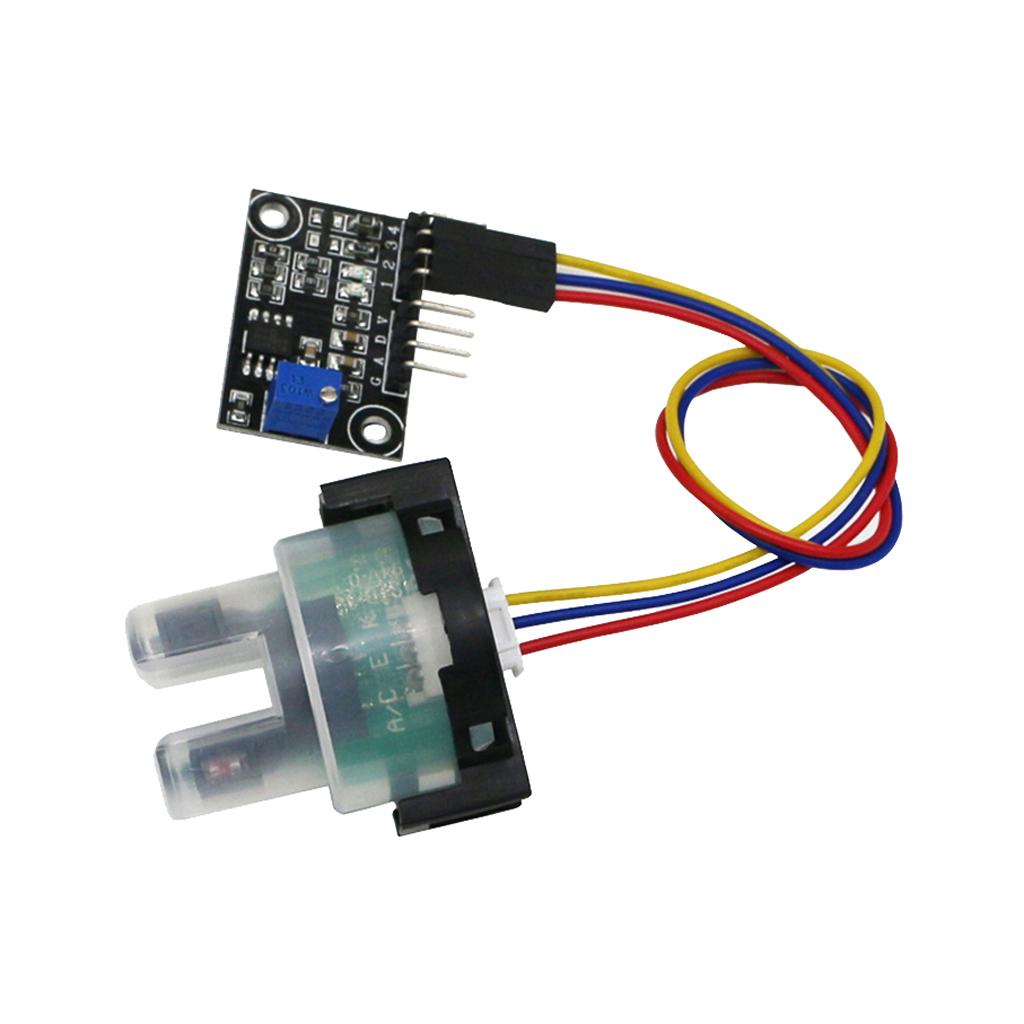

High Quality Turbidity Sensor Liquid Particles Turbidity Sensor Module

Regular price
Rs. 2,507.22
Regular price
Sale price
Rs. 2,507.22
Earn 1253 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73003611
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Working voltage: DC5V

Operating Current : 30mA (MAX)

Response time : <500ms

Insulation Resistance : 100M Ω[Min];

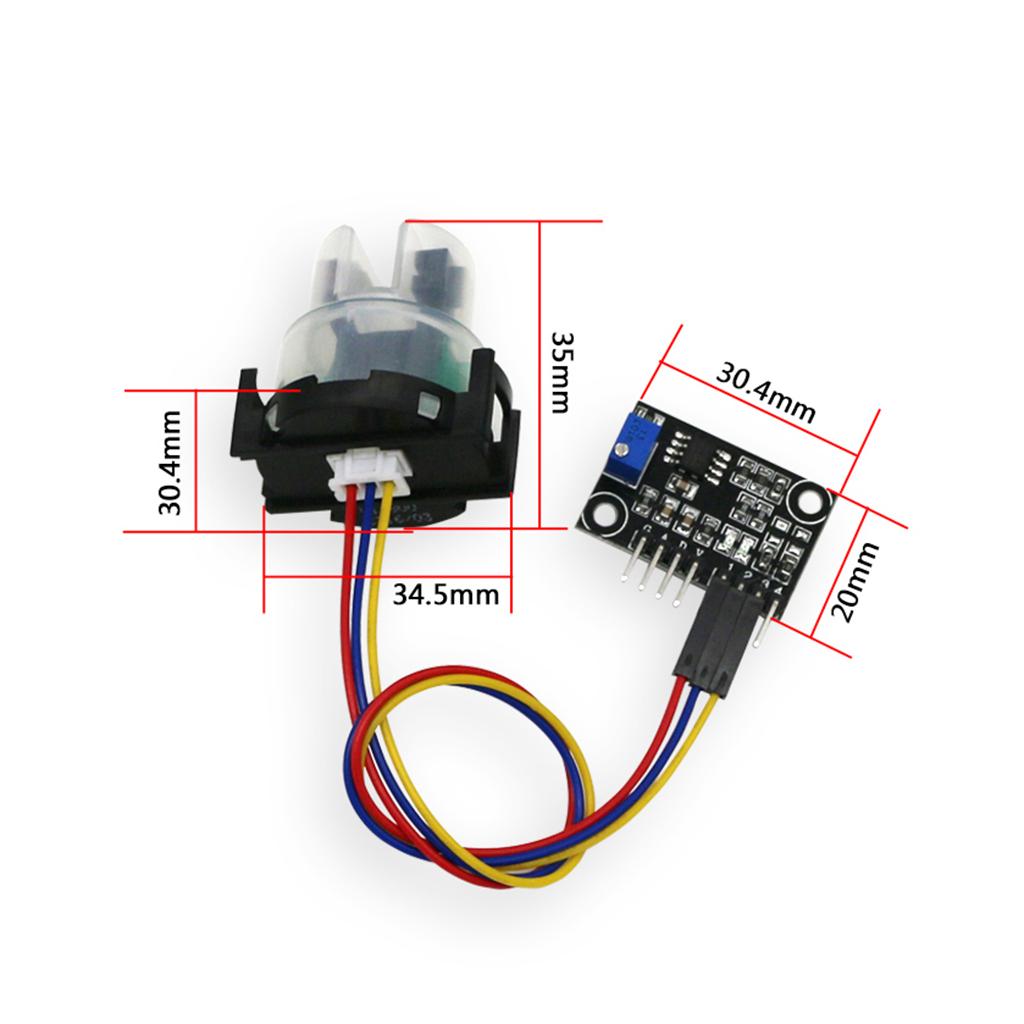

Size : 30mm * 20mm * 12mm

Specification:

the output way: Analog output 0-4.5V

the output way: high / low signal( High : 5V Low : 0V)

operating temperature : -30 oC -80 oC;

Storage temperature : -10-80 oC.

Turbidity sensors is the use of optics , through the liquid solution and scattering rate of transmittance integrated to determine the turbidity case. Since the amount of haze value is gradual , usually detected in a dynamic environment , the turbidity sensor acquisition value , the need for external control for AD conversion , the conversion to obtain the corresponding environment turbidity situation, so that the sensor can also need to produce a peripheral circuit detected in the system , with a waterproof probe , mainly used in washing machines, dishwashers and other equipment turbidity testing can also be used on electronic design, graduate design, electronic competition experiments and other applications.

Package Includes:

1 set of Turbidity sensor module kit

Note:

Applications:

Washing machines, dishwashers , industrial control , environmental sewage collection and so on turbidity measurement and control needs of the occasion ;

Stay after purchase mailboxes sensor manual, as well as provide technical guidance services , does not provide product development and programming services .
