Trigger Switch Driving Module MOS-FET-DC Controller PWM Regulator Pane DC 4V-60V

Regular price
Rs. 461.07
Regular price
Sale price
Rs. 461.07
Earn 230 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73008035
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

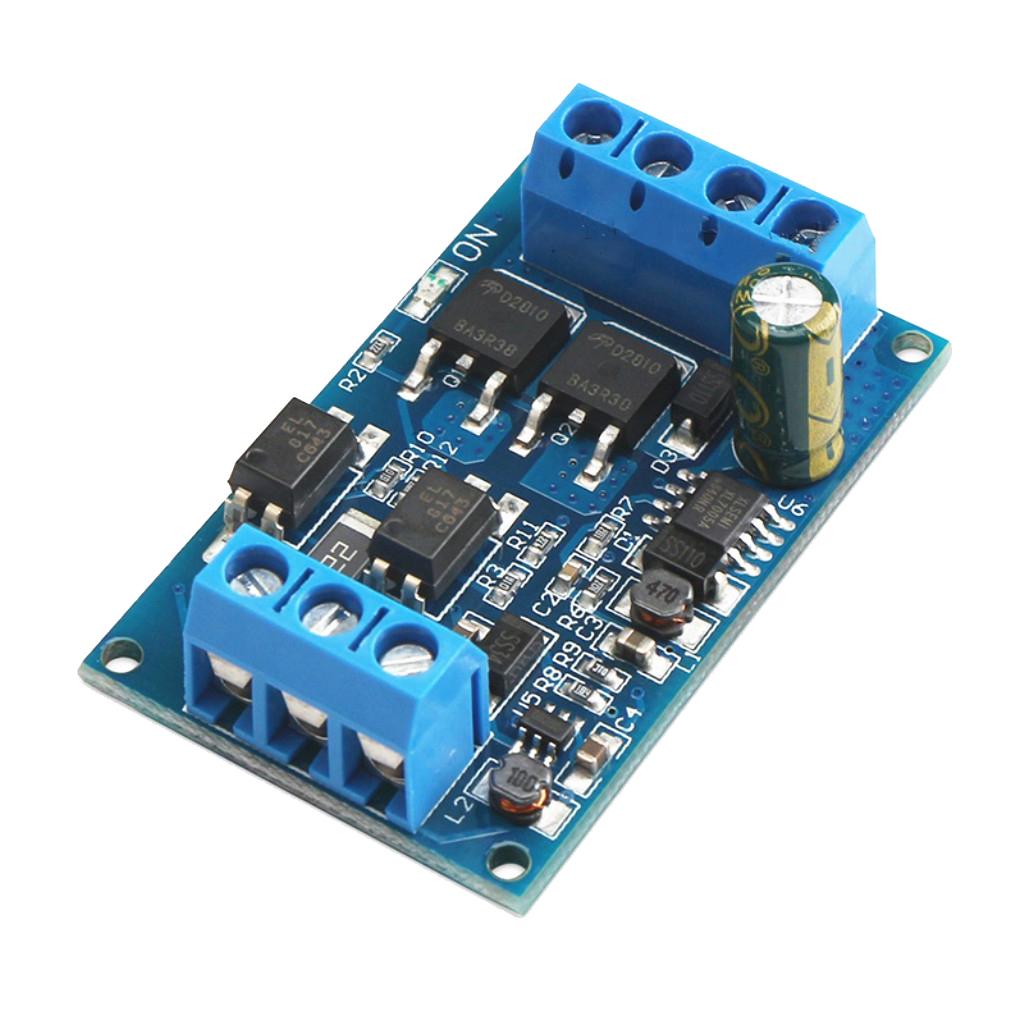

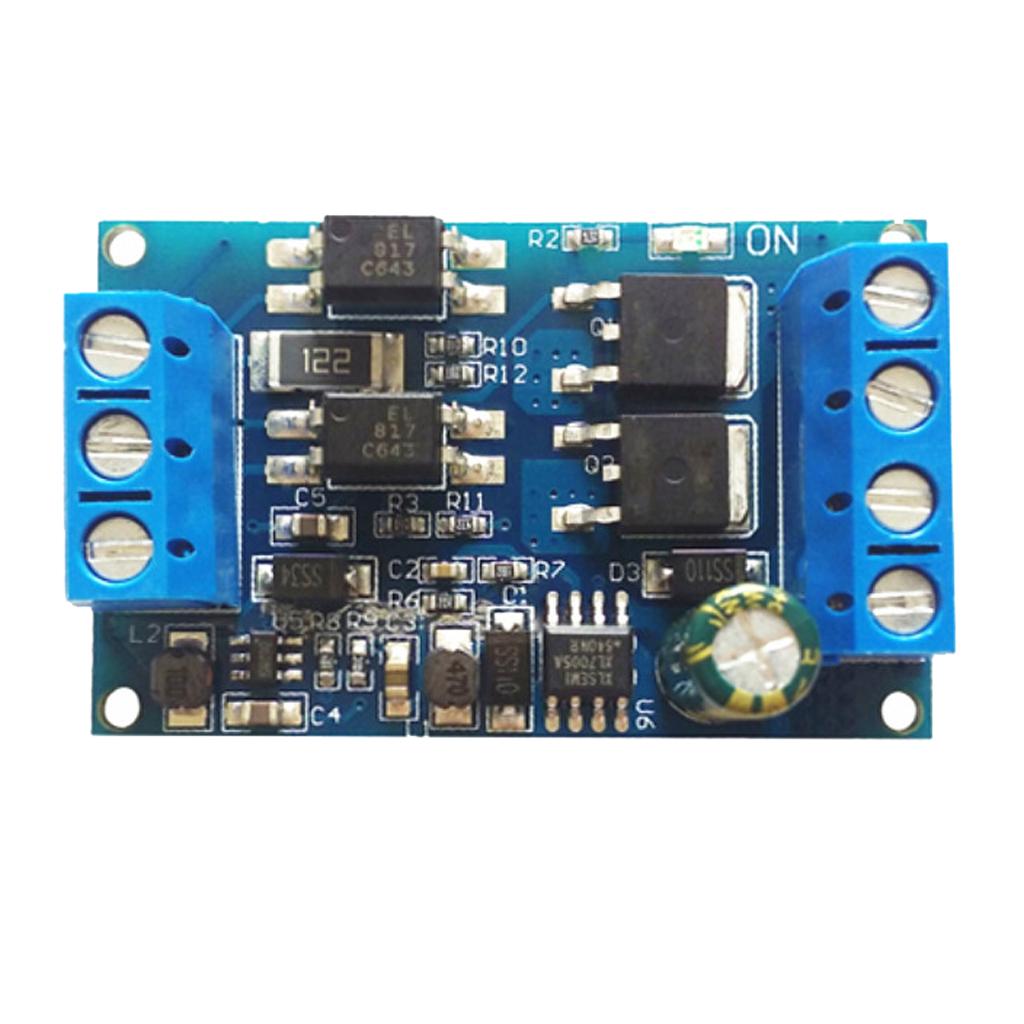

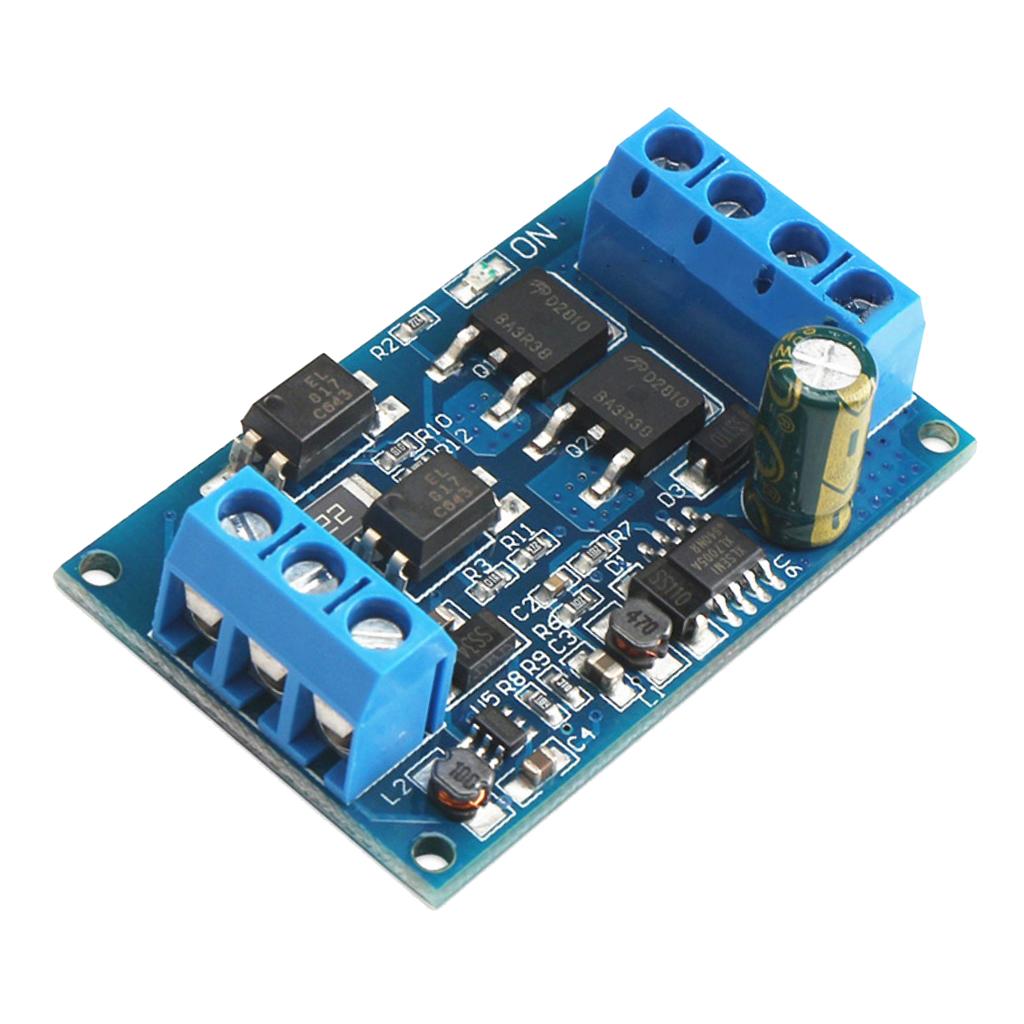

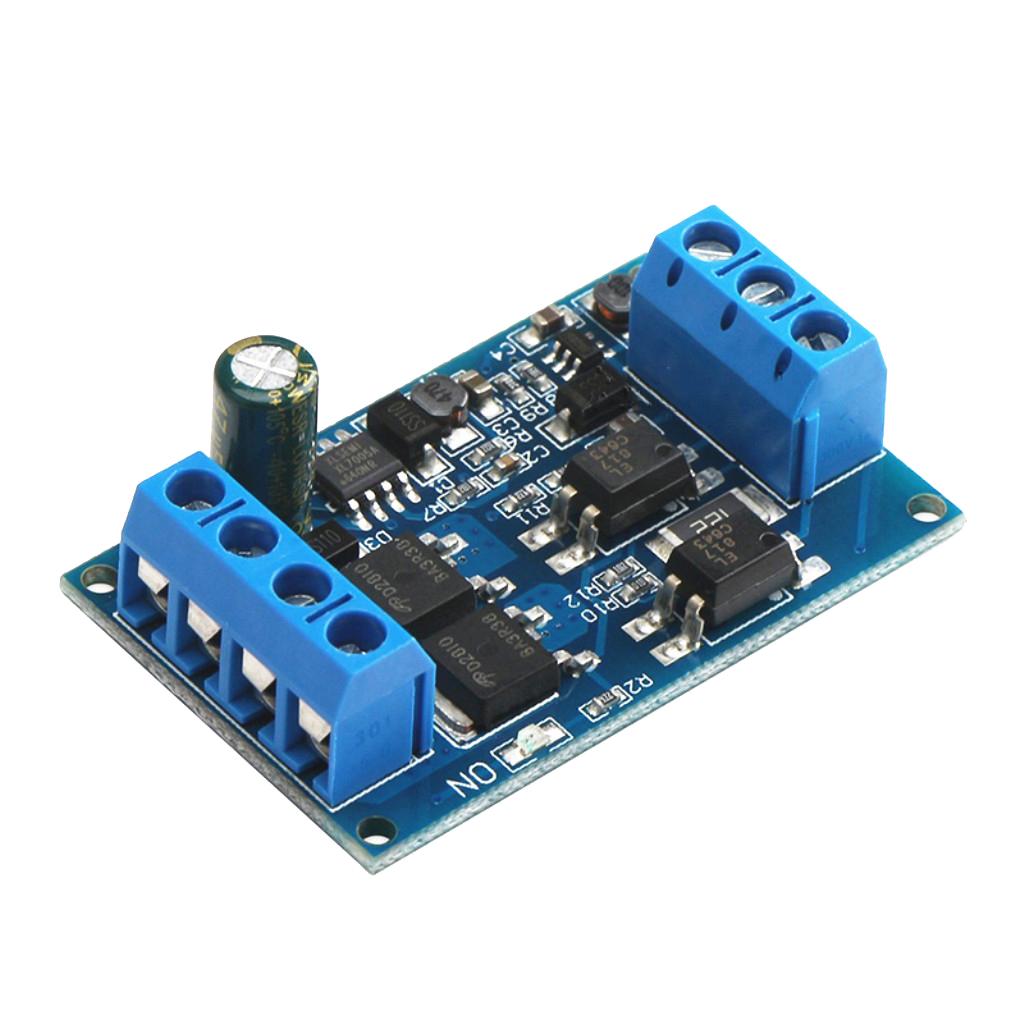

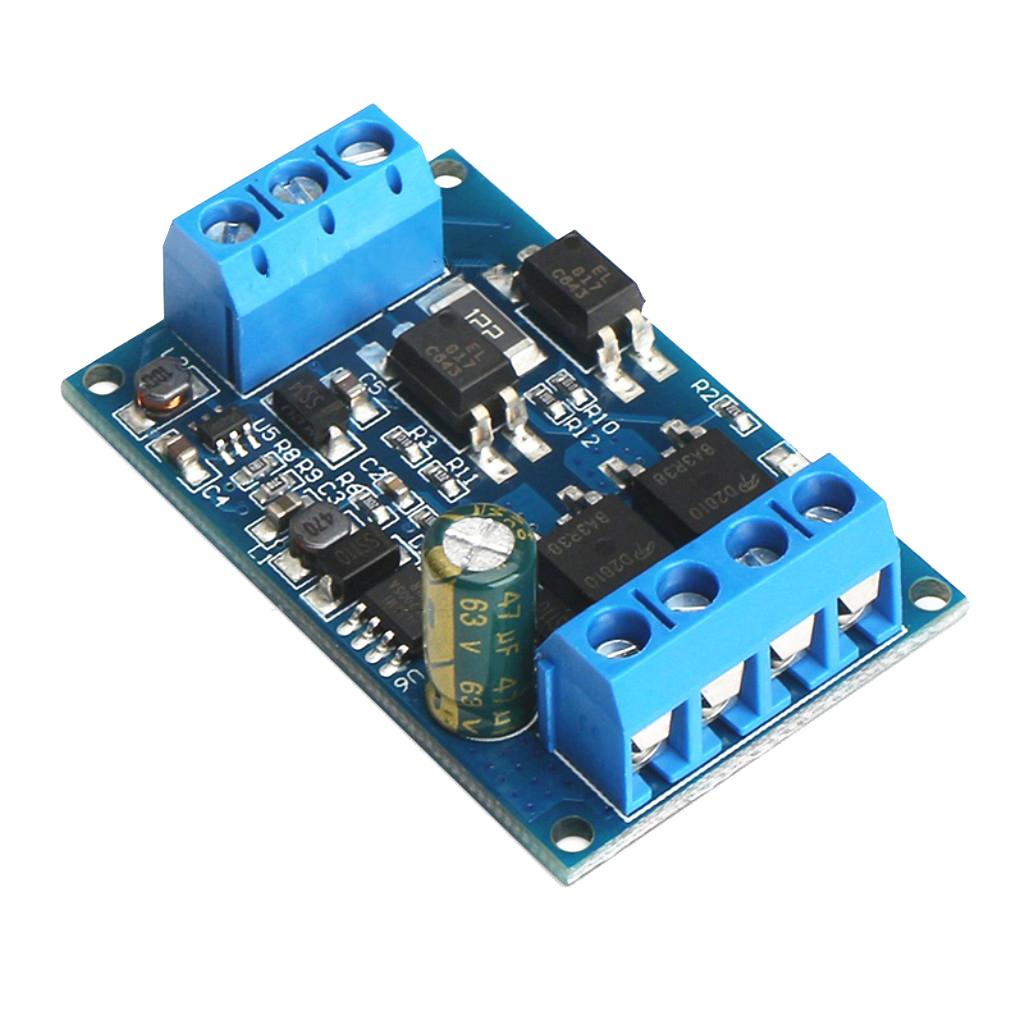

High power MOS field effect tube trigger switch driver module PWM regulating electronic switch panel.
Adopts imported large power dual-mos transistor parallel active output, lower resistance, higher current and strong power.
Perfect support PWM signal: the PWM controller can access PWM signal, which can perfectly supported the frequency of 0-2.5khz.
This motor control module can tolerate wide input Voltage (DC 5-36v) it can be applied in various high power equipments,
Applications: motor,lamp bulb,LED lamp strip, micro water pump etc.

Specification:

Operating Voltage:DC 4V-60V

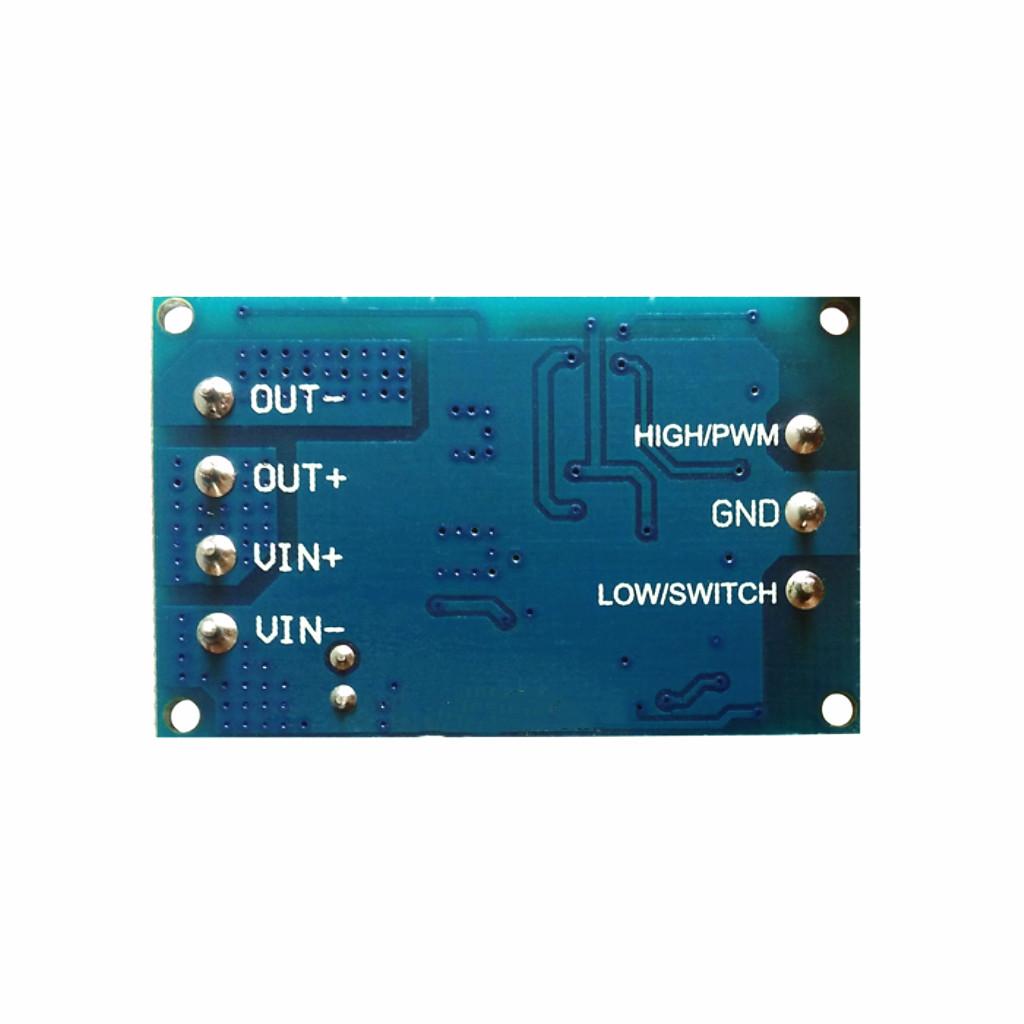

Trigger Signal Source: digital high/low level (DC 3.3-20V),can connect with MCU IO port, PLC interface, DC power etc; can connect with PWM signal; support signal frequency 0--2.5KHz.
Output Power: DC 4v-60v, room temperature sustained current 15A, power 400W! Auxiliary cooling conditions, the maximum current can be up to 30A.
Operating Temperature: -40~85 Celsius

Package Includes:

1 Piece MOS FET Trigger Switch Drive Module
