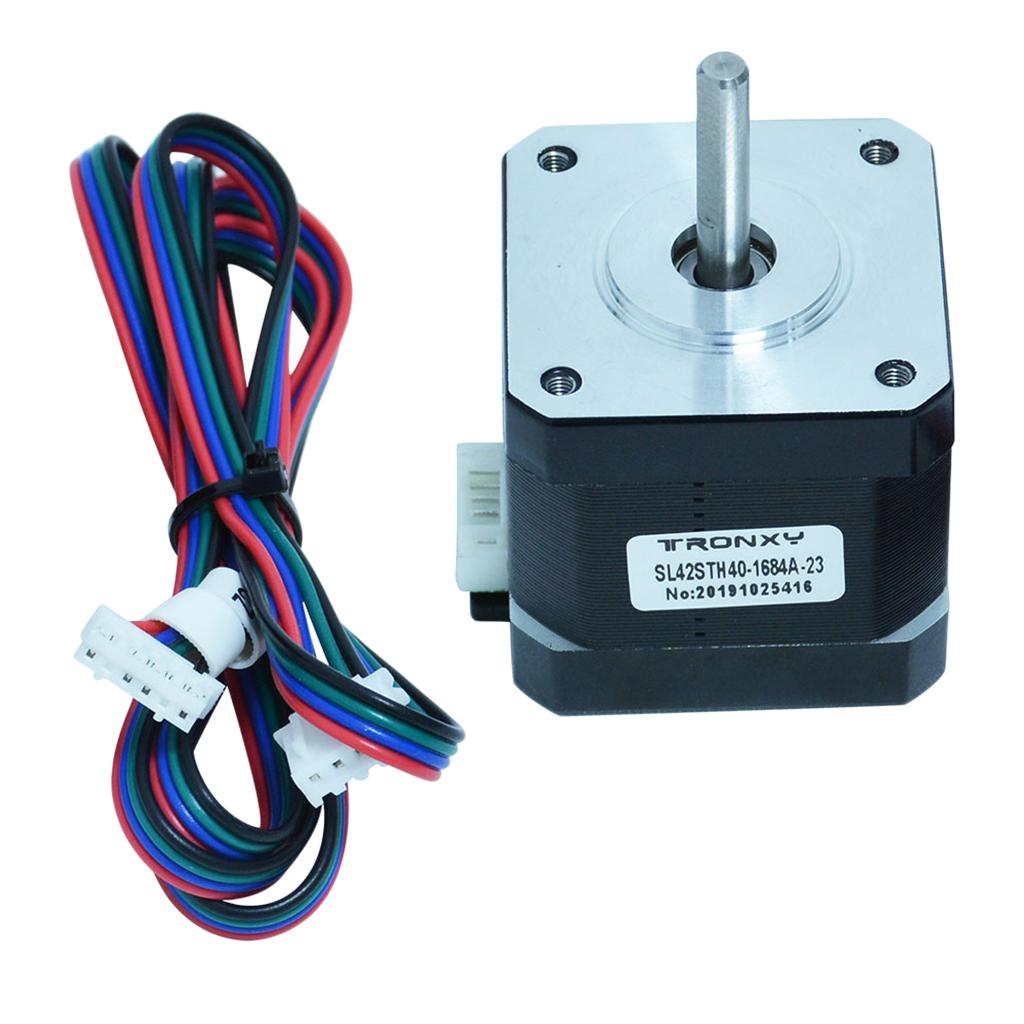

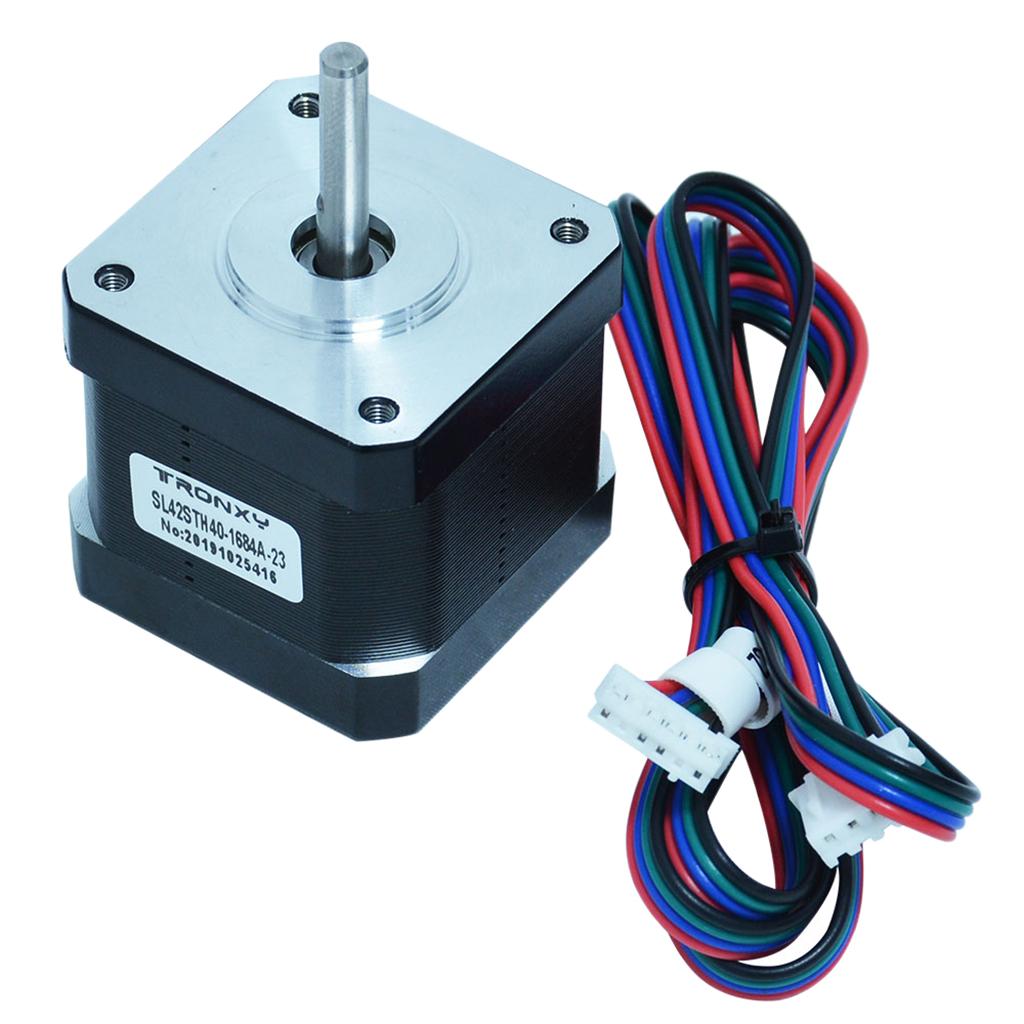

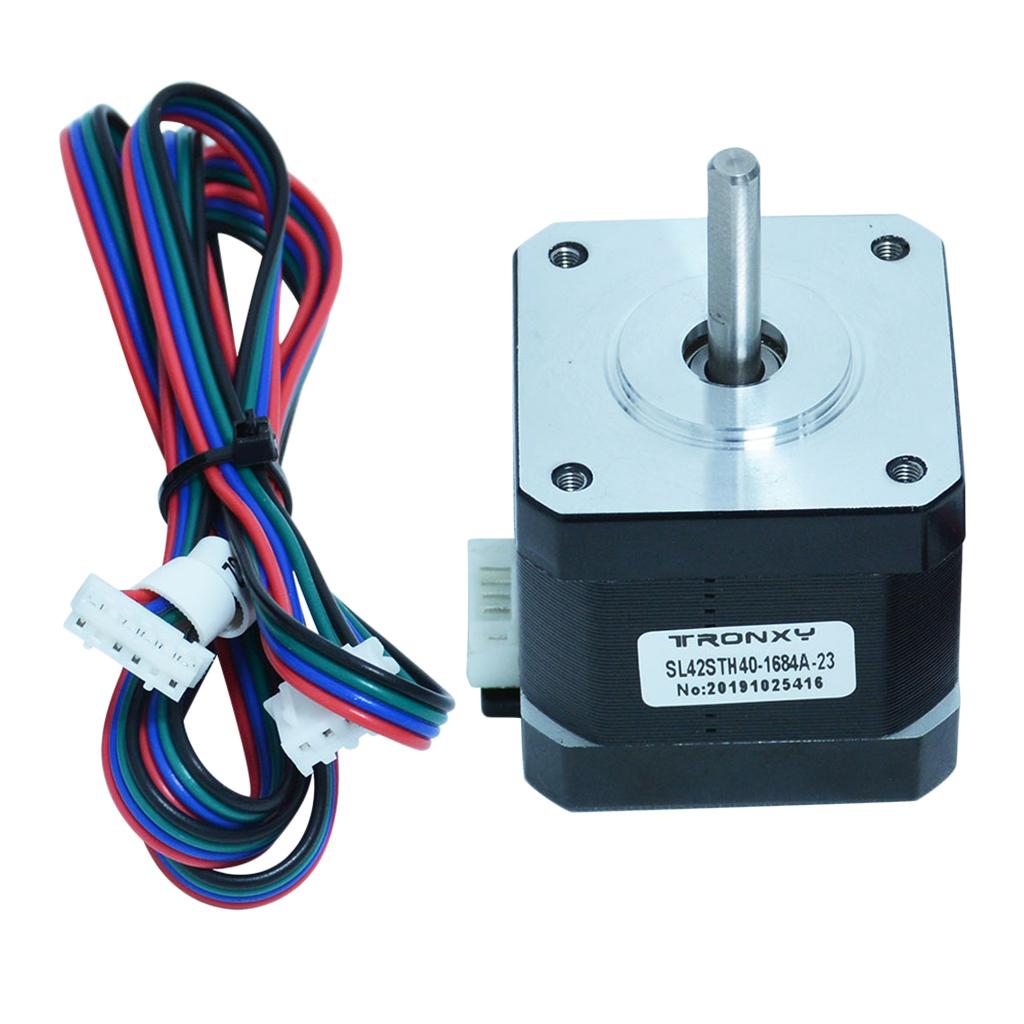

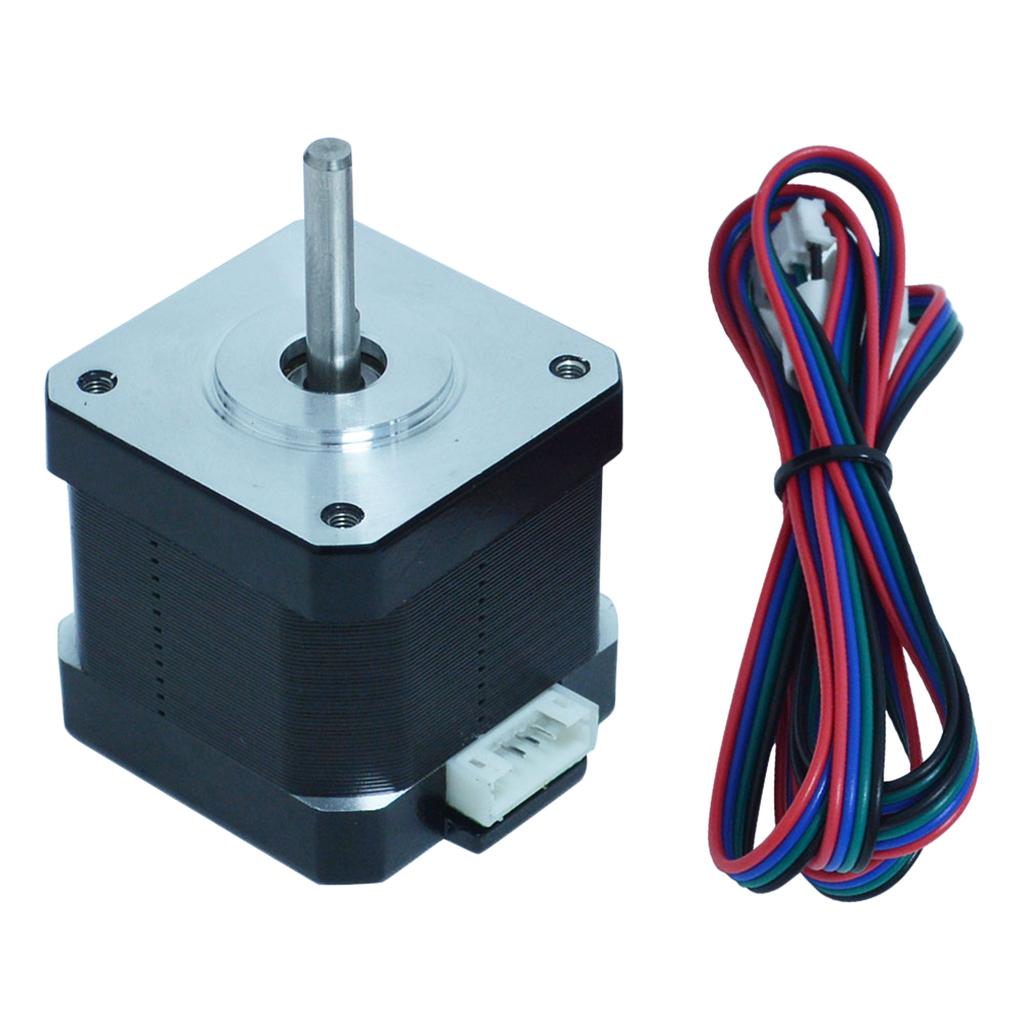

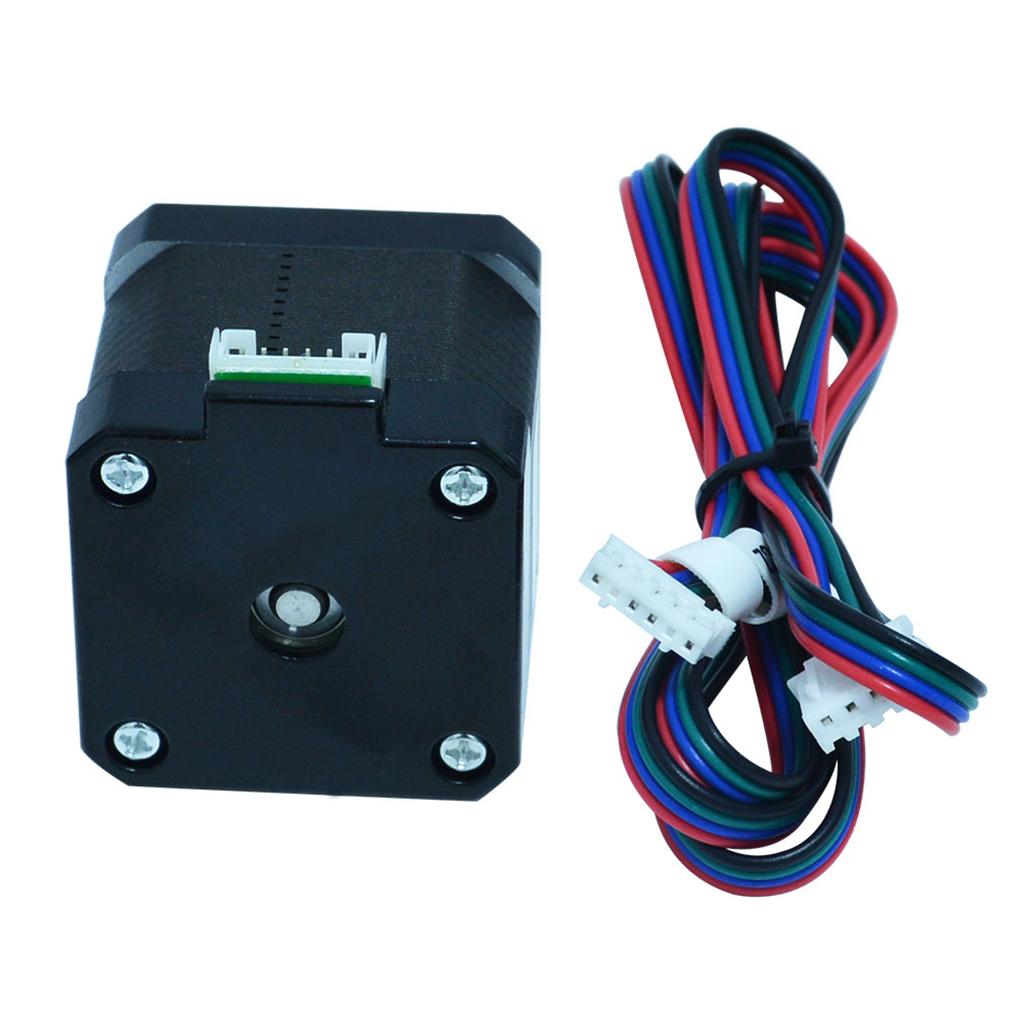

Moteur Pas à Pas Nema 17 Sl42sth40-1684a 40mm 1.8A 78oz 4 Plomb Pour Imprimante 3D

Regular price
Rs. 1,689.60
Regular price
Sale price
Rs. 1,689.60
Earn 844 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63005077
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Wire one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled up
Electrical machine with high-torque, high-speed, low noise
Drive mode: Chopping wave constant current drive
Exciting mode: Two-phase 4-wire. It is available for rotation of forward and reverse
Insulation resistance: Cold insulation resistance should be more than 100mΩ (between the Motor stator core and Terminal)
Dielectric strength: The space between the Motor stator core and Terminal should be able to withstand AC 500V/1s without breaking down. Leakage current is less than 1mA

Specification:

Operating Conditions: Environment Temperature: -20~50℃
Mounting Position: Axis horizontal or vertical installation
Direct-current winding resistance (25℃): 2.1Ω±10%
Temperature rise:<80K
Step Angle Accuracy: 1.8°± 5%
Motor Weight: 0.28Kg/PC REF
Rated current (one-phase): 1.7A DC
Rated voltage: 3.57V
Size: Approx. 40 x 40 x 37mm

Cable length: Approx. 60cm

Package Includes:

1x Stepping motor
1x Cable
