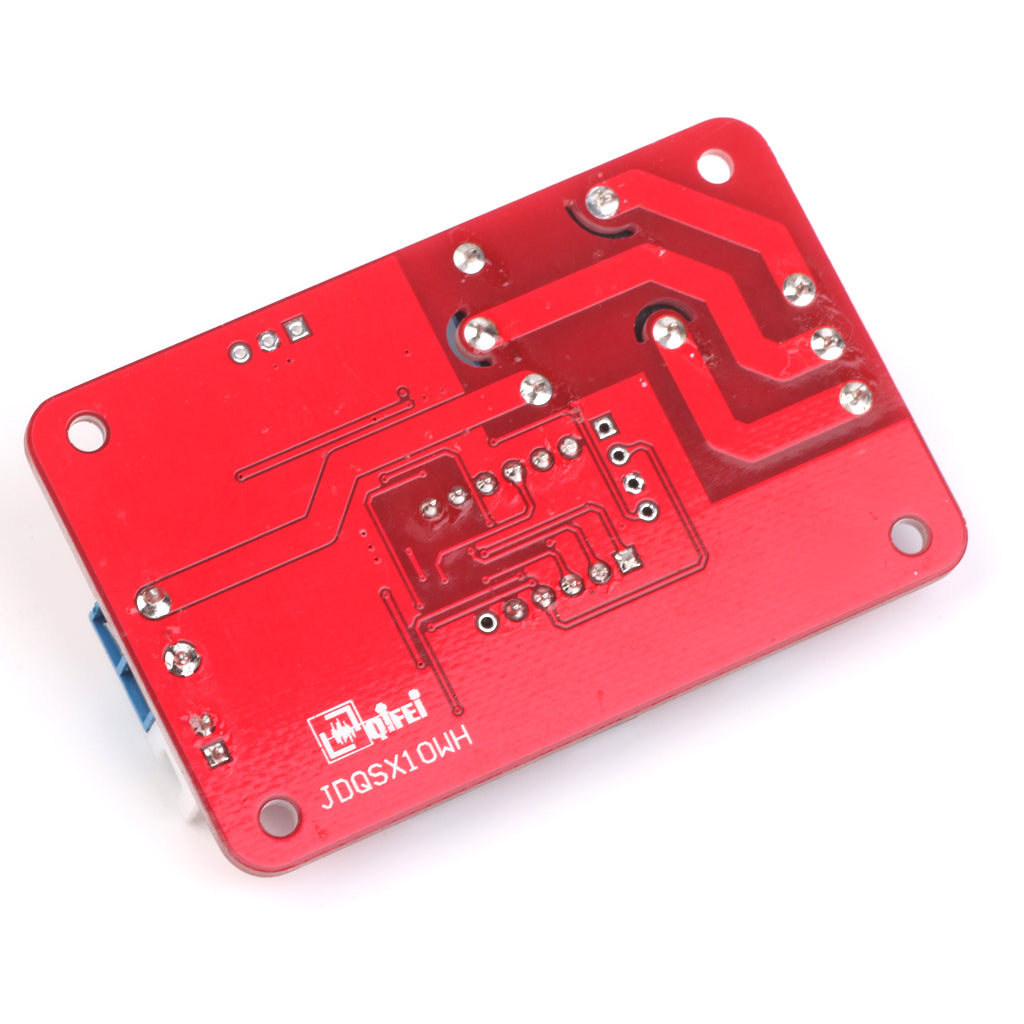

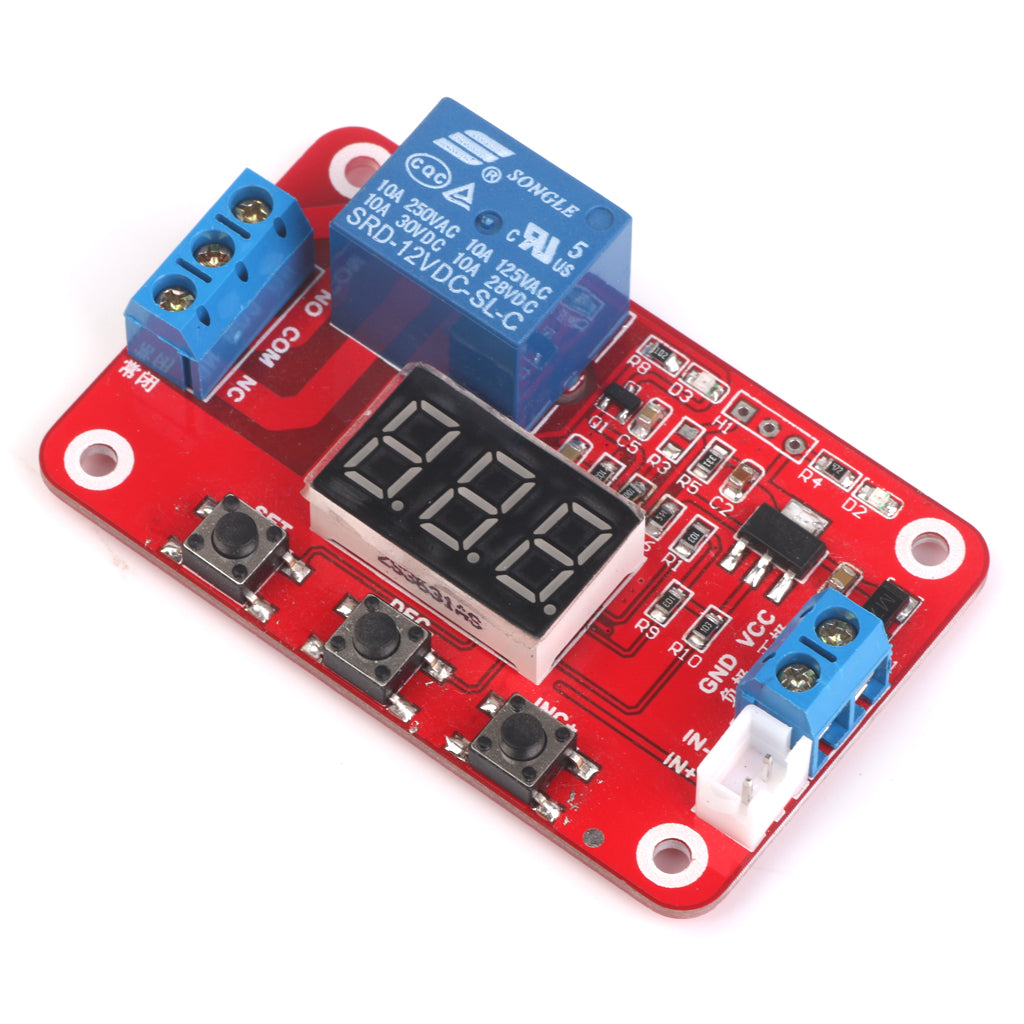

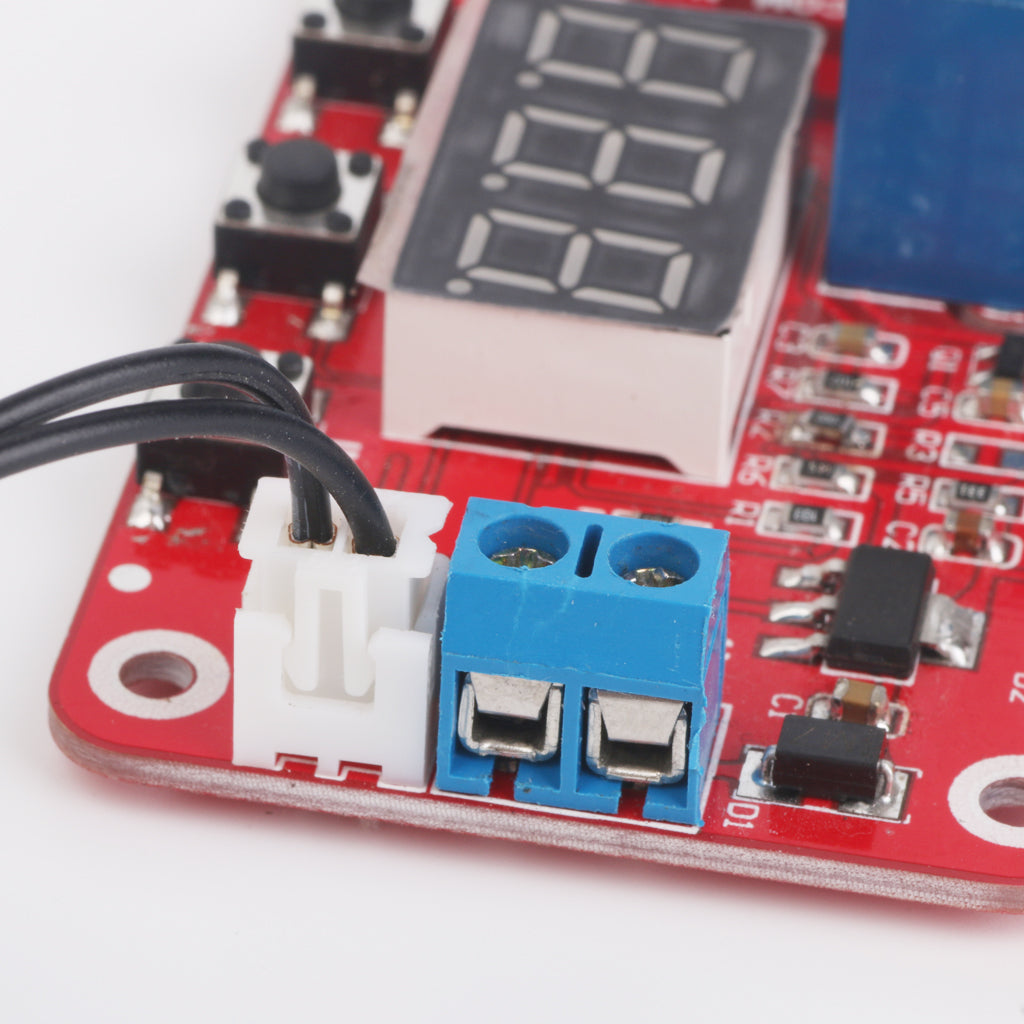

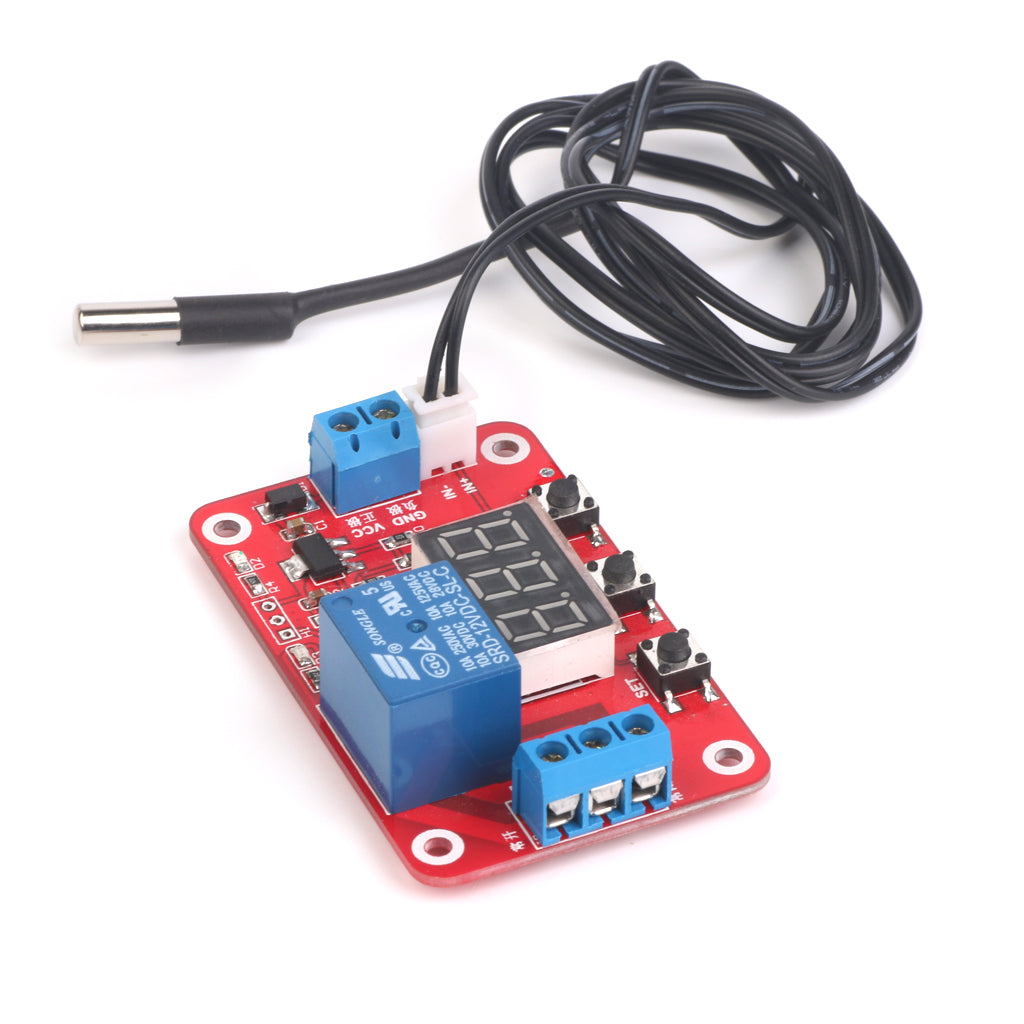

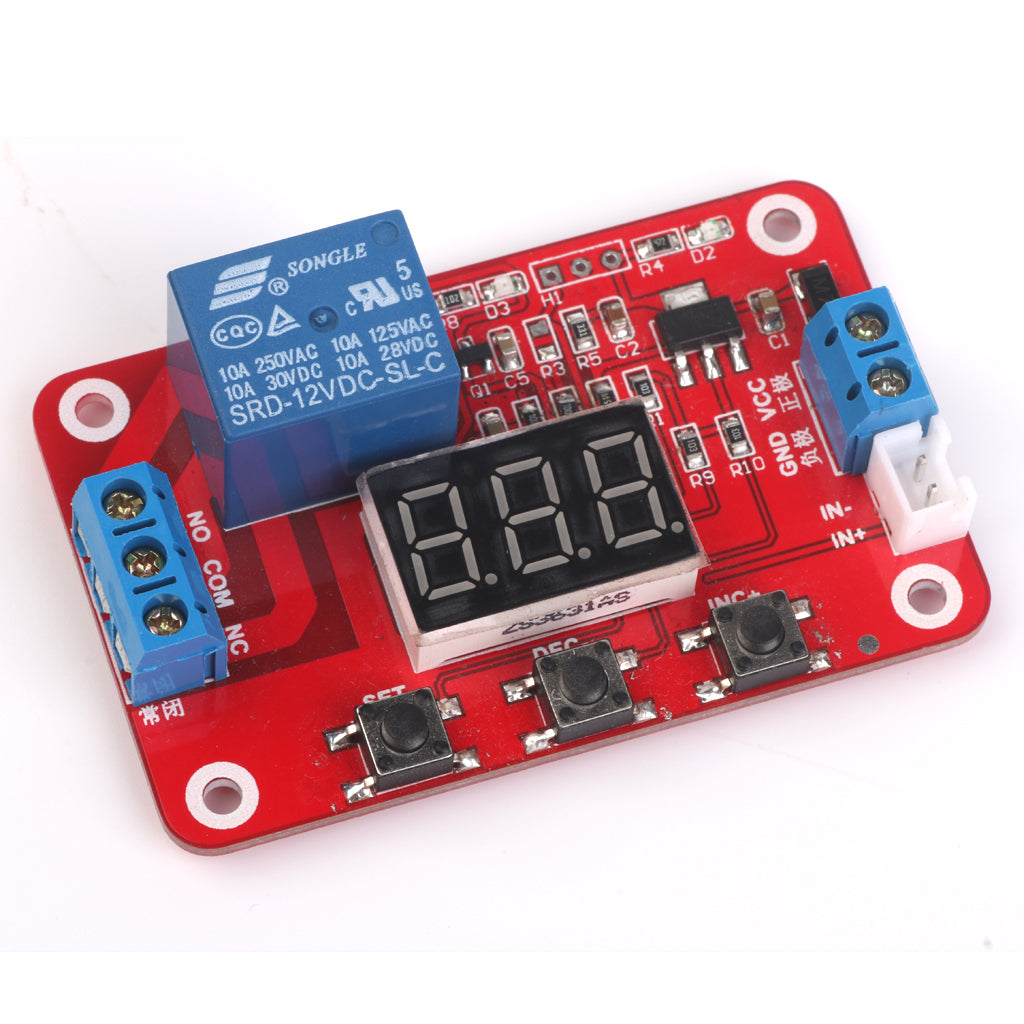

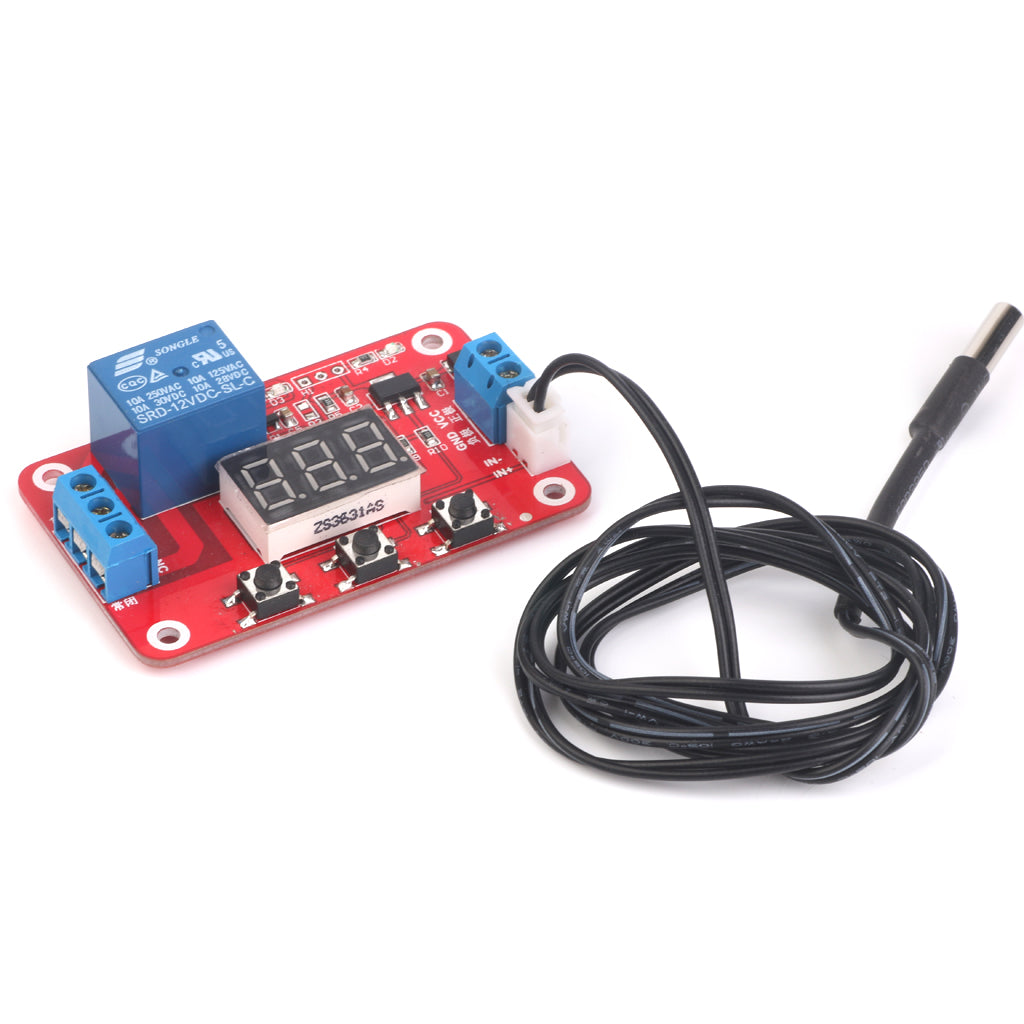

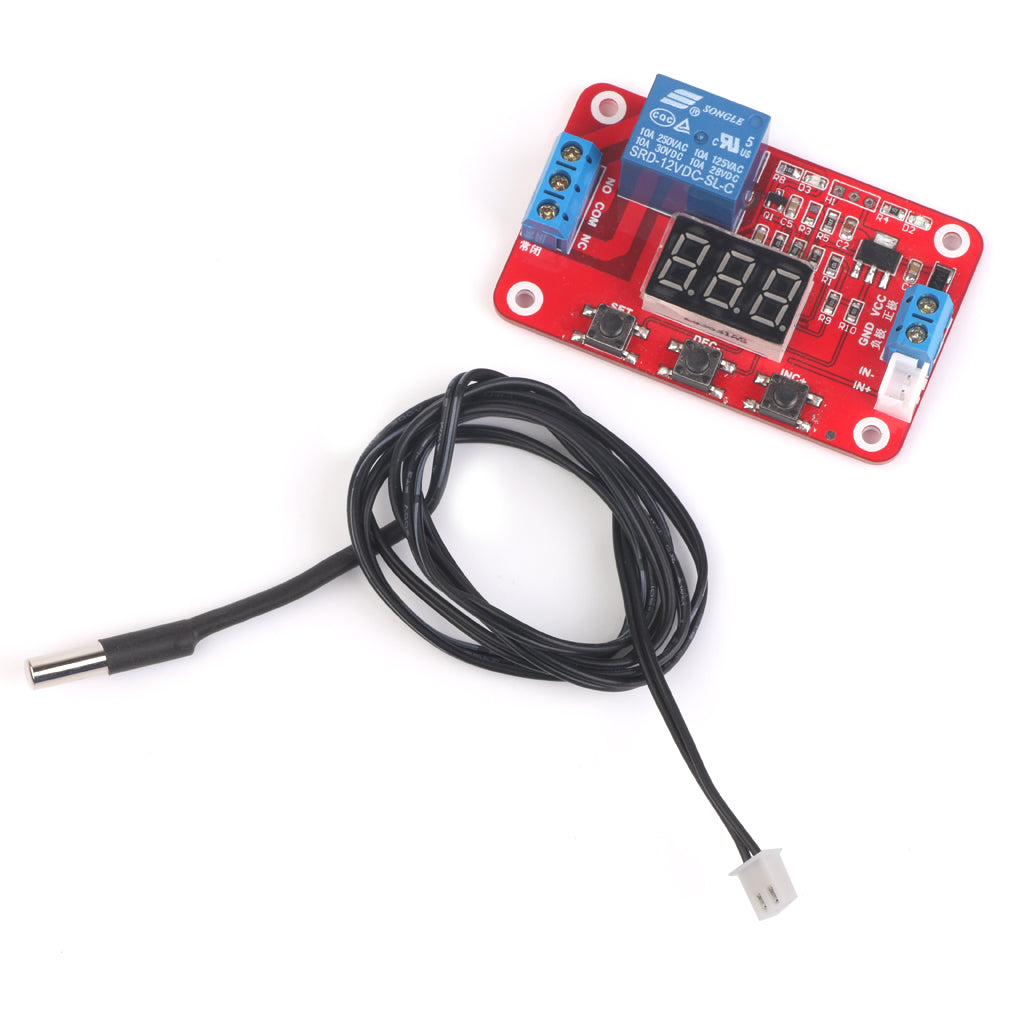

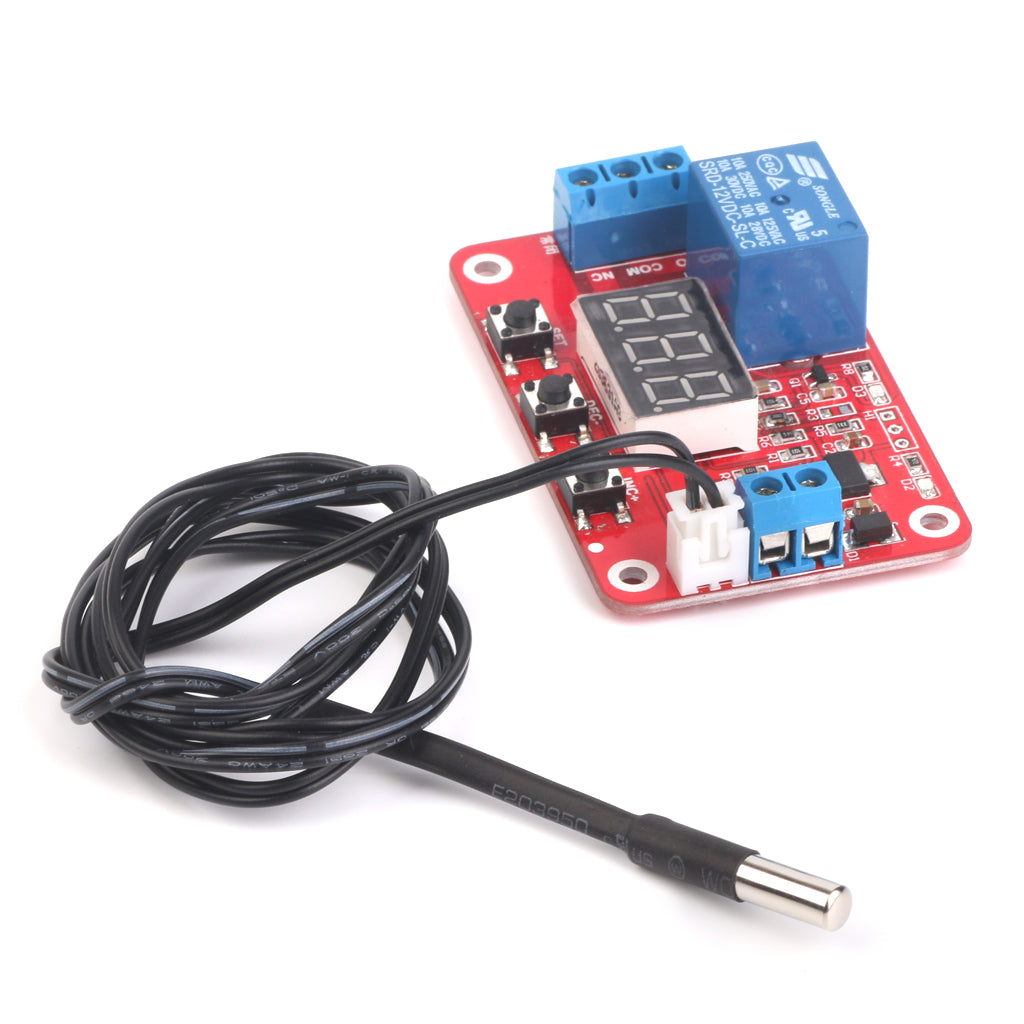

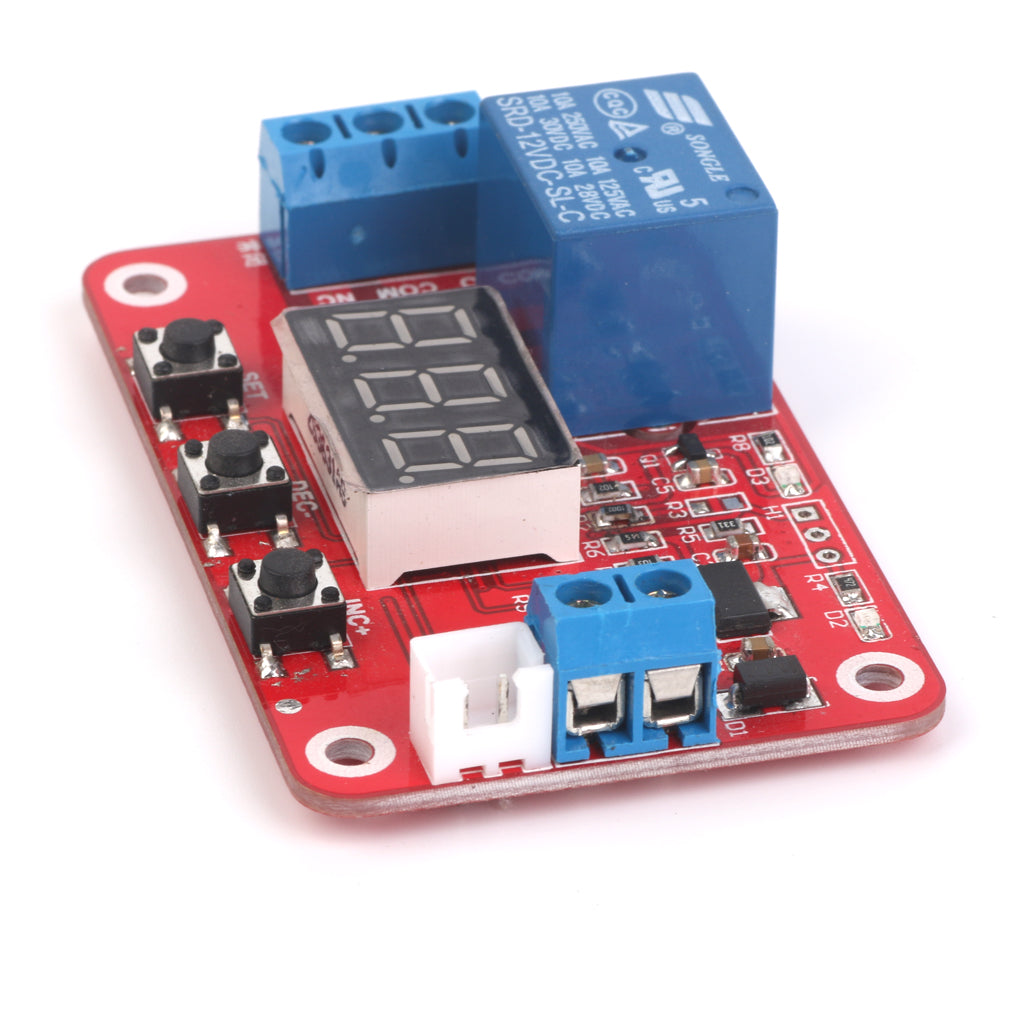

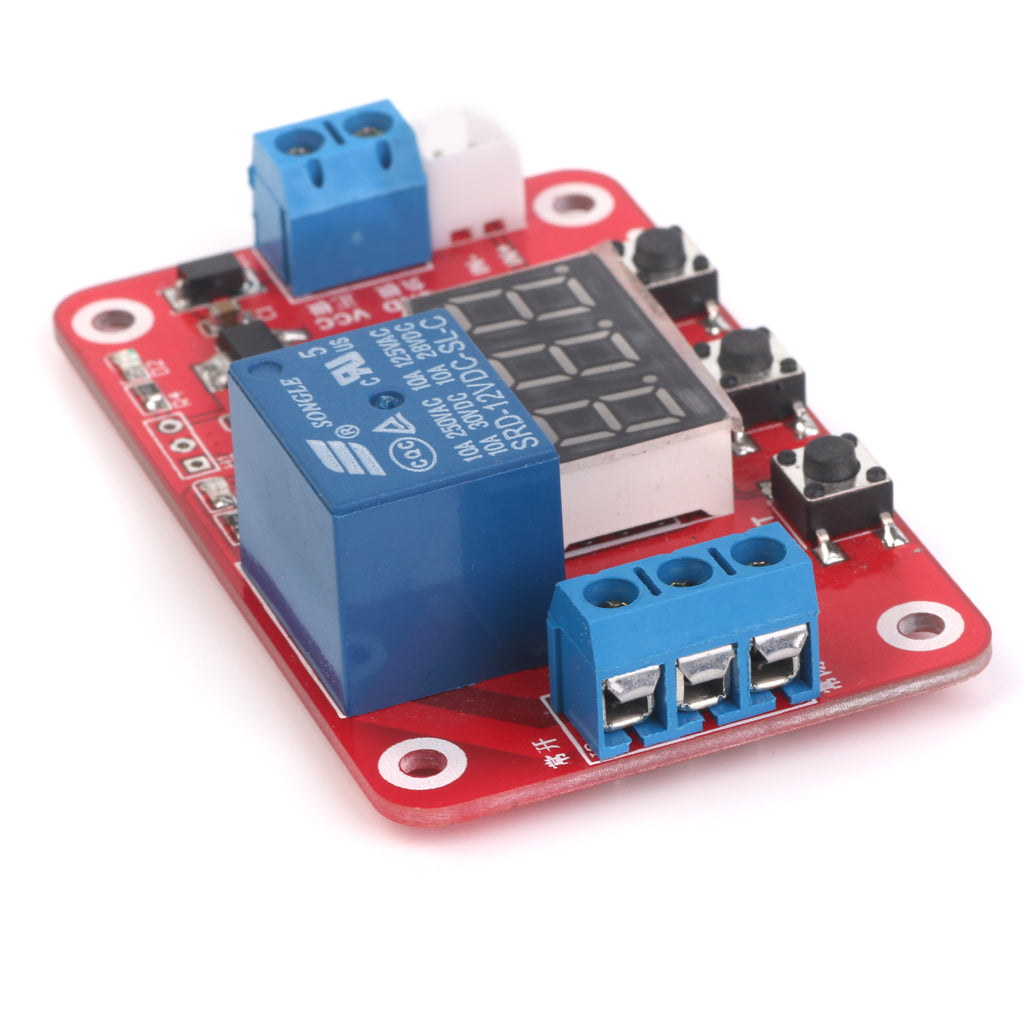

DC 12V Temperature Display Module Sensor Relay Switch Control

Regular price
Rs. 655.39
Regular price
Sale price
Rs. 655.39
Earn 327 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14012510
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

  • SCM control, intelligentize, easy operation, low power consumption
  • Outage setting, automatic memory
  • Control accuracy 0.1 ℃
  • Size: Approx. 67 x 42 x 18mm / 2.64 x 1.65 x 0.71 inch
  • Patch cord length: Approx. 1M / 39.37 inch, 2 pin port
  • Technical parameters:
  • Temperature control range: -20-100℃
  • Resolution ratio: -9.9~99.9: 0.1℃,  other temperature is 1℃
  • Temperature measurement accuracy: 0.1 ℃
  • Control accuracy: 0.1 ℃
  • Return difference accuracy: 0.1 ℃
  • Refresh rate: 0.5 S
  • Input power supply: DC 5V, DC 12V, DC 24V
  • Measuring inputs: NTC(10K 0.5%)waterproof sensor
  • Output: 1 channel relay output, capacity =20A 125VAC,20A 14VDC
  • Environmental requirement: -10~60℃, humidity: 20%-85%
  • Size: Approx. 48.5 x 40mm / 1.9 x 1.5 inch
  • Overall power consumption: Quiescent current: ≤10MA, operating current ≤65MA
  • Indicator light direction: Flash shows start-up delay of refrigeration or heating, keep lighting shows the relay has closed
  • Nixie tube: LL state shows open for sensor; please connect the sensor base on instruction, HH state shows exceed measurement range, temperature controller would peremptory turn off the relay, --- state shows high temperature alarm

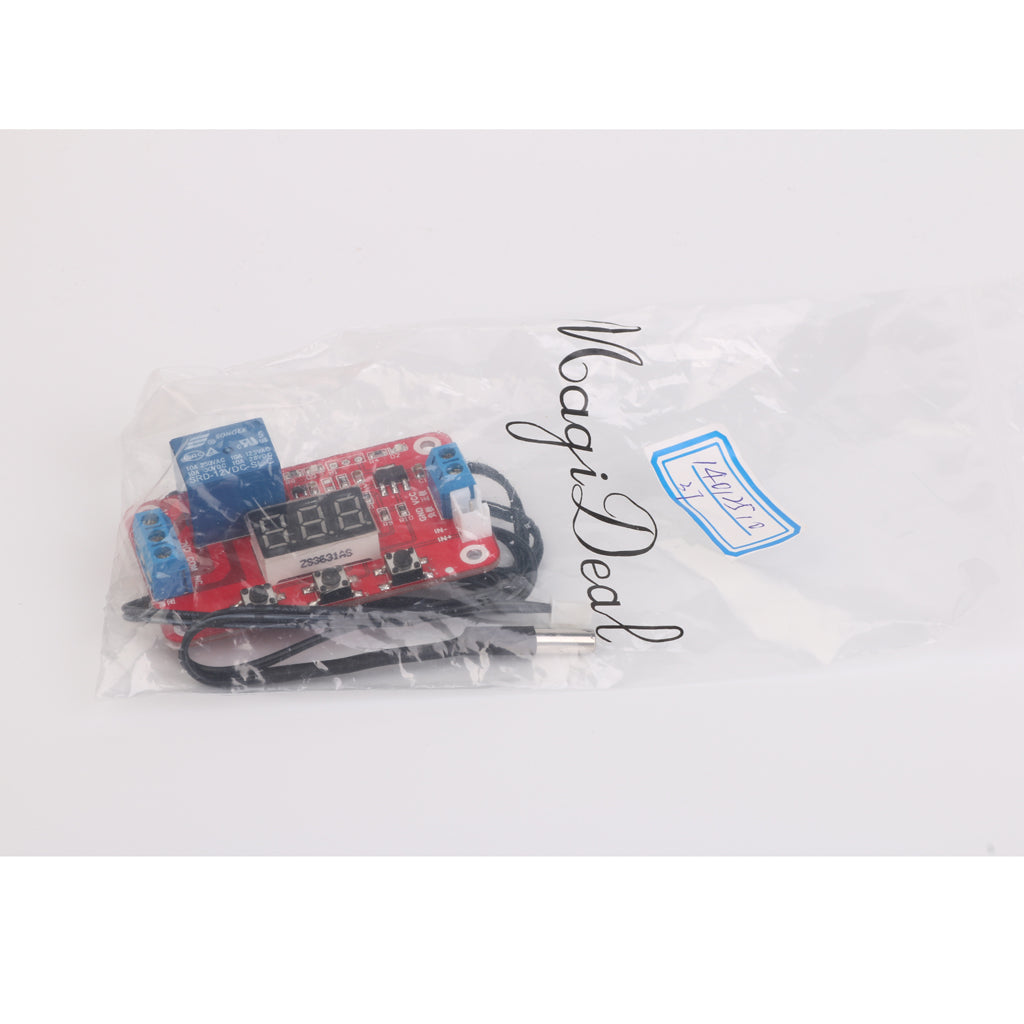

Package Includes:

  • 1 x Temperature display module
