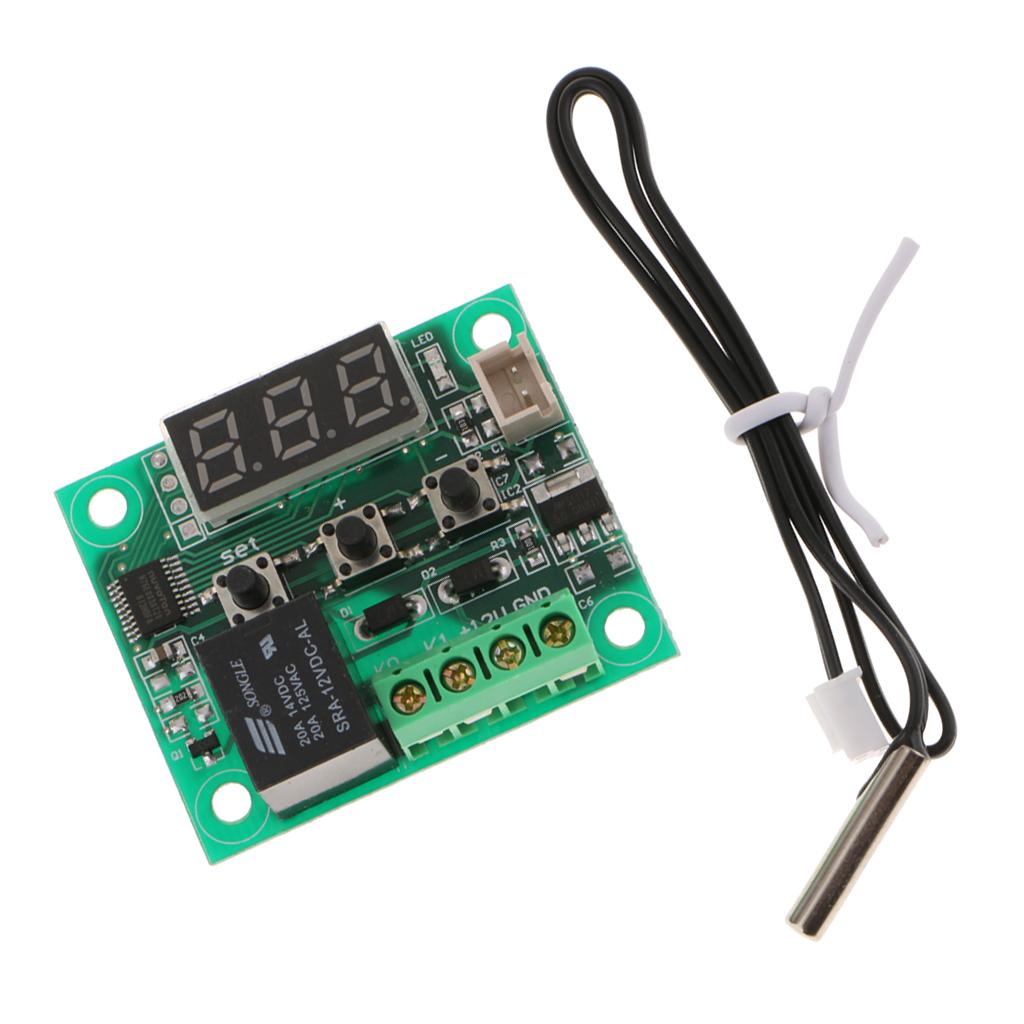

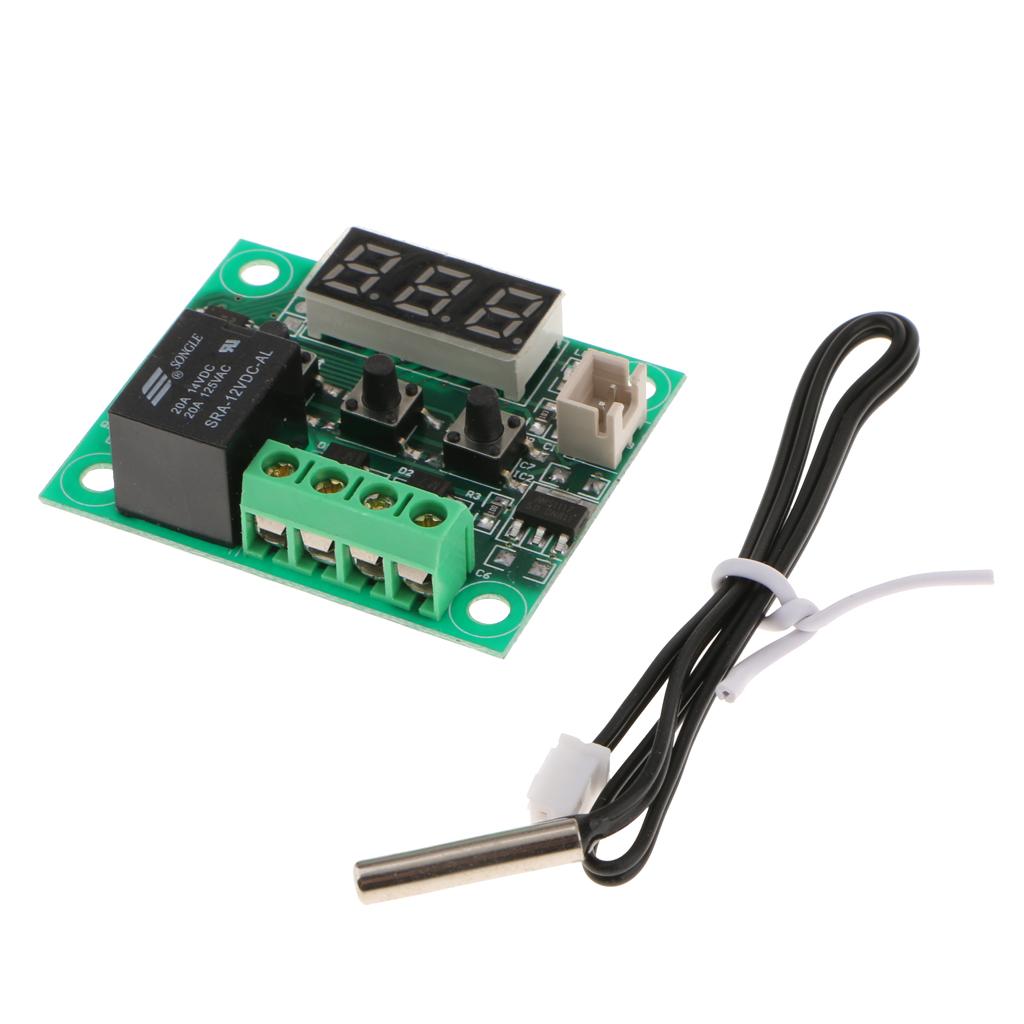

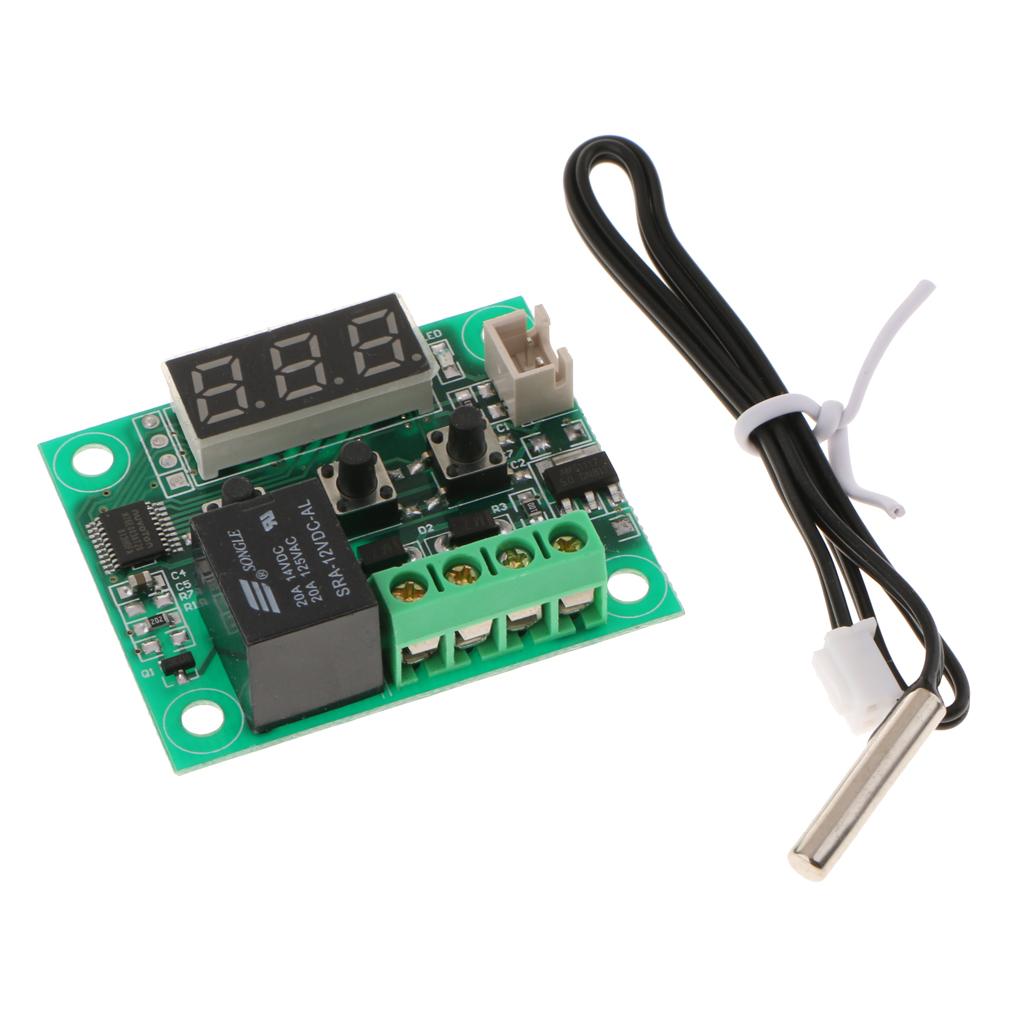

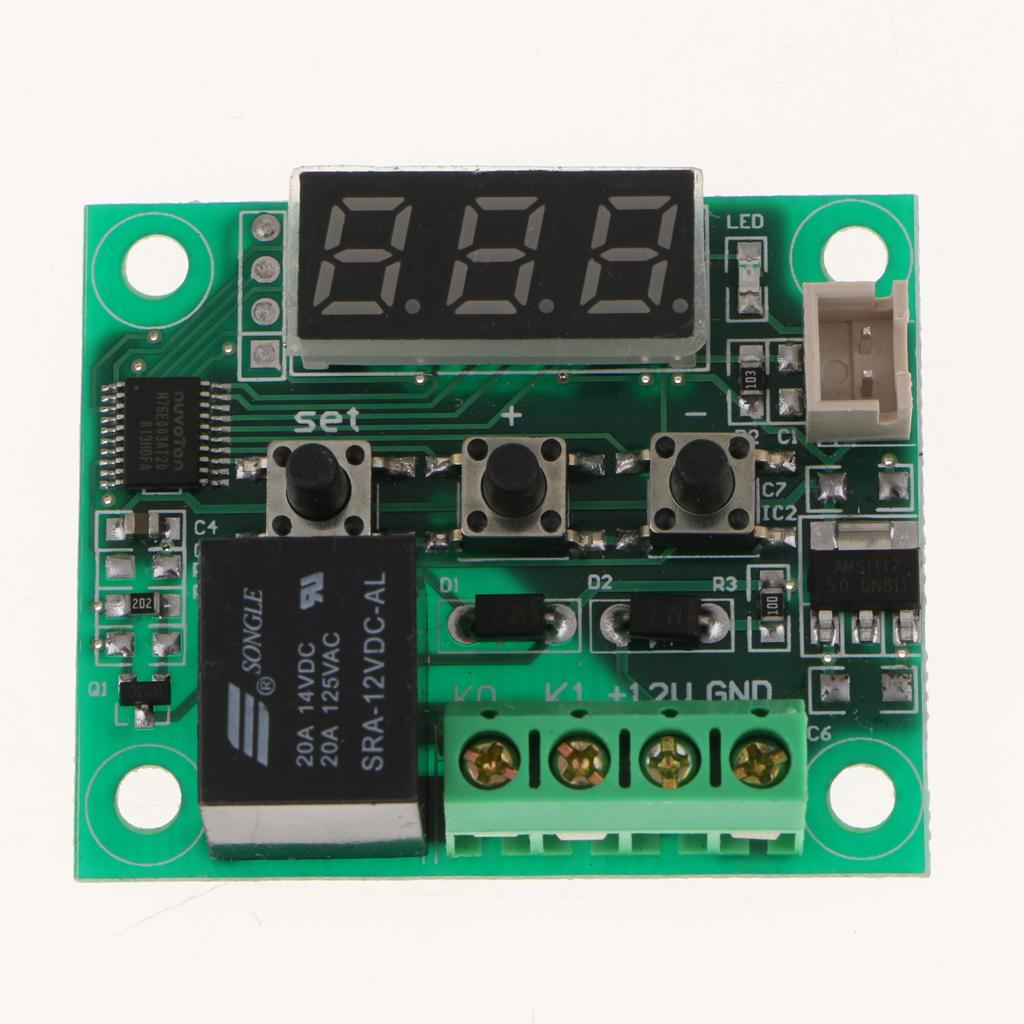

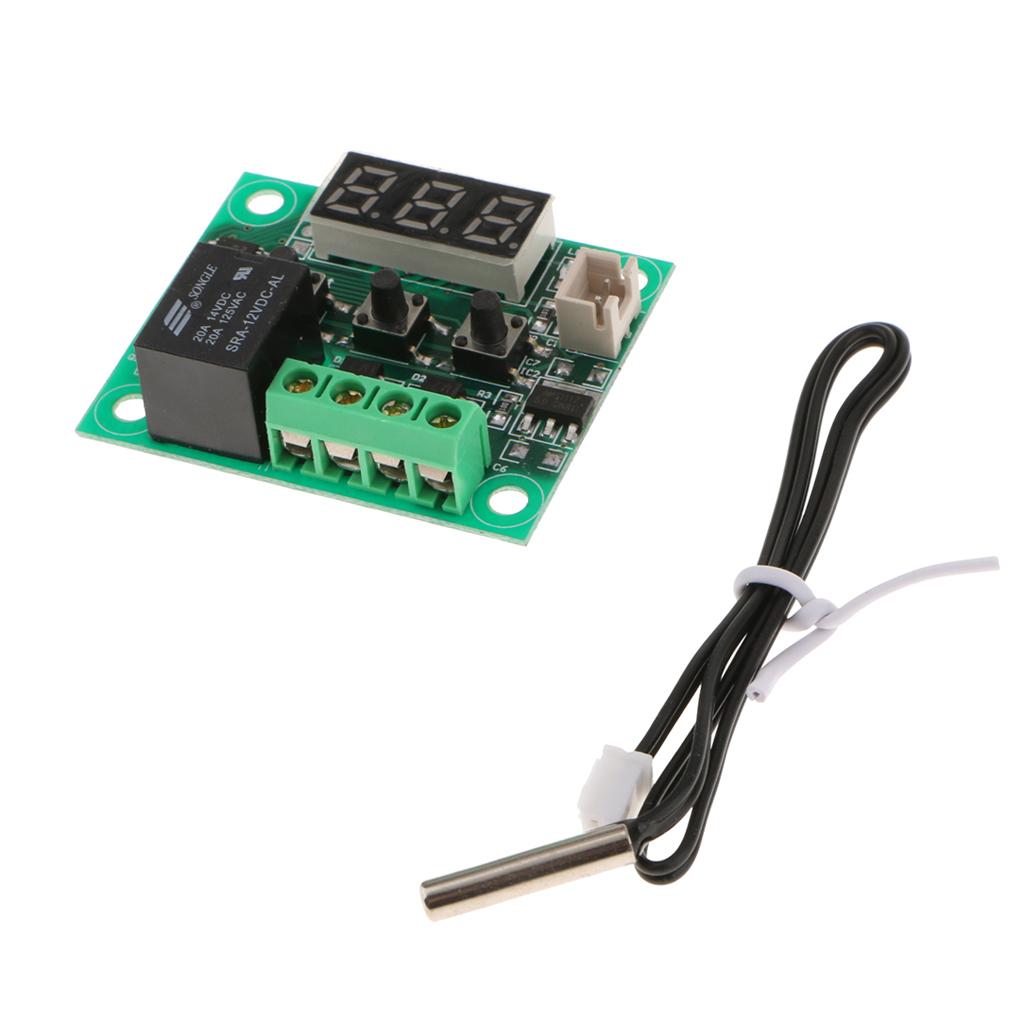

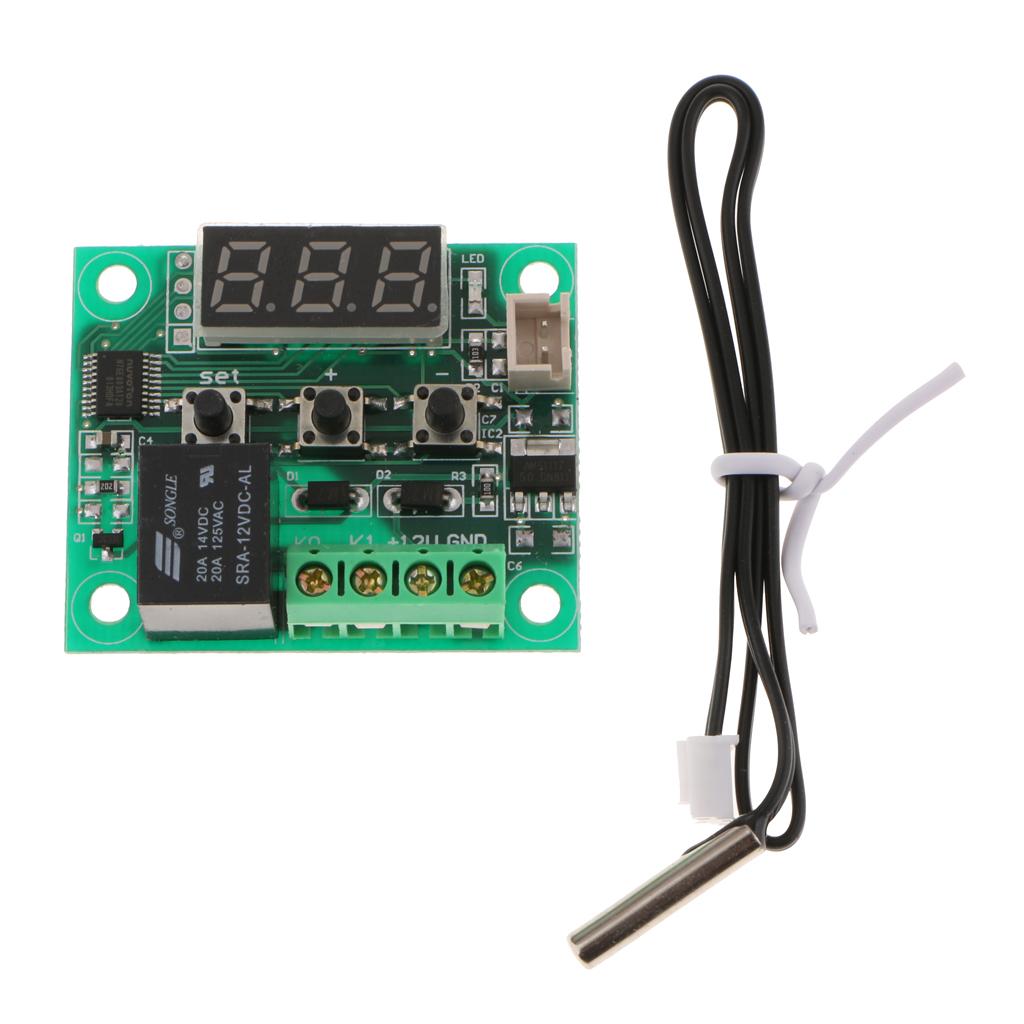

-50-110 ℃ 12V Digital Thermostat Cooling/Heating Temp Control Switch Sensor Module

Regular price
Rs. 604.71
Regular price
Sale price
Rs. 604.71
Earn 302 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73005767
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

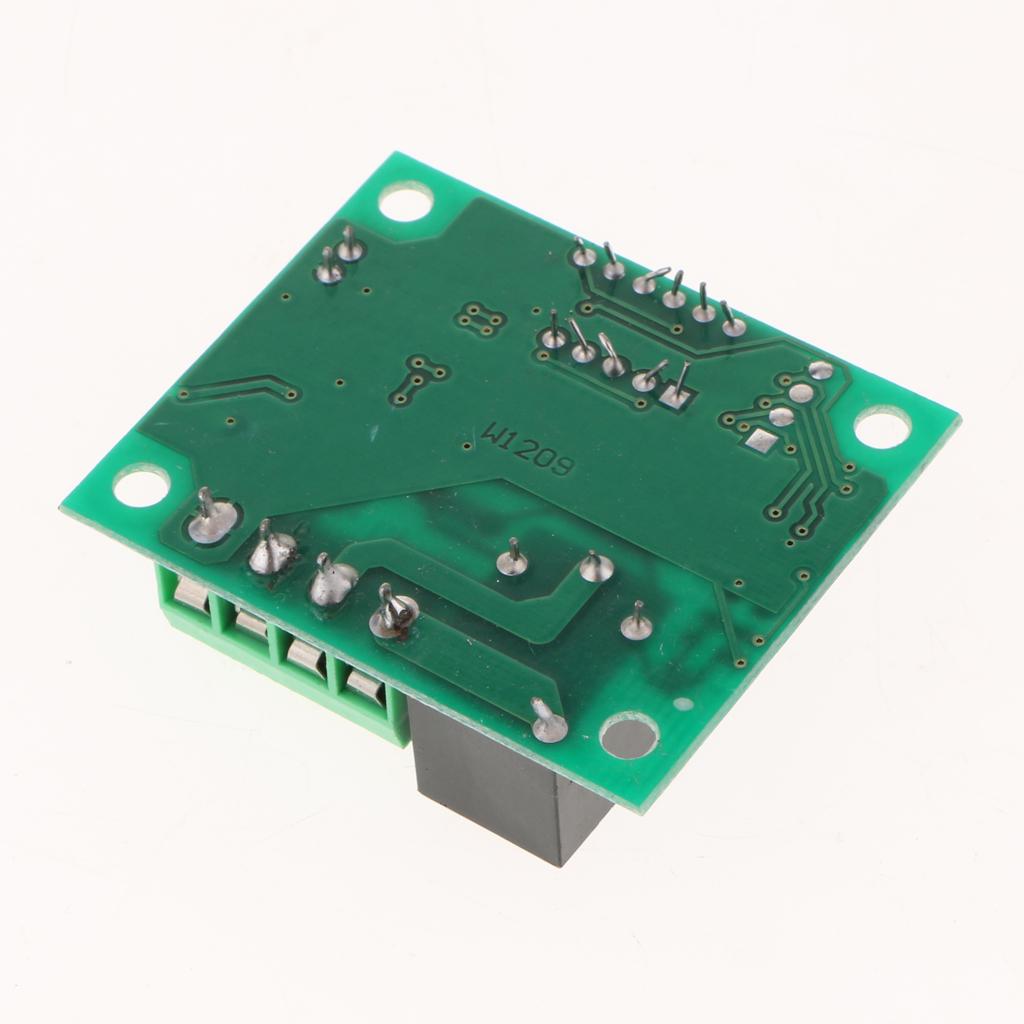

Model:W1209
Dimensions: 48.5 x 40mm
Temperature Control mode: ON/OFF
Temperature Range:-50-110 degree centigrade
Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.
Control Accuracy: 0.1 degree
Hysteresis Accuracy: 0.1 degree
Refresh Rate: 0.5s
High Temperature Protection 0-110 degree centigrade
Supply Voltage: DC 12V
Static Current: Less than 35MA, attract current less than 65MA
Output Voltage: DC 12V
Output Power: 20A relay

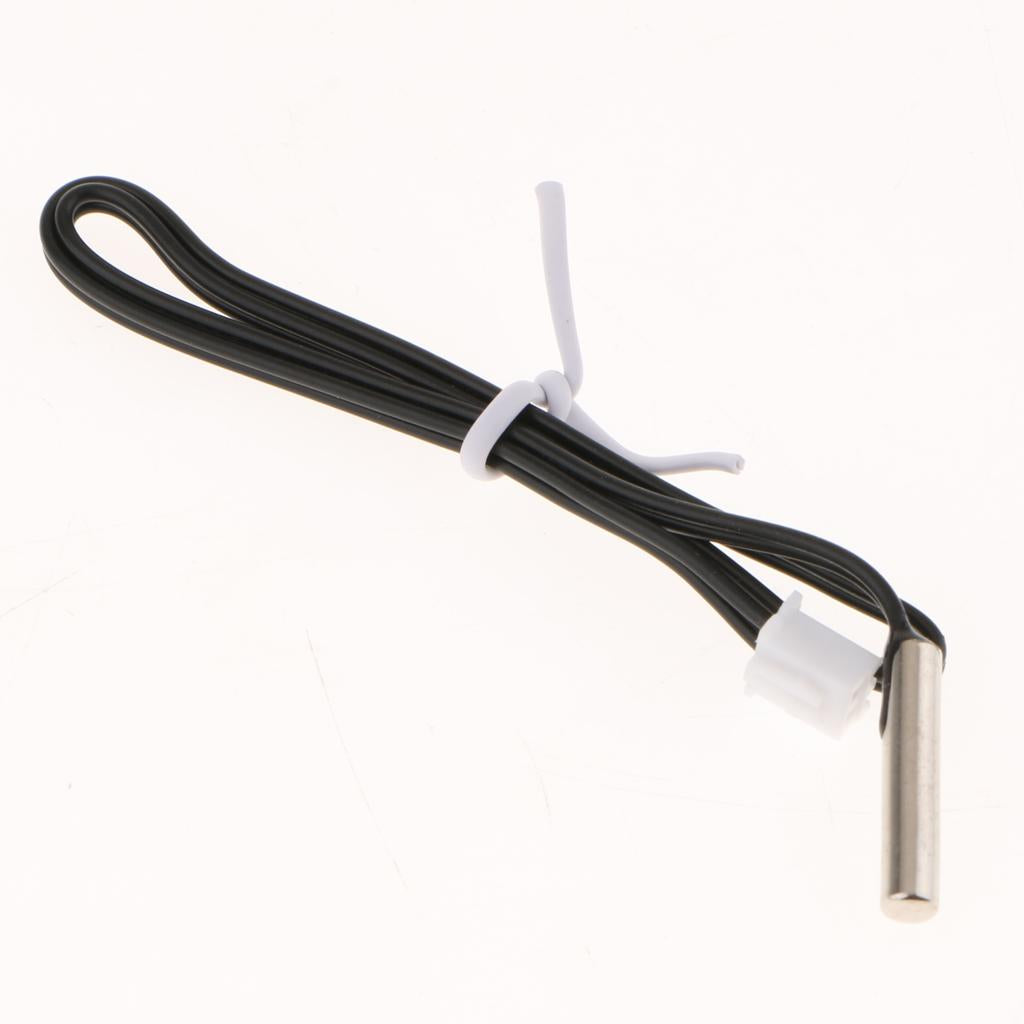

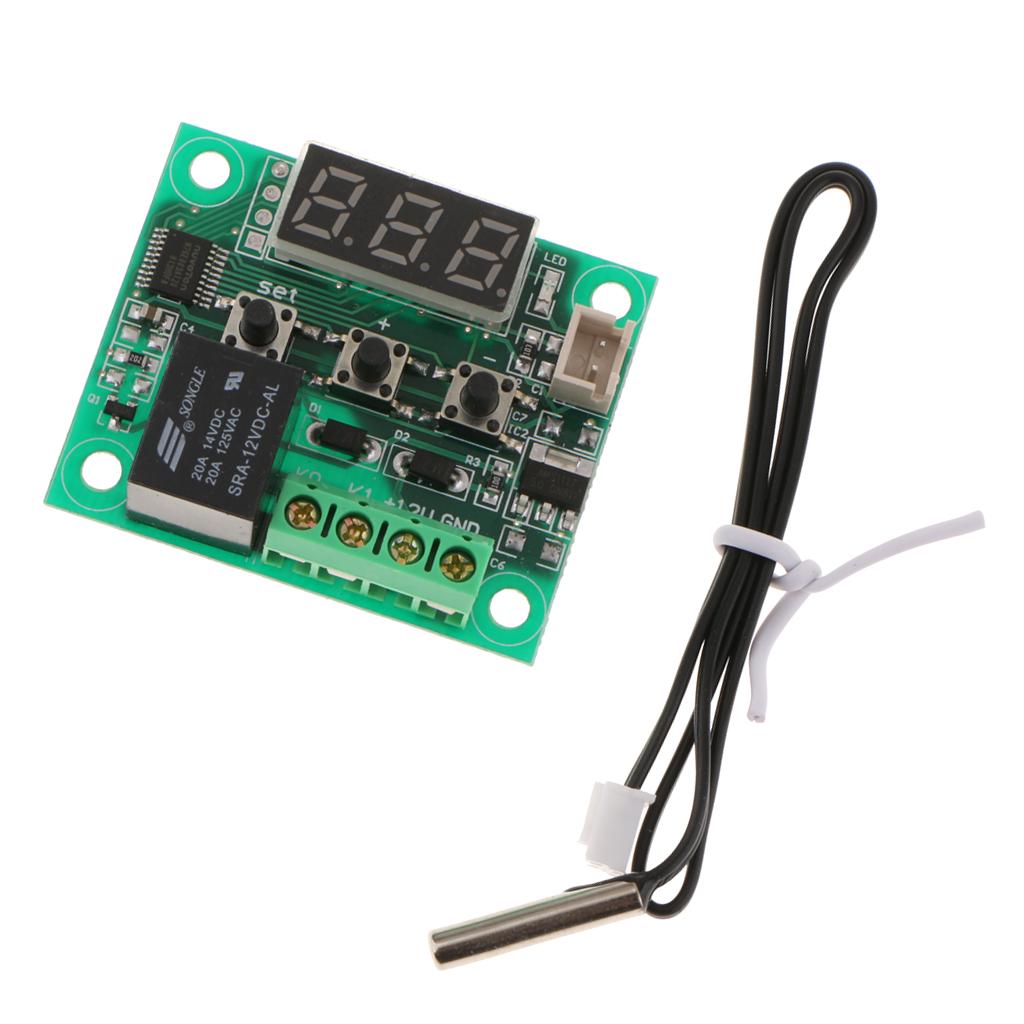

Measurement Input: NTC (10K 0.5%) Waterproof Sensor
Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%

Specification:

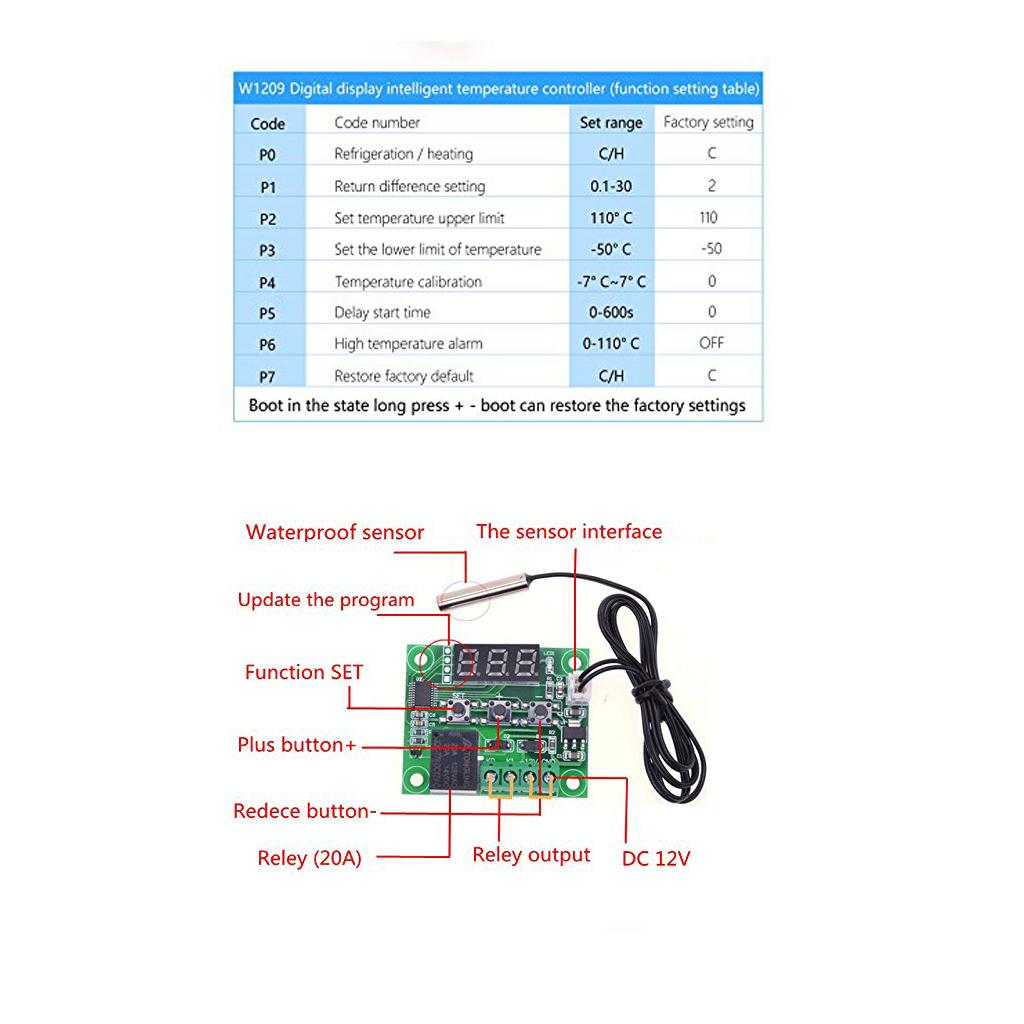

How to use

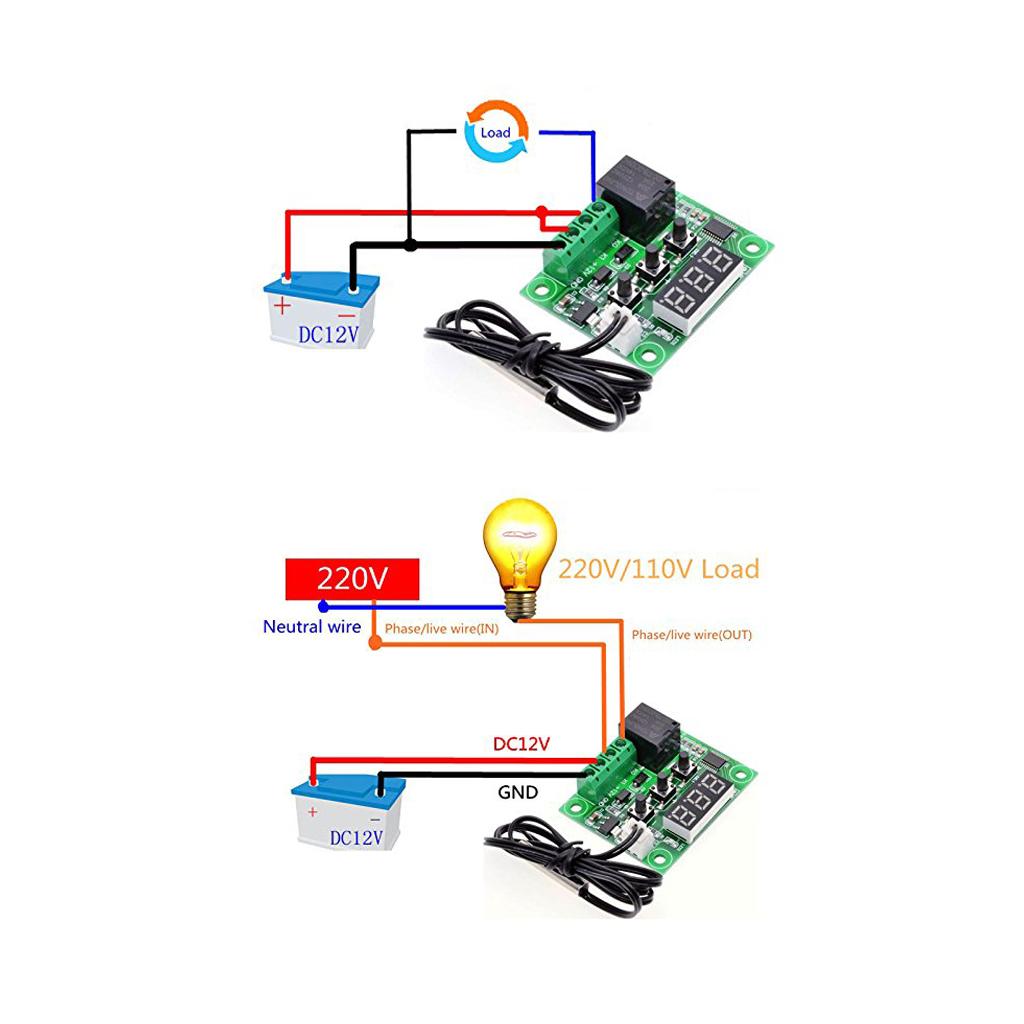

Connect the power supply and the load, you can supply to the controller
It displayed as a measured temperature
Press the SET button, the display flashes the temperature
Press - to set the desired temperature
After setting press SET to confirm return
The controller automatically performs the relay by setting off

Lights, LED status descriptions
Indicator: Off The relay is switched off, Always indicate the relay is closed
LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display -as high temperature protection

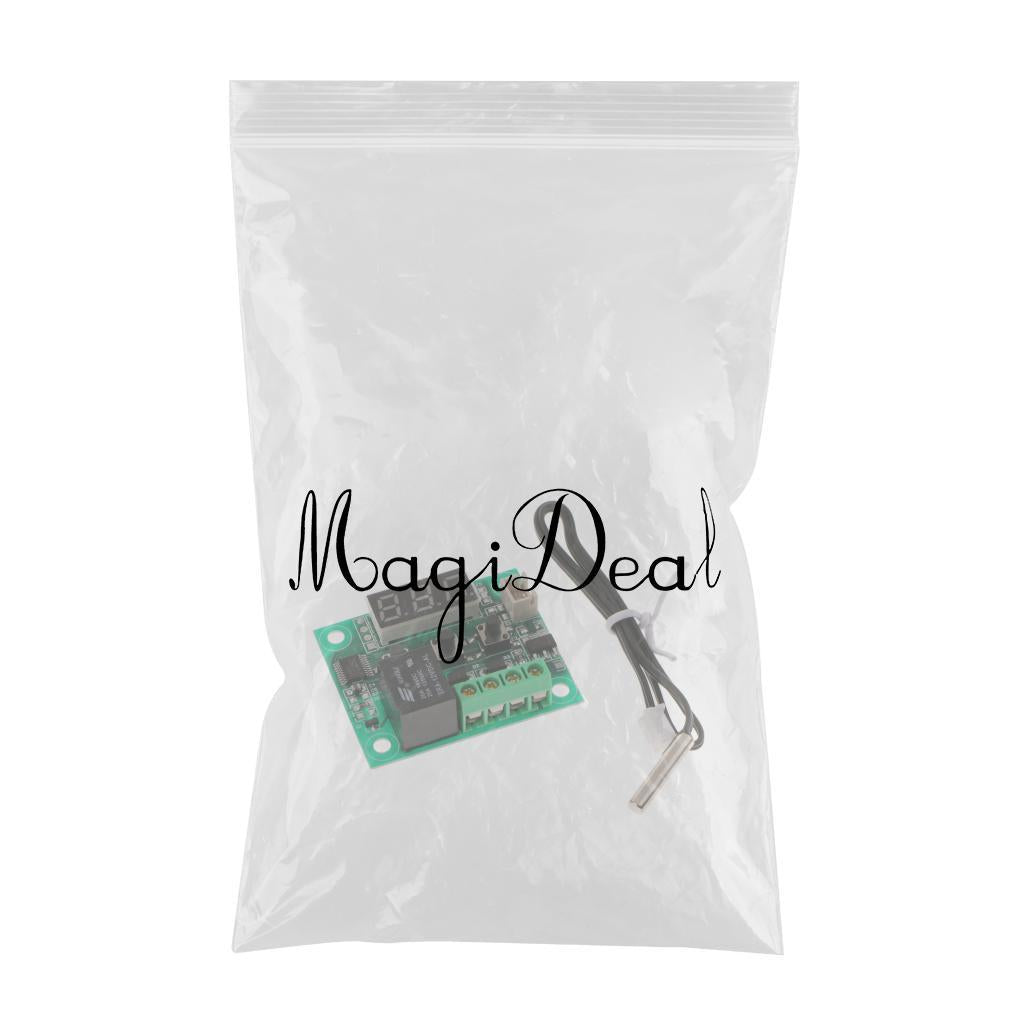

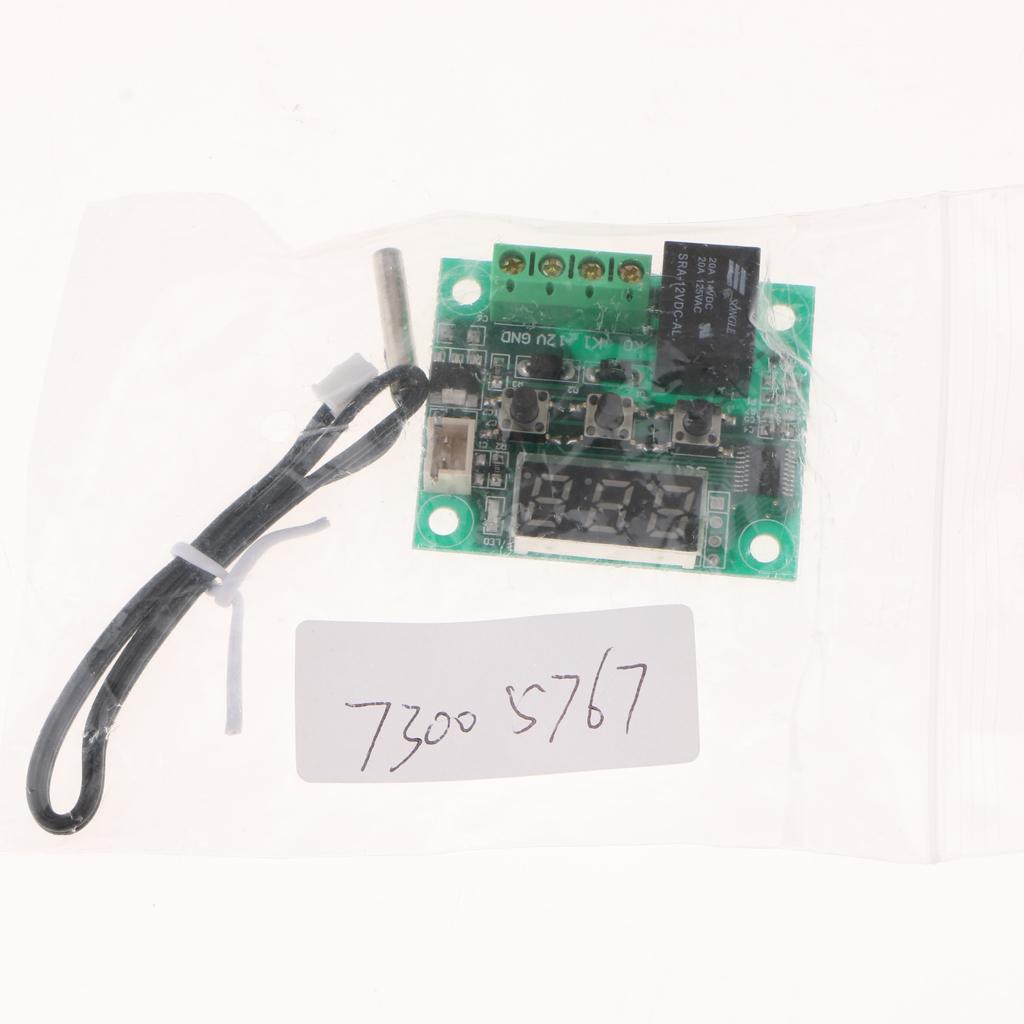

Package Includes:

1 Piece of Digital Thermostat Sensor
