2435 4500KV Brushless Motor+25A ESC+LED Programing Card for 1/16 1/18 RC Car

Regular price
Rs. 3,533.54
Regular price
Sale price
Rs. 3,533.54
Earn 1766 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 19383977
  • Brand: SFC
  • Type: Toys & Hobbies
  • Availability: In Stock
Description

Description:

LED Programing LED Car with 2435 4500KV Sensorless Brushless Motor 4Pole 4P and 25A Brushless ESC Electric Speed Controller Combo Set for 1/16 1/18 RC Car
High anti-interference capabilit
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity
Fast response to throttle input
LED Programing card: low voltage cut-off protection, over-heat protection and throttle signal loss protection
3 strat modes: Strong soft Medium
Material: Plastic, Electronic, Metal

Specification:

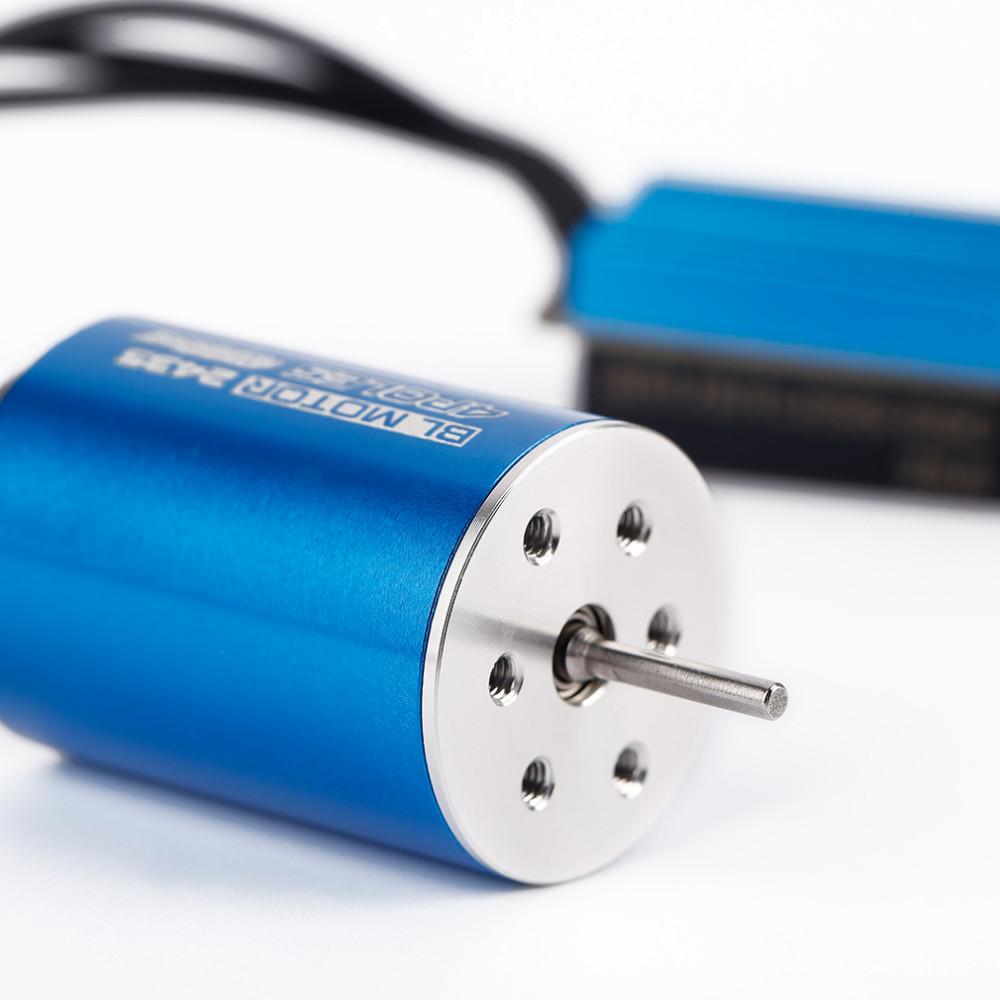

Motor:
RPM: 4500KV
Max Current: 22A
Max Watts: 300W
Can Size: 2435
Can Diameter: 24mm
Can Length: 35mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Bullet Connector: 3.5mm
Weight: 58.3g/2.1oz
Max voltage: 7.4V(2S)-11.1V(3S)

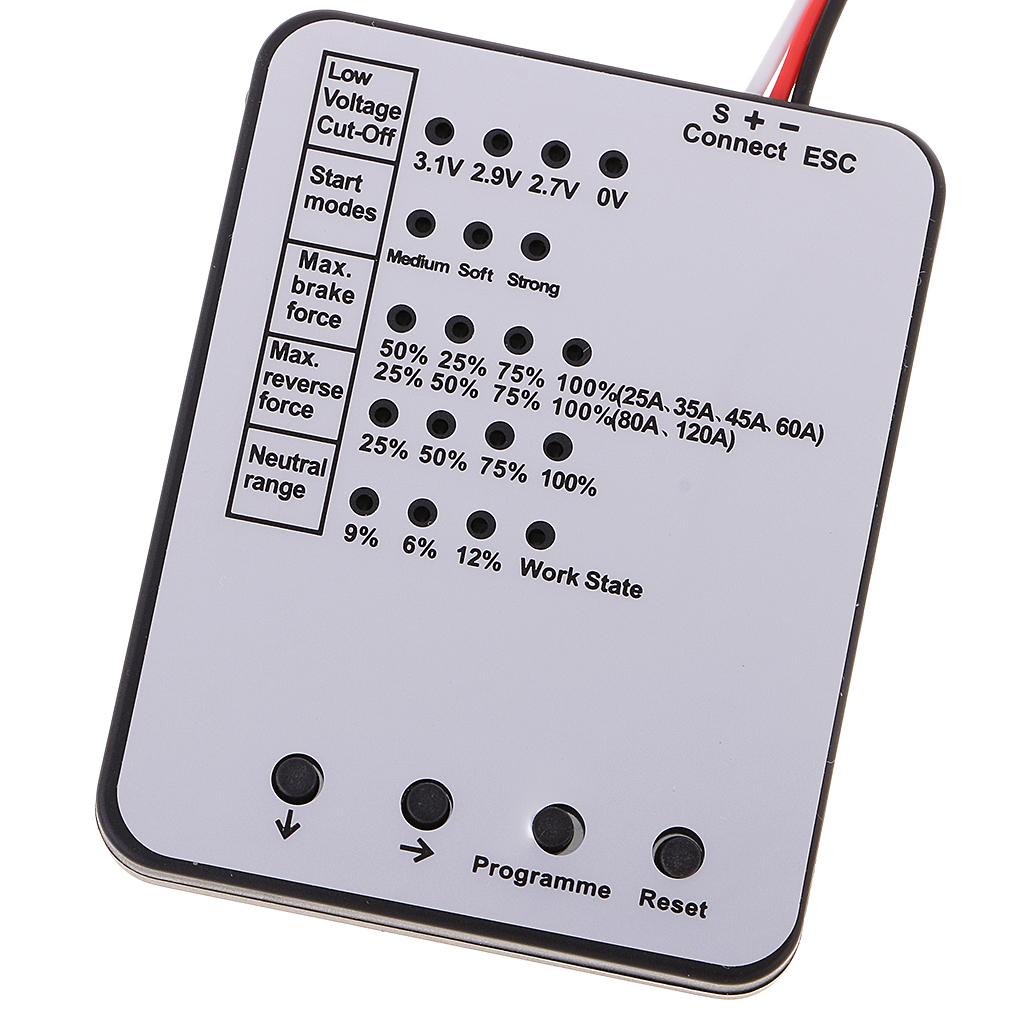

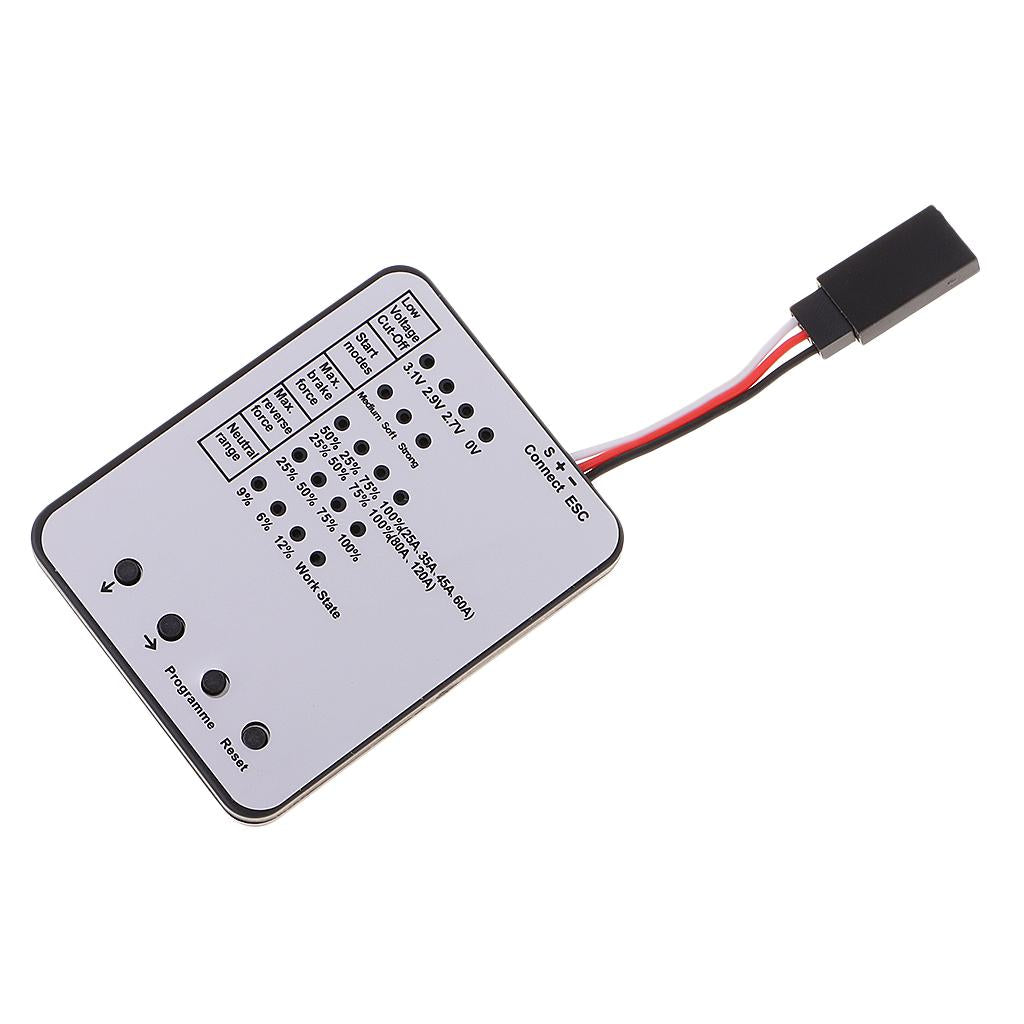

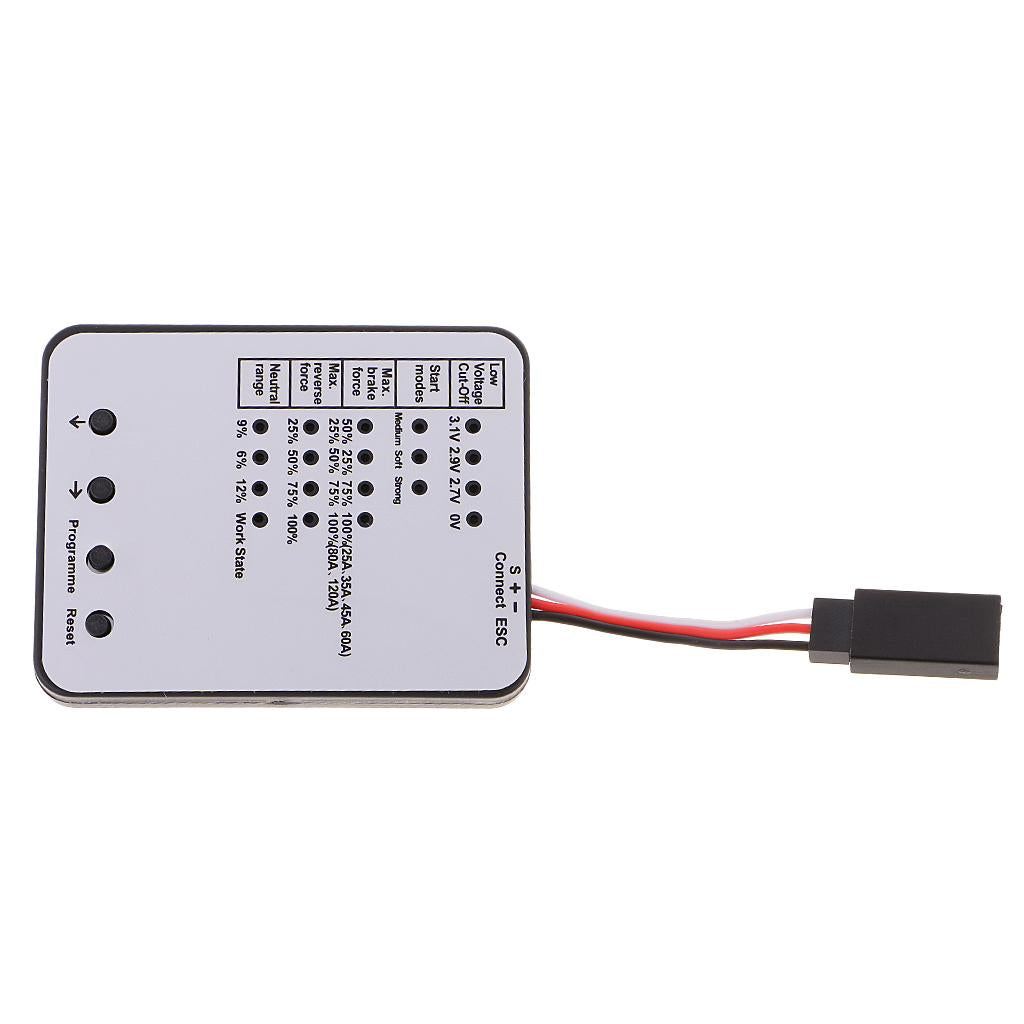

LED Card:
Low voltage cut voltage: 3.1V/ Cell 2.8V/ Cell 3.3V/ Cell
Strength maximum braking: 25%, 50%, 75%, 100%,
Maximum reverse force: 25%, 50%, 75%, 100%,
Neutral Range: 6%, 9%, 12% Working Status

Size Chart:

LED Card(LxWxH): Approx. 6x4.7x0.6cm / 2.36x1.85x0.24inch

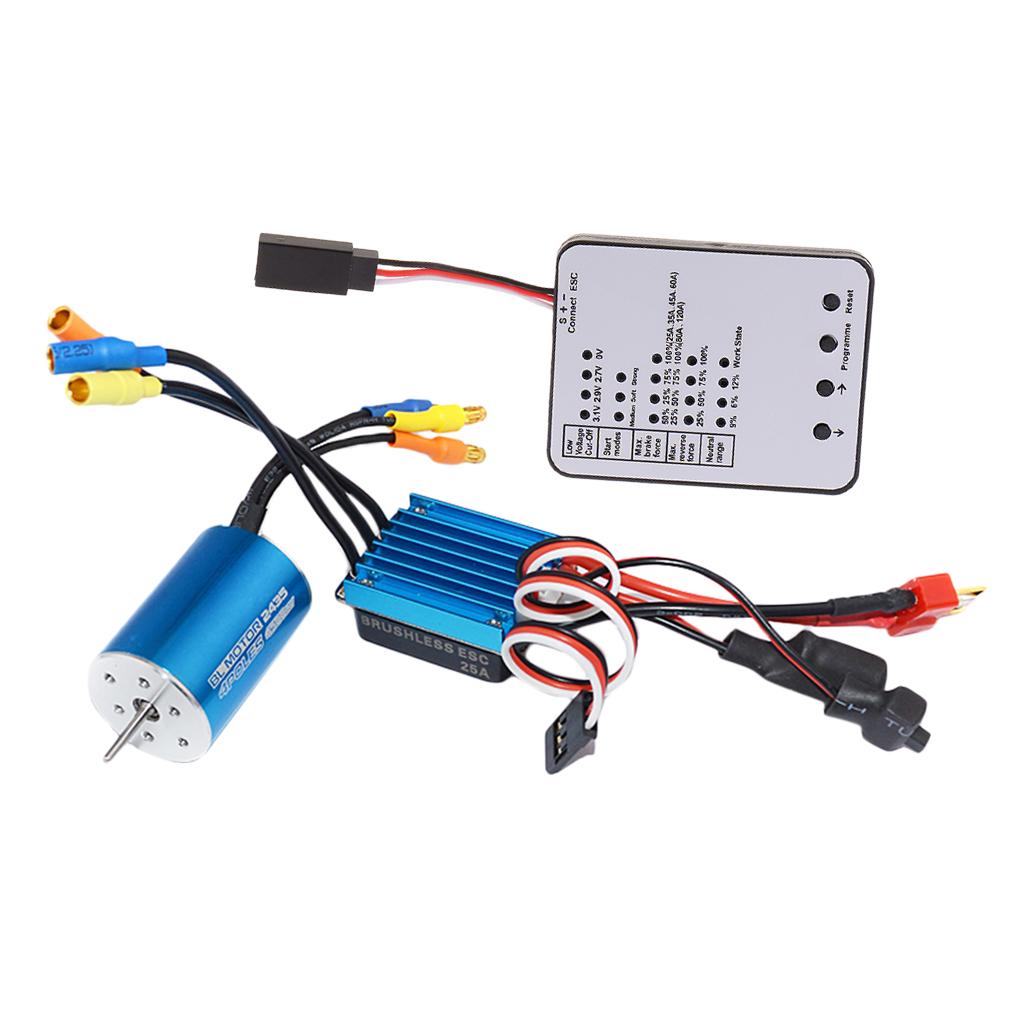

Package Includes:

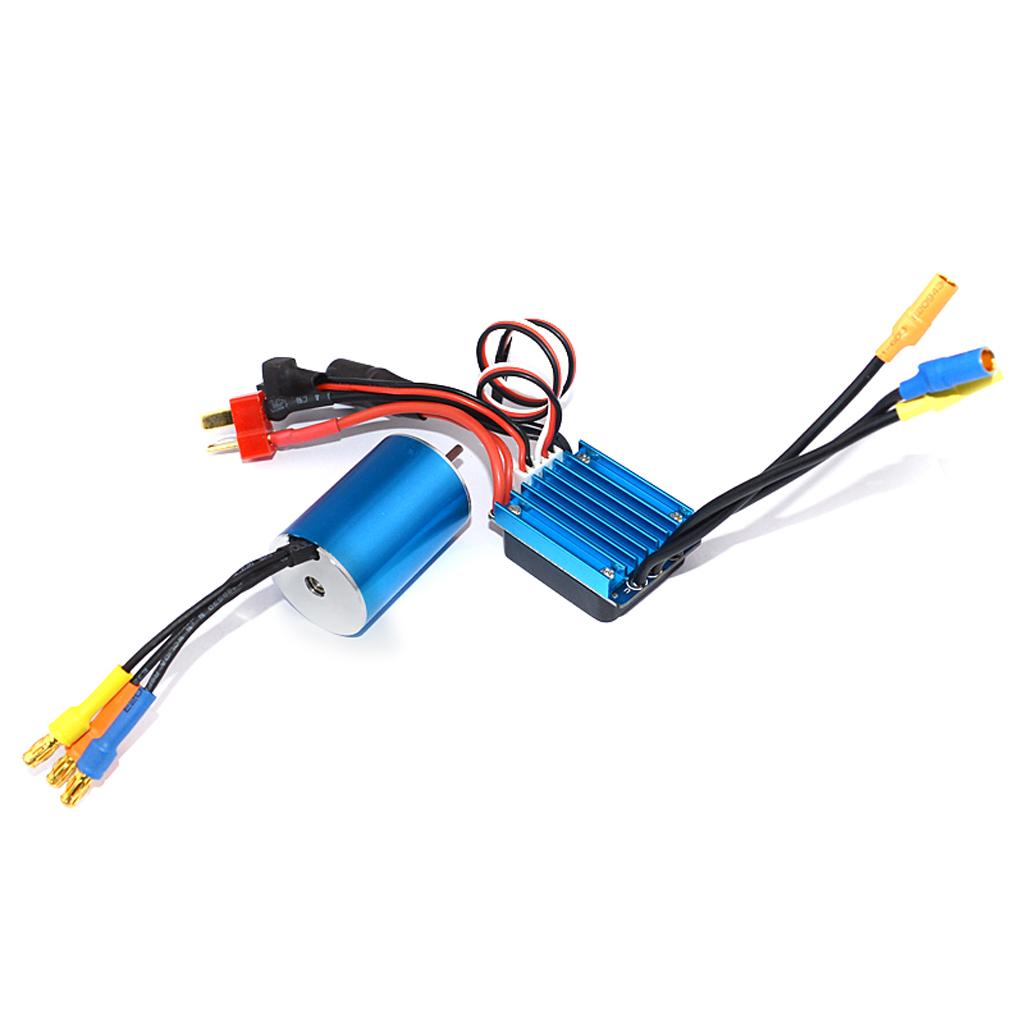

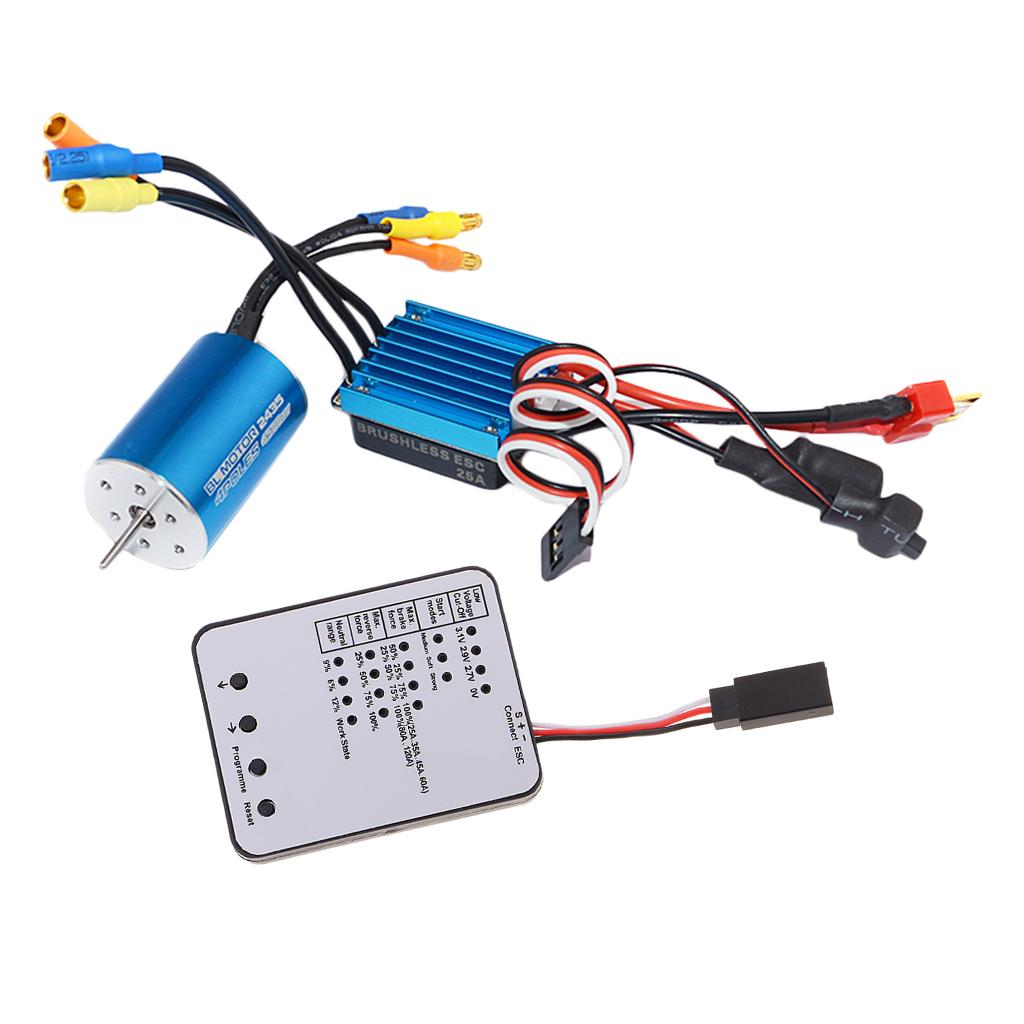

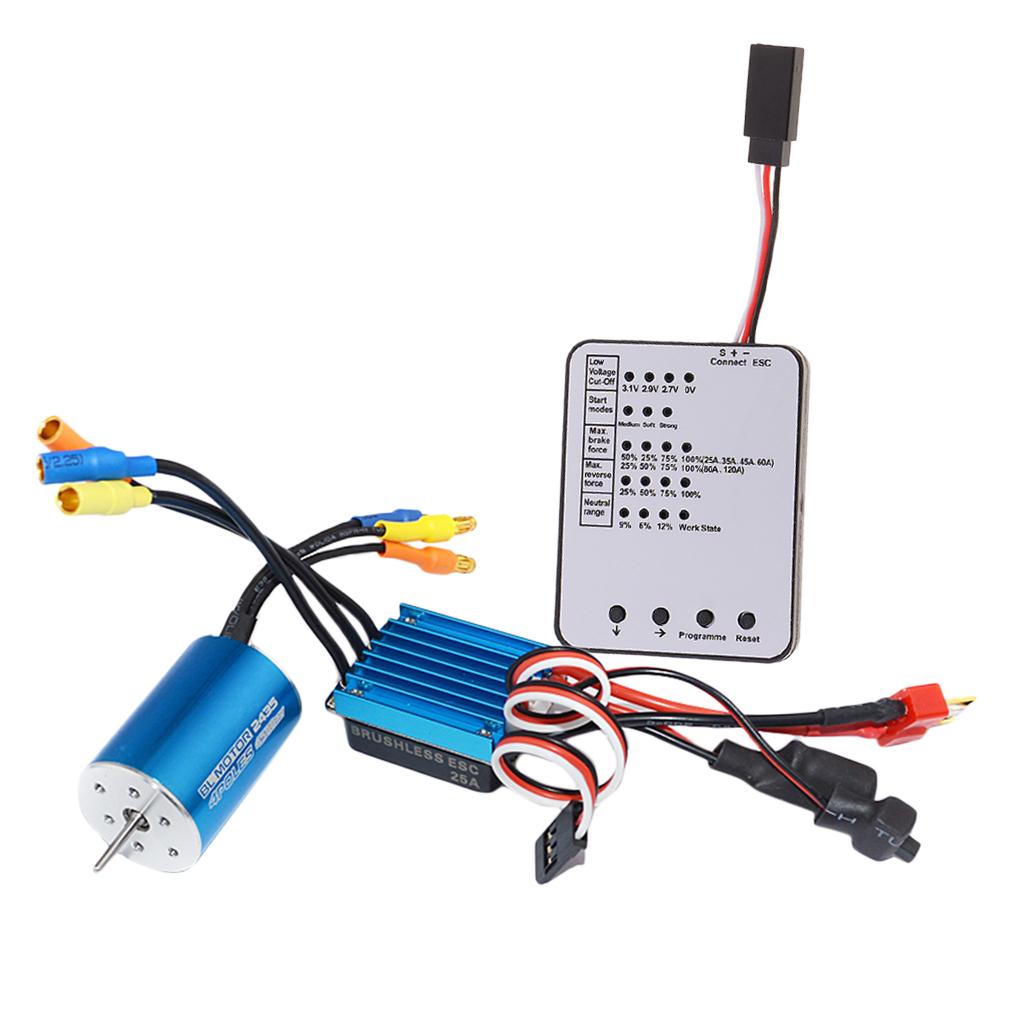

1 Piece 2435 4500KV 4P Sensorless Brushless Motor
1 Piece 25A Brushless Electric Speed Controller

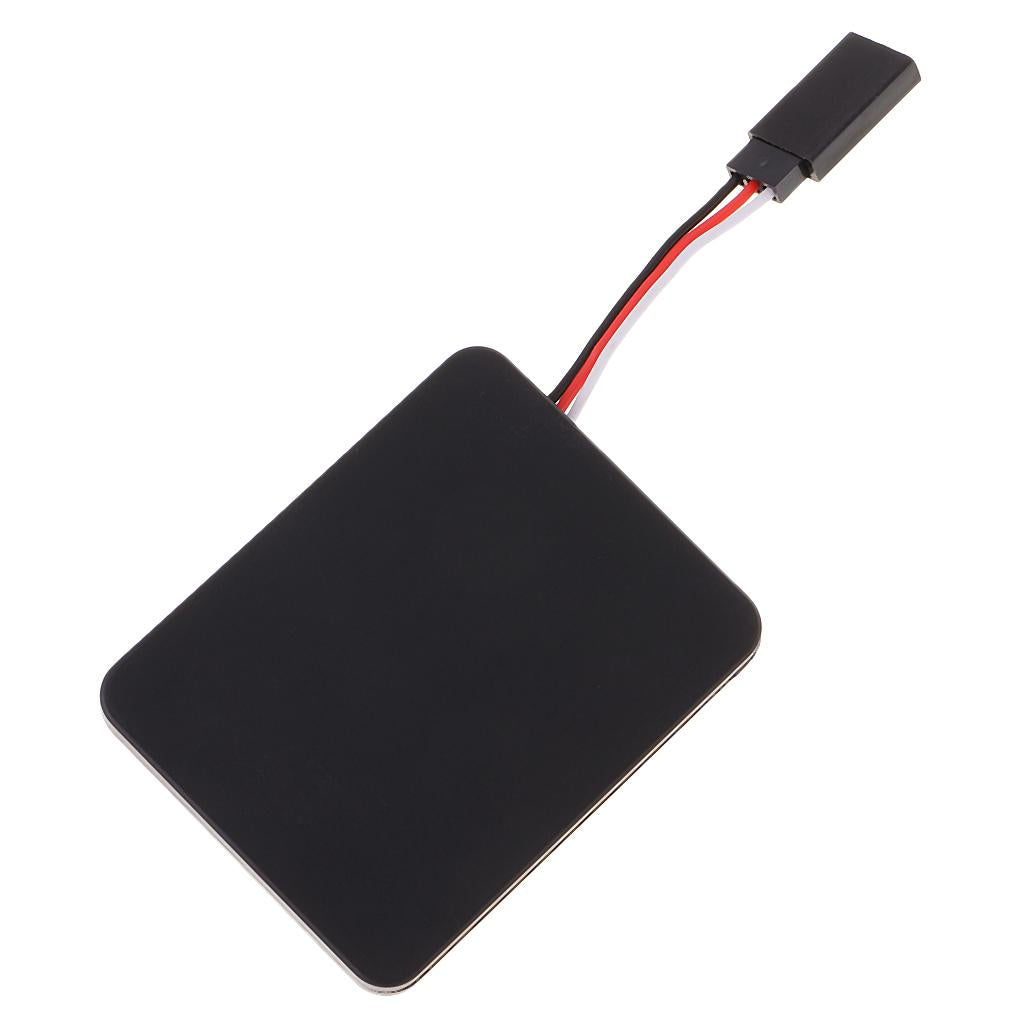

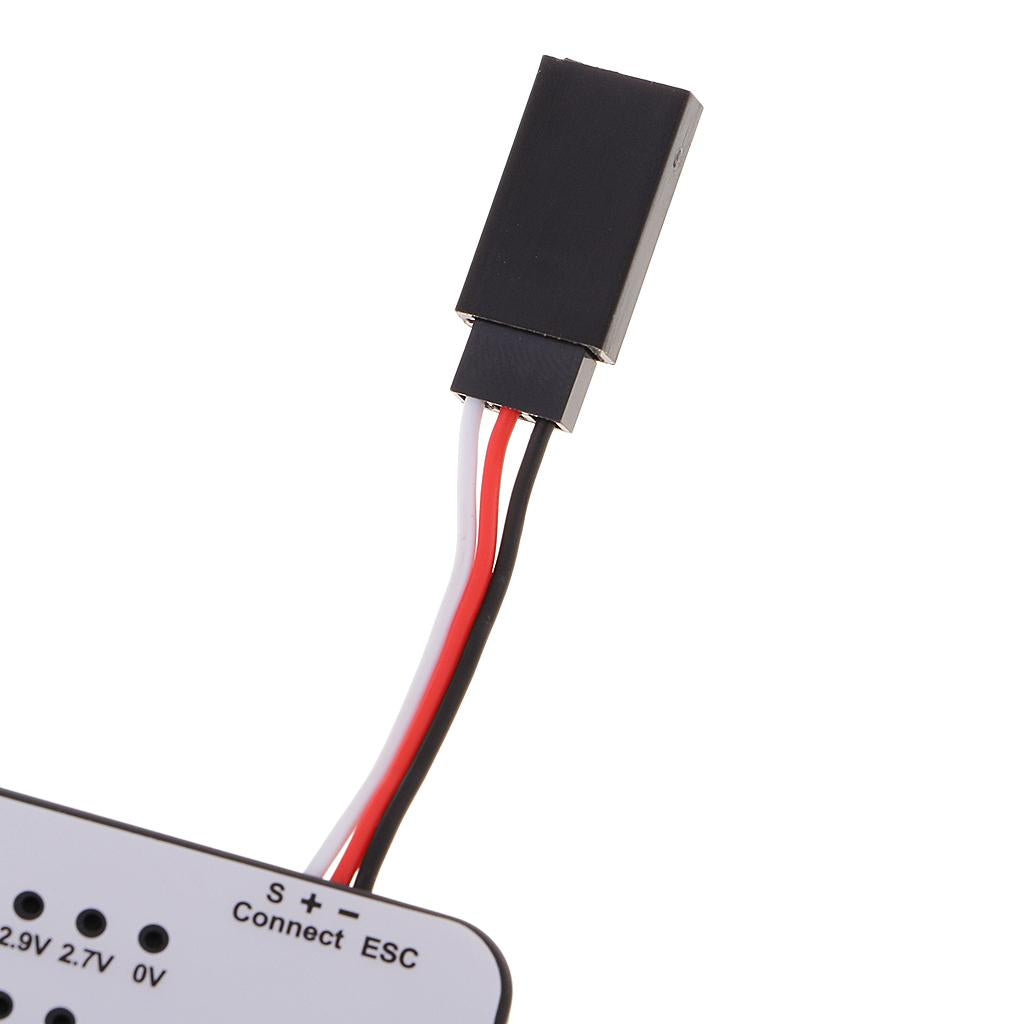

1 Piece Programing Card

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item
Due to manual measurement, there may be 1-2mm error in size
