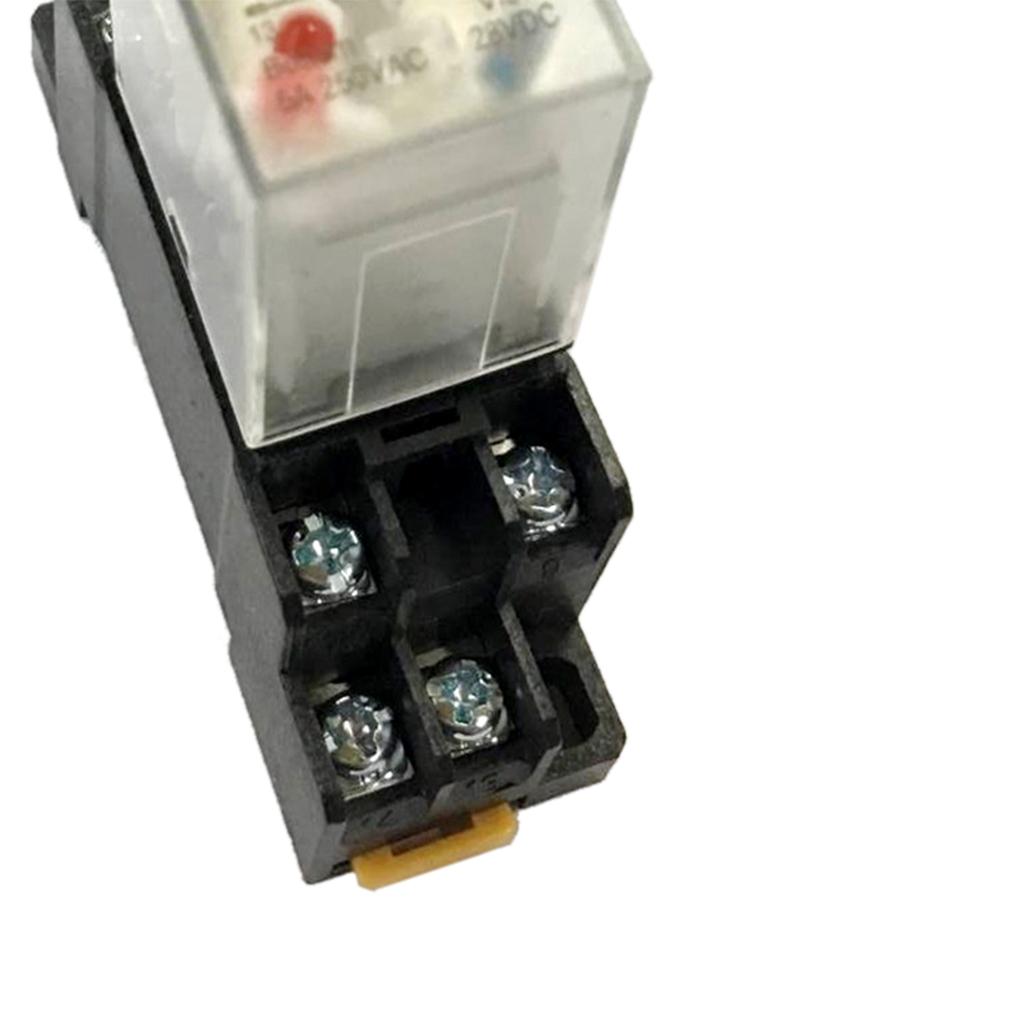

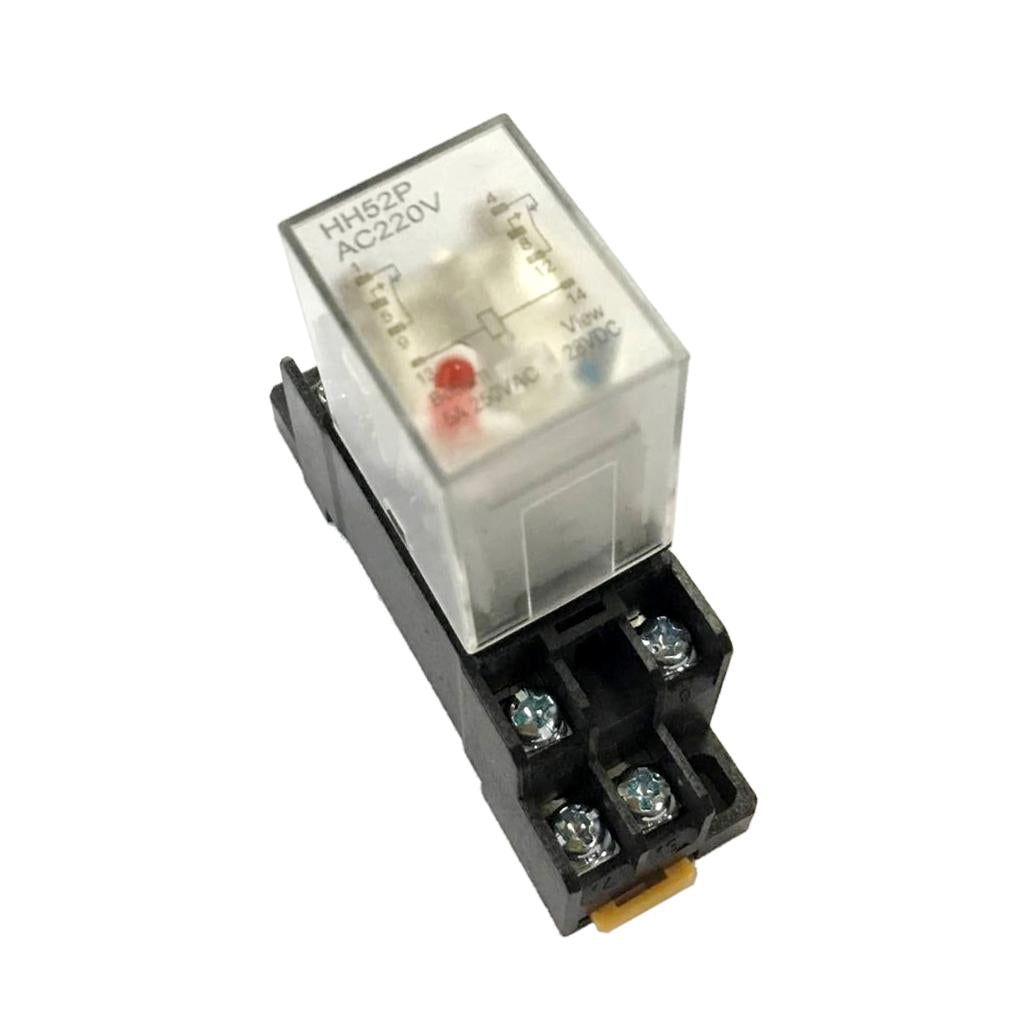

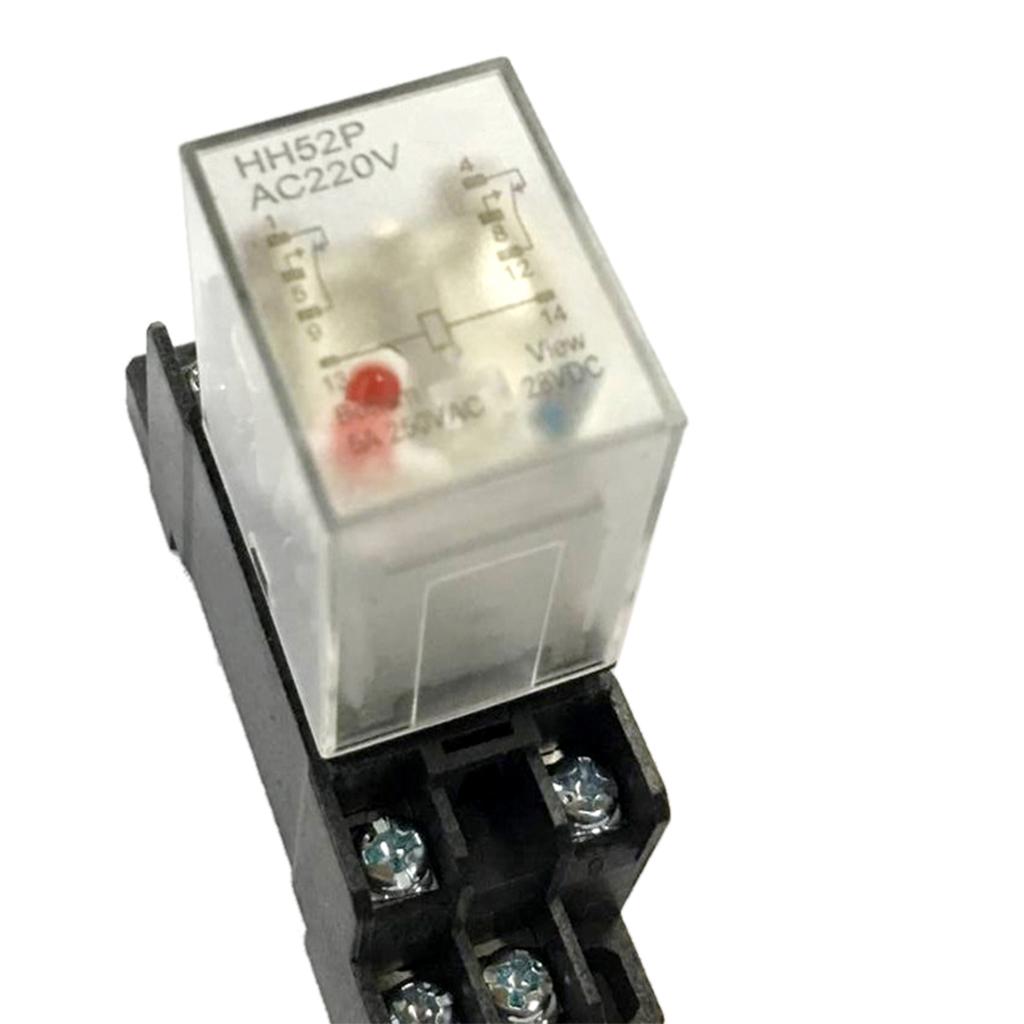

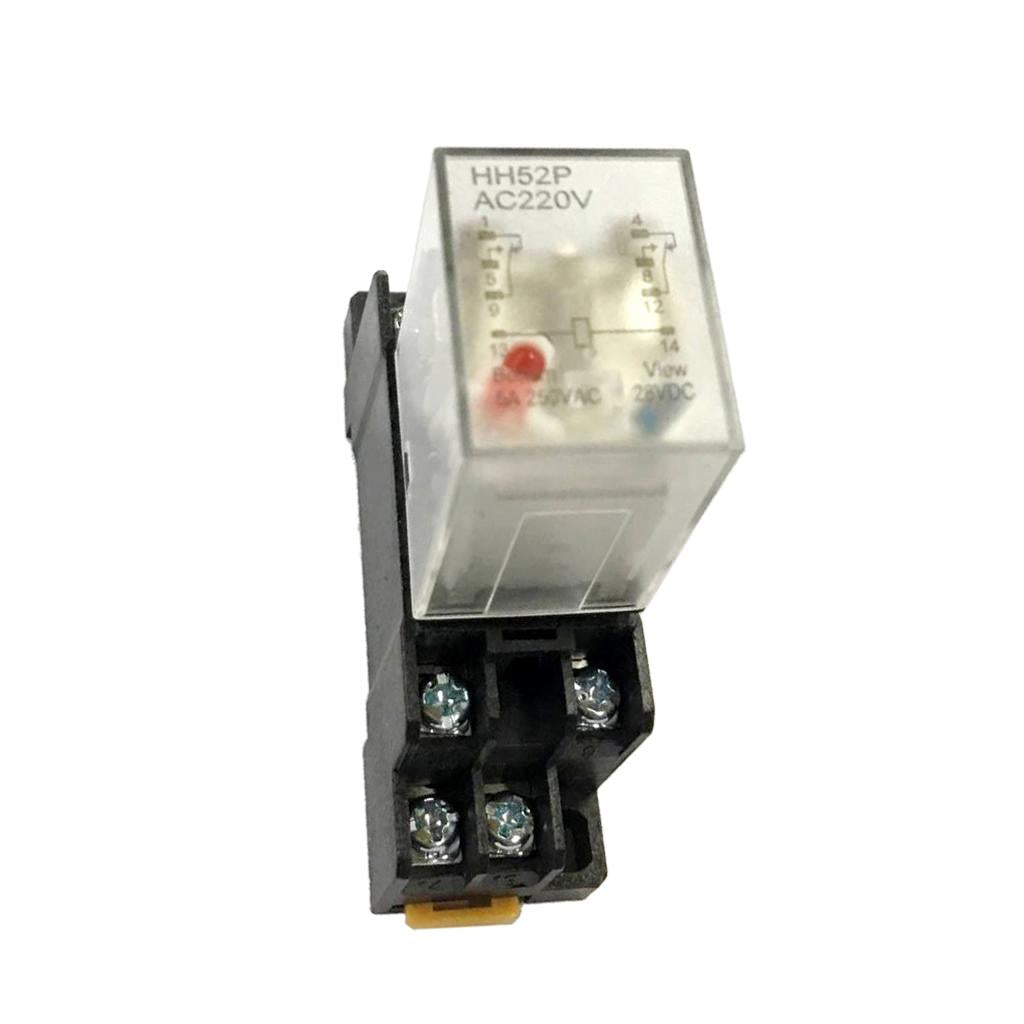

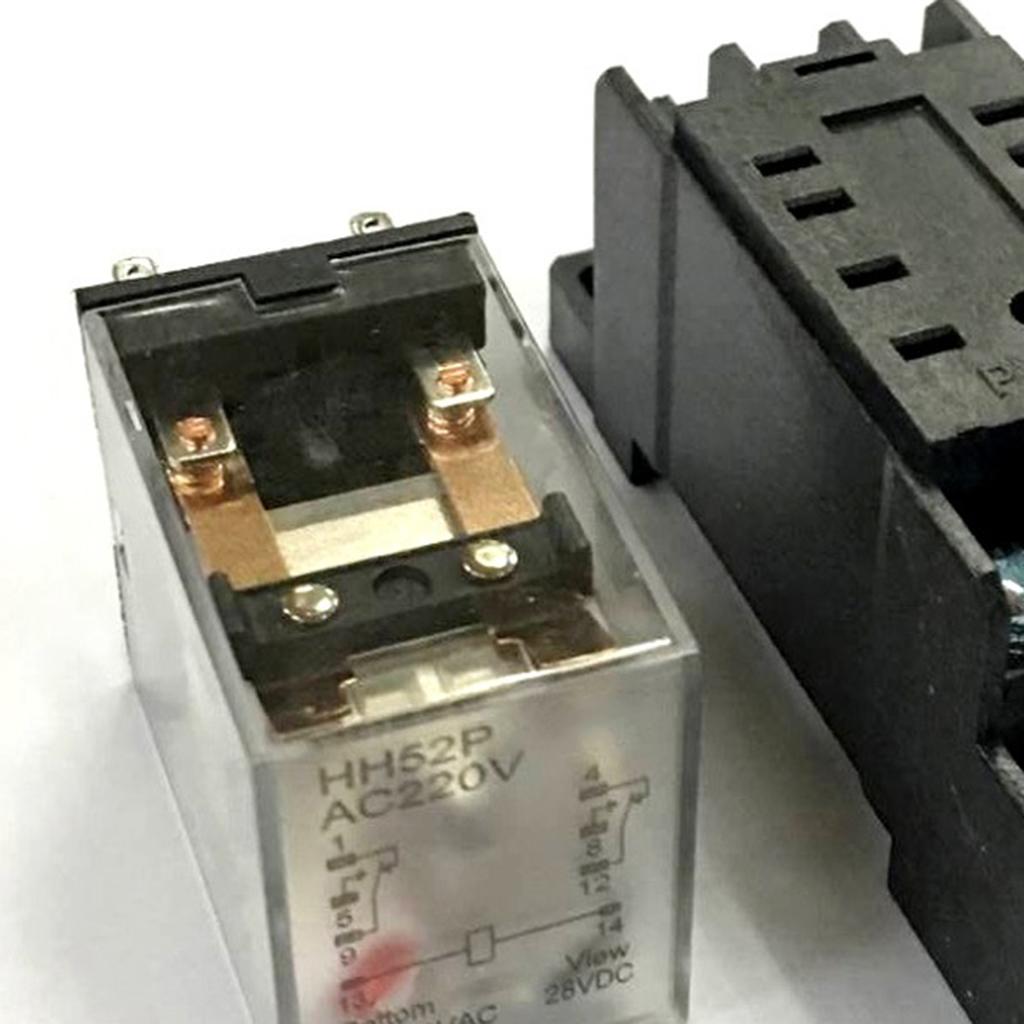

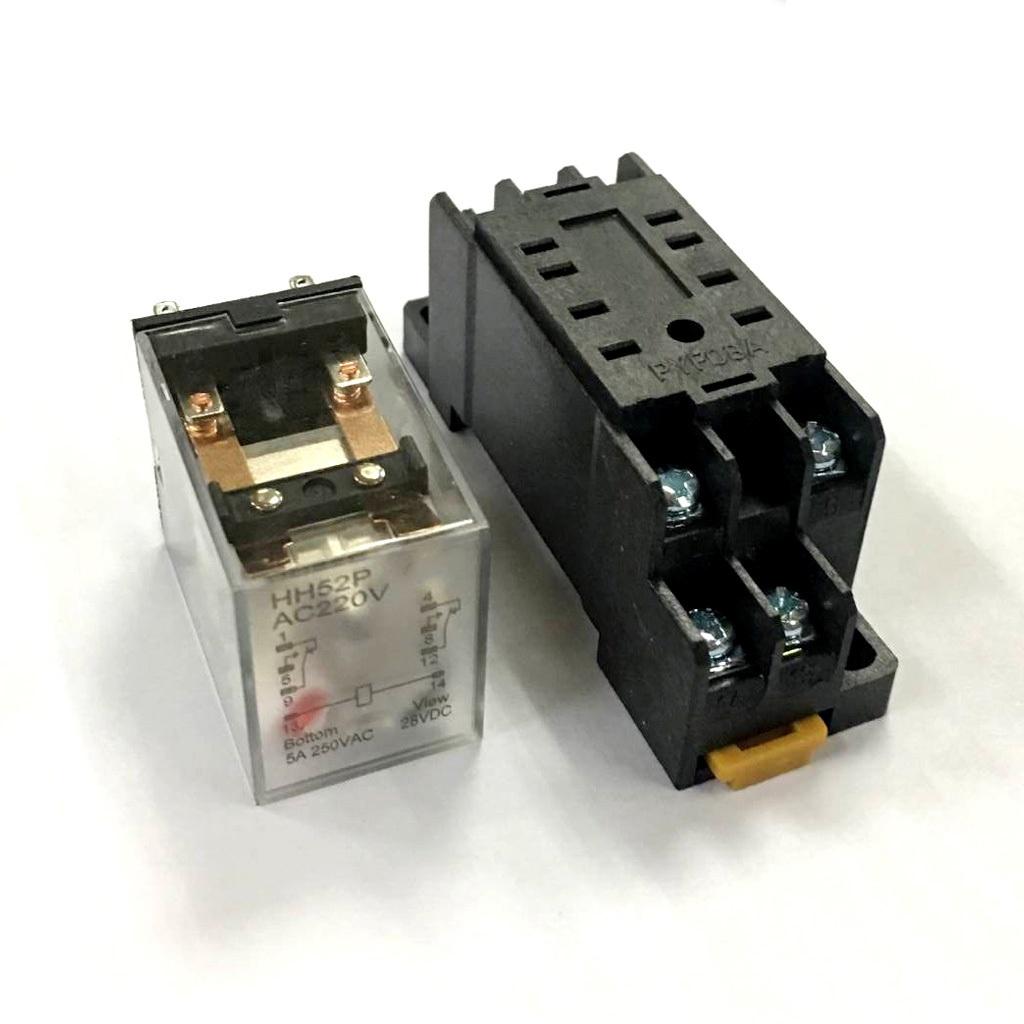

220V AC Coil 5A General Purpose DPDT Micro Mini Power Relay + DIN Rail Base Holder

Regular price
Rs. 595.17
Regular price
Sale price
Rs. 595.17
Earn 297 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 53022740
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Product Name: Electromagnetic Relay
This general relay designed with a terminal socket, plays the role as a protector or a circuit switch.
It can protect your electric equipment's very well.
This electrical relay with socket is for general purpose.
Material: Plastic
Main Color: Black, Clear white

Specification:

1Piece General Purpose Power Relay
Product Model:HH52P (MY2NJ)
Outline Dimension(L×W×H):27.5×21×35.5mm / 1.08 x 0.83 x 1.4inch
Contact Form :2Z,2C
Initial Contact Resistance :50mΩ (1A 6VDC)
Coil Voltage :220VAC
Operate Time (at nomi. Volt):25ms
Release Time (at nomi. Volt):25ms
Coil Power(W):0.9W, AC:1.2VA
Contact Rating:5A 250VAC/30VDC
Insulation Resistance:1000MΩ,500VDC
Between Open Contact:1000VAC 1min.
Between Coil and Contact:1500VAC 1min.
Electrical Life:1×105
Mechanical Life:1×107
Max Switching Voltage :250VAC/30VDC
Max Switching Current:7A
Max Switching Power:210W/1750VA
Stability 100m/s2 Intensity 1000m/s2
Humidity :98% R.H.+40%
Temperature Range:-55~+70°C
Vibration Resistance:1mm 50~55Hz
Construction :Dust cover

Package Includes:

1Set General Purpose Power Relay
