1 Gang 12V/24V Car RV Marine Boat Curved Toggle Switch Panel Waterproof

Regular price
Rs. 1,432.00
Regular price
Sale price
Rs. 1,432.00
Earn 716 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 52033190
  • Brand: SFC
  • Type: eBay Motors
  • Availability: In Stock
Description

Description:

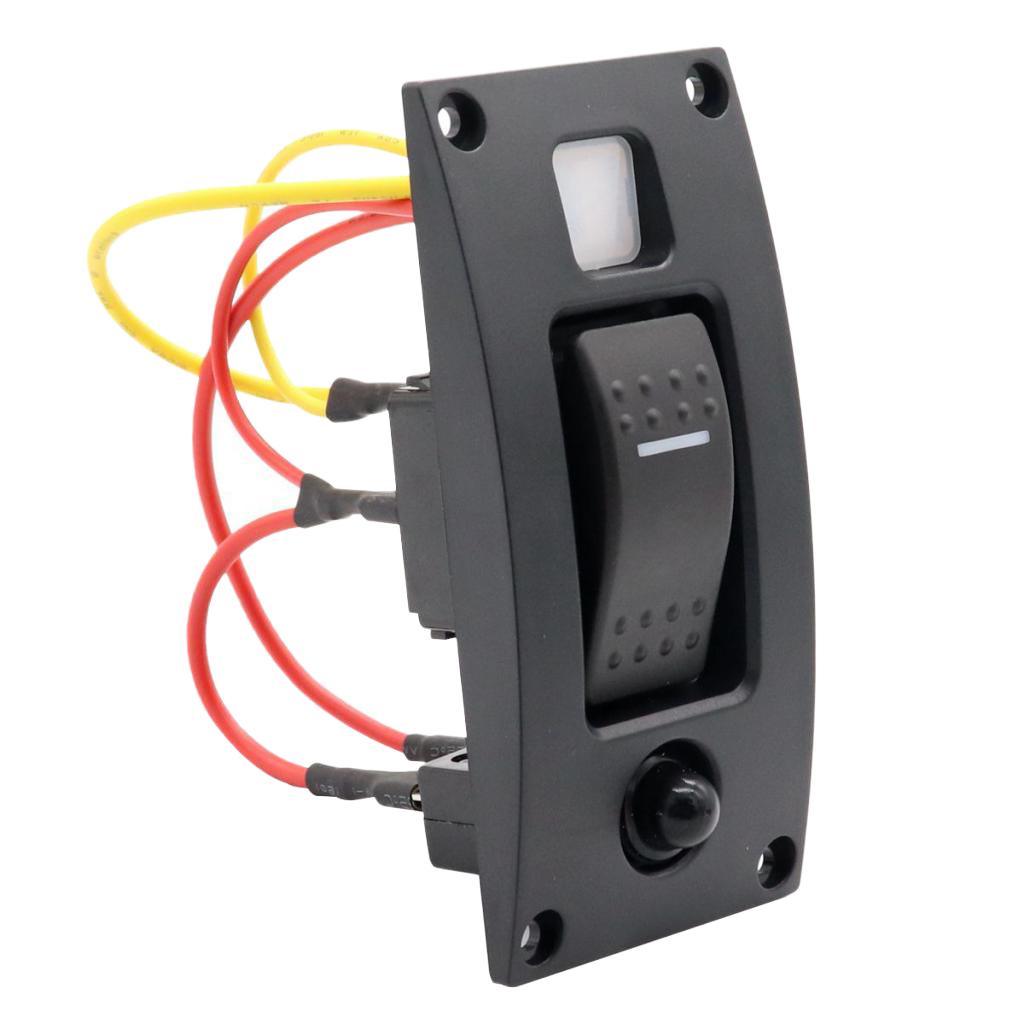

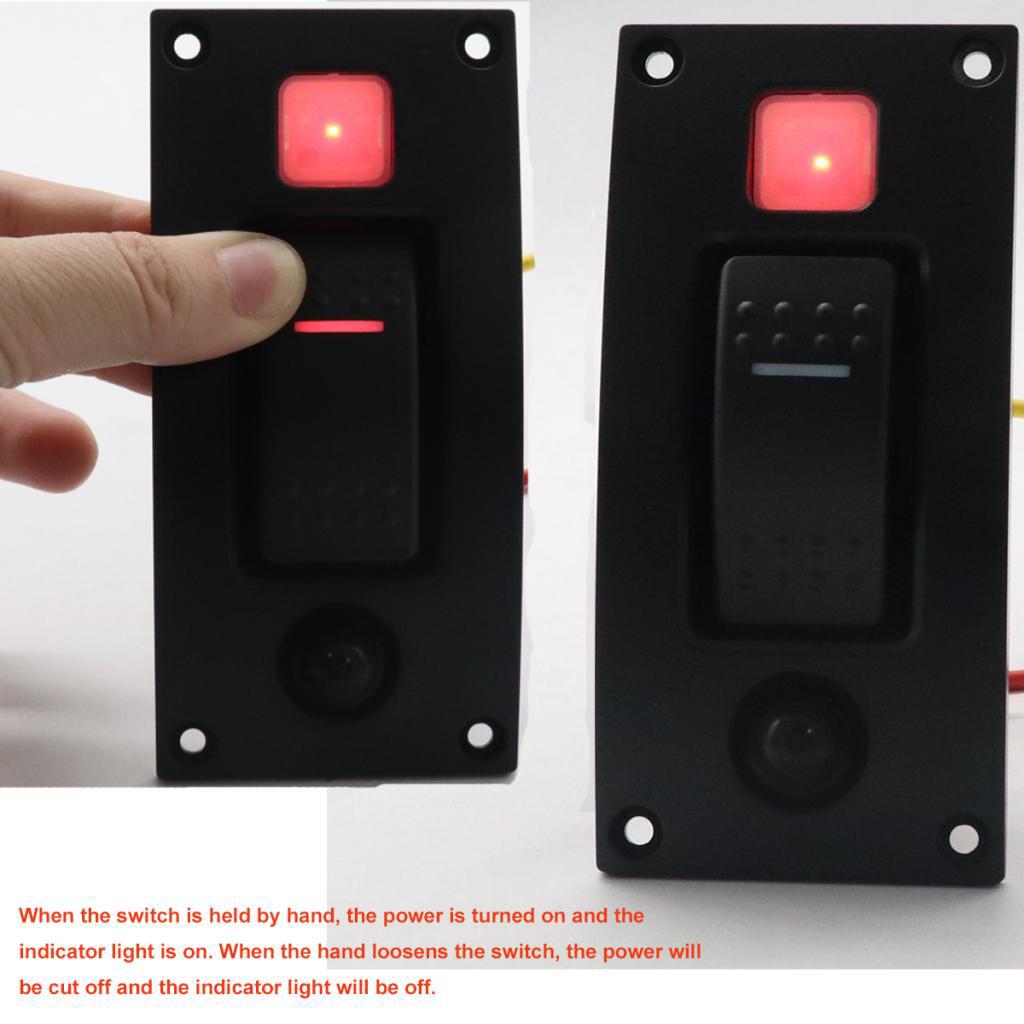

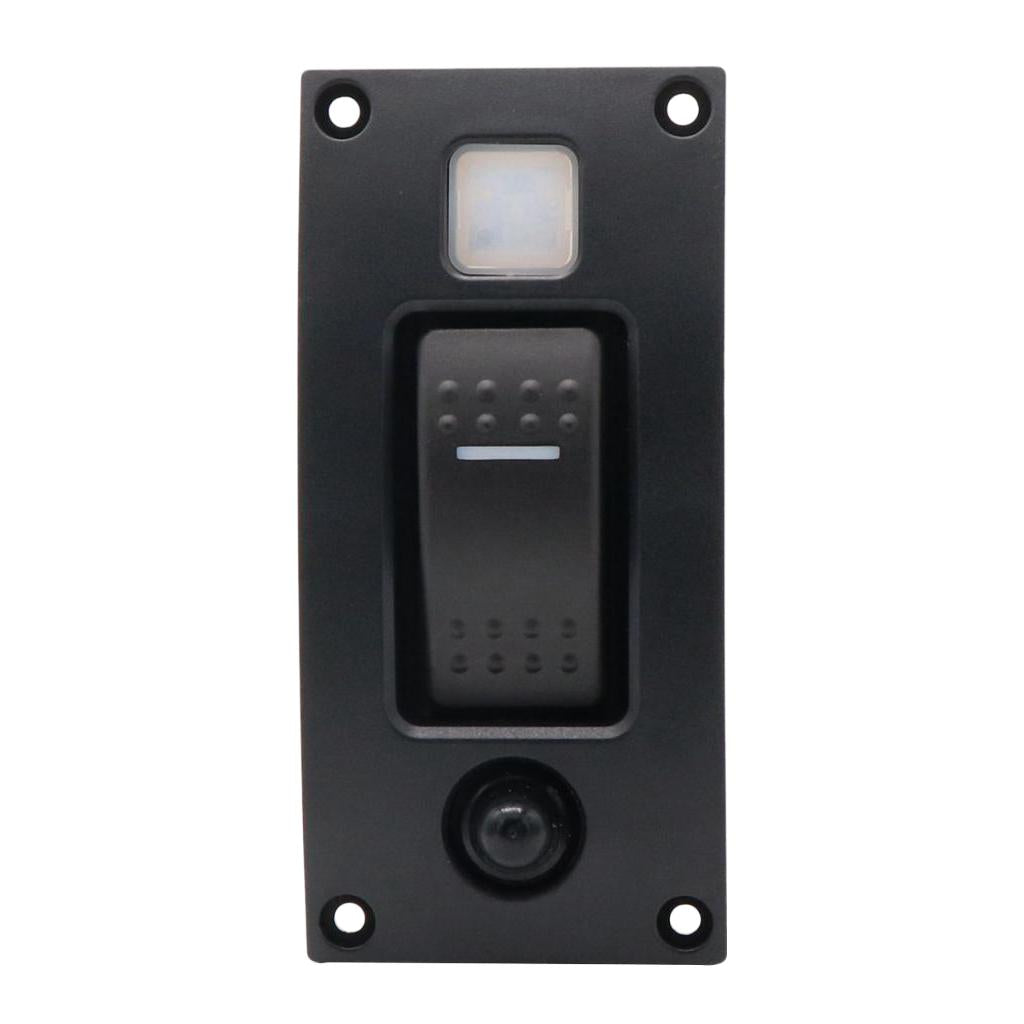

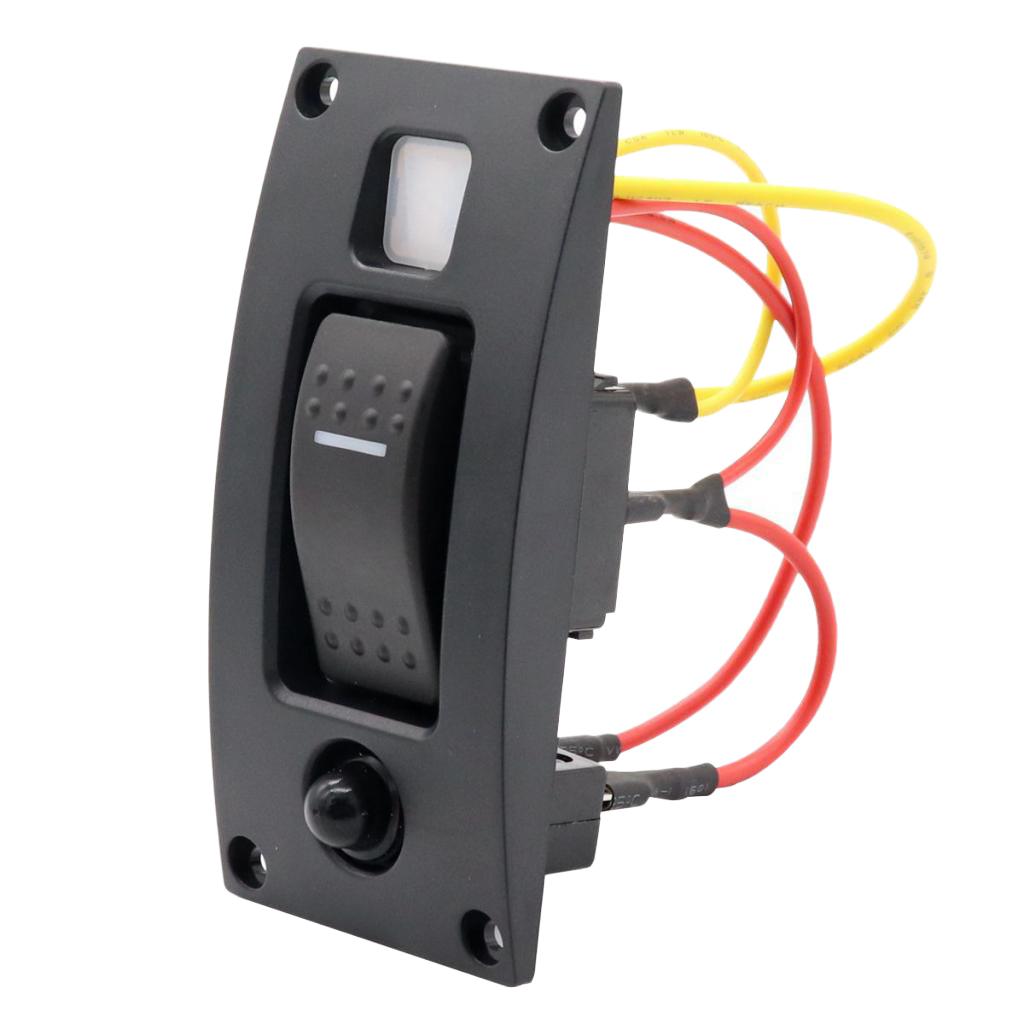

(ON)-OFF curved design single branch switch panel.
Blank 1P panel that goes well with other SP33 series panels.
C-7 sealed IP66 switch with dual (12-24V) voltage rating.
Backlight label module allowing easy recognition in darkness.
Various switch functions available
Control applications: such as horn .control / hoist control / wiper / bilge pump.

Specification:

Product Name: Curved Switch Panel
Model: S4125
Material: Panel ABS
Product Color: Black

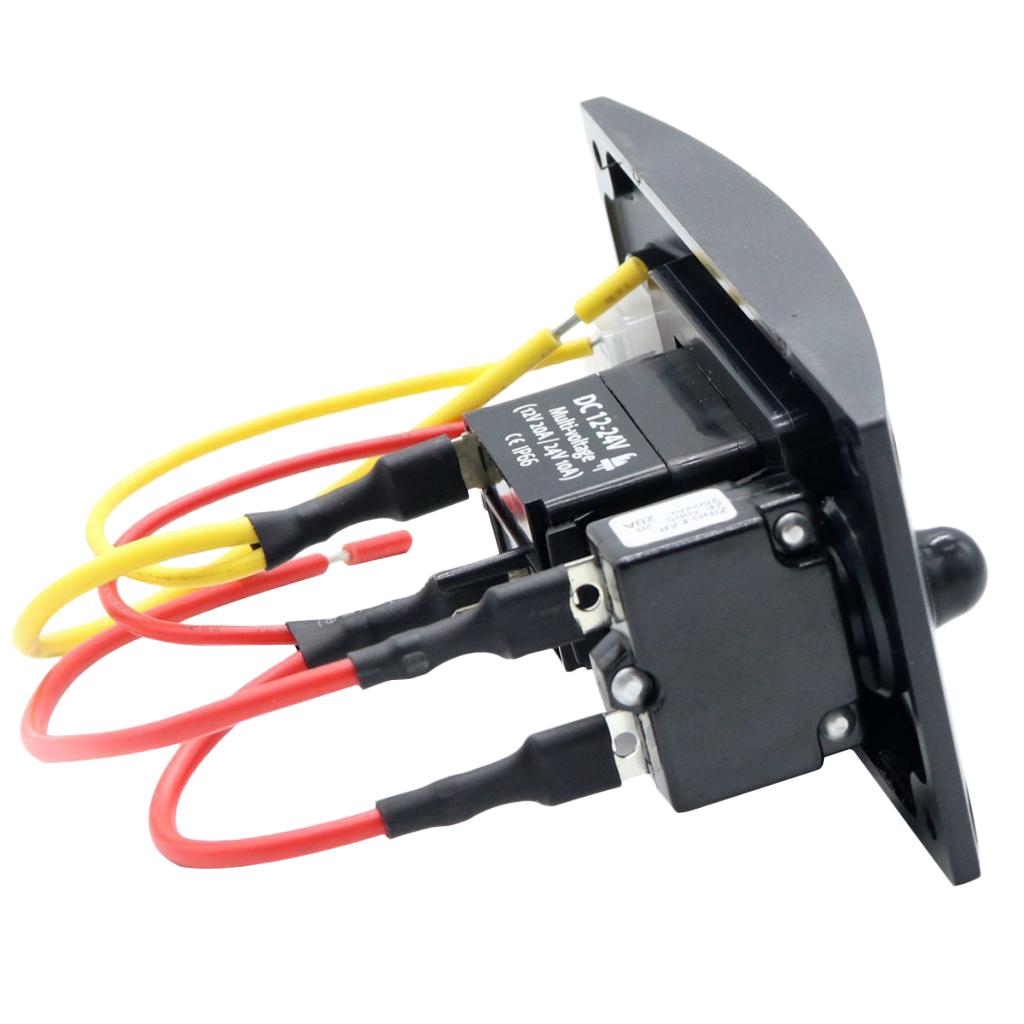

Circuit Protection: 20A Reset Circuit Breaker
Rated: DC12V 20A /24V 10A
Panel Depth: 7.5cm / 2.95 inch
Installation Size: 10.3x4.3cm / 4.05x1.69 inch
Product Size: 5.4x4.8x11.4cm / 2.12x1.89x4.49 inch
Packing Size: 11.5x7x8.5cm / 4.53x2.75x3.35 inch
Waterproof Rating: IP66
CE certification
Installation Instructions
1.Disconnect all power (AC & DC).
2.Cut opening for mounting location using the template provided.

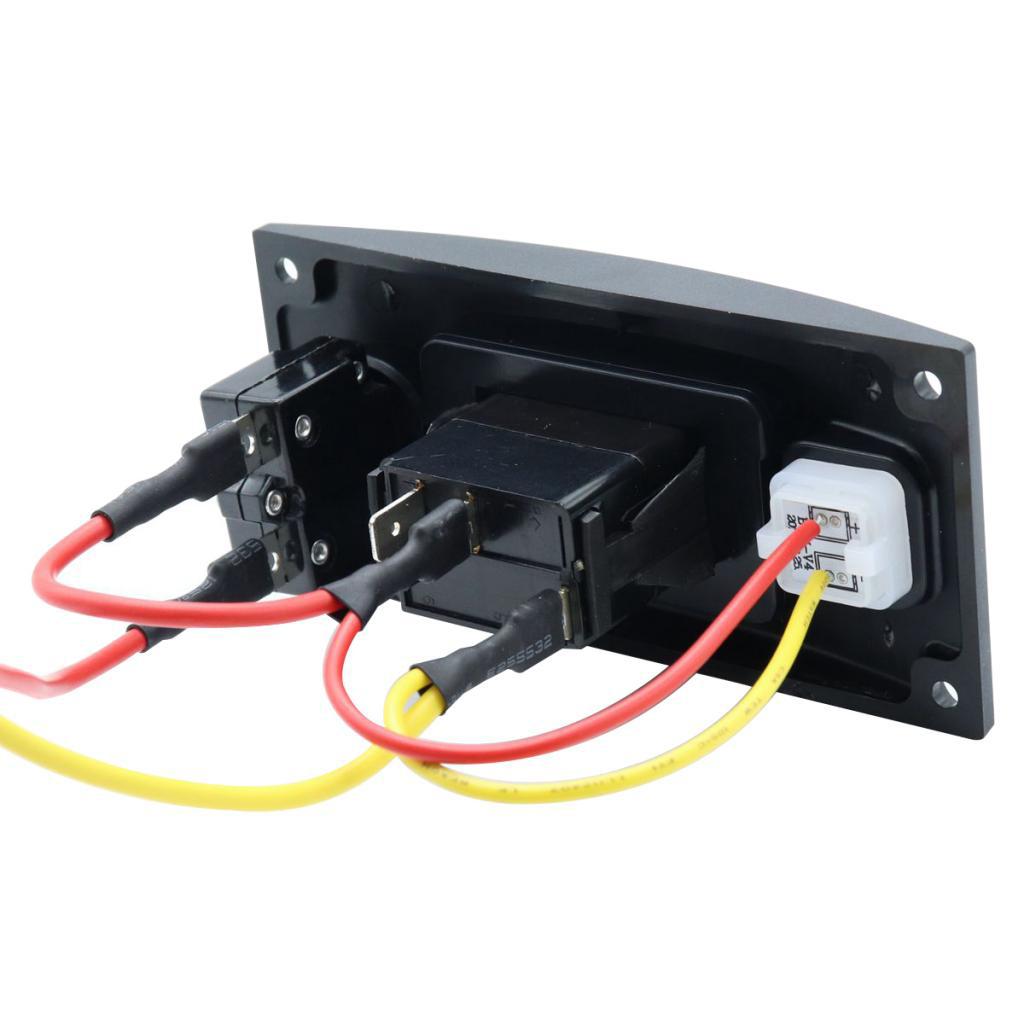

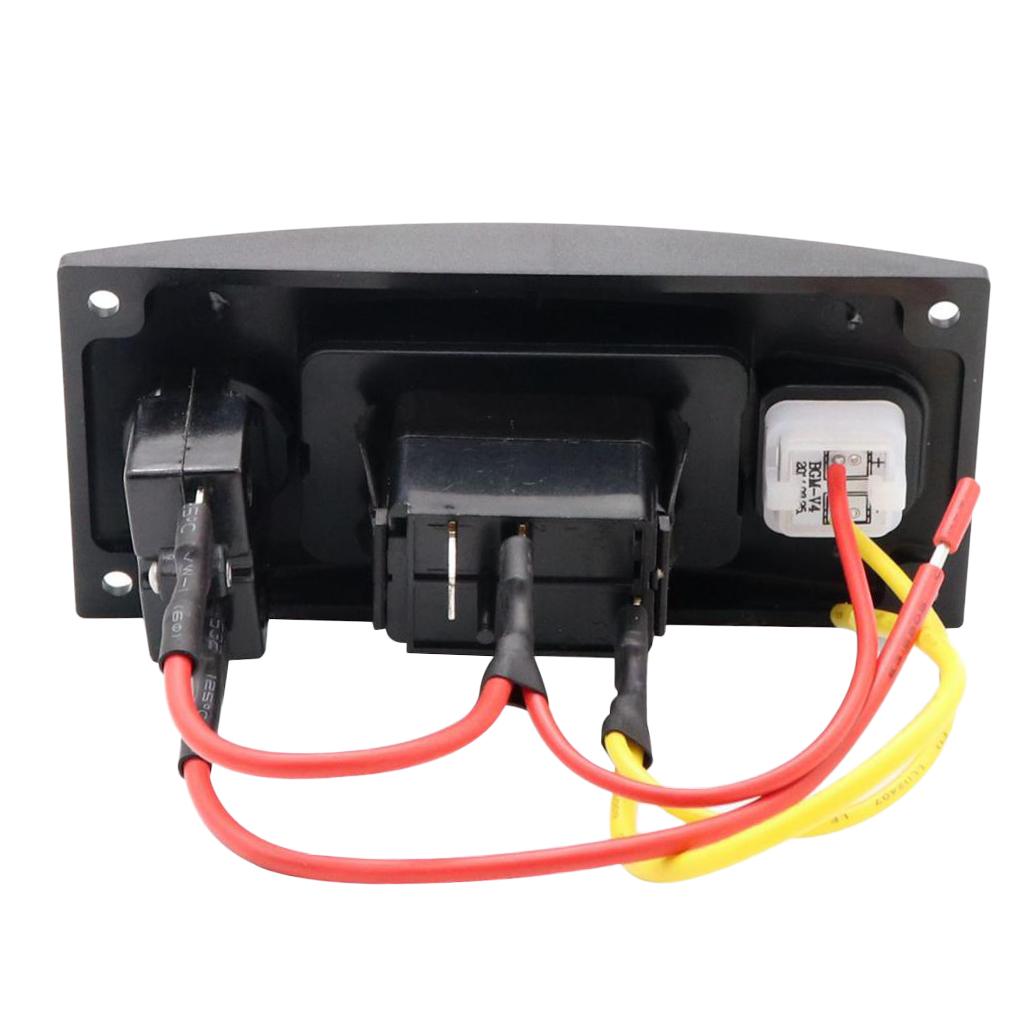

3.Connect the positive wire (red) to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar.
4.Connect switch load terminals to the desired device.
5.Connect the negative wires of the devices to a negative bus bar.
6.Mount the switch panel with the included self-tapping screws.
7.Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally.

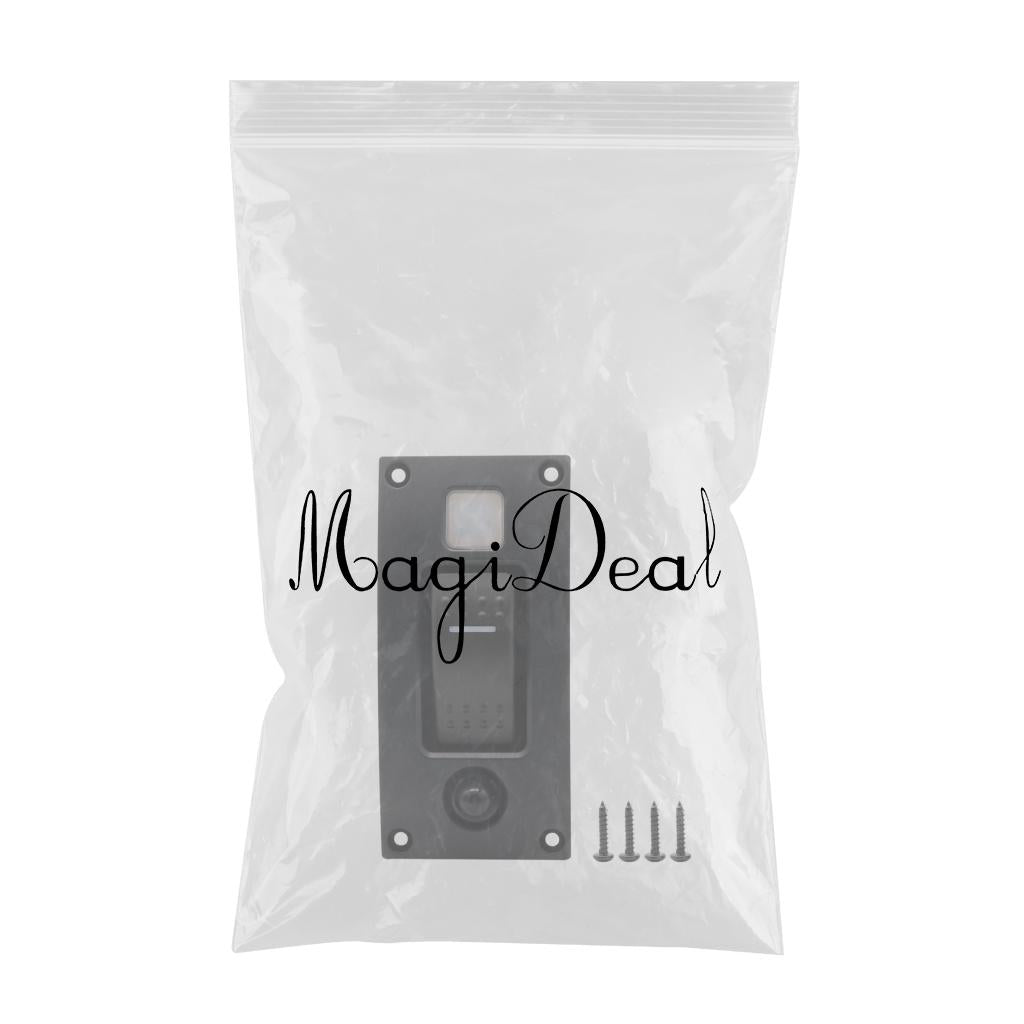

Package Includes:

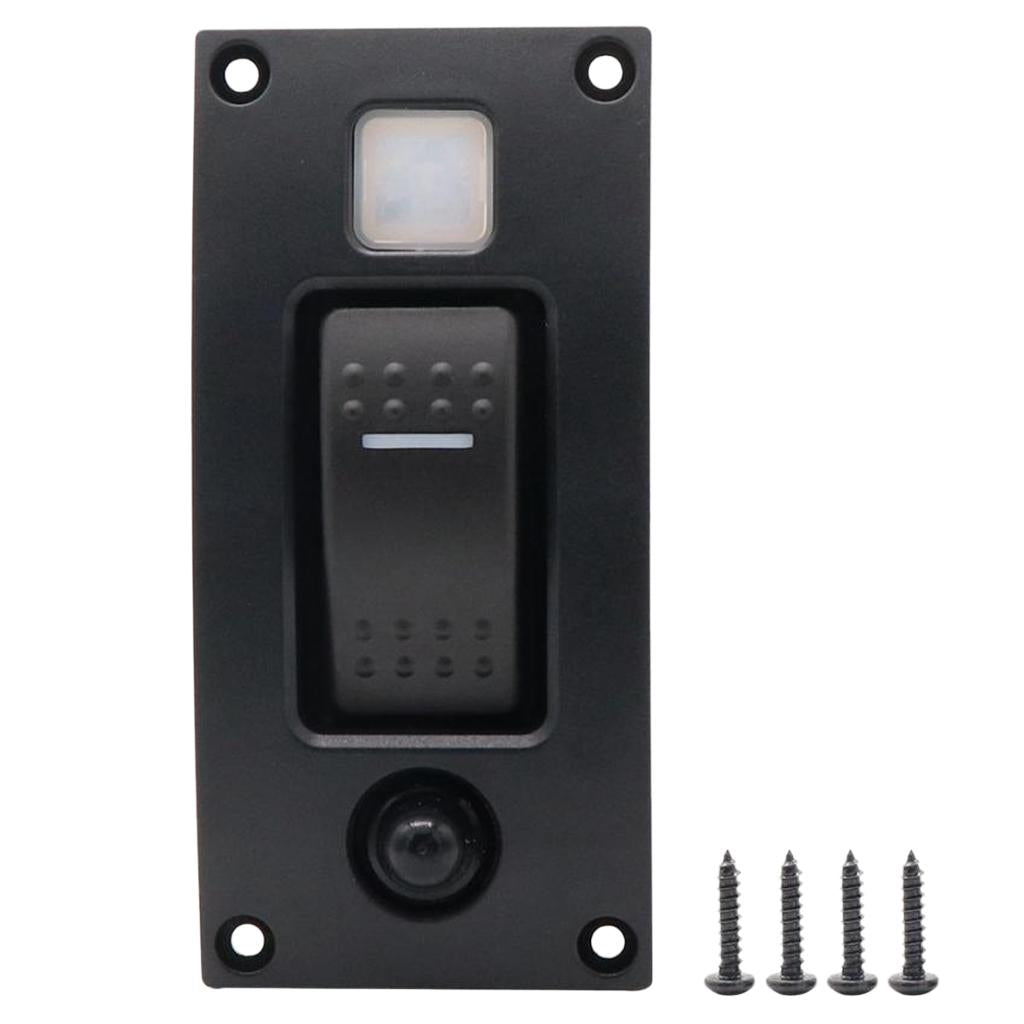

1 Piece Curved Switch Panel
4 Pieces Screws
1 Piece Instruction Manual
