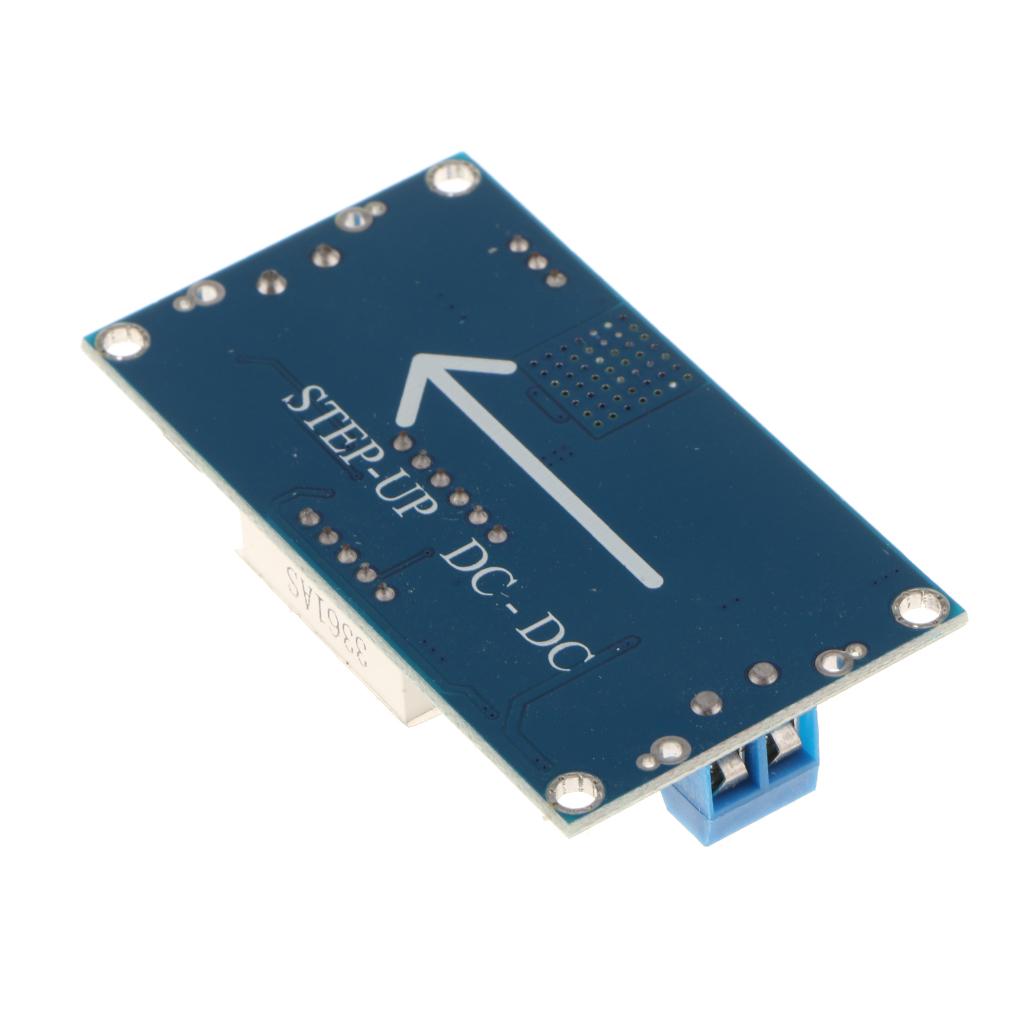

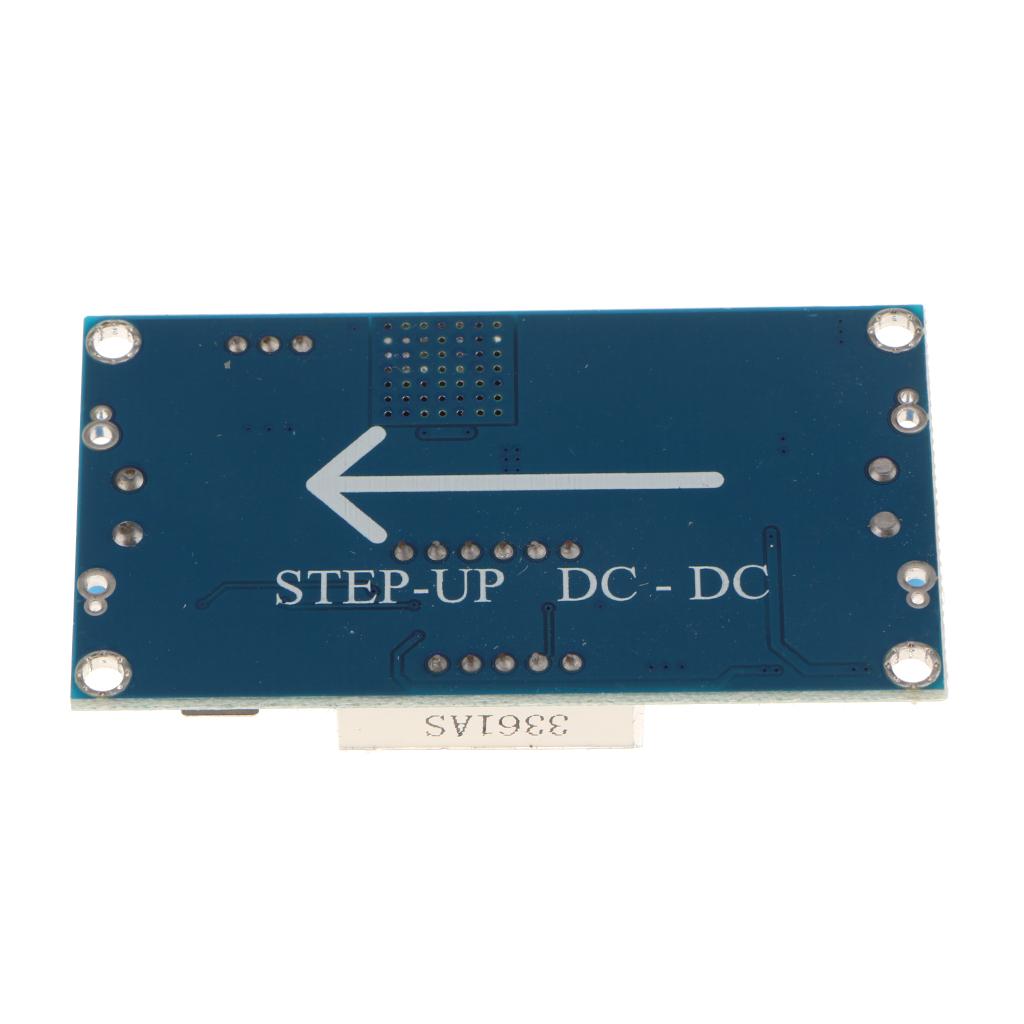

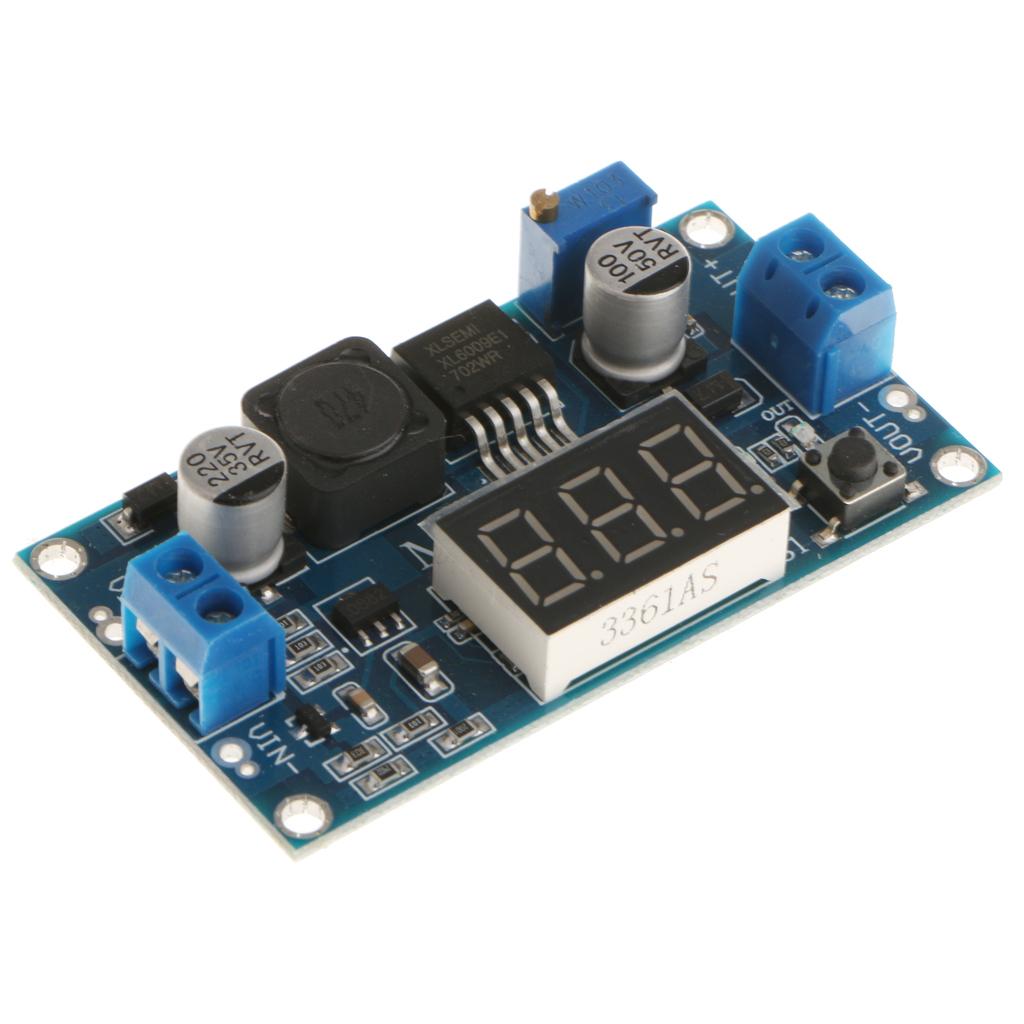

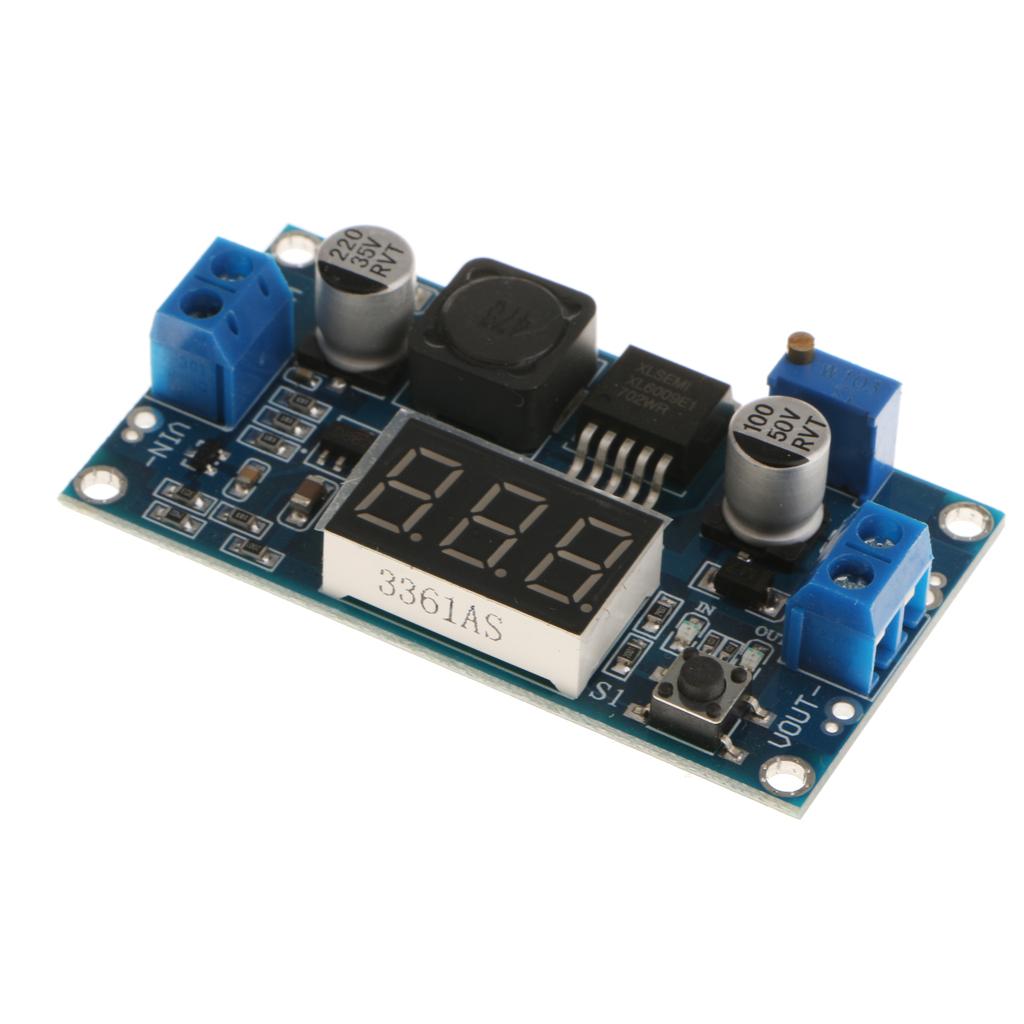

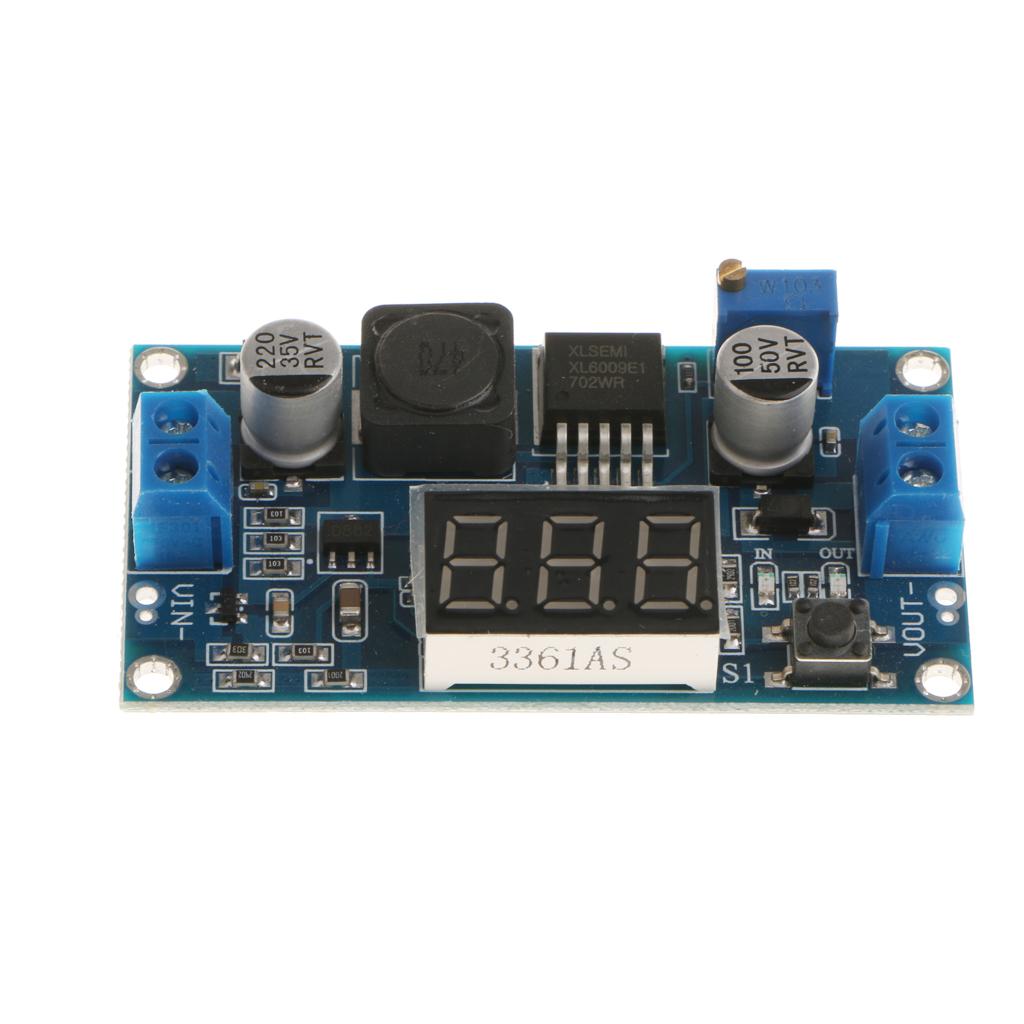

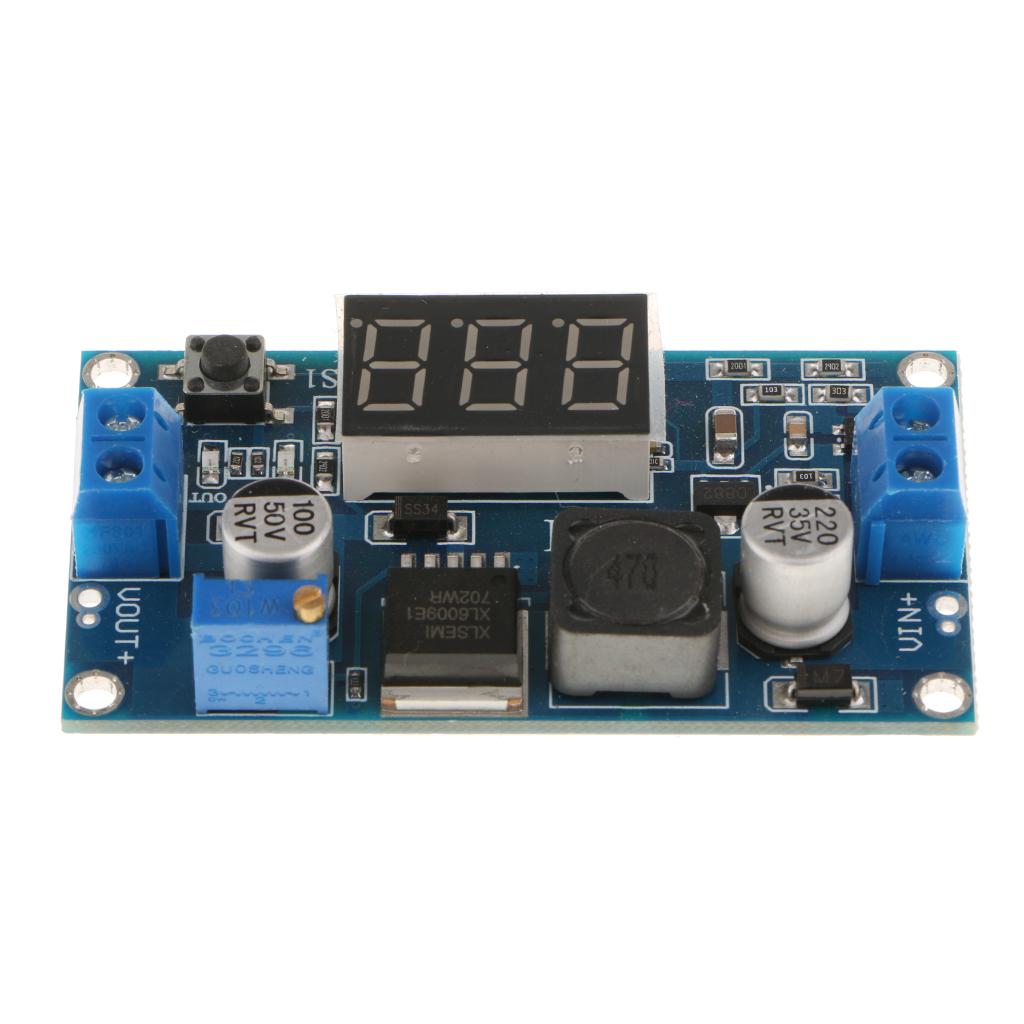

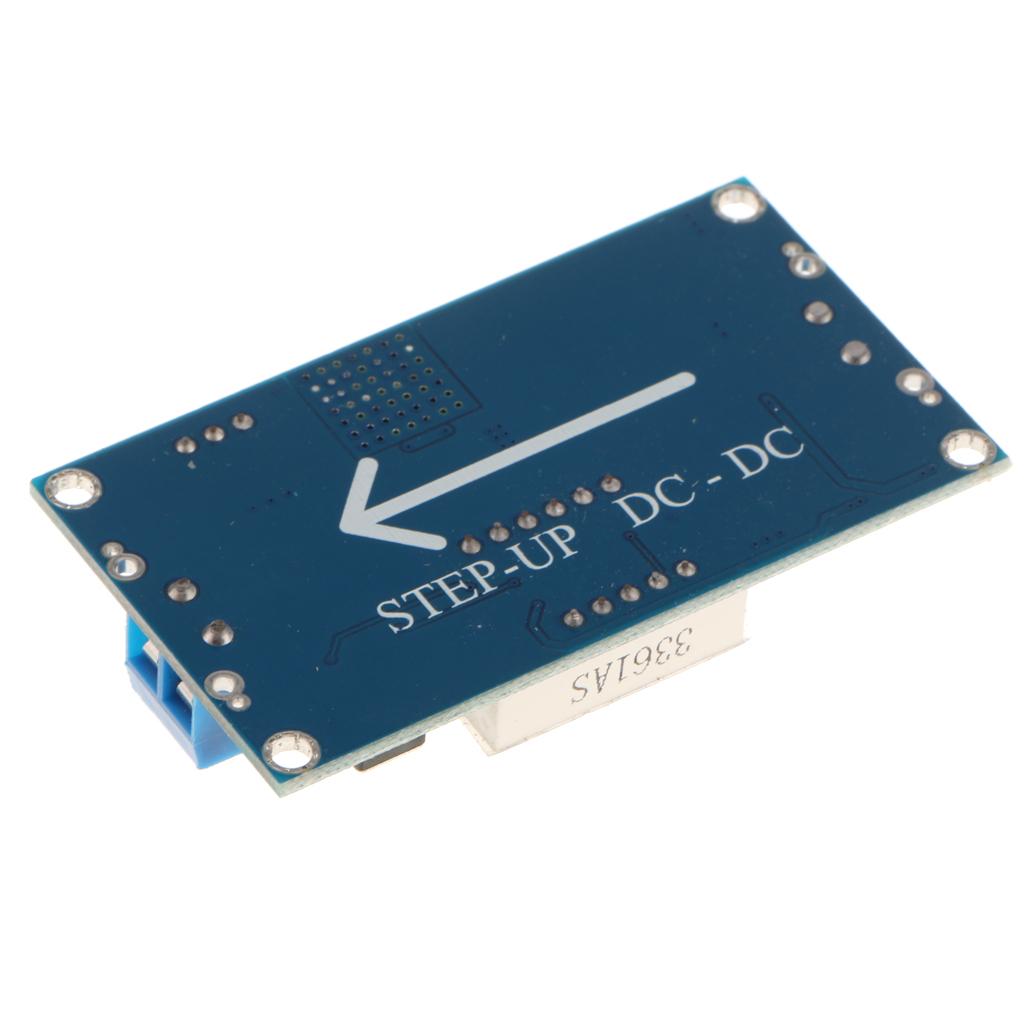

DC-DC Adjustable Step up Boost Power Converter Module XL6009 Super Over LM2577

Regular price
Rs. 718.28
Regular price
Sale price
Rs. 718.28
Earn 359 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63010659
  • Brand: SFC
  • Type: Computers/Tablets & Networking
  • Availability: In Stock
Description

Description:

The XTW6009 is a 4A high-performance boost BOOST module.
The module uses the second generation high-frequency switching technology XL6009E1 core chip performance far exceeds the LM2577 first-generation technology. The XL6009 boost module costs less and delivers superior performance, and the LM2577 module is about to be eliminated.
Wide input voltage 3V ~ 32V (5V boost work properly, but the digital tube does not work), the best working voltage range is 5 ~ 32V;
Super wide boost output voltage 5V ~ 35V;
Built-in 4A high efficiency MOSFET switch, the efficiency up to 94%; (LM2577 current is only 3A)
Ultrahigh switching frequency 400KHz, you can use a small capacity filter capacitor that can achieve very good results, smaller ripple, smaller size. (LM2577 frequency only 50KHz)
With power indicator
With voltmeter display and voltmeter self-calibration. Using a more advanced voltage microprocessor, voltmeter error ± 0.05V, range 0 ~ 35V. (Note: to ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
Touch the button to switch the measurement input or output voltage, and the indicator shows which voltage is being measured, and save the settings, even after the power is turned off.
Voltmeter can be closed, when you do not need to show the left touch button can be easily achieved.
With terminals, no iron can also be easy to use, and to keep the wire bonding point.
With overheating protection and short circuit protection

Specification:

Material: FR4
Size: 6.6 * 3.5 * 1.1CM

Package Includes:

1x XL6009 Booster Module
