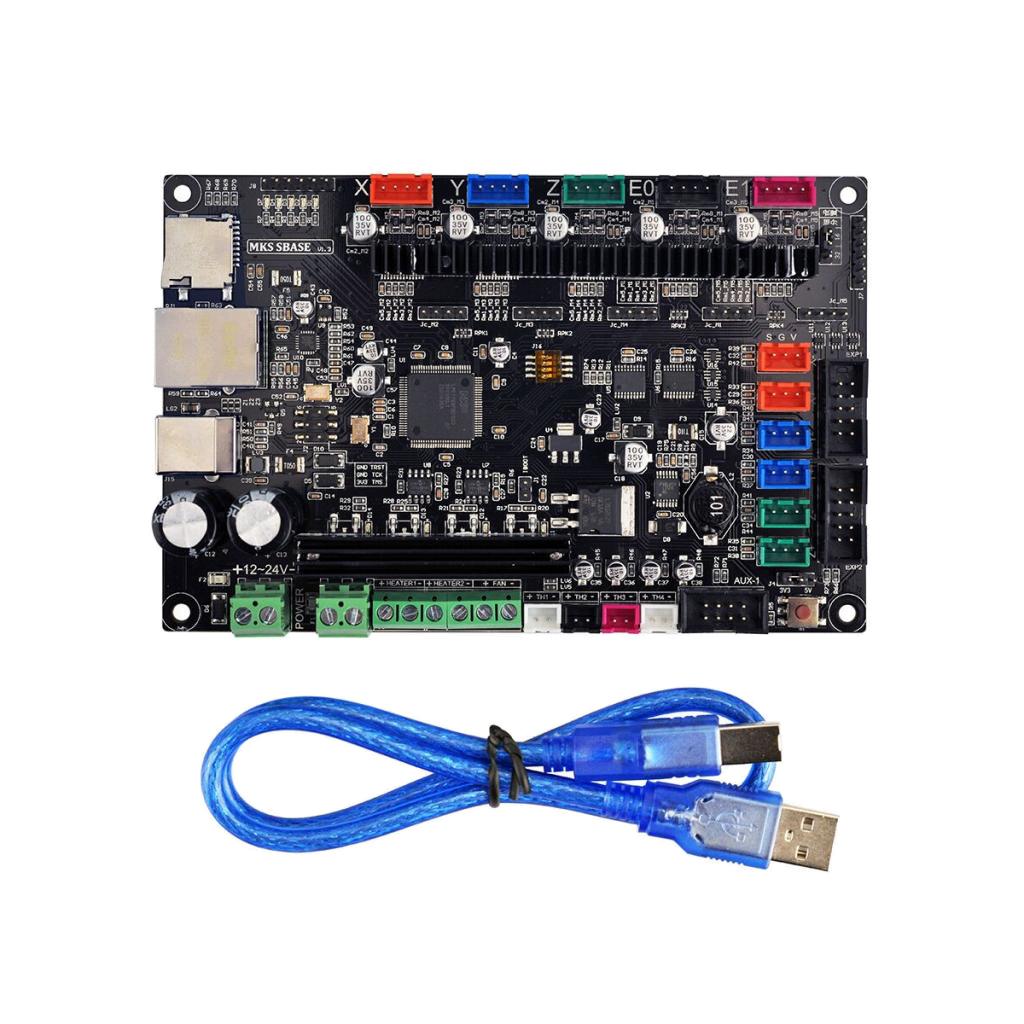

1Pcs 4layers PCB MKS SBASE V1.3 3D Printer Control Board 32bit Motherboard

Regular price
Rs. 4,273.35
Regular price
Sale price
Rs. 4,273.35
Earn 2136 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63009209
  • Brand: SFC
  • Type: Computers/Tablets & Networking
  • Availability: Out stock
Description

Description:

Using 32-bit 100M Cortex-M3 LPC 1768 master chip, performance greatly improved.
Support network function, through the network cable can be directly connected to the network, the use of the browser can achieve remote control.
Using 8825 as a motor driver to support 32 subdivision, performance far more than 4988, using SOP package, better heat dissipation.
Using a dedicated power chip to support 12V-24V power input.
Good to work with MKS TFT28 touch screen.Can be connected to 12864LCD.

Specification:

Support a high degree of modular open source firmware to facilitate the secondary development, eliminating the need to grasp the core code to worry about.
The circuit board uses high-quality 4-layer board, and specially made heat optimization.
Model: MKS sbase v1.3
Power input: 12-24V
Driver chip: DRV8825
Material: 4 layers PCB

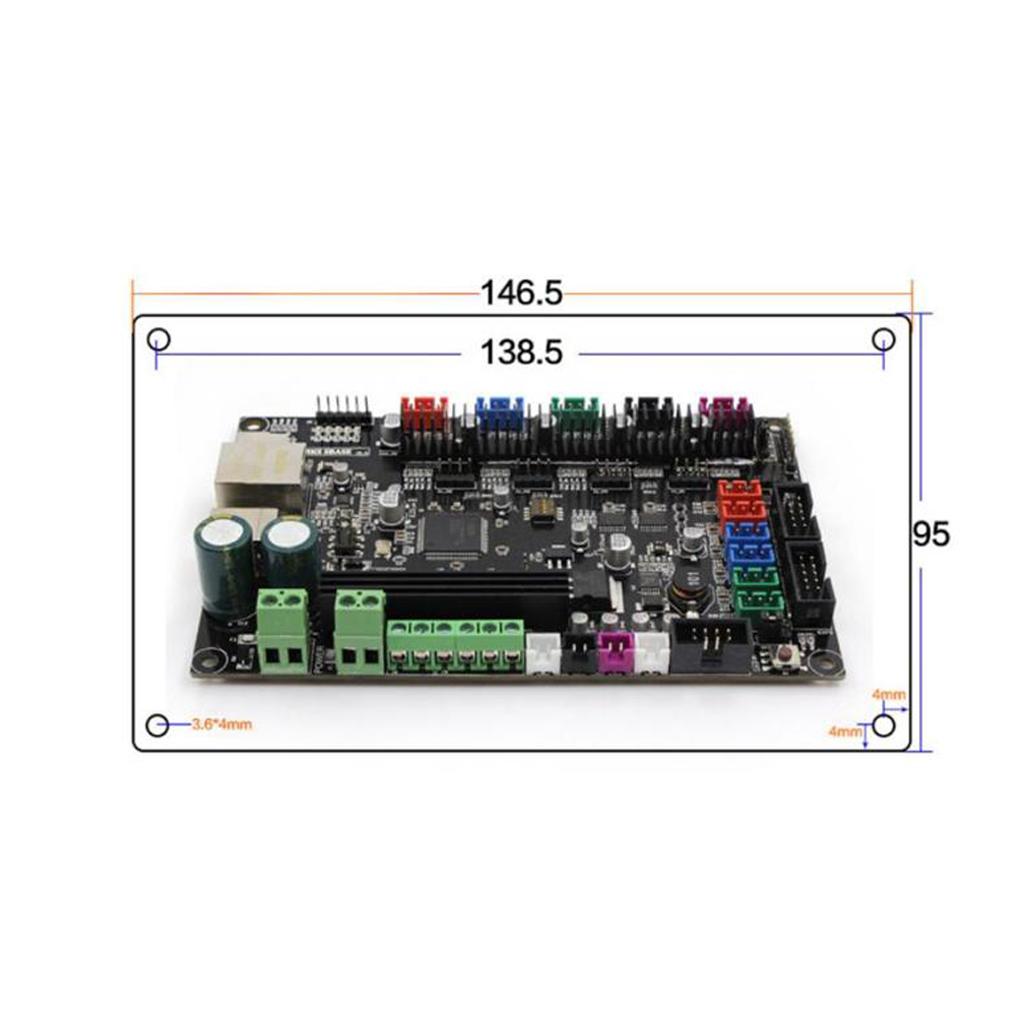

Size: 46.5x95x3mm

Package Includes:

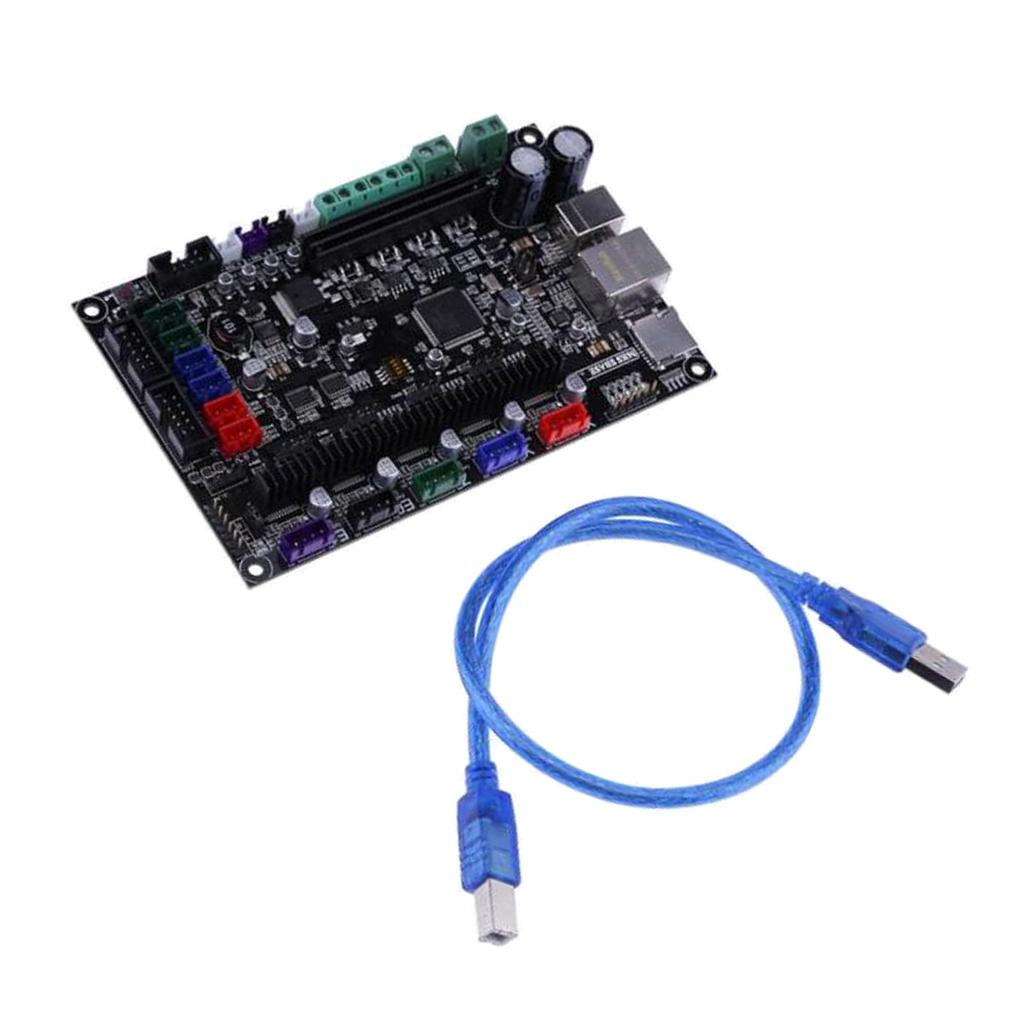

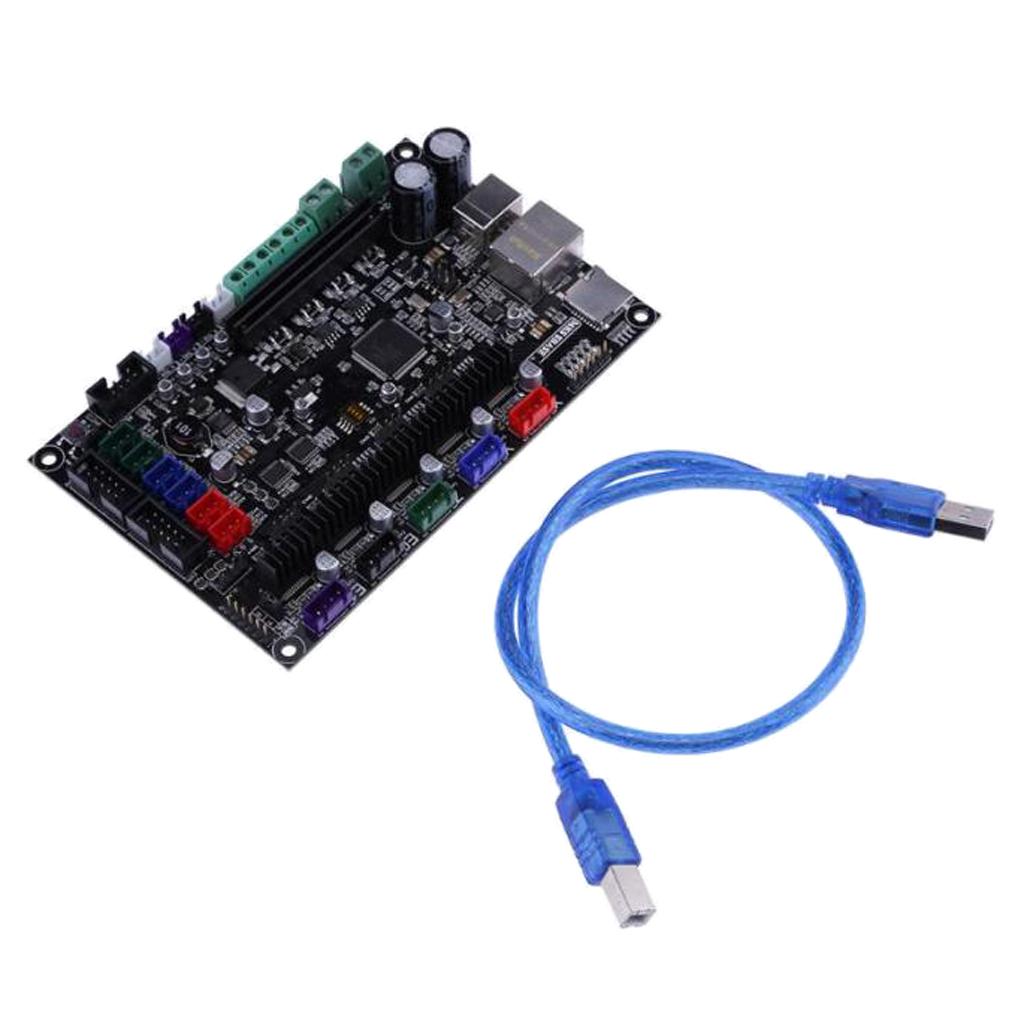

1 PiecexControl Board

1 PiecexUSB Cable


Note:

Stepper Motors with wire is not included.
MKS SBASE only support TFT series and LCD12864 display, not 2004, OLED display.
