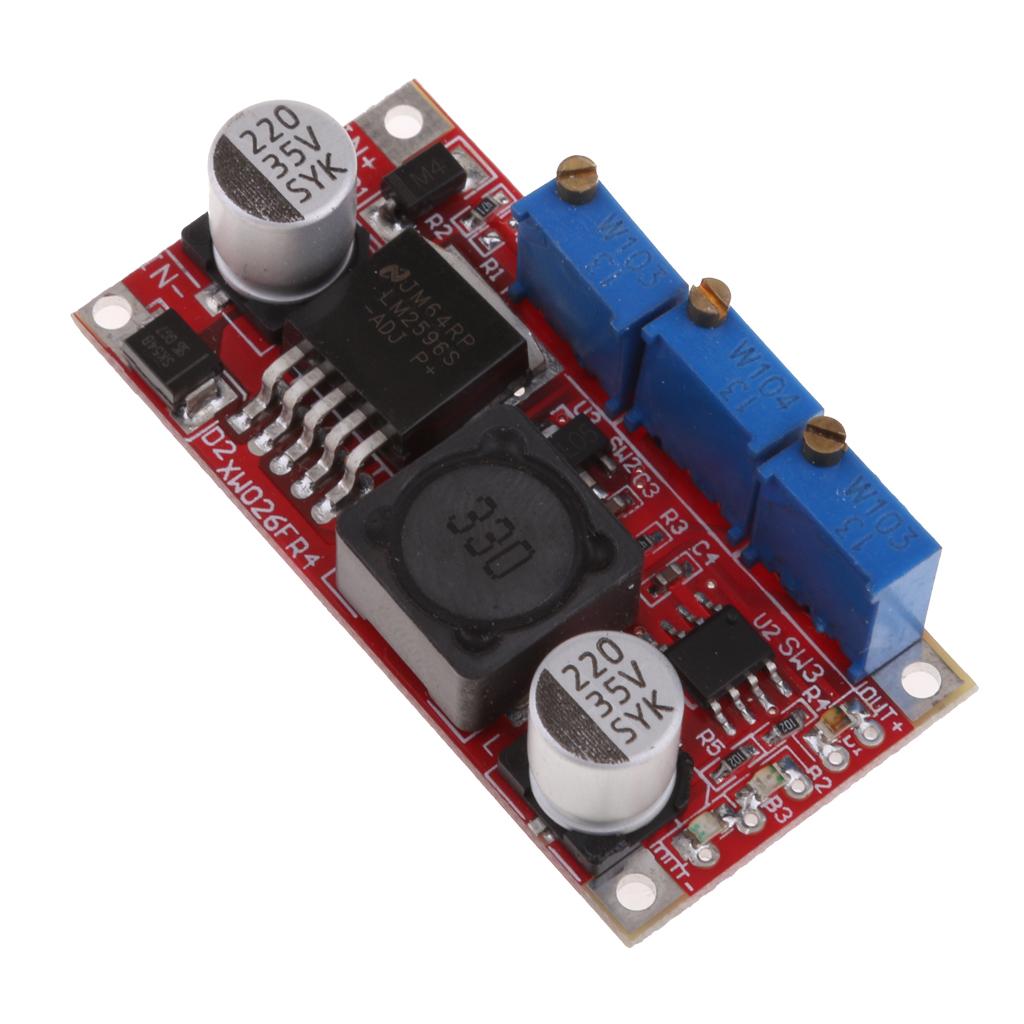

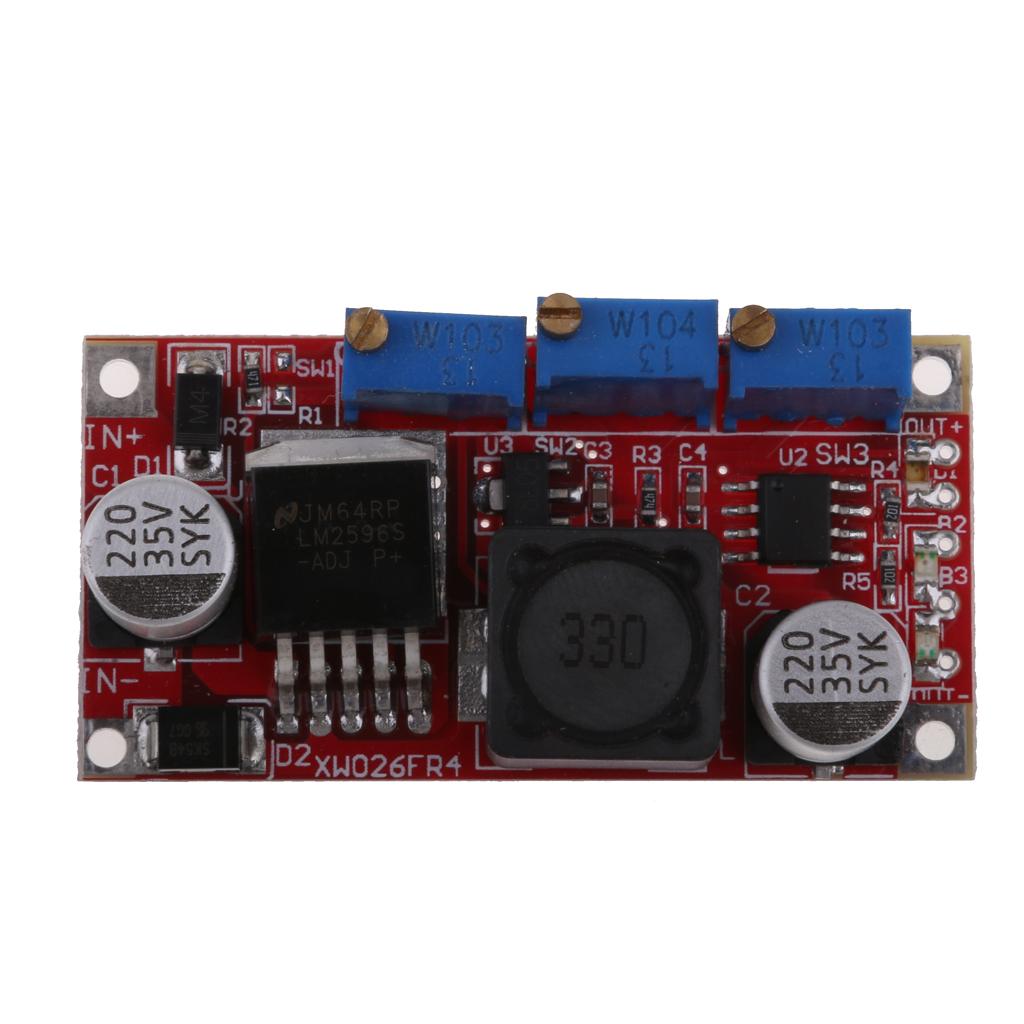

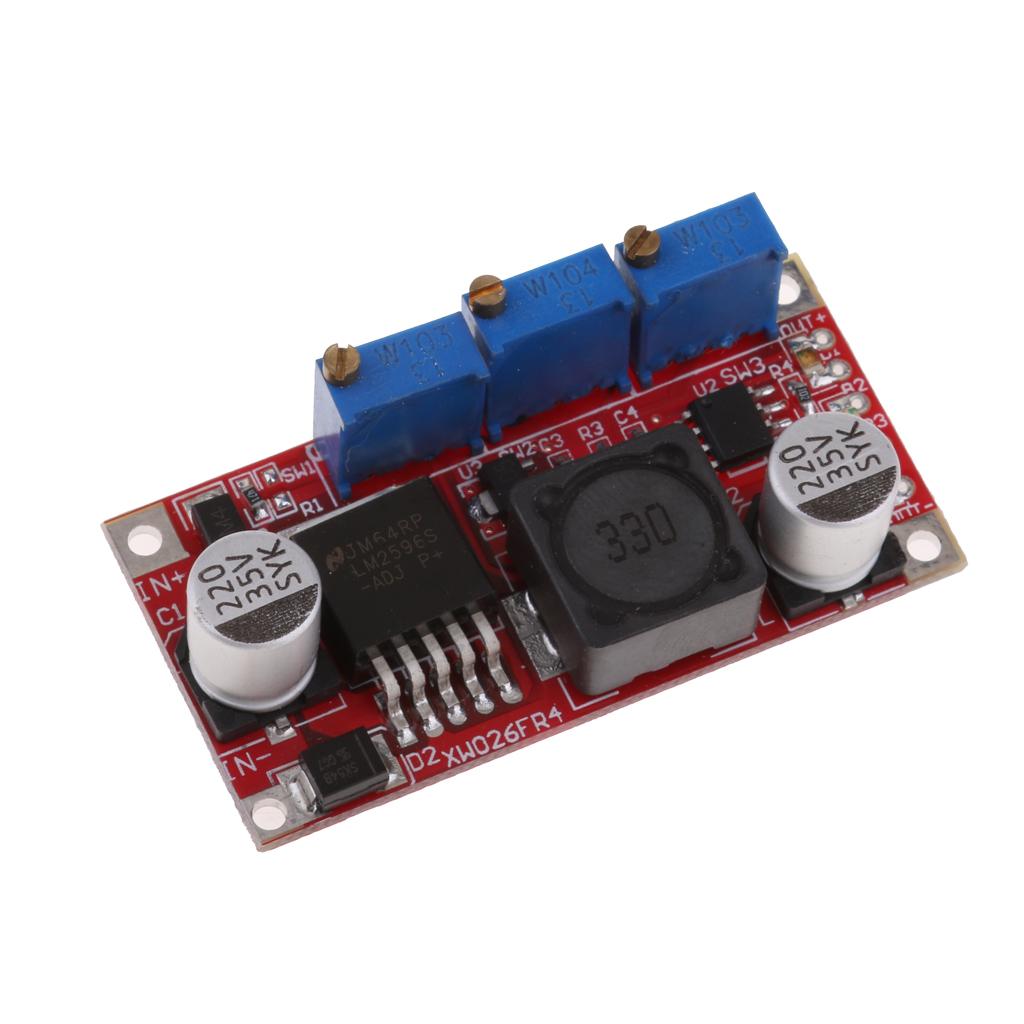

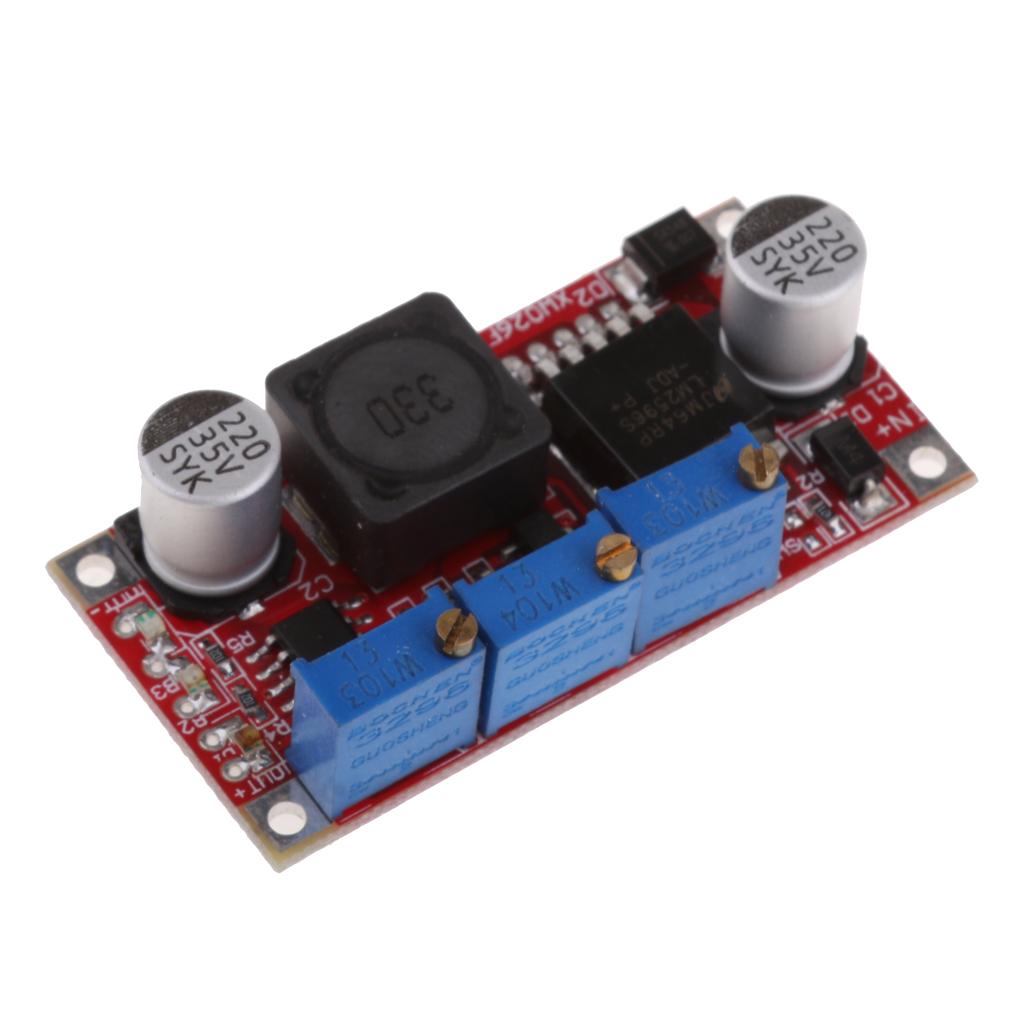

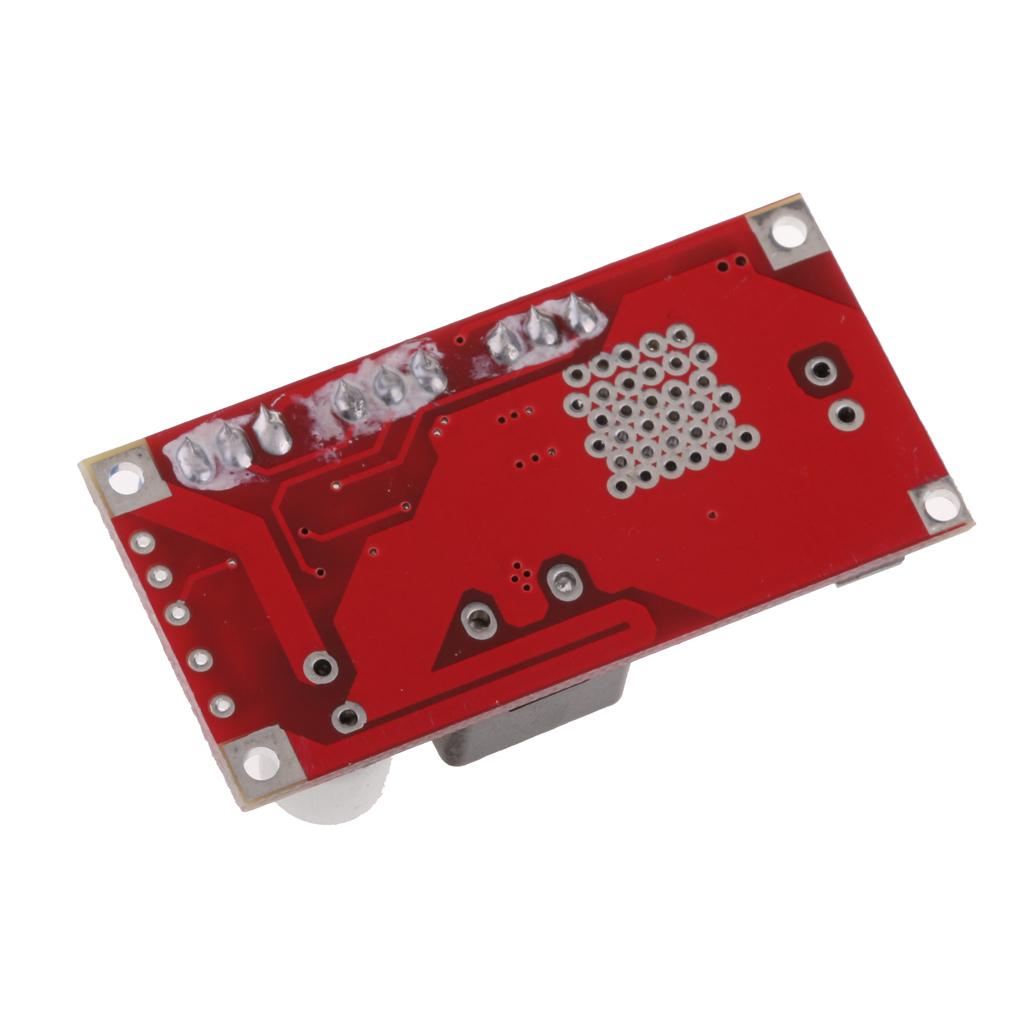

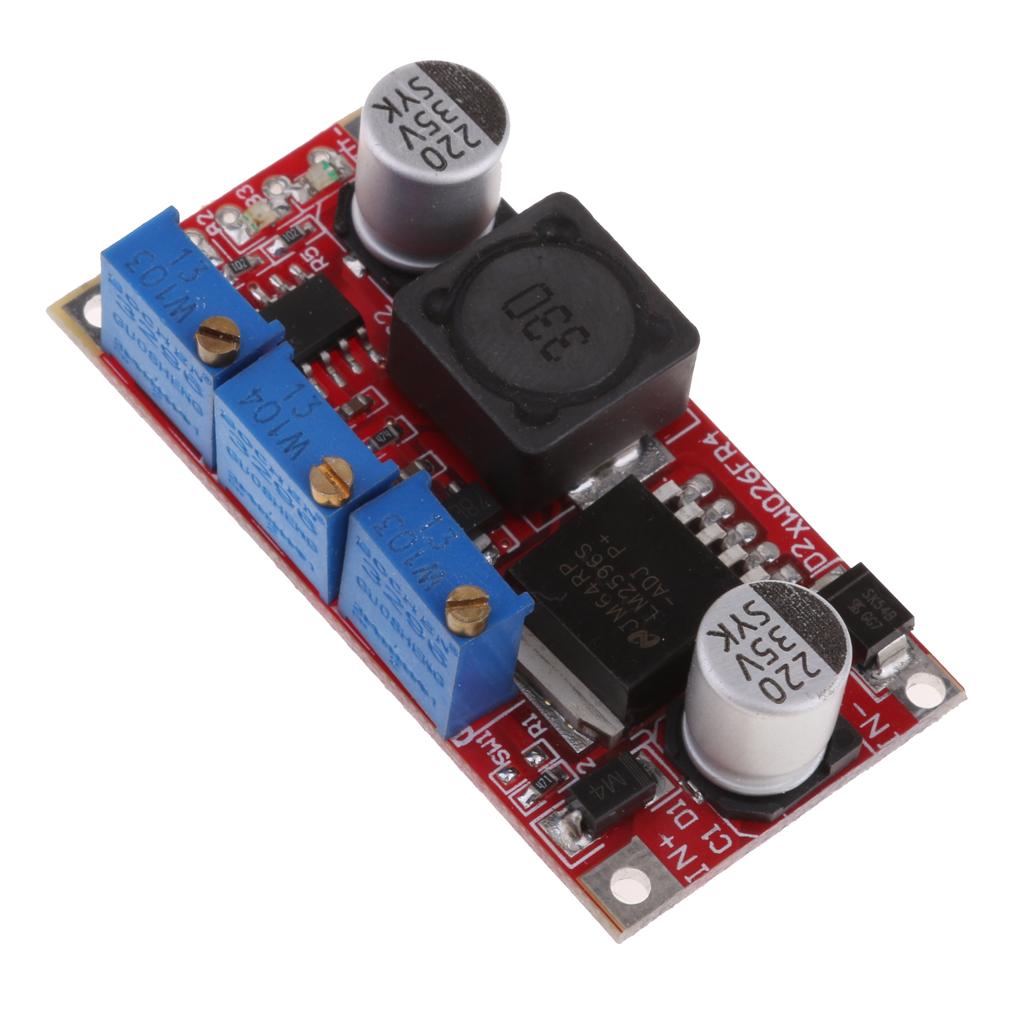

DC-DC LM2596HV Buck Converter 4.5V-60V to 3V-35V Power Module

Regular price
Rs. 470.92
Regular price
Sale price
Rs. 470.92
Earn 235 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73000998
  • Brand: SFC
  • Type: Collectibles
  • Availability: In Stock
Description

Description:

LM2596HV DC-DC power supply step-down module / high voltage input
Power supply nature: switching buck power supply, switching frequency 150KHz
Input voltage: IN+ input positive, IN- input negative, range 4.5-60V
Output voltage: OUT+ output positive, OUT-output negative, range 3-35V continuously adjustable
Output parameters: stable and safe for long-term output working current 2.5A (maximum stable output current 3A)
Conversion efficiency: 80% - 92% (the smaller the output input voltage difference, the higher the efficiency)
Working temperature: industrial grade (-40 °C to +85 °C)
Protection function: overheat protection can be self-recovery, and overcurrent protection
Output ripple: maximum 15mV when outputting 12V/5V/2A, maximum 40mV when outputting 24V/2A
The lowest differential pressure: 1.5V (because it is a step-down module, in order to ensure the output is stable, please ensure that the input is at least 1.5V higher than the output)

Specification:

Module Size: 4.8 x 2.9 x 3.1cm; screw hole diameter 3mm

Package Includes:

1 Piece Power Supply Step Down Module
